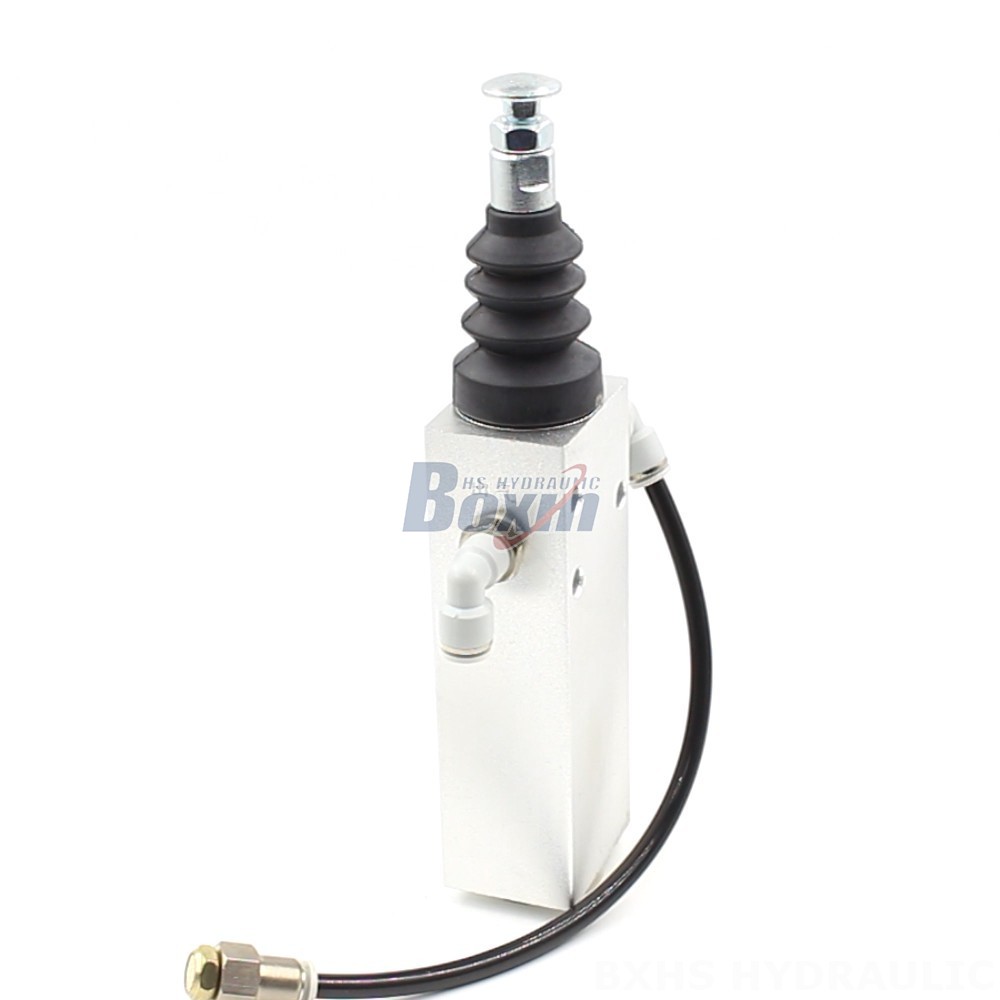

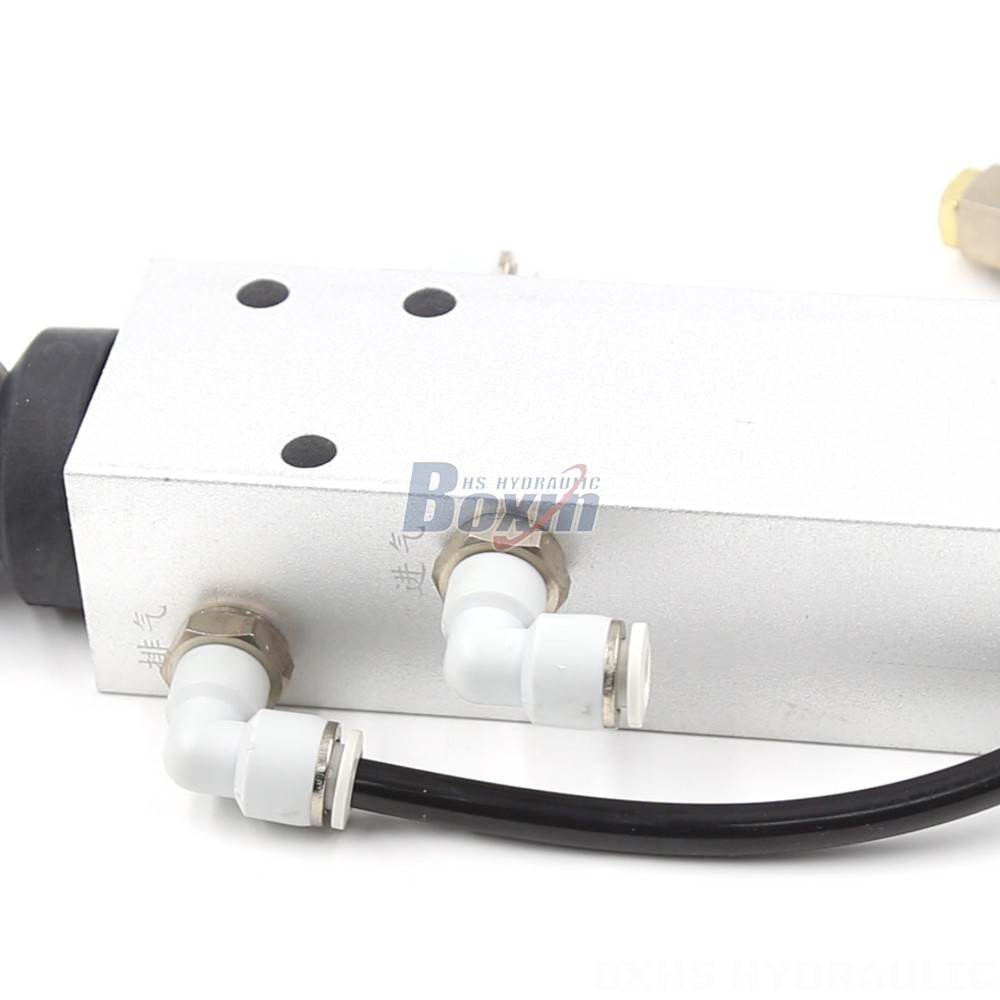

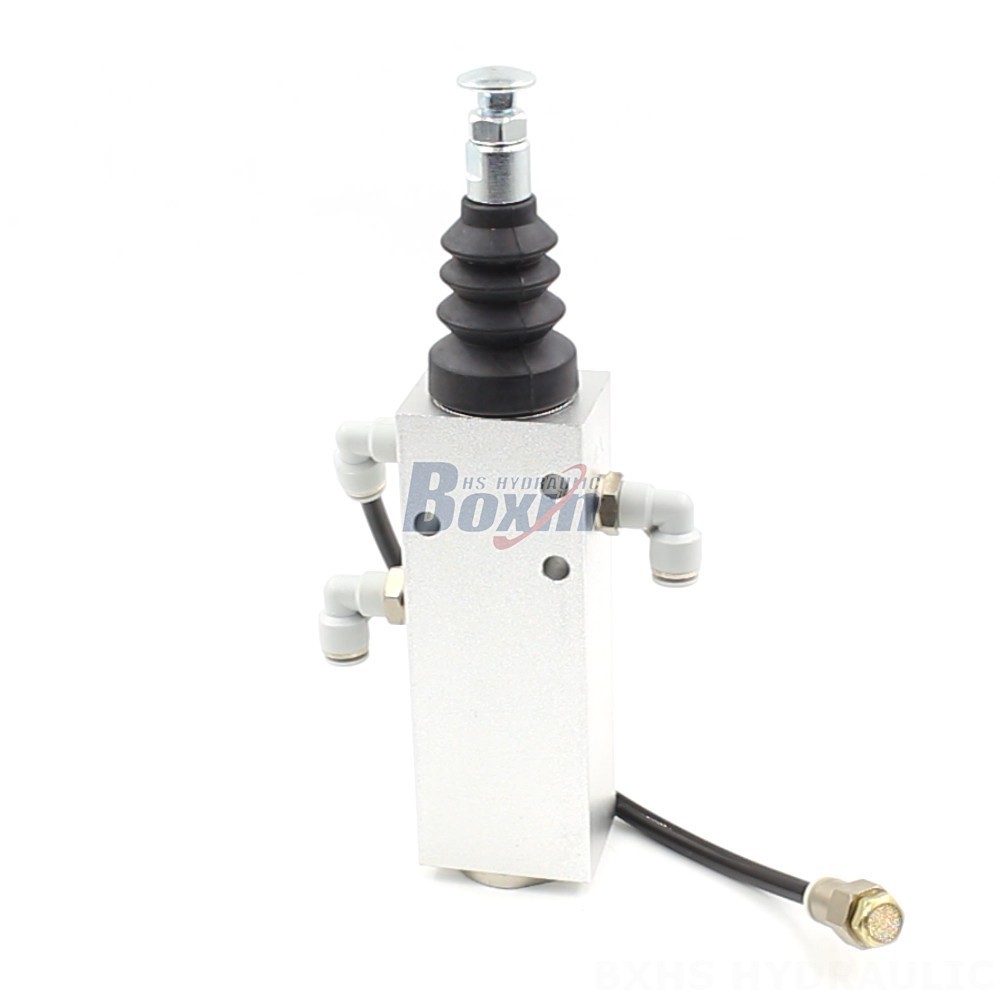

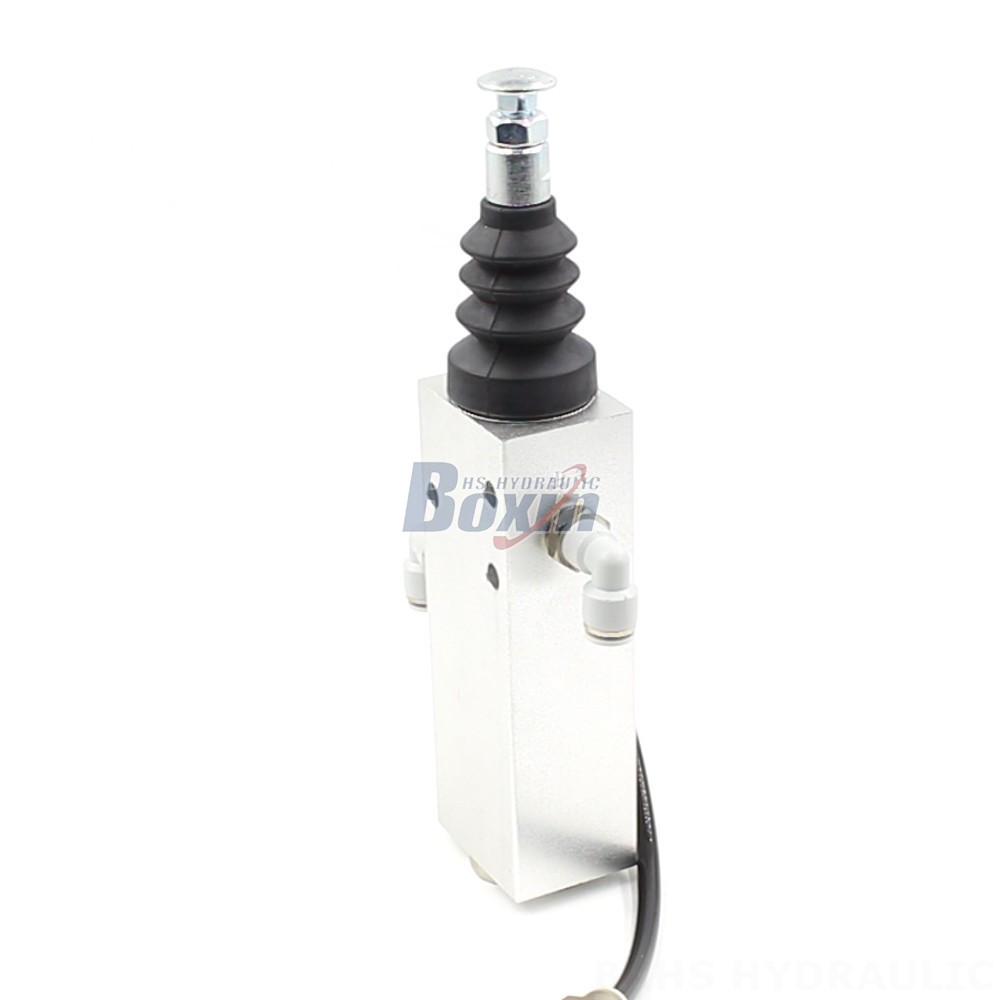

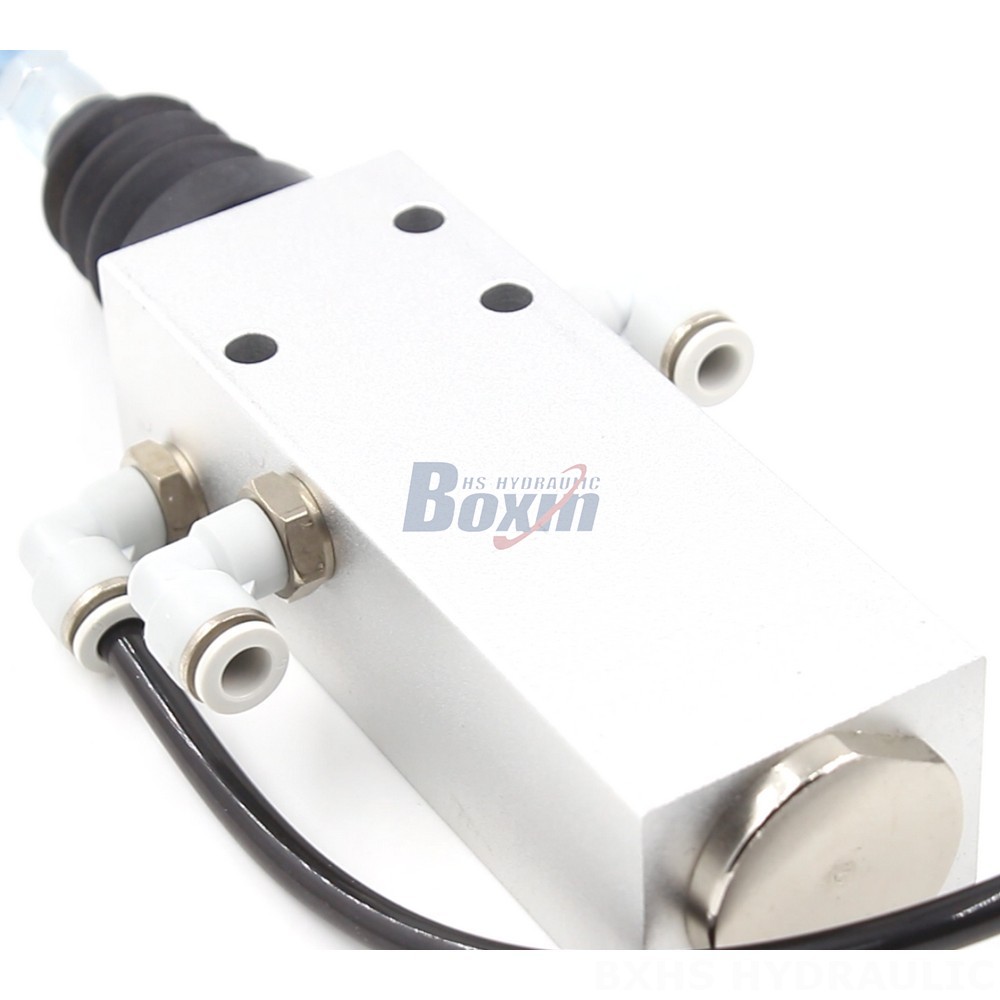

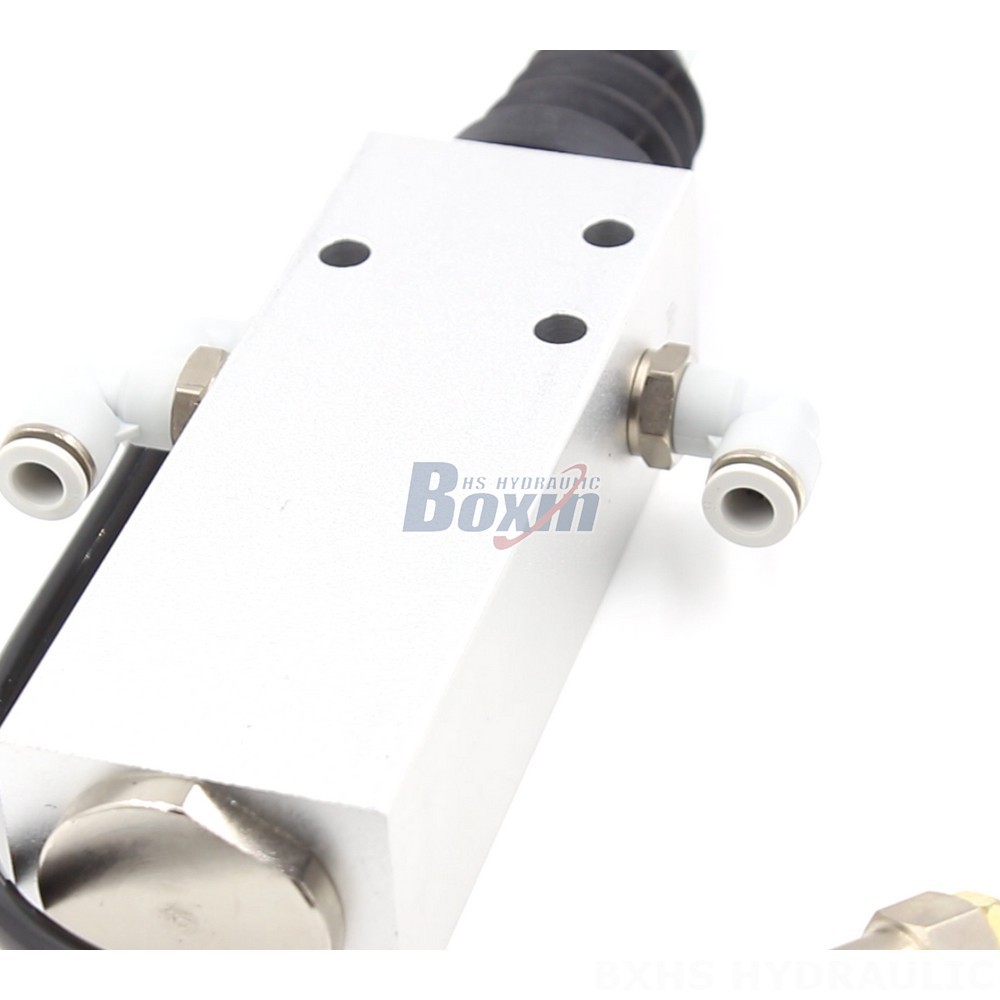

The XQF23 Series 1-Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for log splitters and other demanding applications. It features pneumatic control, 200 bar (2900 psi) maximum pressure, and a wide operating viscosity range. This durable valve is suitable for use in material handling, construction, agriculture, and industrial vehicles.
| Série XQF Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Pneumático |
| Carrétel | 1 Carretel |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 50 L/min (13,2 US gpm) |
| Pressão Máxima | 200 bar (2900 psi) |
| Porta de Entrada | G1/4 |
| Porta de Saída | G1/4 |
| Tamanho da Porta | G1/4 |
This 1-Spool Monoblock Directional Valve is part of the XQF23 Series and is specifically designed for use in log splitters. It features pneumatic control for easy operation. The valve is built with a robust monoblock structure and is capable of handling high pressures up to 200 bar (2900 psi). Its wide operating viscosity range (12 - 400 mm²/s) ensures reliable performance in various environments. This valve is designed for demanding applications in the fields of material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a wide range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, and more.
