Produção e Entrega
Prazo de produção de 15 a 30 dias
1008 Visualizações estão procurando por este produto

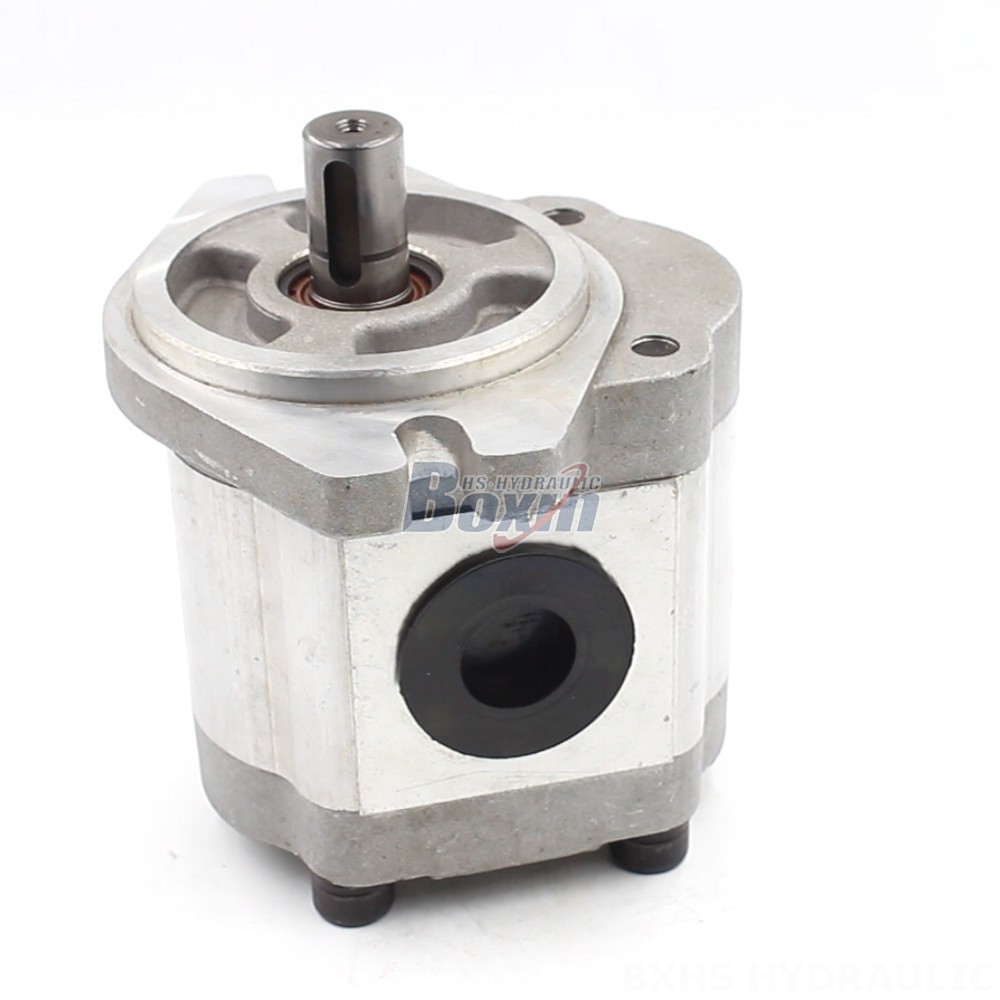

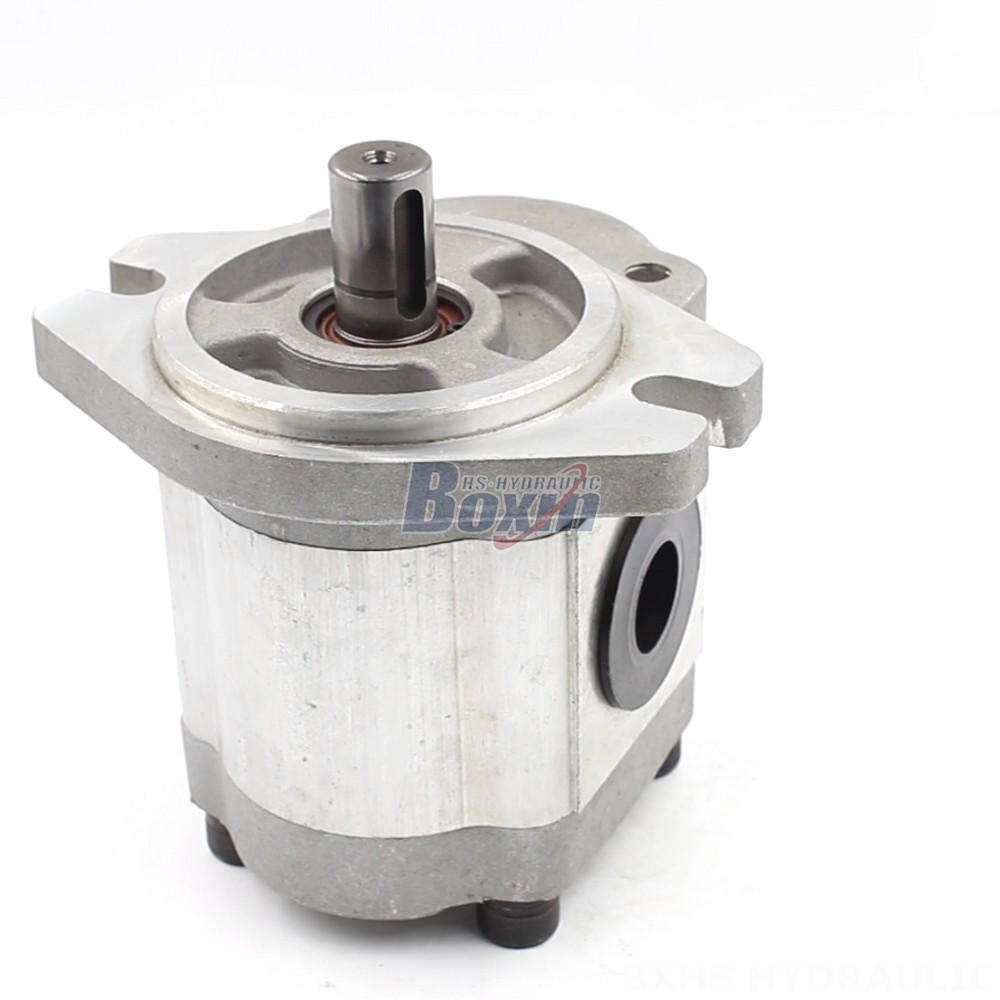

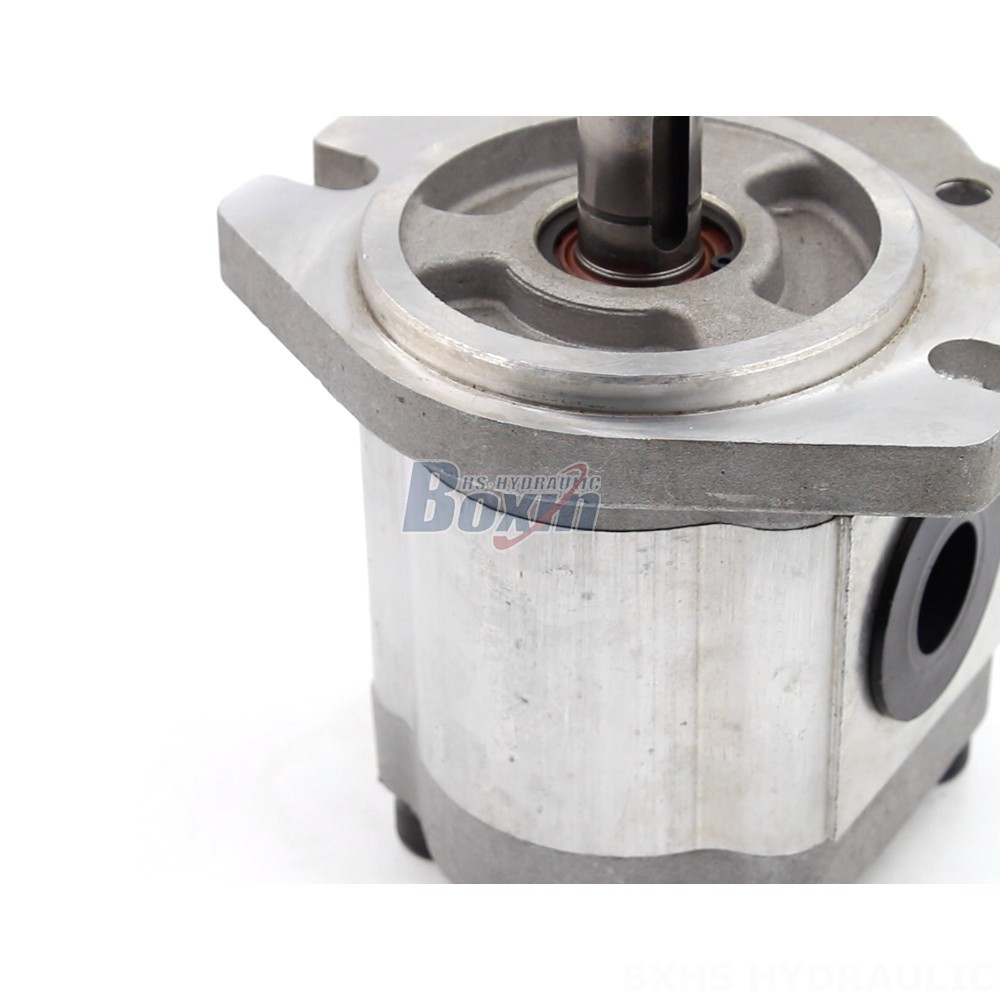

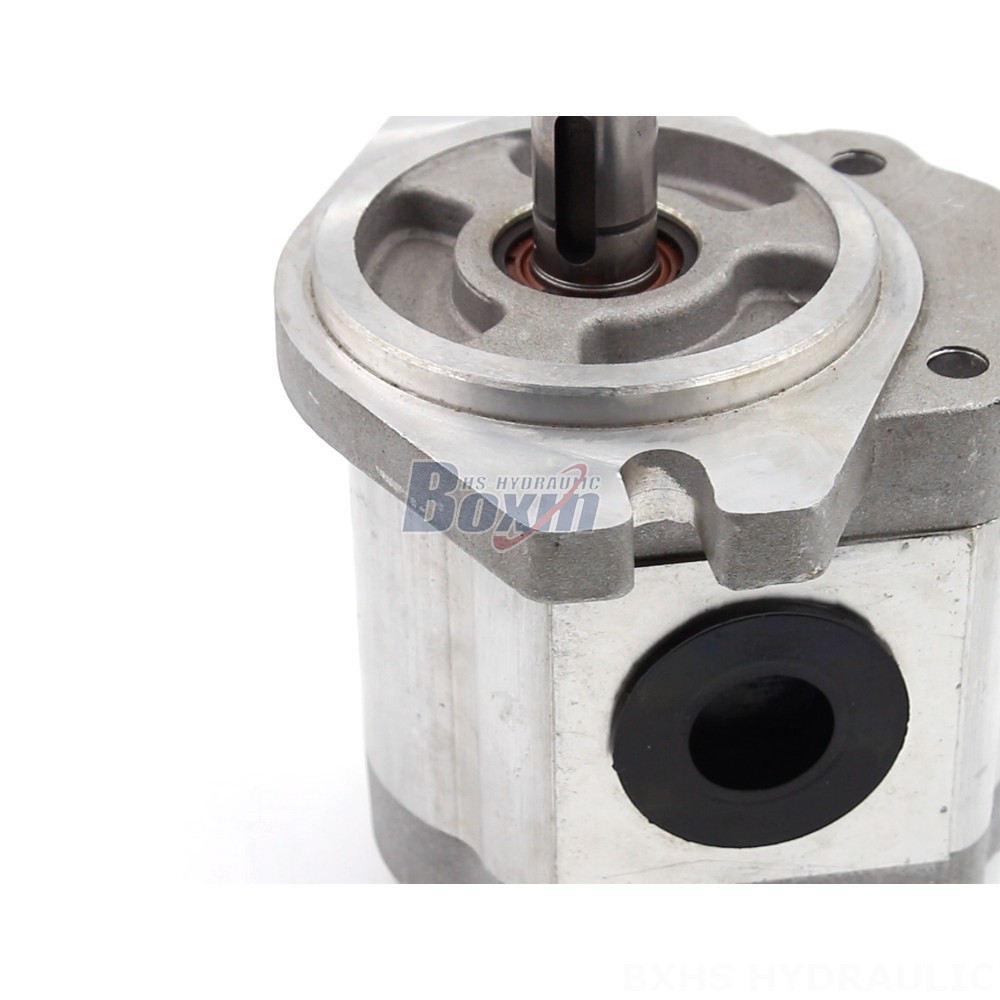

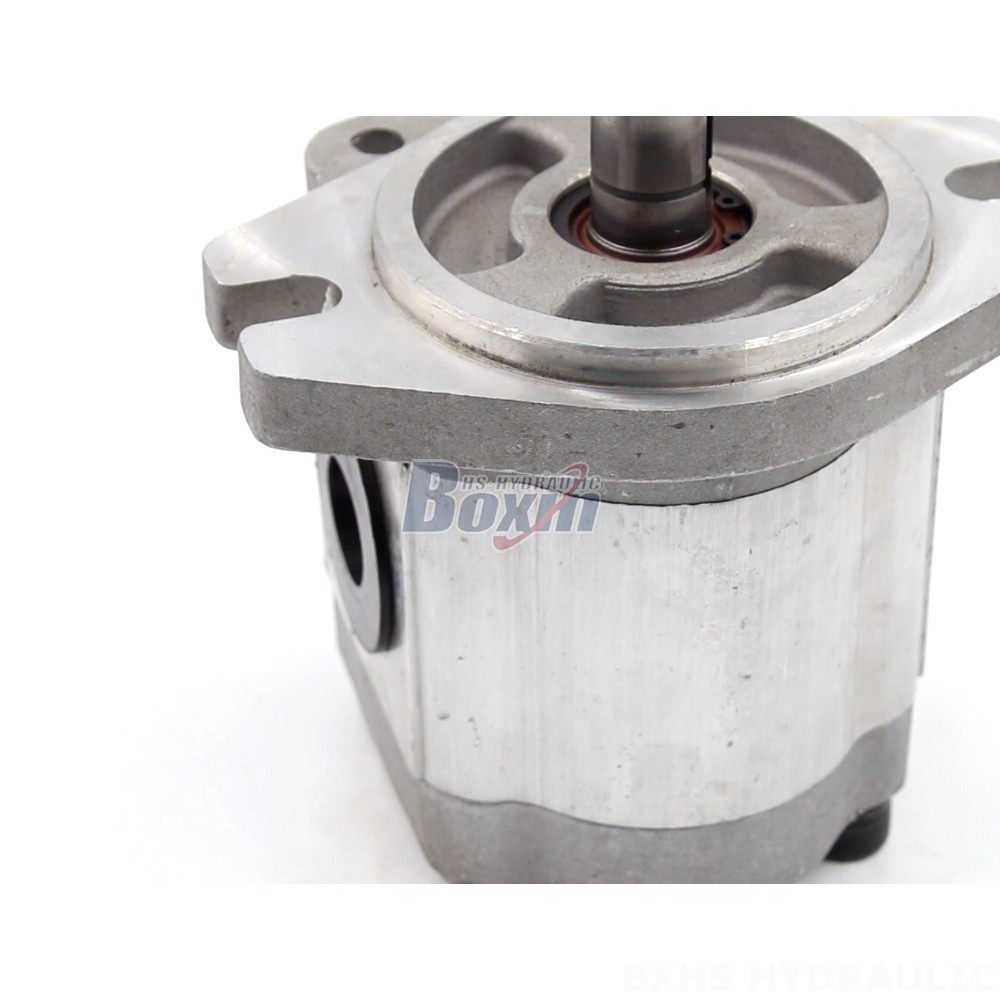

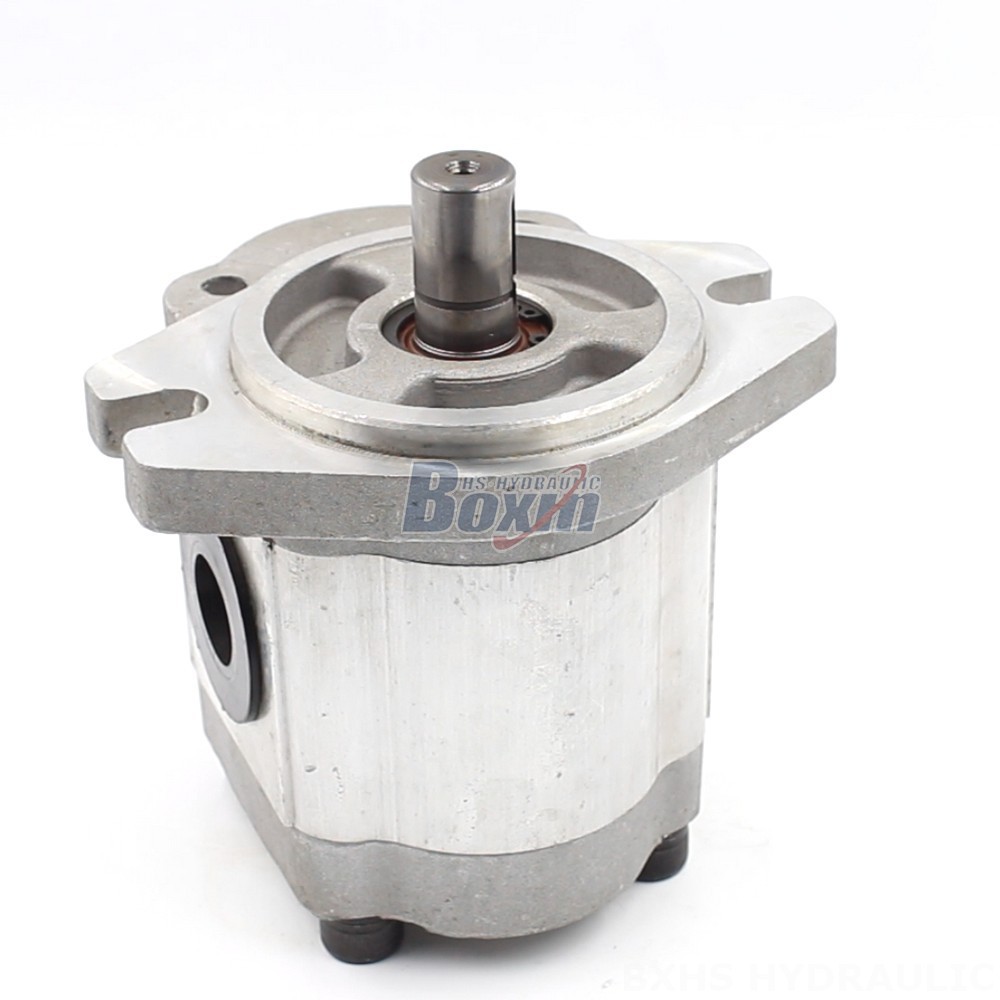

This 14 cc/rev Hydraulic Gear Pump is a high-performance, reliable pump designed for use in a variety of construction, material handling, and industrial applications. It features a compact design, high pressure capability, and durable construction.
| Série CBHS-FL3 Bomba de engrenagem hidráulica Parâmetros | |
|---|---|
| Deslocamento | 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Pressão Nominal | 20 MPa (2900 psi) |
| Pressão Máxima | 25 MPa (3625 psi) |
| Velocidade Nominal | 2000 rpm |
| Velocidade Máxima | 3000 rpm |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Material | Alumínio |
| Estrutura | Bomba de engrenagem externa |
| Versão da flange | Flange oval A |
| Tipo de veio | H: Chaveta retangular, X: Chaveta involuta, P: Chave Simples |
Our 14 cc/rev Hydraulic Gear Pump is a robust and reliable solution for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. Featuring a 10 cc/rev displacement, it boasts a rated pressure of 20 MPa (2900 psi) and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. Available in both left (counter-clockwise) and right (clockwise) rotations, this internal gear pump is constructed with durable aluminium and features an A-Oval Flange with a Plain Key shaft. As part of the CBHS-FL3 Series, this pump is compatible with a variety of models, including forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors. We offer wholesale, OEM, private label, and custom manufacturing options to meet your specific needs. Contact us today to discuss your requirements and find the perfect solution for your hydraulic system.
