2 Spool Directional Control Valve QSF32 Series

Método de Controle:Proporcional Sensível à Carga

Carrétel:2 Carreteis

Fluxo Nominal:250 L/min (66 US gpm)

Pressão Máxima:230 bar (3300 psi)

Porta de Entrada:M36×2

Porta de Saída:M36×2

Tamanho da Porta:M18×1.5

Marca:BXHS

Tipo de produto:Válvula para Caminhão Varredor

Série do produto:Série QSF32 Válvula para Caminhão Varredor

Packagingsize:27*27*20

Grossweight:35.00 kg

Disponibilidade: Em estoque

108 Visualizações estão procurando por este produto

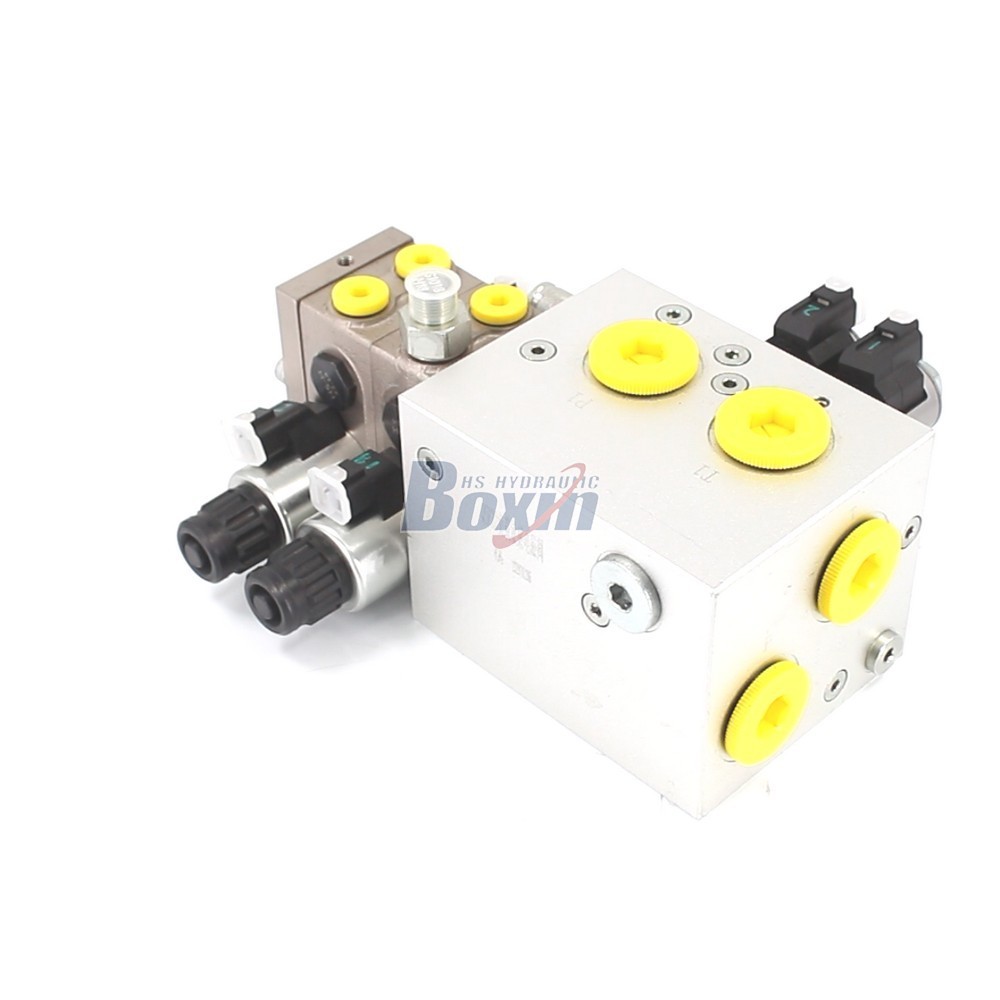

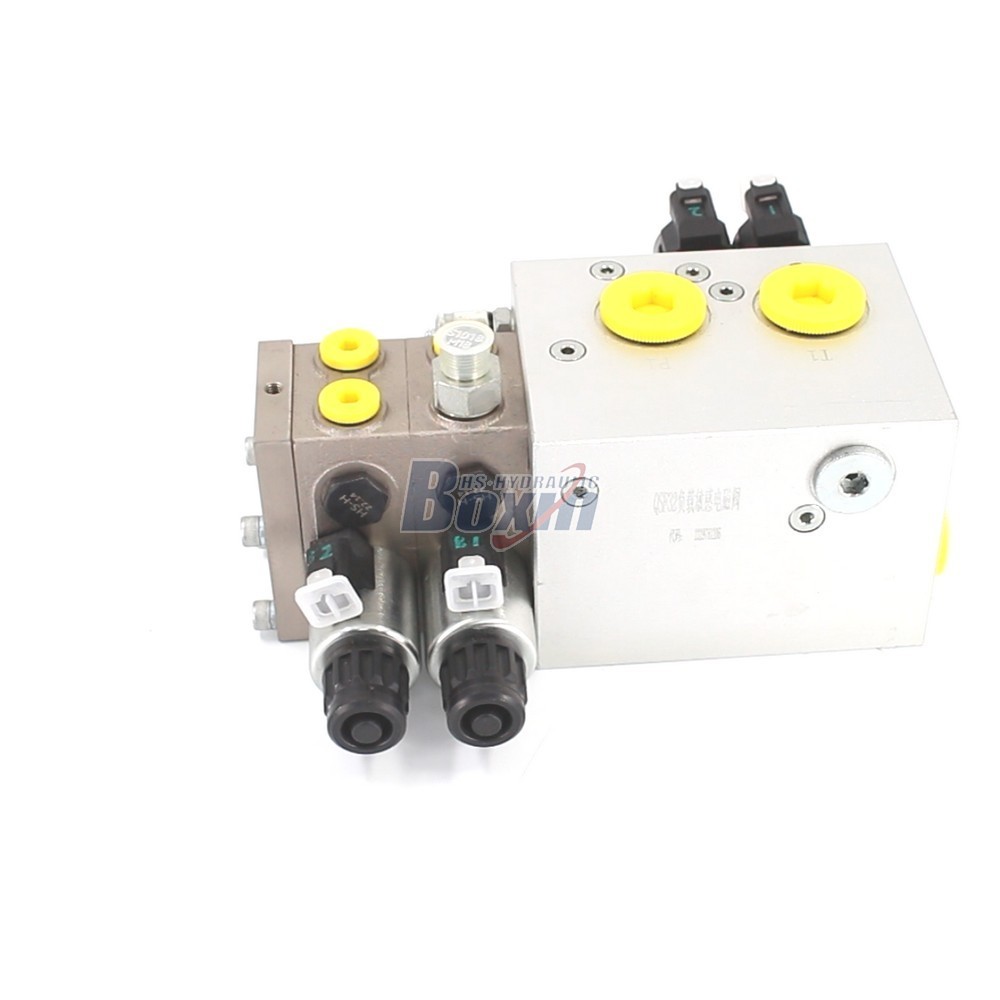

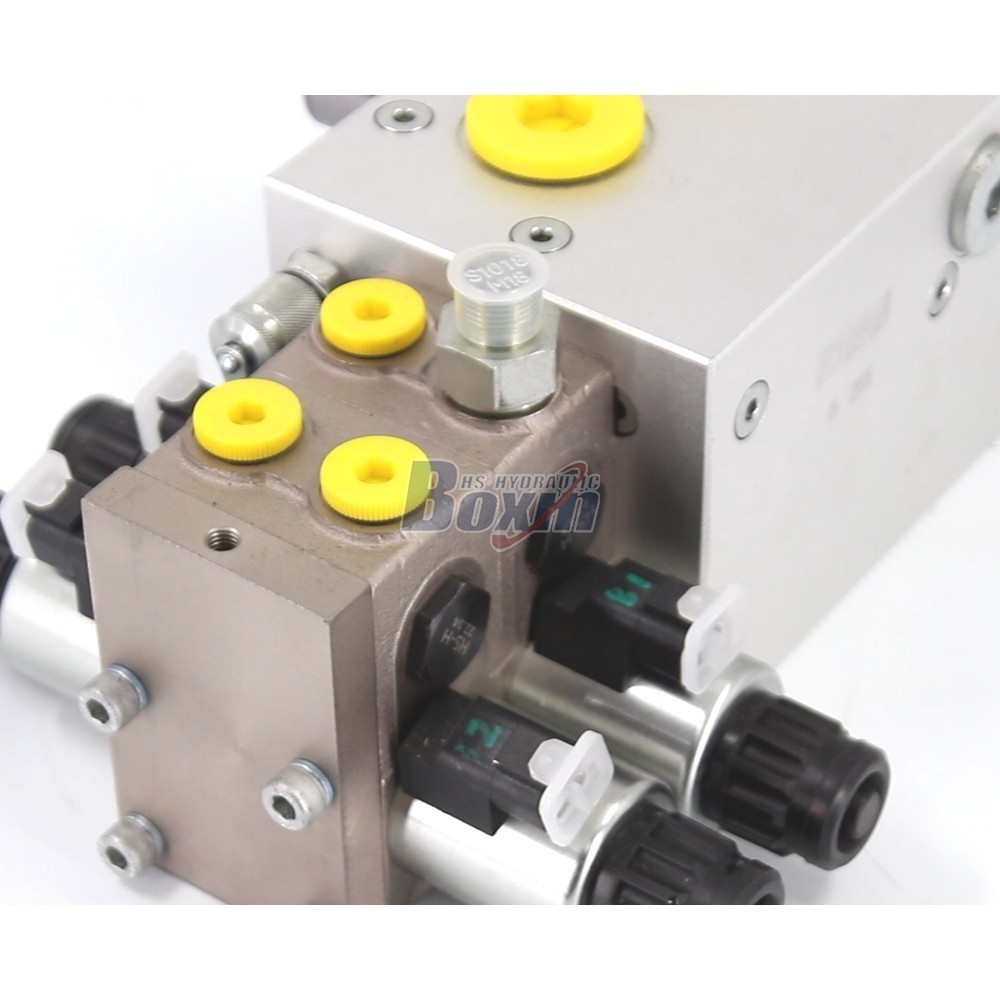

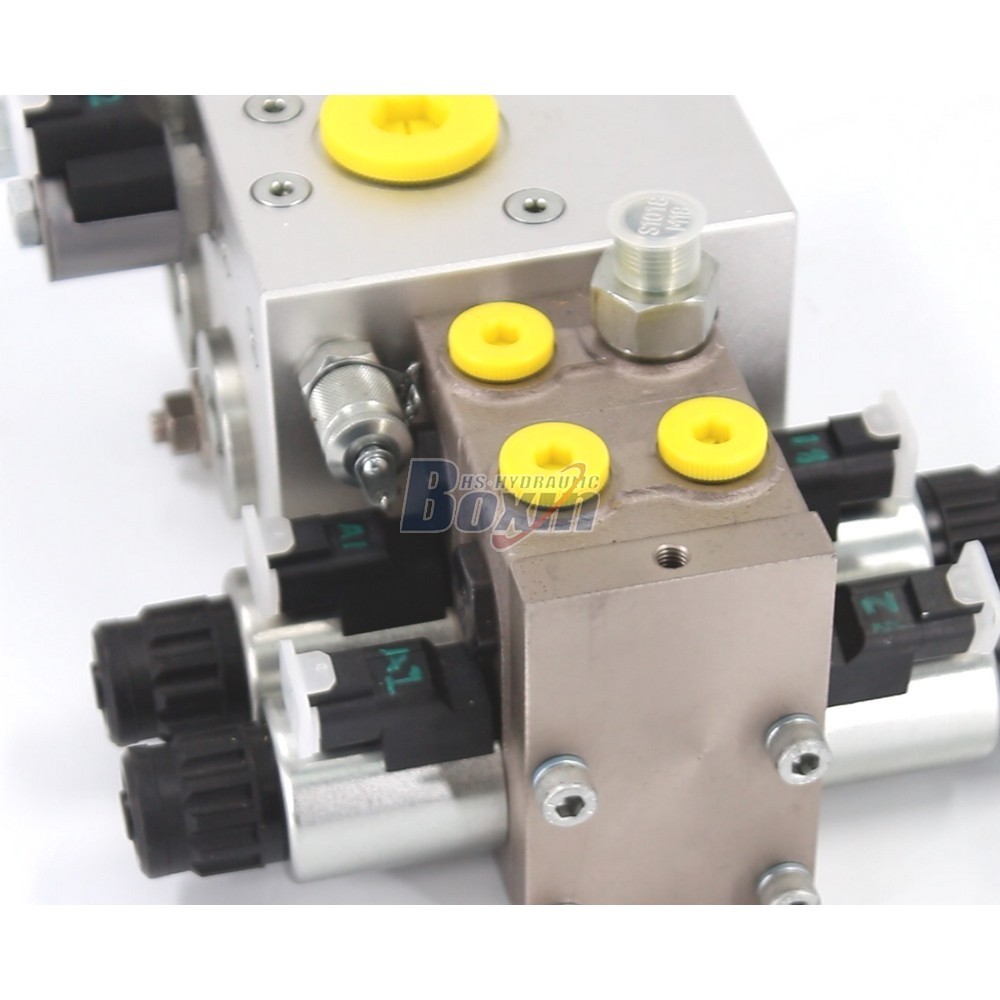

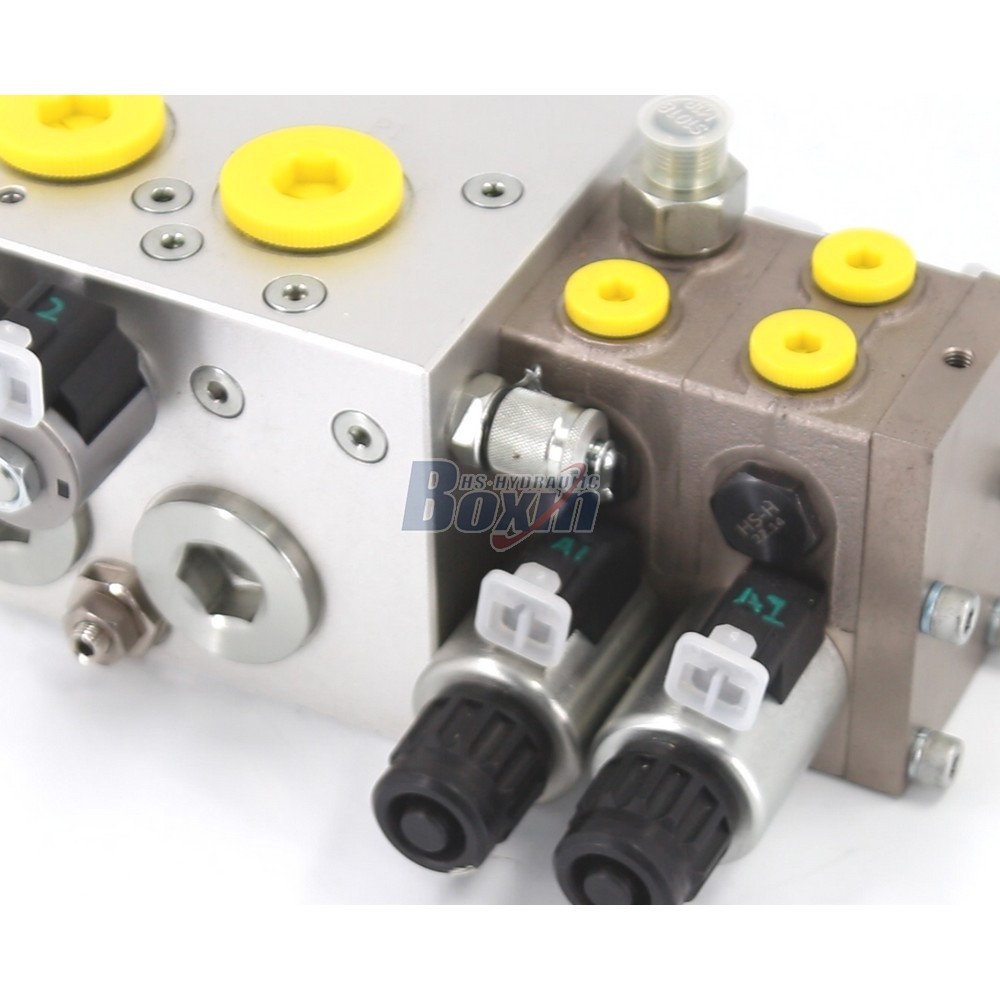

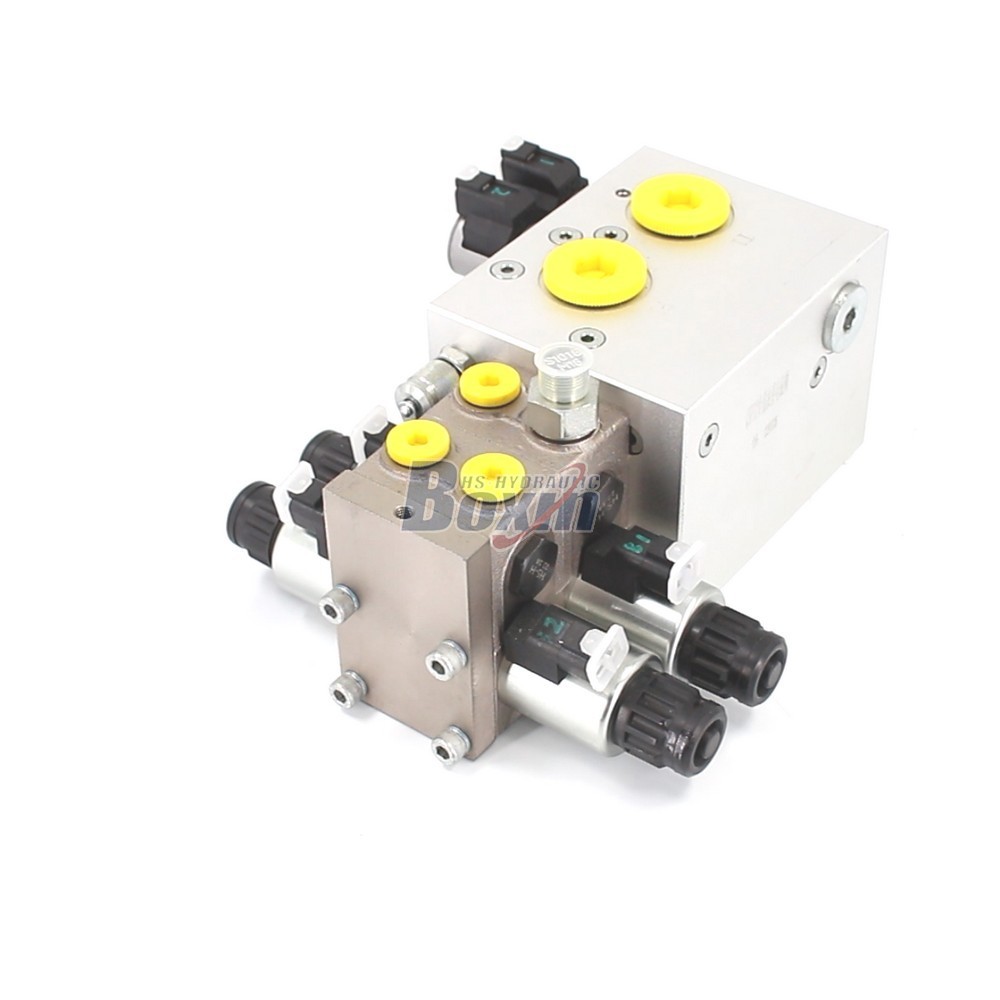

2 Spool Directional Control Valve QSF32 Series

2 Spool Directional Control Valve QSF32 Series

2 Spool Directional Control Valve QSF32 Series drawing image

The QSF32 Series is a high-performance 2-spool load-sensing proportional directional control valve designed for heavy-duty applications. It offers a rated flow of 250 L/min and a maximum pressure of 230 bar, providing precise control for construction, agricultural, and material handling equipment.

Série QSF32 Válvula para Caminhão Varredor Parâmetros
Método de Controle Solenoide, Proporcional Sensível à Carga
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula seccional
Secção 1 secção, 2 secções, 3 secções
Intervalo de viscosidade operacional 12 - 400 mm²/s (12 cSt a 400 cSt)
Fluxo Nominal 250 L/min (66 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G1, SAE 16, 1 NPT, M36×2
Porta de Saída G1, SAE 16, 1 NPT, M36×2
Tamanho da Porta G1, SAE 16, 1 NPT, M36×2

As a professional hydraulic manufacturer, we specialize in the production of the QSF32 Series 2-spool load-sensing directional control valves. Engineered for efficiency and durability, this series is compatible with wheel loaders, excavators, tractors, and telehandlers, ensuring seamless operation in demanding environments. We offer comprehensive global manufacturing services, including OEM, ODM, and private labeling, tailored to your specific mechanical requirements. Whether you require customized flow configurations or bulk wholesale orders, our factory-direct supply chain guarantees reliable quality and competitive pricing. We are actively seeking long-term partnerships with international distributors, wholesalers, and professional trade companies to expand our reach in the global market. Contact us today for bespoke hydraulic solutions, factory wholesale inquiries, and flexible manufacturing collaborations.
