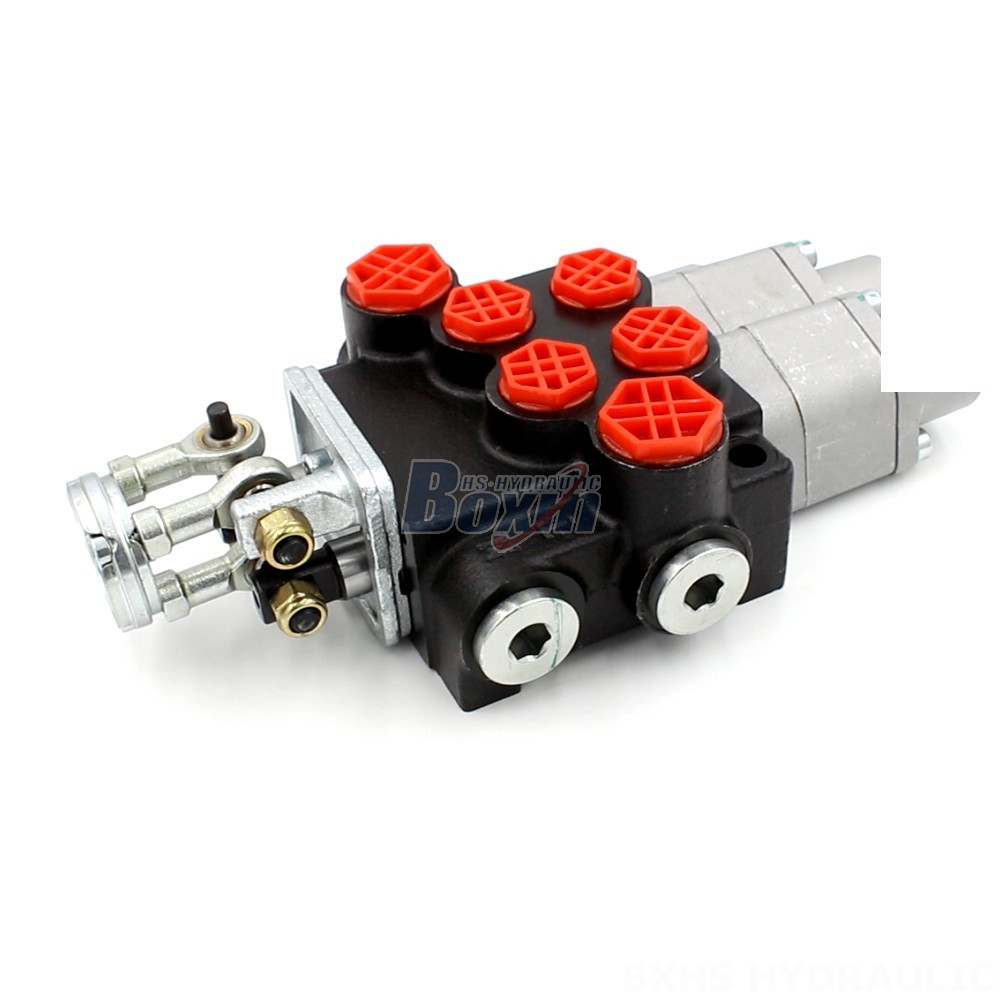

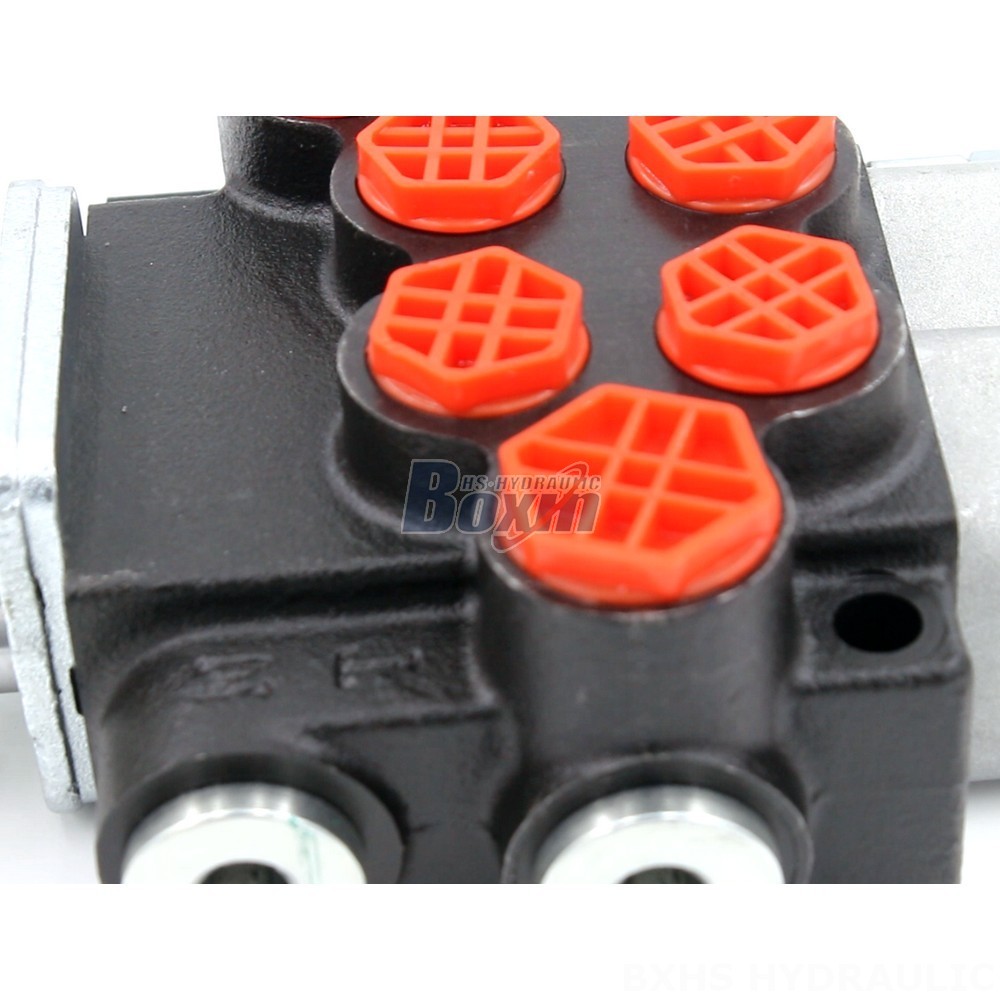

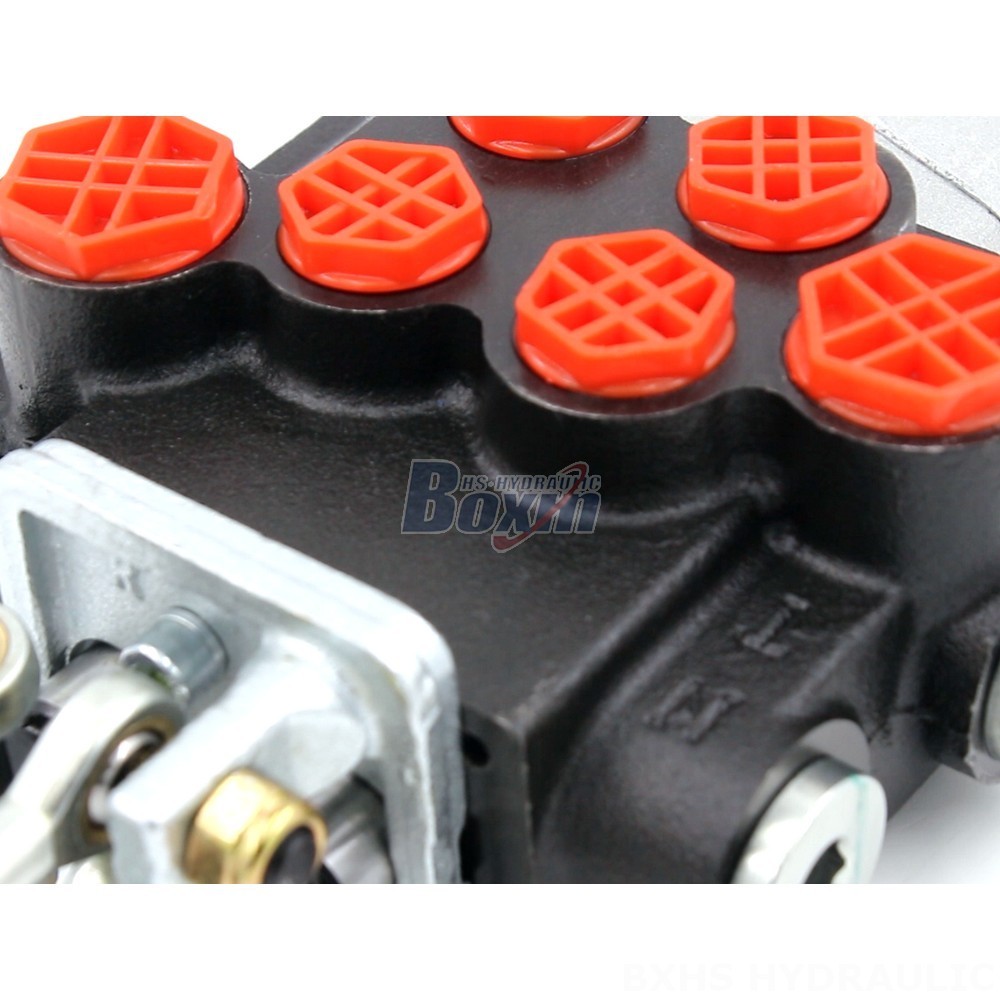

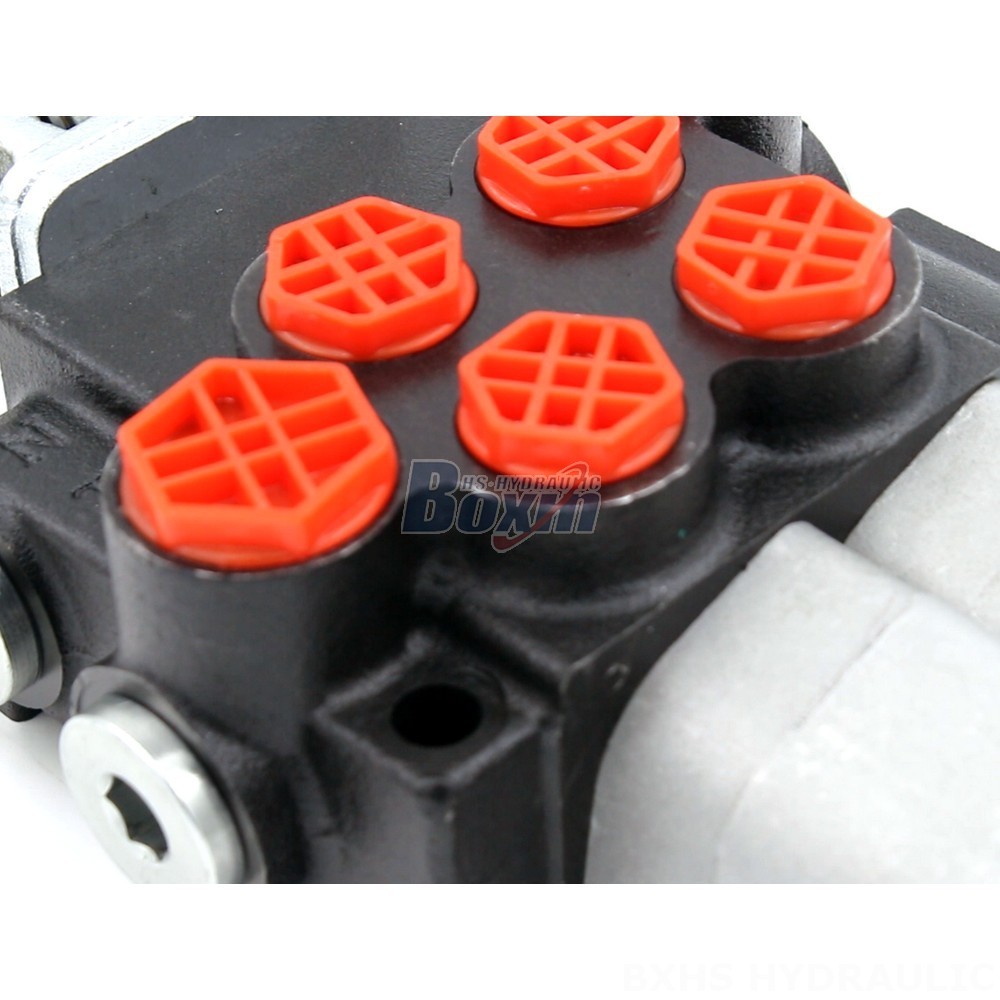

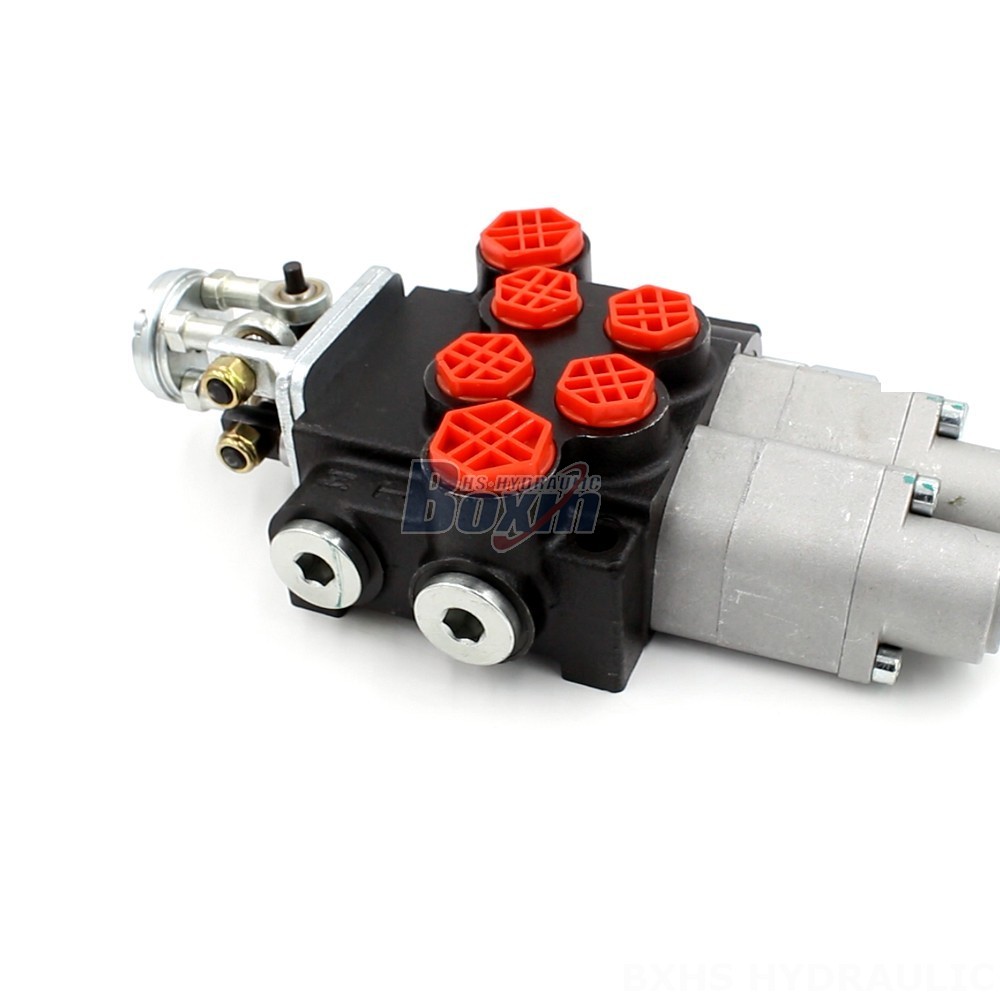

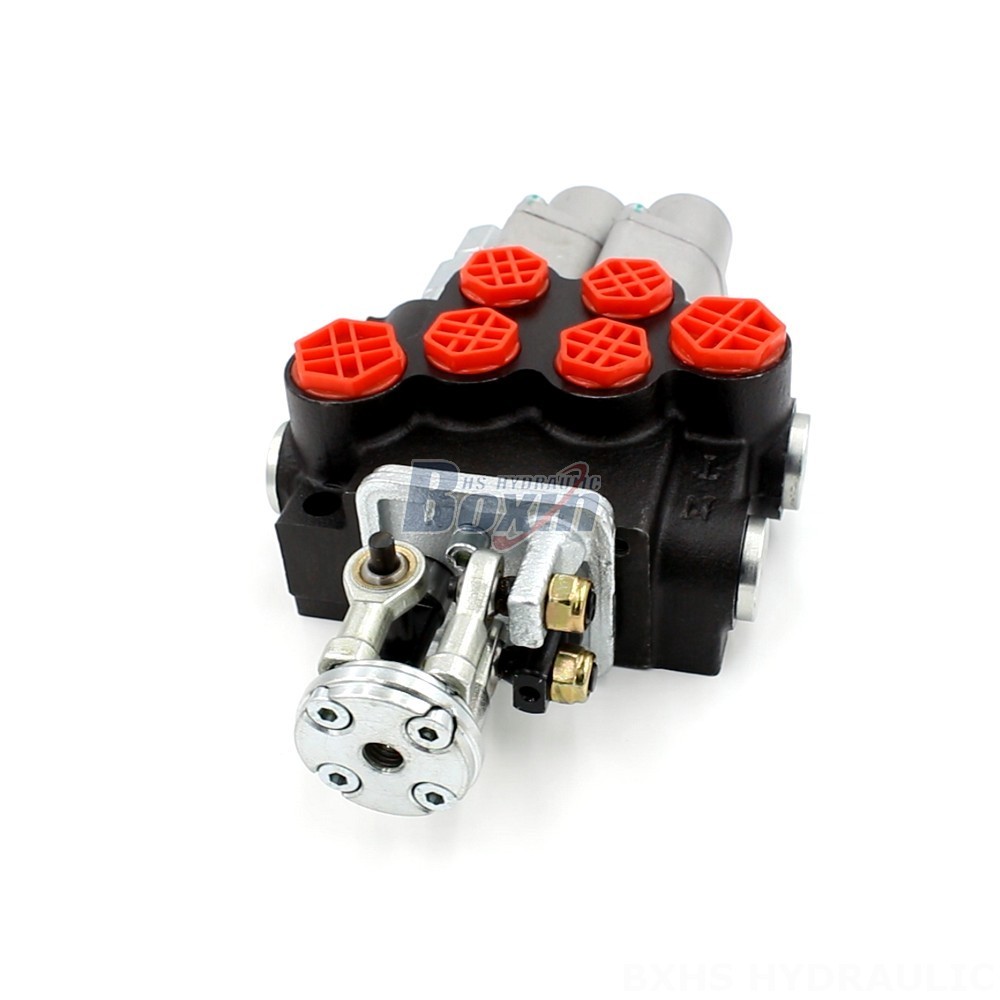

2-Spool Hydraulic Directional Valve | P40 Series | Factory Supply

Método de Controle:Manual e Joystick

Carrétel:2 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G3/8

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:23*18*13

Peso bruto:6.50 kg

Disponibilidade: Em estoque

1255 Visualizações estão procurando por este produto

2-Spool Hydraulic Directional Valve | P40 Series | Factory Supply

2-Spool Hydraulic Directional Valve | P40 Series | Factory Supply

2-Spool Hydraulic Directional Valve | P40 Series | Factory Supply drawing image

The P40 Series 2-Spool Hydraulic Directional Valve is a compact and reliable flow control valve designed for use in a variety of mobile applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for use in material handling, construction, agriculture, and industrial vehicles. It features manual and joystick control options, a monoblock valve structure, and a wide operating temperature range.

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series 2-Spool Hydraulic Directional Valve is a high-performance, durable, and versatile valve that offers a variety of features and benefits. The valve is available with a variety of options, including manual and joystick control, making it suitable for a wide range of applications. The valve also features a compact design, which makes it easy to install and maintain. It is built to withstand demanding operating conditions and offers a long service life. The valve is ideal for use in applications such as material handling, construction, agriculture, and industrial vehicles. It is also compatible with a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and harvesters. The valve is available in a variety of configurations to meet the specific needs of your application. Contact us today to learn more about this product and how it can benefit your business.
