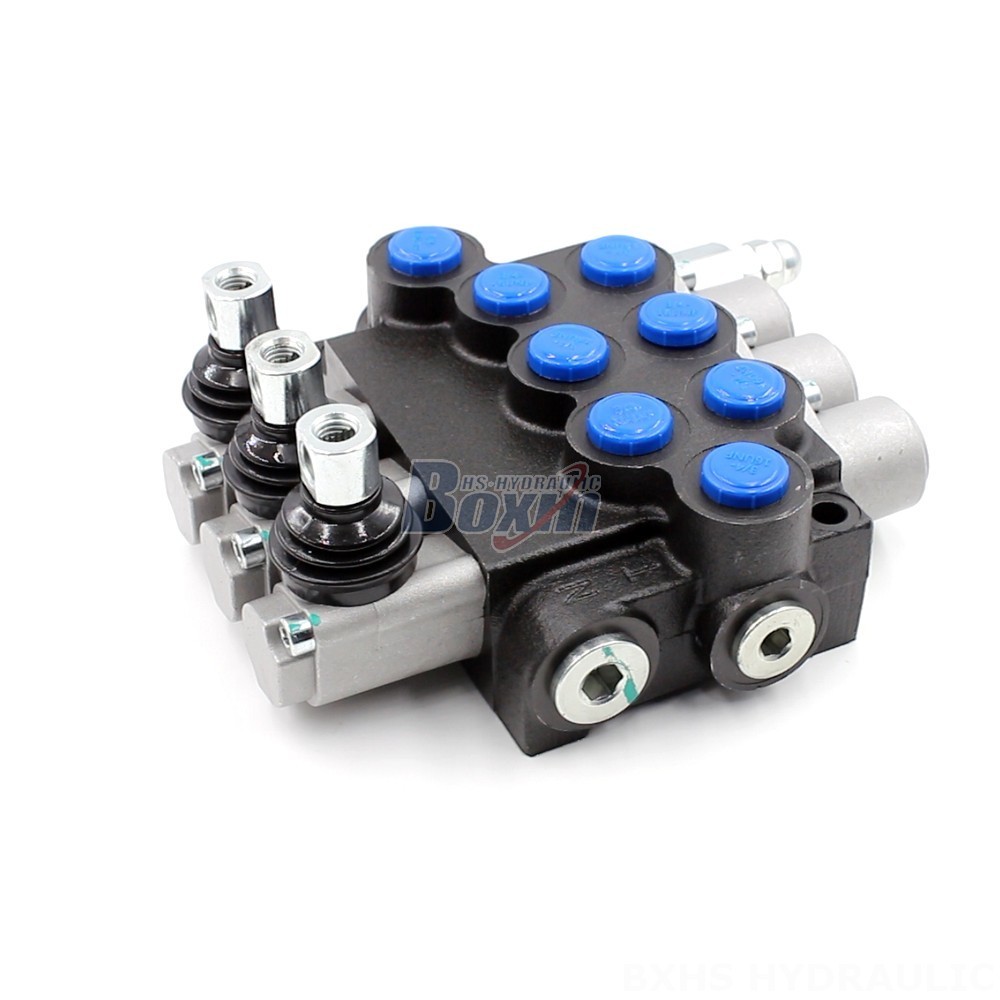

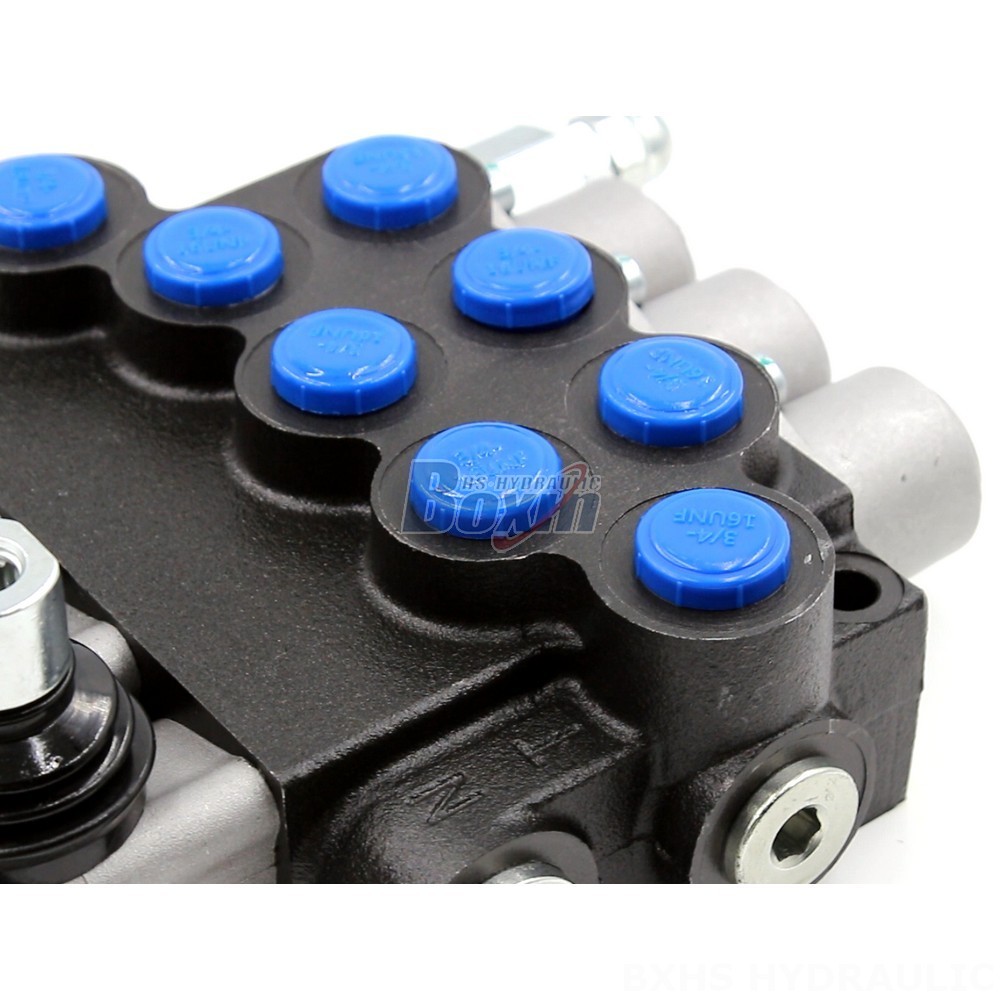

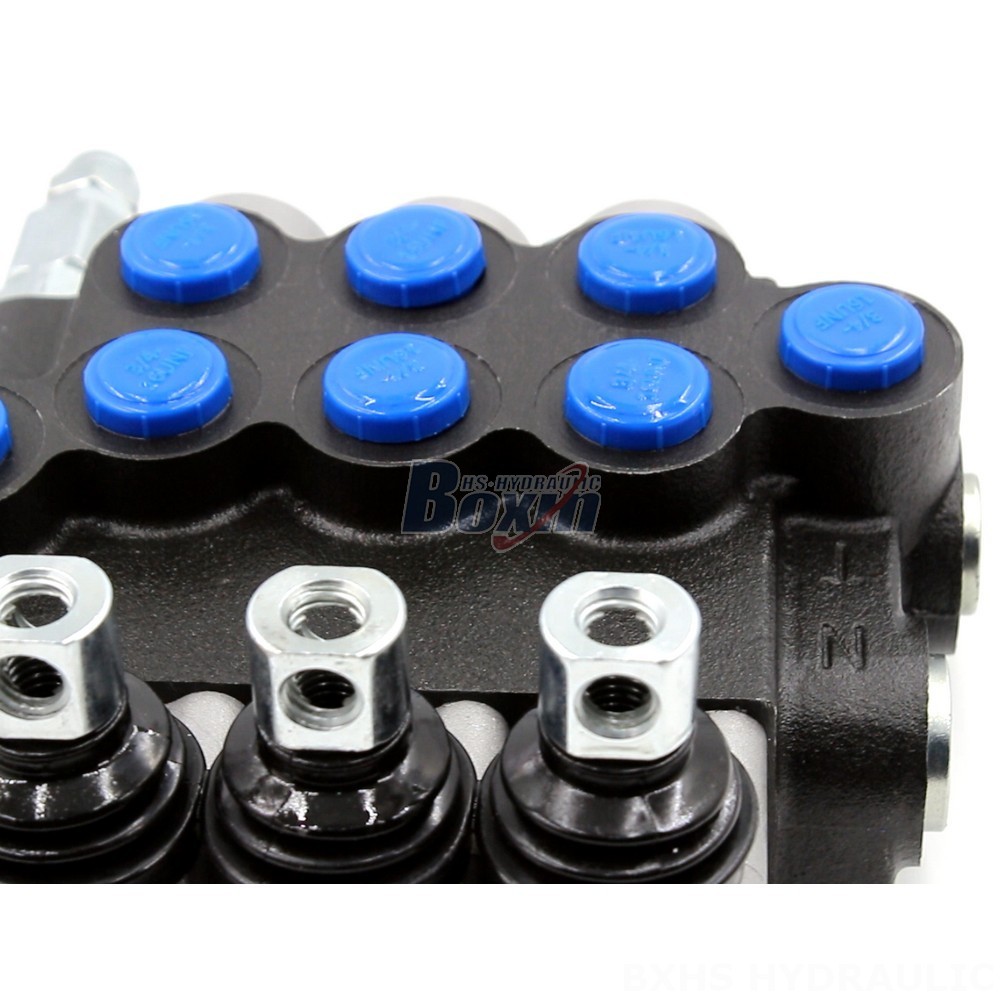

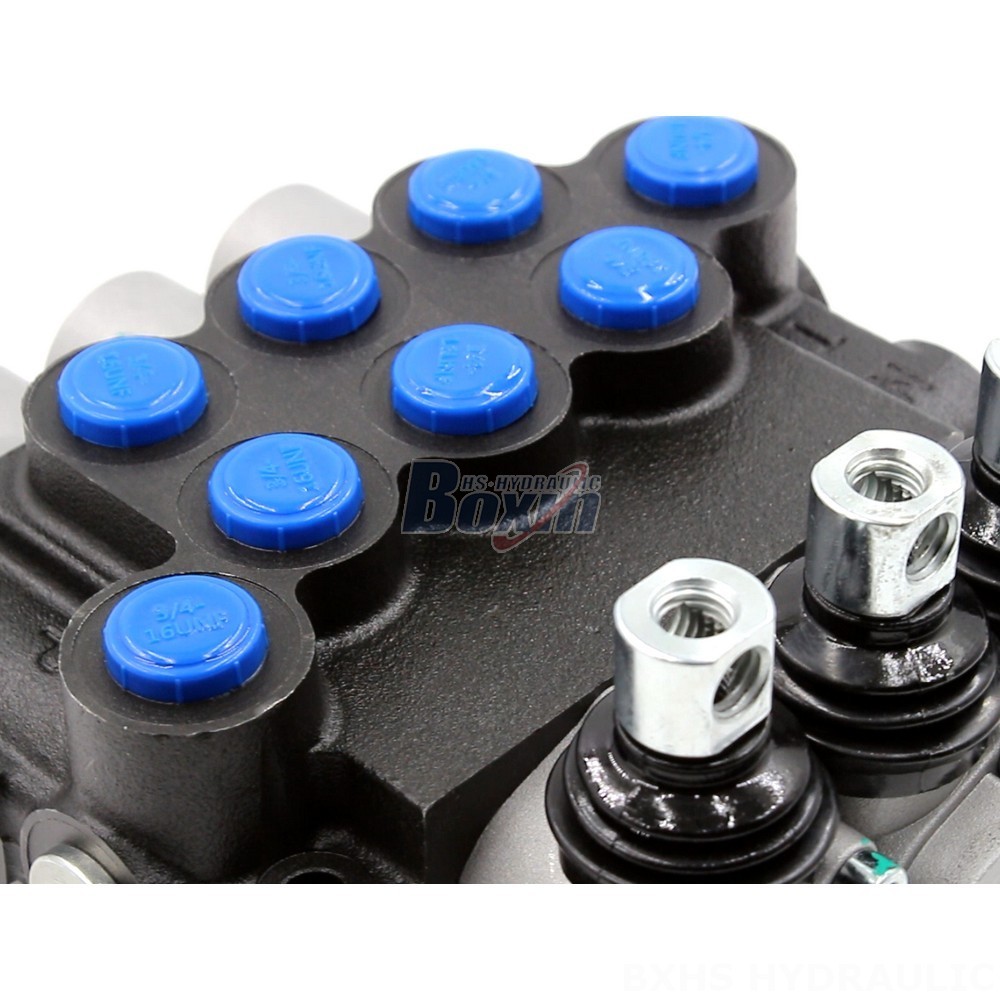

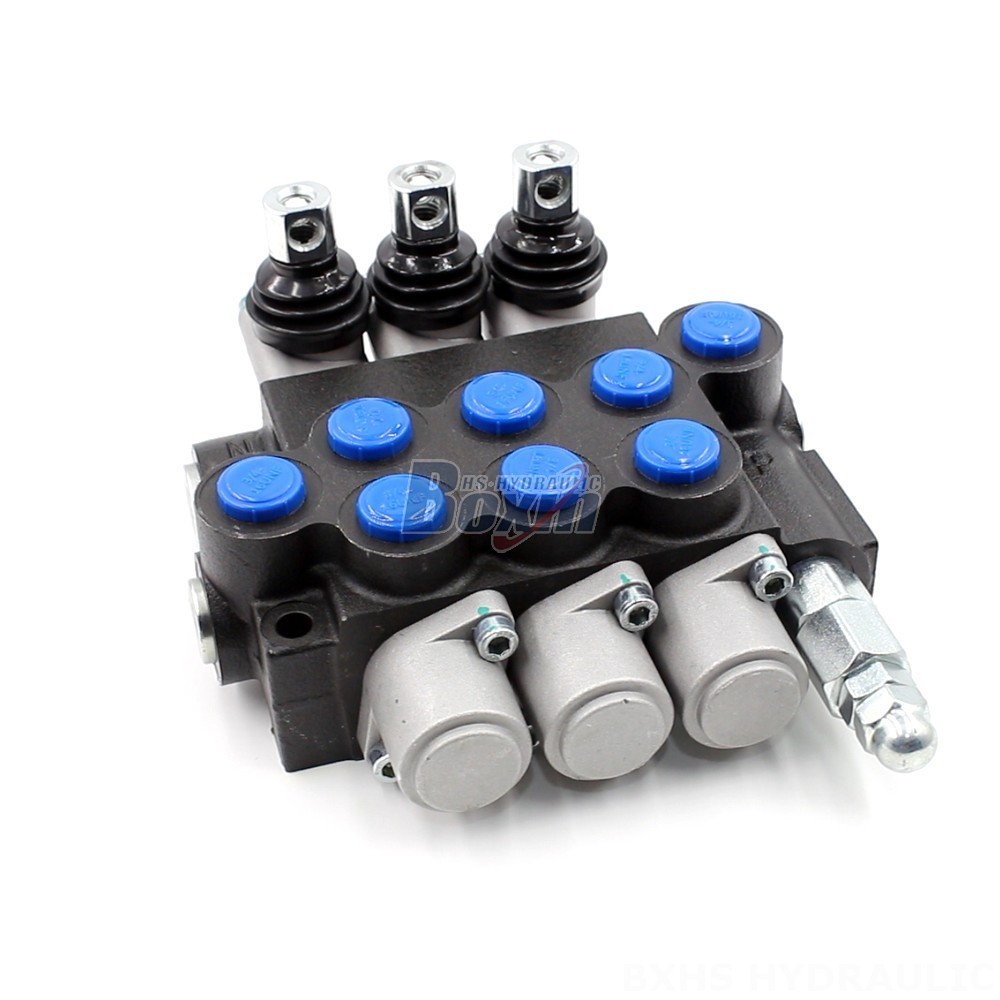

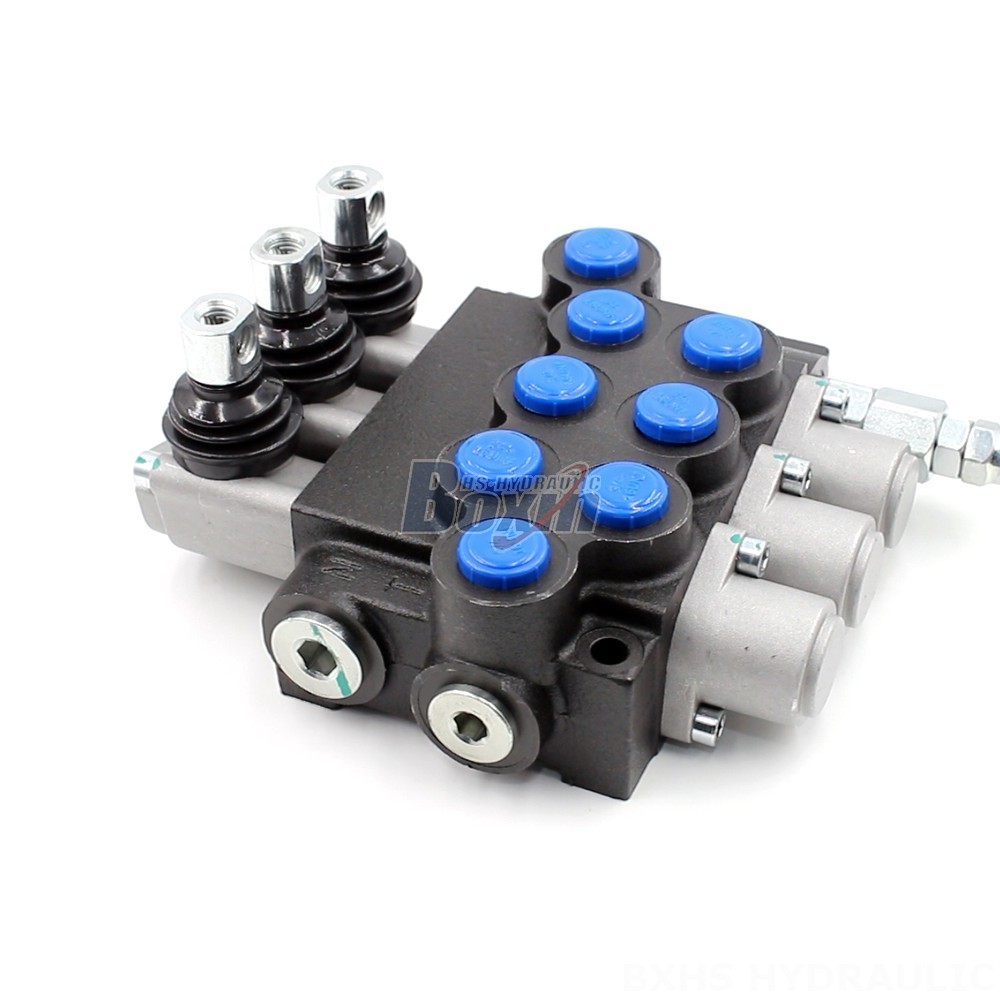

This 6-way hydraulic diverter valve, part of the P40-U78 series, is a robust and reliable 3-spool monoblock valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. It features a 40 L/min flow rate, 250 bar pressure rating, and a wide operating temperature range.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The 6-way hydraulic diverter valve (P40-U78 series) is a 3-spool, monoblock valve designed for manual control of hydraulic circuits. With a rated flow of 40 L/min and a maximum pressure rating of 250 bar, this valve is suitable for applications requiring high performance and reliability. Its wide operating temperature range (-40°C to +80°C) ensures reliable operation in diverse environments. The valve is specifically designed for use in material handling, construction and earth moving equipment, agriculture, and industrial vehicles. It is compatible with various applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling, and crusher-stone cutter applications. We offer this valve in wholesale and OEM quantities, allowing you to source the perfect solution for your specific needs.
