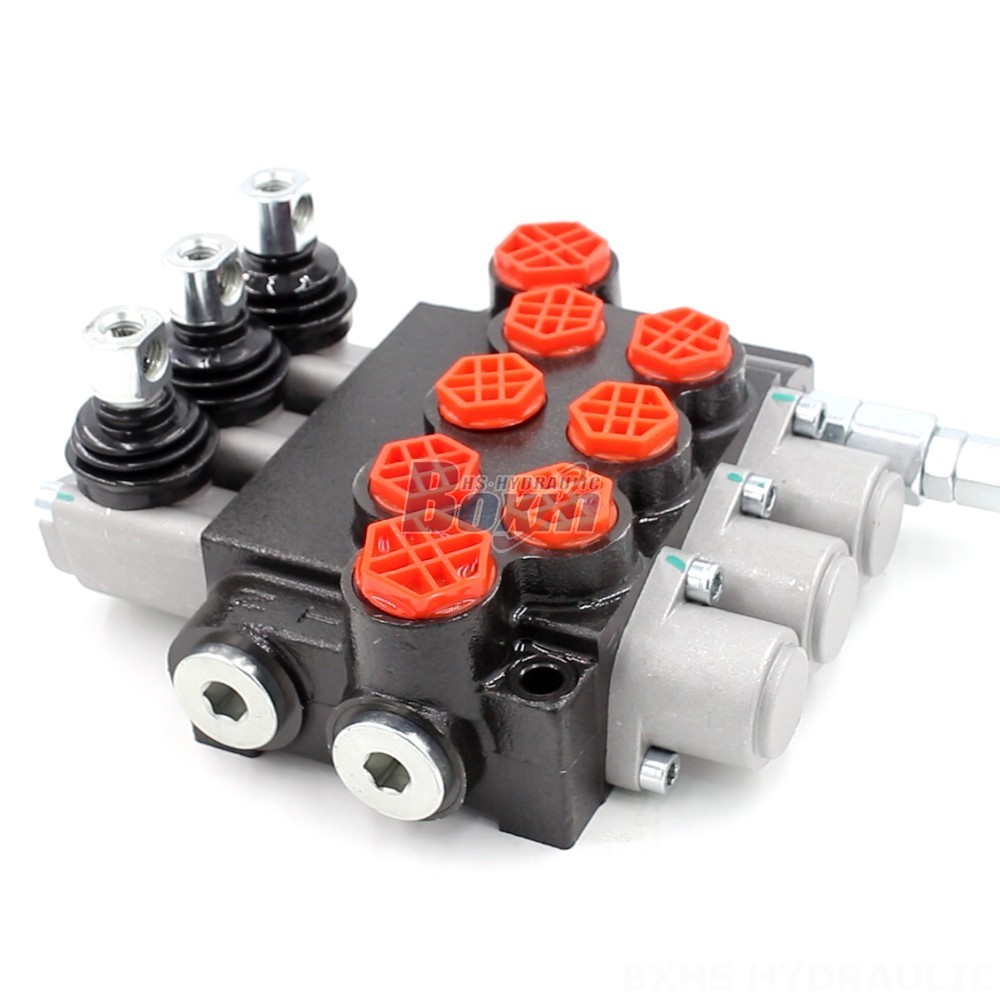

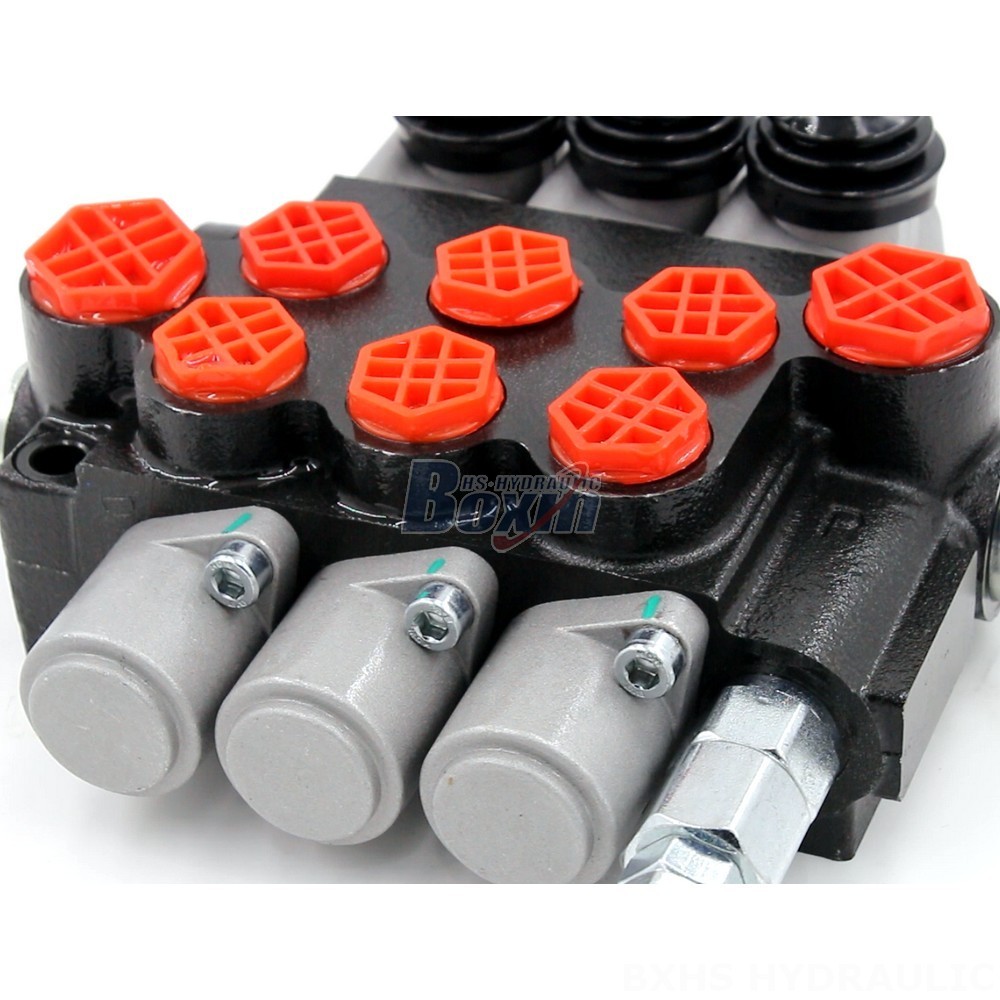

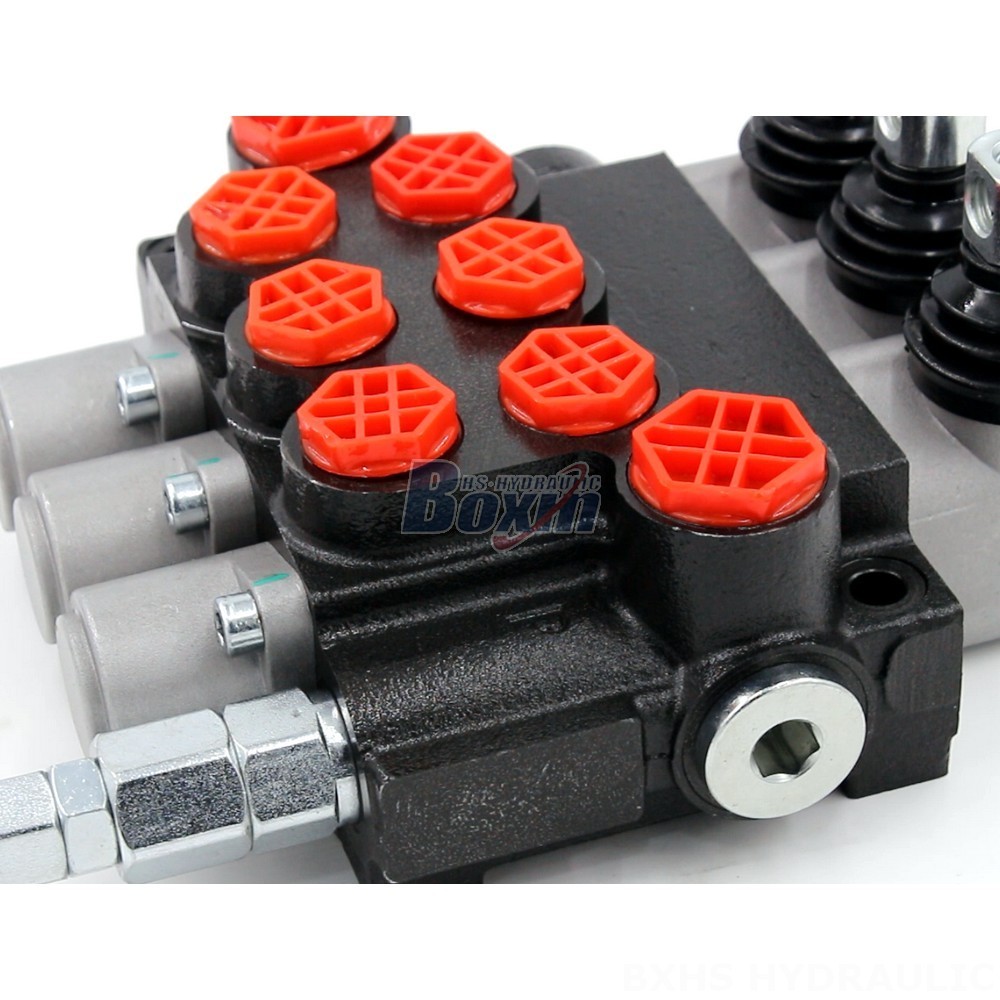

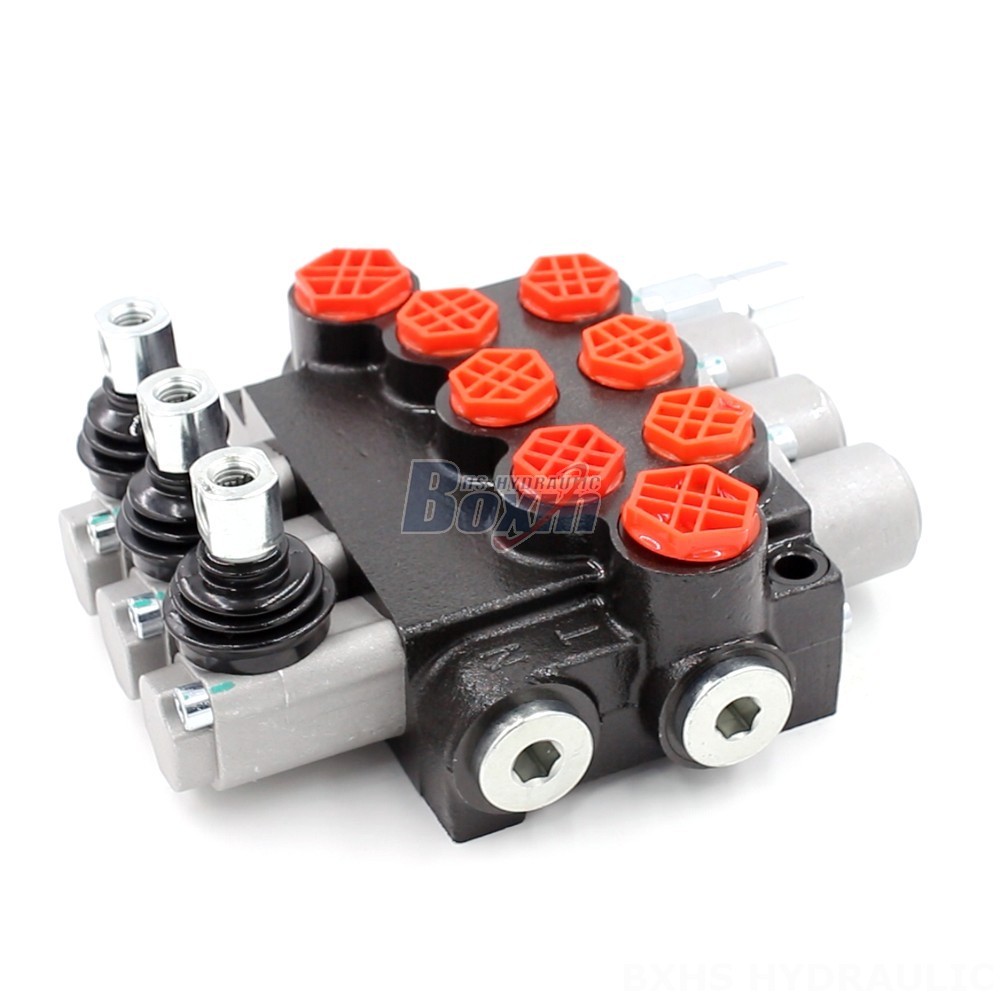

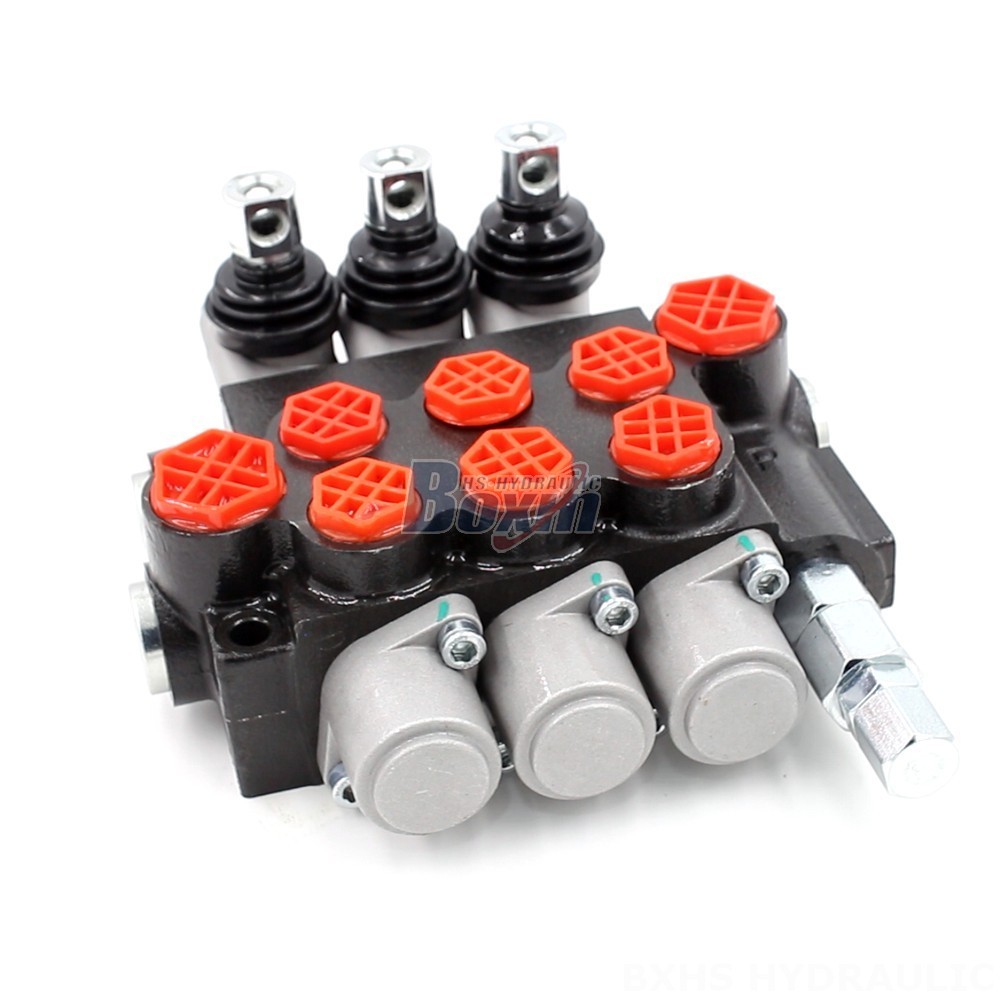

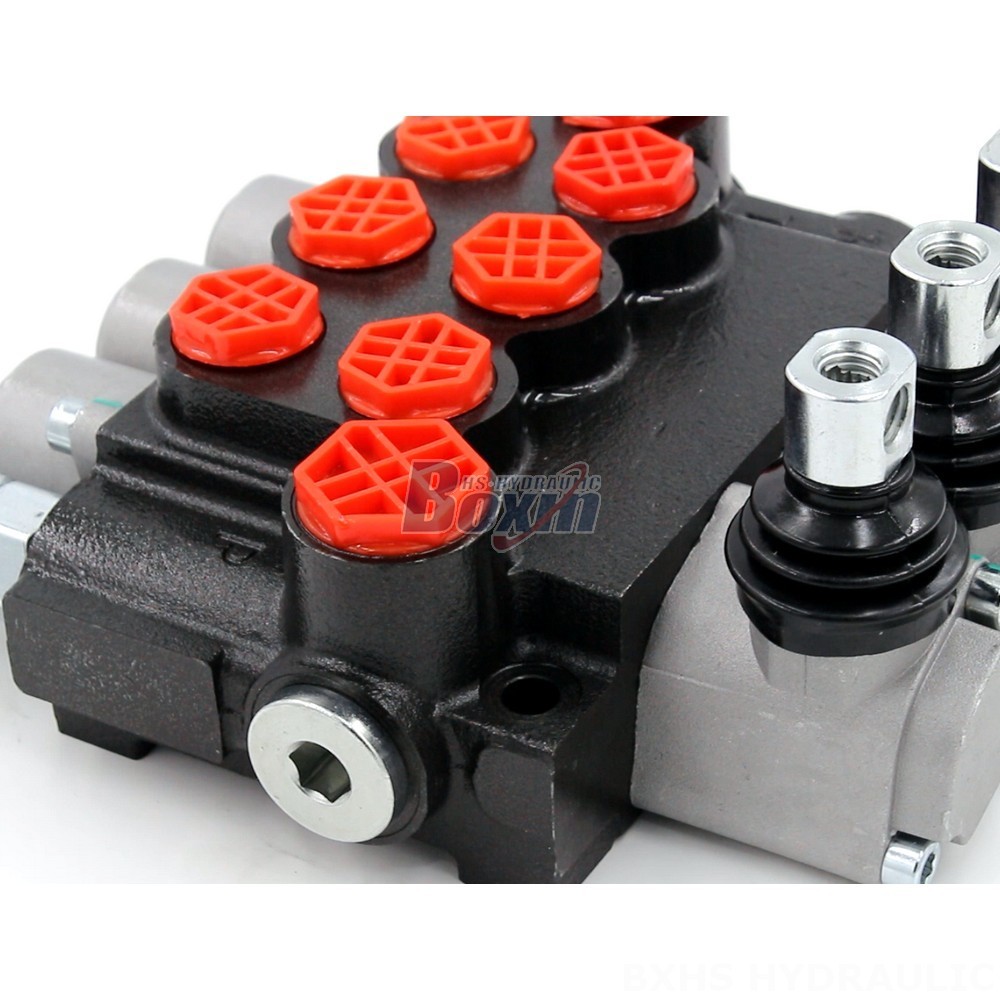

Our 3-Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it provides reliable and efficient flow control in various industries, including material handling, construction, agriculture, and industrial vehicles.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**3-Spool Monoblock Directional Valve**
**Control Method:** Manual
**Section:** 3 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 3 Spool
**Series:** P40 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, TELEHANDLER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER
Our 3-Spool Monoblock Directional Valve is constructed from high-quality materials and precision-engineered to ensure durability and longevity. It features a compact and lightweight design, making it easy to integrate into existing hydraulic systems. The valve's manual control provides precise and responsive flow regulation, enabling operators to control fluid flow with accuracy.
With its exceptional performance and versatility, our 3-Spool Monoblock Directional Valve is an ideal choice for a wide range of hydraulic applications. It is commonly used in material handling equipment, construction machinery, agricultural vehicles, and industrial vehicles, where precise flow control and reliability are crucial.
