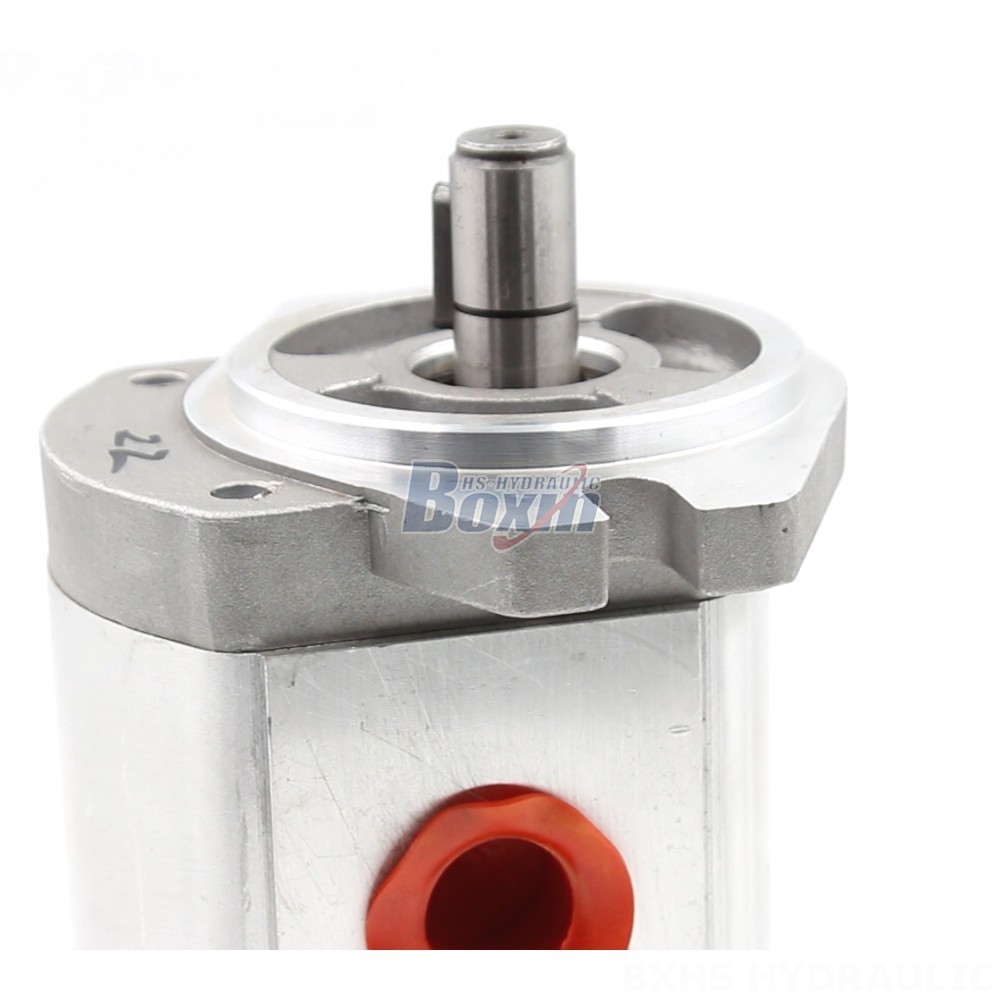

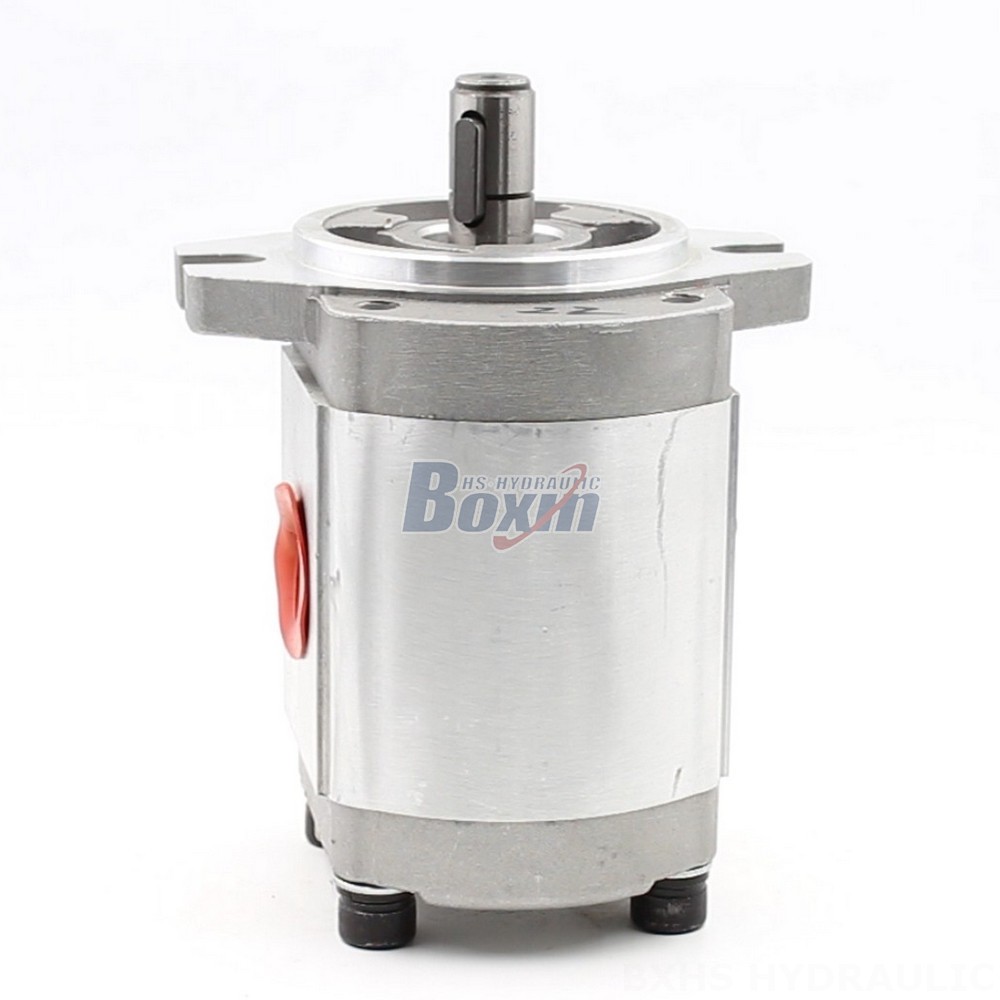

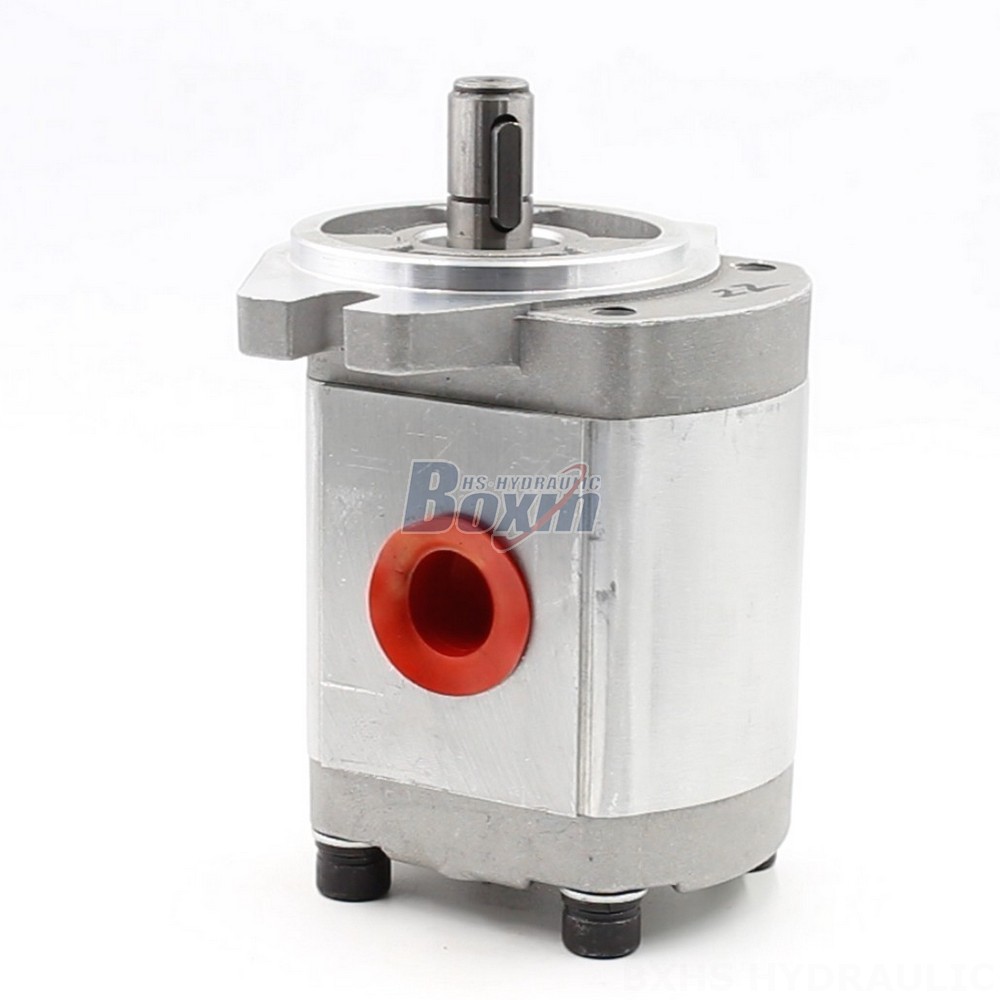

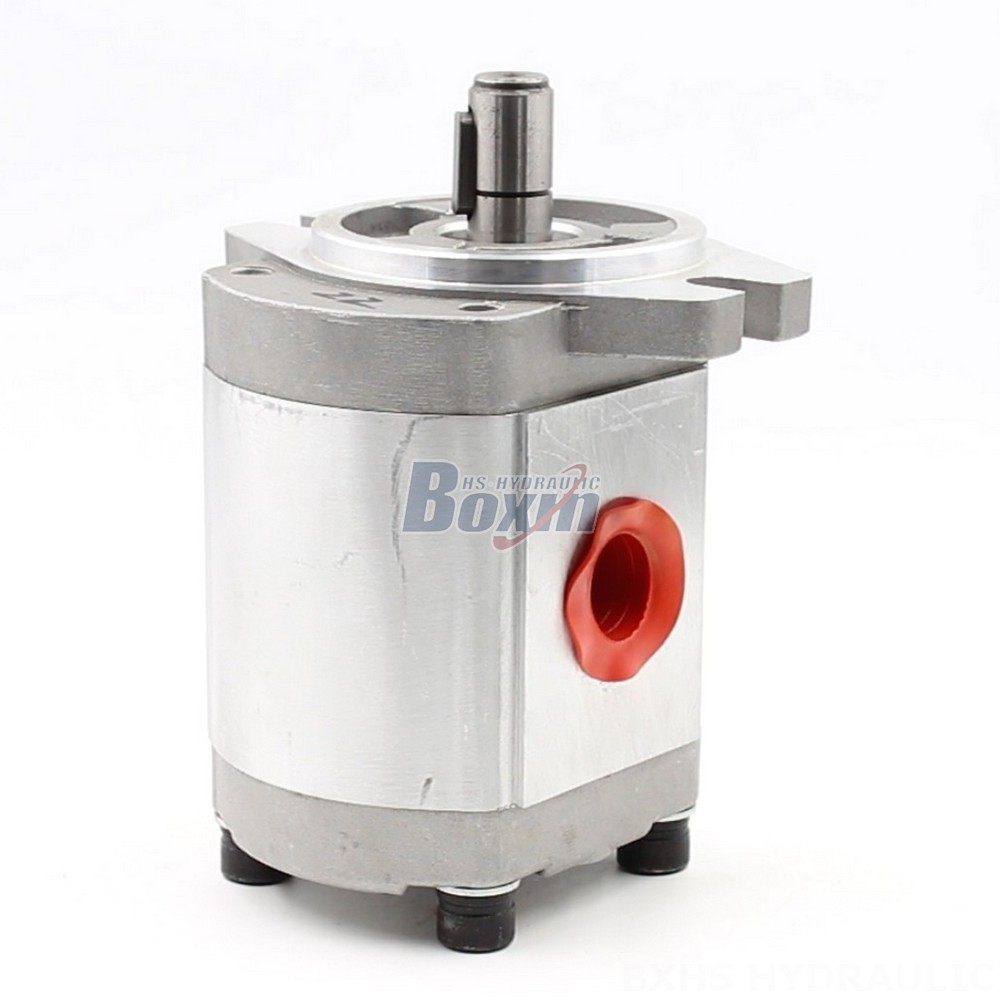

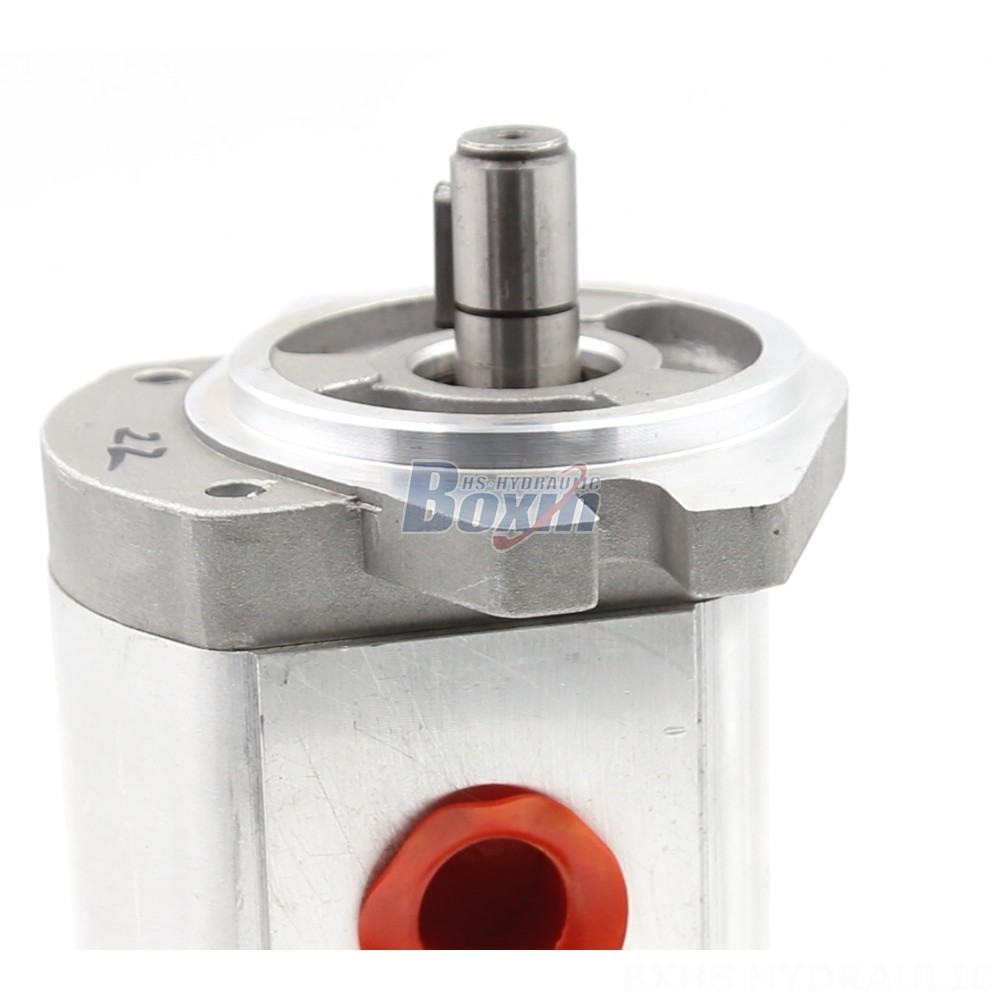

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable

Deslocamento:4 cc/rev

Pressão Nominal:20 MPa (2900 psi)

Pressão Máxima:25 MPa (3625 psi)

Velocidade Máxima:3000 rpm

Rotação:R: Direito (sentido horário)

Marca:BXHS

Tipo de produto:Bomba de engrenagem hidráulica

Série de produtos:Série CBHS-FL3 Bomba de engrenagem hidráulica

Tamanho da embalagem:20*30*20

Peso bruto:9.00 kg

Disponibilidade: Em estoque

1723 Visualizações estão procurando por este produto

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable drawing image

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance, durable pump designed for use in a wide range of applications, including construction, agriculture, industrial vehicles, and material handling. It is available in various configurations and is customizable to meet specific requirements.

Série CBHS-FL3 Bomba de engrenagem hidráulica Parâmetros
Deslocamento 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev
Pressão Nominal 20 MPa (2900 psi)
Pressão Máxima 25 MPa (3625 psi)
Velocidade Nominal 2000 rpm
Velocidade Máxima 3000 rpm
Rotação L: Esquerdo (sentido anti-horário), R: Direito (sentido horário)
Material Alumínio
Estrutura Bomba de engrenagem externa
Versão da flange Flange oval A
Tipo de veio H: Chaveta retangular, X: Chaveta involuta, P: Chave Simples

This CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a robust and reliable component for various machinery. It is a factory direct product, meaning you are getting it straight from the manufacturer, ensuring competitive pricing and direct communication. Furthermore, the pump is customizable, allowing you to tailor it to your specific needs and application. The pump boasts a displacement of 10 cc/rev and a rated pressure of 20 MPa (2900 psi), making it suitable for demanding applications. Its rated speed is 2000 r/min with a maximum speed of 3000 r/min. The pump is available in both left and right rotation options. Constructed with an internal gear pump design using high-quality aluminium, it is durable and built to withstand demanding environments. The pump comes with an A-Oval Flange and Plain Key shaft for easy integration and compatibility with various machinery. The CBHS-FL304 pump is designed to be utilized in a wide array of machinery, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. This versatile pump ensures its suitability across different applications within the construction, agriculture, industrial vehicles, and material handling sectors.
