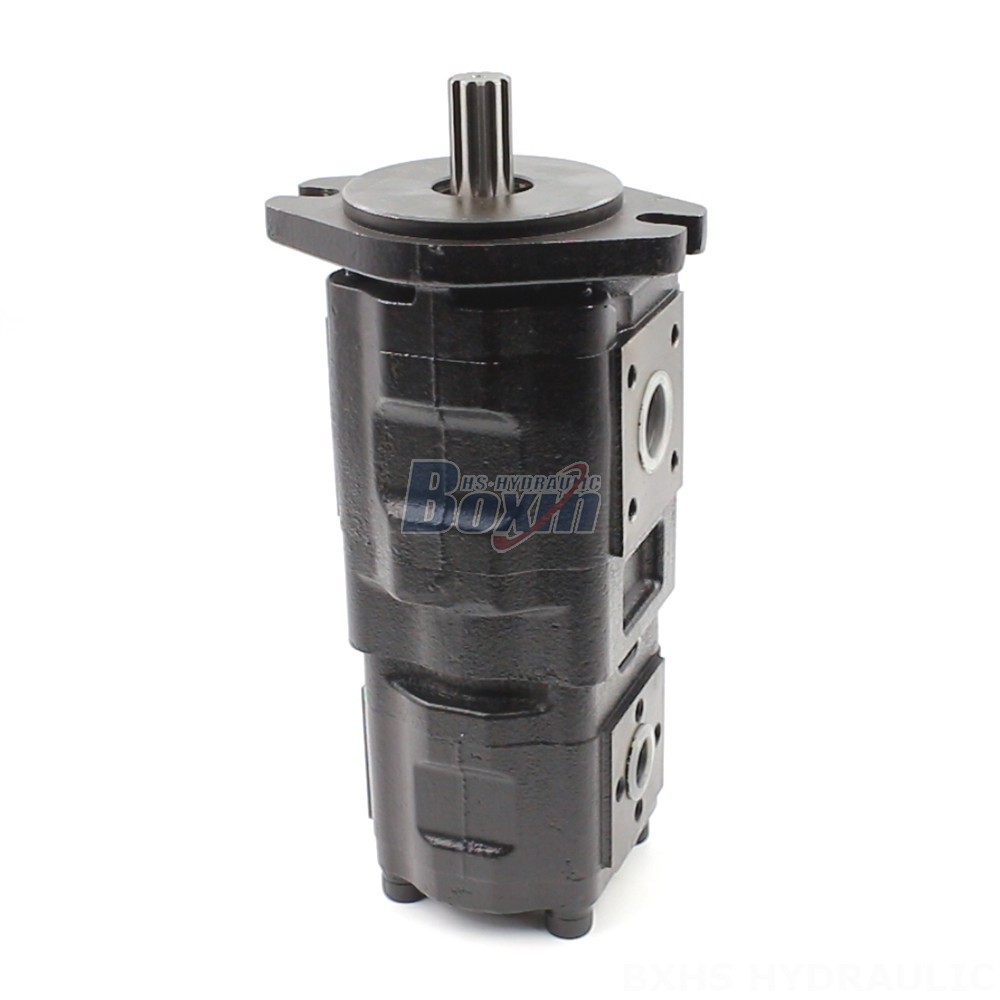

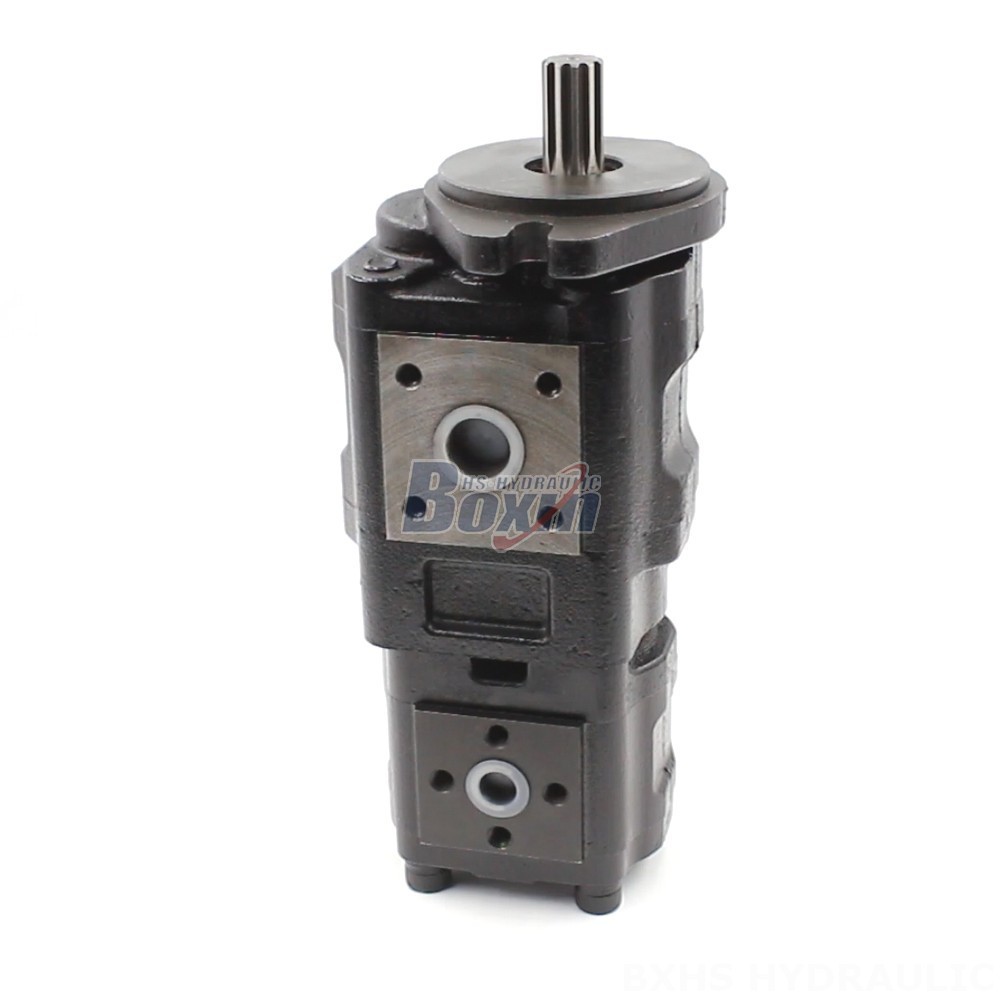

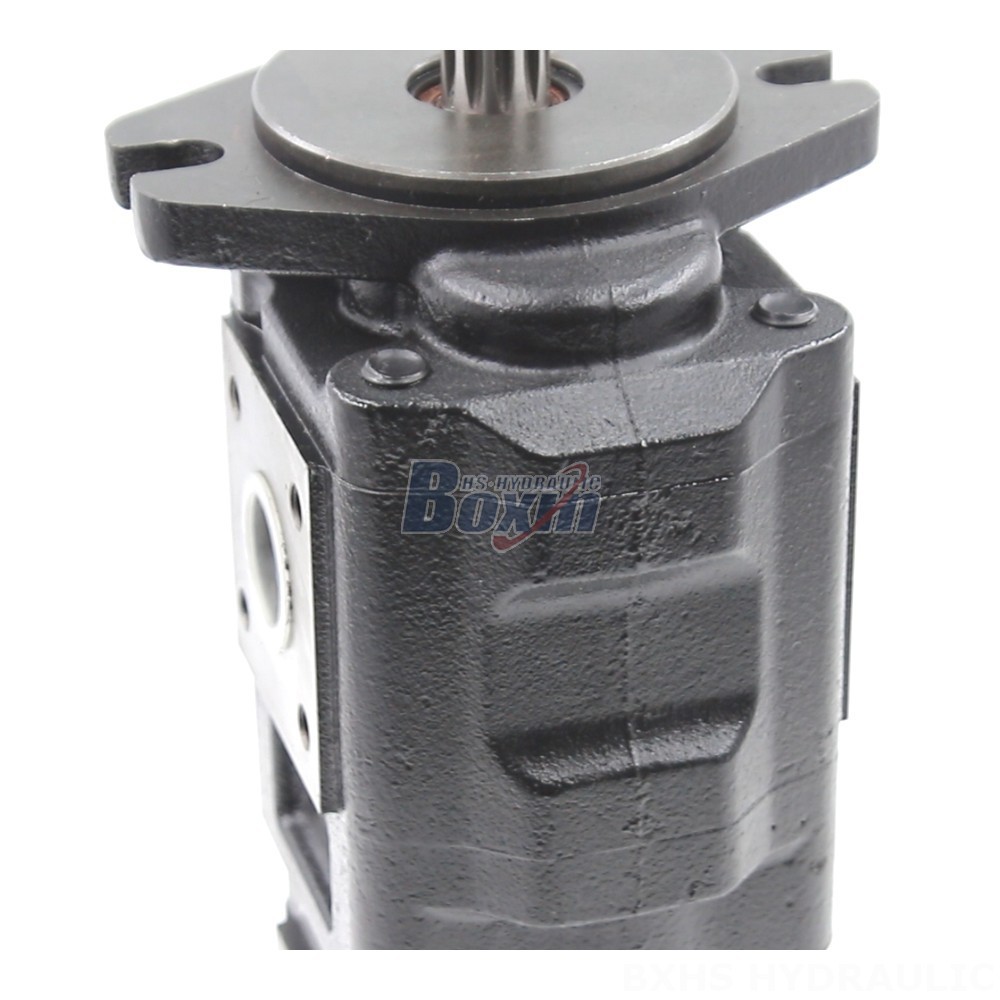

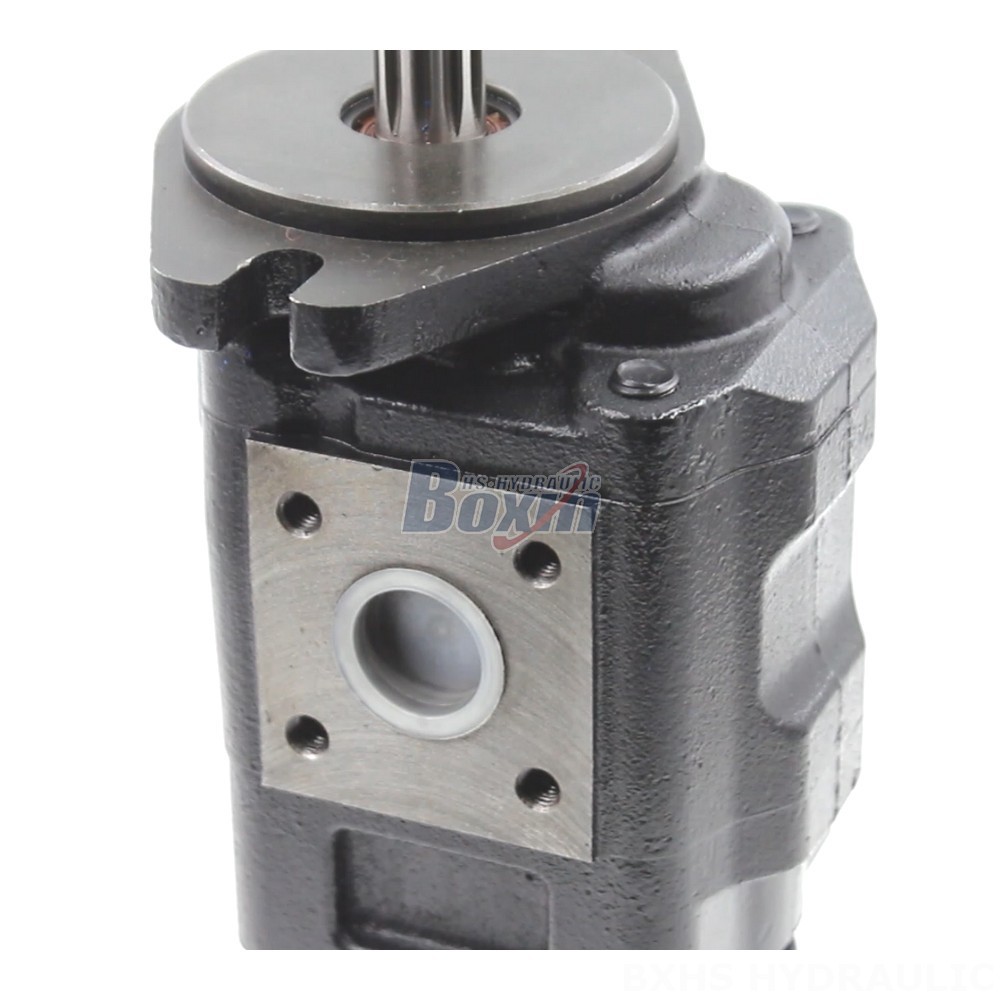

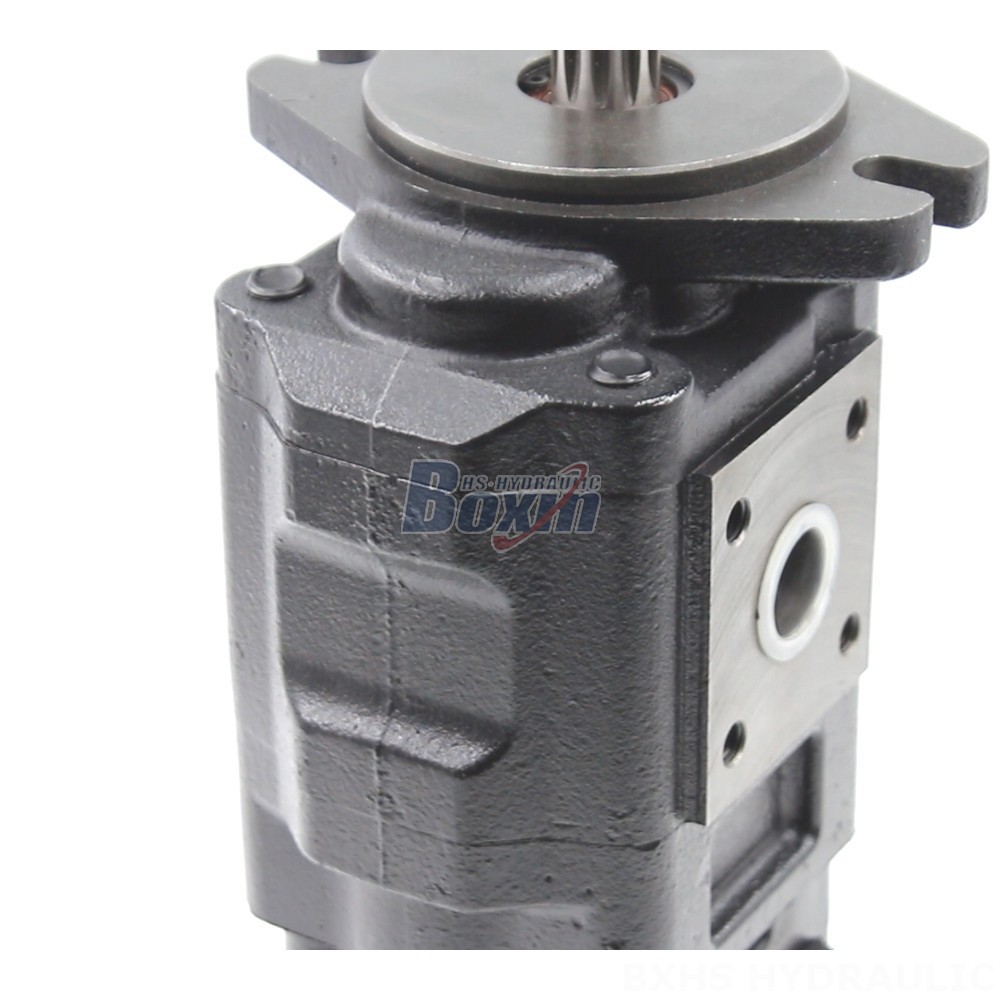

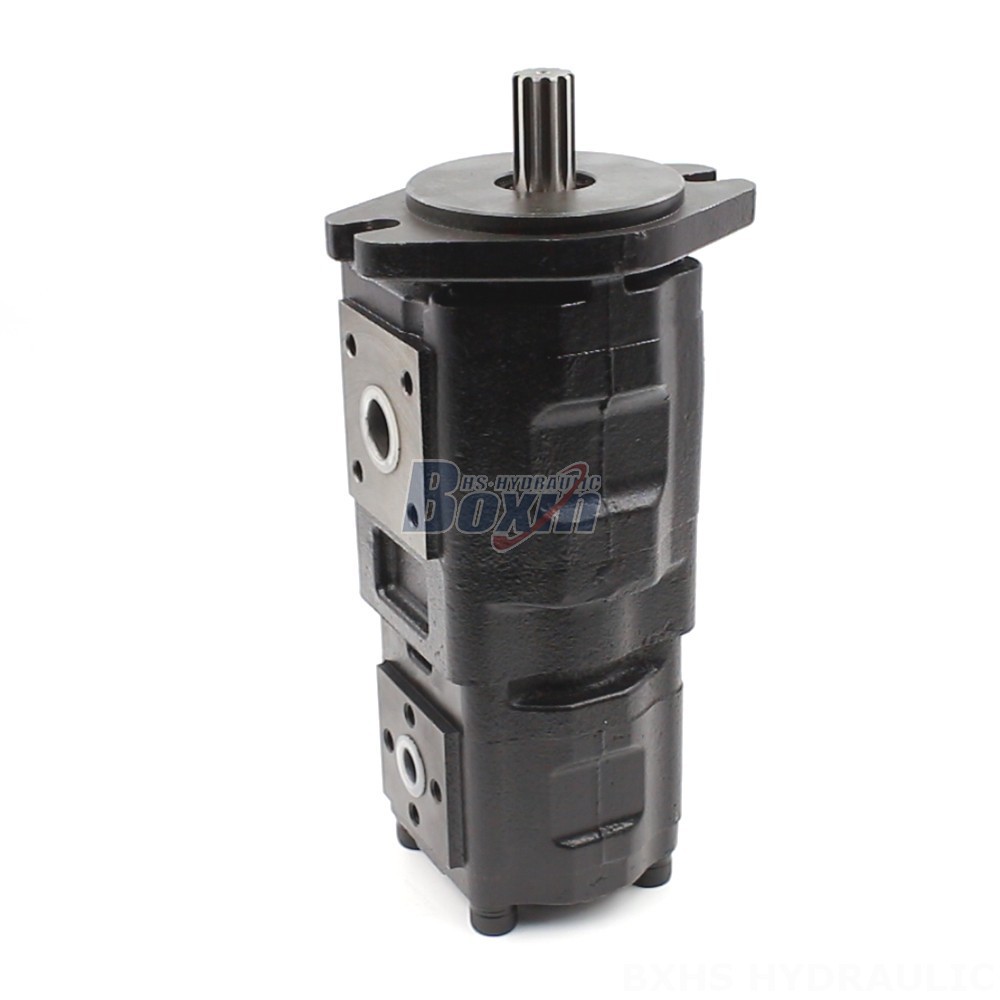

40 cc/rev Hydraulic Gear Pump - High Performance & Reliable

Deslocamento:40 cc/rev

Pressão Nominal:20 MPa (2900 psi)

Pressão Máxima:25 MPa (3625 psi)

Velocidade Máxima:3000 rpm

Rotação:Bidirecional

Marca:BXHS

Tipo de produto:Bomba de engrenagem hidráulica

Série de produtos:Série CBHS-F4 Bomba de engrenagem hidráulica

Tamanho da embalagem:37*51*19

Peso bruto:16.00 kg

Disponibilidade: Em estoque

1391 Visualizações estão procurando por este produto

40 cc/rev Hydraulic Gear Pump - High Performance & Reliable

40 cc/rev Hydraulic Gear Pump - High Performance & Reliable

40 cc/rev Hydraulic Gear Pump - High Performance & Reliable drawing image

Our 40 cc/rev Hydraulic Gear Pump is a high-performance and reliable solution for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. Available in various displacements, pressure ratings, and configurations, this pump is designed for durability and efficiency.

Série CBHS-F4 Bomba de engrenagem hidráulica Parâmetros
Deslocamento 40 cc/rev, 25 cc/rev, 20 cc/rev
Pressão Nominal 20 MPa (2900 psi), 25 MPa (3625 psi)
Pressão Máxima 25 MPa (3625 psi)
Velocidade Nominal 2000 rpm
Velocidade Máxima 2500 rpm
Rotação L: Esquerdo (sentido anti-horário), R: Direito (sentido horário)
Material Ferro Fundido, Ferro fundido de alumínio, Alumínio
Estrutura Tipo de prato de came
Versão da flange Flange oval A, Flange quadrado B, Orifícios de montagem ISO-4, Orifícios de montagem UNI-3, Flange SAE
Tipo de veio H: Chaveta retangular, X: Chaveta involuta, P: Chave Simples

This 40 cc/rev Hydraulic Gear Pump is a robust and efficient power source for heavy-duty applications. Featuring a cam plate type design, it delivers high flow rates and pressures for reliable operation. With a range of displacements from 32 cc/rev to 80 cc/rev, rated pressures up to 25 MPa (3625 psi), and maximum speeds up to 2500 r/min, this pump offers flexibility and customization to meet specific requirements. The pump's durable construction ensures long-term performance and reliability in demanding environments. Available with A-Oval or B-Square flanges and a rectangle spline shaft, it can be easily integrated into various systems. Our 40 cc/rev Hydraulic Gear Pump is ideal for applications in telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, front-end loaders, and harvesters.
