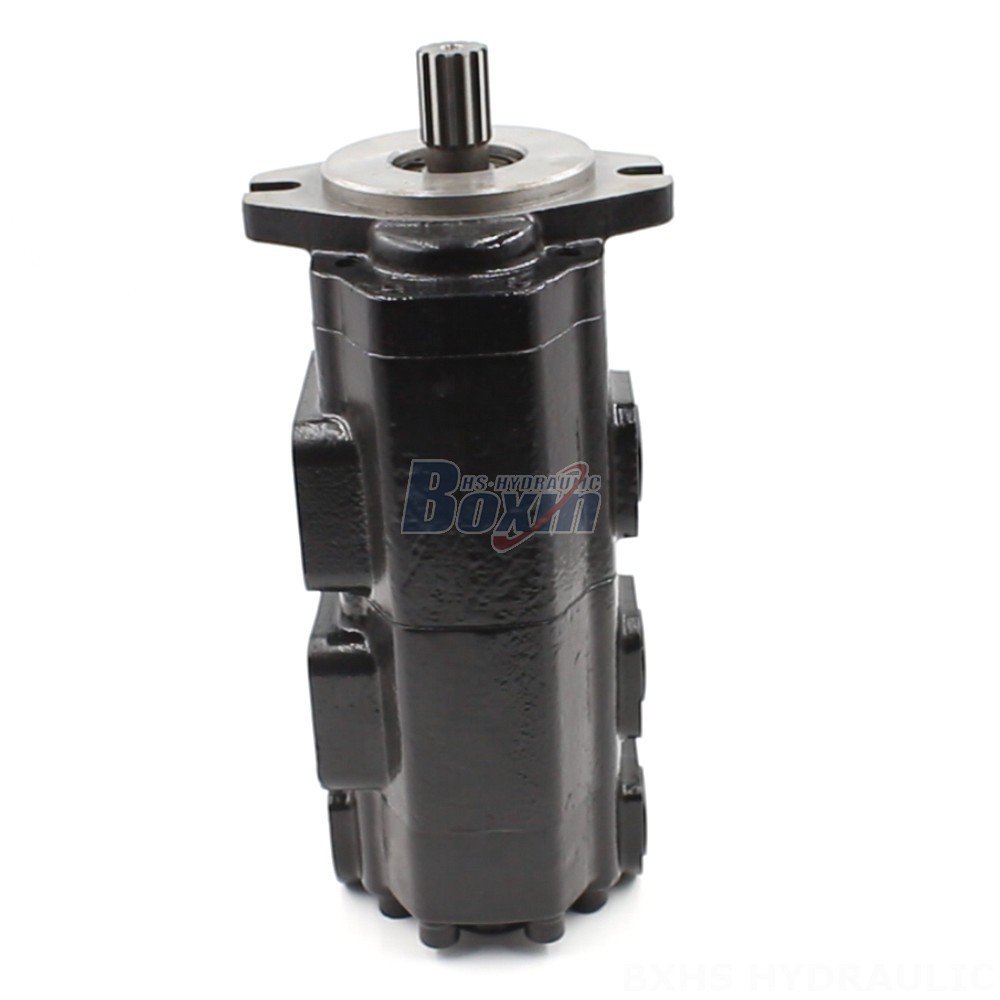

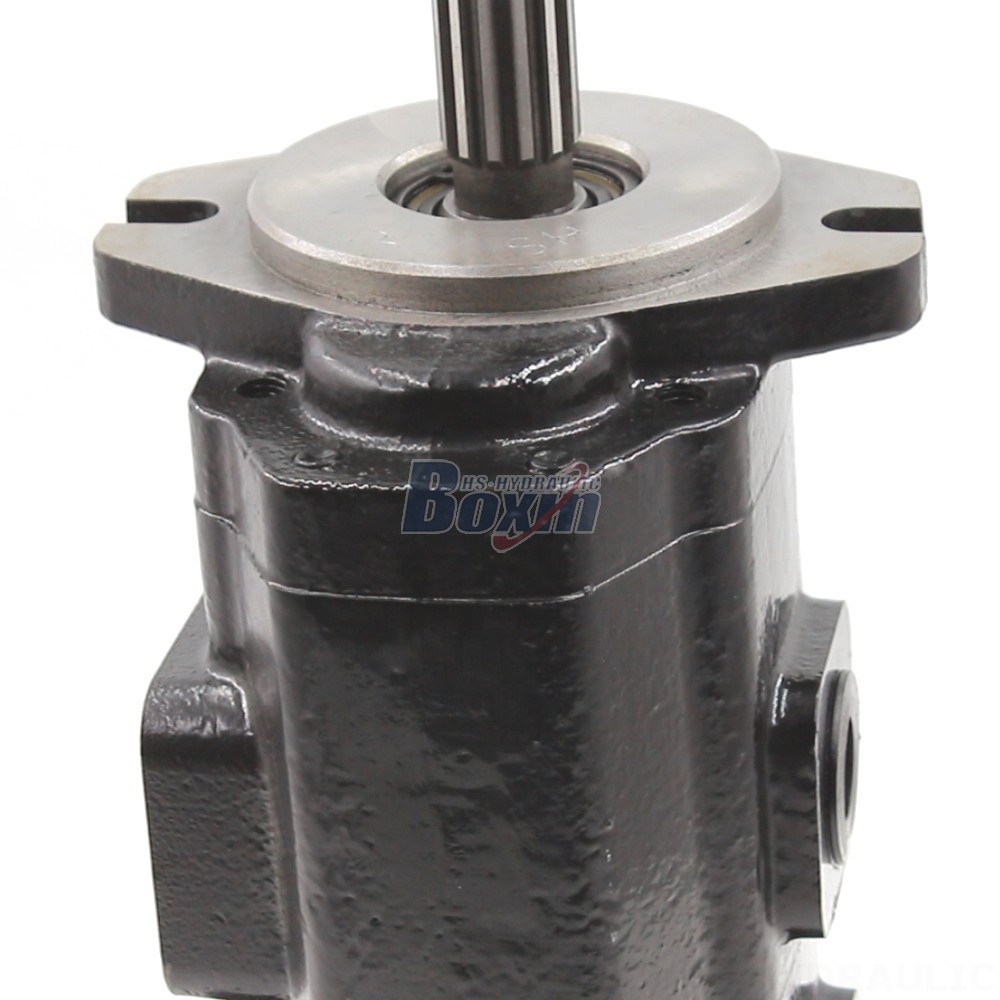

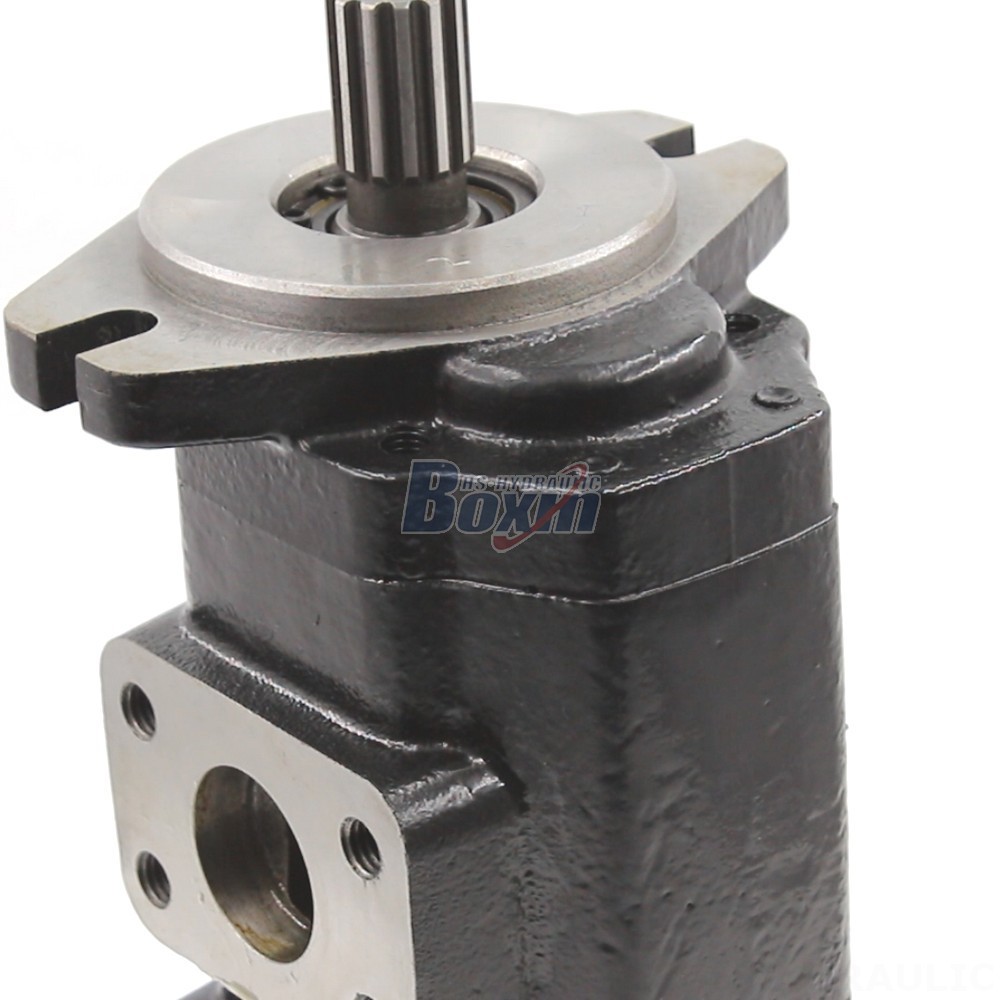

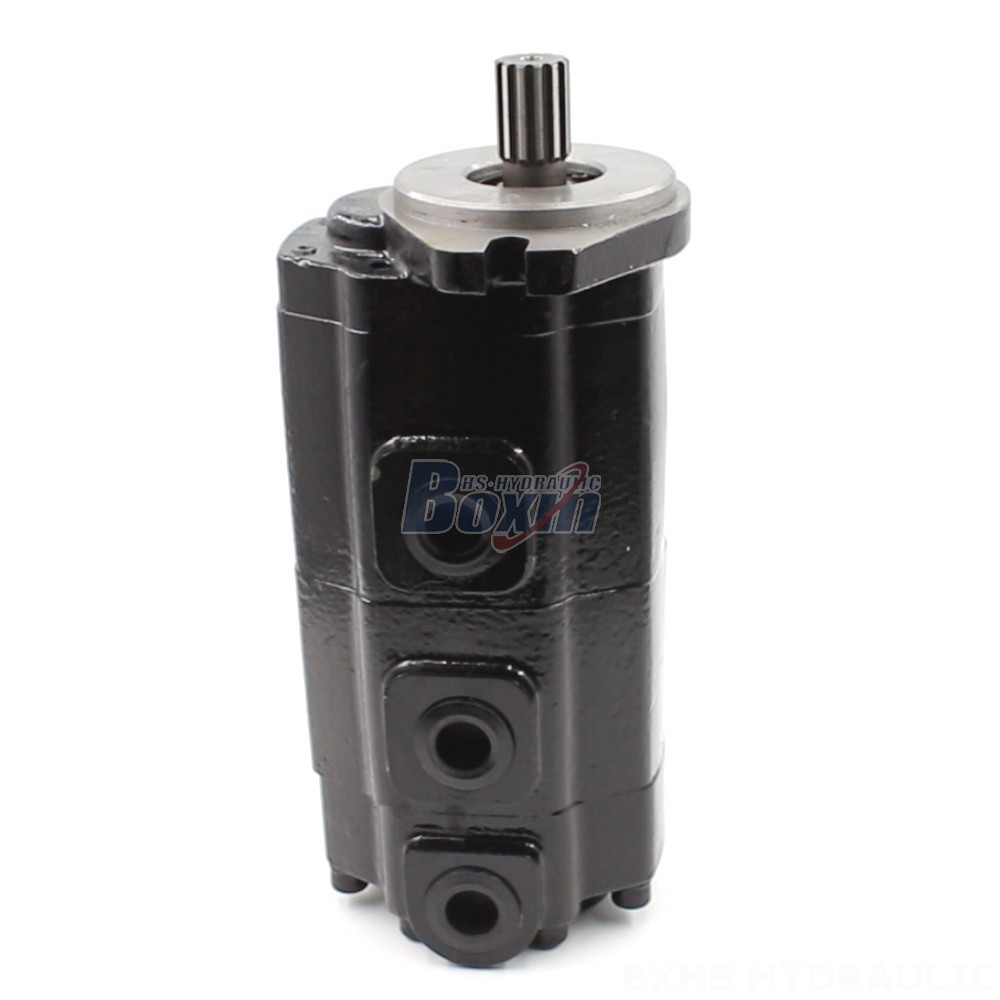

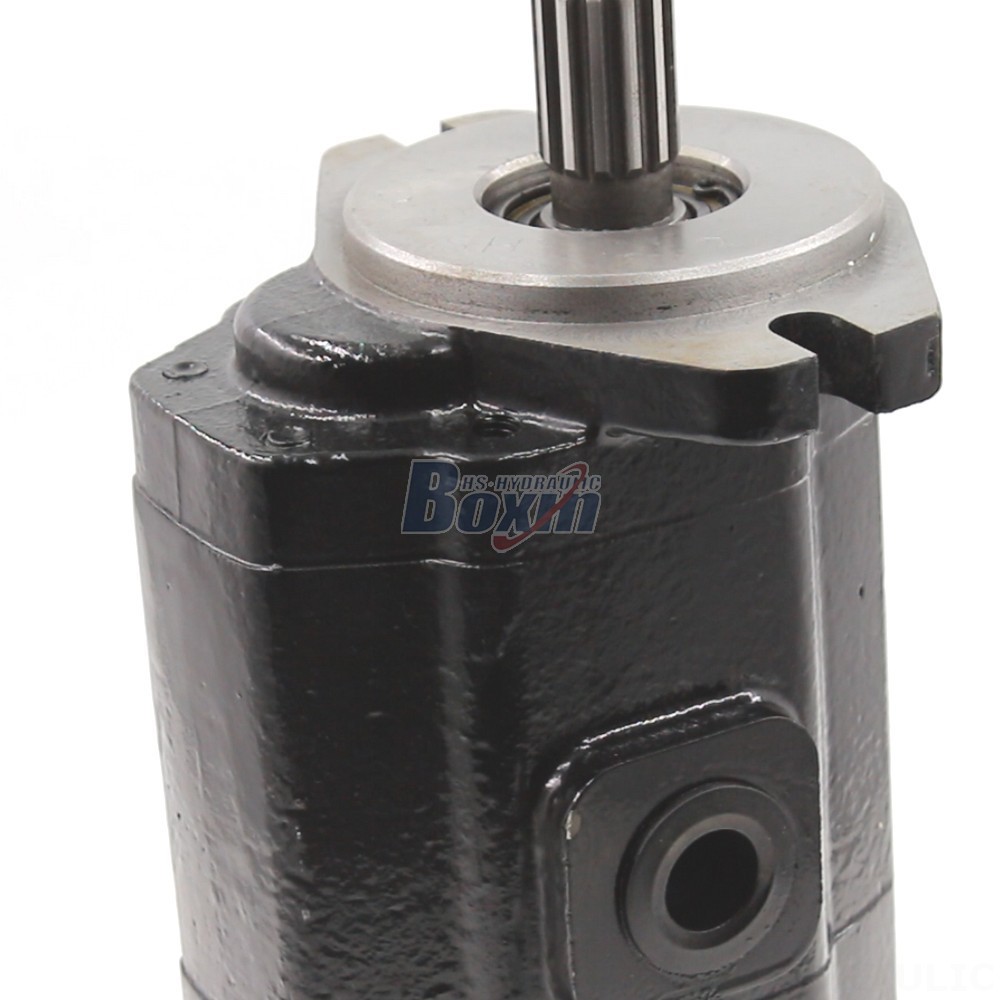

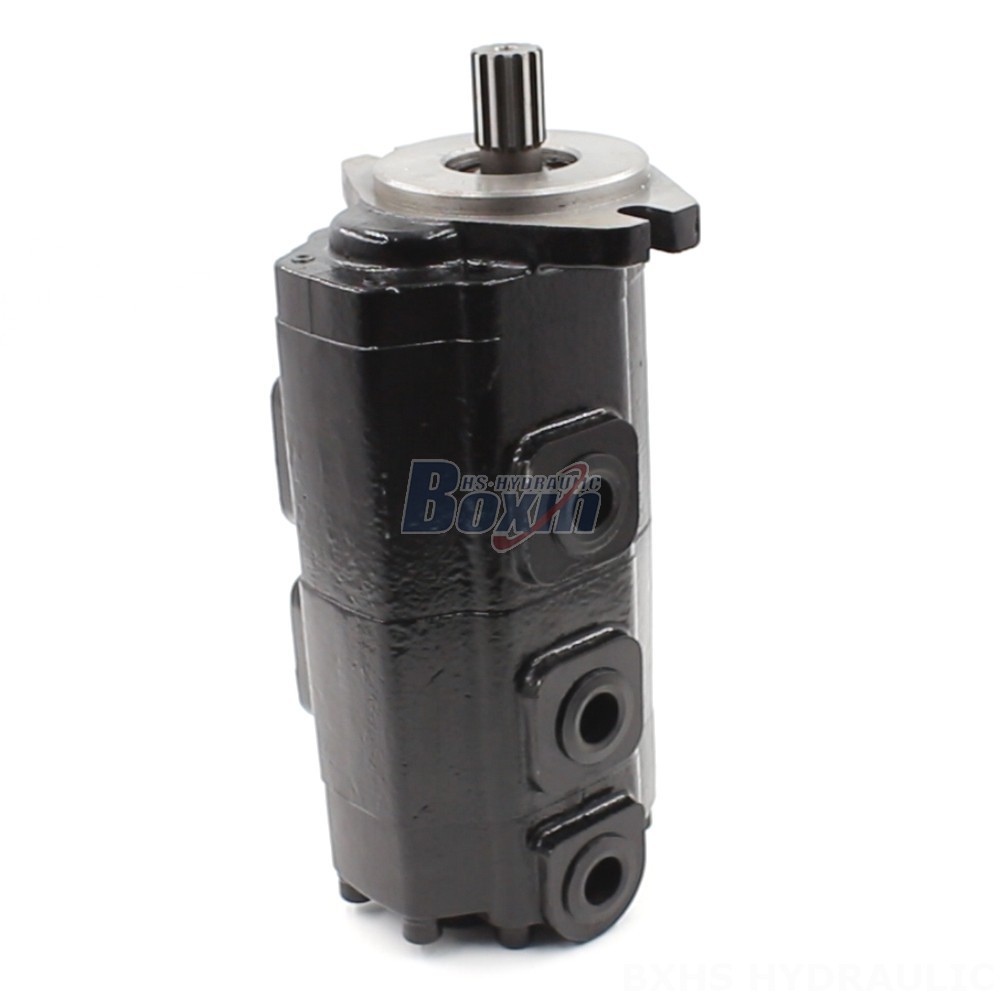

40 cc/rev Hydraulic Gear Pump: Reliable & Durable - Contact Us Today

Deslocamento:20 cc/rev

Pressão Nominal:20 MPa (2900 psi)

Pressão Máxima:25 MPa (3625 psi)

Velocidade Máxima:2500 rpm

Rotação:L: Esquerdo (sentido anti-horário)

Marca:BXHS

Tipo de produto:Bomba de engrenagem hidráulica

Série de produtos:Série CBHS-F4 Bomba de engrenagem hidráulica

Tamanho da embalagem:22*36*22

Peso bruto:7.50 kg

Disponibilidade: Em estoque

1402 Visualizações estão procurando por este produto

40 cc/rev Hydraulic Gear Pump: Reliable & Durable - Contact Us Today

40 cc/rev Hydraulic Gear Pump: Reliable & Durable - Contact Us Today

40 cc/rev Hydraulic Gear Pump: Reliable & Durable - Contact Us Today drawing image

This 40 cc/rev Hydraulic Gear Pump is a reliable and durable solution for a wide range of applications, including construction, agriculture, and industrial vehicles. Available in various displacements, pressure ratings, and speeds, this pump is customizable to meet your specific requirements.

Série CBHS-F4 Bomba de engrenagem hidráulica Parâmetros
Deslocamento 40 cc/rev, 25 cc/rev, 20 cc/rev
Pressão Nominal 20 MPa (2900 psi), 25 MPa (3625 psi)
Pressão Máxima 25 MPa (3625 psi)
Velocidade Nominal 2000 rpm
Velocidade Máxima 2500 rpm
Rotação L: Esquerdo (sentido anti-horário), R: Direito (sentido horário)
Material Ferro Fundido, Ferro fundido de alumínio, Alumínio
Estrutura Tipo de prato de came
Versão da flange Flange oval A, Flange quadrado B, Orifícios de montagem ISO-4, Orifícios de montagem UNI-3, Flange SAE
Tipo de veio H: Chaveta retangular, X: Chaveta involuta, P: Chave Simples

This 40 cc/rev Hydraulic Gear Pump is a high-performance, reliable, and durable solution designed for demanding applications in construction, earth moving, agriculture, industrial vehicles, and material handling. It is available in various displacements (63 cc/rev, 80 cc/rev, 40 cc/rev, 45 cc/rev, 32 cc/rev), pressure ratings (17 MPa, 23 MPa, 25 MPa), and speeds (2200 r/min, 2400 r/min). The pump features an external gear pump design with a cam plate type structure, providing high efficiency and long service life. With options for A-Oval and B-Square flanges and a rectangle spline shaft, this pump can be easily integrated into a variety of systems. It is particularly suitable for use in forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, and harvesters. Our company offers manufacturing, OEM, ODM, private label, and custom services. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach. Contact us today to discuss your specific requirements and explore partnership opportunities.
