Produção e Entrega
Prazo de produção de 15 a 30 dias

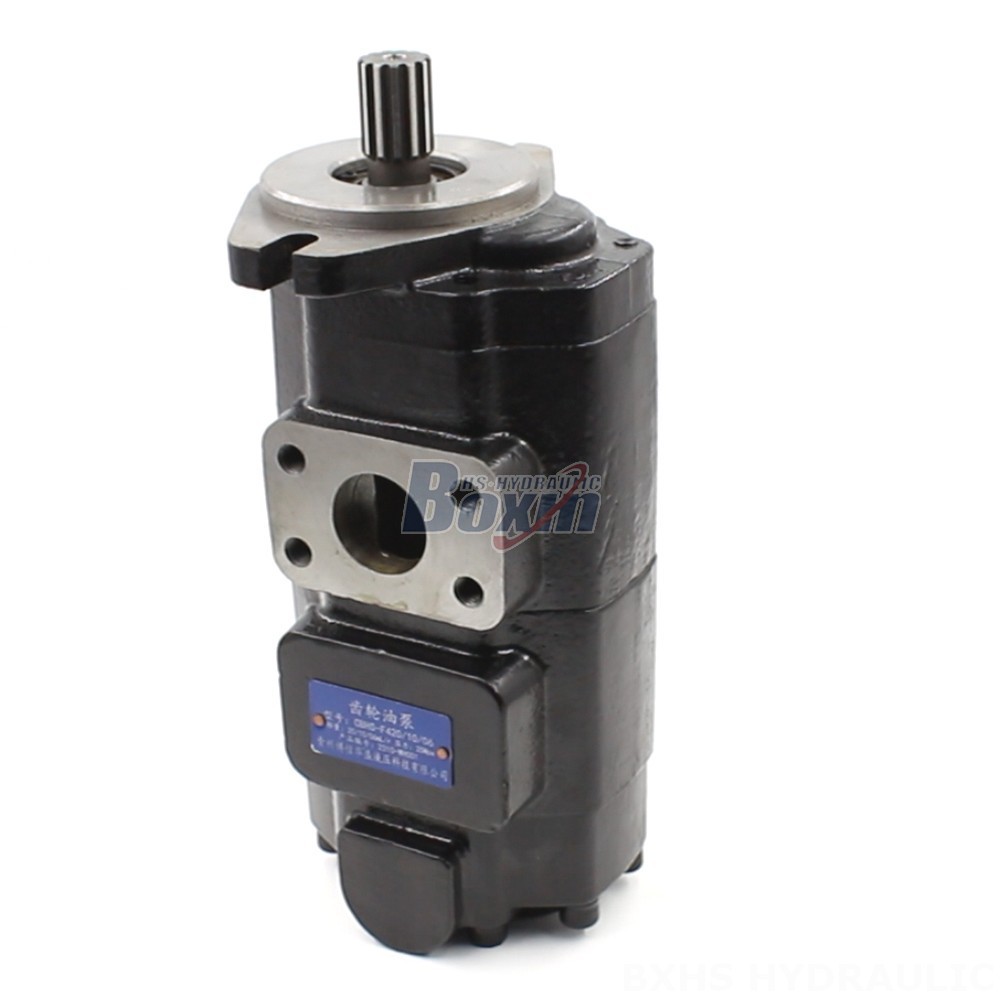

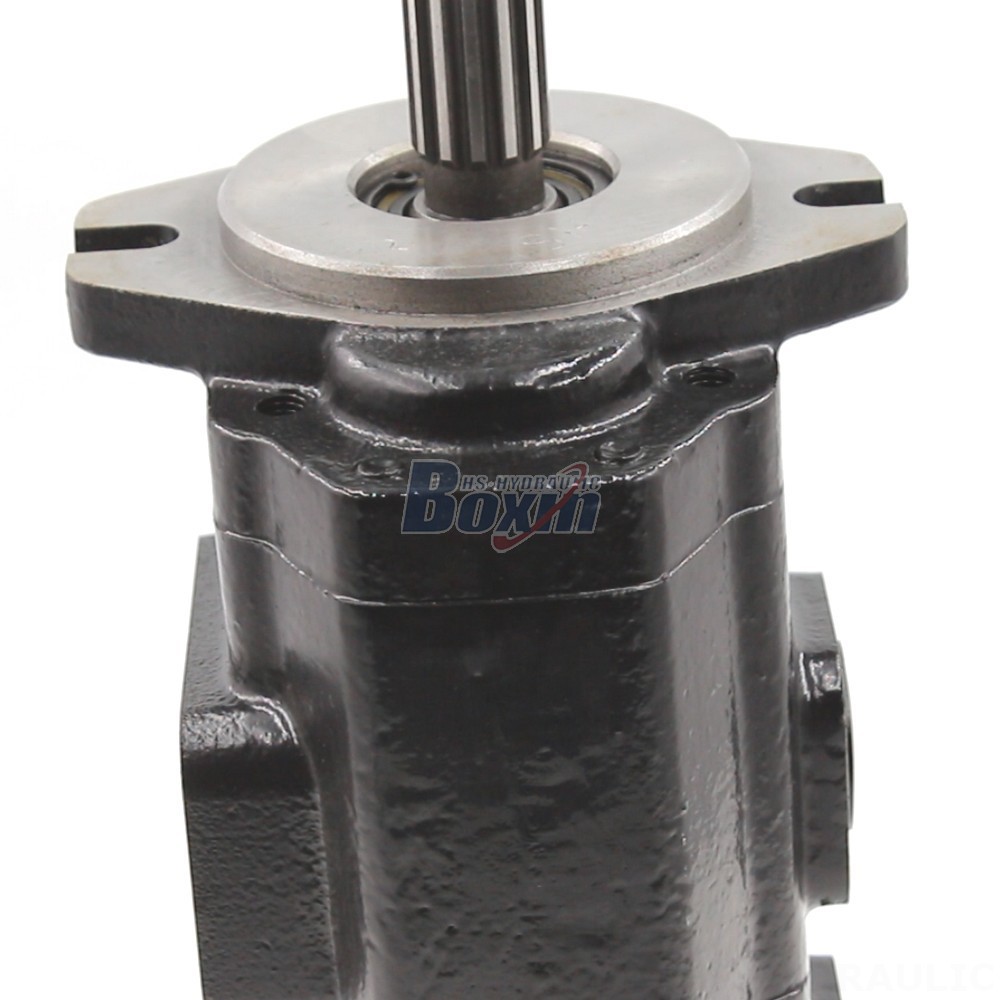

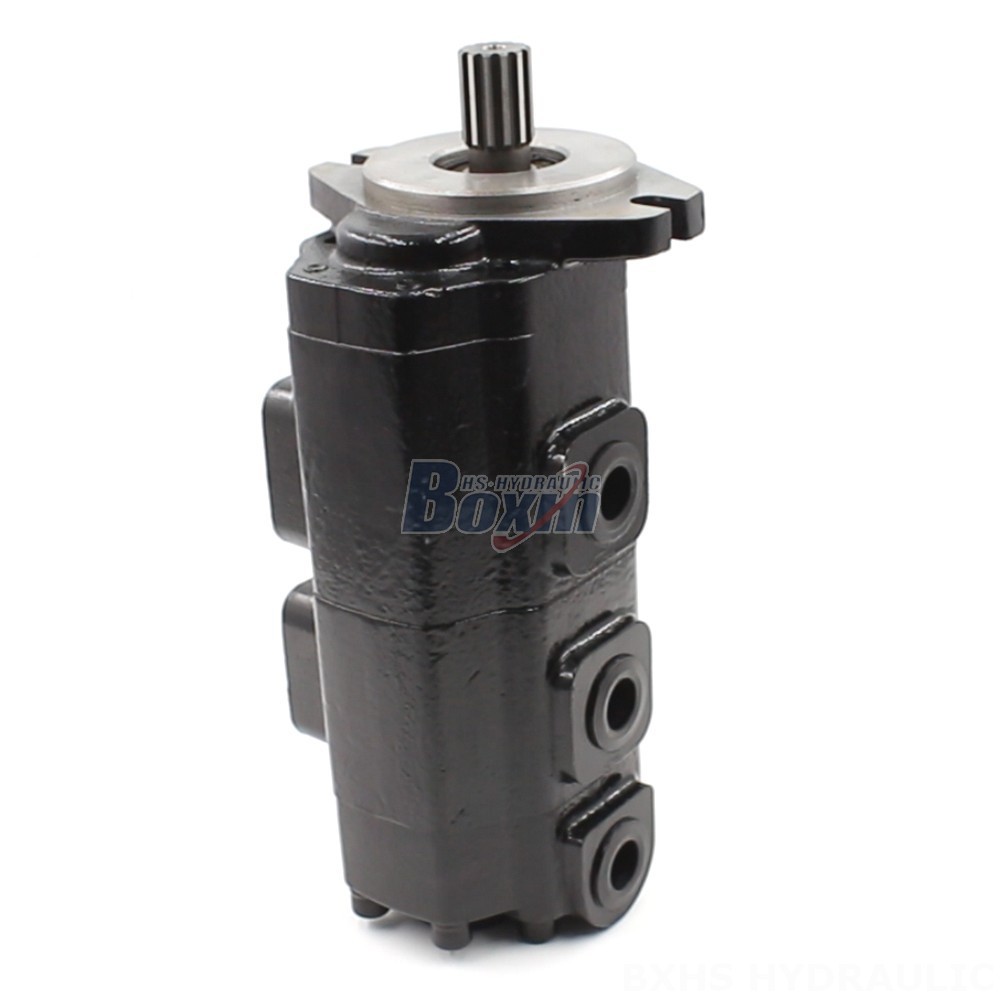

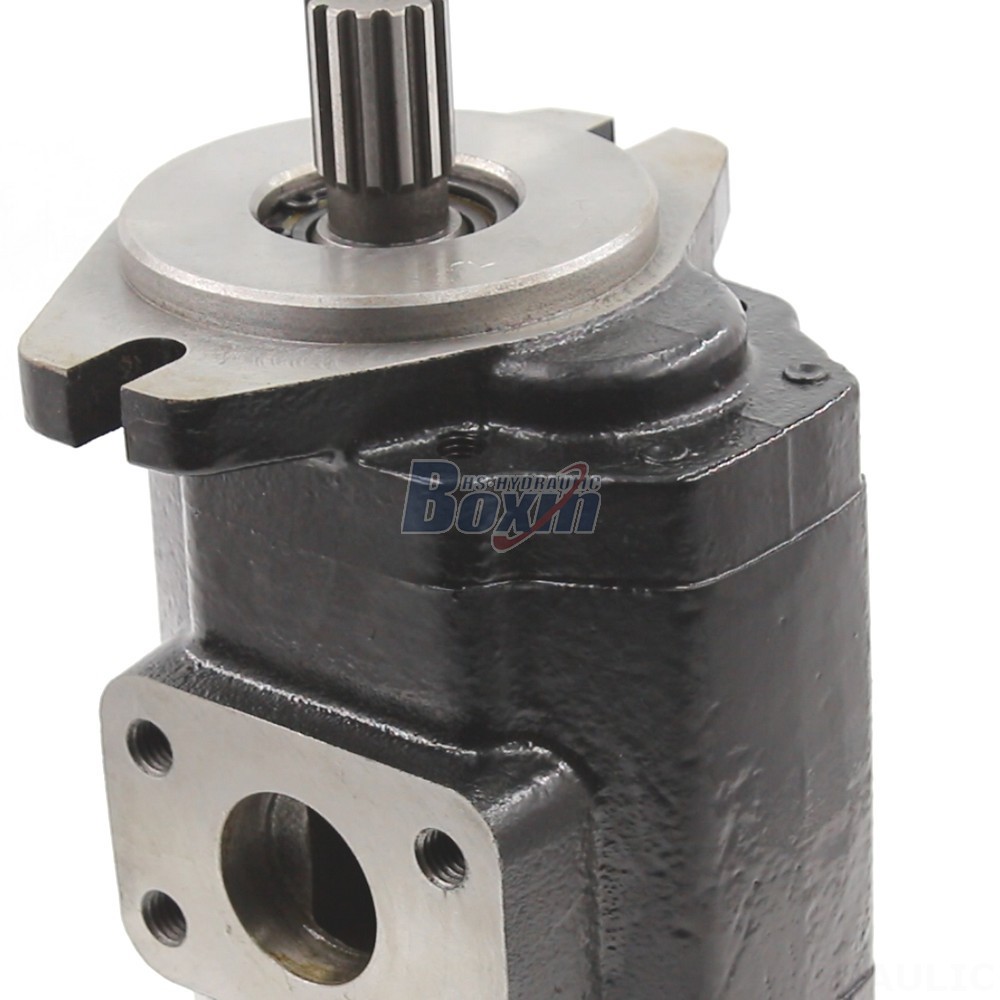

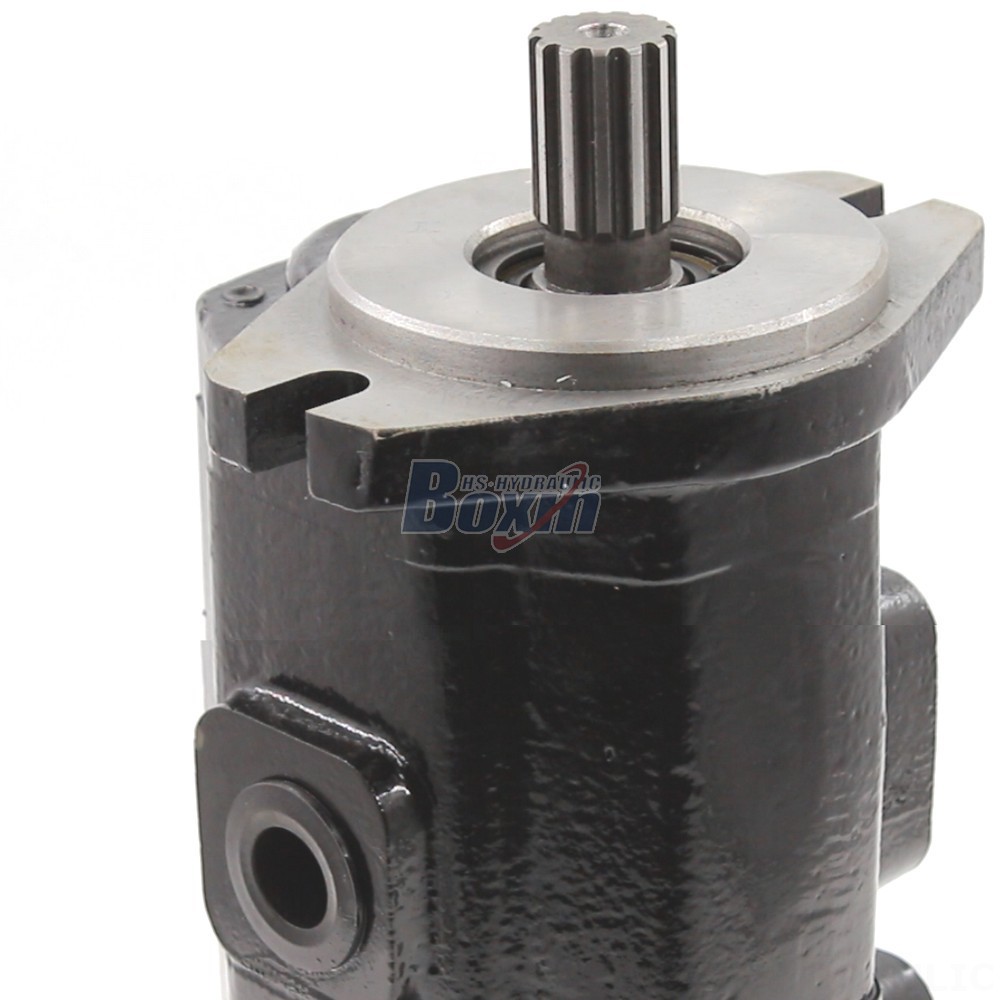

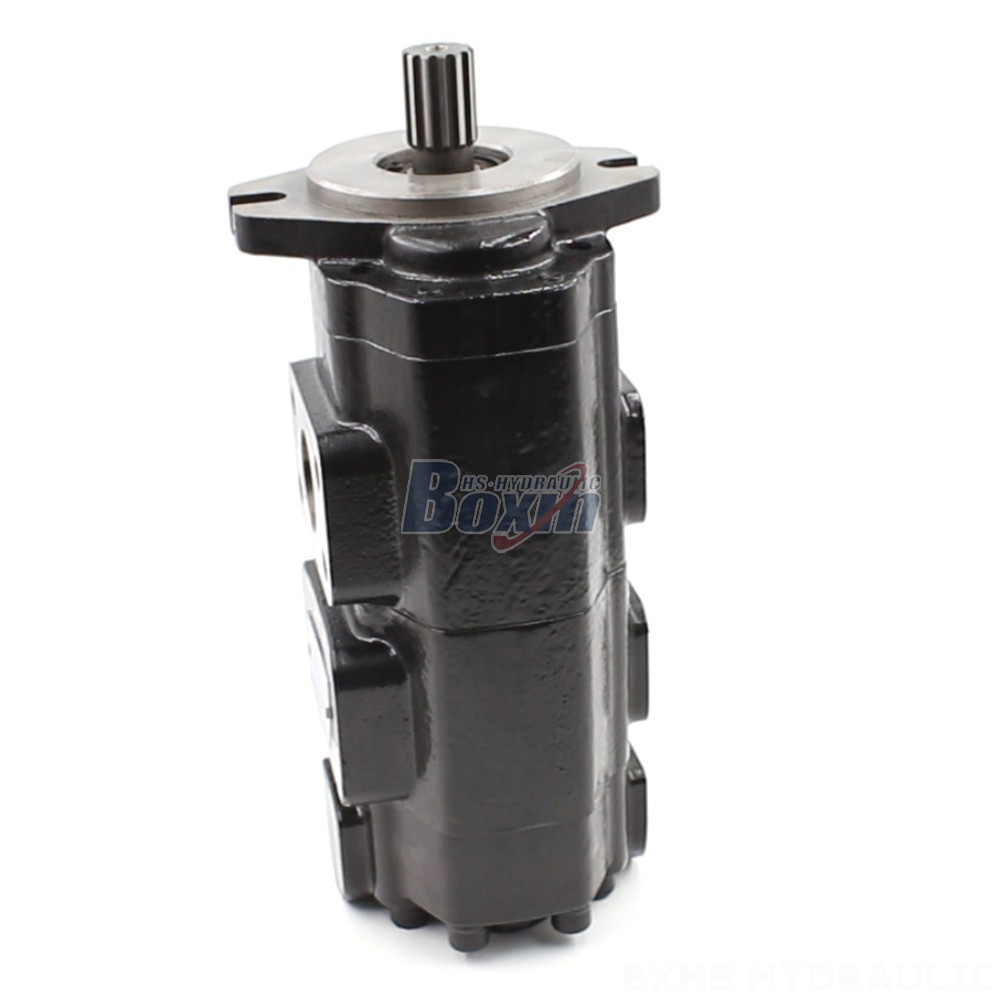

This is a high-quality, durable hydraulic gear pump designed for use in a wide range of applications, including construction equipment, agricultural machinery, industrial vehicles, and material handling. Available in various displacements, pressure ratings, and configurations to meet your specific needs.
| Série CBHS-F4 Bomba de engrenagem hidráulica Parâmetros | |
|---|---|
| Deslocamento | 40 cc/rev, 25 cc/rev, 20 cc/rev |
| Pressão Nominal | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Pressão Máxima | 25 MPa (3625 psi) |
| Velocidade Nominal | 2000 rpm |
| Velocidade Máxima | 2500 rpm |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Material | Ferro Fundido, Ferro fundido de alumínio, Alumínio |
| Estrutura | Tipo de prato de came |
| Versão da flange | Flange oval A, Flange quadrado B, Orifícios de montagem ISO-4, Orifícios de montagem UNI-3, Flange SAE |
| Tipo de veio | H: Chaveta retangular, X: Chaveta involuta, P: Chave Simples |
Our 40 cc/rev Hydraulic Gear Pump is available for wholesale orders and bulk purchases. The pump features a robust design with a displacement ranging from 32 cc/rev to 80 cc/rev and pressure ratings up to 25 MPa (3625 psi). It operates at speeds up to 2500 r/min and is available with right or left rotation. The pump can be configured with different flange versions (A-Oval or B-Square), shaft types (H: Rectangle Spline), and is part of the CBHS-F4 Series. Ideal for various applications like construction and earth moving, agriculture, industrial vehicles, and material handling. It is suitable for forklifts, telehandlers, mini and midi excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. We offer OEM, ODM, private label, and customizable options to meet your specific requirements.
