Produção e Entrega
Prazo de produção de 15 a 30 dias



This 6 cc/rev Hydraulic Gear Pump is designed for various applications in construction, agriculture, industrial vehicles, and material handling. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min.
| Série CBHS-FL3 Bomba de engrenagem hidráulica Parâmetros | |
|---|---|
| Deslocamento | 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Pressão Nominal | 20 MPa (2900 psi) |
| Pressão Máxima | 25 MPa (3625 psi) |
| Velocidade Nominal | 2000 rpm |
| Velocidade Máxima | 3000 rpm |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Material | Alumínio |
| Estrutura | Bomba de engrenagem externa |
| Versão da flange | Flange oval A |
| Tipo de veio | H: Chaveta retangular, X: Chaveta involuta, P: Chave Simples |

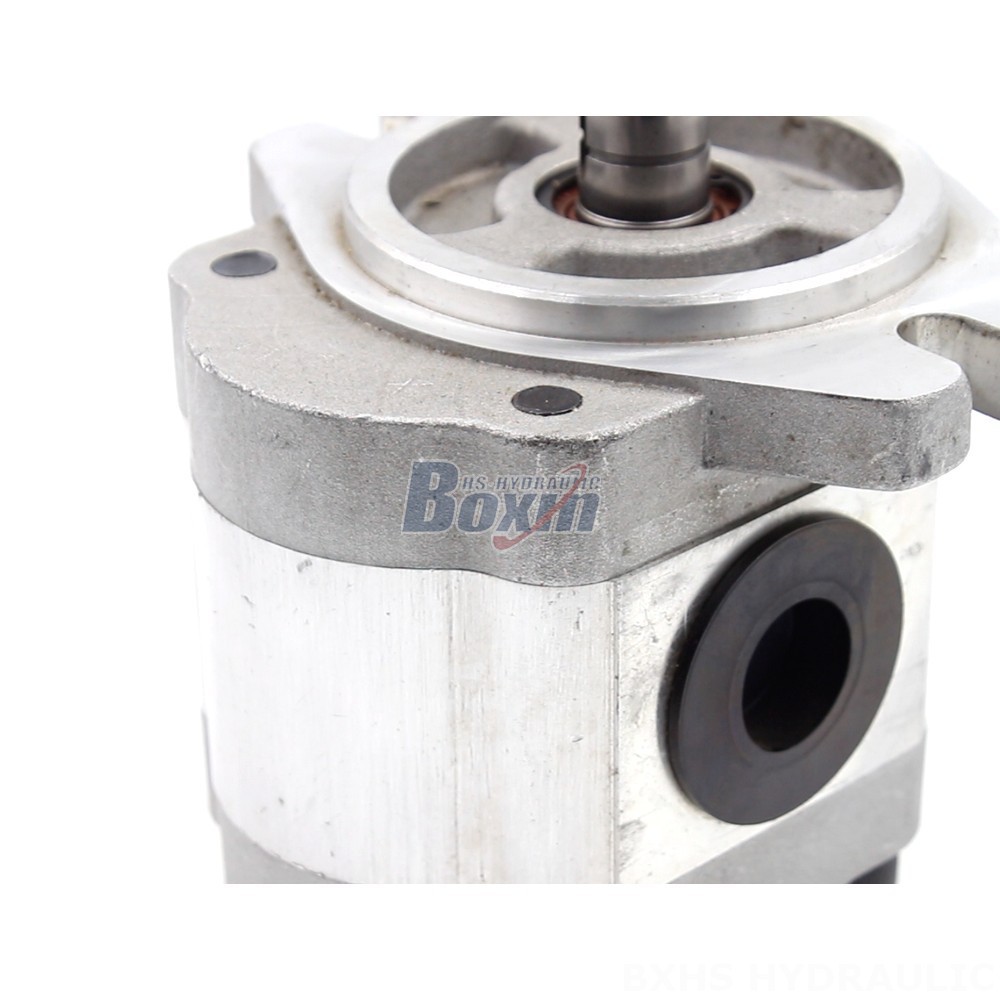

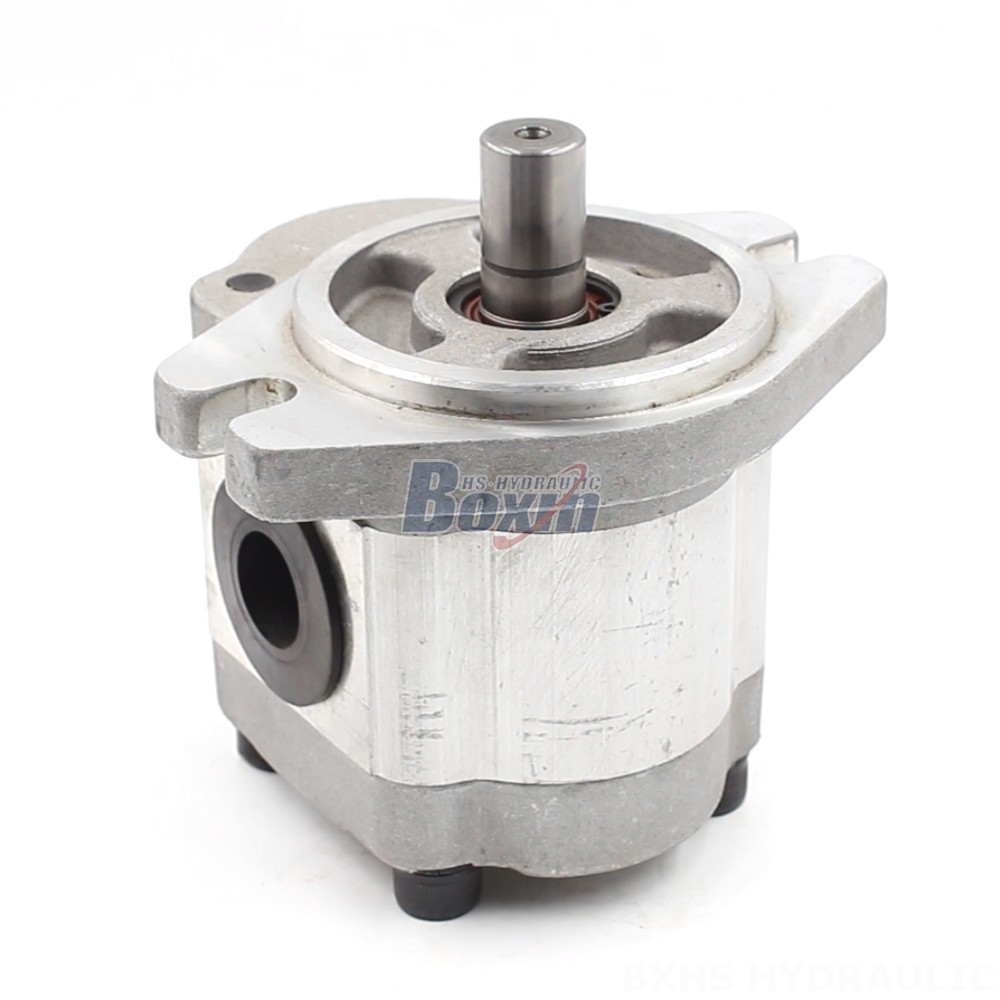

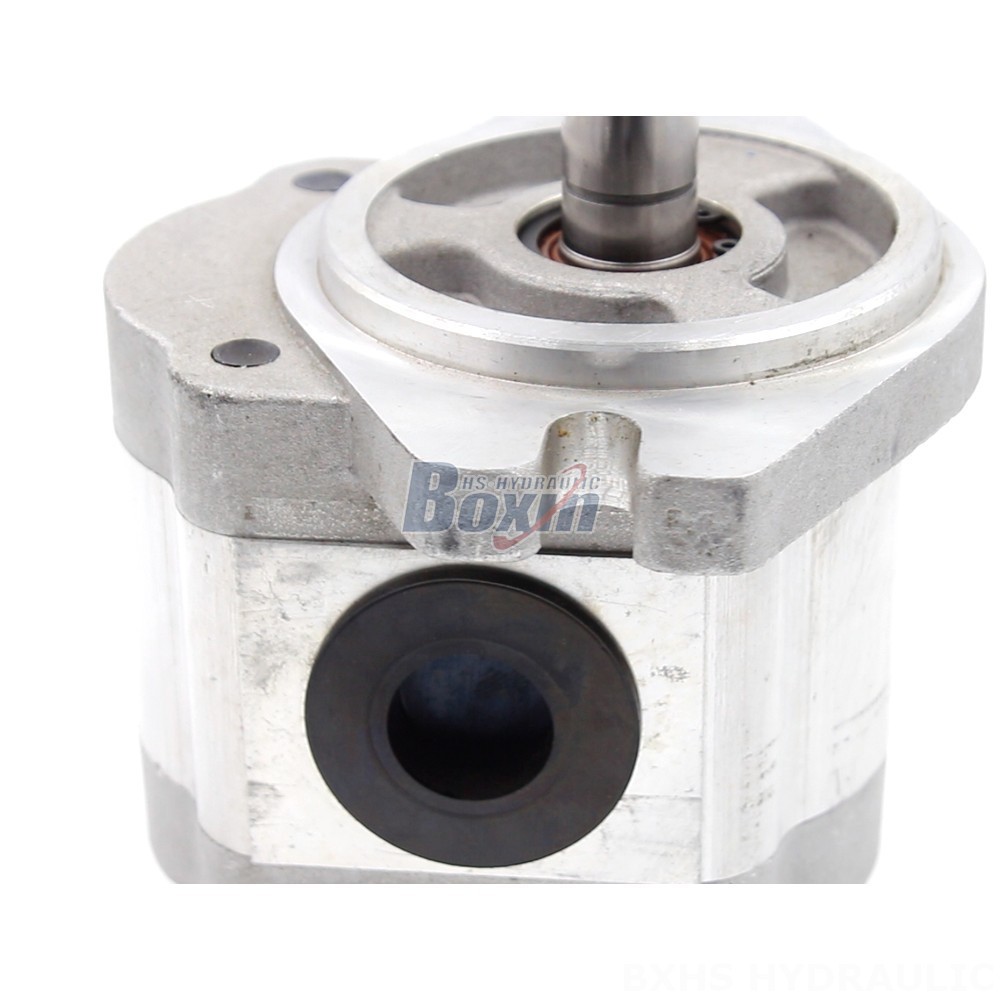

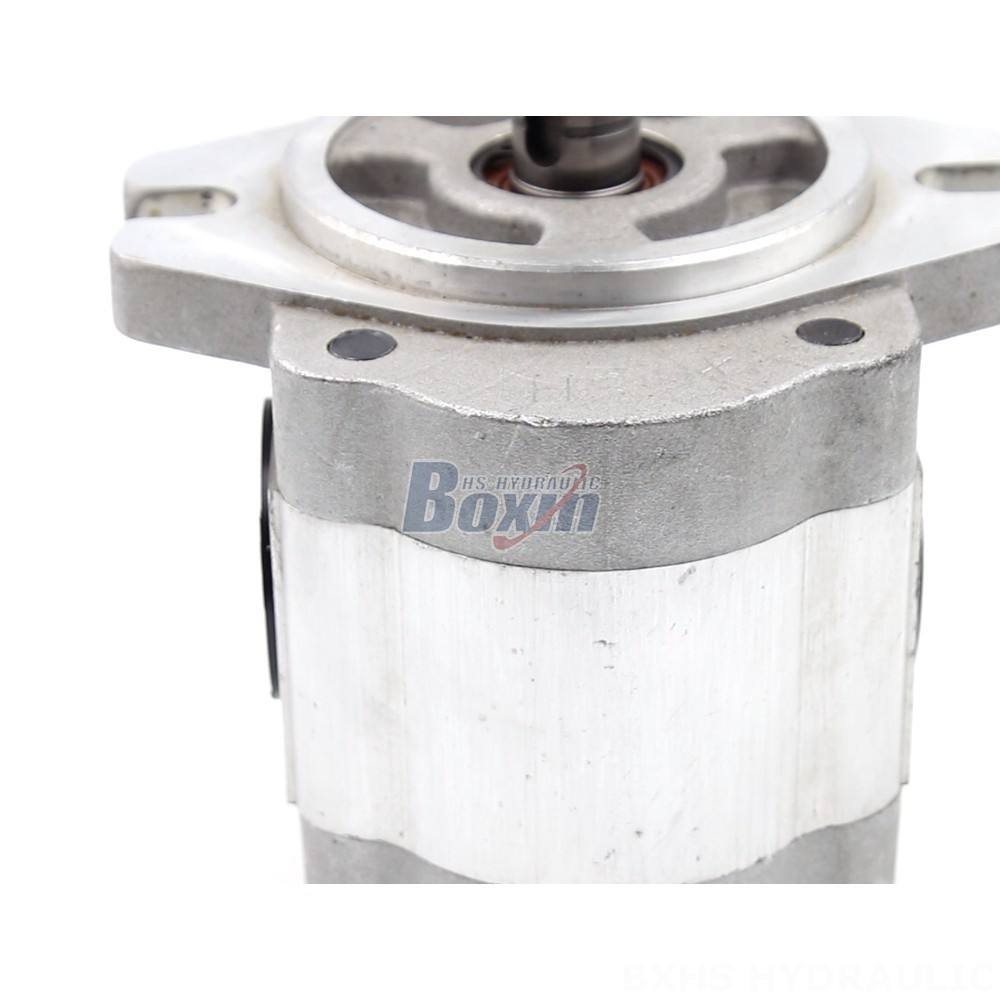

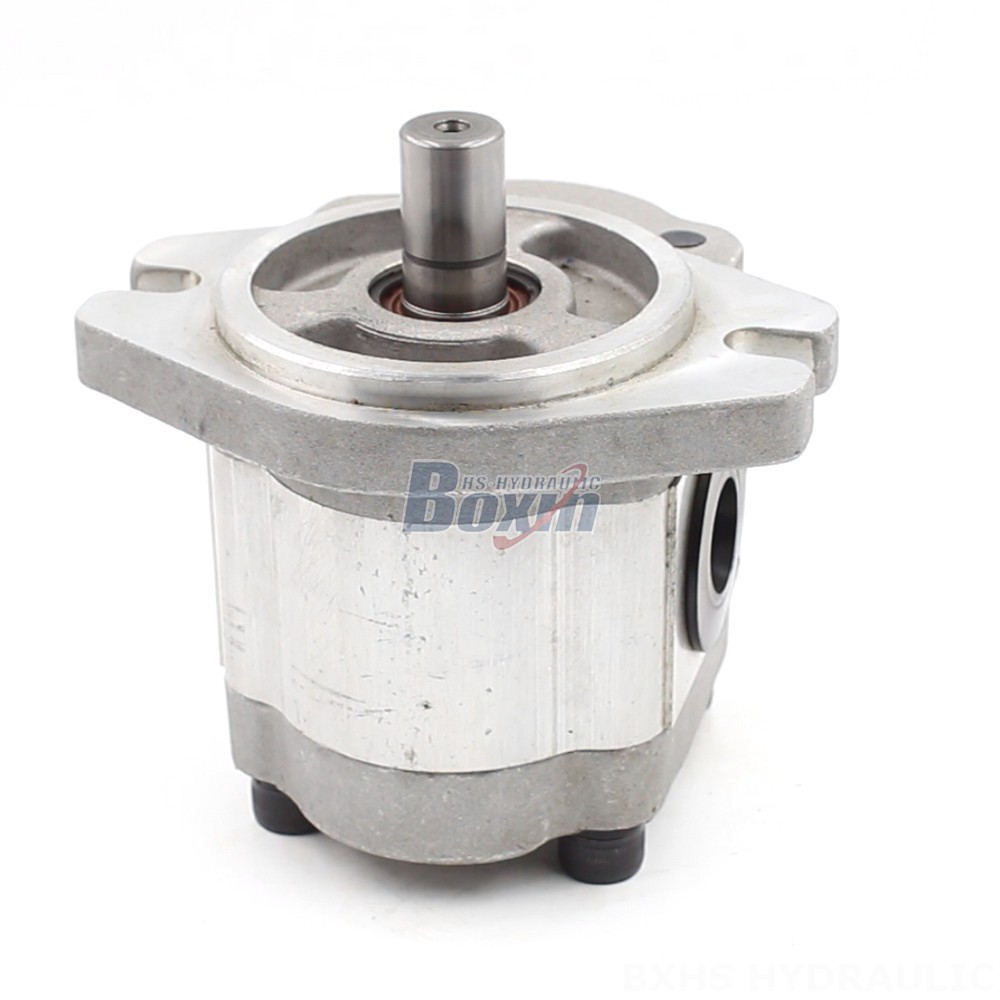

This high-performance 6 cc/rev Hydraulic Gear Pump is engineered for demanding applications. It boasts a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, capable of reaching a maximum speed of 3000 r/min. Built with an internal gear pump structure and crafted from durable aluminium, this pump features an A-Oval Flange and a Plain Key shaft. It belongs to the CBHS-FL3 Series and is specifically designed for use in various heavy-duty equipment, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, and sprayers. Its reliability and performance make it an ideal choice for manufacturers and distributors seeking high-quality hydraulic gear pumps for diverse applications.
