The HSDVG32 4 Spool Proportional Control Valve is an advanced hydraulic valve technology designed for demanding applications in various industries. With its high flow rate of 140 L/min and maximum pressure of 315 bar, it provides precise and efficient control of hydraulic systems. The electric proportional and manual control options offer versatility and flexibility in operation.
| Série HSDVG32 Válvula de Controle Proporcional Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletrohidráulico, Solenoide, Hidráulico e Manual, Cabo, Proporcional elétrico, Solenóide e Manual, Proporcional elétrico e manual |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis, 11 Carreteis, 12 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula seccional |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções, 11 secções, 12 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 140 L/min (37 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G3/4 |
| Porta de Saída | G3/4 |
| Tamanho da Porta | G1/2, G3/4 |

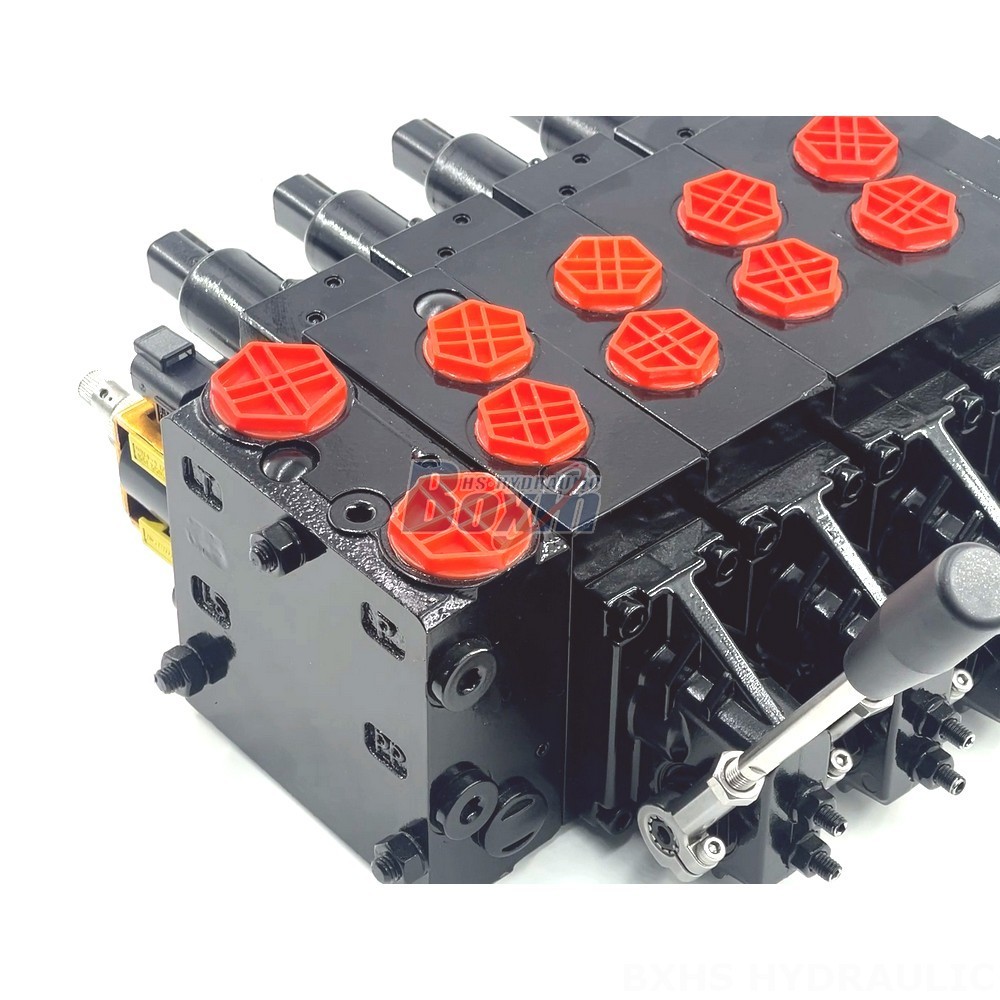

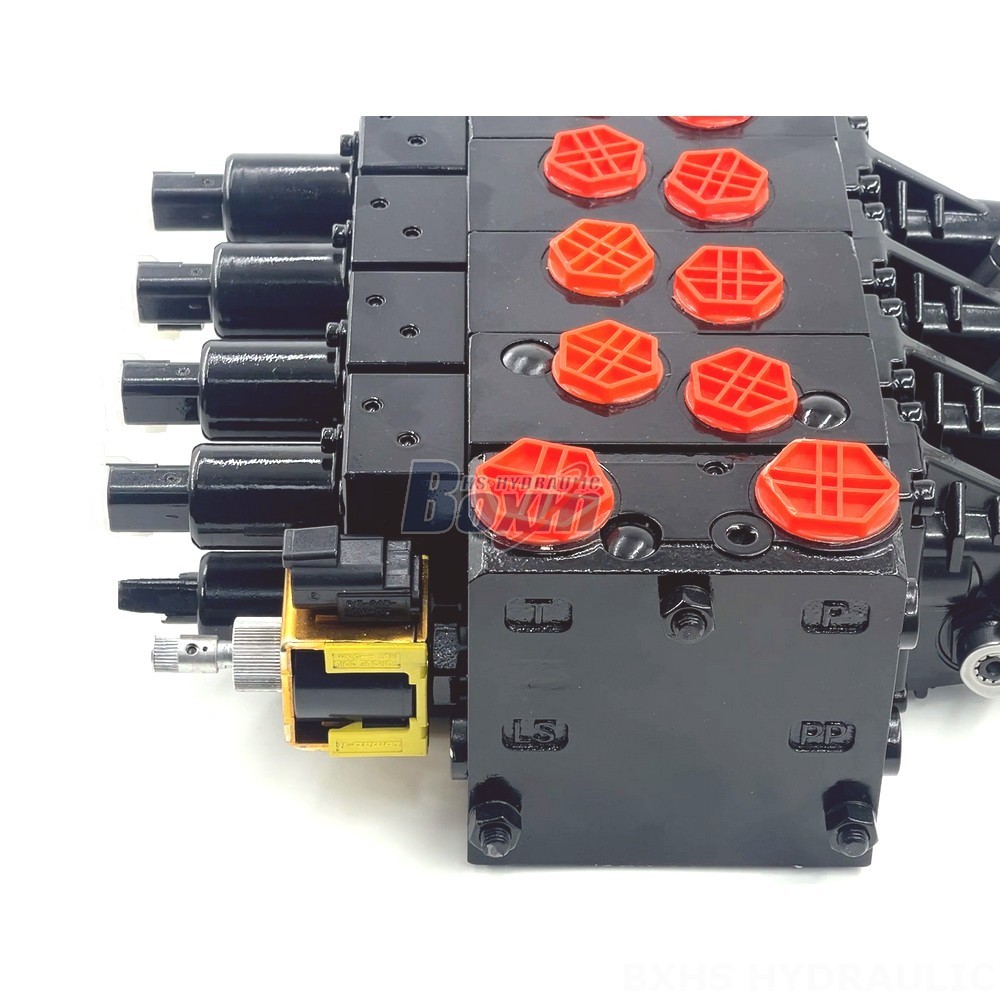

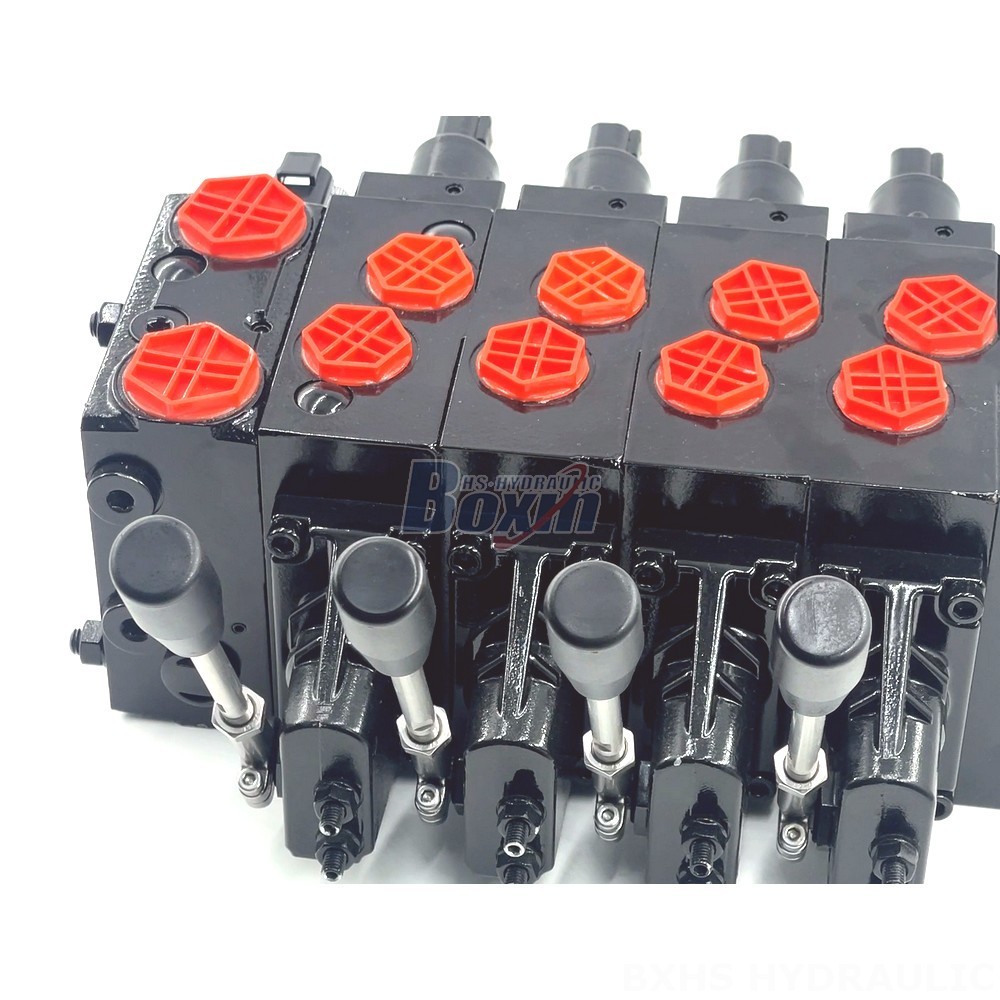

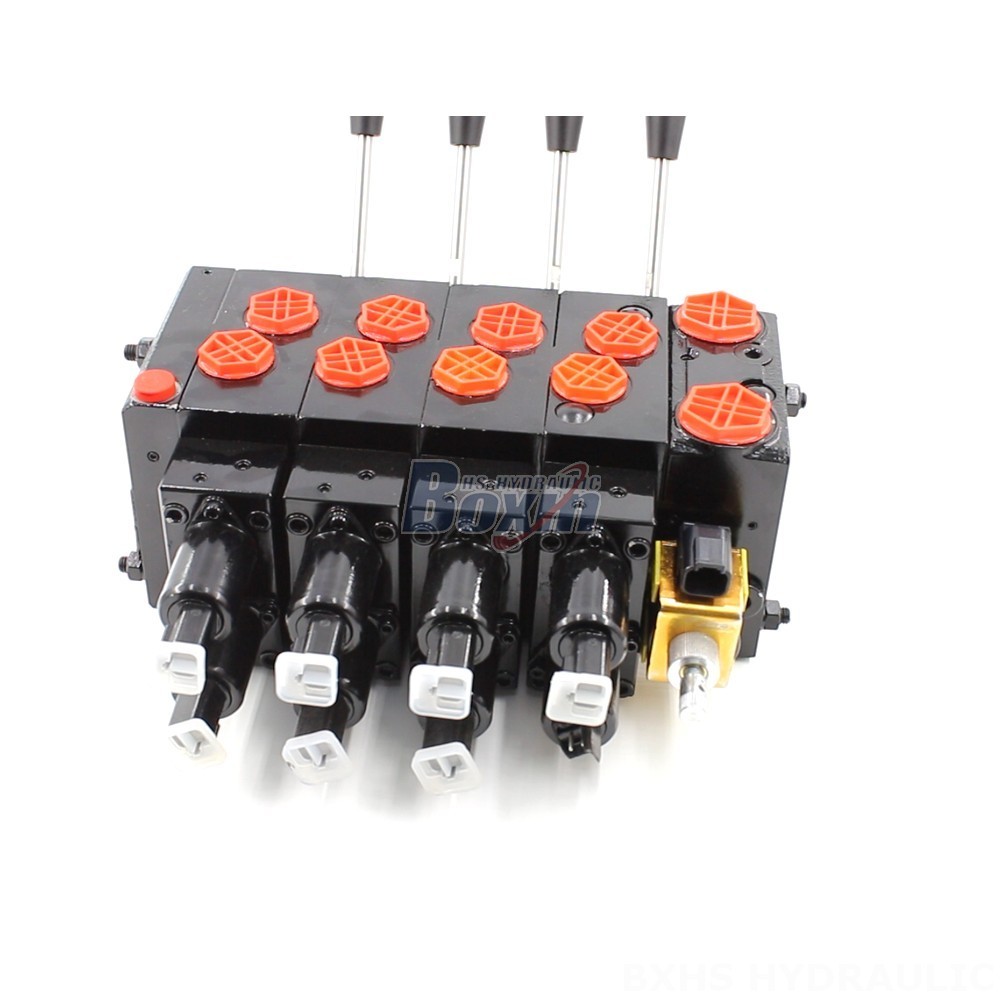

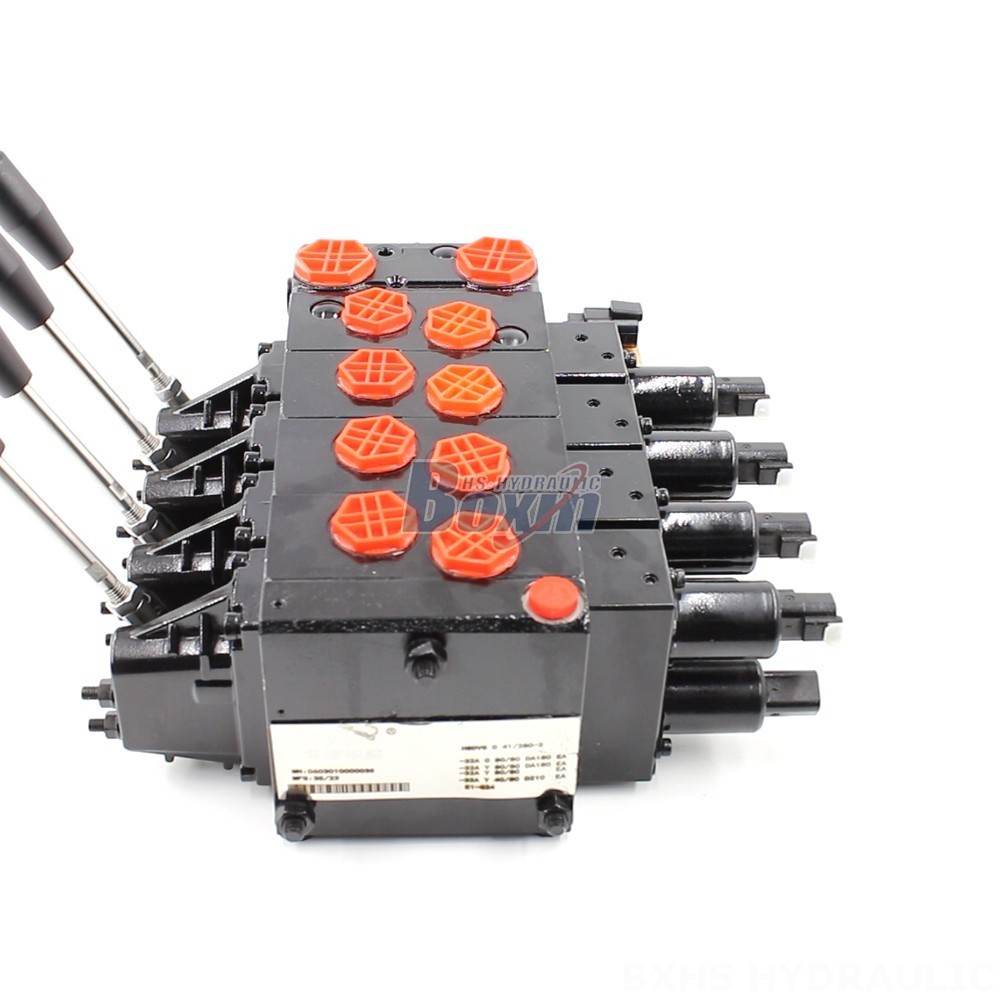

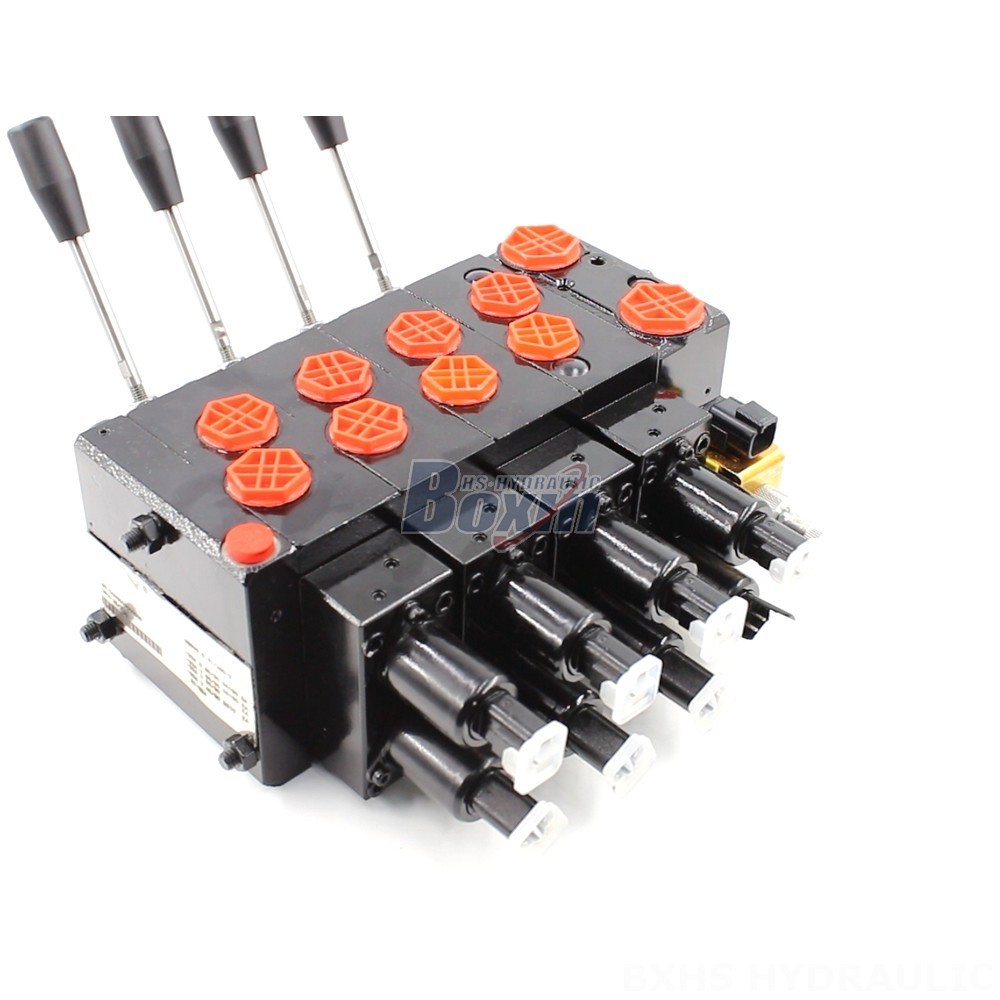

**HSDVG32 4 Spool Proportional Control Valve**
The HSDVG32 4 Spool Proportional Control Valve is a sectional valve with four spools, providing independent control of multiple hydraulic circuits. It is constructed from high-quality materials to ensure durability and reliability in harsh operating conditions. The valve features an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C.
**Key Features:**
* Rated Flow: 140 L/min (37 US gpm)
* Max Pressure: 315 bar (4600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 4 Spool
* Series: HSDVG32 Series
* Control Method: Electric proportional and Manual
* Section: 4 Section
* Structure Type: Sectional valve
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
The HSDVG32 4 Spool Proportional Control Valve is ideal for applications requiring precise flow control and high pressure capabilities. Its versatility and reliability make it suitable for a wide range of hydraulic systems in industries such as material handling, construction, earth moving, agriculture, and industrial vehicles.
