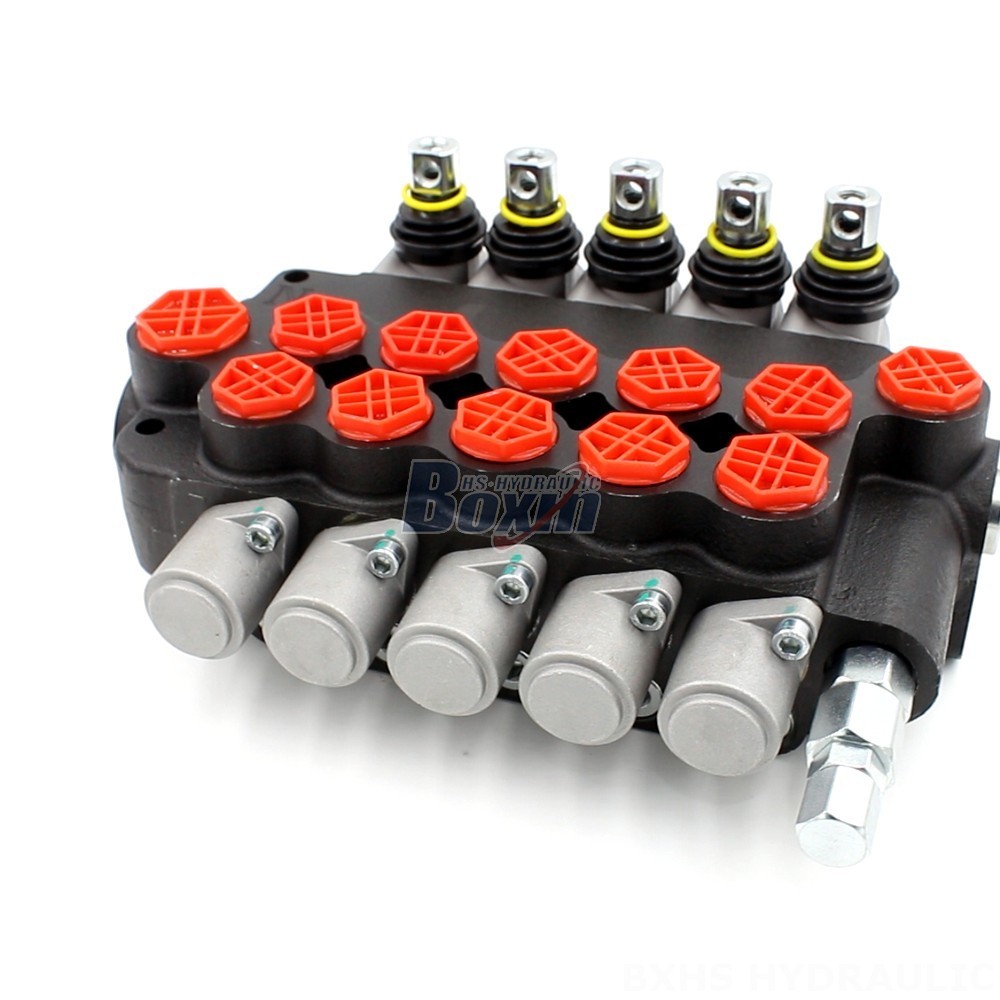

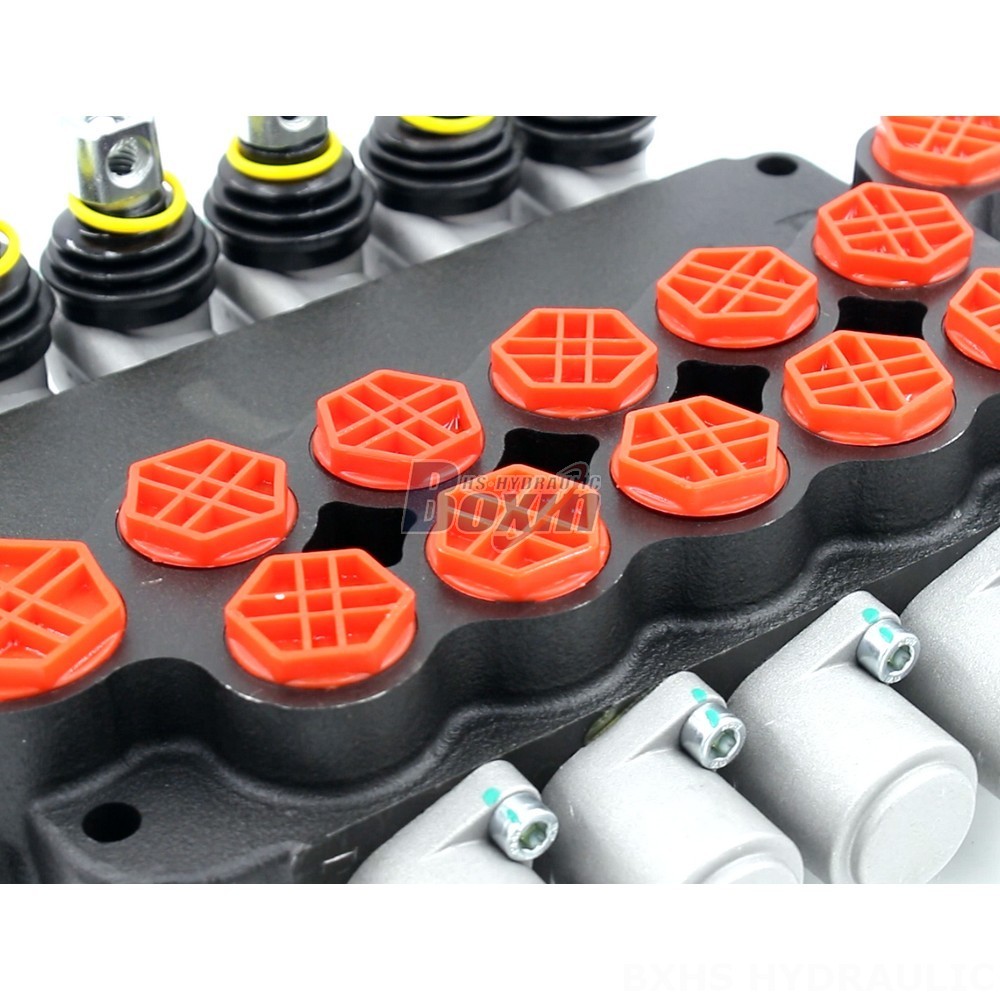

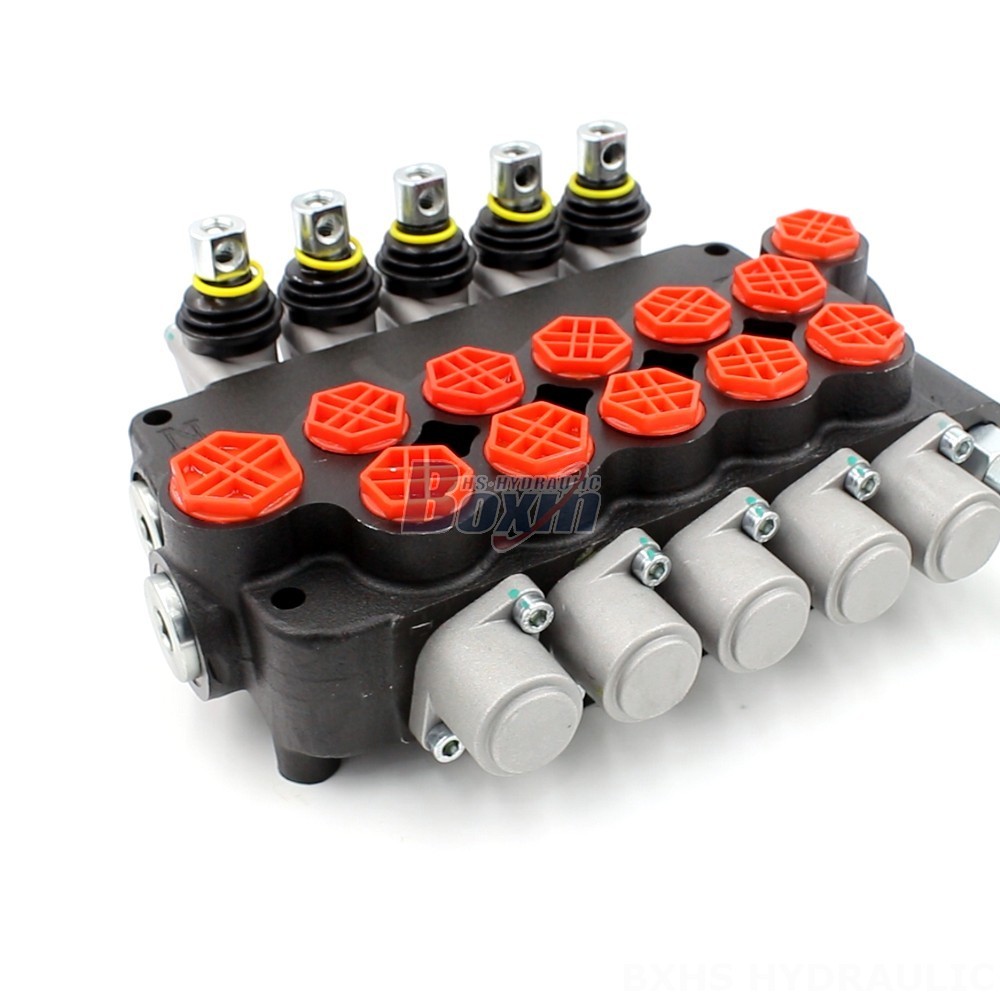

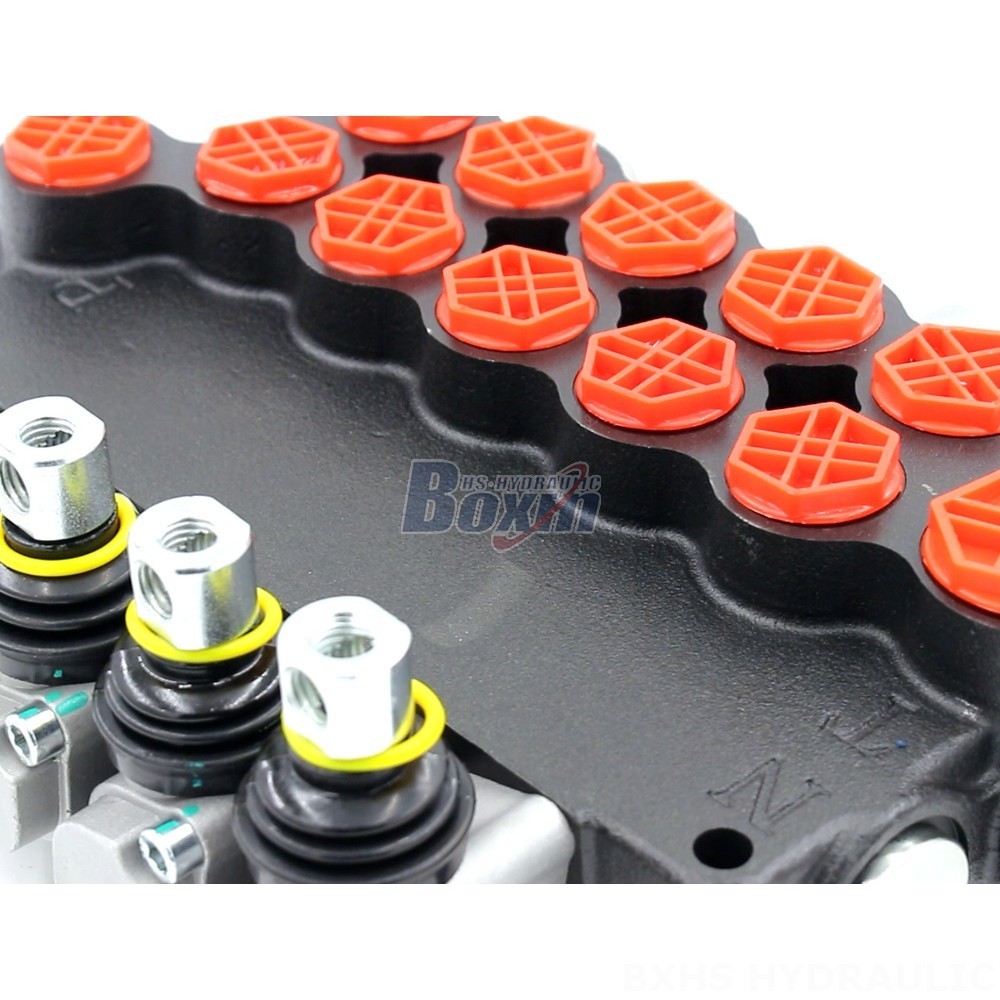

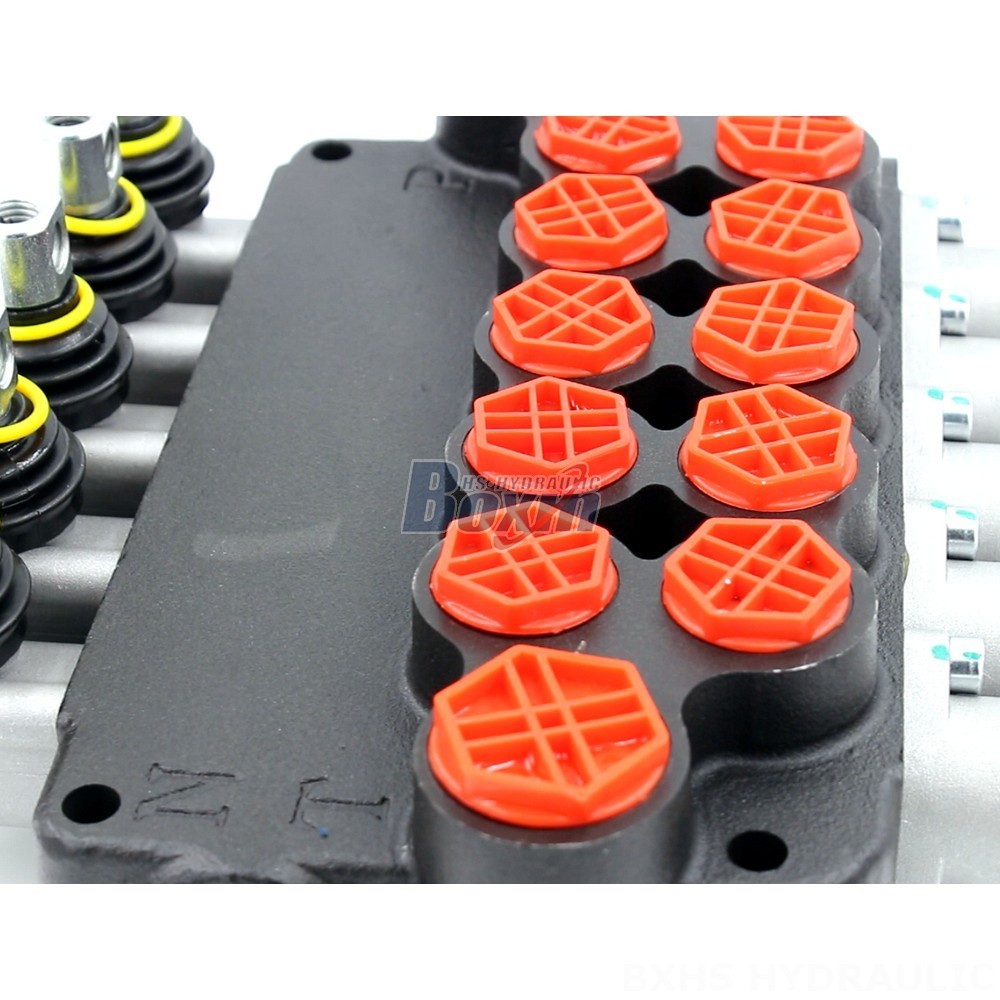

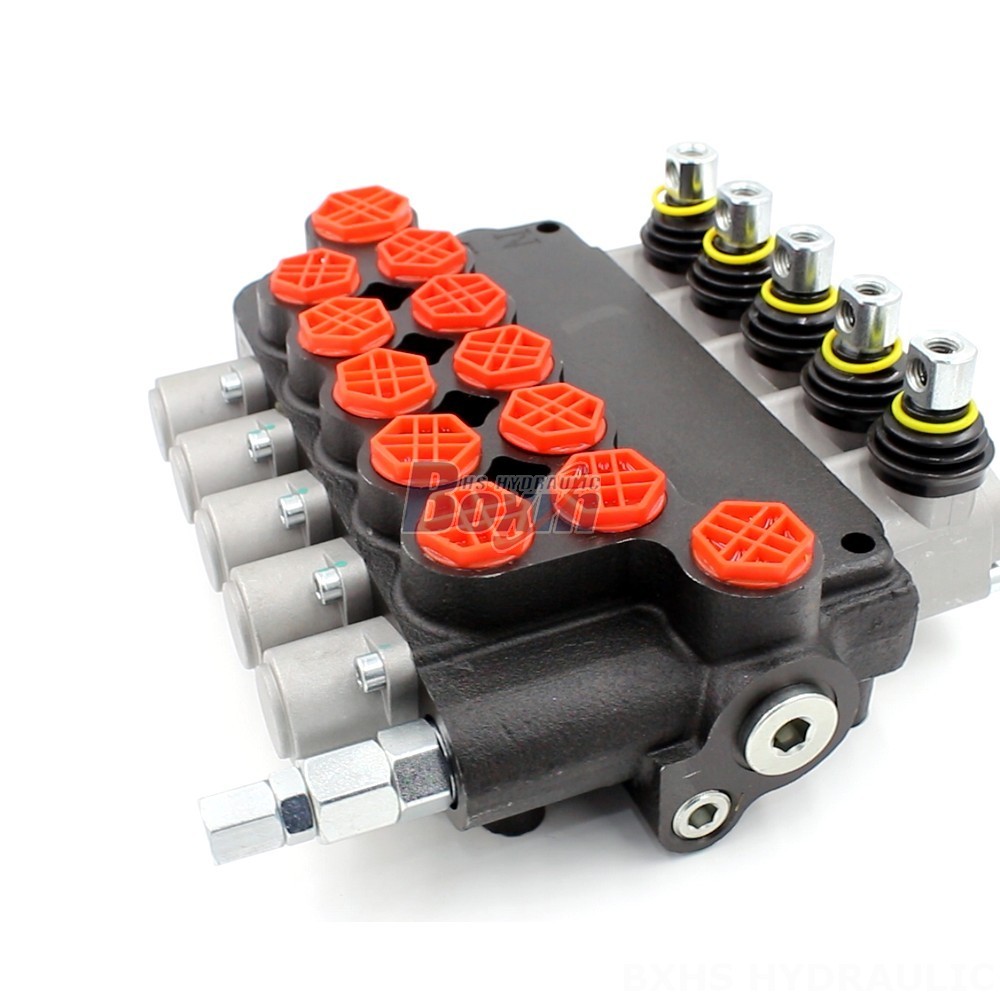

Introducing Bespoke Hydraulic Solutions: P80-G12-G38-OW 5 Spool Directional Control Valves, meticulously engineered to meet your specific hydraulic system requirements. Our valves are highly customizable, allowing you to tailor them to your unique application needs. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), these valves provide exceptional performance and durability.
| Série P80 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 80 L/min (21,2 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
Our P80 Series Directional Control Valves are designed with a monoblock structure, ensuring superior strength and reliability. They feature a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F), making them suitable for use in demanding environments. We offer a comprehensive range of customization options, including spool configurations, pressure settings, and porting arrangements. Whether you require OEM, ODM, or private label services, our team of experts is dedicated to working closely with you to deliver the perfect solution. Contact us today to discuss your specific requirements and experience the Bespoke Hydraulic Solutions difference.
