Produção e Entrega
Prazo de produção de 15 a 30 dias
1057 Visualizações estão procurando por este produto

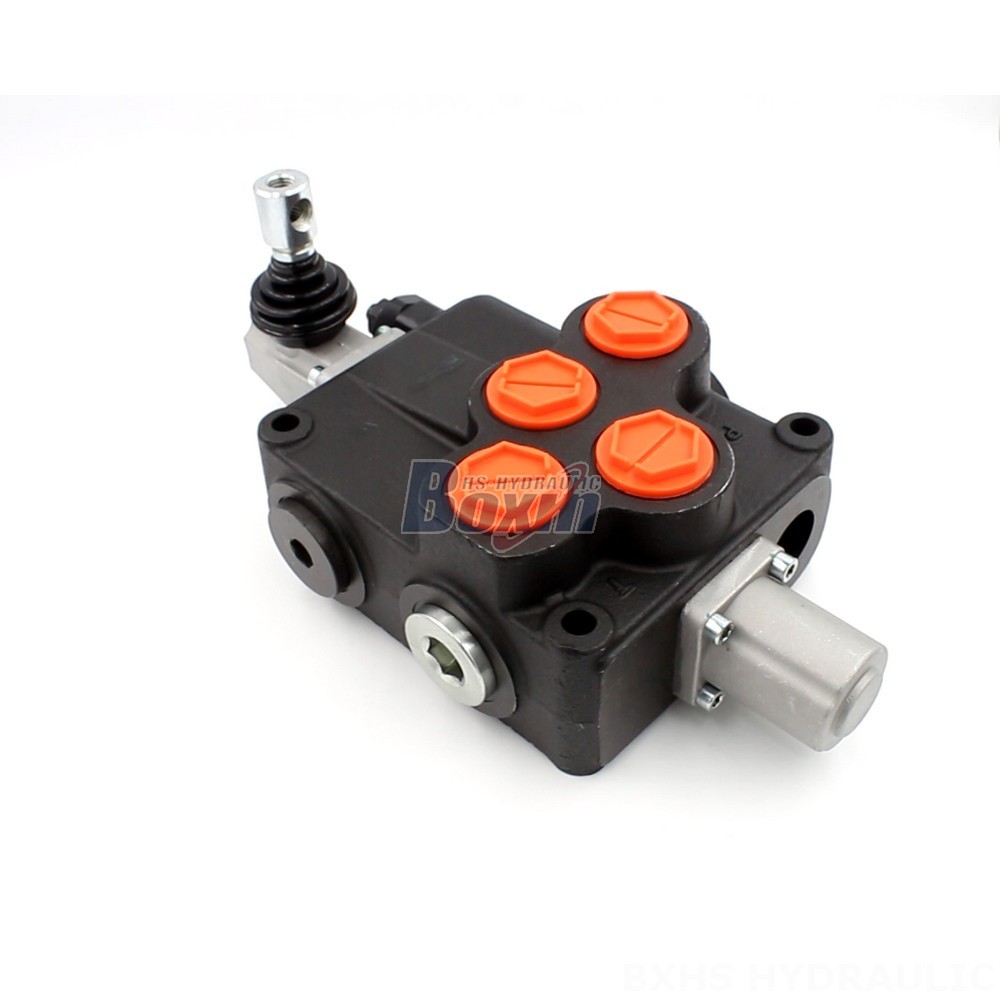

P120-G1-OT Directional Valve is a bespoke hydraulic valve tailored to your specific requirements. With a rated flow of 120 L/min and a max pressure of 250 bar, this valve is suitable for various applications in the material handling, construction, earth moving, agriculture, and industrial vehicles industries.
| Série P120 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis |
| Fluxo Nominal | 120 L/min (31.7 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Porta de Saída | G1, SAE 16, 1 NPT, M36×2 |
| Tamanho da Porta | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções |
| Tipo de estrutura | Válvula monobloco |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The P120-G1-OT Directional Valve is a monoblock valve with a single section and a single spool. It features manual control and is designed to operate within an ambient temperature range of -40°C to +80°C. The valve is suitable for applications requiring a rated flow of up to 120 L/min and a maximum pressure of 250 bar. **OEM, ODM, and customization services are available to meet your specific requirements.** The valve is widely used in various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, harvesters, bale wrappers, and seeding machines.
