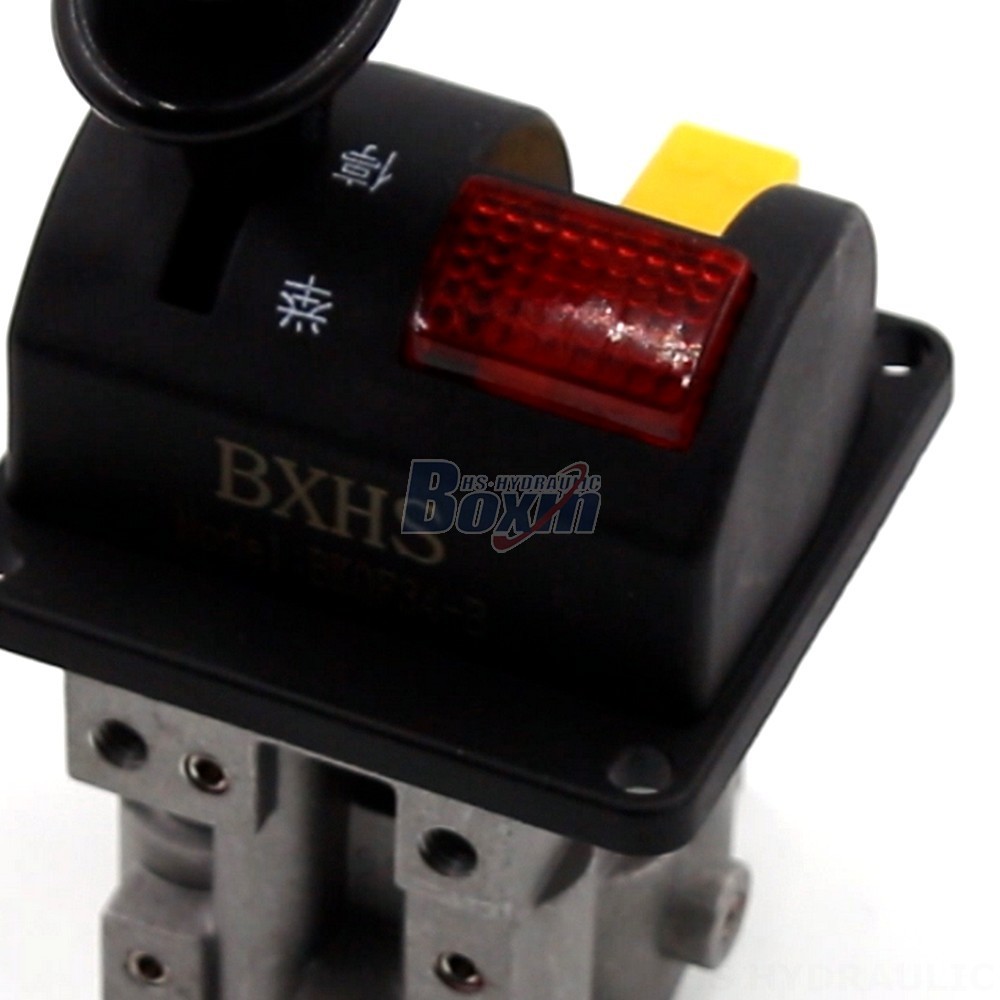

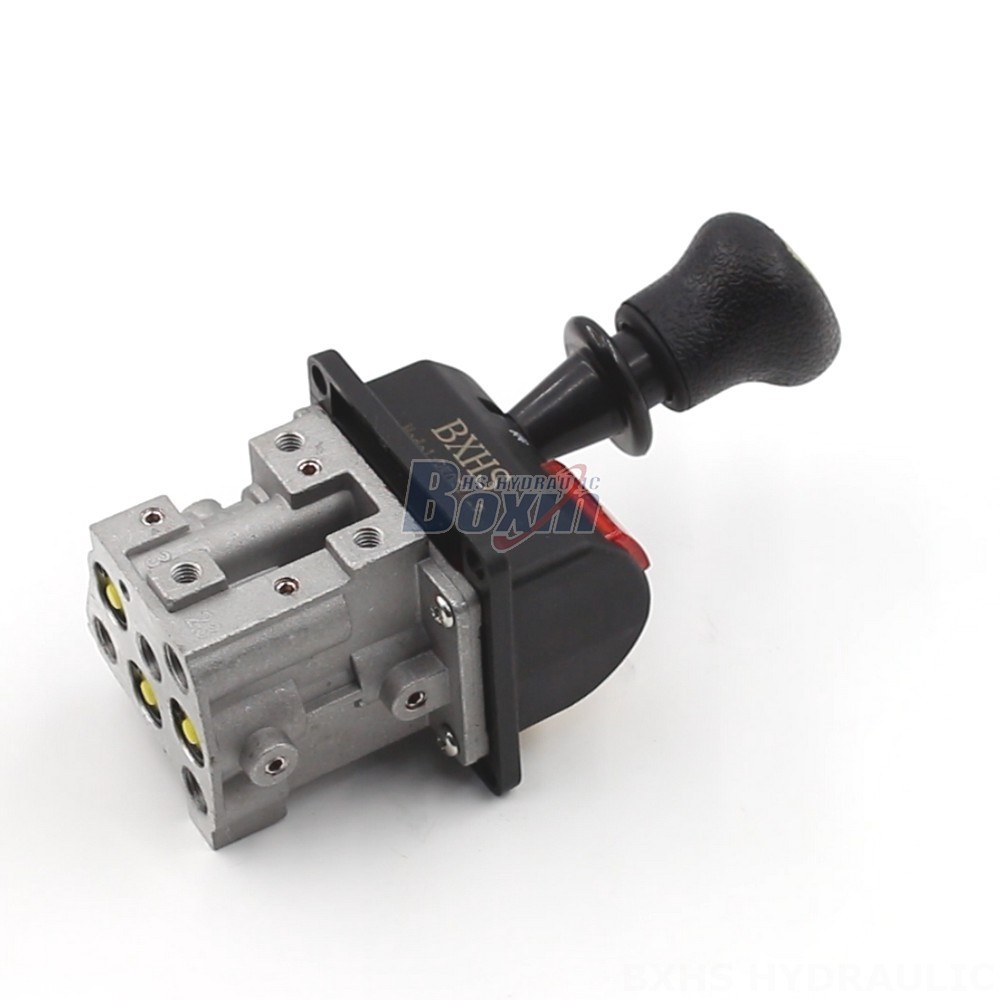

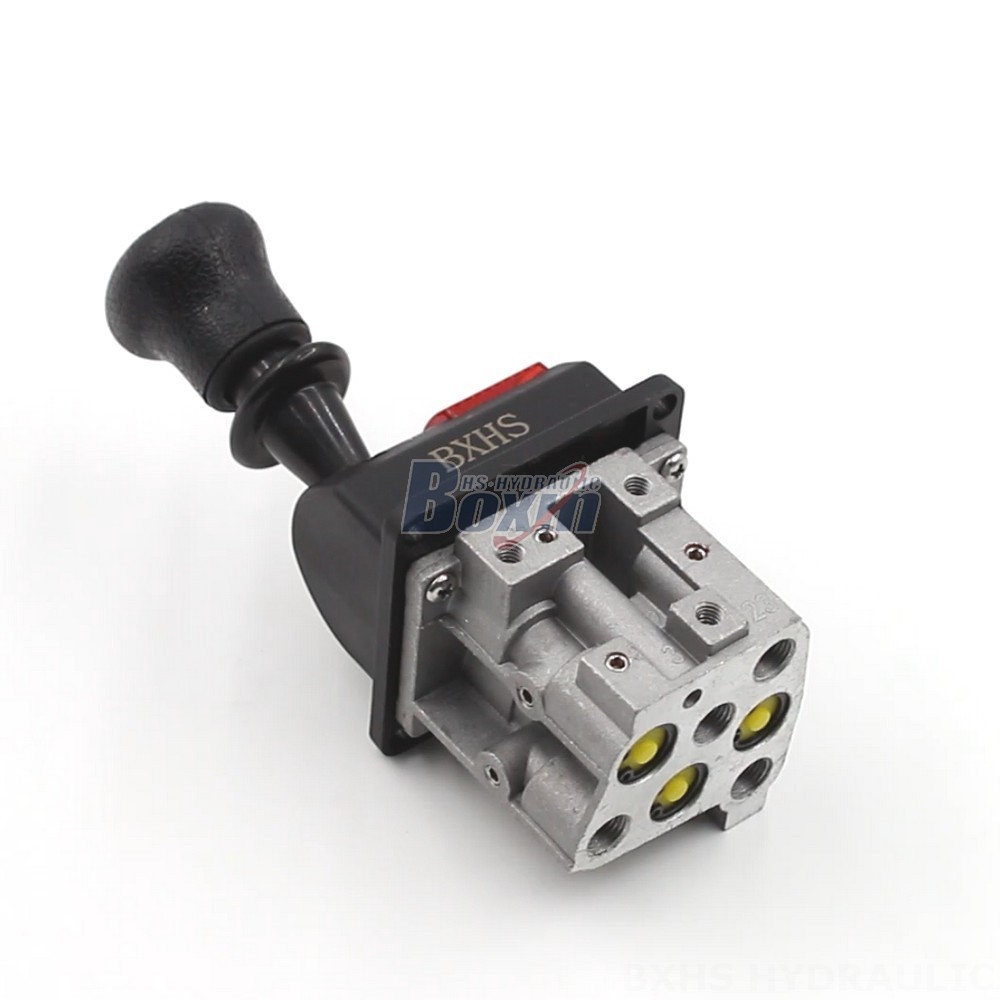

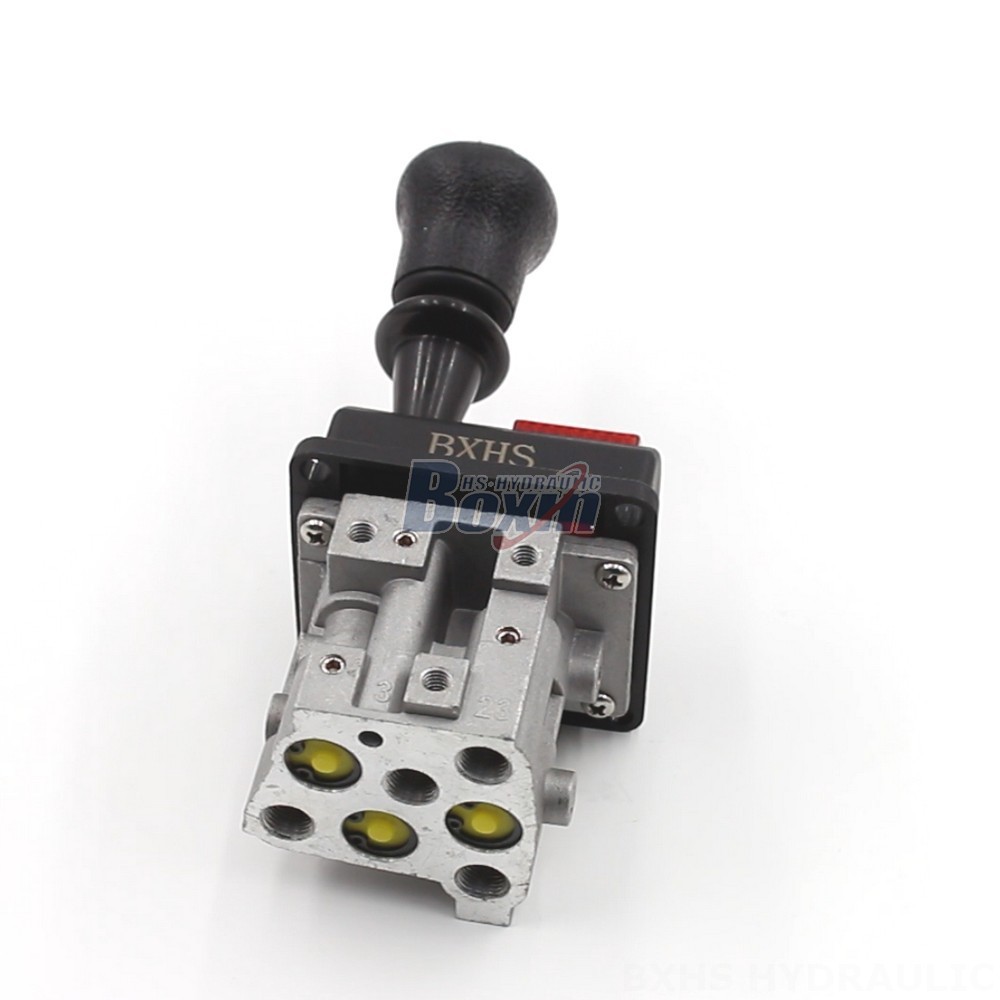

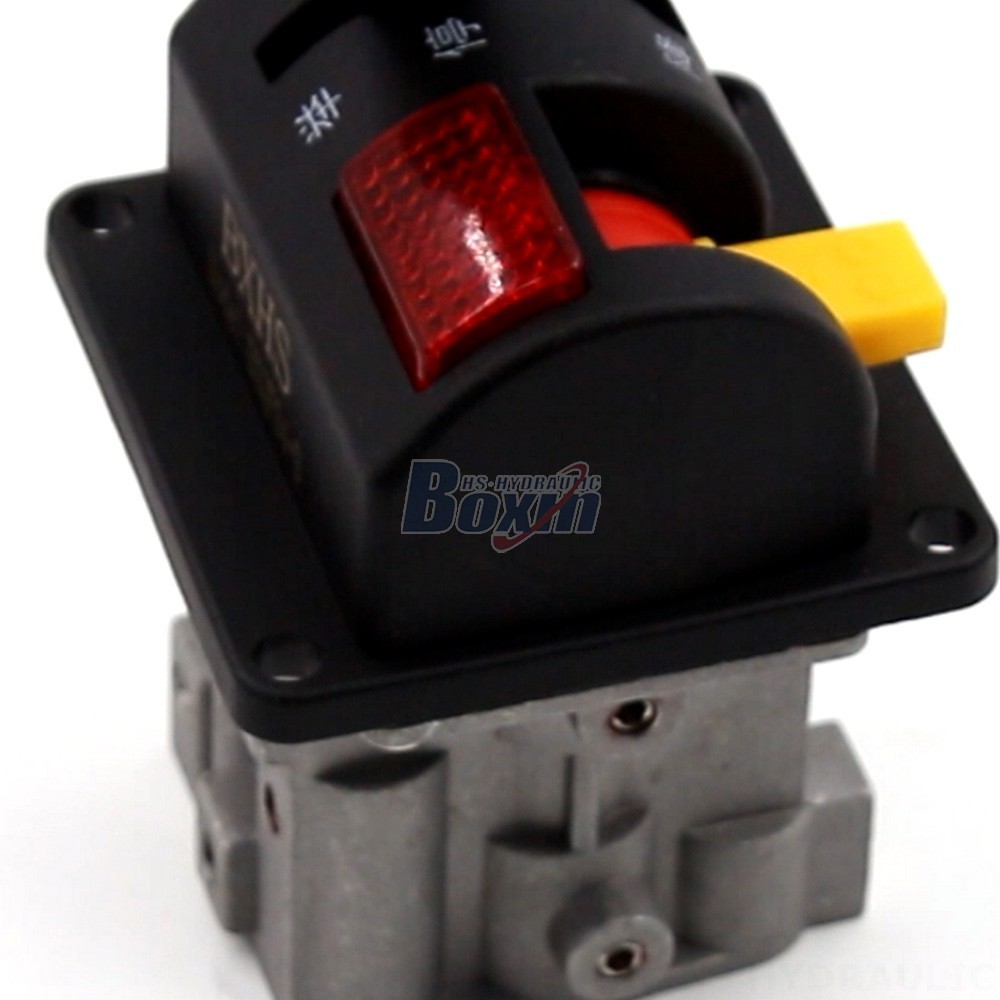

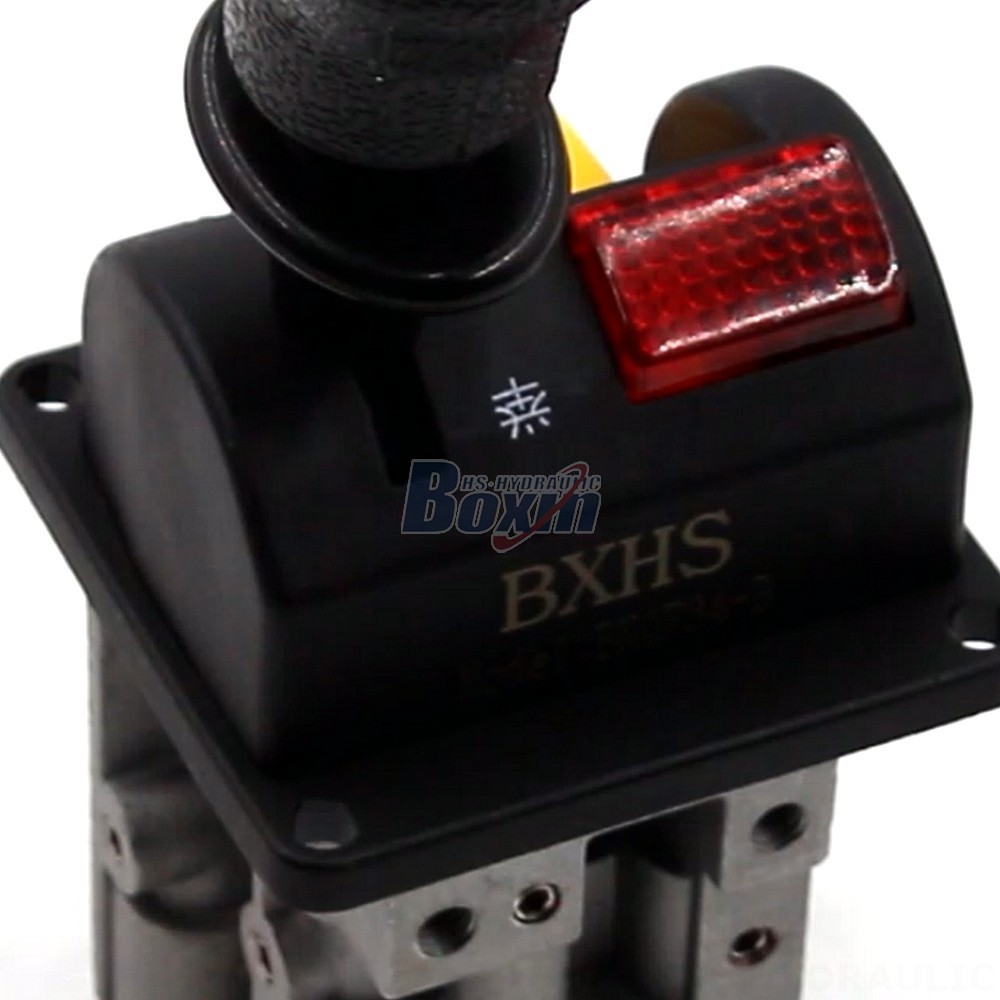

The BKQF34-B Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a max pressure of 160 bar, this valve offers reliable and efficient control of hydraulic systems. Its compact monoblock design and manual control mechanism make it easy to install and operate.
| Série BKQF34 Válvula de Controle Pneumática Parâmetros | |
|---|---|
| Método de Controle | Pneumático |
| Carrétel | 1 Carretel |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | Pressão nominal |
| Porta de Entrada | G1/4 |
| Porta de Saída | G1/4 |
| Tamanho da Porta | G1/4 |
**Key Features:**
* Manual control for precise and responsive operation
* Monoblock design for compact and leak-free performance
* 1 section for simple and effective flow control
* Rated flow of 40 L/min (10.5 US gpm) for efficient system operation
* Max pressure of 160 bar (2300 psi) for demanding applications
* Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in harsh environments
**Applications:**
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
