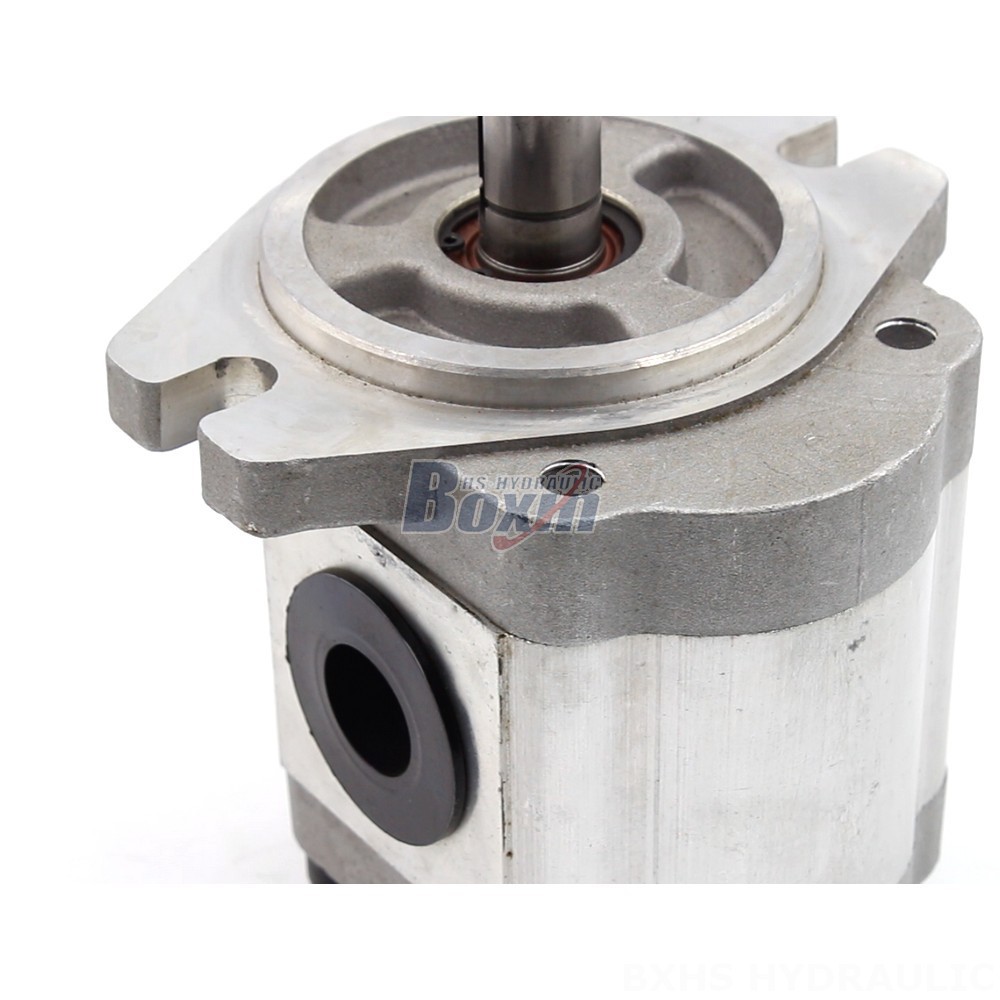

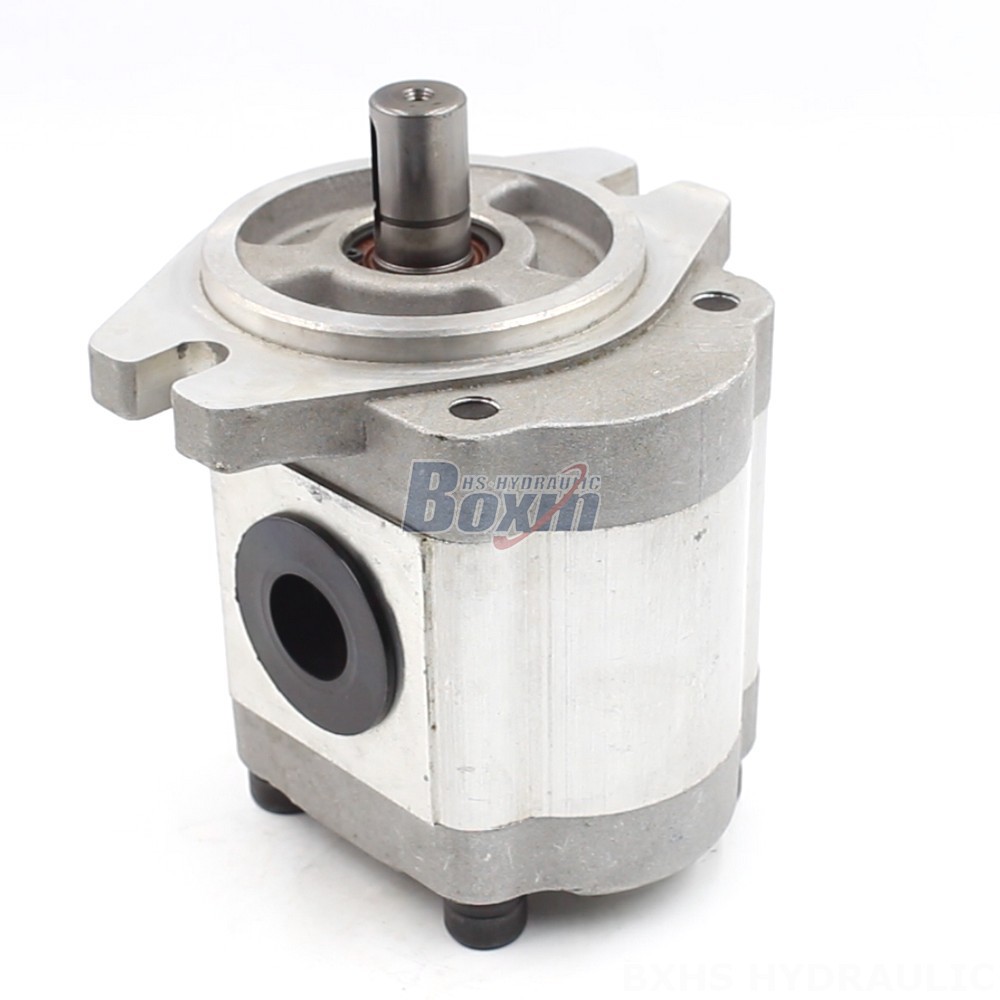

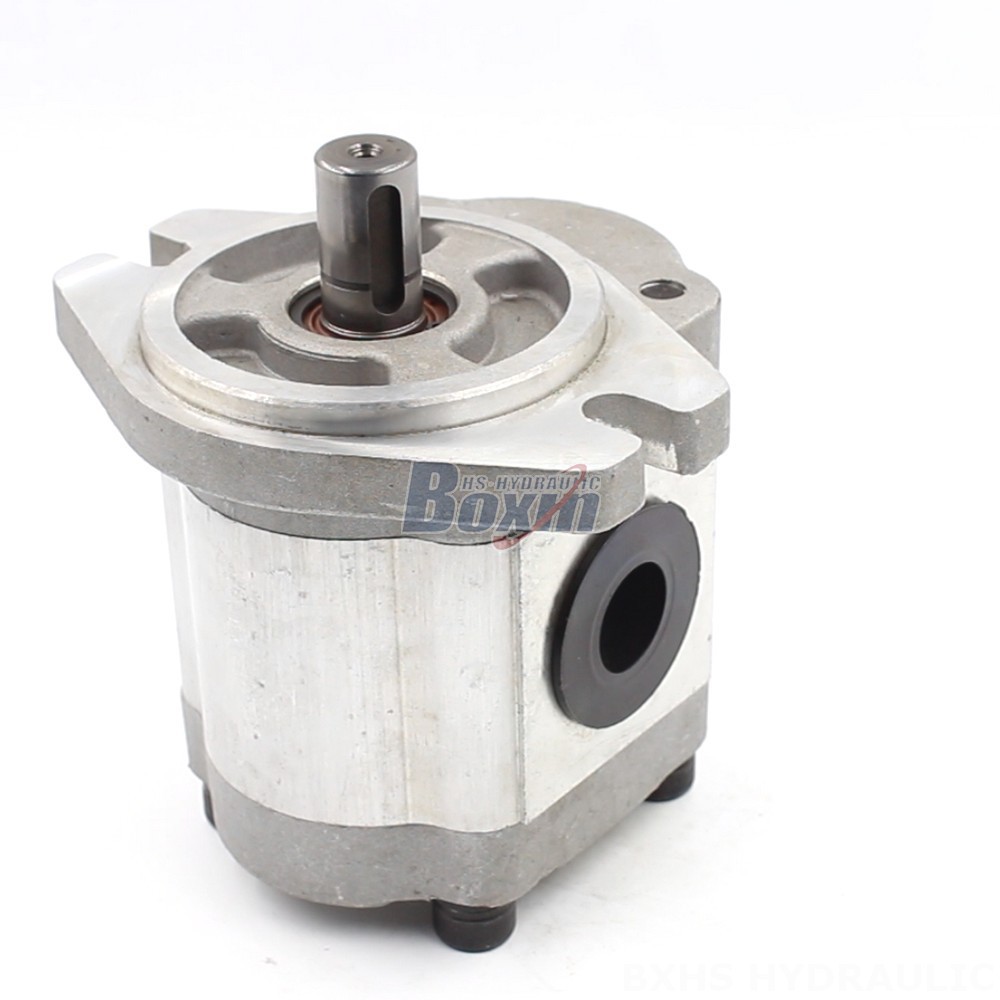

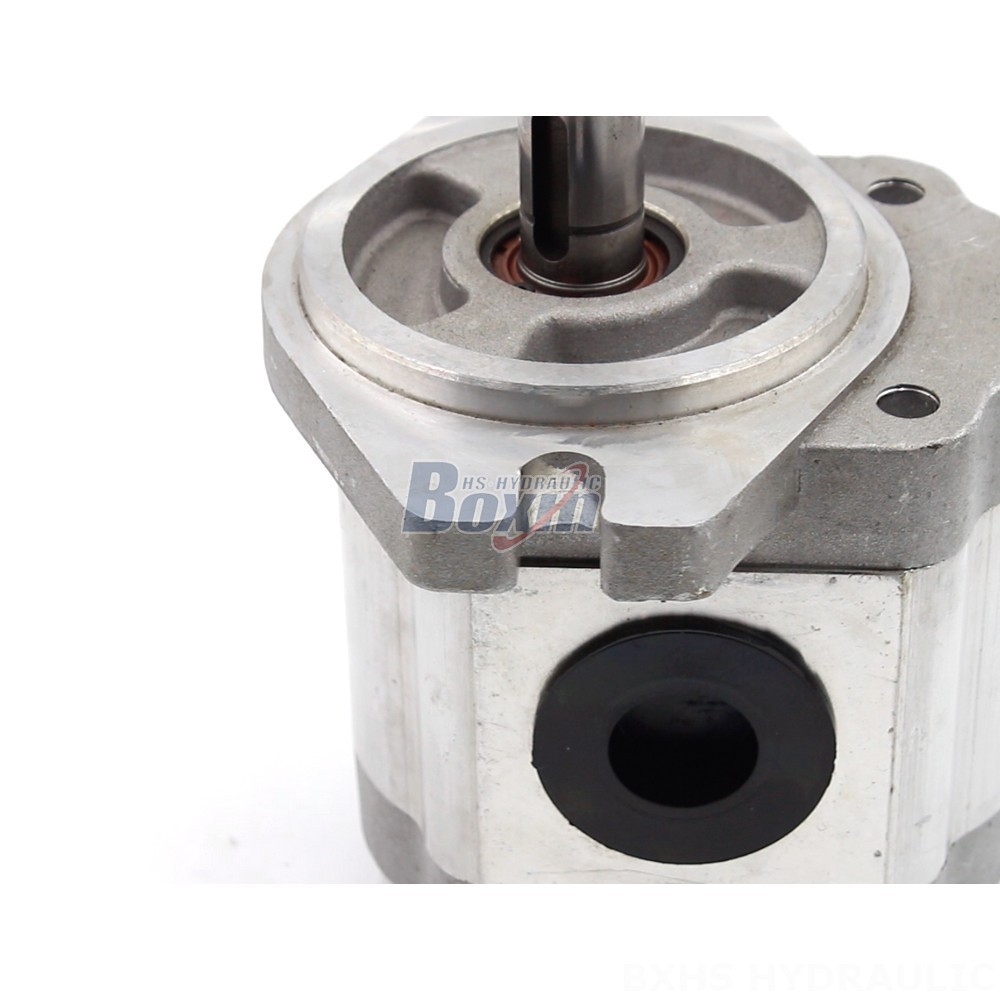

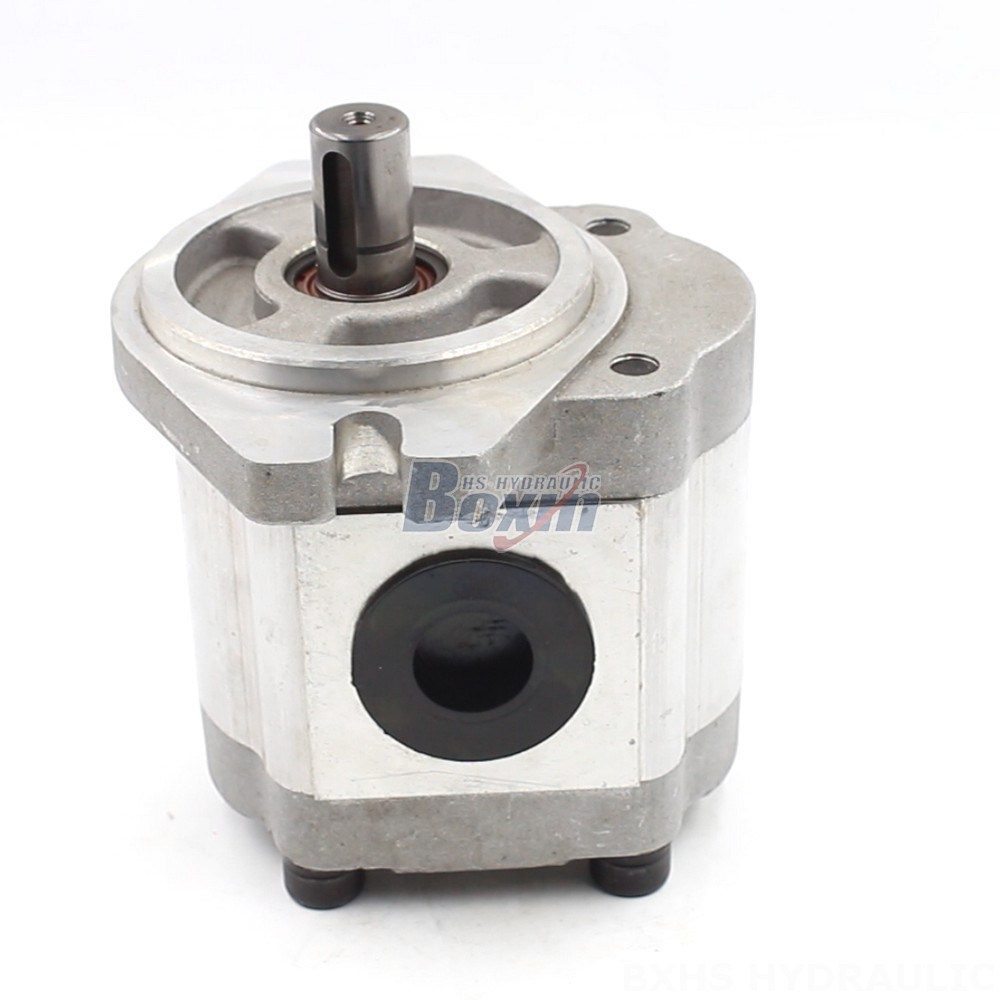

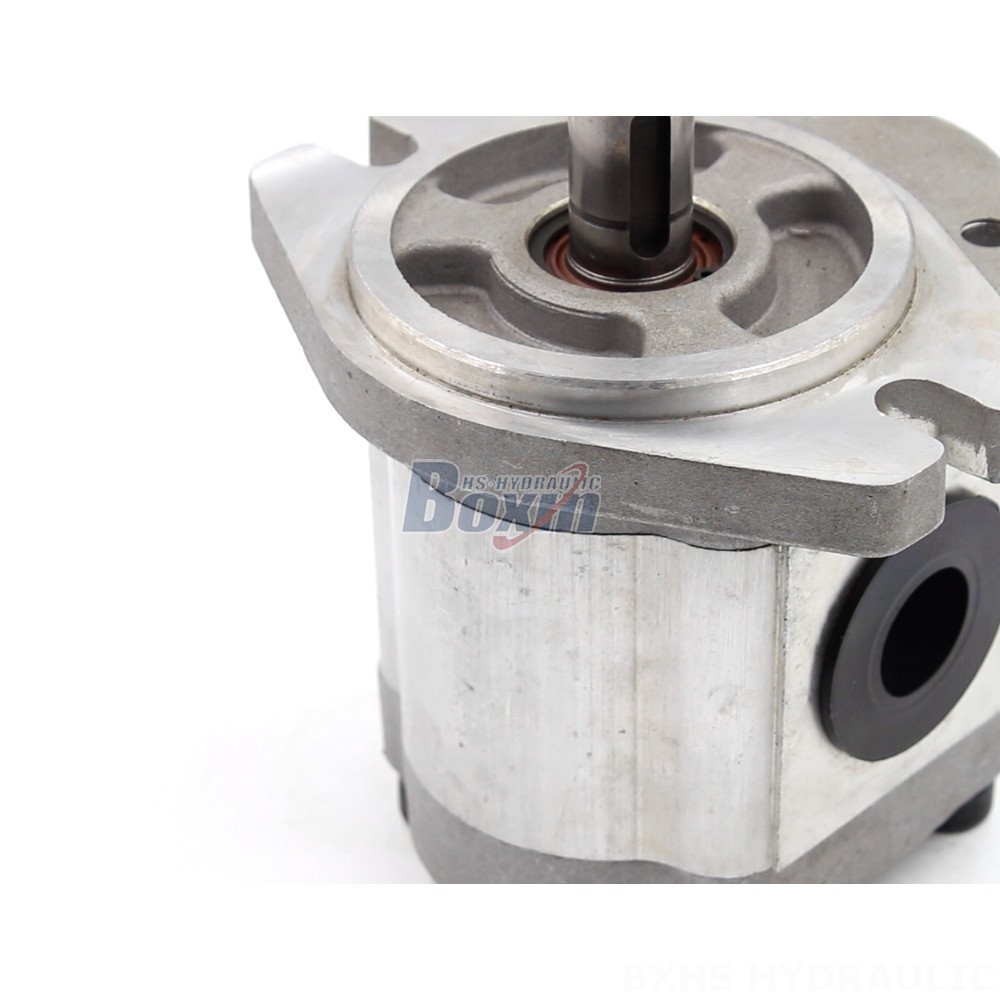

This high-performance 14 cc/rev hydraulic gear pump is designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust aluminum construction, A-Oval flange, and plain key shaft, making it durable and reliable. This pump is available for wholesale purchase directly from the manufacturer, offering flexibility for OEM, ODM, and customized solutions.
| Série CBHS-FL3 Bomba de engrenagem hidráulica Parâmetros | |
|---|---|
| Deslocamento | 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Pressão Nominal | 20 MPa (2900 psi) |
| Pressão Máxima | 25 MPa (3625 psi) |
| Velocidade Nominal | 2000 rpm |
| Velocidade Máxima | 3000 rpm |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Material | Alumínio |
| Estrutura | Bomba de engrenagem externa |
| Versão da flange | Flange oval A |
| Tipo de veio | H: Chaveta retangular, X: Chaveta involuta, P: Chave Simples |
The CBHS-FL3 series hydraulic gear pump offers a displacement of 14 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. It can operate at a maximum speed of 3000 r/min and is available in both left (counter-clockwise) and right (clockwise) rotation configurations. Constructed from durable aluminum, it features an A-Oval flange and a plain key shaft for easy integration into various machinery. This pump is ideal for applications such as forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors. As a manufacturer, we offer factory wholesale pricing and cater to OEM, ODM, and customized requirements to meet diverse customer needs.
