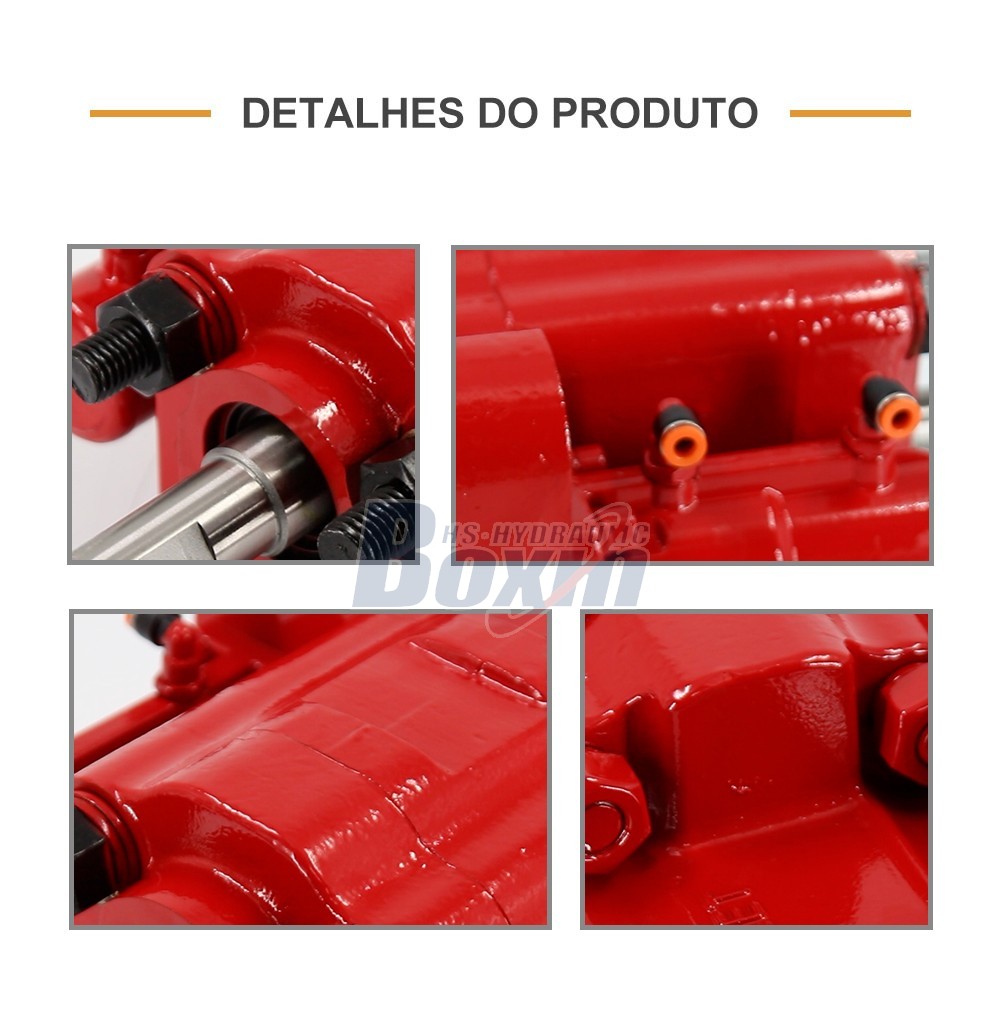

C101-25-AS-H 100 cc/rev Hydraulic Gear Pump for Industrial Machinery

Deslocamento:100 cc/rev

Pressão Nominal:20 MPa (2900 psi)

Pressão Máxima:25 MPa (3625 psi)

Velocidade Máxima:2500 rpm

Rotação:Bidirecional

Marca:BXHS

Tipo de produto:Bomba de engrenagem hidráulica

Série de produtos:Série C101 Bomba de engrenagem hidráulica

Tamanho da embalagem:49*28*23

Peso bruto:31.50 kg

Disponibilidade: Em estoque

232 Visualizações estão procurando por este produto

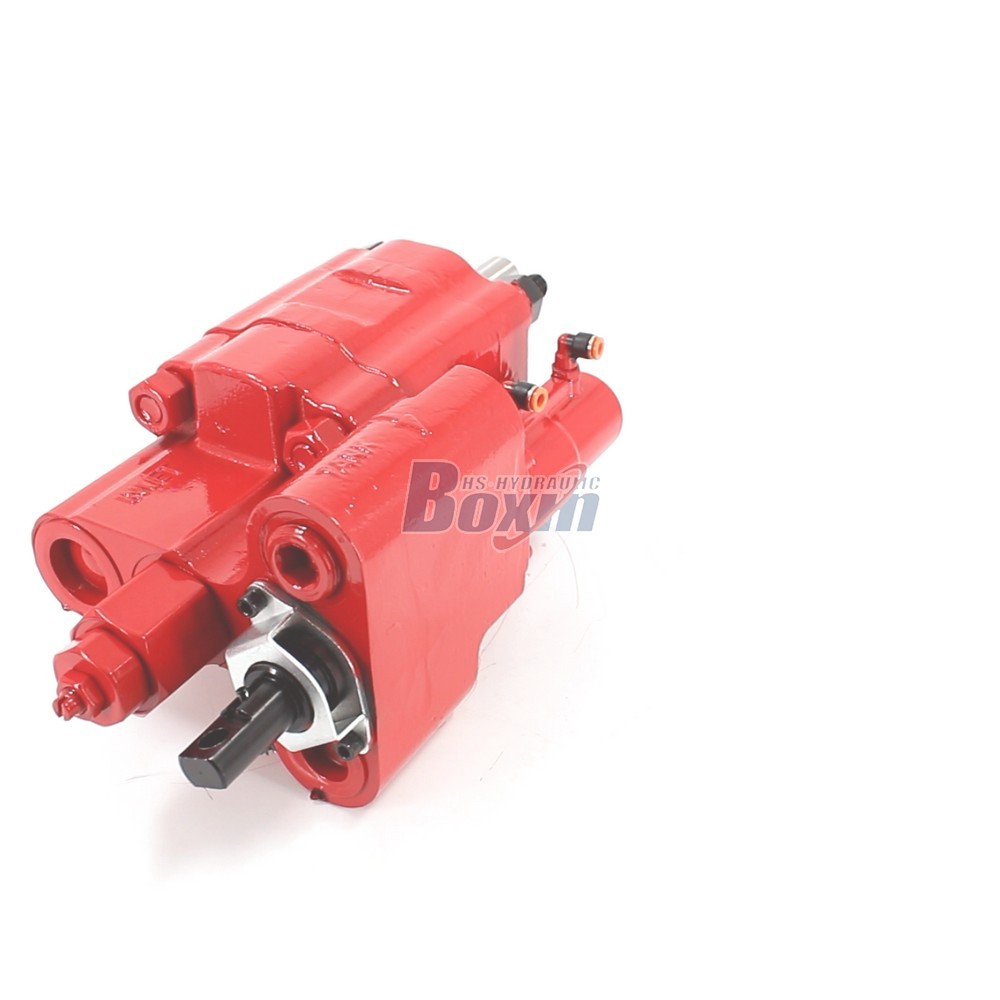

C101-25-AS-H 100 cc/rev Hydraulic Gear Pump for Industrial Machinery

C101-25-AS-H 100 cc/rev Hydraulic Gear Pump for Industrial Machinery

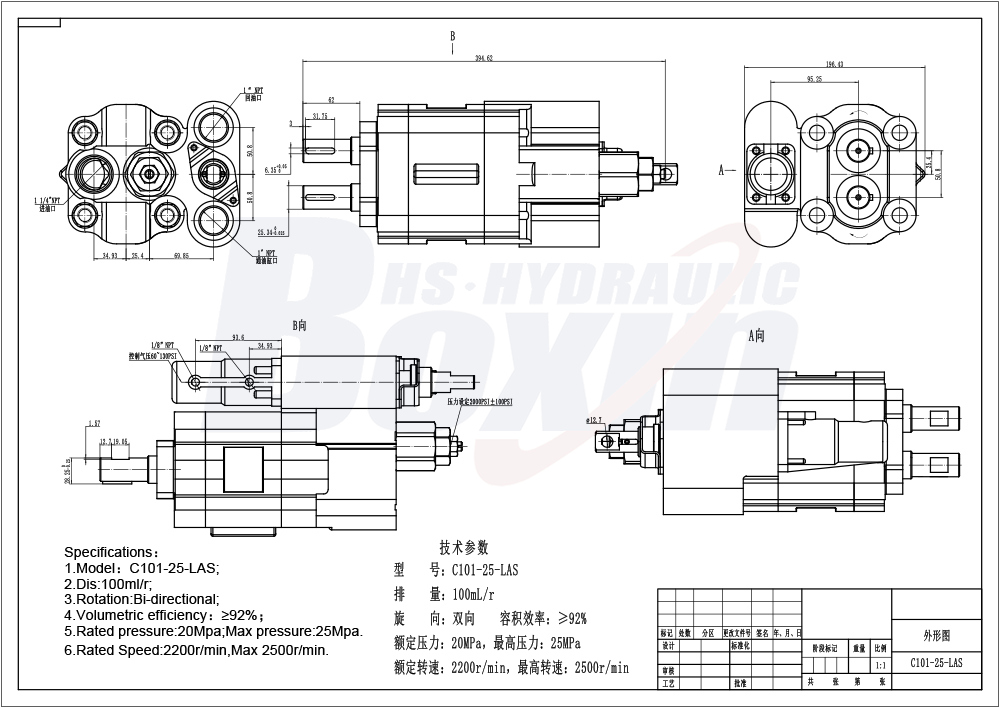

C101-25-AS-H 100 cc/rev Hydraulic Gear Pump for Industrial Machinery drawing image

This C101 Series 100 cc/rev Hydraulic Gear Pump delivers rated pressure of 20 MPa (2900 psi) and max speed of 2500 r/min for heavy-duty machinery. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for wheel loaders, forklifts, and agricultural equipment with full OEM/ODM support.

Série C101 Bomba de engrenagem hidráulica Parâmetros
Deslocamento 100 cc/rev, 90 cc/rev, 112 cc/rev
Pressão Nominal 17 MPa (2465 psi), 20 MPa (2900 psi)
Pressão Máxima 25 MPa (3625 psi)
Velocidade Nominal 2200 rpm
Velocidade Máxima 2500 rpm
Rotação Bidirecional
Material Ferro Fundido
Estrutura Bomba de engrenagem externa
Versão da flange Orifícios de montagem ISO-4
Tipo de veio H: Chaveta retangular

**1. High-Flow 100cc Hydraulic Pump Specifications**
- Delivers consistent displacement of 100 cc/rev with a rated pressure of 20 MPa (2900 psi) and peak pressure up to 25 MPa (3625 psi).
- Operates efficiently at rated speed of 2200 r/min and max speed of 2500 r/min, featuring bidirectional rotation for versatile industrial application.

**2. Professional Manufacturer with IATF 16949 Certification**
- Backed by 25+ years of expertise since 2001, operating 4 modern factories covering 68,000 sqm with an annual capacity of 1,500,000 units.
- Ensures quality via 260+ vertical machining centers and 100% bench testing for pressure, flow, and sealing before shipment, holding 25+ patents.

**3. Versatile Industrial Gear Pump Applications**
- Specifically engineered for construction and earth-moving machinery, including wheel loaders, backhoe loaders, skid steer loaders, and mini-excavators.
- Also ideal for agricultural vehicles like tractors and harvesters, as well as material handling equipment such as forklifts and telehandlers.

**4. OEM Hydraulic Pump Customization Services**
- Supported by 35+ engineers with 10+ years of experience, offering comprehensive OEM/ODM solutions including custom casting, appearance design, and laser logo marking.
- Provides one-stop private label services, allowing distributors to create unique brand identities while leveraging our mature production technology.

**5. Factory Direct Sales & Global Compatibility**
- Offers Factory Direct Sales pricing with secure anti-rust treatment and heavy-duty wooden crate packaging to ensure safe global transit.
- Designed as a direct replacement for international mainstream brands, ensuring seamless fitment and reducing maintenance costs for wholesalers and end-users.
