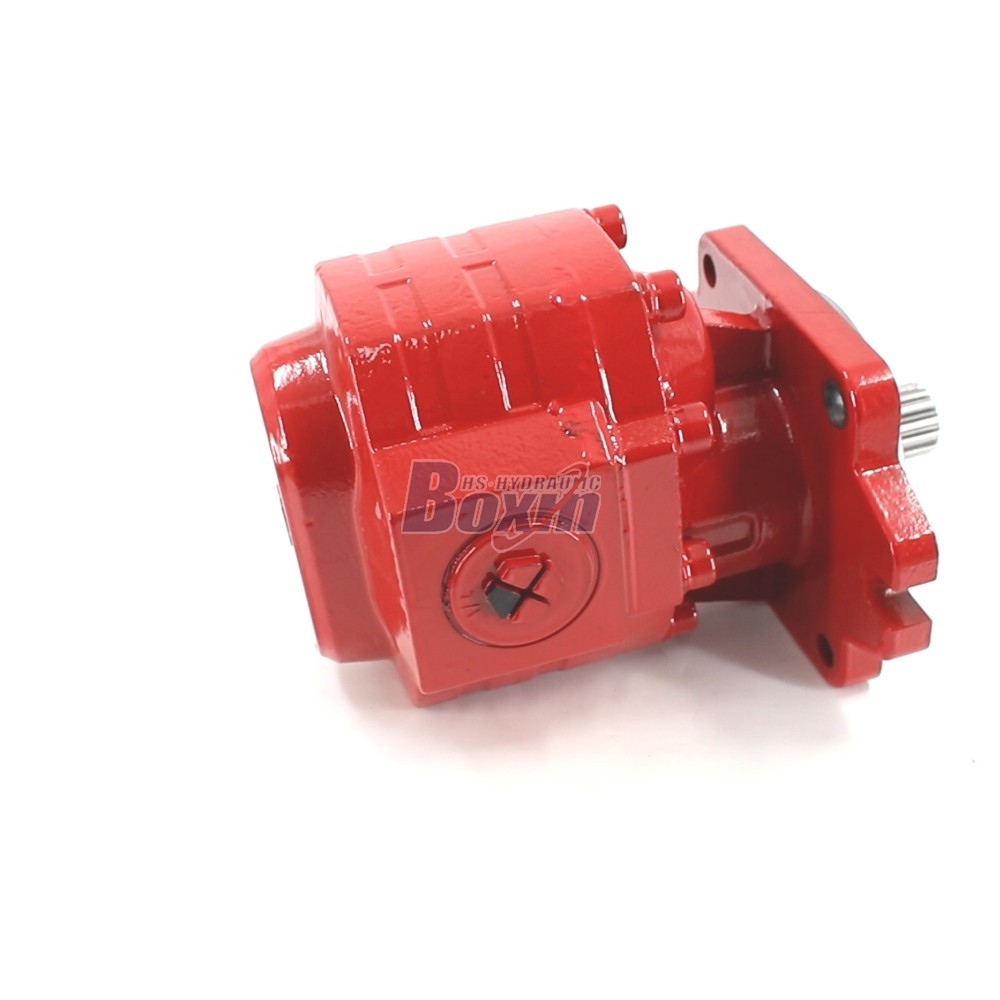

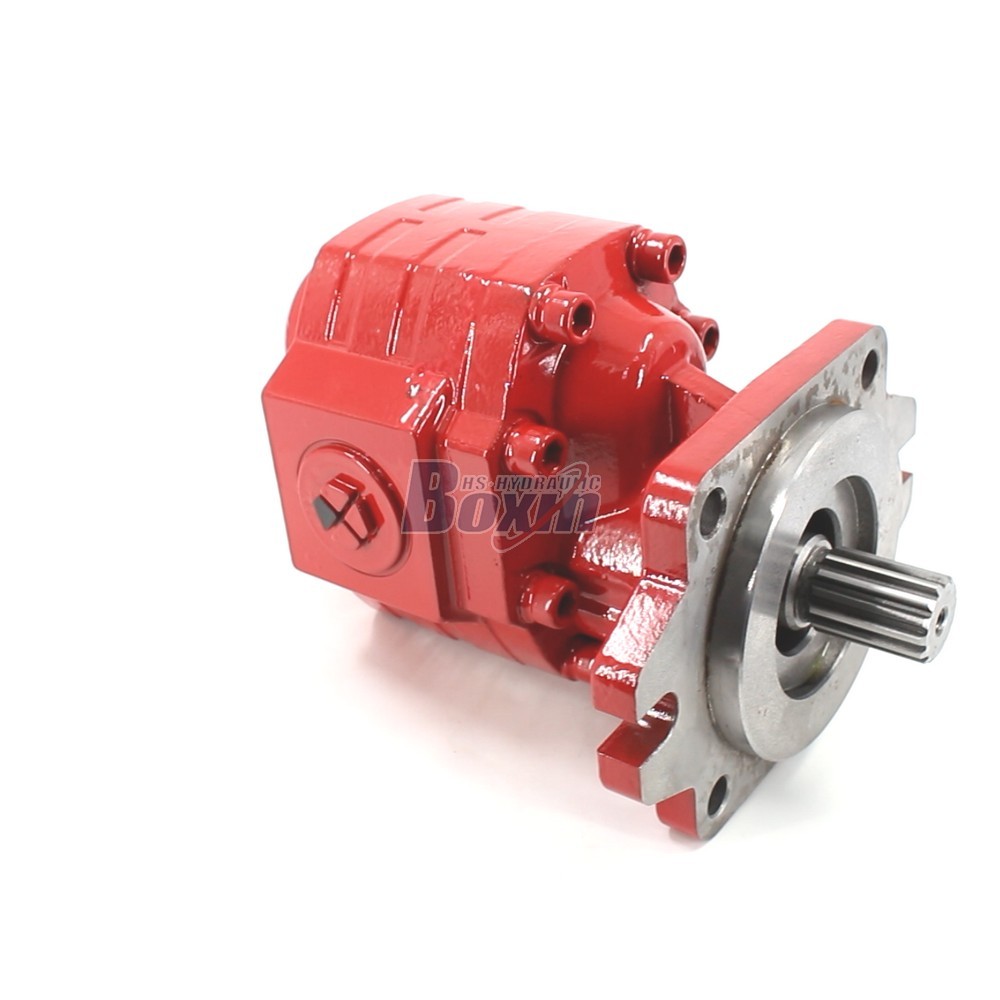

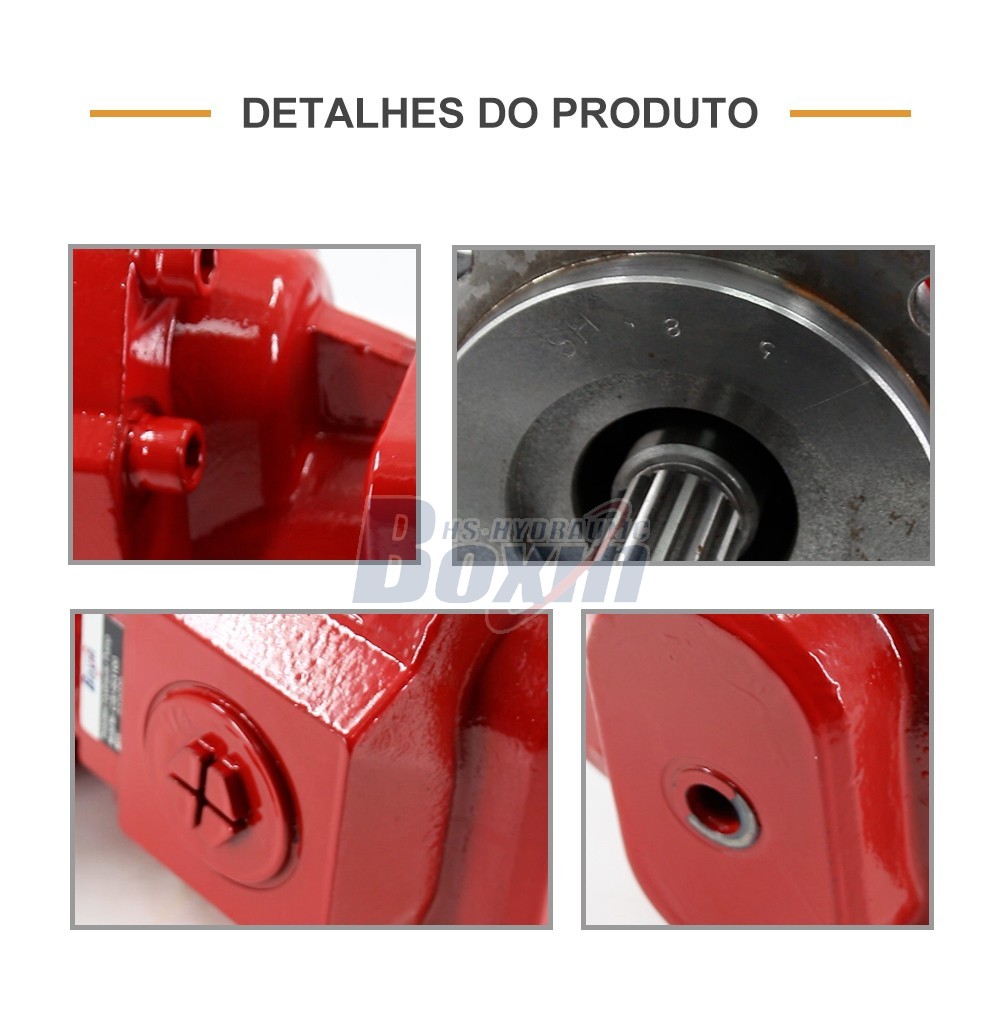

The CBHS3100 hydraulic gear pump is a high-performance, 100 cc/rev unit engineered for demanding applications in construction, agriculture, and material handling, offering reliable power density and robust pressure ratings for diverse machinery.

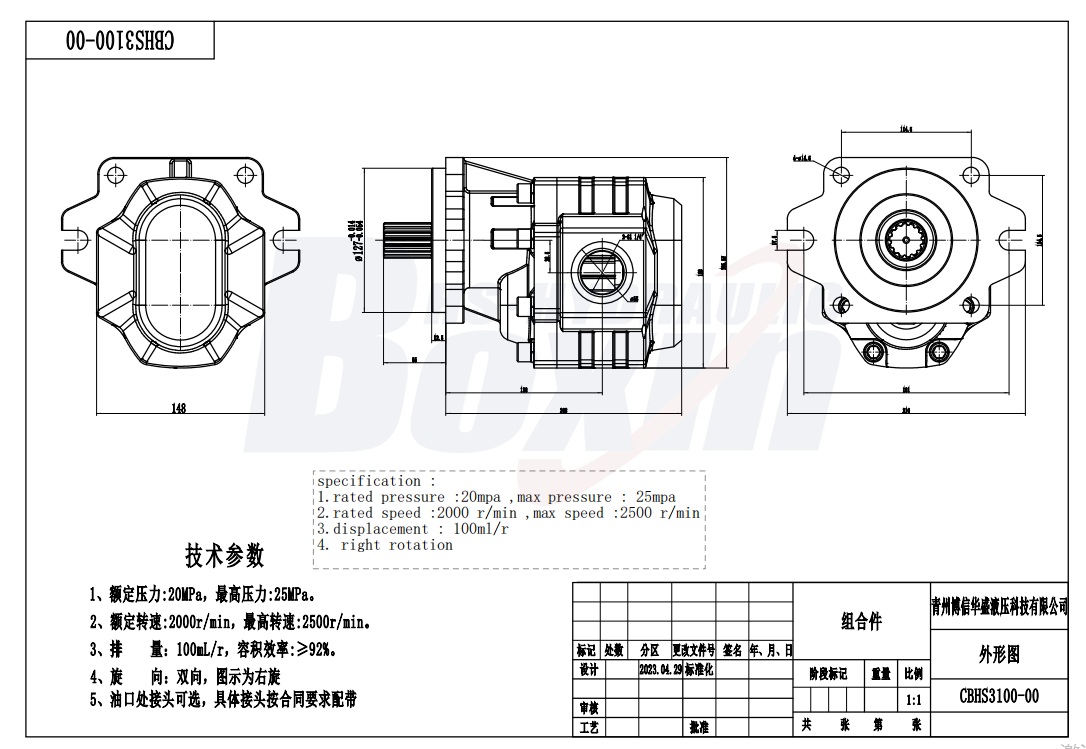

| Série CBHS-T3 Bomba de engrenagem hidráulica Parâmetros | |
|---|---|
| Deslocamento | 100 cc/rev |
| Pressão Nominal | 20 MPa (2900 psi) |
| Pressão Máxima | 25 MPa (3625 psi) |
| Velocidade Nominal | 2000 rpm |
| Velocidade Máxima | 3000 rpm |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Estrutura | Bomba de engrenagem externa |
| Material | Ferro Fundido |
| Versão da flange | Flange quadrado B |
| Tipo de veio | H: Chaveta retangular, X: Chaveta involuta |
As a prominent hydraulic component manufacturer, we specialize in the production of the CBHS3100 hydraulic gear pump, featuring a 100 cc/rev displacement and a maximum pressure capacity of 25 MPa. This unit is designed for durability in heavy-duty machinery including forklifts, wheel loaders, tractors, and excavators. We provide comprehensive manufacturing services, including OEM, ODM, and private labeling, tailored to meet specific project requirements. Our facility is equipped to handle large-scale production, offering competitive factory-direct wholesale pricing to support your business. We are actively seeking long-term partnerships with global distributors, wholesalers, procurement agents, and international traders. By choosing our factory-direct supply, you gain access to high-quality hydraulic solutions, flexible customization options, and reliable technical support. Contact us to discuss bulk orders or custom design requirements for your hydraulic systems.
