The P80-G12 hydraulic valve is a highly customizable monoblock valve designed for a wide range of industrial applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it offers precise flow and pressure control for demanding hydraulic systems.
| Série P80 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 80 L/min (21,2 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

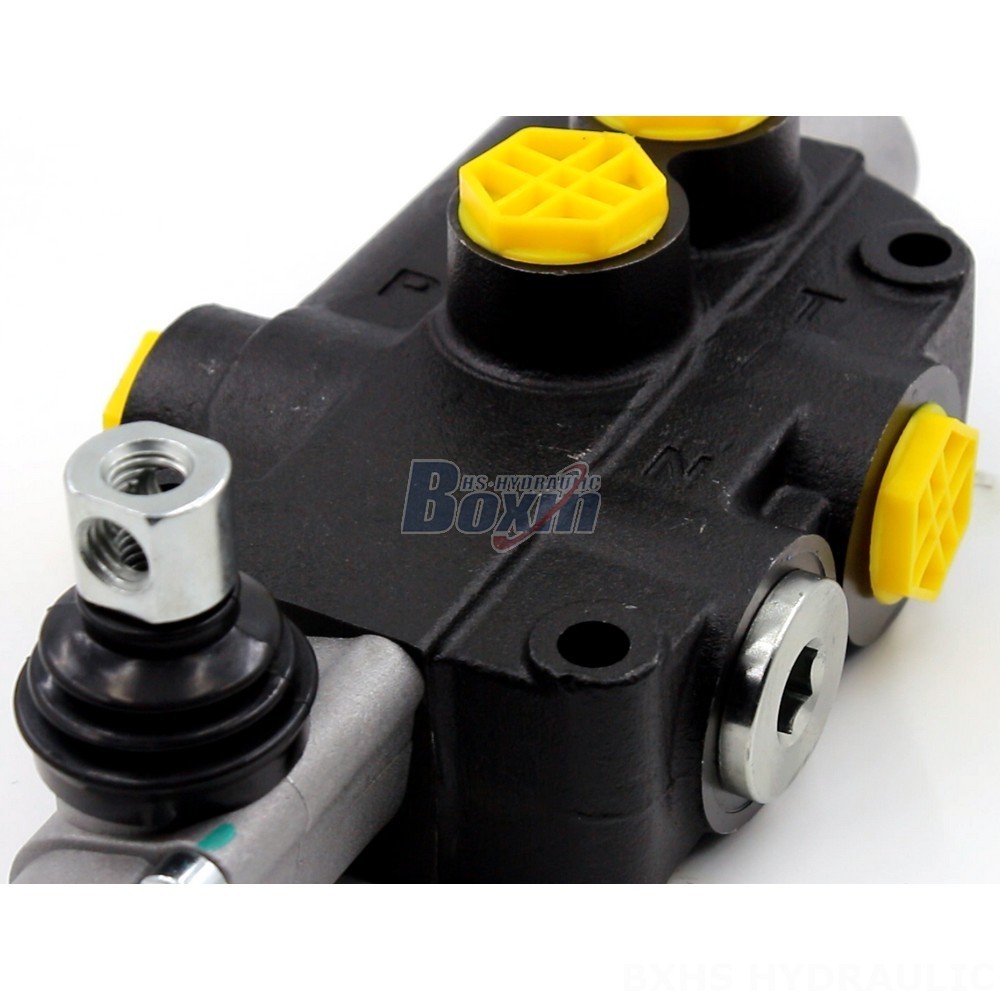

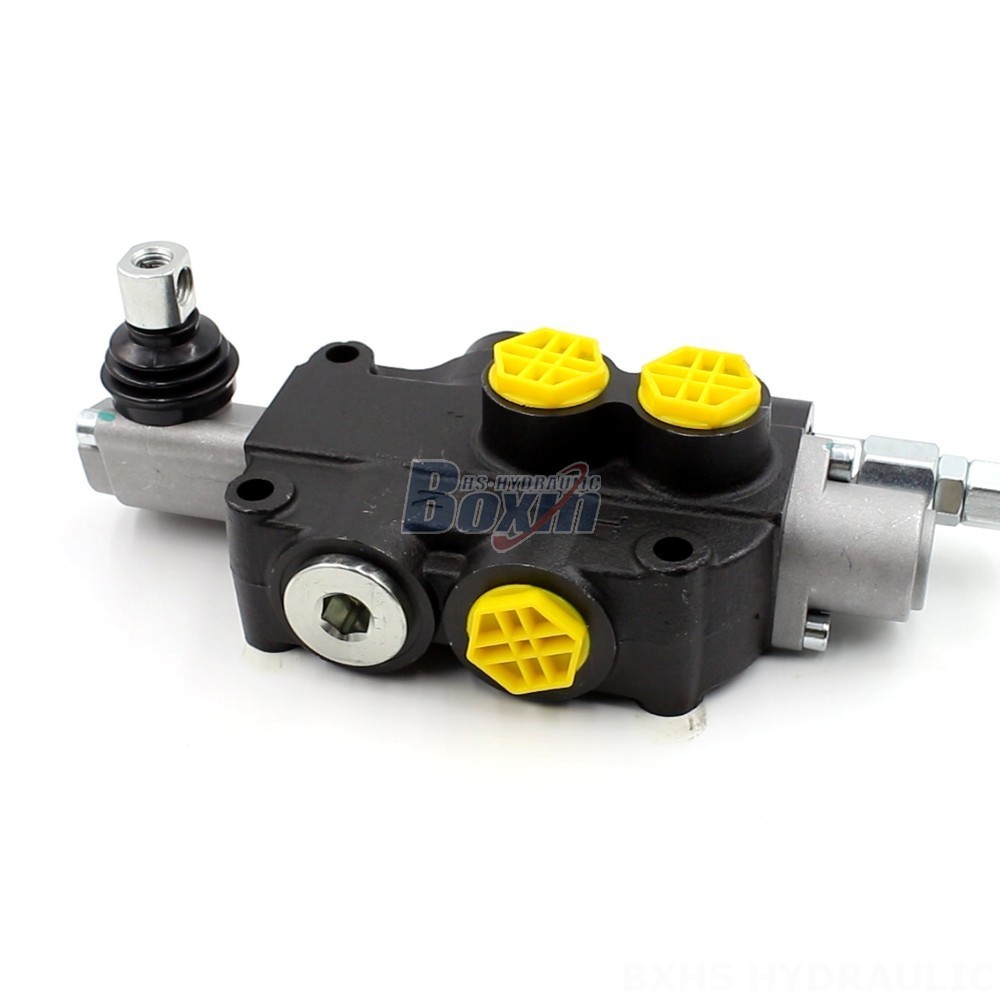

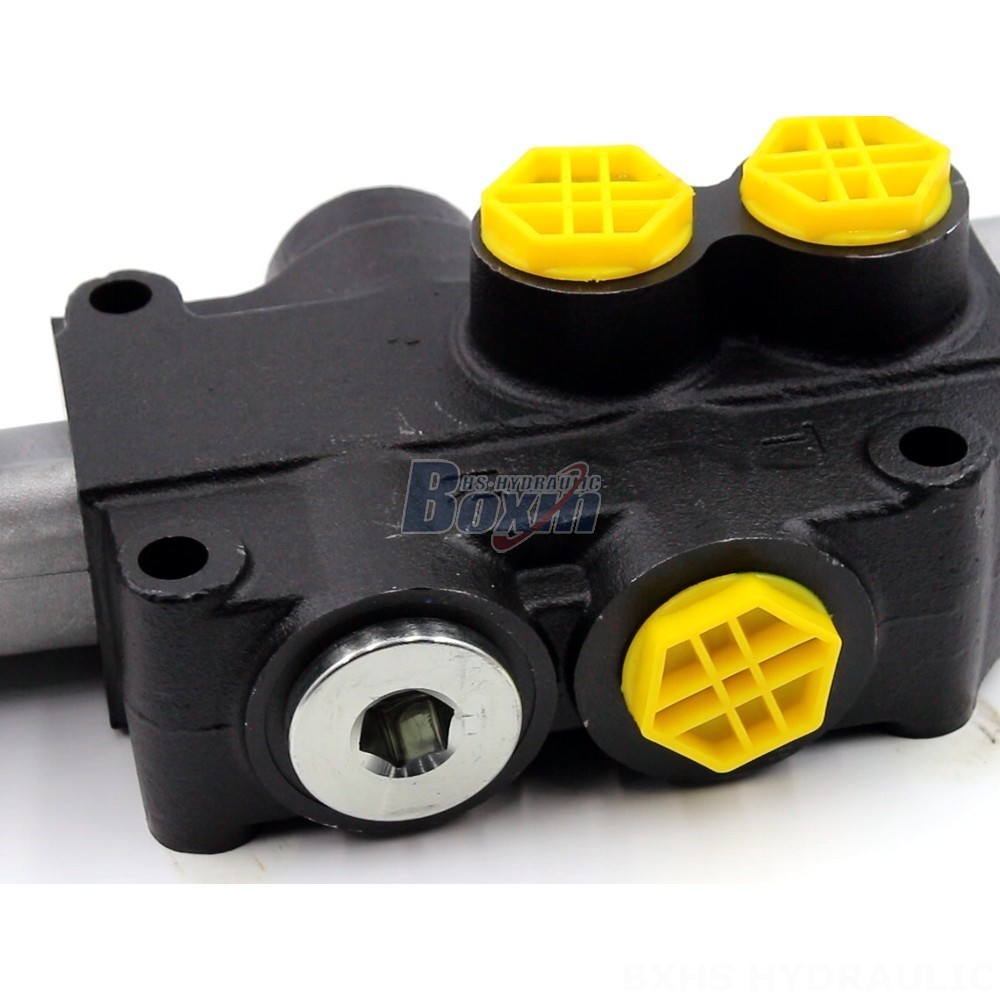

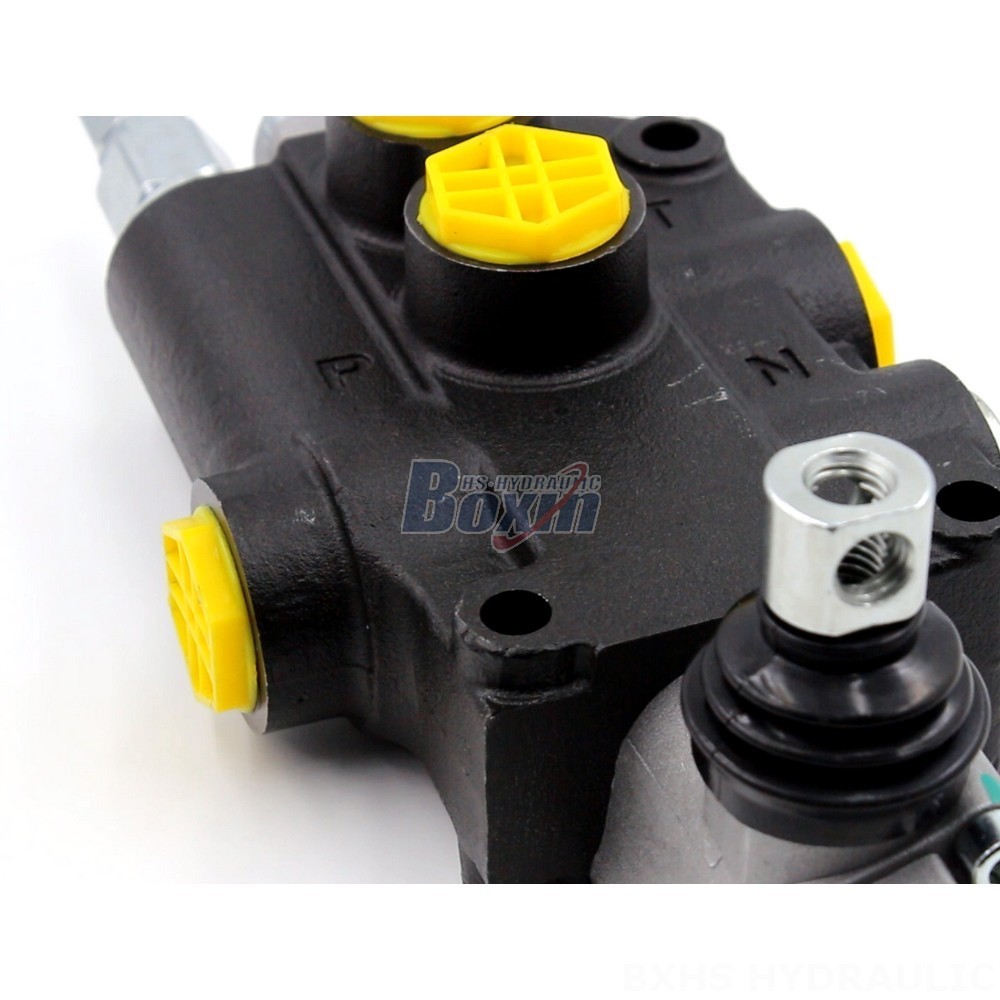

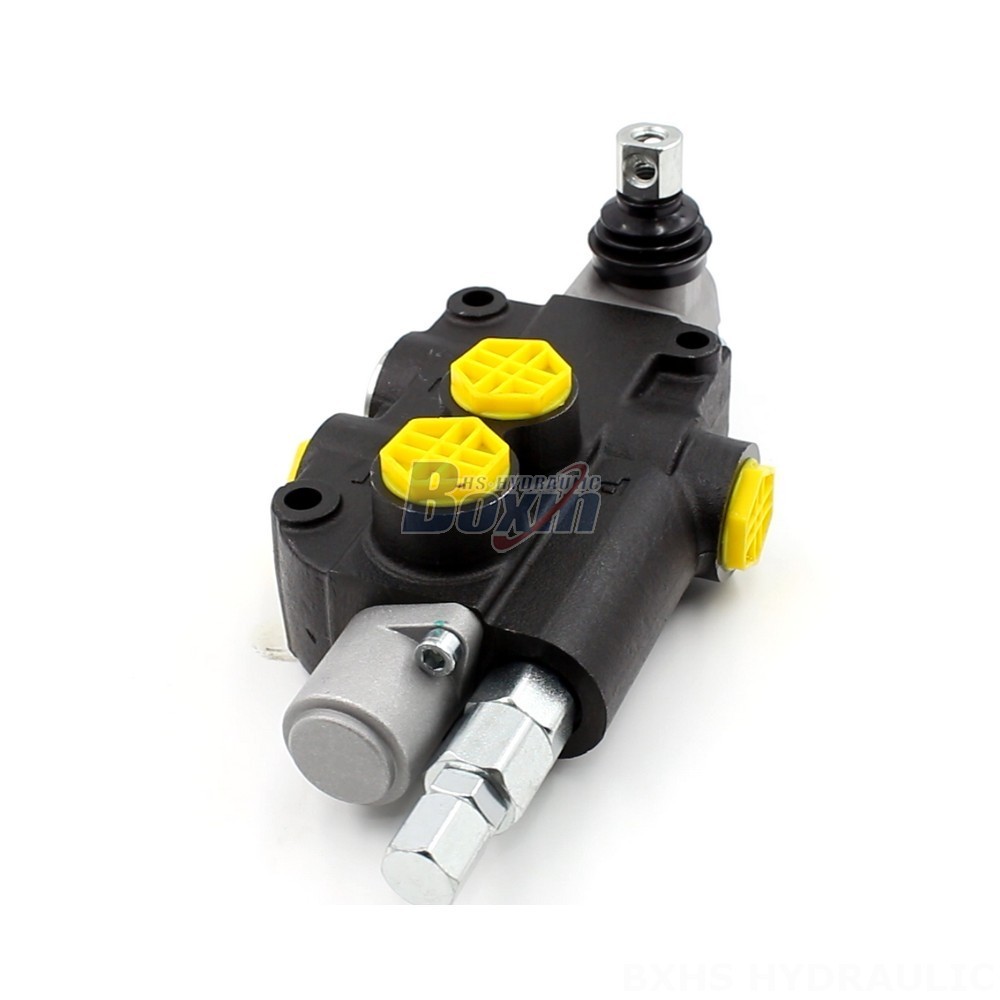

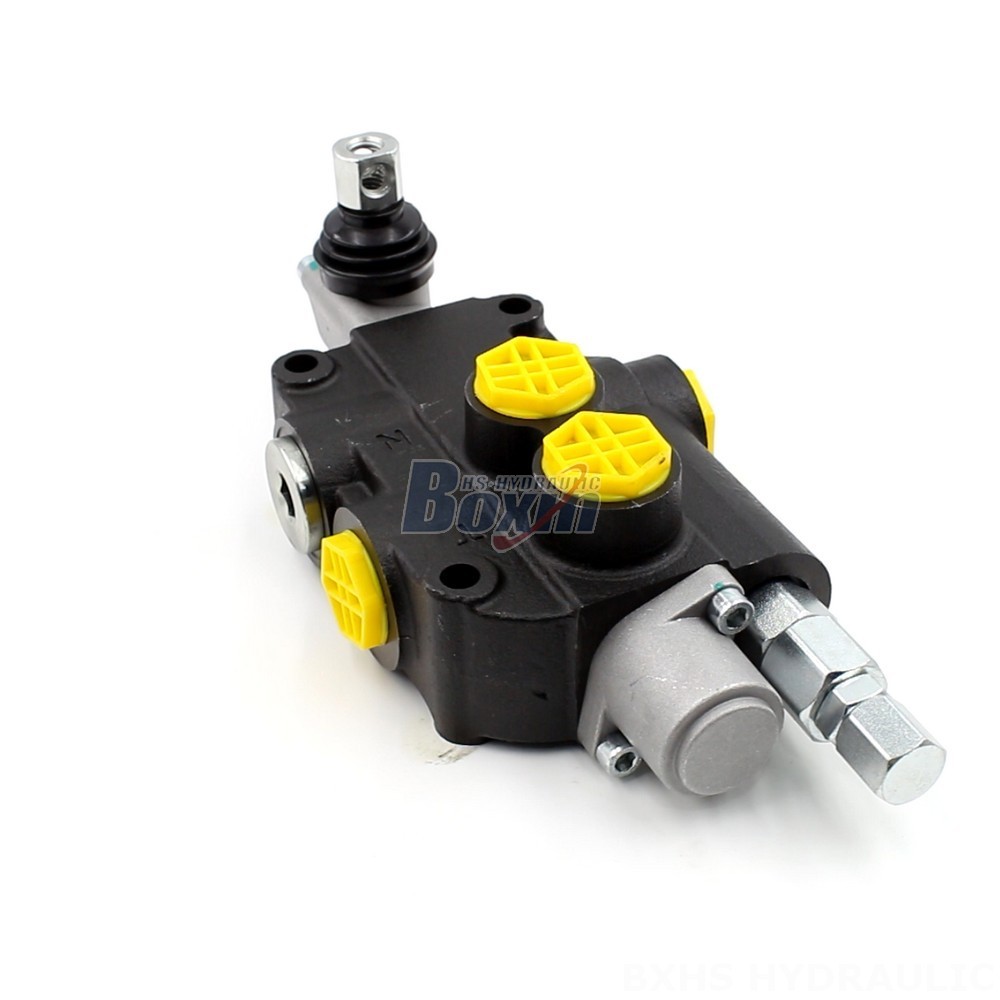

**Customizable Hydraulic Valves: Explore P80-G12 for Personalized Applications**
The P80-G12 hydraulic valve is a versatile and reliable solution for various industrial applications. Its customizable design allows for tailored configurations to meet specific system requirements. Here are its key features:
- **Control Method:** Manual
- **Section:** 1 Section
- **Structure Type:** Monoblock Valve
- **Rated Flow:** 80 L/min (21.2 US gpm)
- **Max Pressure:** 250 bar (3600 psi)
- **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
- **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
- **Spool:** 1 Spool
- **Series:** P80 Series
- **Application Areas:** Material handling, construction and earth moving, agriculture, industrial vehicles
- **Applicable Models:** Telehandler, forklift, all-terrain crane, stacker, aerial platform, motor grader, midi-excavator, mini-excavator, skid steer loader, compact wheel loader
The P80-G12 valve is suitable for applications requiring precise flow and pressure control, such as material handling equipment, construction machinery, agricultural machinery, and industrial vehicles. Its compact design and robust construction make it an ideal choice for space-constrained installations and demanding operating conditions.
