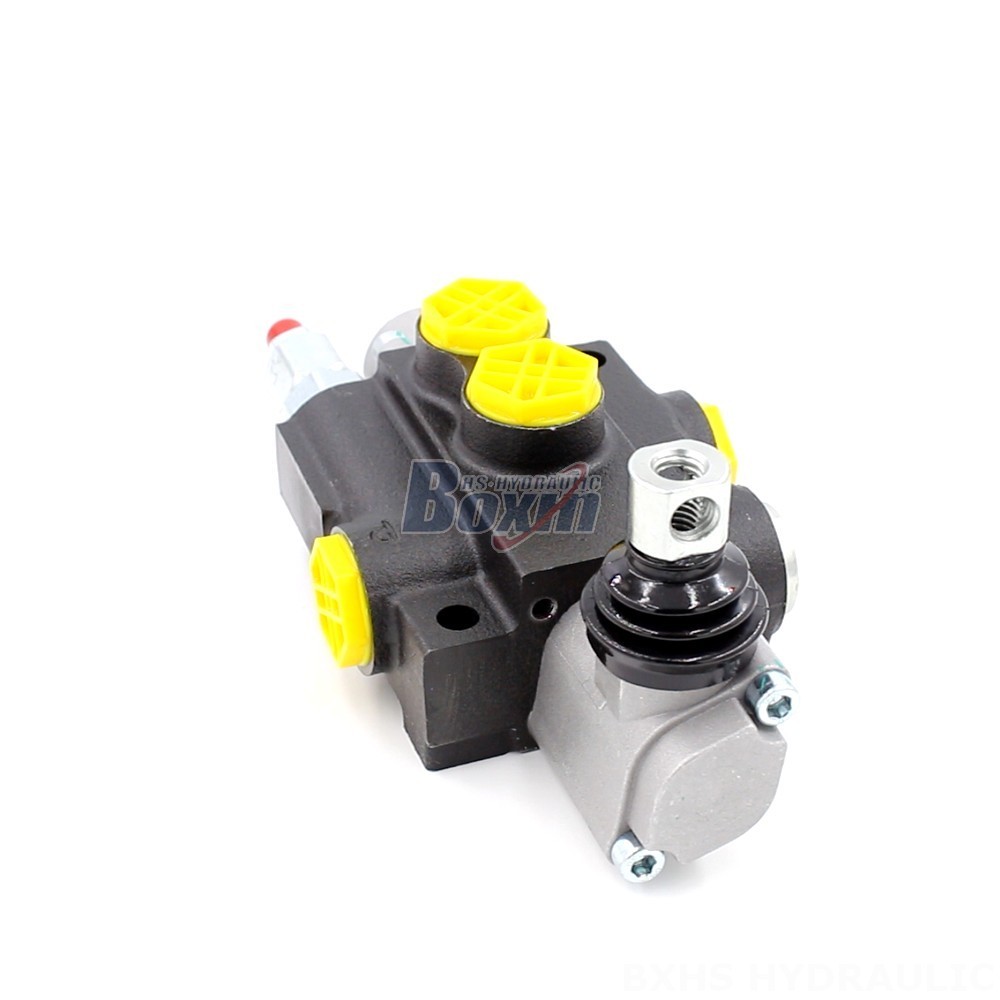

The P40-G12-1OT 1-Spool Monoblock Hydraulic Valve is a high-performance, customizable valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. This manual, monoblock valve offers reliable directional control with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is suitable for a wide range of equipment, including telehandlers, forklifts, excavators, loaders, and more.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-1OT 1-Spool Monoblock Hydraulic Valve is a high-quality, robust component that delivers precise and efficient fluid control. Featuring a compact monoblock design, this valve is suitable for a variety of applications, including construction equipment, material handling systems, agricultural machinery, and industrial vehicles. Its customizable nature allows for tailored solutions to meet specific requirements. The valve has a rated flow of 40 L/min and a maximum pressure of 250 bar, making it capable of handling high-demanding hydraulic systems. It is compatible with a wide range of operating temperatures and viscosity ranges. With its reliable performance, durability, and versatility, the P40-G12-1OT 1-Spool Monoblock Hydraulic Valve is an ideal choice for demanding applications requiring precise hydraulic control.
