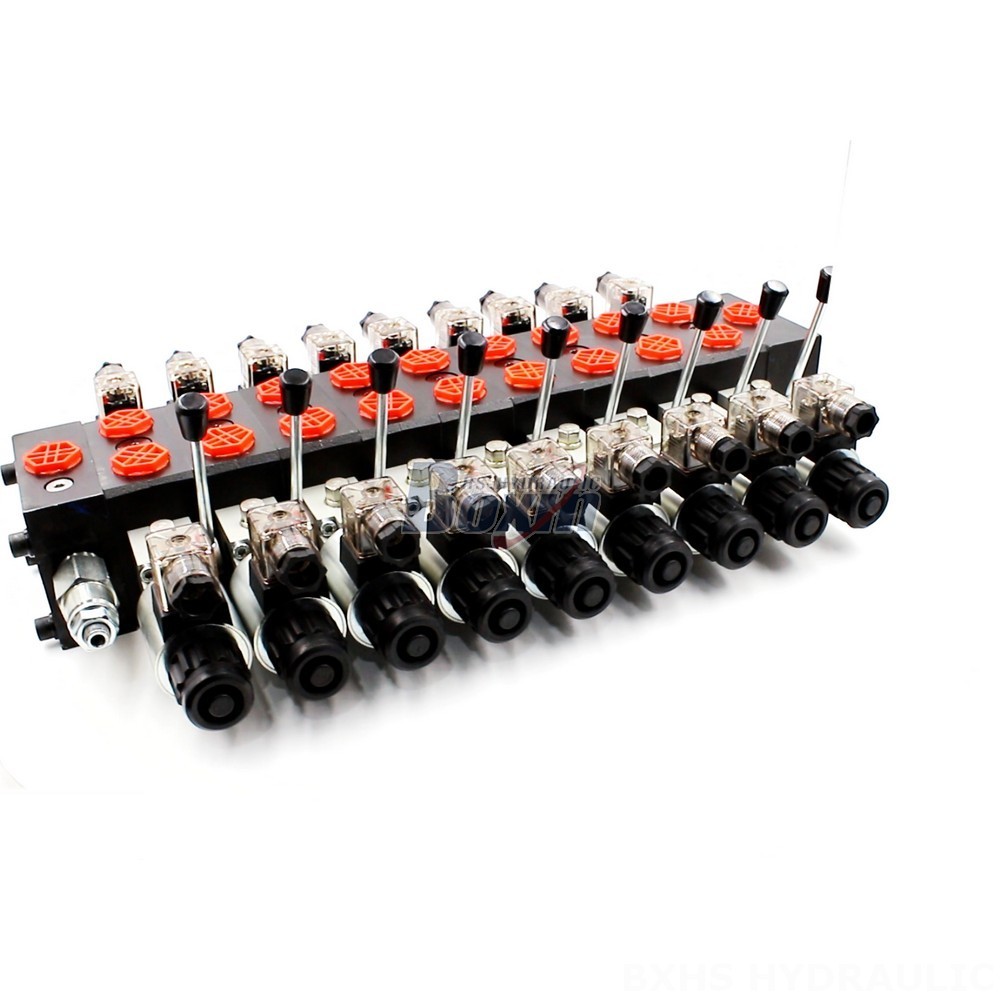

This is a high-performance, customizable hydraulic motor valve designed for demanding industrial applications. It features a 9-section, solenoid-controlled design, high flow rate (60 L/min), and high pressure rating (350 bar). Ideal for material handling, construction, agriculture, and industrial vehicles.
| Série DCV58 Válvula direcional seccional Parâmetros | |
|---|---|
| Método de Controle | Solenoide, Solenóide e Manual |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis, 11 Carreteis, 12 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula seccional |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções, 11 secções, 12 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 350 bar (5100 psi) |
| Porta de Entrada | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Porta de Saída | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Tamanho da Porta | G1/2, M22×1.5, SAE 10, 1/2 NPT |
This versatile **hydraulic motor valve** is a **customizable, high-performance** solution for your industrial needs. The **9-section, solenoid-controlled** design provides precise and reliable operation in a wide range of applications. With a **rated flow of 60 L/min** and a **maximum pressure of 350 bar**, this valve is capable of handling demanding workloads. The **sectional valve** construction allows for easy maintenance and repair. Designed for **heavy-duty operation**, it operates within a broad temperature range (-40°C to +80°C). Suitable for use in **material handling**, **construction and earth moving**, **agriculture**, and **industrial vehicles** such as **telehandlers**, **forklifts**, **all terrain cranes**, **stackers**, **aerial platforms**, **motor graders**, **midi-excavators**, **mini-excavators**, **skid steer loaders**, and **compact wheel loaders**. Part of the **DCV58 Series**, this valve is built to meet the highest industry standards.
