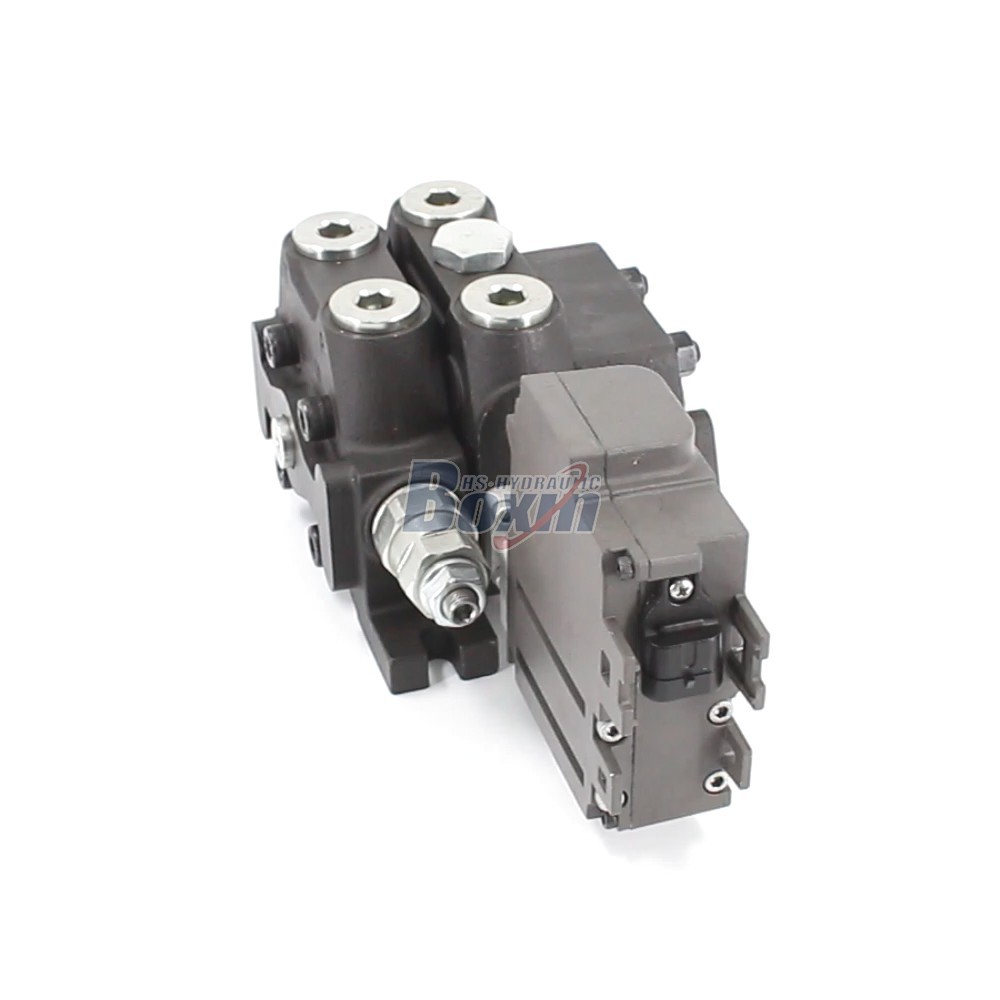

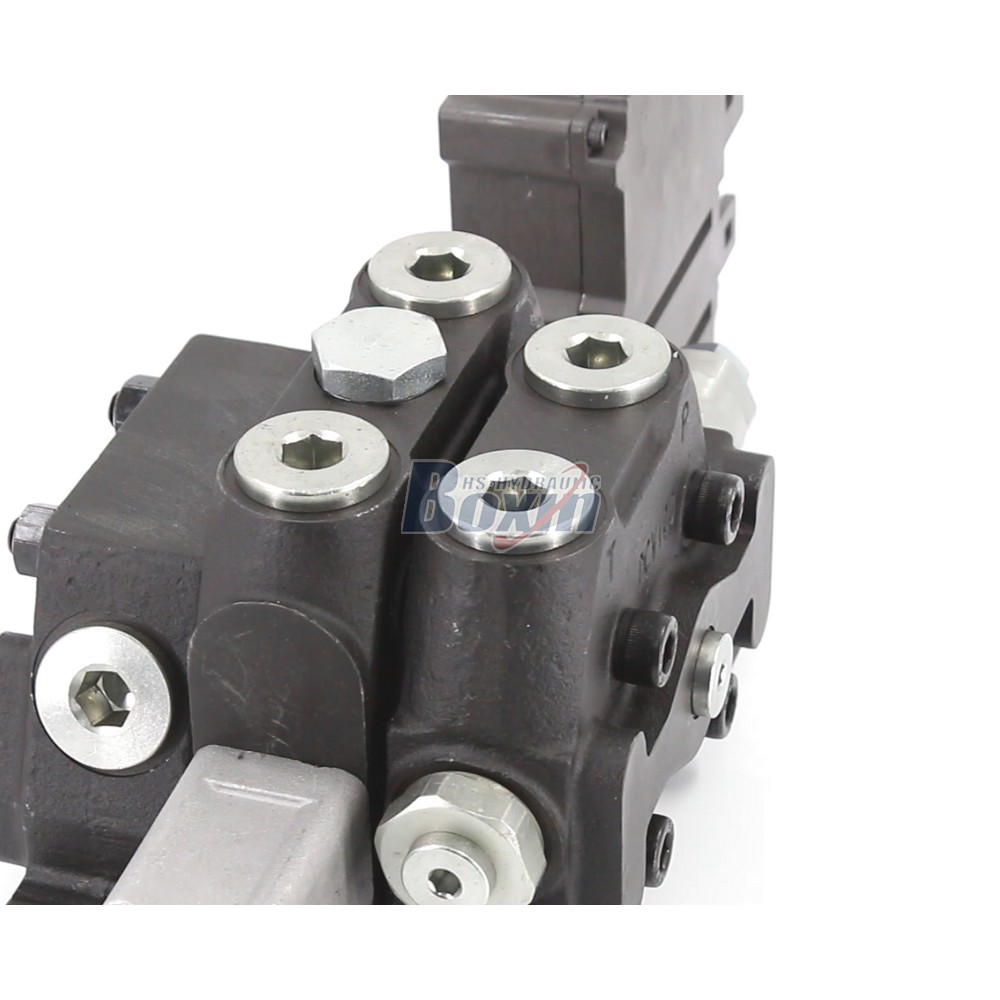

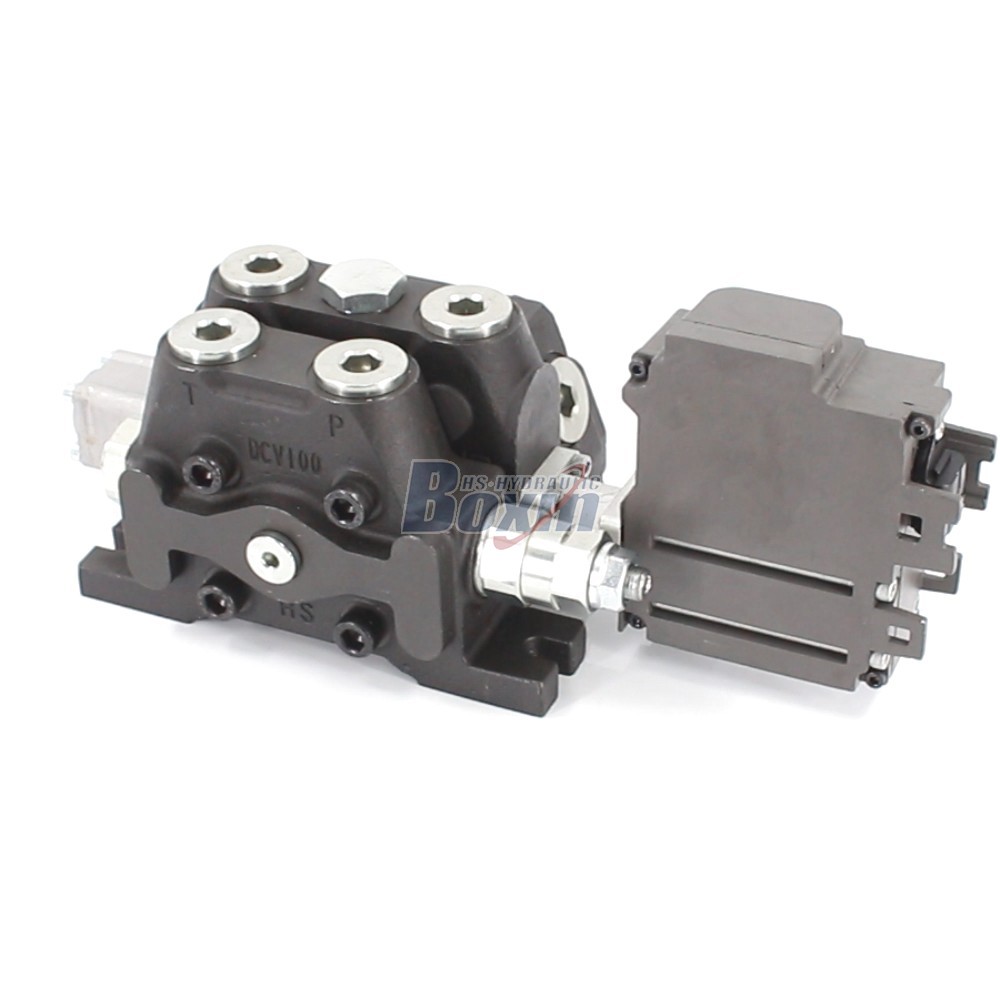

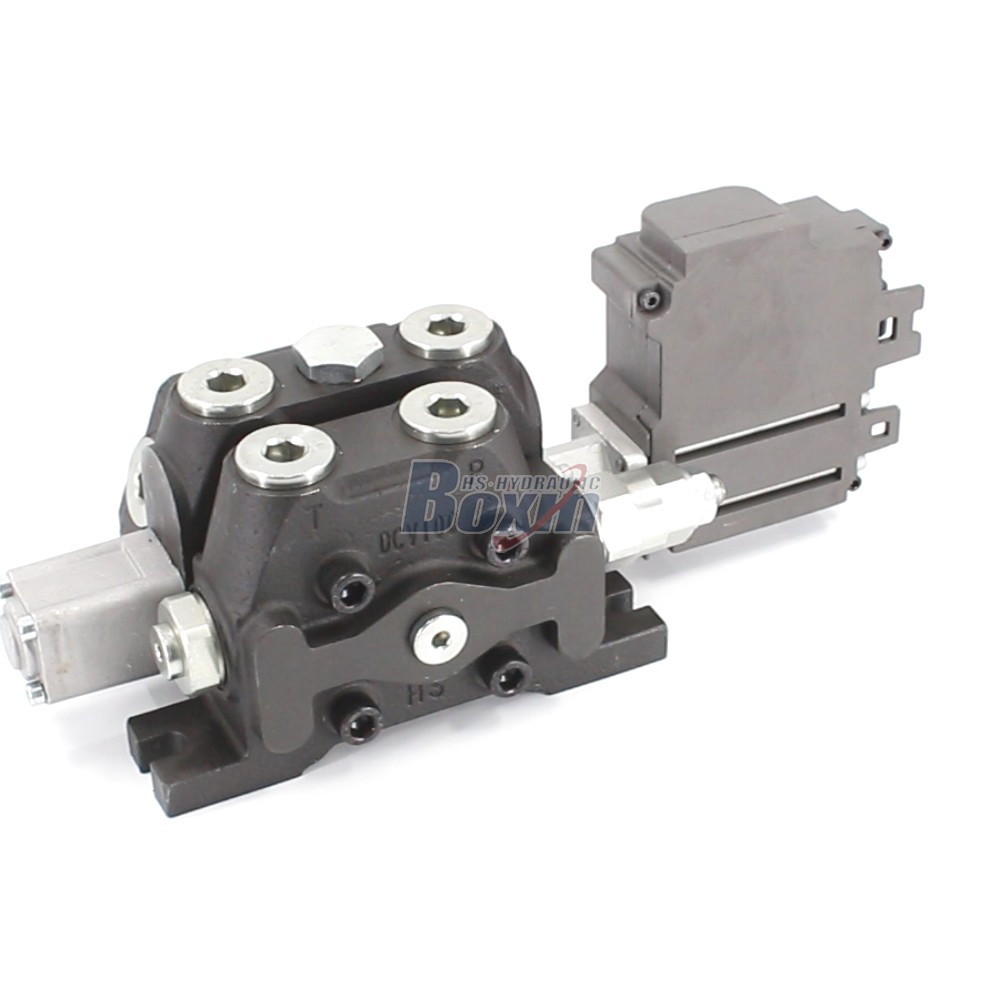

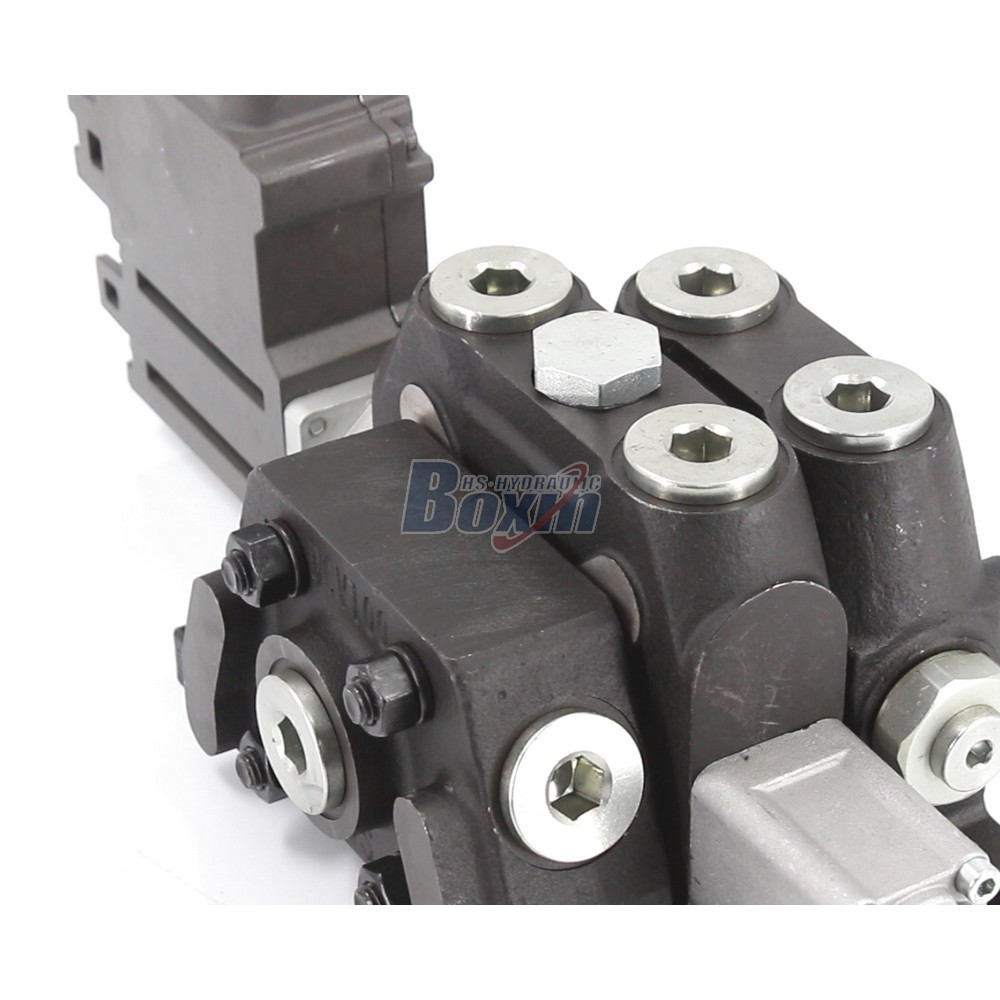

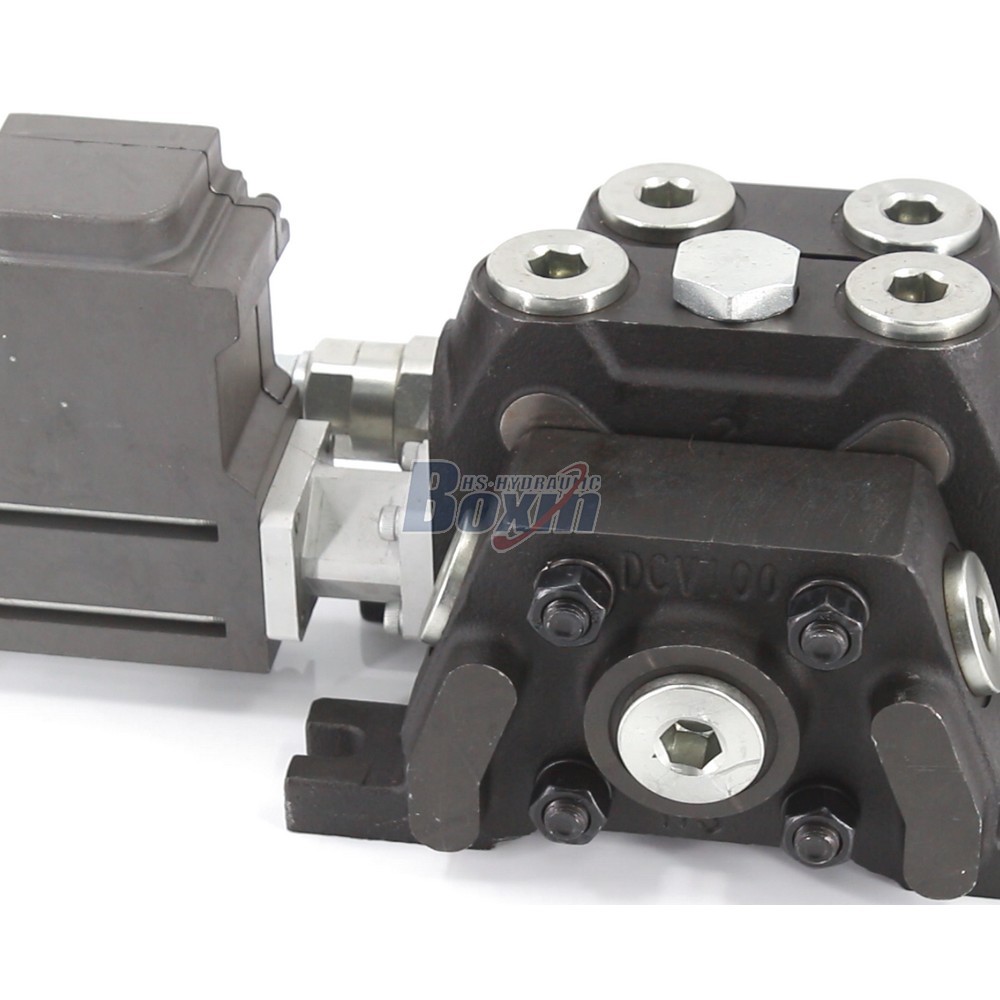

This DCV100EMA-OT is a 1 Spool Sectional Directional Valve driven by an electric motor, designed for hydraulic systems requiring up to 100 L/min flow and 315 bar pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for telehandlers, forklifts, and agricultural machinery with full OEM/ODM support.
| Série DCV100 Válvula direcional seccional Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Cabo, Joystick, Manual e Joystick, Manual e Eletro-hidráulico, Motor elétrico, Eletro-hidráulico e solenoide |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis, 11 Carreteis, 12 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula seccional |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções, 11 secções, 12 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 100 L/min (26,5 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Porta de Saída | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Tamanho da Porta | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**1. High-Flow Sectional Directional Valve Specs**
- Rated for 100 L/min (26.5 US gpm) flow with G3/4 inlet/outlet ports, ensuring efficient fluid dynamics.
- Operates safely at max pressure of 315 bar (4600 psi), ideal for demanding material handling tasks.
**2. Reliable Electric Hydraulic Control Valve Design**
- Features integrated electric motor control for precise spool actuation and automated system integration.
- Compact 1 spool configuration simplifies installation in space-constrained industrial vehicle applications.
**3. Durable 1 Spool Directional Valve Construction**
- Built with high-grade castings and finished with anti-rust treatment for extended service life.
- Undergoes 100% bench testing for pressure, flow, and sealing before shipment to guarantee zero defects.
**4. Versatile DCV100 Series Valve Applications**
- Perfectly compatible with telehandlers, mini-excavators, skid steer loaders, and wood splitters.
- Serves as a direct replacement for major international brands, reducing maintenance costs for wholesalers.
**5. Factory Direct Sales & Customization Power**
- Backed by a Professional Manufacturer with 25+ years experience, 68,000 sqm facility, and IATF 16949 certification.
- Supports OEM/ODM services including laser logo marking and custom packaging for China Wholesale buyers.
