Produção e Entrega
Prazo de produção de 15 a 30 dias
504 Visualizações estão procurando por este produto

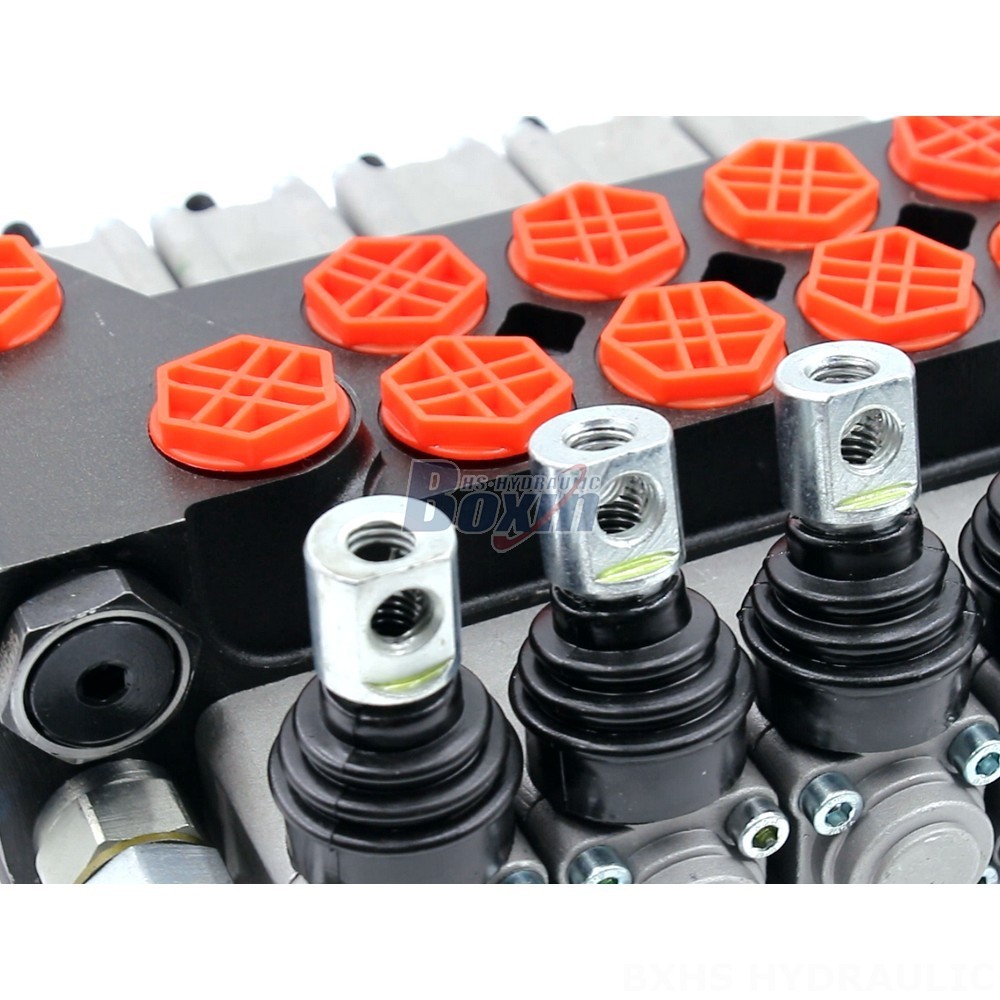

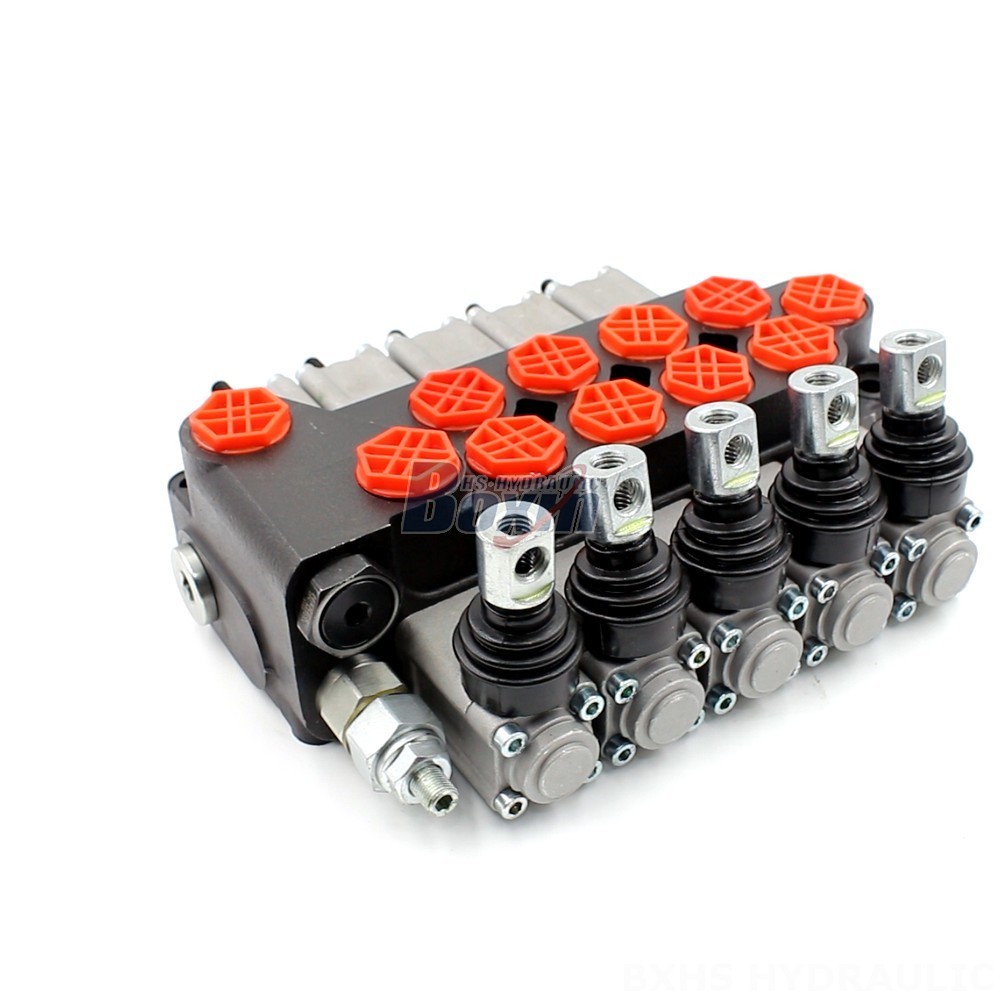

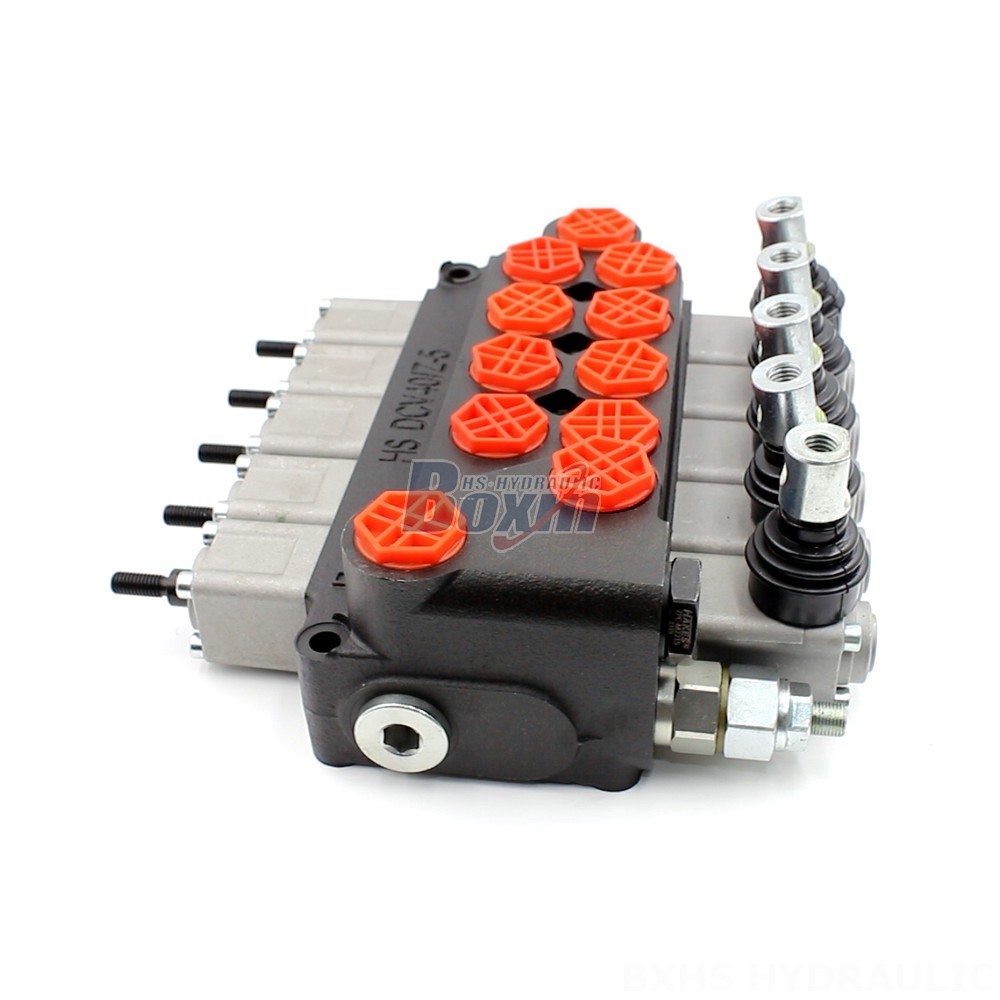

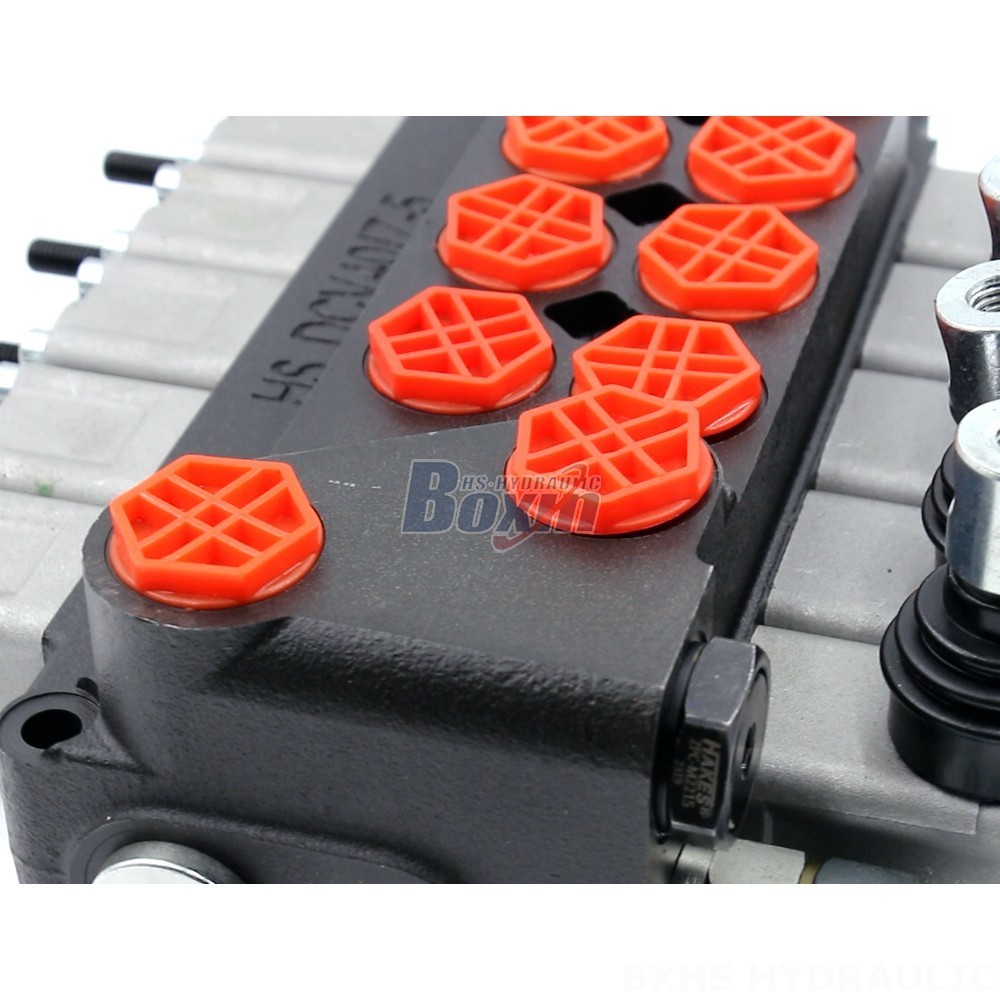

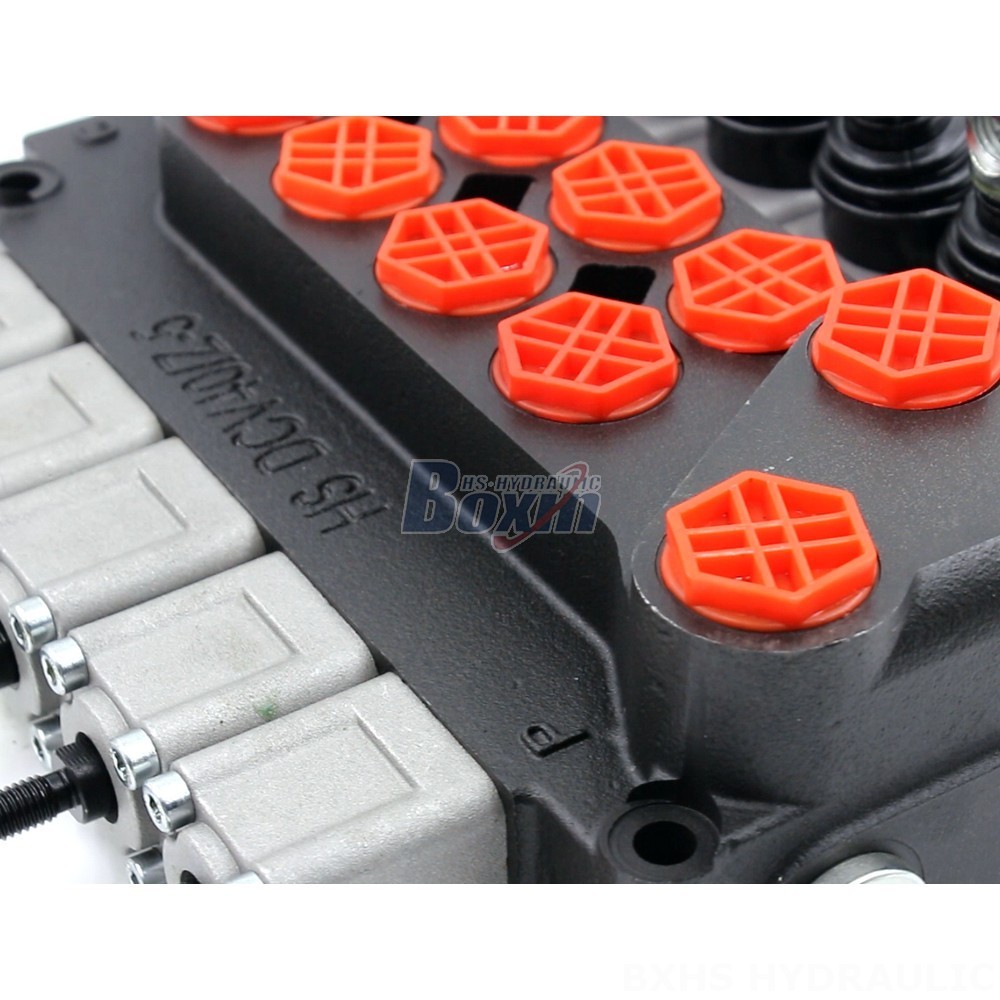

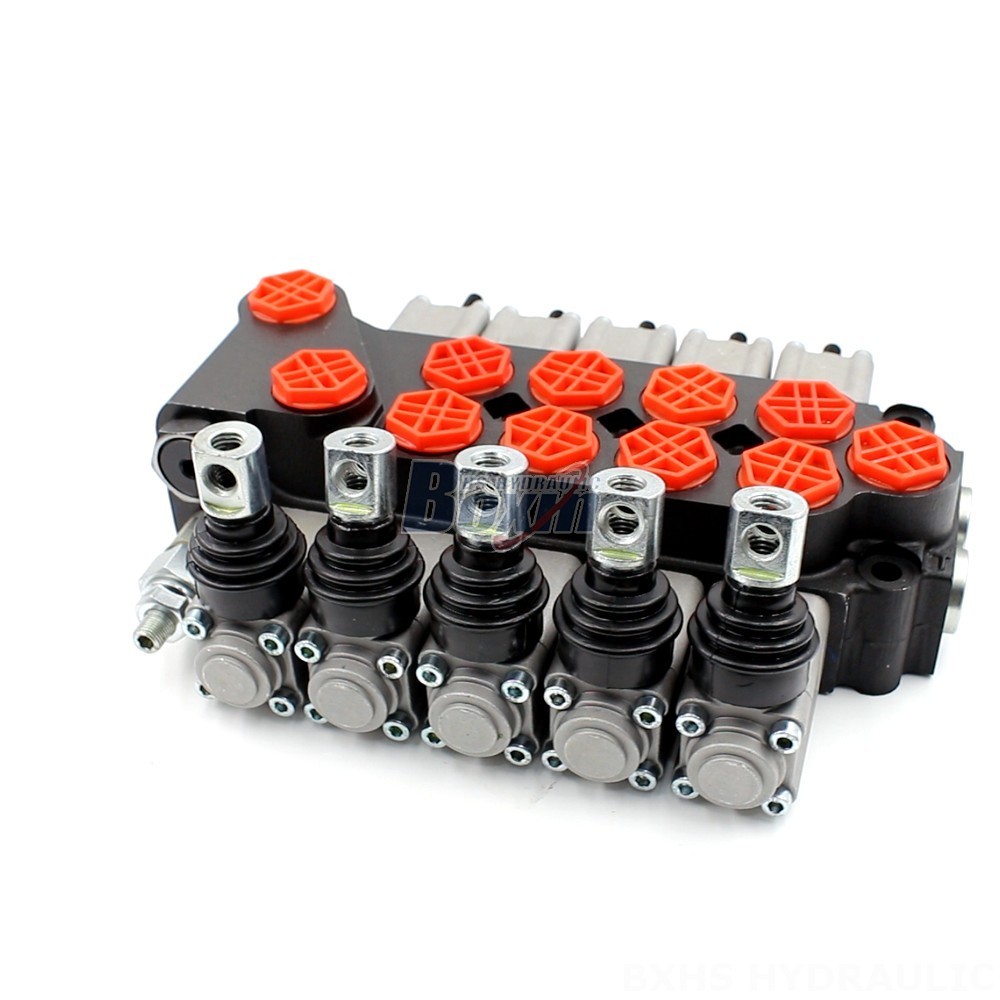

The DCV40Z Series directional control valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This 5-section, monoblock valve offers manual control, a rated flow of 40 L/min, and a maximum pressure of 350 bar, making it ideal for demanding tasks.
| Série DCV40Z Válvula de Controle de Estabilizadores Parâmetros | |
|---|---|
| Método de Controle | Manual, Eletrohidráulico, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 350 bar (5100 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The DCV40Z Series directional control valve is a robust and reliable solution for controlling hydraulic systems in various applications. Featuring a 5-section monoblock design, this valve provides precise and efficient control of hydraulic fluids. Its manual operation ensures easy control, while its 40 L/min rated flow and 350 bar maximum pressure deliver powerful performance. This valve is compatible with a wide range of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. With its operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C, the DCV40Z Series is built to withstand challenging environments. For demanding applications that require reliable hydraulic control, the DCV40Z Series is an excellent choice.
