DCV40Z Monoblock Valve | Direct from Manufacturer | Customizable

Método de Controle:Manual

Carrétel:5 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:315 bar (4600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G1/2

Marca:BXHS

Tipo de produto:Válvula de Controle de Estabilizadores

Série de produtos:Série DCV40Z Válvula de Controle de Estabilizadores

Tamanho da embalagem:39*39*20

Peso bruto:12.00 kg

Disponibilidade: Em estoque

468 Visualizações estão procurando por este produto

DCV40Z Monoblock Valve | Direct from Manufacturer | Customizable

DCV40Z Monoblock Valve | Direct from Manufacturer | Customizable

DCV40Z Monoblock Valve | Direct from Manufacturer | Customizable drawing image

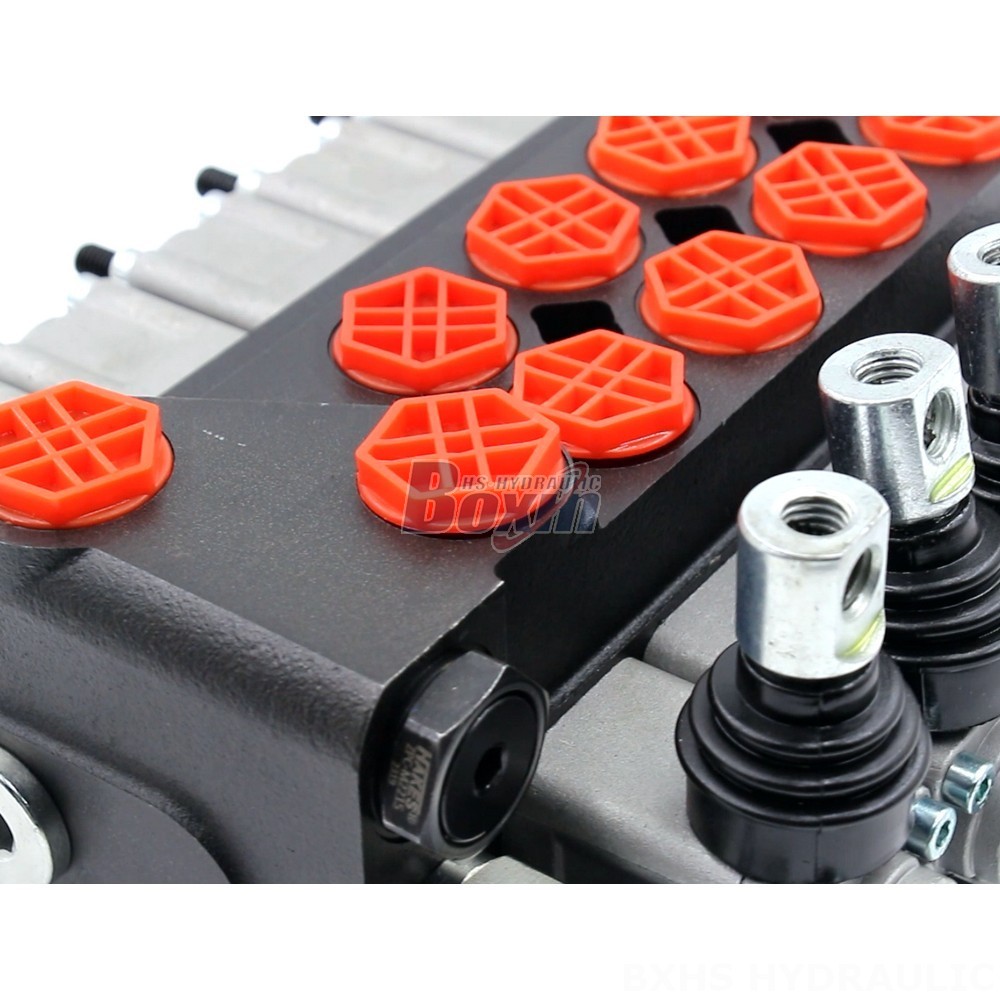

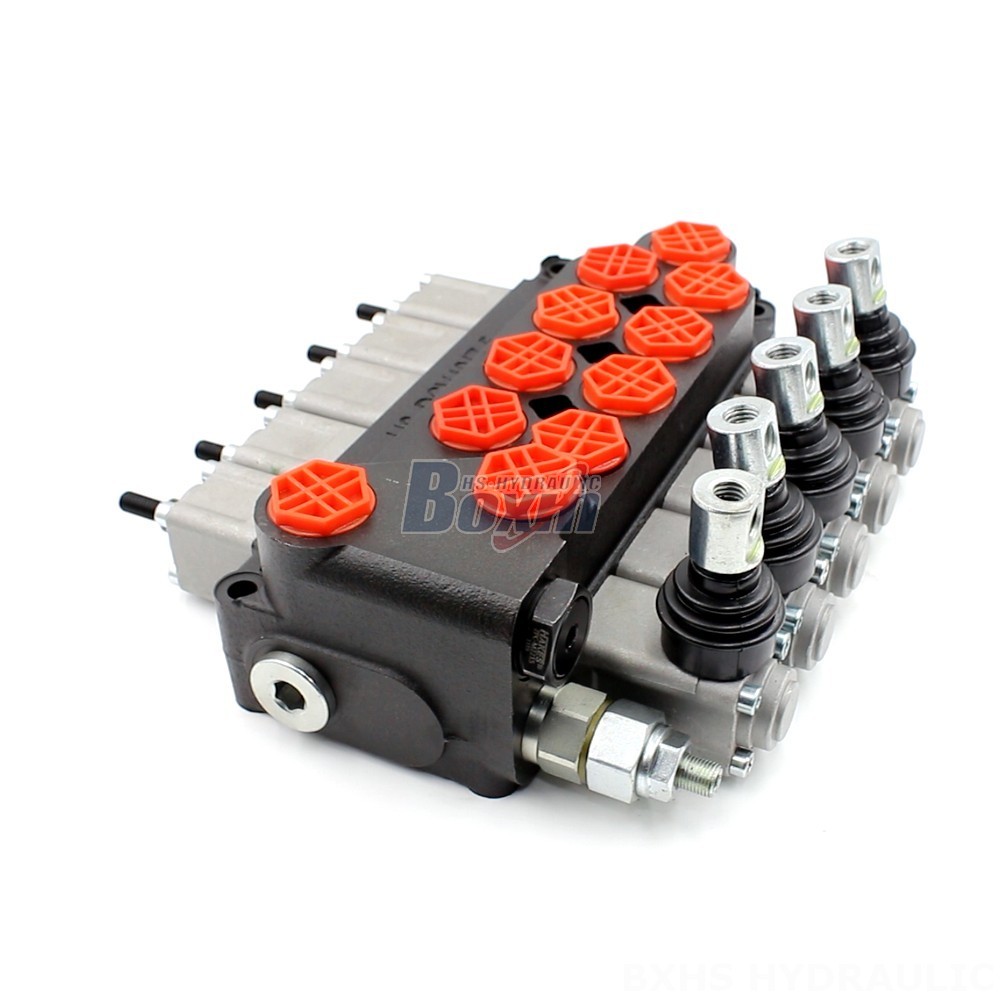

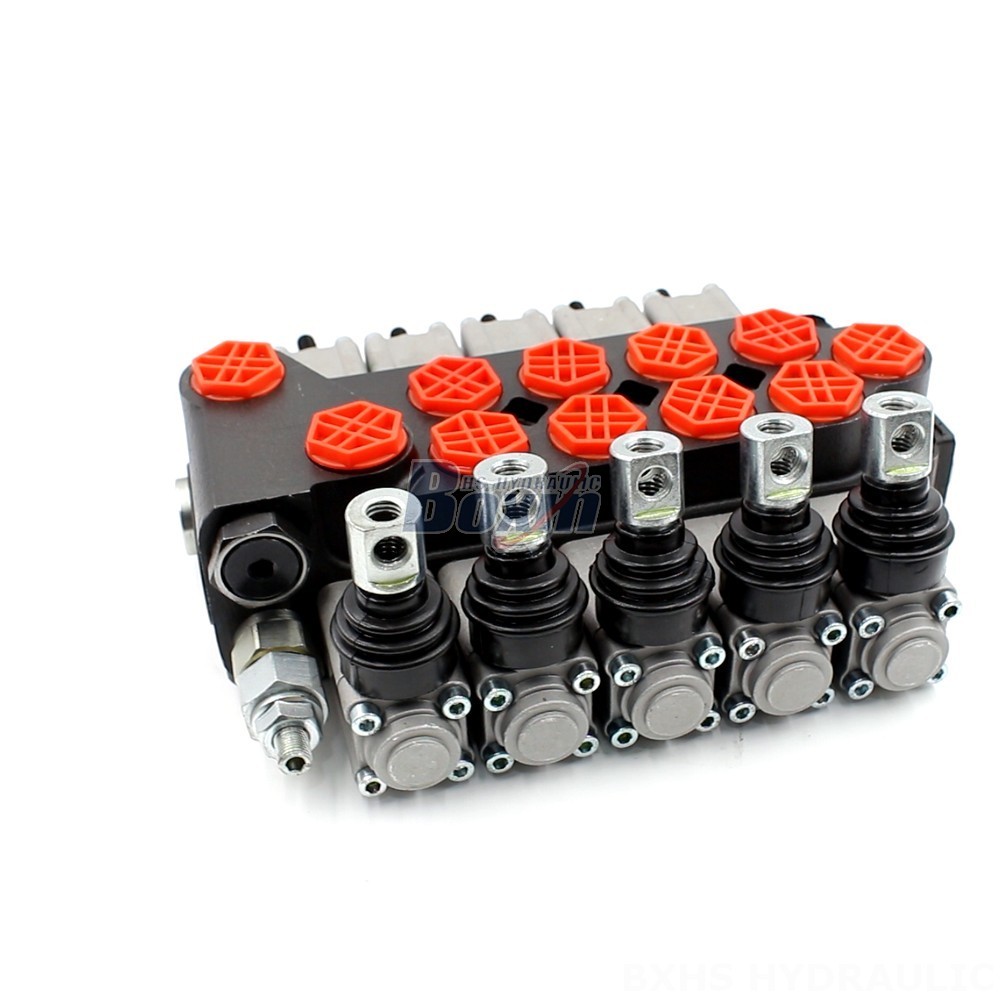

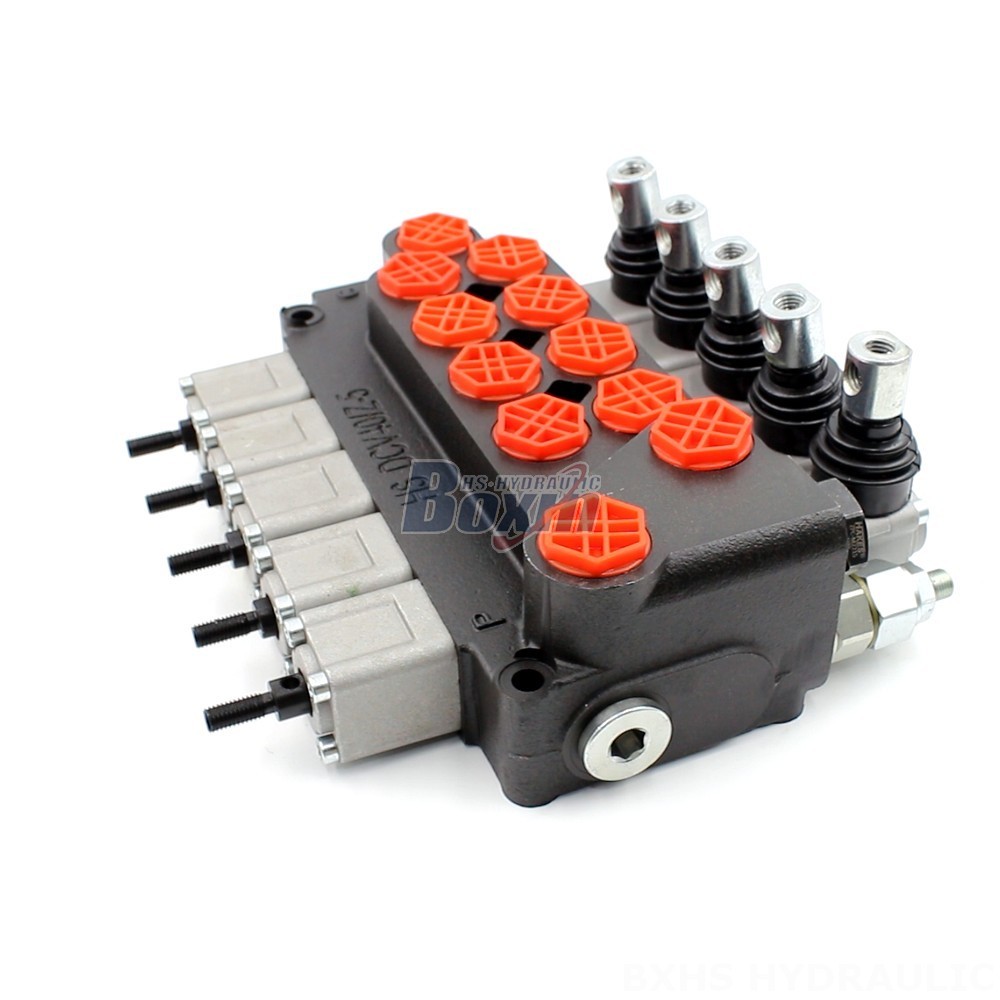

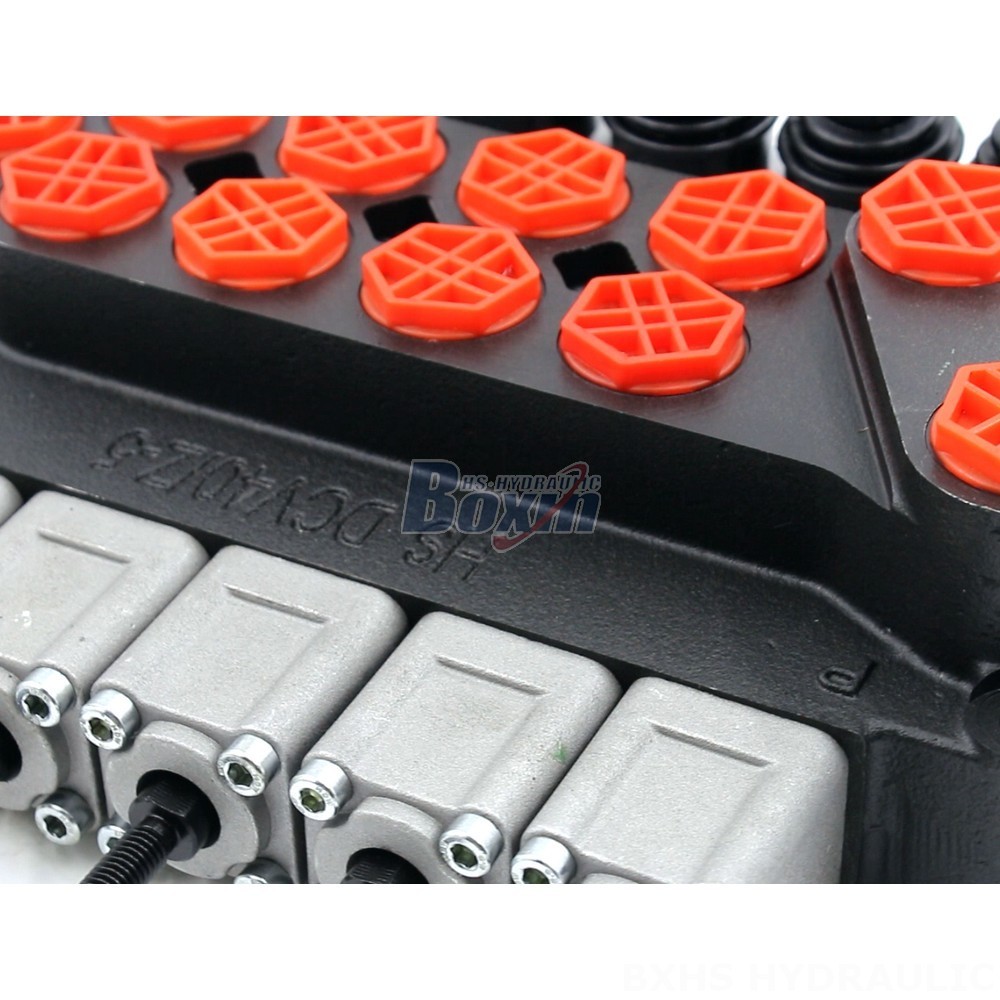

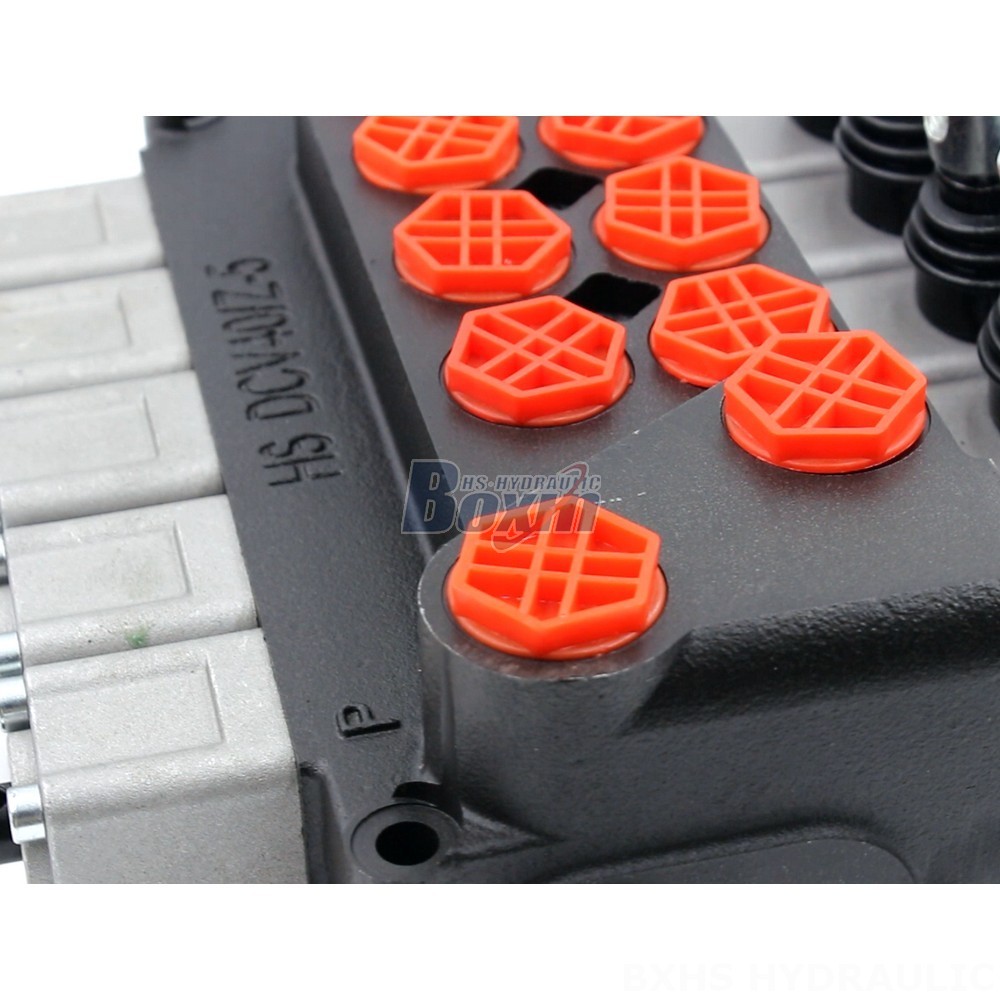

The DCV40Z series electric hydraulic distributor is a high-performance monoblock valve designed for demanding applications in construction equipment, material handling, and industrial vehicles. With a 40 L/min flow rate and 350 bar pressure rating, it offers reliable control and durability for heavy-duty operations.

Série DCV40Z Válvula de Controle de Estabilizadores Parâmetros
Método de Controle Manual, Eletrohidráulico, Joystick, Manual e Joystick
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 350 bar (5100 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The DCV40Z electric hydraulic distributor is a 5-section monoblock valve featuring a manual control method. It is capable of handling flow rates up to 40 L/min and pressures up to 350 bar. This valve is designed for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The DCV40Z is known for its durability, reliability, and customizable options. Manufactured with high-quality materials, it offers excellent performance in demanding environments. Available directly from the manufacturer, this valve provides a cost-effective solution for various hydraulic system requirements.
