Introducing the DCV58 Solenoid 1 Spool Valve, a high-performance hydraulic component designed to enhance the efficiency and control of your hydraulic systems. With a rated flow of 60 L/min and a maximum pressure of 350 bar, this valve ensures optimal flow and pressure regulation in various applications.
| Série DCV58 Válvula direcional seccional Parâmetros | |
|---|---|
| Método de Controle | Solenoide, Solenóide e Manual |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis, 11 Carreteis, 12 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula seccional |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções, 11 secções, 12 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 350 bar (5100 psi) |
| Porta de Entrada | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Porta de Saída | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Tamanho da Porta | G1/2, M22×1.5, SAE 10, 1/2 NPT |

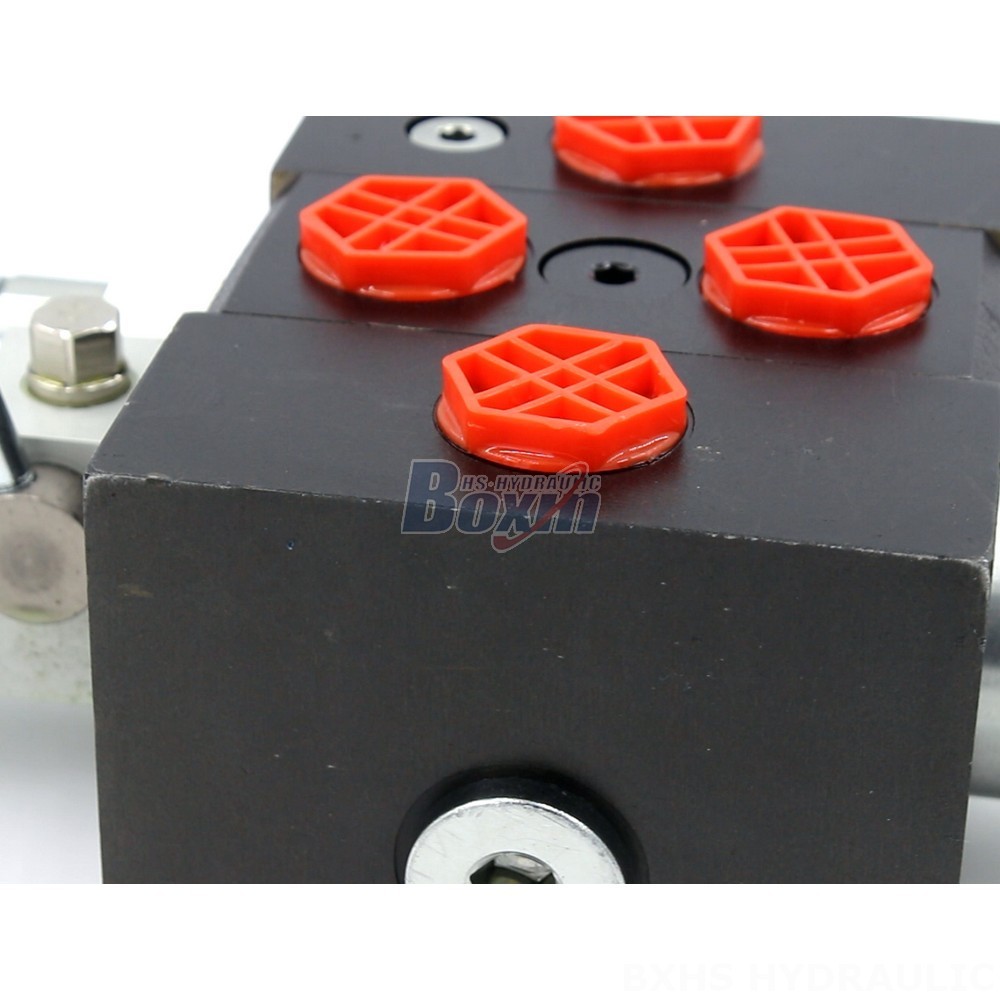

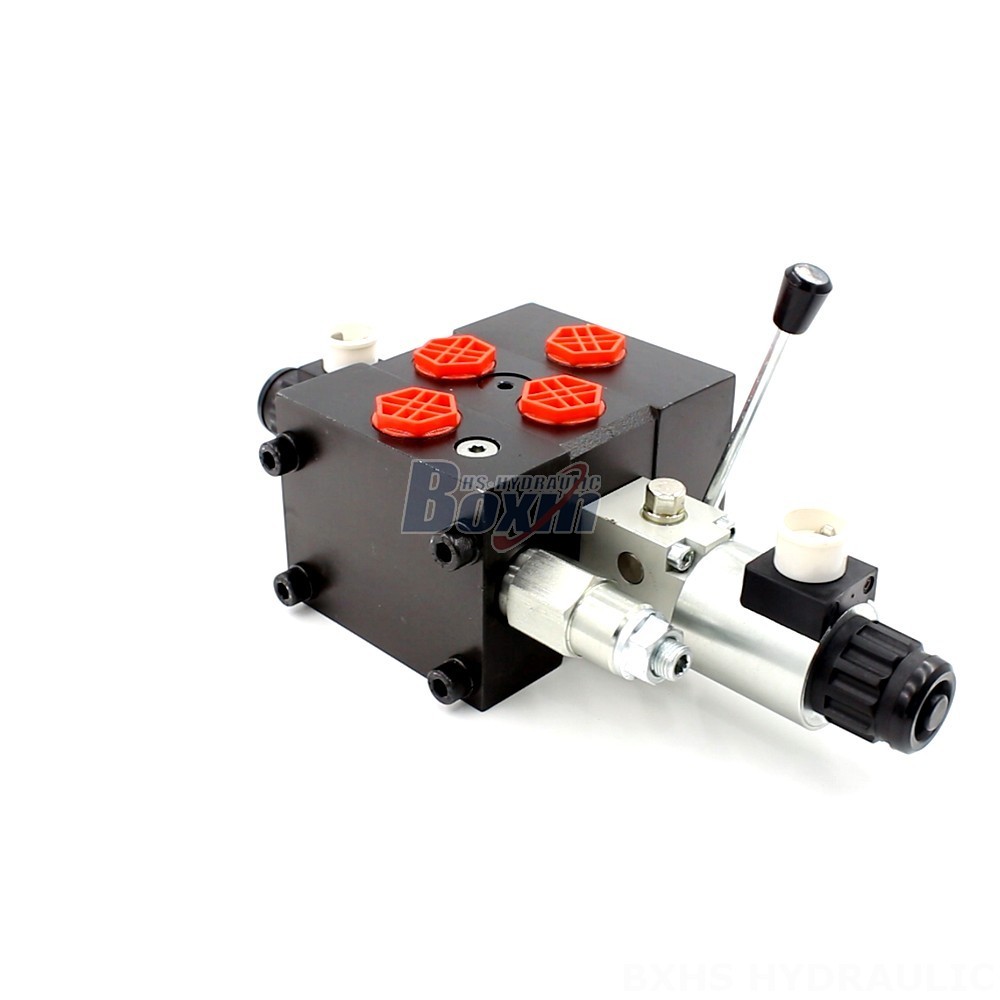

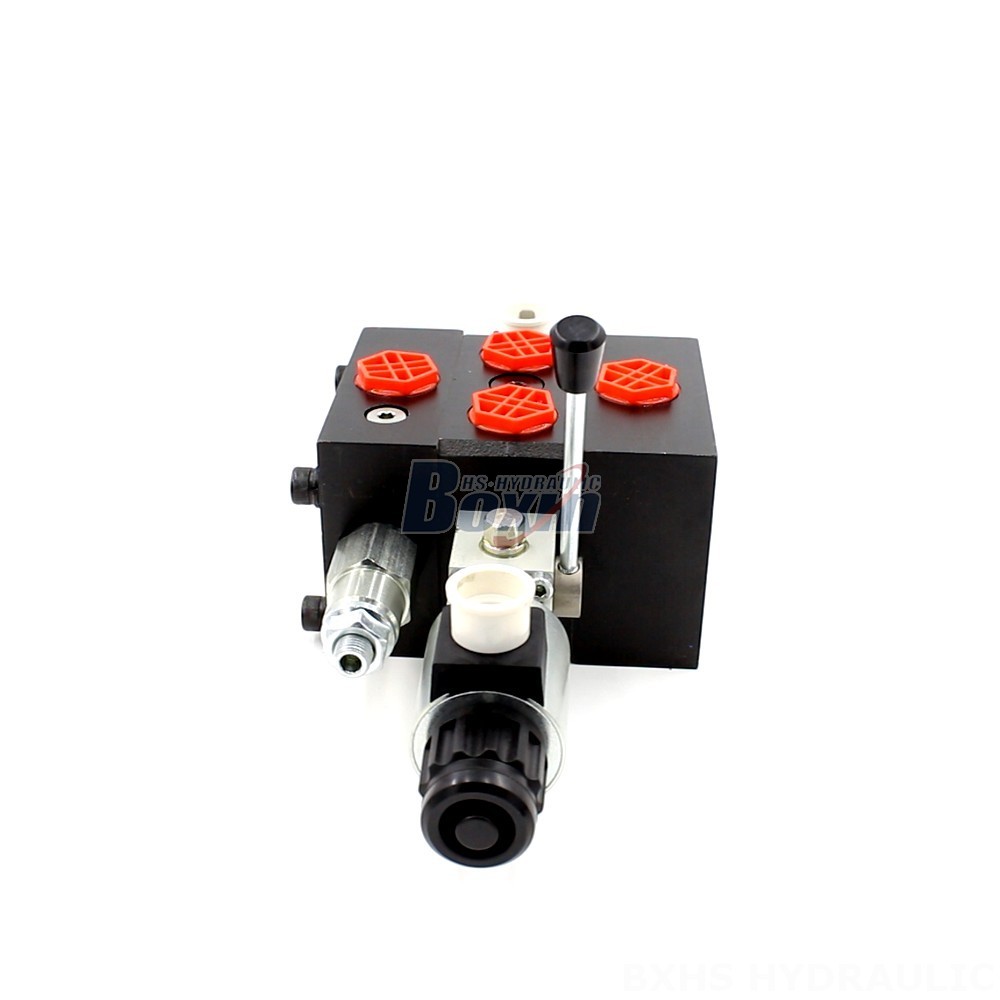

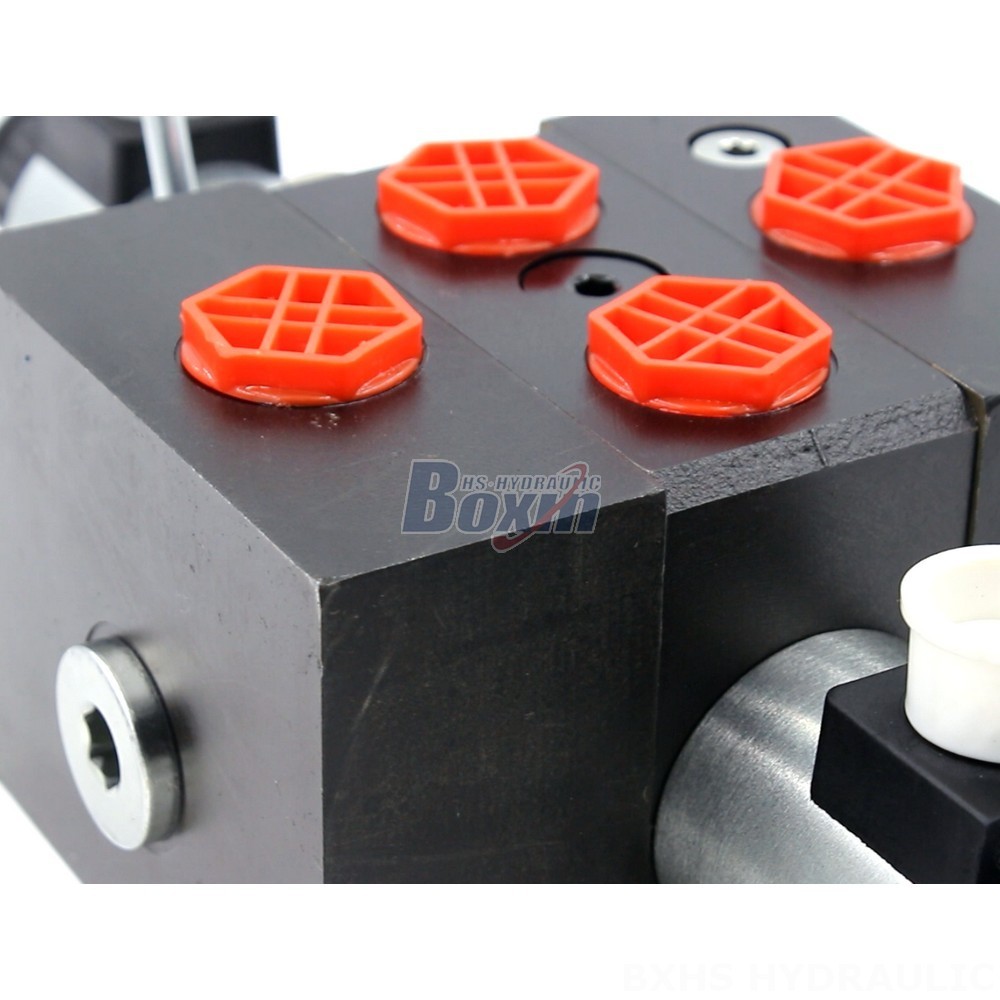

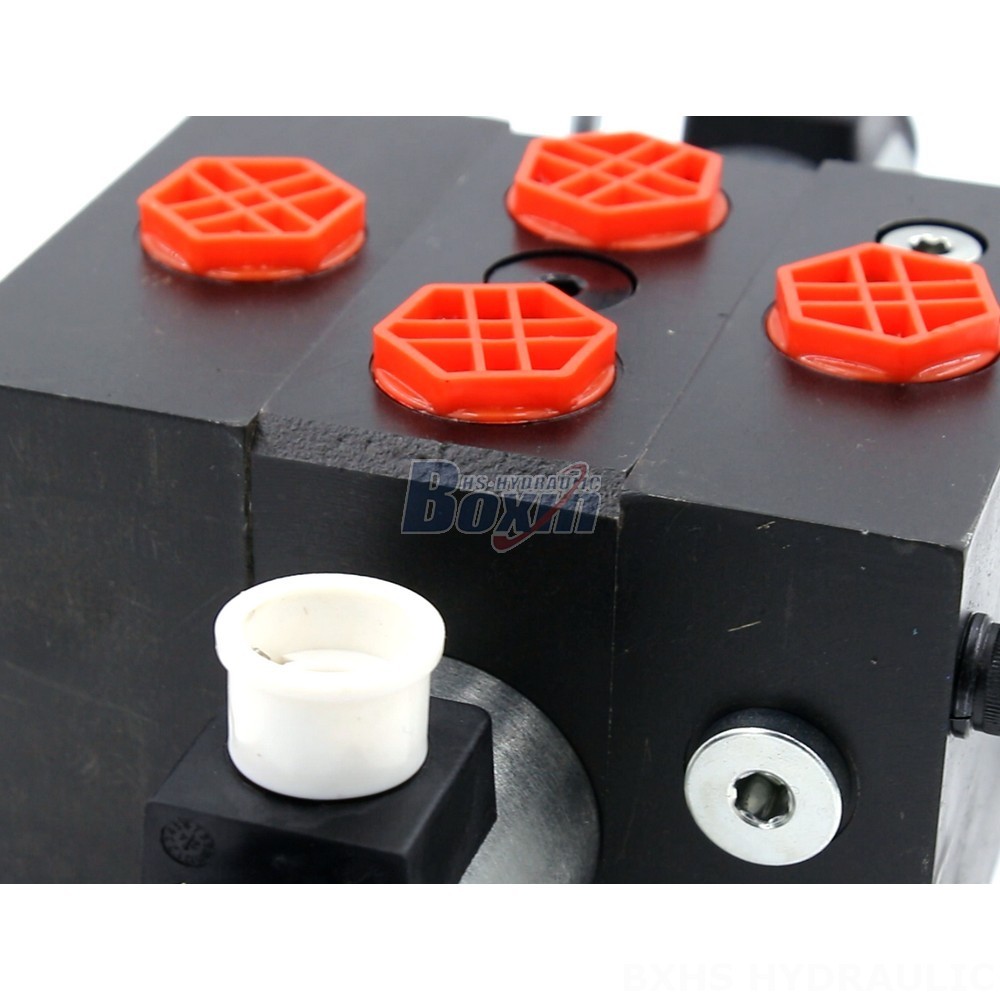

**DCV58 Solenoid 1 Spool Valve**
The DCV58 Solenoid 1 Spool Valve is a sectional valve featuring solenoid control for precise and reliable operation. It is ideally suited for applications in construction machinery, industrial vehicles, and agriculture. With its robust construction and high-quality materials, this valve ensures long-lasting performance and durability.
**Key Features:**
* Control Method: Solenoid
* Section: 1 Section
* Structure Type: Sectional valve
* Rated Flow: 60 L/min (15.8 US gpm)
* Max Pressure: 350 bar (5100 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 1 Spool
* Series: DCV58 Series
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
The DCV58 Solenoid 1 Spool Valve is a versatile and efficient hydraulic component that offers exceptional control and performance. It is meticulously designed to meet the demands of modern hydraulic systems in various industries.
