Produção e Entrega
Prazo de produção de 15 a 30 dias
495 Visualizações estão procurando por este produto

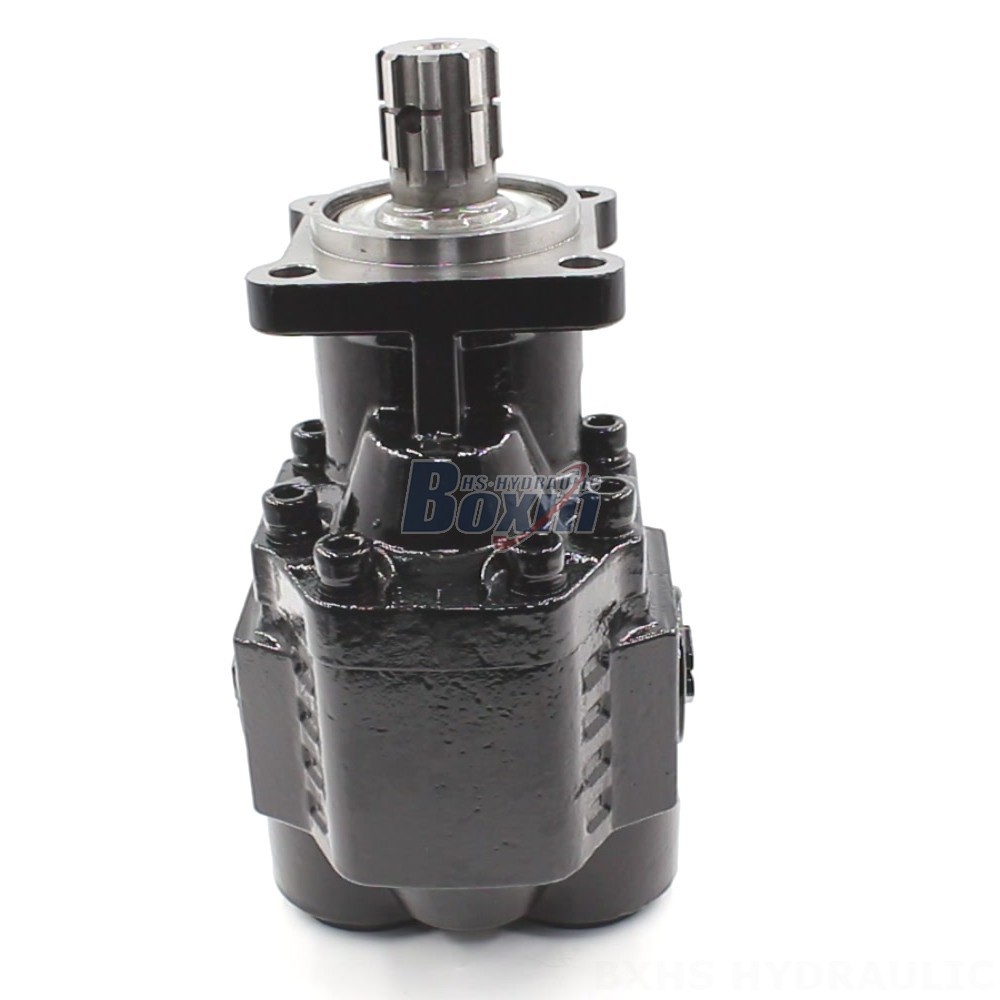

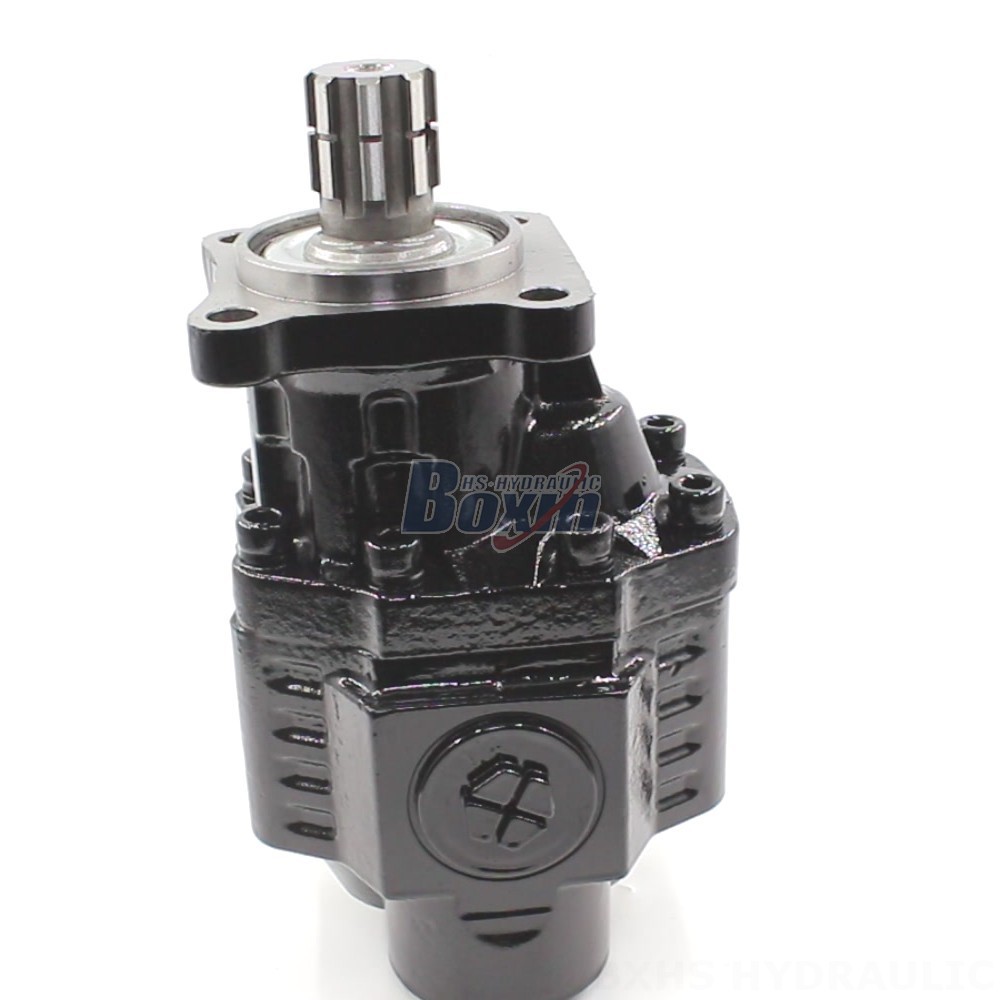

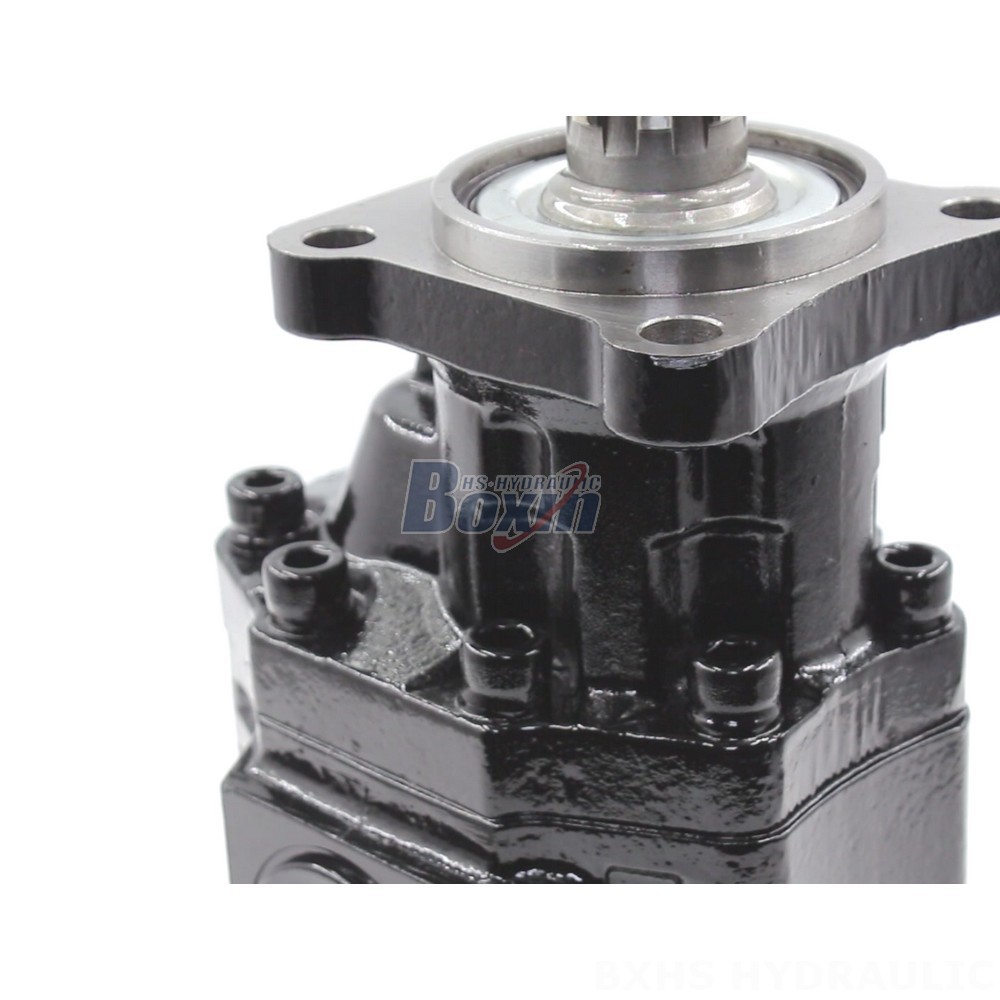

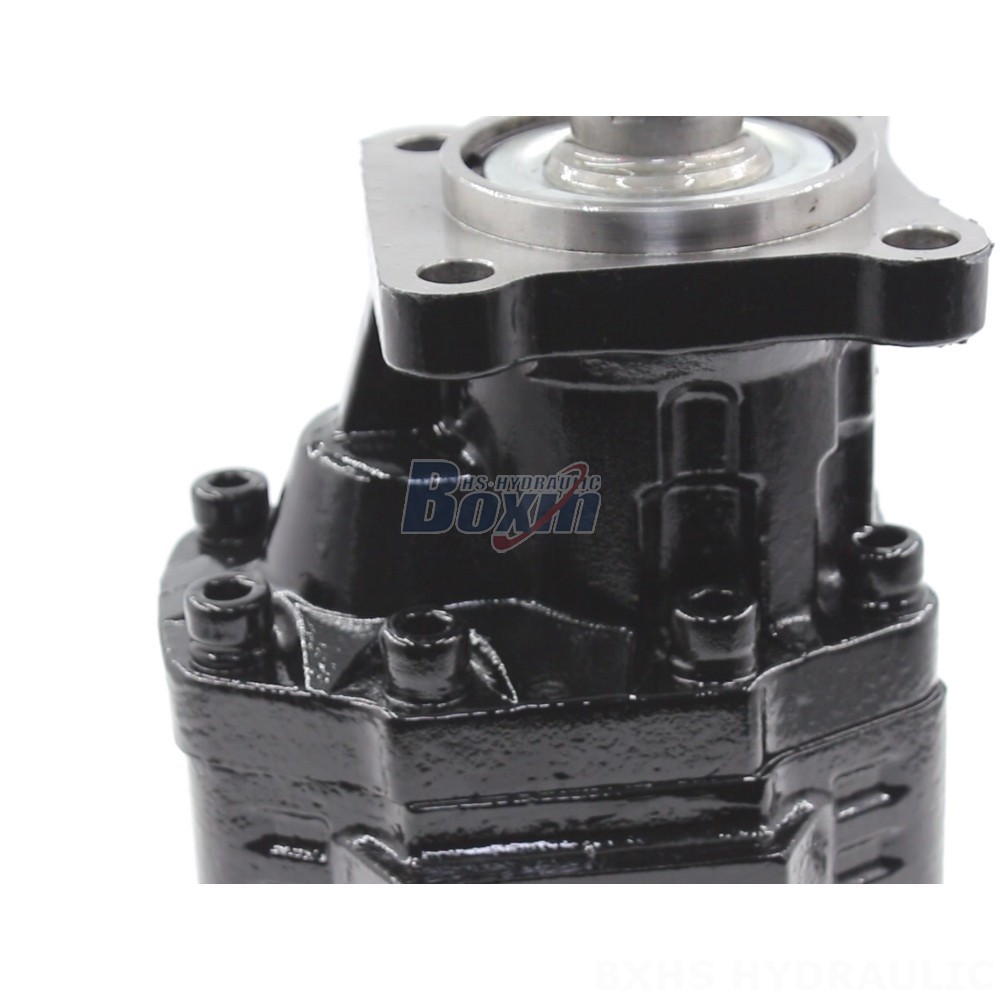

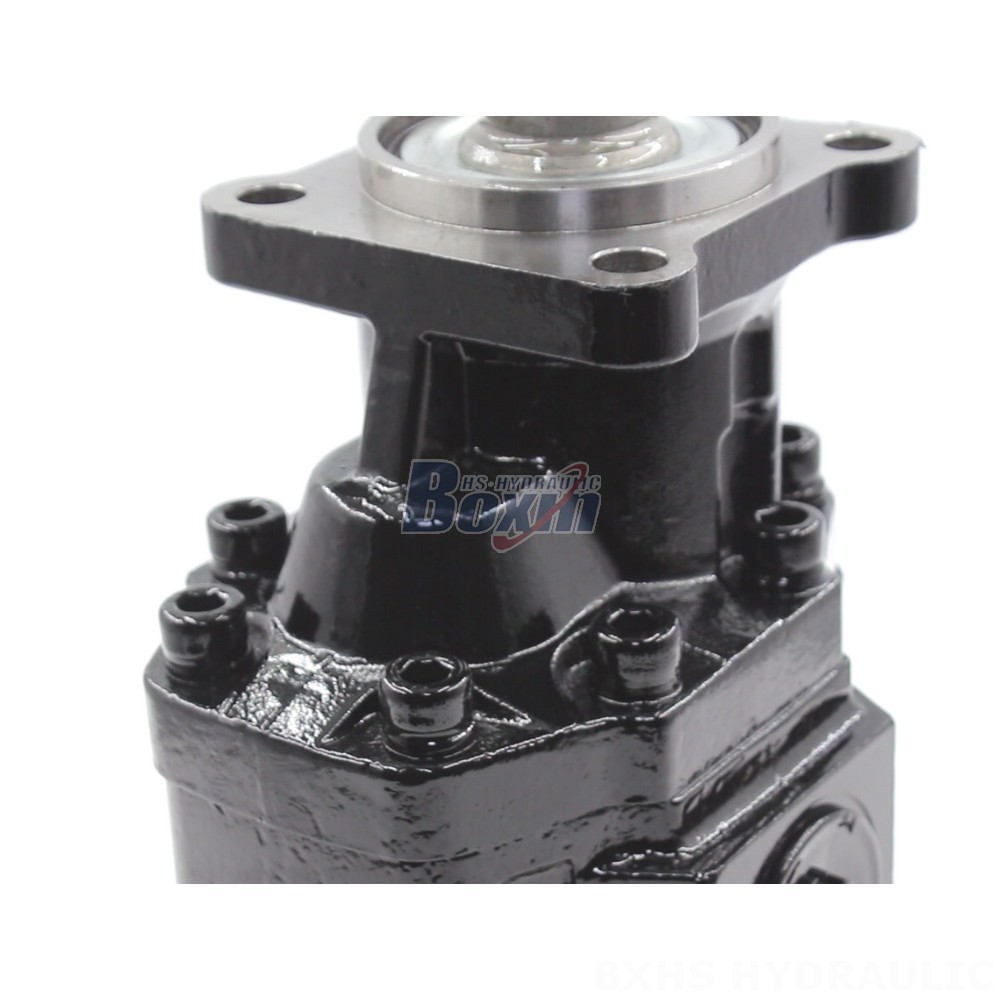

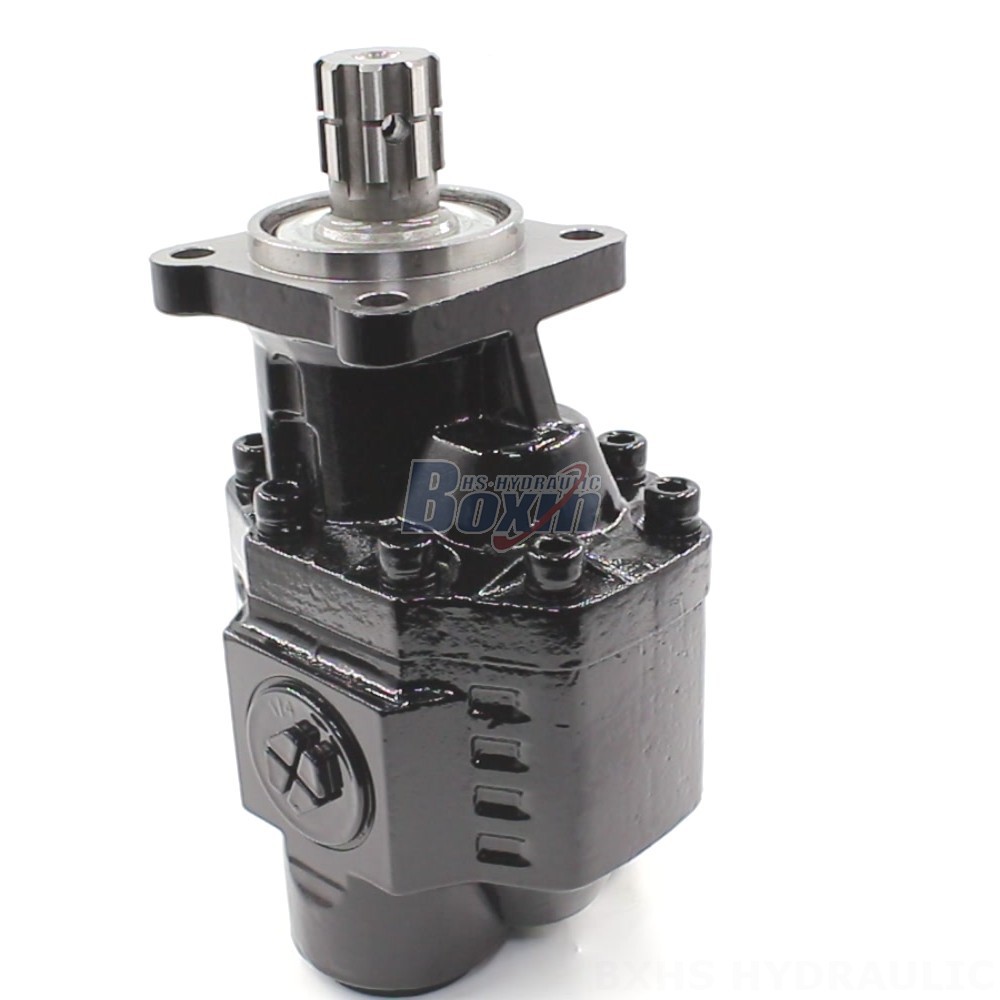

High-quality 90 cc/rev hydraulic gear pumps (CBHST1-ISO-90) with 23 MPa rated pressure, manufactured directly from our factory. Ideal for various applications including construction, agriculture, and material handling. Available for OEM, private label, and custom orders.
| Série CBHST1-ISO Bomba de engrenagem hidráulica Parâmetros | |
|---|---|
| Deslocamento | 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 110 cc/rev, 34 cc/rev, 43 cc/rev, 90 cc/rev, 120 cc/rev, 82 cc/rev |
| Pressão Nominal | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| Pressão Máxima | 23 MPa (3335 psi), 25 MPa (3625 psi), 28 MPa (4061 psi) |
| Velocidade Nominal | 2000 rpm |
| Velocidade Máxima | 2500 rpm |
| Rotação | Bidirecional |
| Material | Ferro Fundido |
| Estrutura | Bomba de engrenagem externa |
| Versão da flange | Orifícios de montagem ISO-4 |
| Tipo de veio | H: Chaveta retangular |
Direct from Factory: High-performance CBHST1-ISO-90 90 cc/rev hydraulic gear pumps, offering superior quality and reliability. These swashplate pumps boast a rated pressure of 23 MPa (3335 psi) and a maximum pressure of 25 MPa (3625 psi). With a rated speed of 2000 r/min and a maximum speed of 2500 r/min, they provide efficient and powerful hydraulic solutions.
**Key Features:**
* Displacement: 90 cc/rev
* Rated Pressure: 23 MPa (3335 psi)
* Max Pressure: 25 MPa (3625 psi)
* Rated Speed: 2000 r/min
* Max Speed: 2500 r/min
* Rotation: Bidirectional
* Structure: Swashplate
* Material: Cast Iron
* Flange Version: ISO-4 Mounting Holes
* Shaft Type: H: Rectangle Spline
* Series: CBHST1-ISO Series
**Applications:** Material Handling, Construction & Earth Moving, Agriculture, Industrial Vehicles (Forklifts, Telehandlers, Mini-Excavators, Skid Steer Loaders, Compact Wheel Loaders, Tractors, Front-End Loaders, Harvesters, Balers, Sprayers, Backhoes).
**Our Services:** As a leading manufacturer and factory supplier, we offer a comprehensive range of services, including manufacturing, OEM, private labeling, customization, and wholesale options. We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to partner with us and expand our global reach. Benefit from our factory-direct pricing and reliable supply chain. Contact us today for inquiries and bulk order discounts. Experience the difference of working directly with the manufacturer – factory direct wholesale prices guaranteed!
**Contact us to discuss your specific needs and explore our collaboration opportunities.**
