Produção e Entrega
Prazo de produção de 15 a 30 dias
1497 Visualizações estão procurando por este produto
This high-performance hydraulic gear pump is designed for industrial applications such as construction, agriculture, and material handling. With a displacement of 10 cc/rev and a rated pressure of 20 MPa, it delivers reliable and efficient power for a wide range of equipment. The pump is available in various configurations to meet specific requirements.
| Série CBHS-FL3 Bomba de engrenagem hidráulica Parâmetros | |
|---|---|
| Deslocamento | 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Pressão Nominal | 20 MPa (2900 psi) |
| Pressão Máxima | 25 MPa (3625 psi) |
| Velocidade Nominal | 2000 rpm |
| Velocidade Máxima | 3000 rpm |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Material | Alumínio |
| Estrutura | Bomba de engrenagem externa |
| Versão da flange | Flange oval A |
| Tipo de veio | H: Chaveta retangular, X: Chaveta involuta, P: Chave Simples |

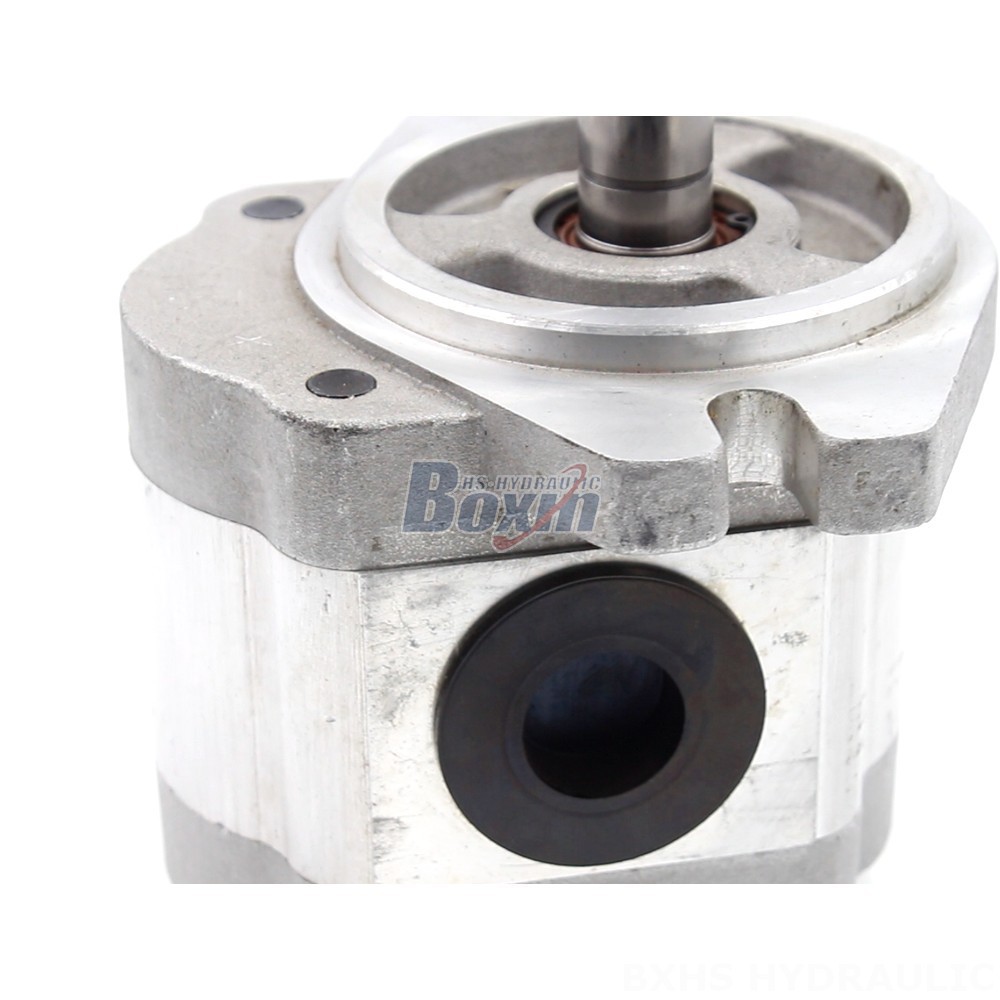

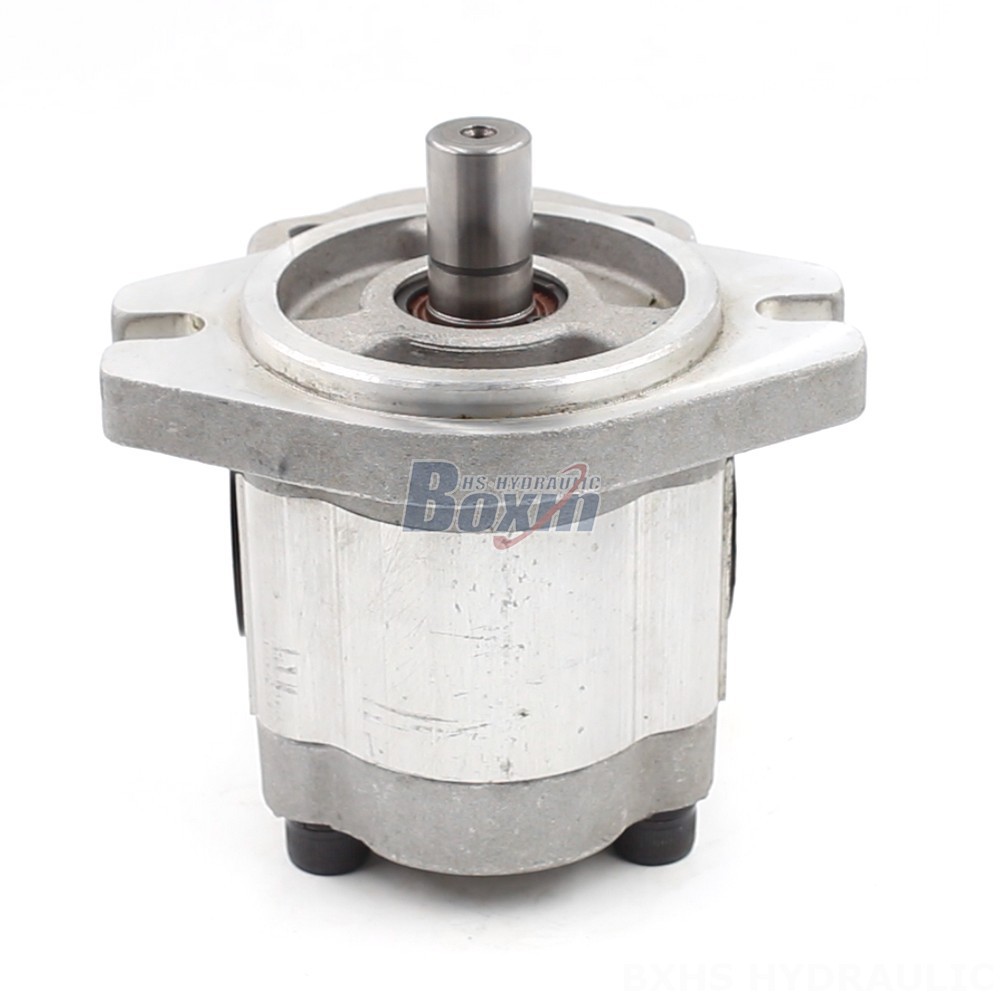

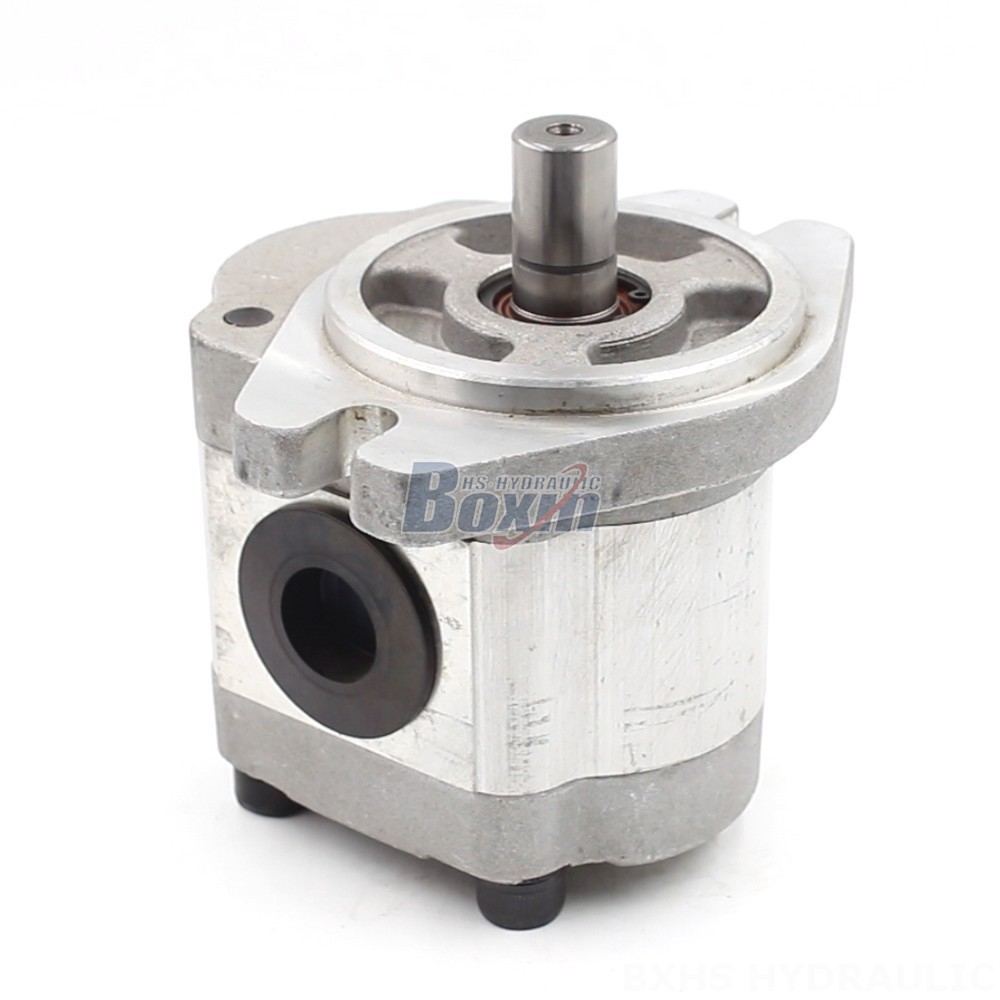

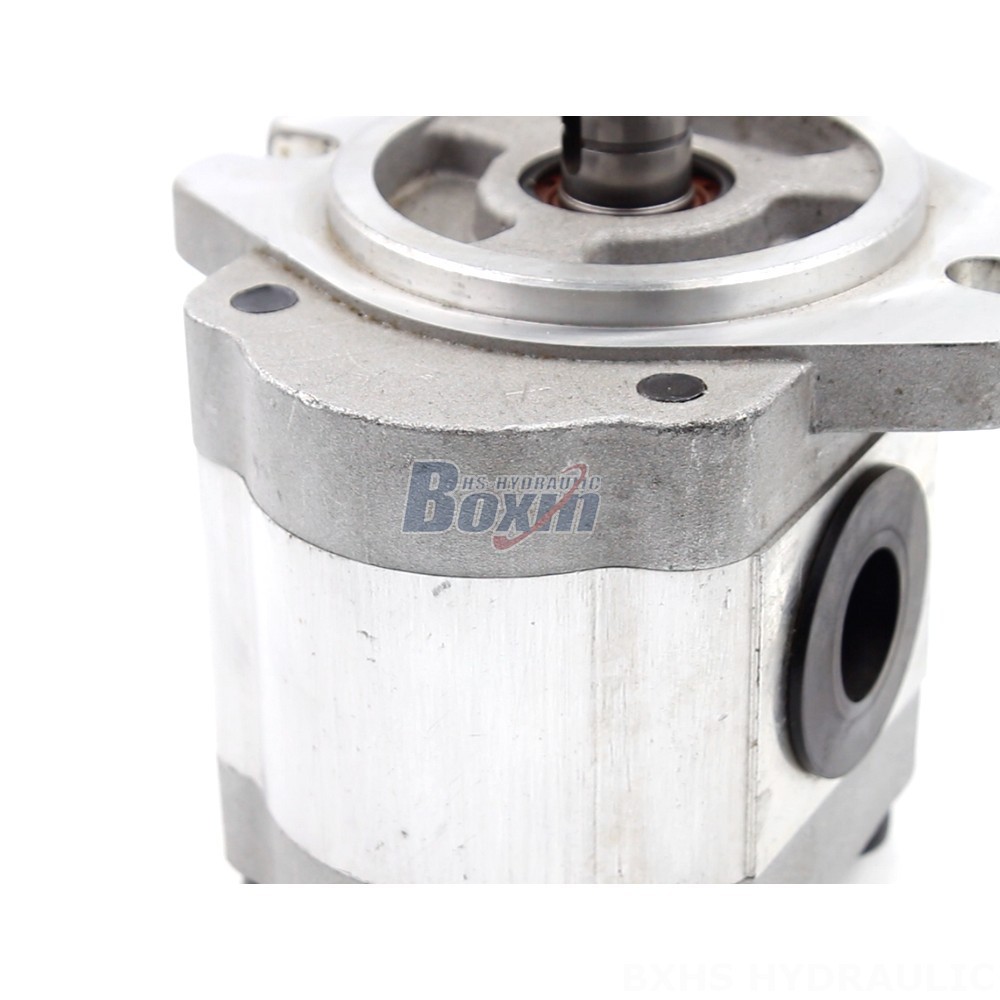

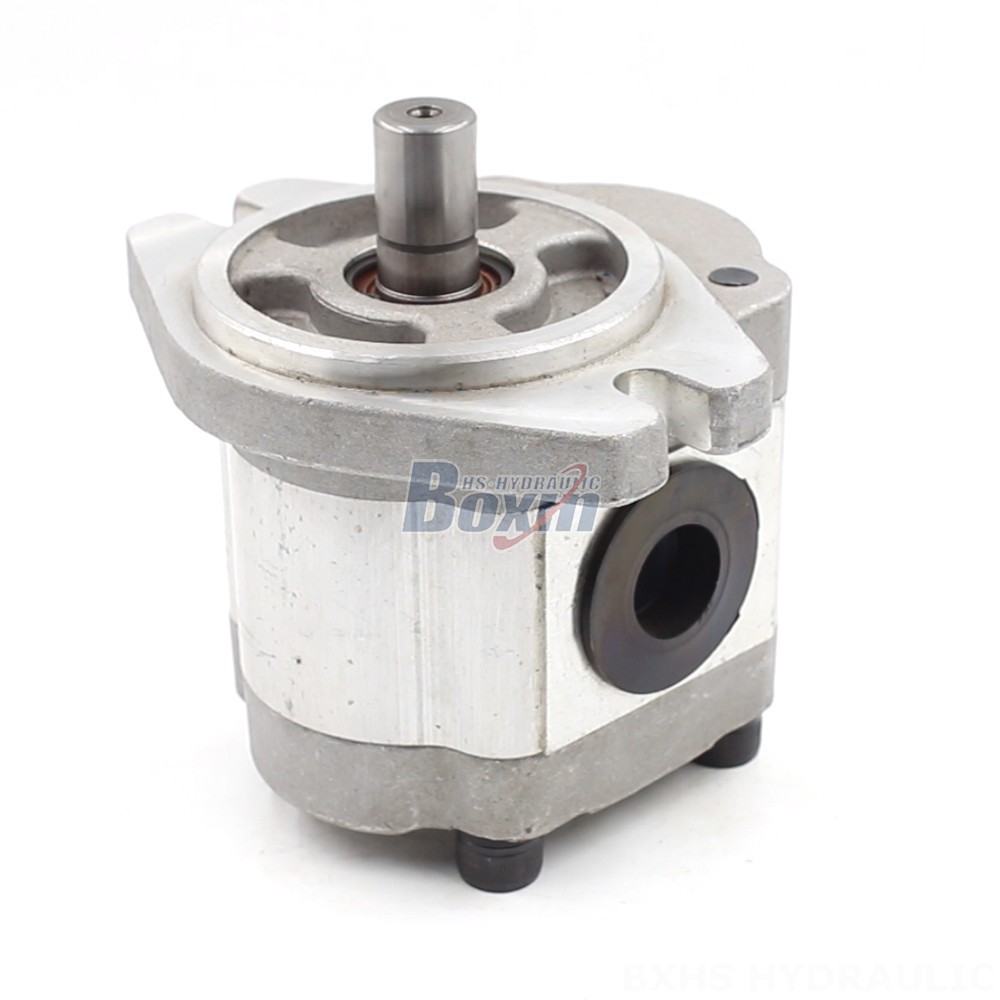

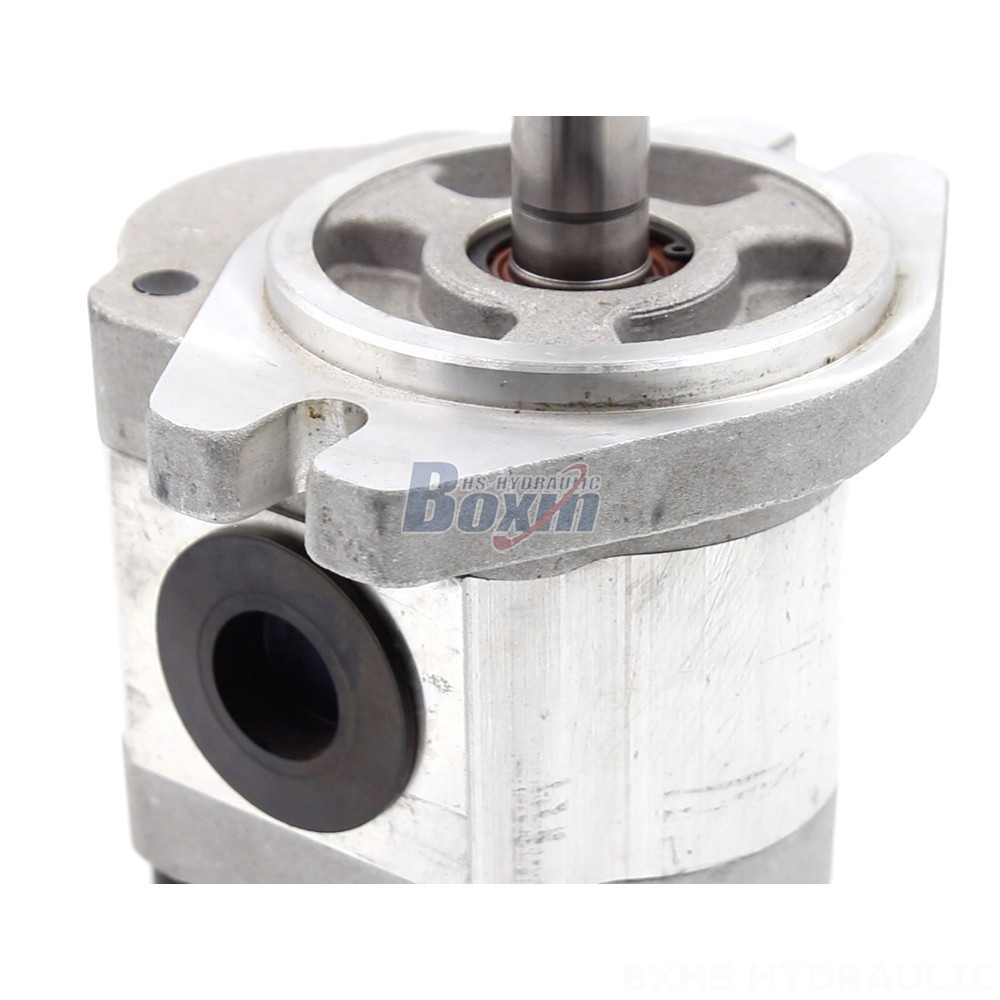

Our 6 cc/rev Hydraulic Gear Pump is a robust and durable solution for demanding applications. It boasts a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The pump is constructed from high-quality aluminum for excellent durability. It features an A-Oval flange and a plain key shaft for easy installation. We offer this pump in both left and right rotation versions. This hydraulic gear pump is ideal for a variety of applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, and sprayers. As a direct manufacturer, we offer competitive pricing and flexibility for OEM, private label, and custom orders. Contact us today to discuss your specific requirements and explore our factory supply and factory wholesale options.
