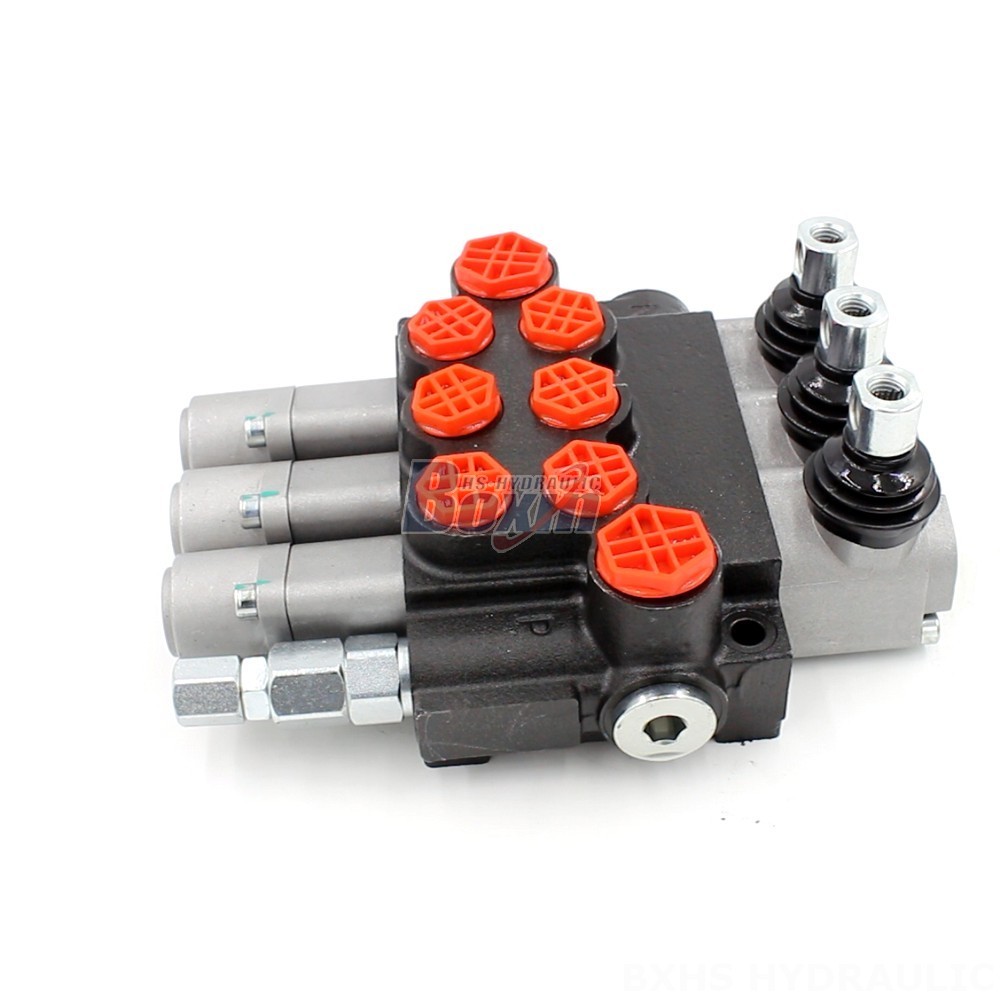

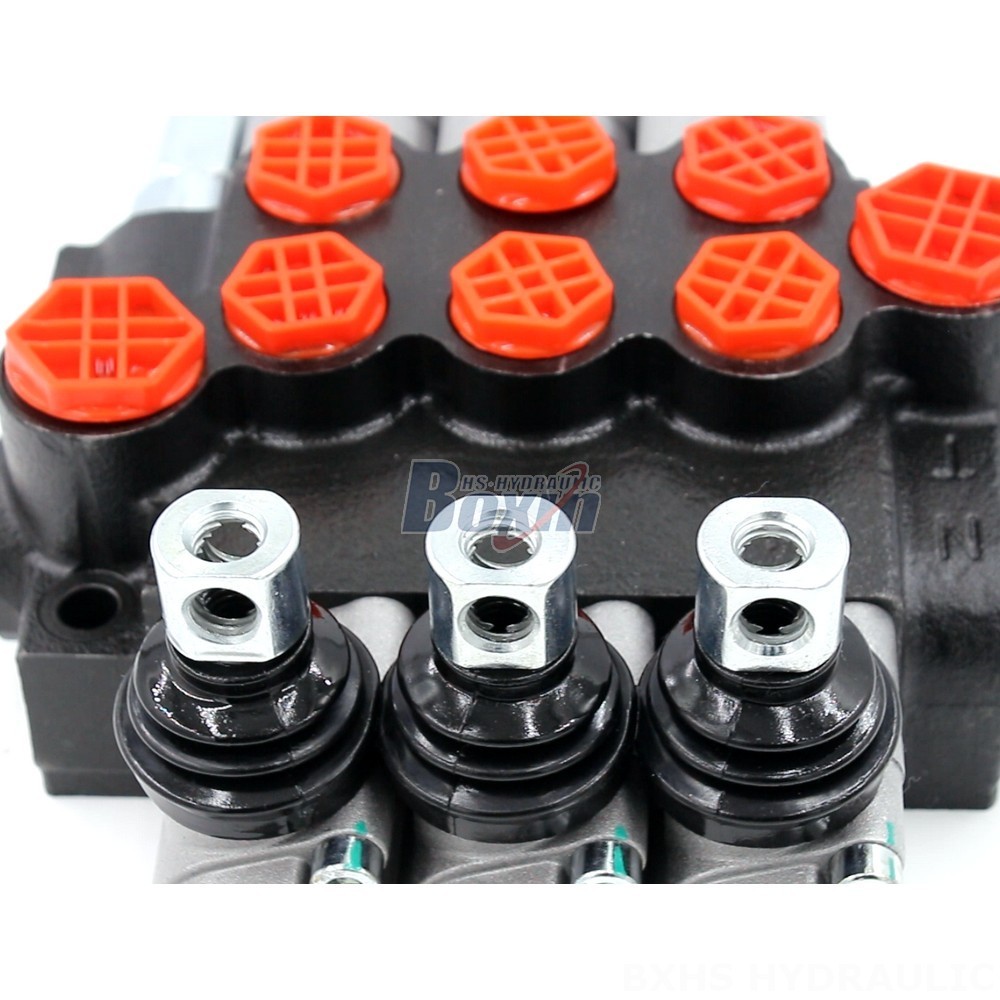

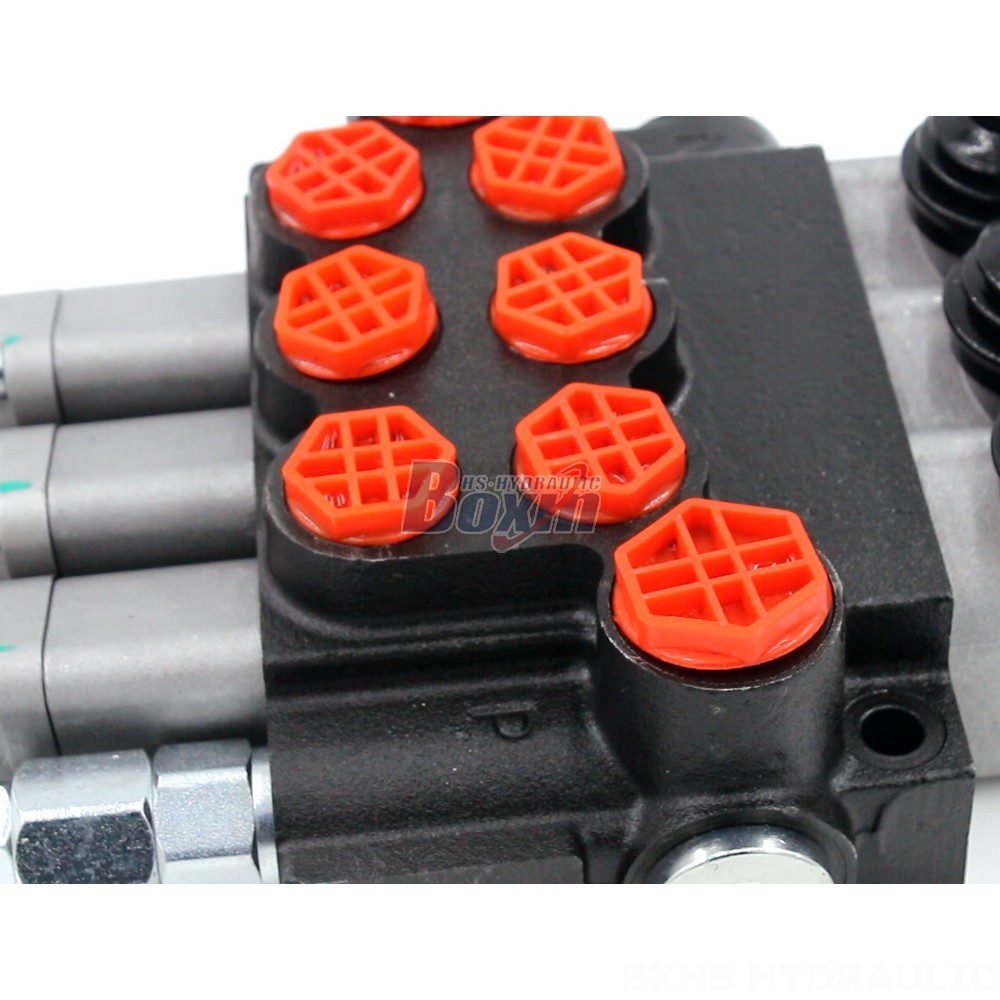

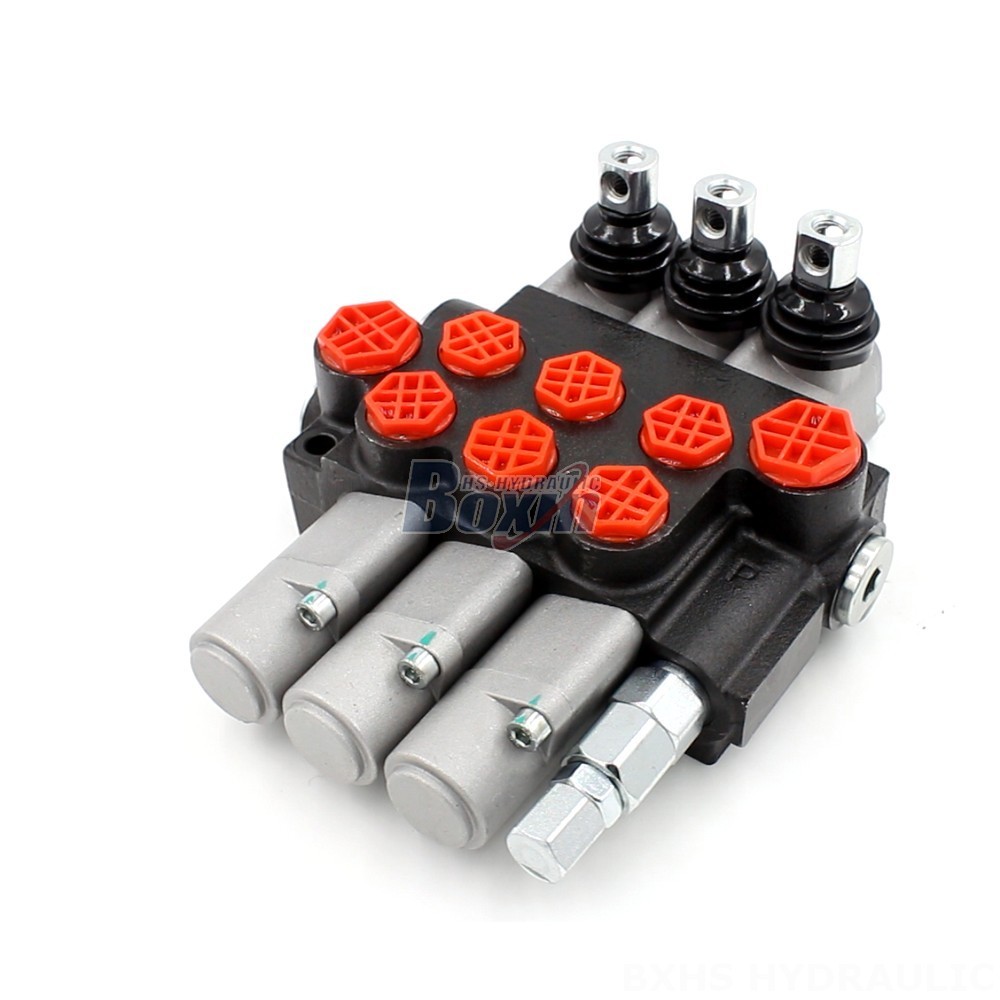

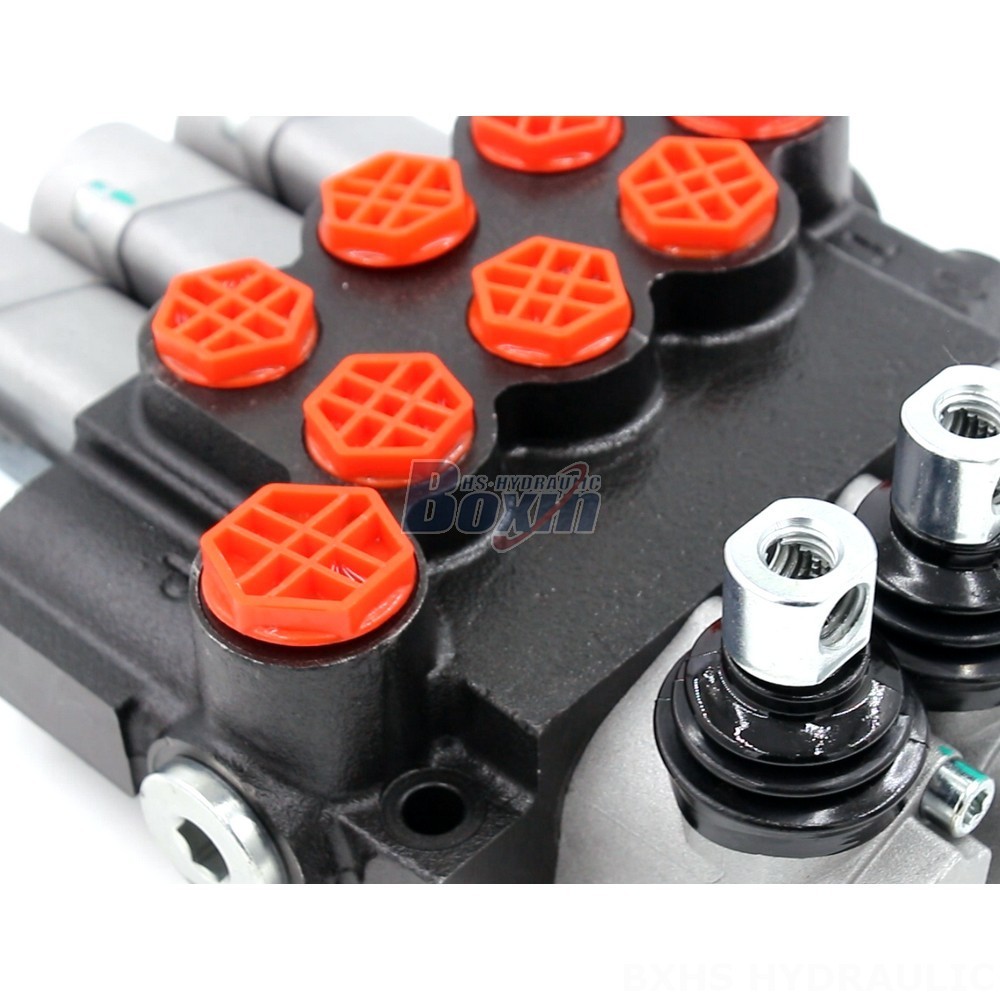

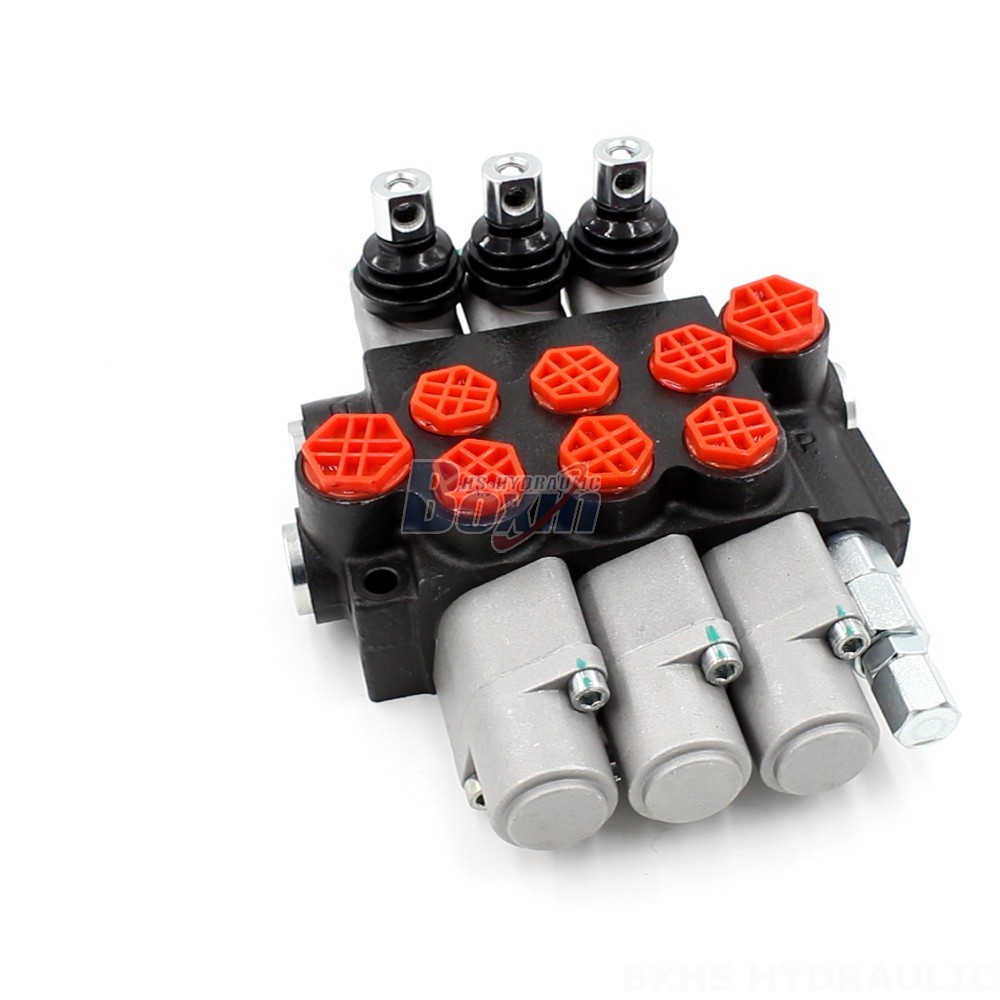

Introducing the P40-G38-G12-OT Directional Control Valve, manufactured and supplied directly from our factory. This 3-section monoblock valve is designed for use in a wide range of industrial applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is built to handle demanding hydraulic systems. It is manually controlled and features a wide operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The P40-G38-G12-OT valve is part of our P40 Series and is commonly used in equipment such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, MIDI-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G38-G12-OT Directional Control Valve**
**Factory Supply | Wholesale Prices**
**Product Specifications:**
- **Control Method:** Manual
- **Section:** 3 Section
- **Structure Type:** Monoblock valve
- **Rated Flow:** 40 L/min (10.5 US gpm)
- **Max Pressure:** 250 bar (3600 psi)
- **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
- **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
- **Spool:** 3 Spool
- **Series:** P40 Series
**Applications:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- MIDI-Excavator
- Mini-Excavator
- Skid Steer Loader
- Compact Wheel Loader
**Benefits of Factory Supply:**
- Competitive wholesale prices
- Direct access to manufacturers for quality control
- Customization options to meet specific requirements
- Prompt delivery and technical support
Contact us today to discuss your hydraulic valve needs and request a quote.
