The P80-AQF Series Directional Control Valve is a high-performance hydraulic valve designed for diverse applications in industries such as material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve offers reliable and precise control of hydraulic systems.
| Série P80 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 80 L/min (21,2 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Product Overview:**

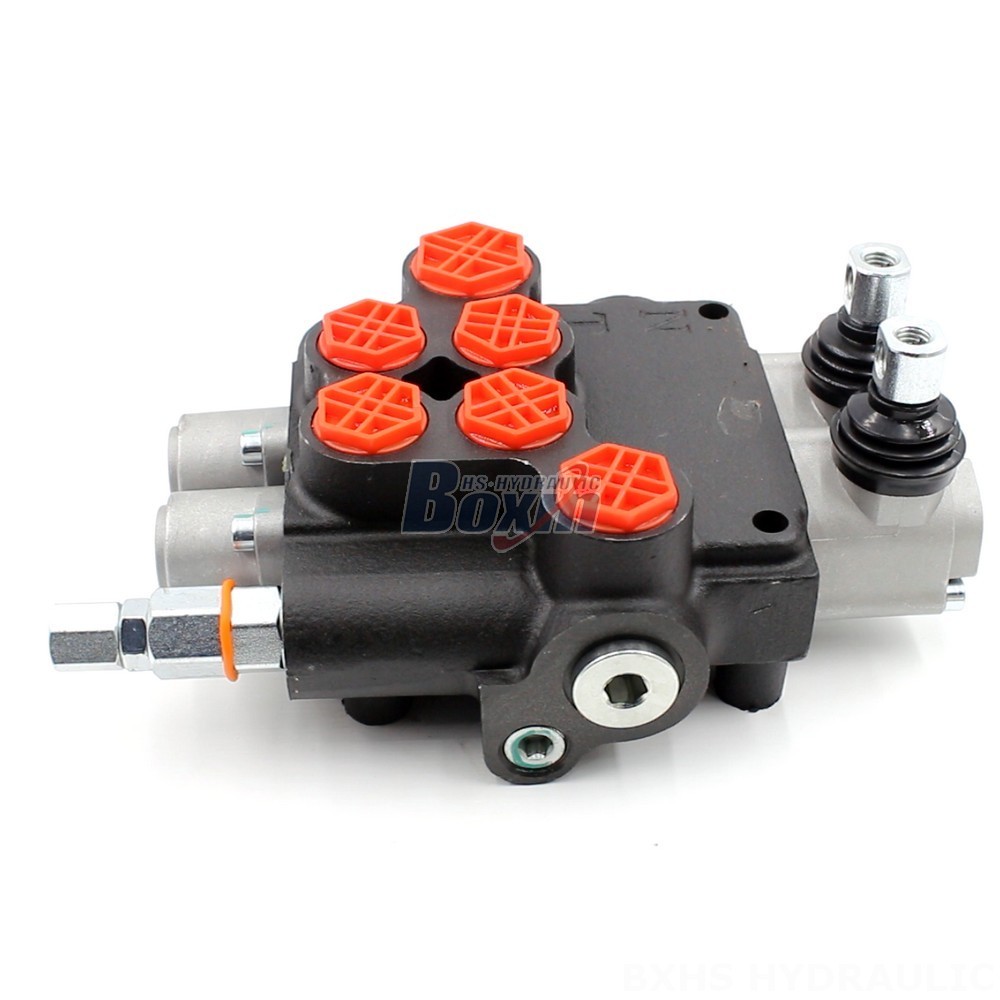

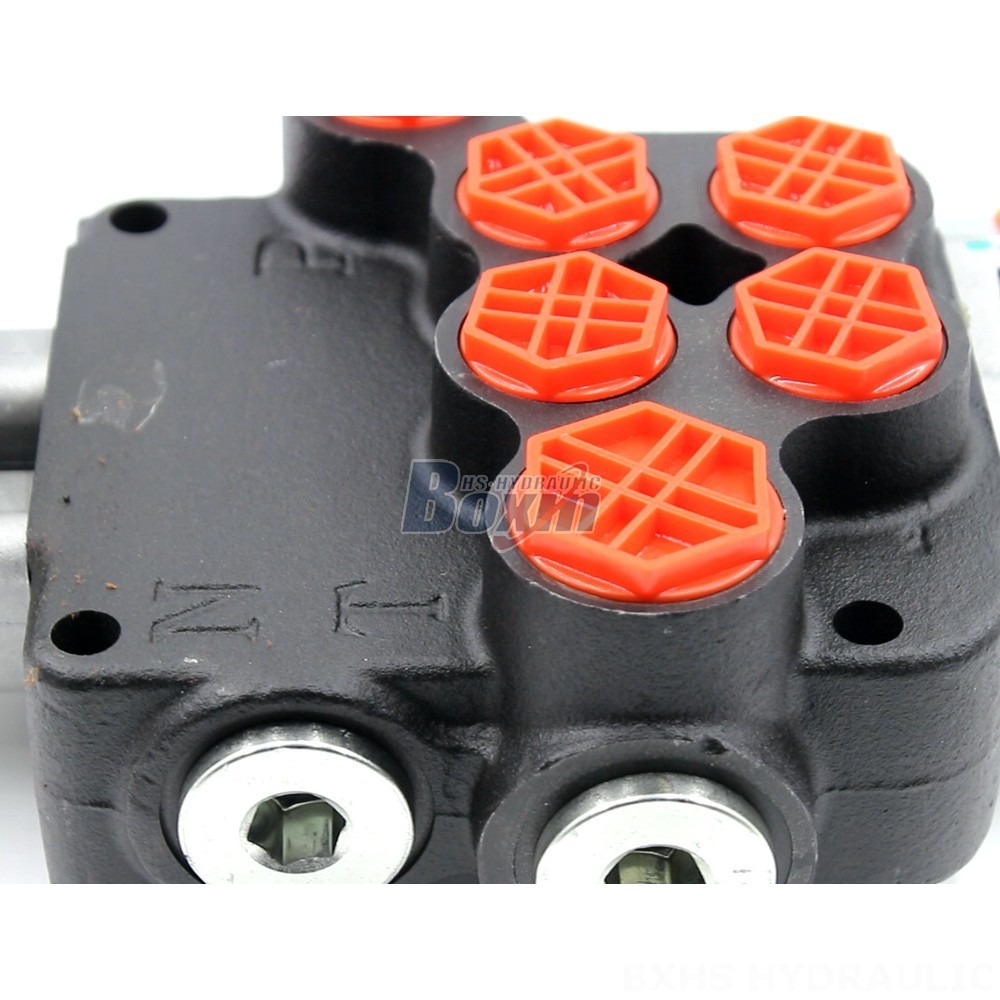

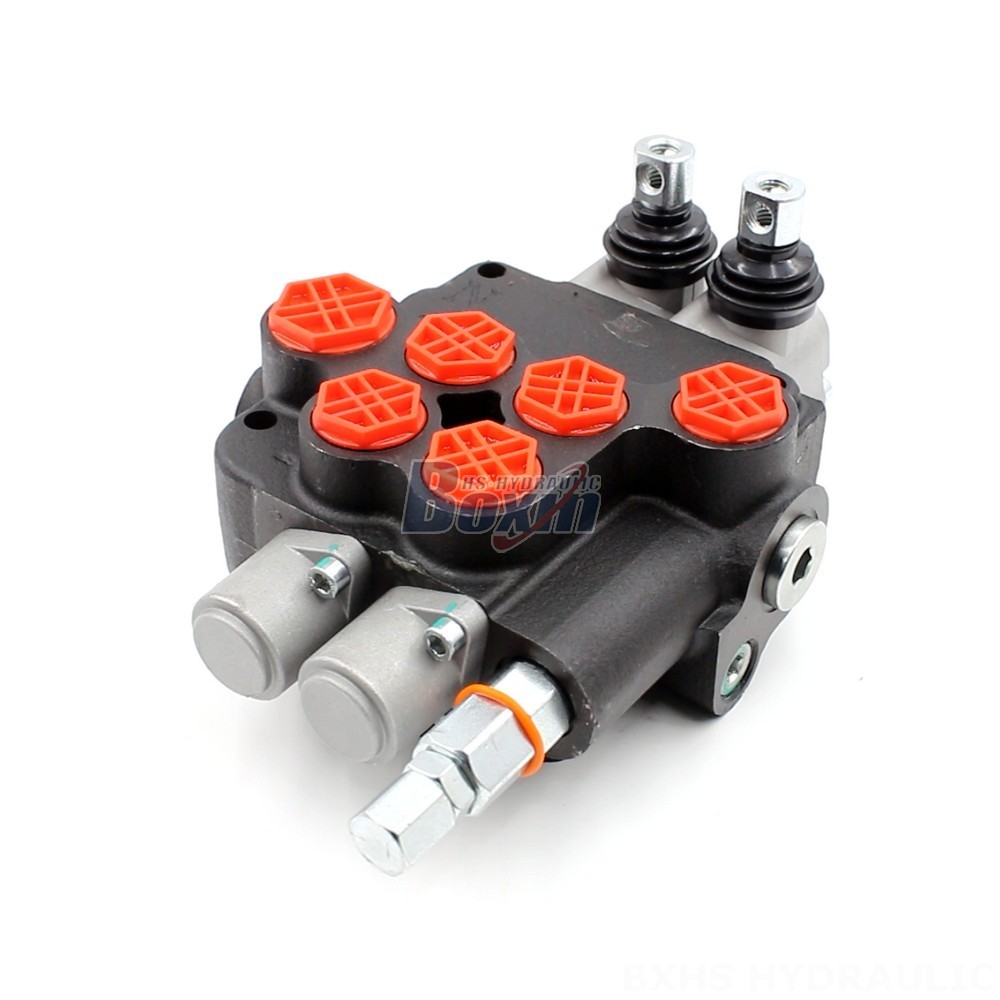

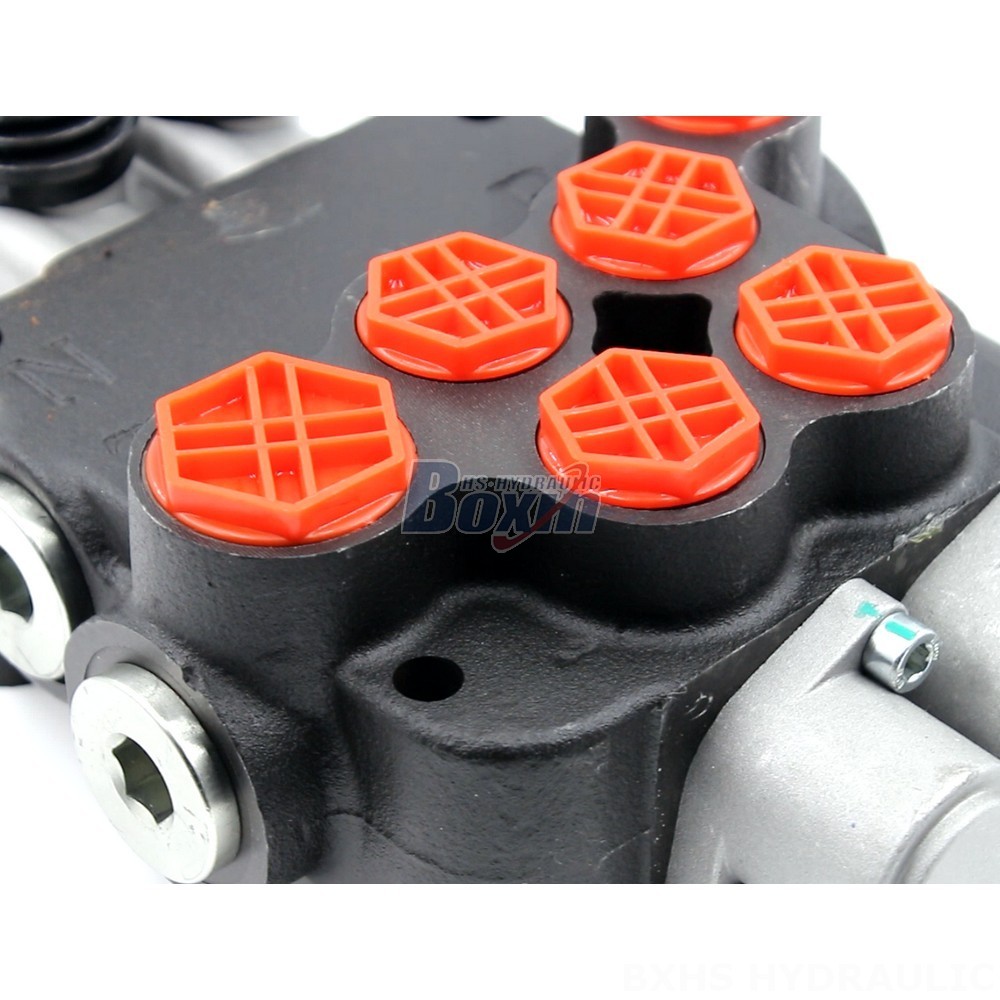

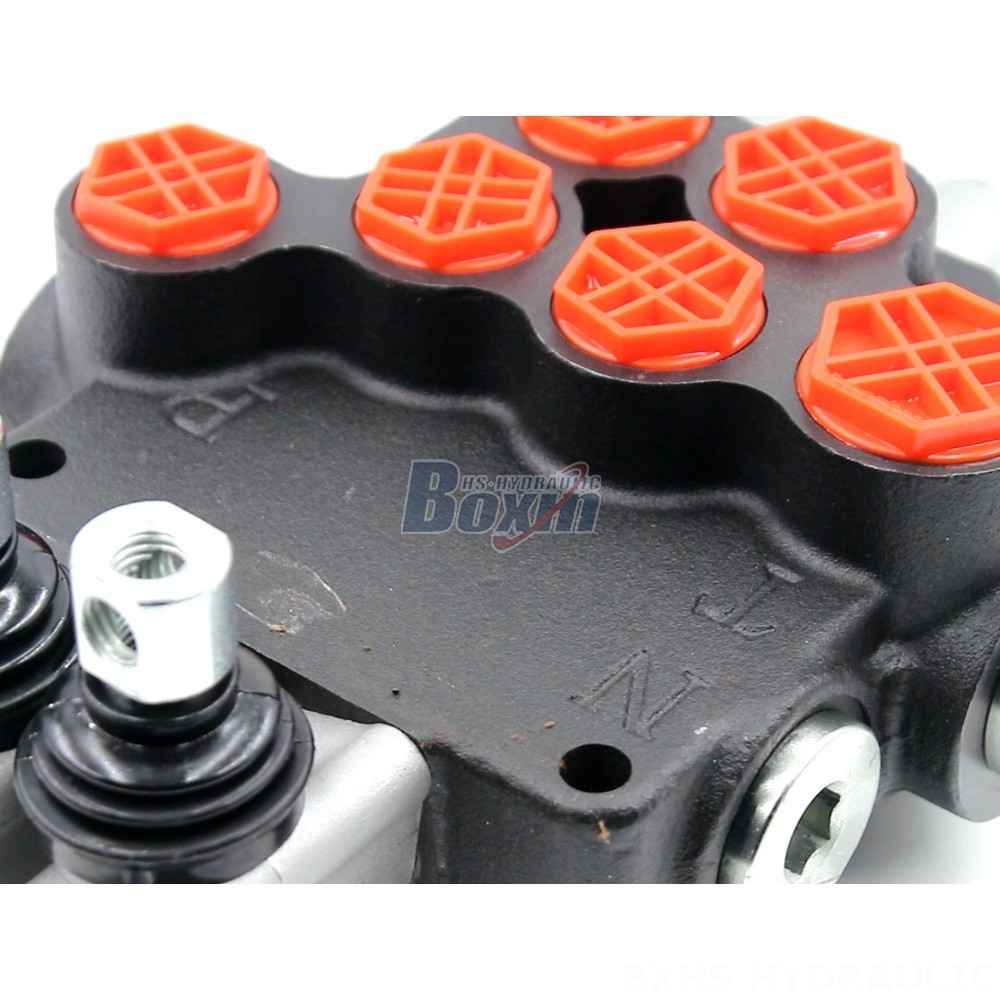

The P80-AQF Series Directional Control Valve is a manually operated, monoblock valve with two sections and two spools. It is designed to handle a wide range of hydraulic applications, including those in harsh environments.
**Key Features:**
* Rated flow: 80 L/min (21.2 US gpm)
* Maximum pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* Manual control
* Monoblock valve construction
* 2 spool design
**Applications:**
The P80-AQF Series Directional Control Valve is suitable for a variety of hydraulic applications, including those in the following industries:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
**Specific applications include:**
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Tractors and front-end loaders
* Harvesters
* Bale wrappers
* Backhoes
* Seeding machines
* Sprayers
* Balers
