Directional Control Valve P80-G34-G12 | Factory Direct & Customization

Método de Controle:Manual

Carrétel:2 Carreteis

Fluxo Nominal:80 L/min (21,2 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G1/2

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P80 Válvula Direcional Monobloco

Tamanho da embalagem:26*18*11

Peso bruto:8.20 kg

Disponibilidade: Em estoque

1272 Visualizações estão procurando por este produto

Directional Control Valve P80-G34-G12 | Factory Direct & Customization

Directional Control Valve P80-G34-G12 | Factory Direct & Customization

Directional Control Valve P80-G34-G12 | Factory Direct & Customization drawing image

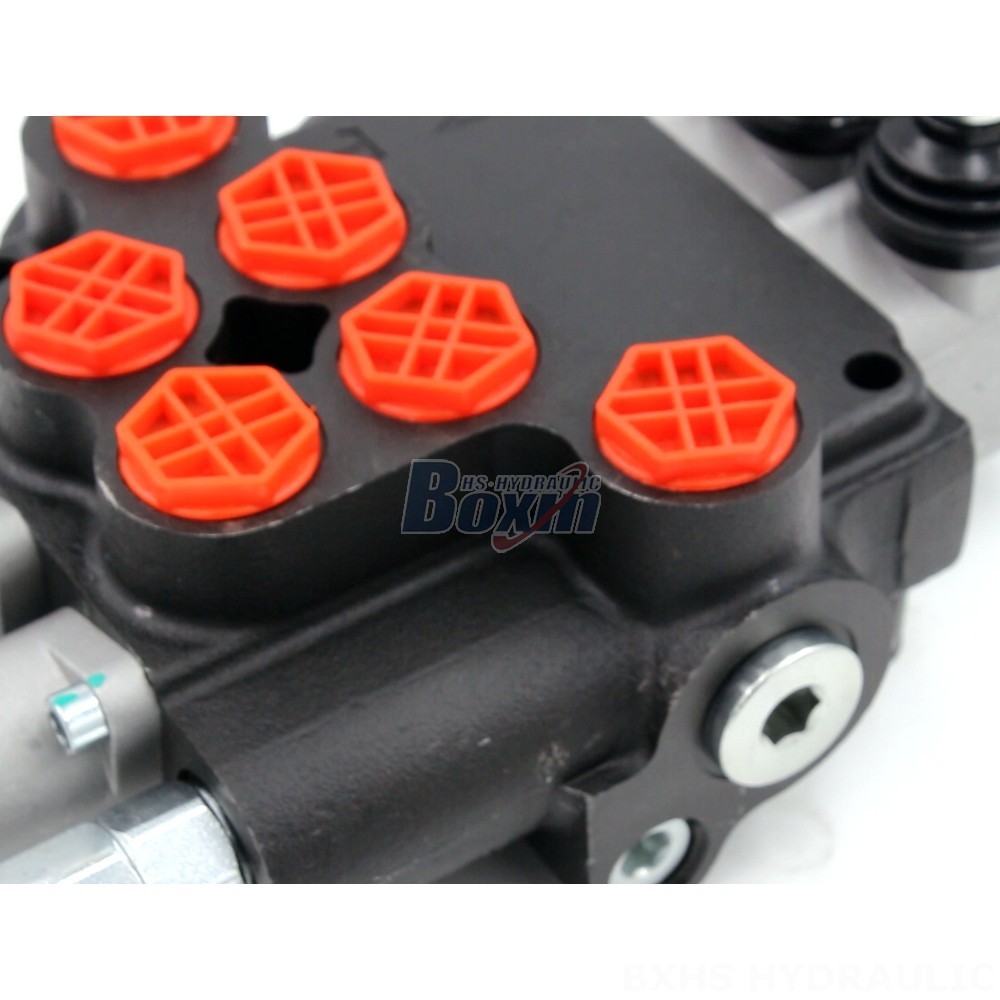

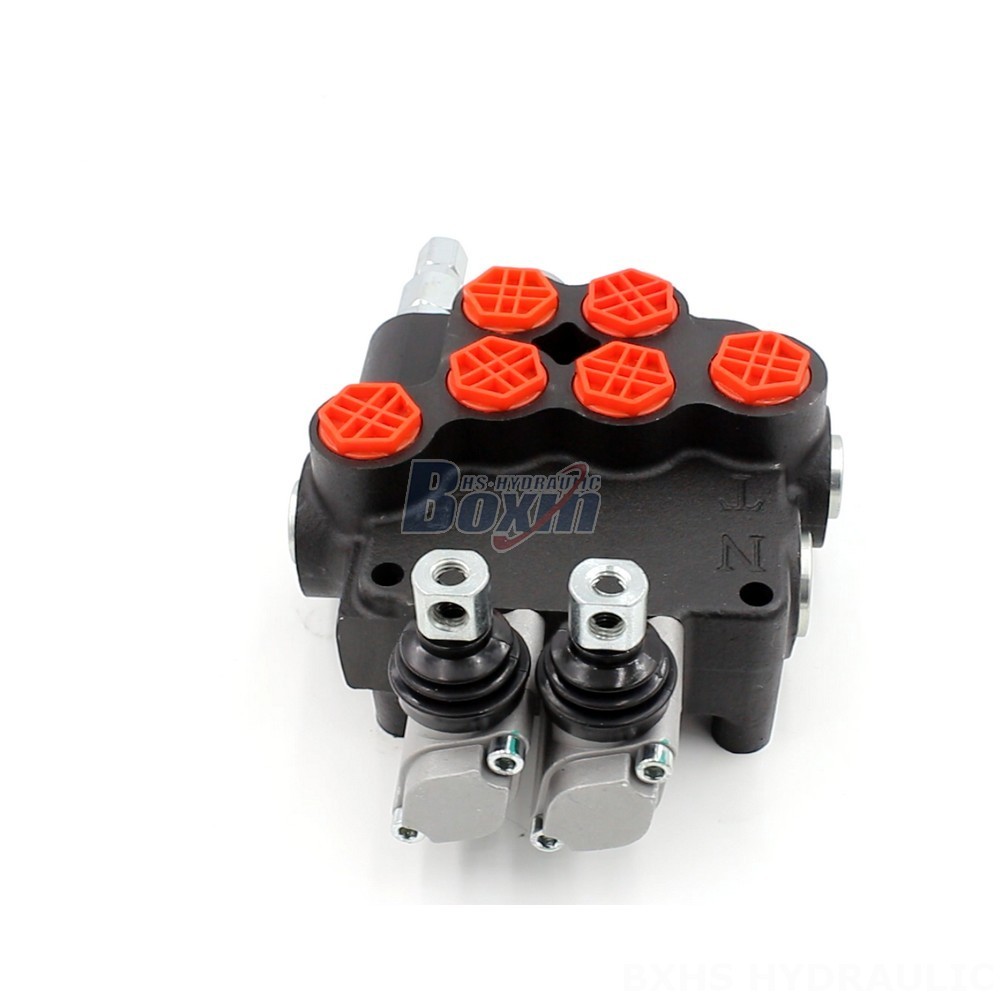

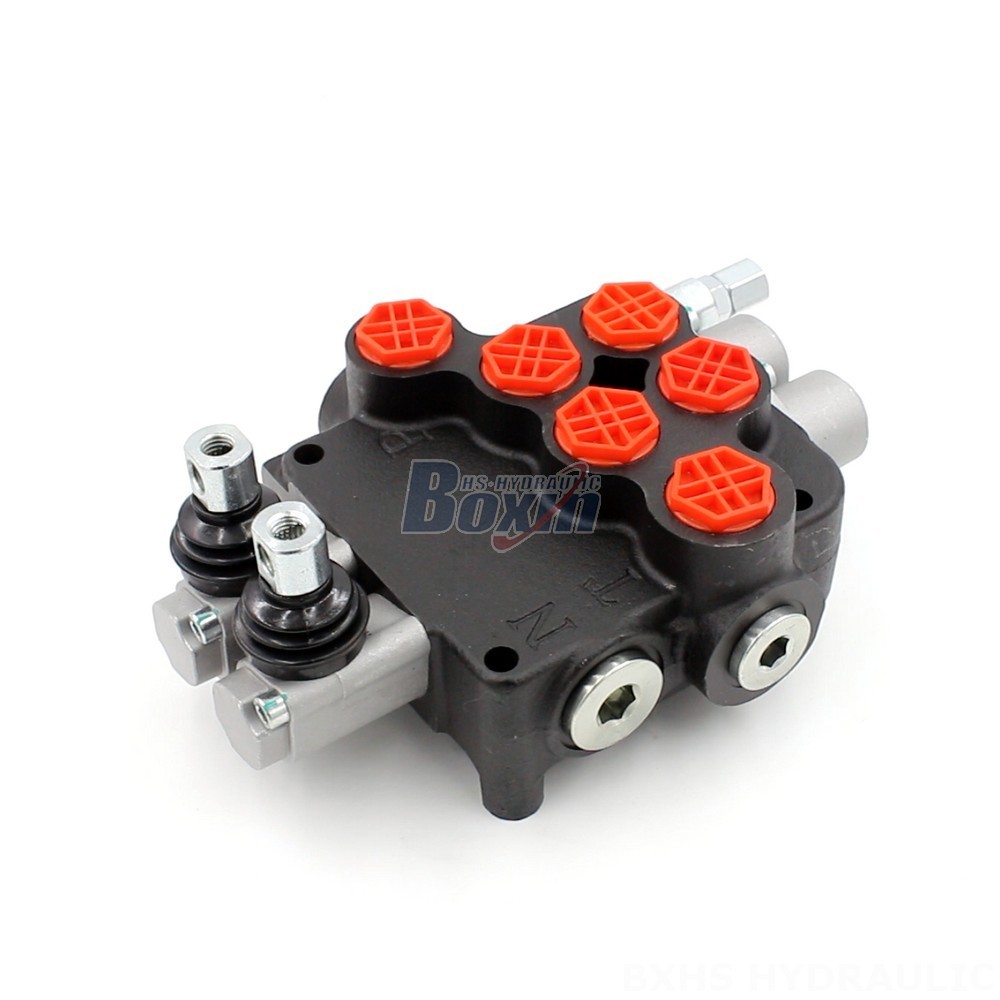

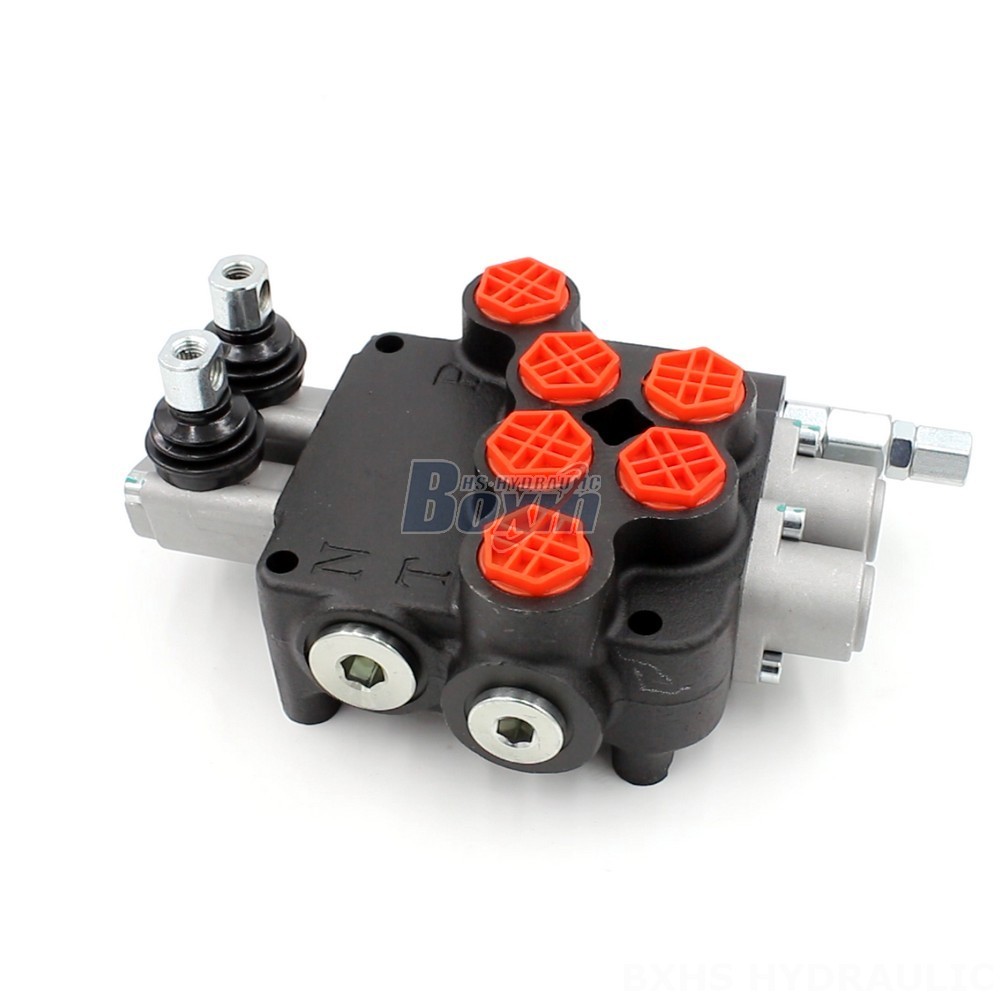

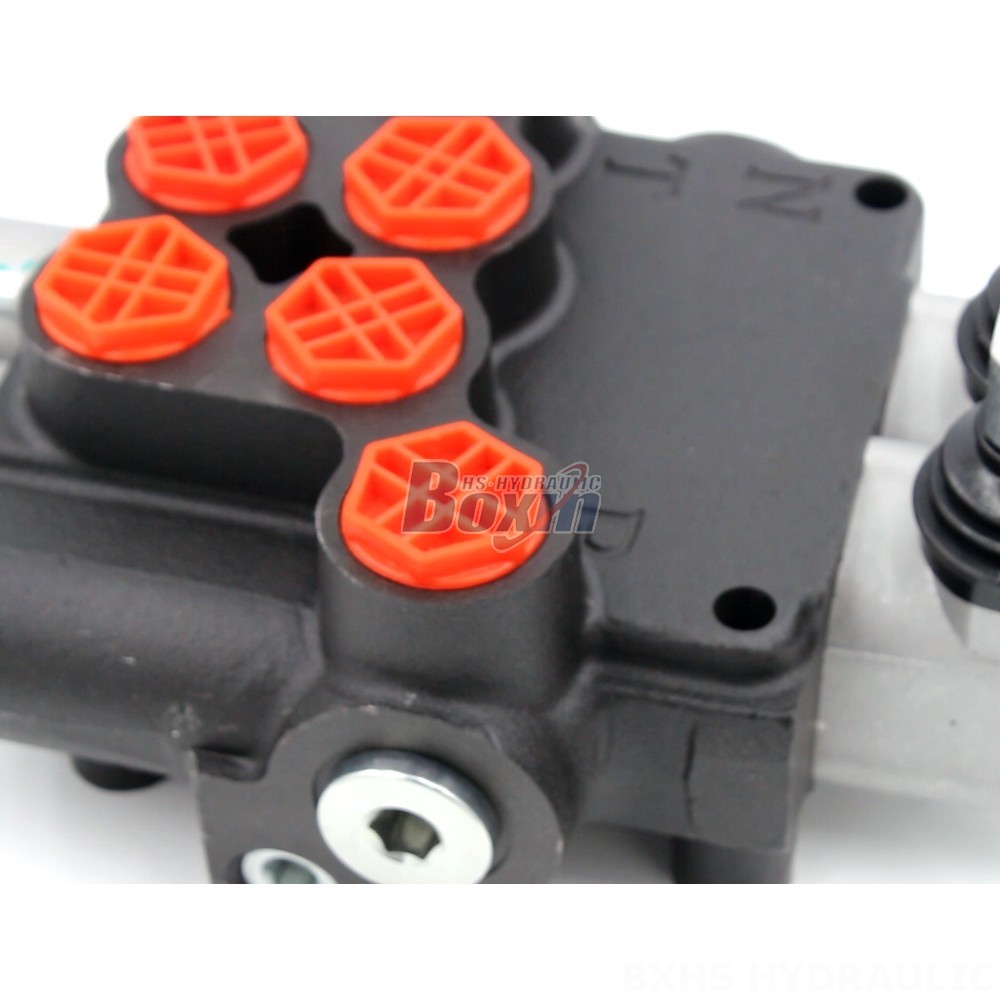

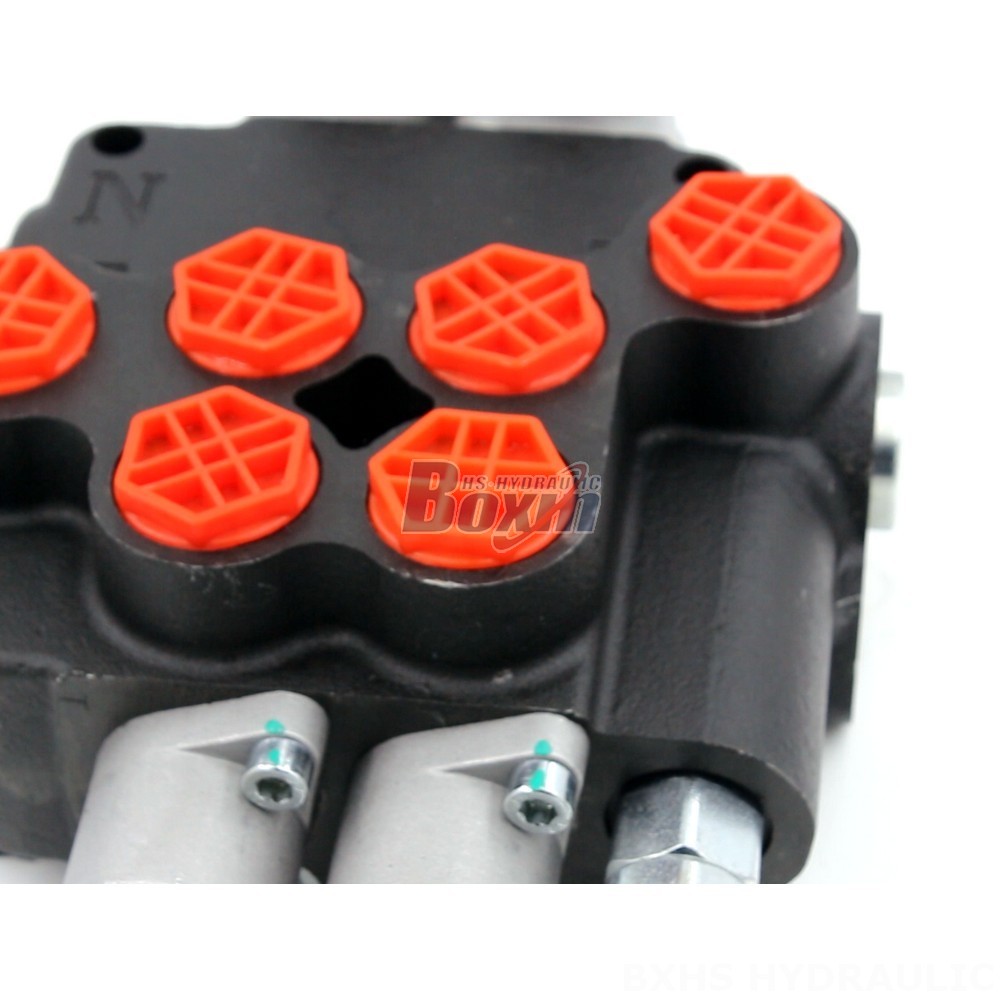

The P80-G34-G12 Air PTO Switch Valve Directional Control Valve is a heavy-duty, manual hydraulic valve designed for construction, material handling, agricultural and industrial vehicle applications. Featuring a 2 section, monoblock design, it boasts a 80 L/min flow rate and a 250 bar maximum pressure rating, making it ideal for a wide range of applications.

Série P80 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 80 L/min (21,2 US gpm)
Pressão Máxima 315 bar (4600 psi)
Porta de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Porta de Saída G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Tamanho da Porta G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80-G34-G12 is a reliable and durable Air PTO Switch Valve Directional Control Valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. Its manual control method ensures user-friendly operation, while its 2 section, monoblock design provides robustness and efficiency. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is capable of handling high-pressure hydraulic systems. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) allows it to perform reliably in a variety of operating conditions. The P80-G34-G12 is designed for use in a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
