Produção e Entrega
Prazo de produção de 15 a 30 dias
1323 Visualizações estão procurando por este produto

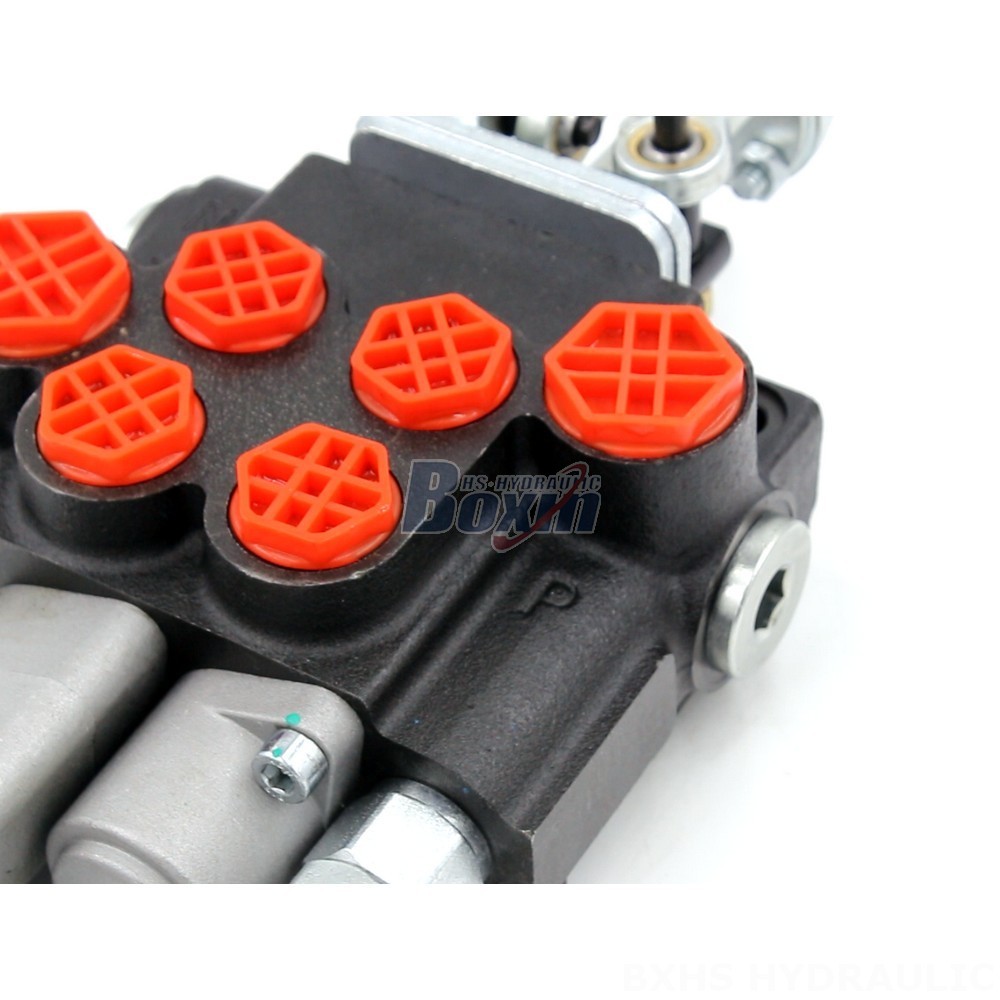

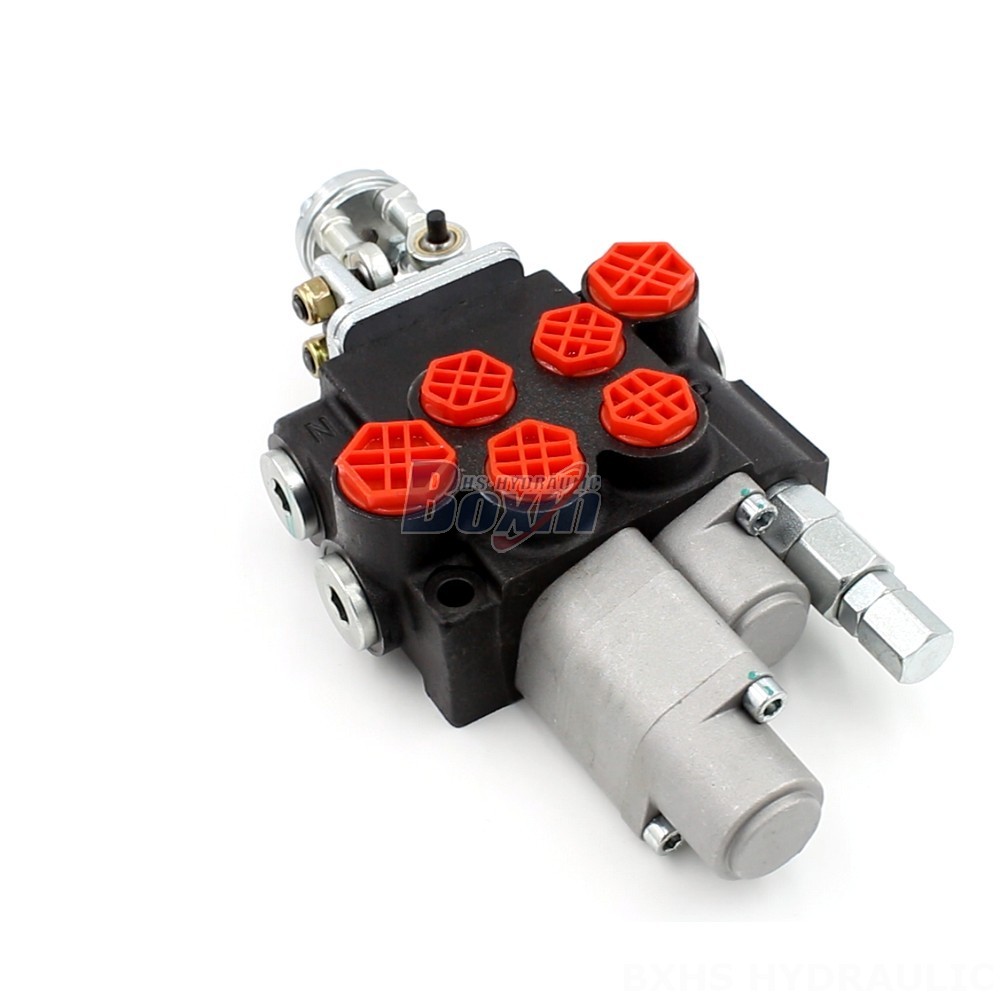

The P40 Series Hydraulic Main Relief Valve is a durable and reliable valve designed for heavy-duty applications in construction, material handling, and industrial equipment. This valve features a robust monoblock design, high flow rate, and wide operating pressure range, making it ideal for demanding environments.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Hydraulic Main Relief Valve is a high-performance valve designed to provide reliable pressure protection and flow control for hydraulic systems. This valve is available in a variety of configurations to meet specific application requirements. It features a robust monoblock design, 2-section spool, and manual or joystick control methods. The valve offers a rated flow of 40 L/min (10.5 US gpm), a maximum pressure of 250 bar (3600 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). The P40 Series valve is suitable for a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve is designed to withstand demanding environments with an operating temperature range of -40°C to +80°C (-40°F to +176°F). Its durable construction and reliable performance make it an ideal choice for demanding hydraulic applications.
