The Electro-hydraulic Control Precision: P40 Valve is a high-performance valve designed for demanding applications. It features electro-hydraulic control, a monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm). The valve has a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is available with 4 spools and is suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

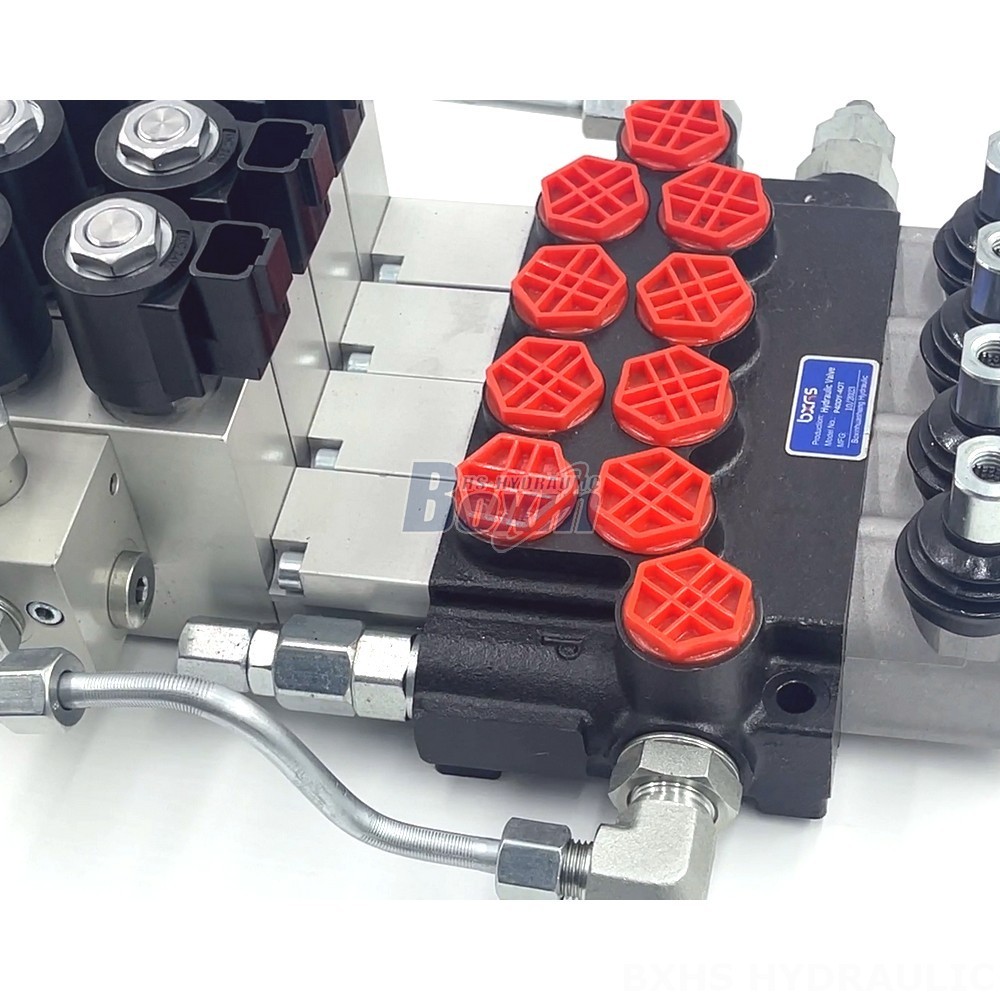

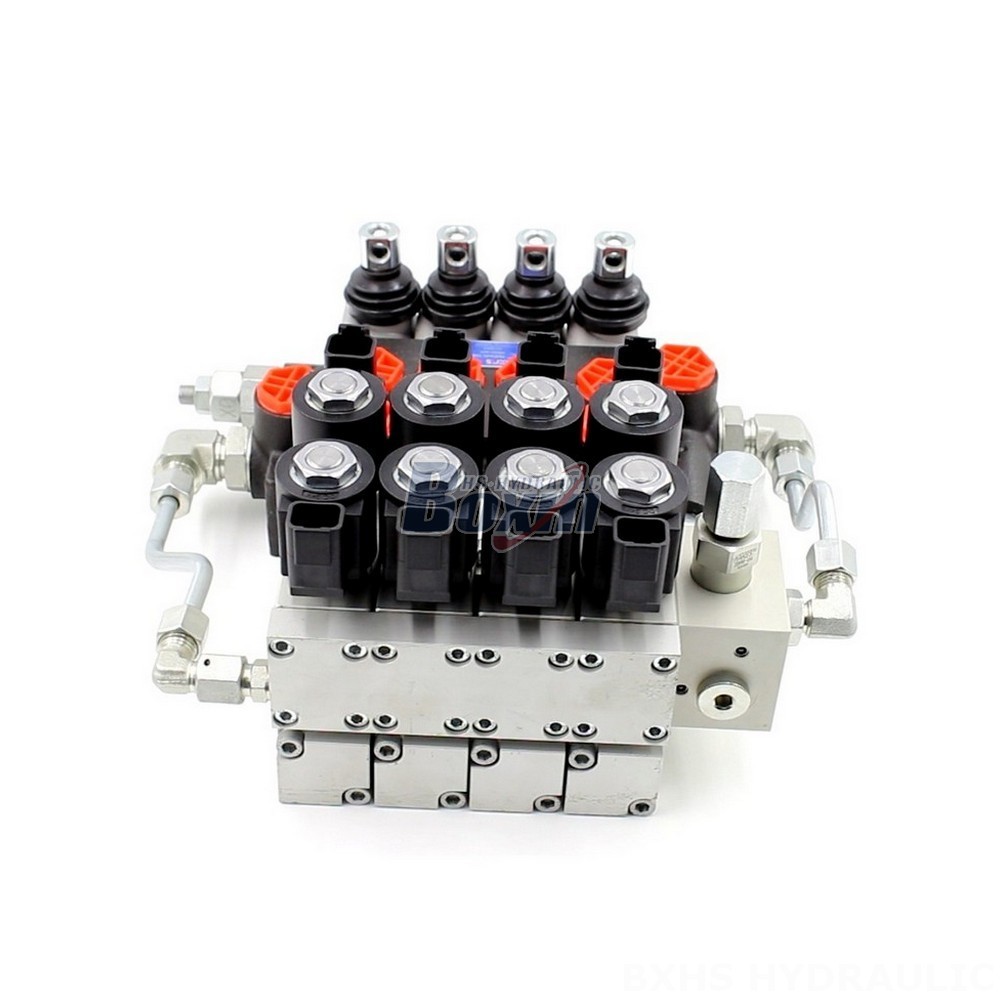

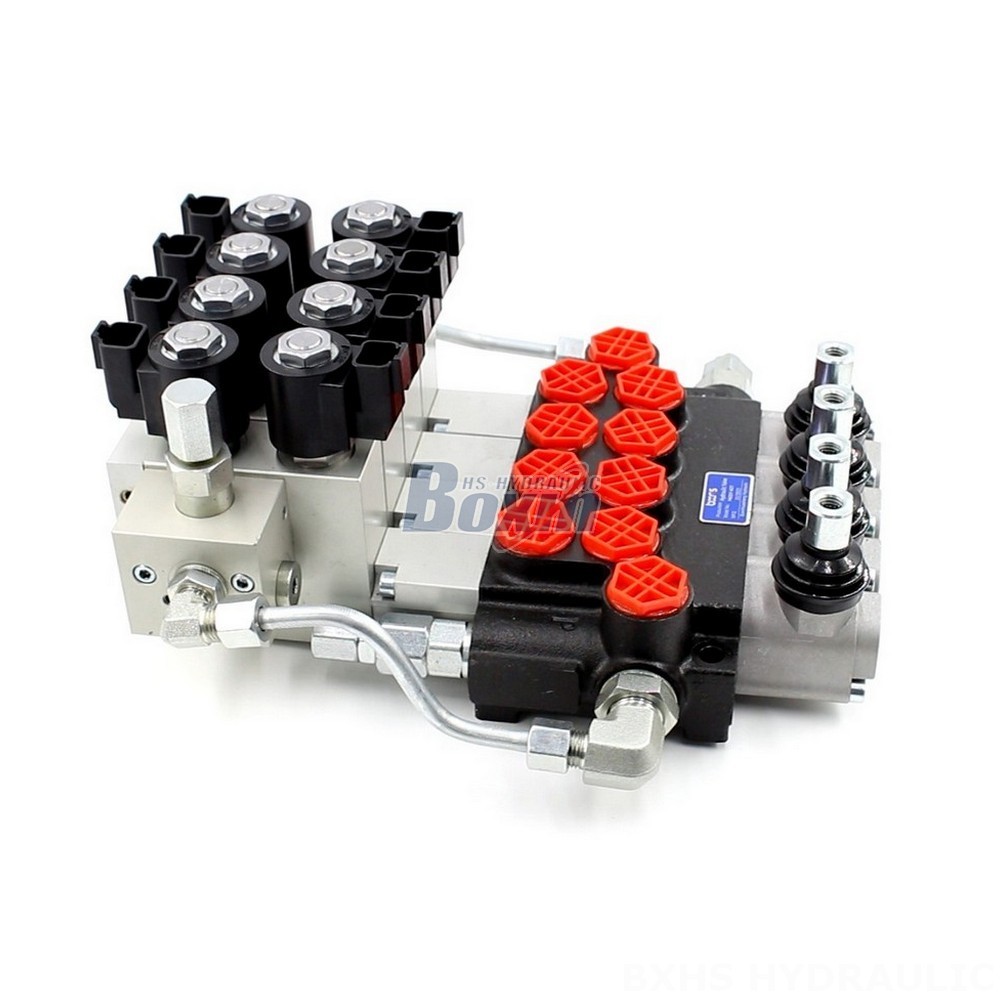

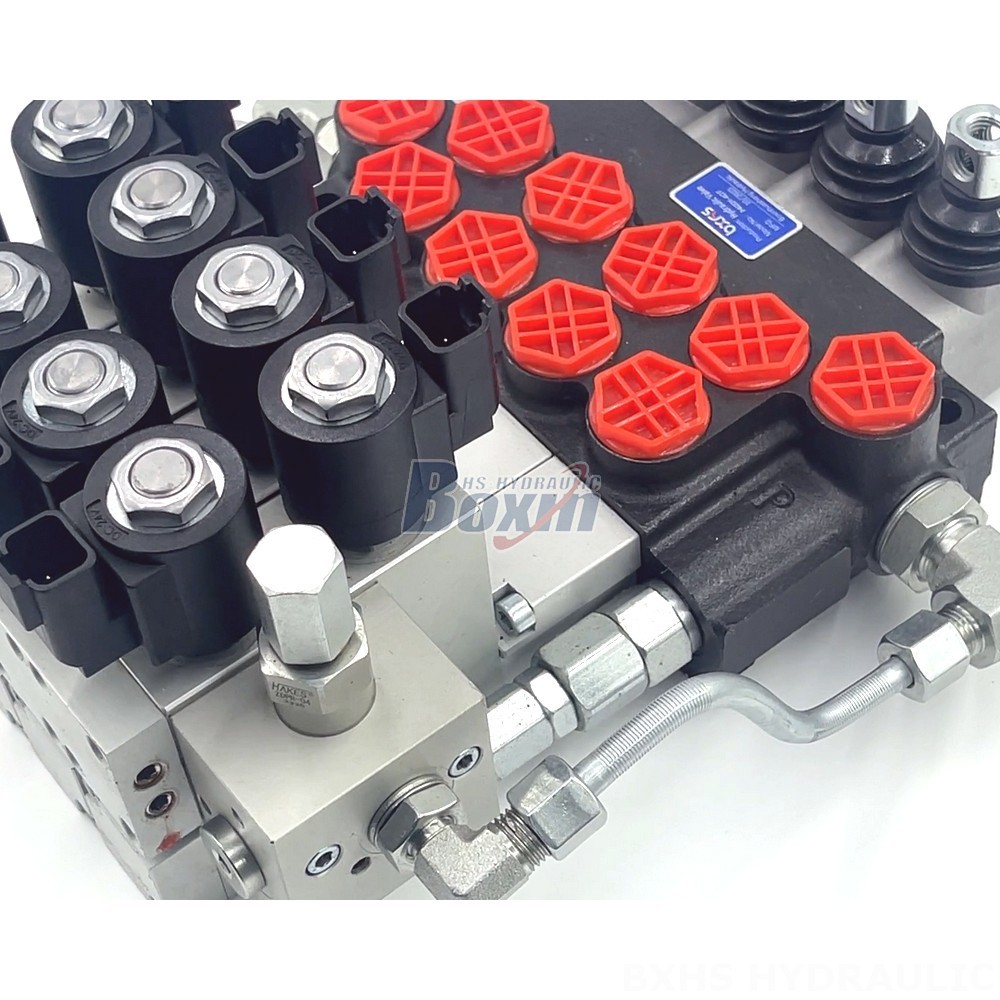

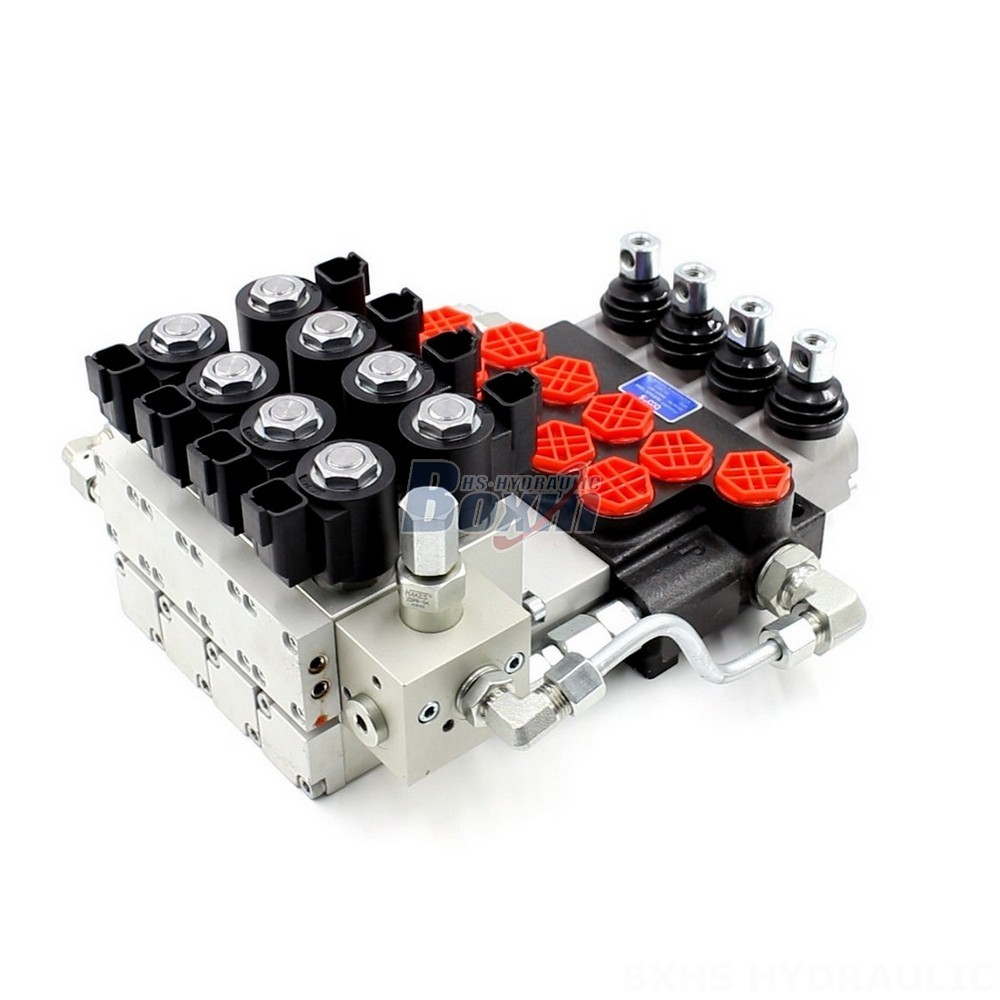

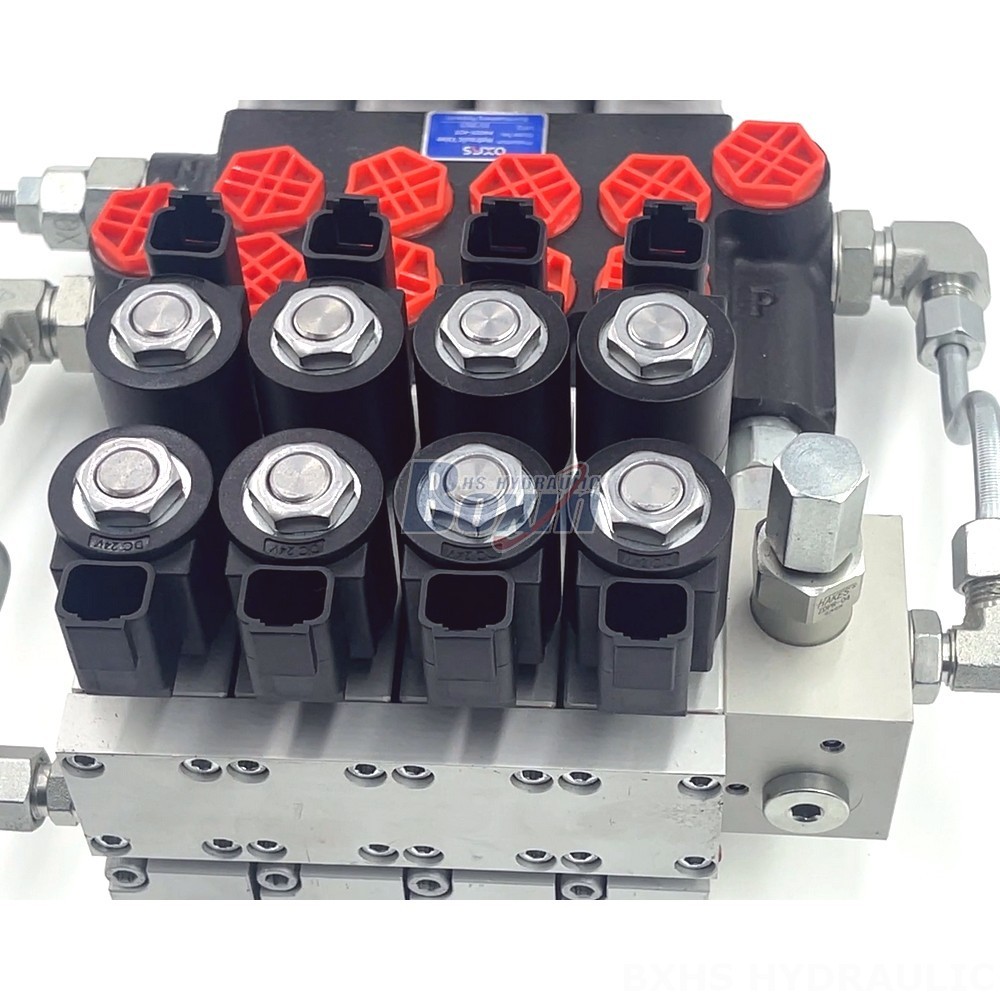

**Electro-hydraulic Control Precision: P40 Valve for Demanding Applications**
The Electro-hydraulic Control Precision: P40 Valve is a high-performance valve designed for demanding applications. It features electro-hydraulic control, a monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm). The valve has a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has an ambient temperature range of -40°C to +80°C (-40°F to +176°F).
The P40 Valve is available with 4 spools and is suitable for use in a variety of applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
The P40 Valve is also suitable for use in a variety of applications, including:
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini-excavators
* Skid steer loaders
* Wheel loaders
* Backhoe loaders
