Prazo de produção de 15 a 30 dias
1120 Visualizações estão procurando por este produto
Introducing the robust P80 Series Electro-Hydraulic Monoblock Directional Valve, meticulously engineered for diverse hydraulic applications across industries. With its electro-hydraulic control, 2-section monoblock structure, and impressive flow rate of 80 L/min, this valve delivers exceptional performance in demanding conditions. Its wide operating temperature range (-40°C to +80°C) and compatibility with various applications, including forklifts, telehandlers, and construction machinery, make it an ideal choice for OEMs and distributors seeking reliable hydraulic solutions.
| Série P80 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 80 L/min (21,2 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

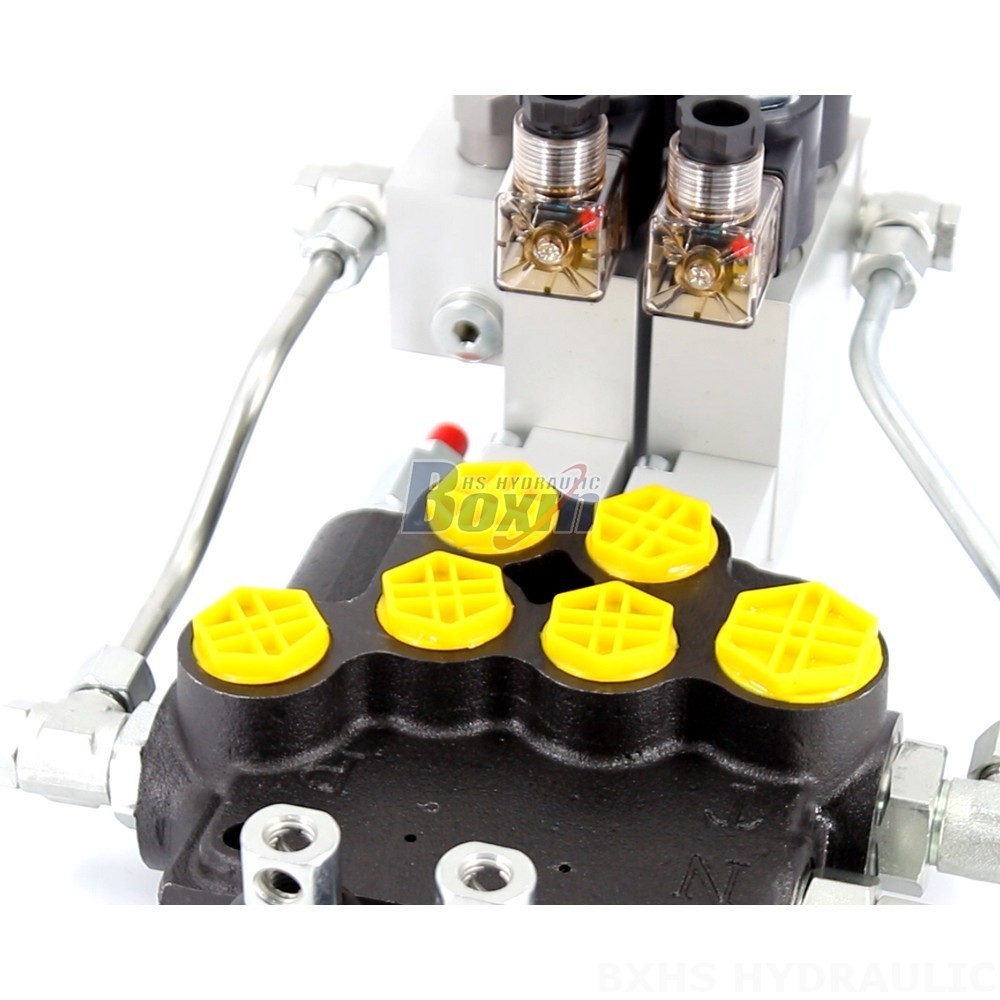

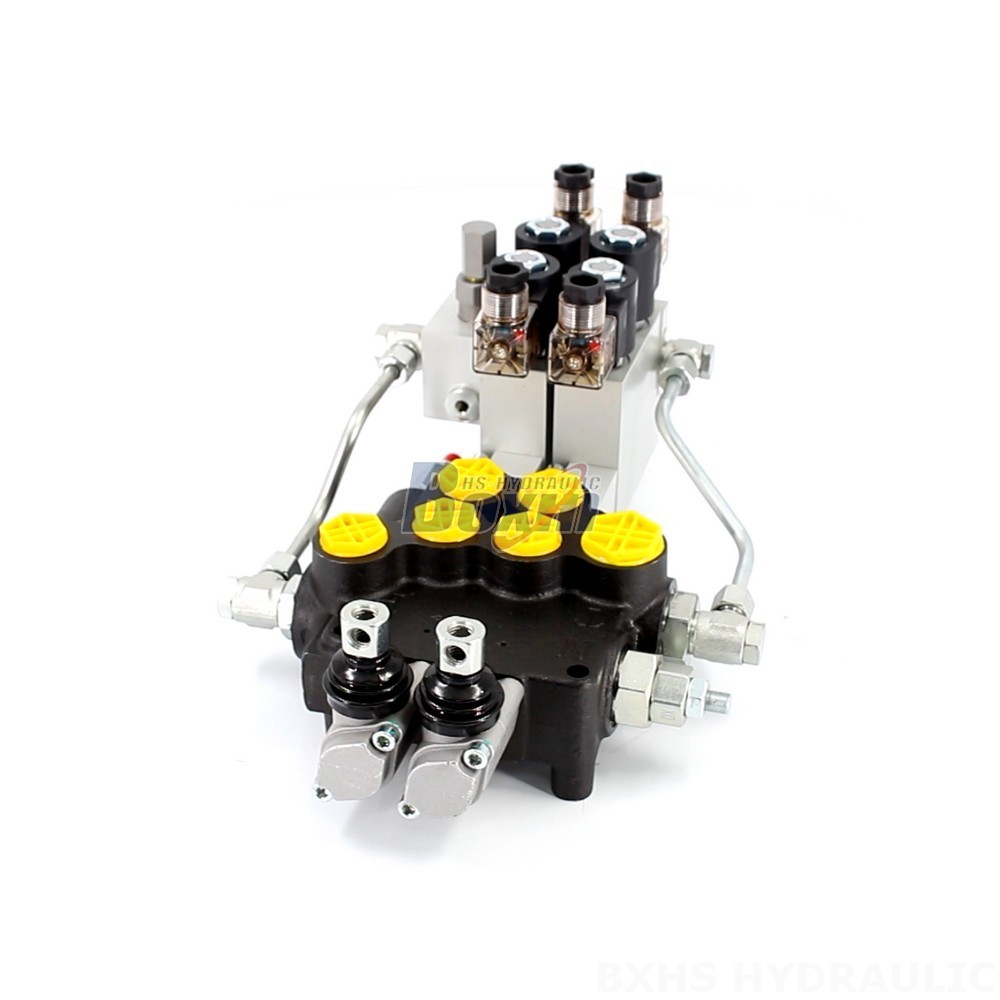

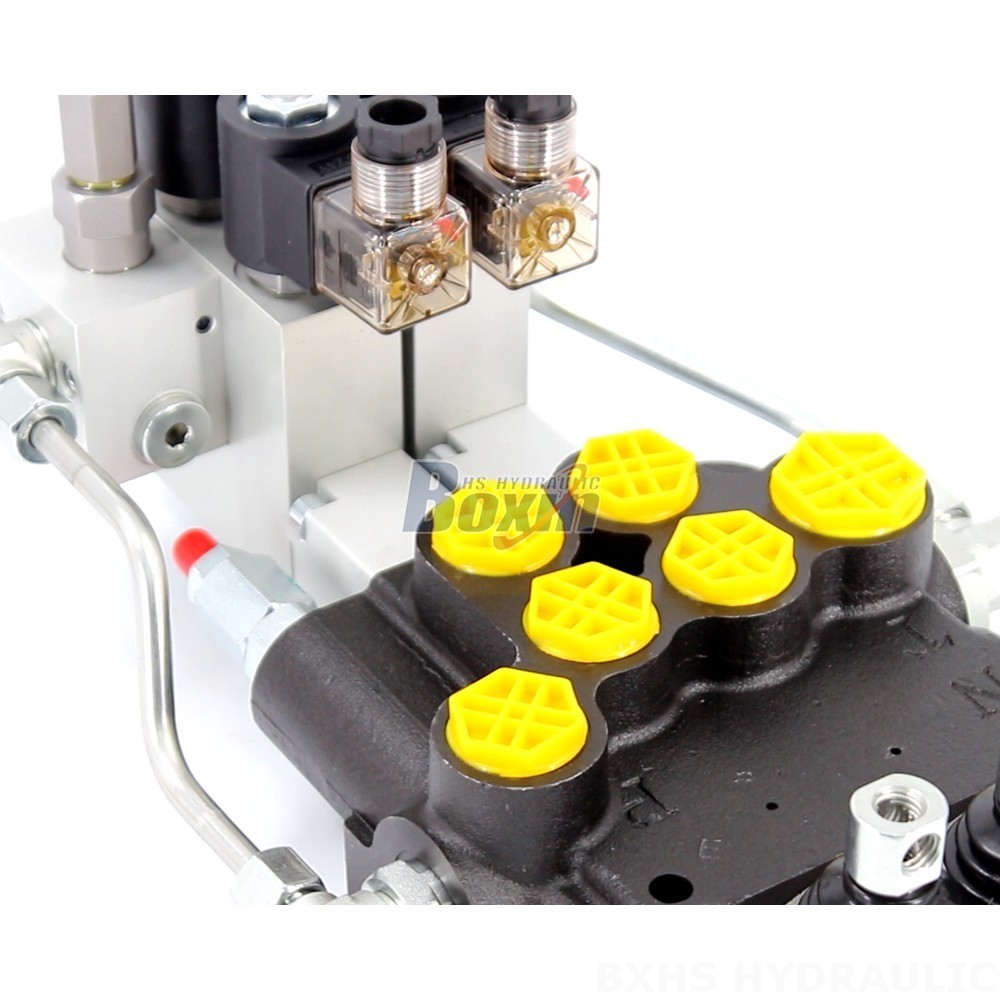

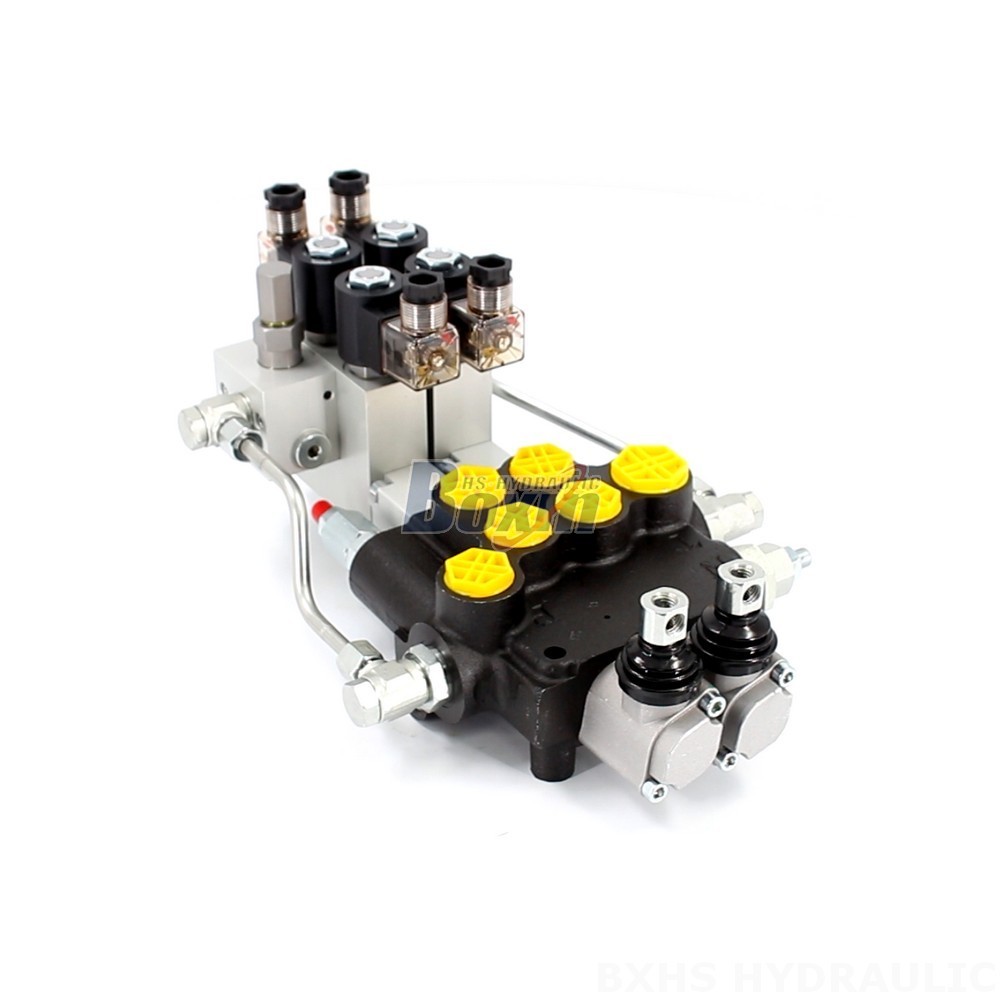

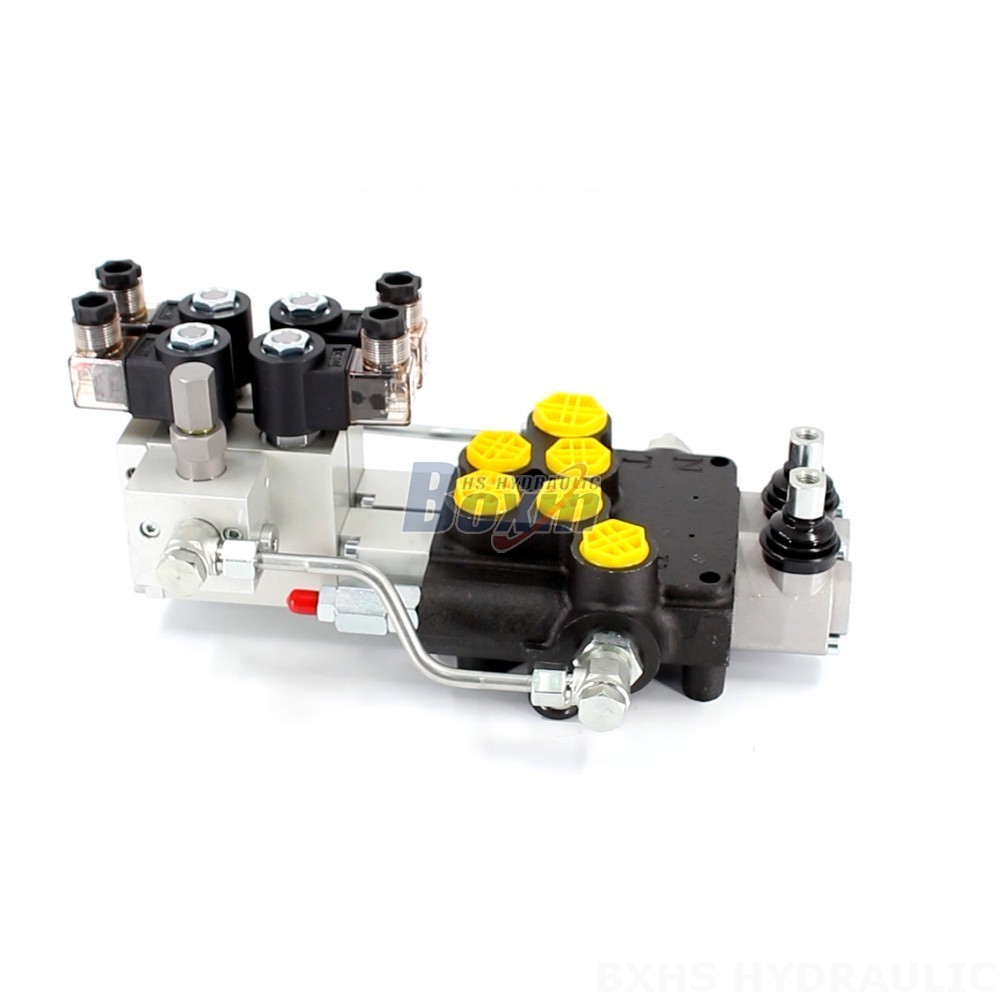

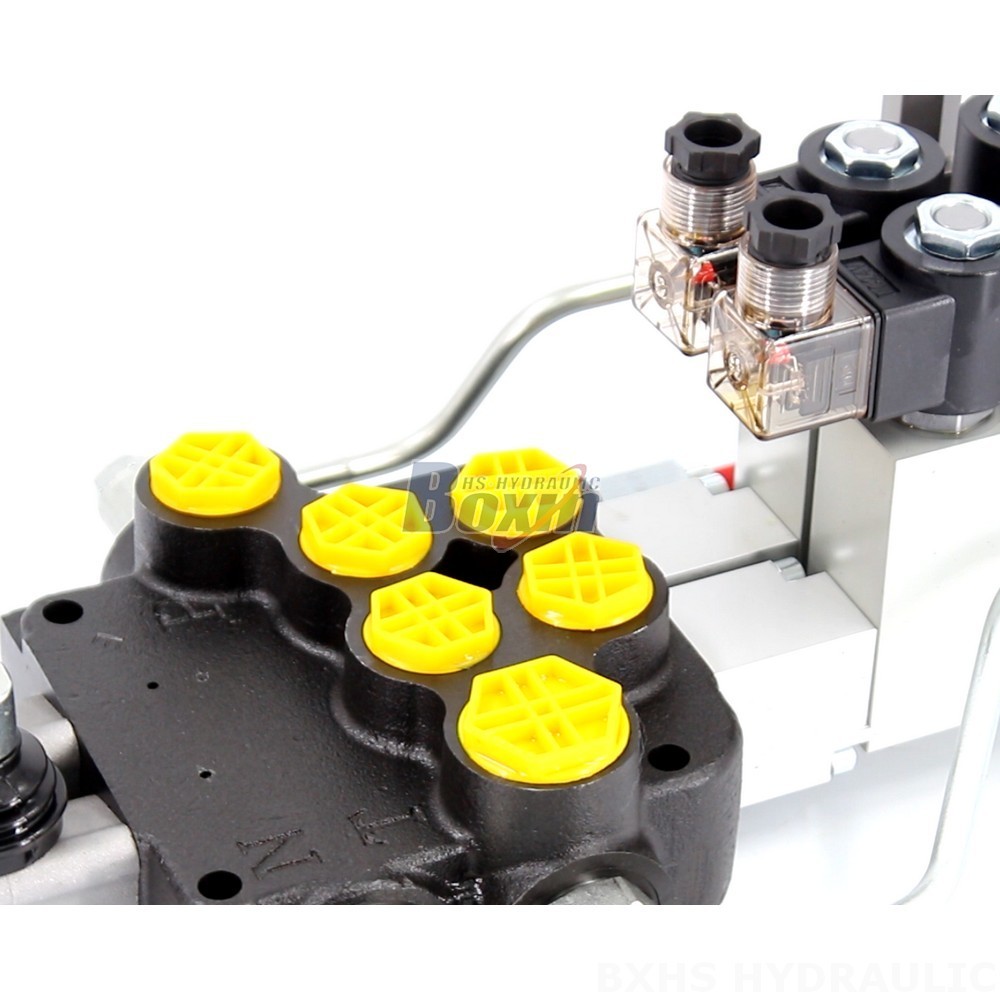

**Electro-Hydraulic Monoblock Directional Valve - P80 Series**
**Control Method:** Electro-hydraulic
**Section:** 2 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** P80 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, TELEHANDLER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER
The P80 Series Electro-Hydraulic Monoblock Directional Valve is designed for applications requiring precise control of hydraulic flow. It features a compact and robust monoblock construction, providing excellent durability in harsh operating conditions. The valve's electro-hydraulic control mechanism allows for remote or automated operation, enhancing efficiency and reducing maintenance requirements.
With a maximum pressure capacity of 250 bar and a flow rate of 80 L/min, the P80 Series valve is suitable for a wide range of hydraulic systems. Its operating viscosity range of 15 - 75 mm²/s ensures compatibility with various hydraulic fluids. Additionally, the valve's wide ambient temperature range (-40°C to +80°C) allows for reliable operation in diverse climatic conditions.
The P80 Series Electro-Hydraulic Monoblock Directional Valve is an ideal solution for manufacturers and distributors seeking high-performance hydraulic components. Its versatility, durability, and ease of integration make it a preferred choice for demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles.
