Produção e Entrega
Prazo de produção de 15 a 30 dias
873 Visualizações estão procurando por este produto

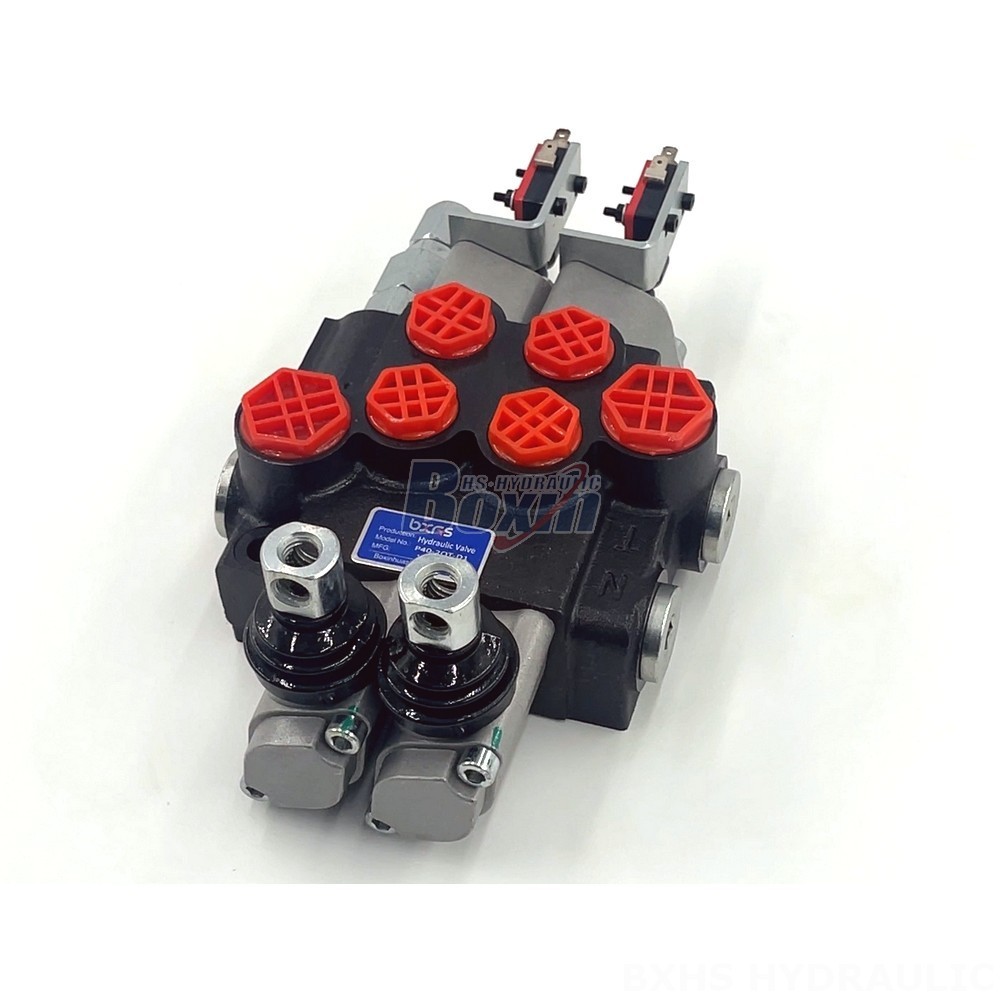

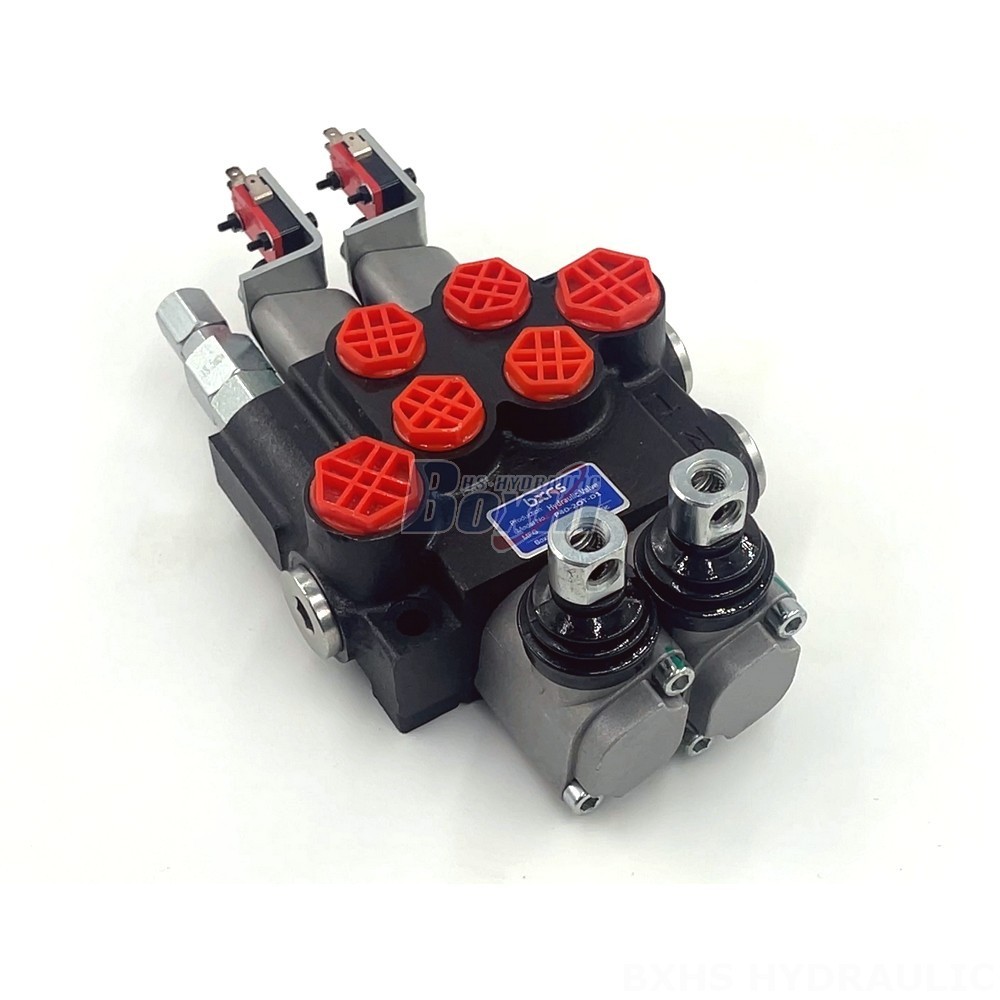

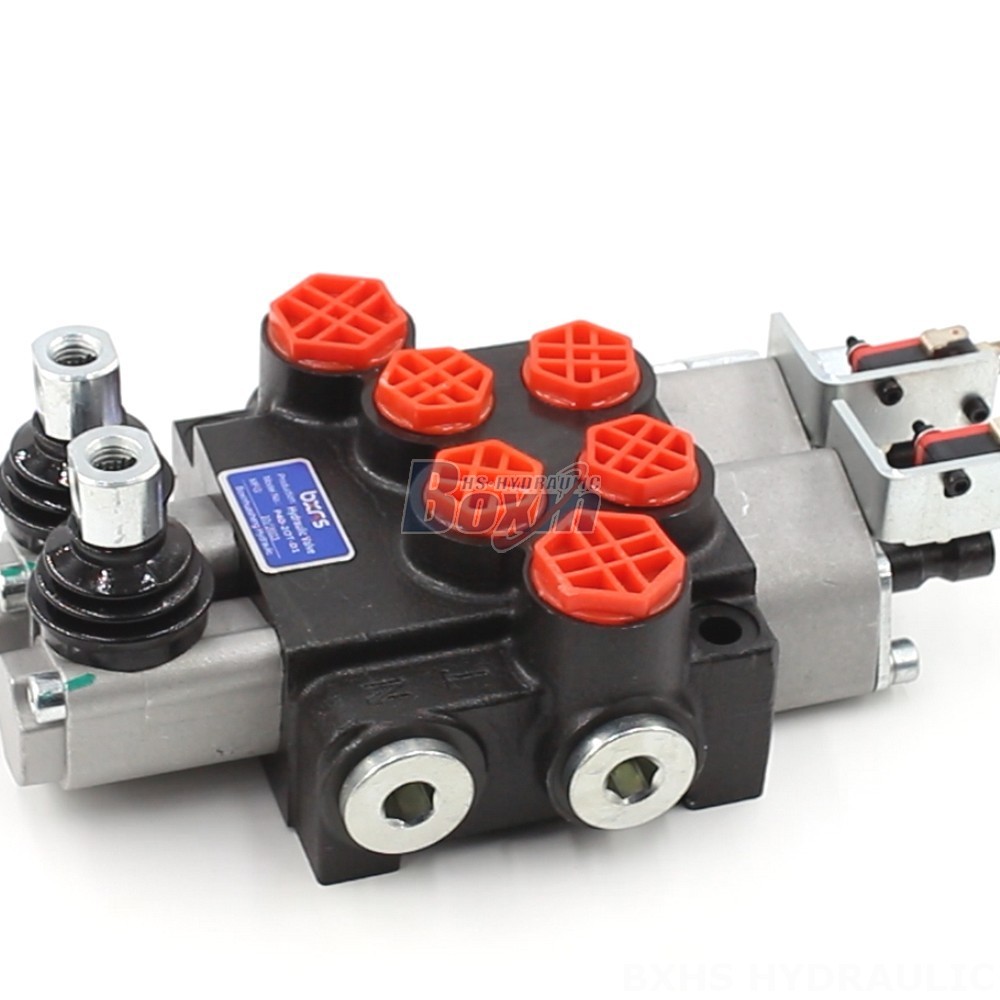

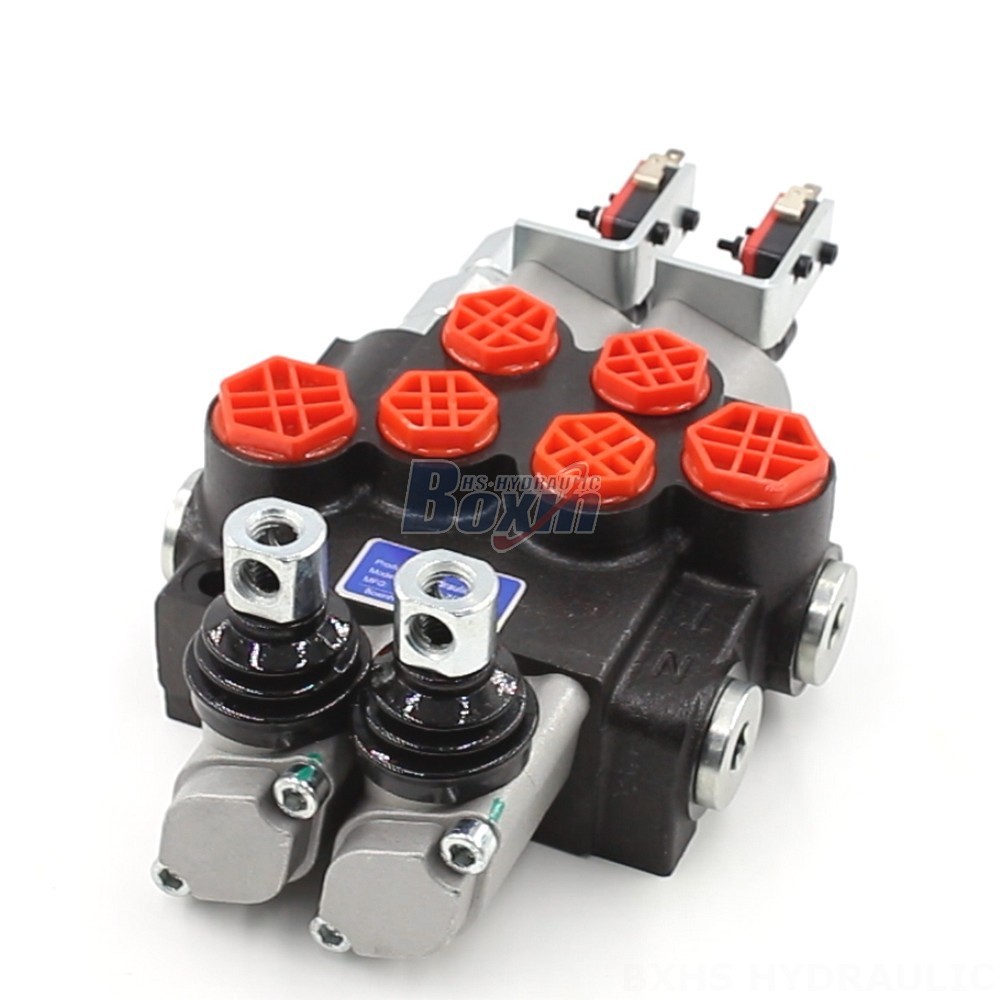

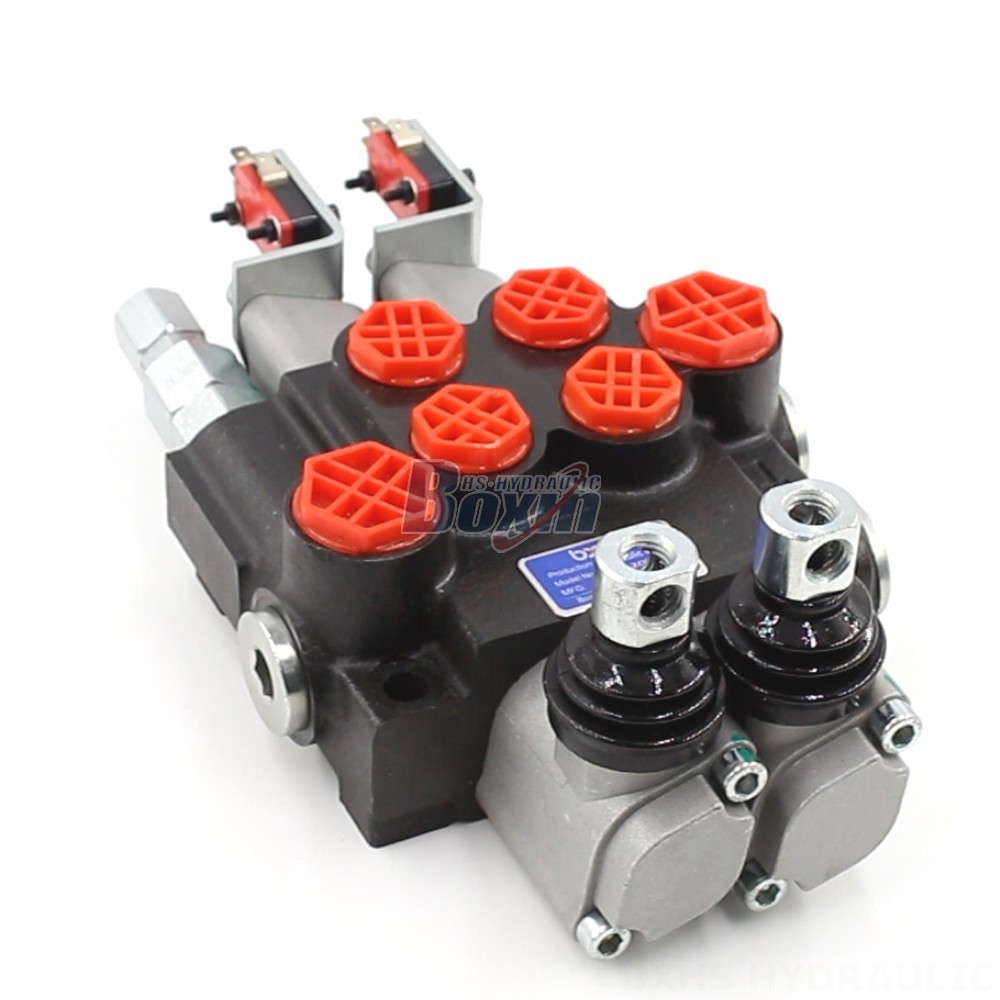

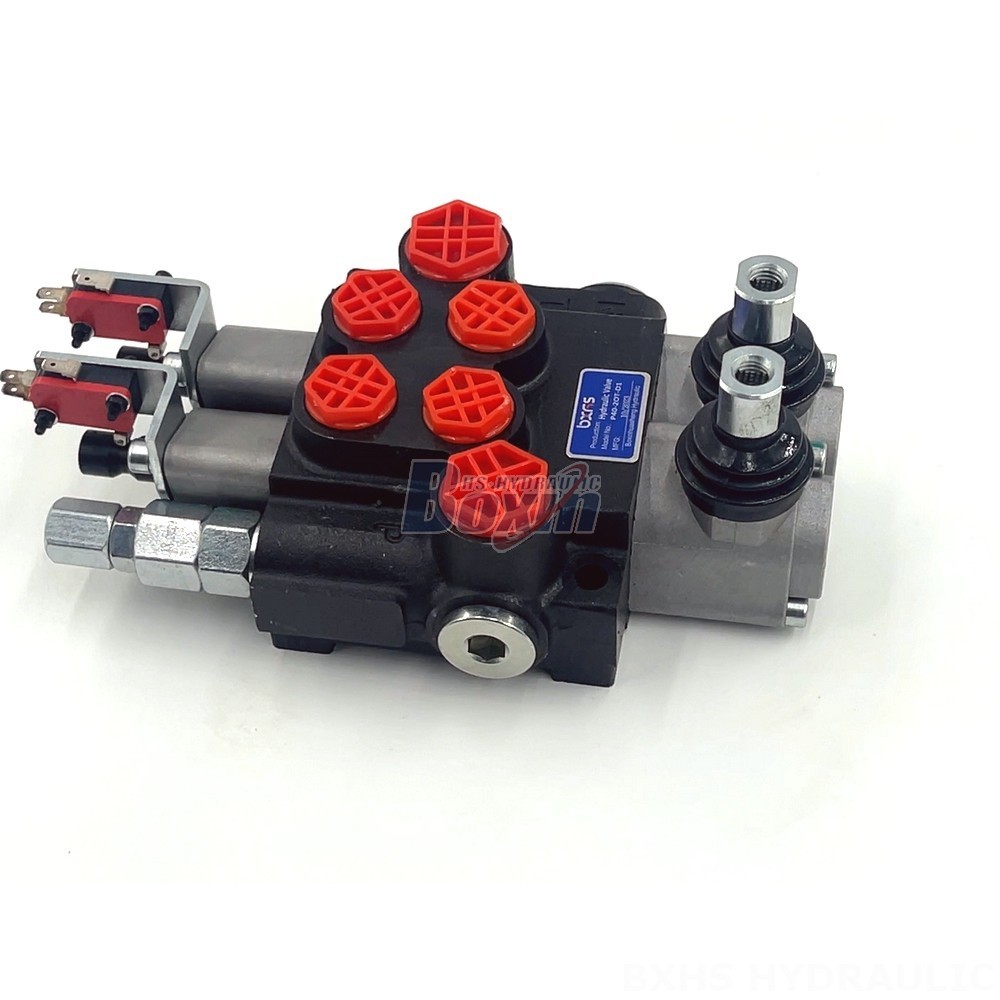

The P40 Micro Switch Directional Valve is a high-quality, durable, and reliable valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, industrial vehicles, and forestry. The valve features a manual control method, 2 section monoblock structure, 40 L/min rated flow, 250 bar max pressure, and a wide operating viscosity range of 15 - 75 mm²/s. It also has a wide ambient temperature range of -40°C to +80°C, making it suitable for use in a variety of environments. The valve is available in 2 spool configurations and is part of the P40 Series.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Micro Switch Directional Valve is manufactured by a leading hydraulic products manufacturer and is available for factory wholesale, OEM, ODM, and private label services. The valve is made from high-quality materials and is rigorously tested to ensure durability and reliability. It is also backed by a comprehensive warranty. The valve is available in a variety of configurations to meet the specific needs of your application. Contact us today to learn more about the P40 Micro Switch Directional Valve and how it can benefit your business.
