Produção e Entrega
Prazo de produção de 15 a 30 dias
1073 Visualizações estão procurando por este produto

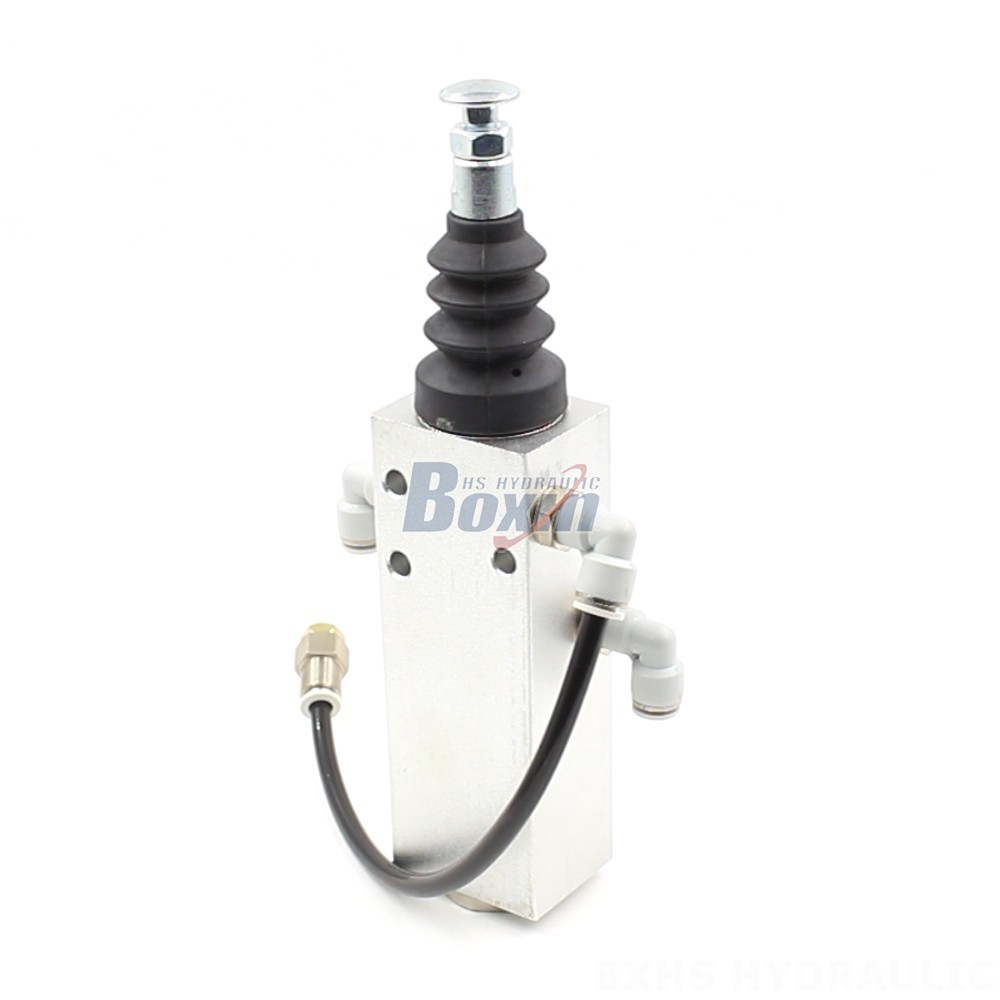

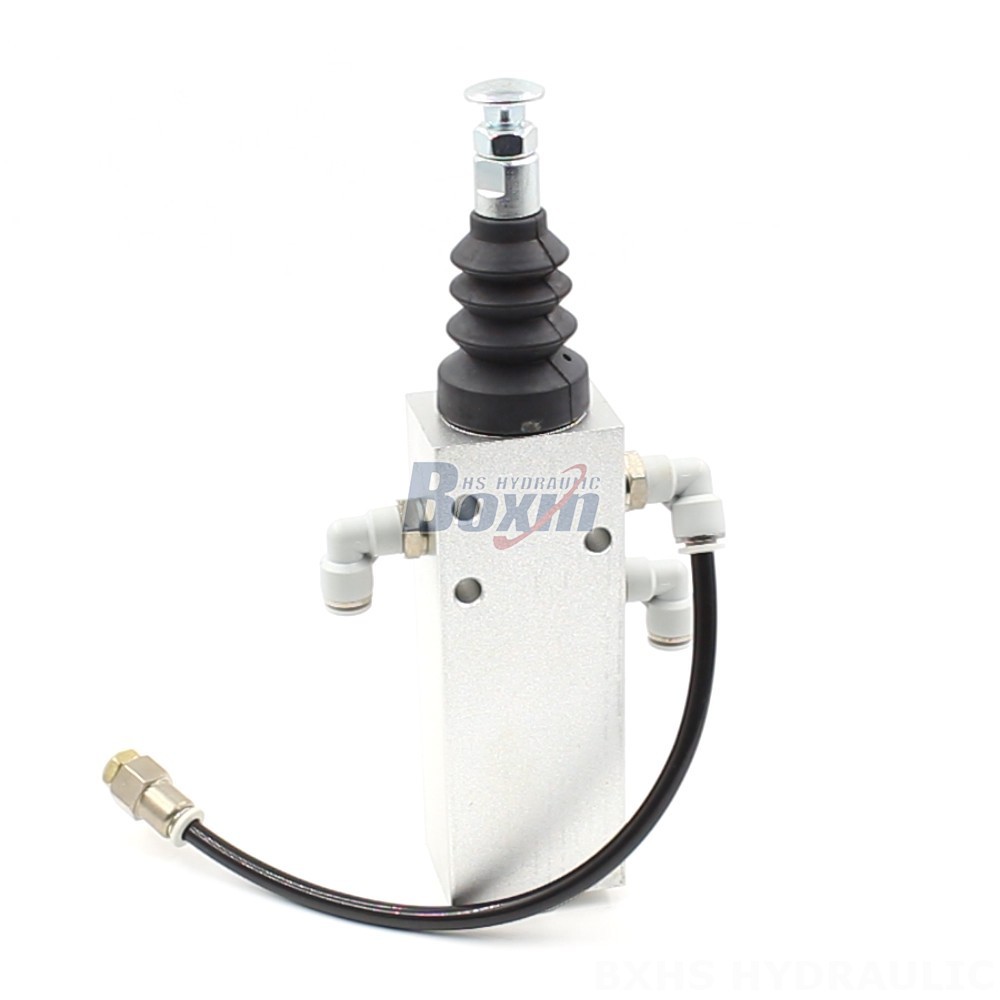

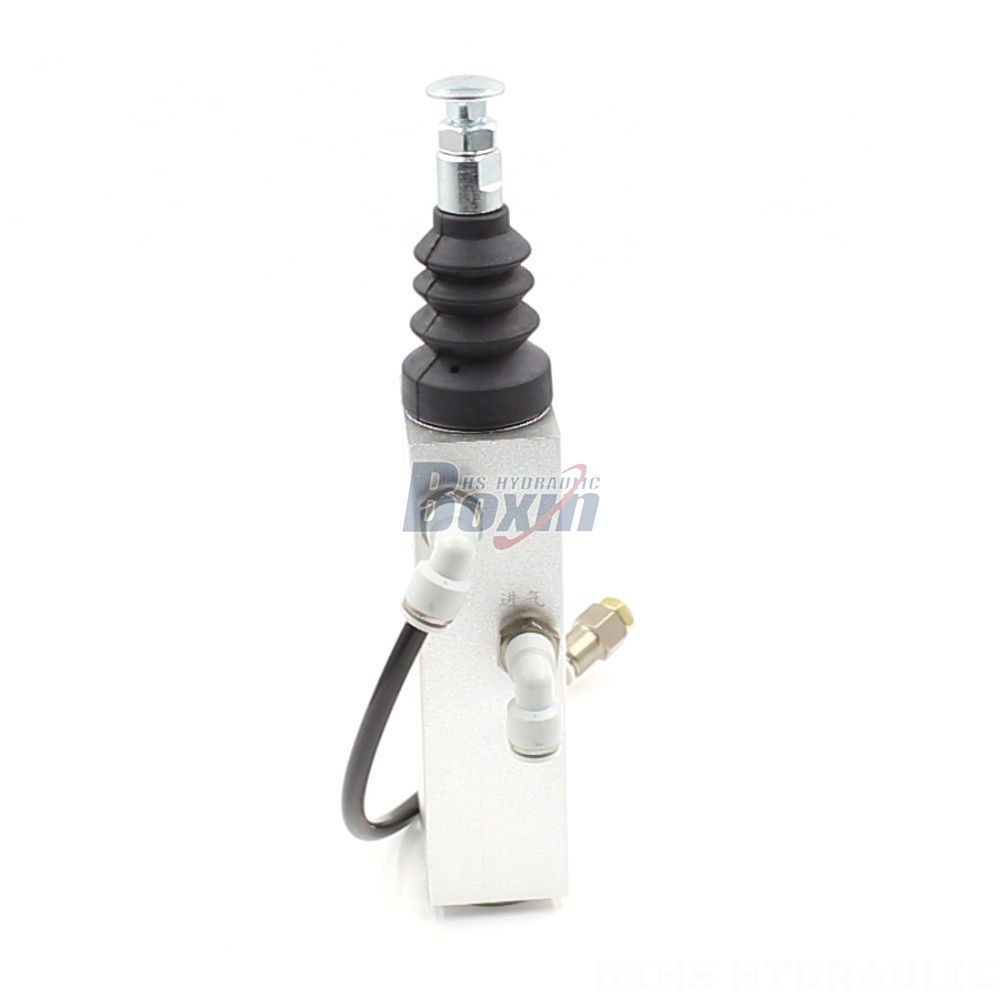

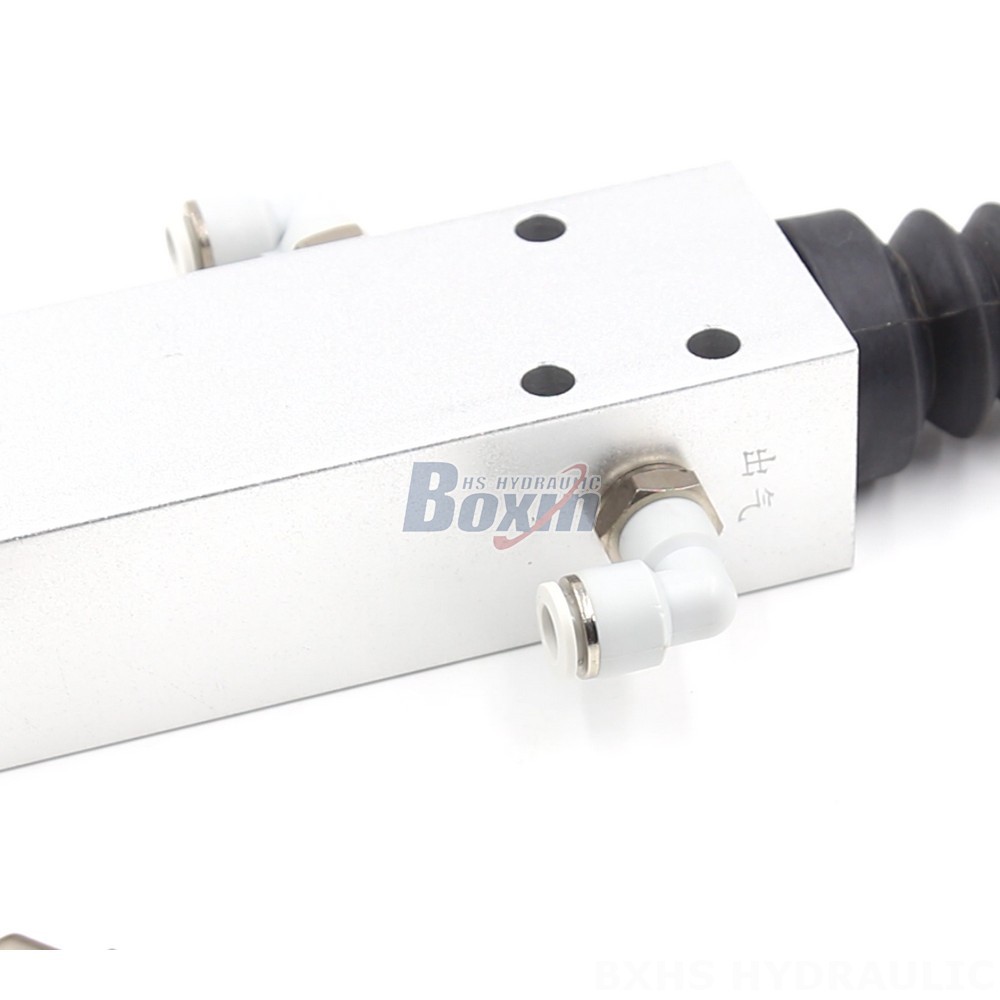

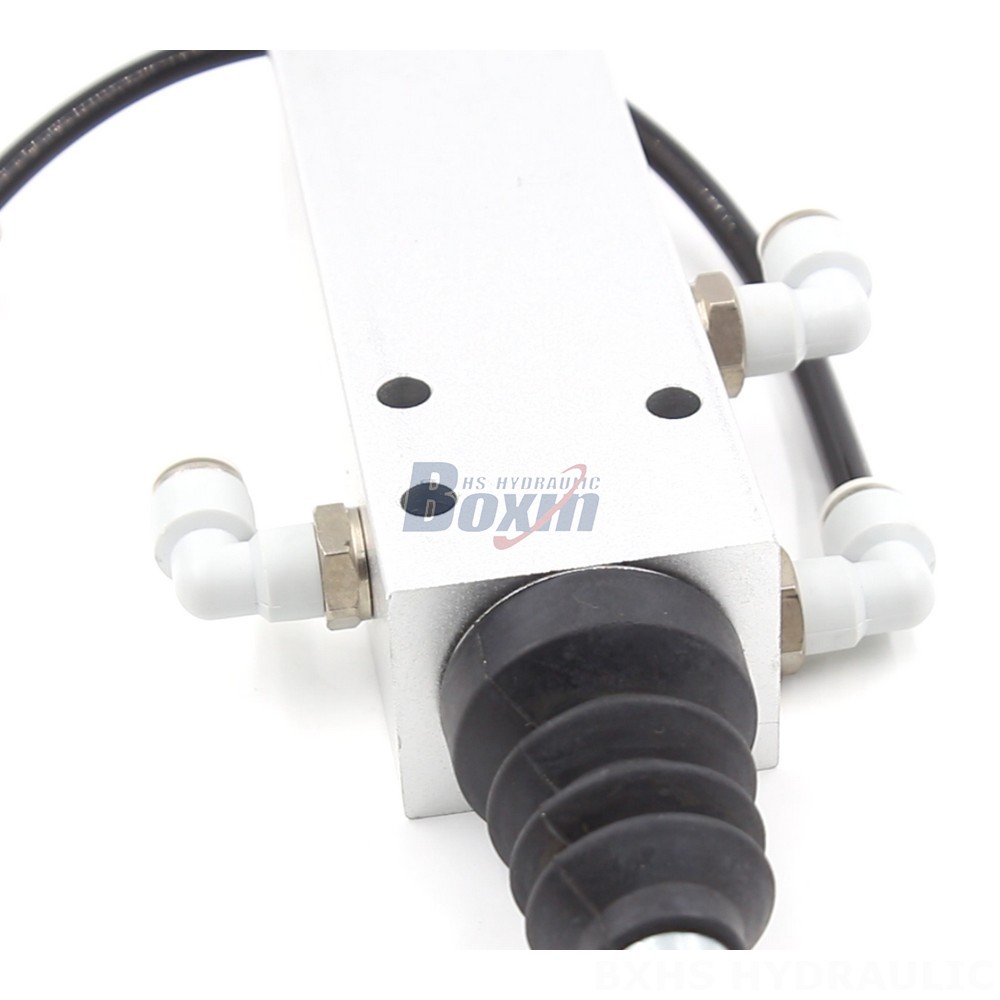

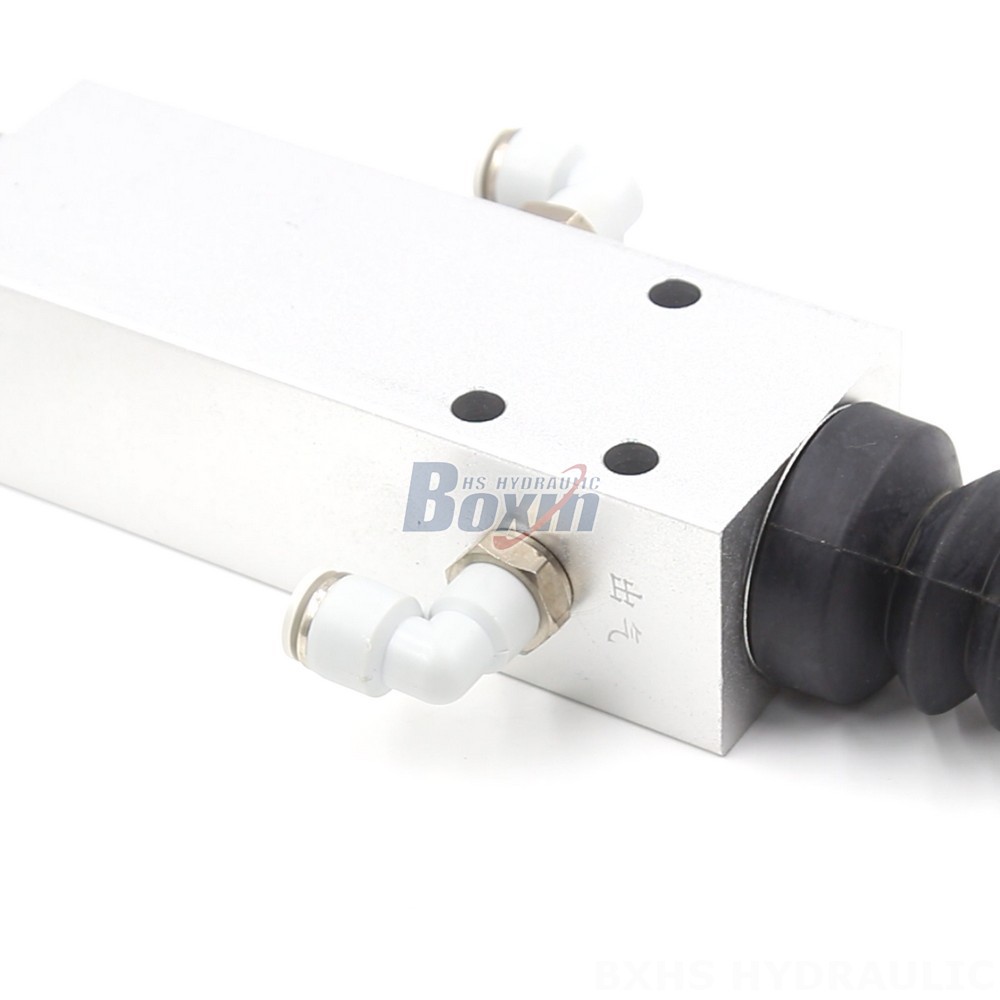

XQF23 Series valves are exclusive distribution valves with pneumatic control. They are designed with a monoblock valve structure and have a maximum pressure of 200 bar. The operating viscosity range is 12 - 400 mm²/s (12 cSt to 400 cSt) and the ambient temperature range is -40°C to +60°C (-40°F to +140°F). These valves have 1 spool and are suitable for various applications, including MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES.
| Série XQF Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Pneumático |
| Carrétel | 1 Carretel |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 50 L/min (13,2 US gpm) |
| Pressão Máxima | 200 bar (2900 psi) |
| Porta de Entrada | G1/4 |
| Porta de Saída | G1/4 |
| Tamanho da Porta | G1/4 |
**XQF23 Series Valves**
The XQF23 Series valves are a line of high-quality, exclusive distribution valves that are designed to meet the demanding requirements of a wide range of applications. These valves are manufactured using the latest technology and are backed by a team of experienced engineers who are dedicated to providing superior customer service.
**Features and Benefits**
* Exclusive distribution rights
* Pneumatic control
* Monoblock valve structure
* Maximum pressure of 200 bar
* Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt)
* Ambient temperature range of -40°C to +60°C (-40°F to +140°F)
* 1 spool
* Suitable for a variety of applications, including MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, and INDUSTRIAL VEHICLES
**OEM, ODM, and Customization**
We offer a variety of OEM, ODM, and customization services to meet the specific needs of our customers. We can provide you with the valves that you need to meet your exact specifications, and we can also help you to design and develop new products.
**Contact us today to learn more about our XQF23 Series valves and how we can help you to succeed in your business.**
