Produção e Entrega
Prazo de produção de 15 a 30 dias
1145 Visualizações estão procurando por este produto

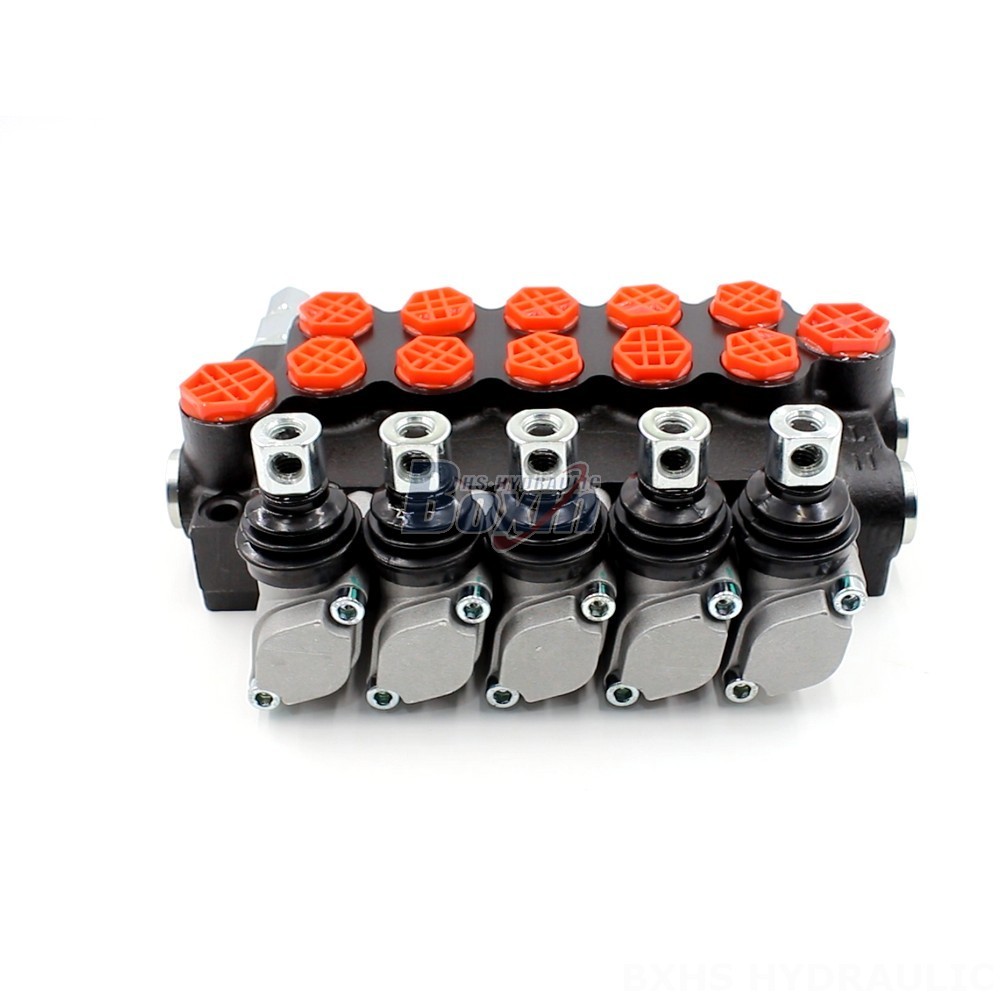

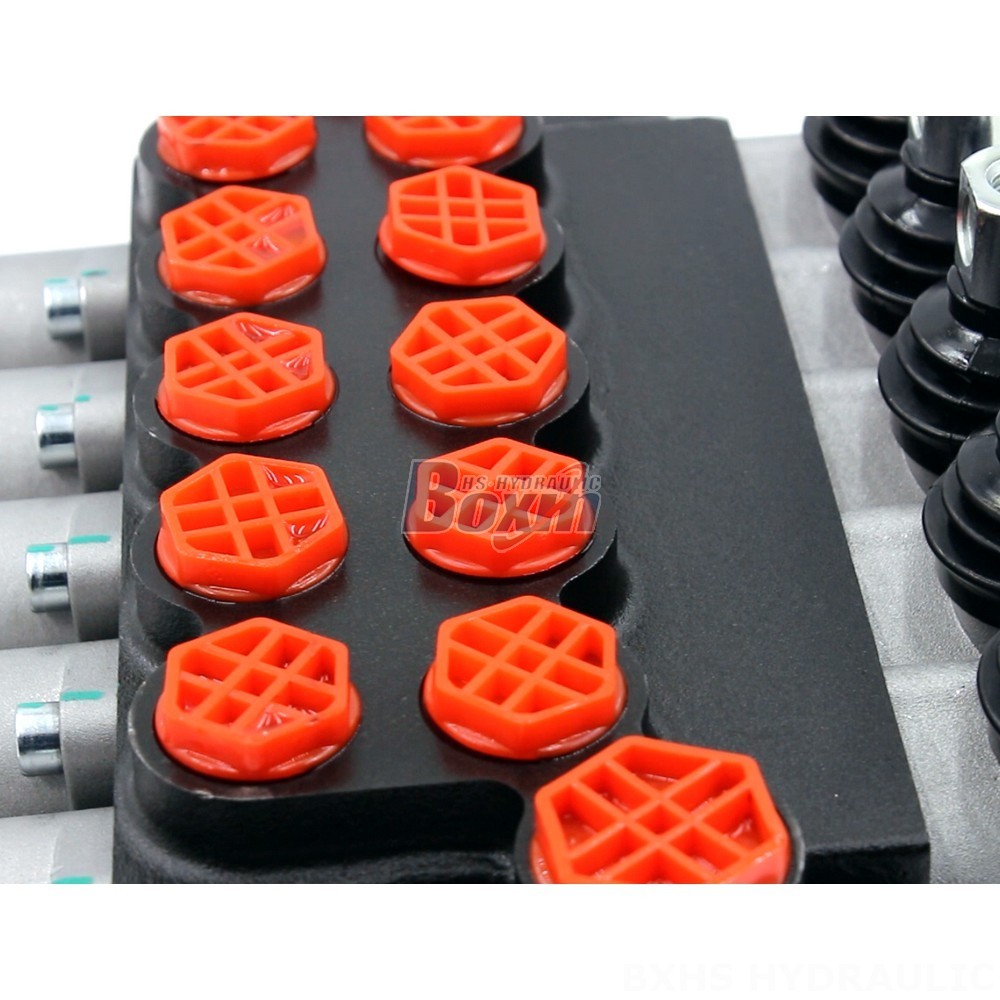

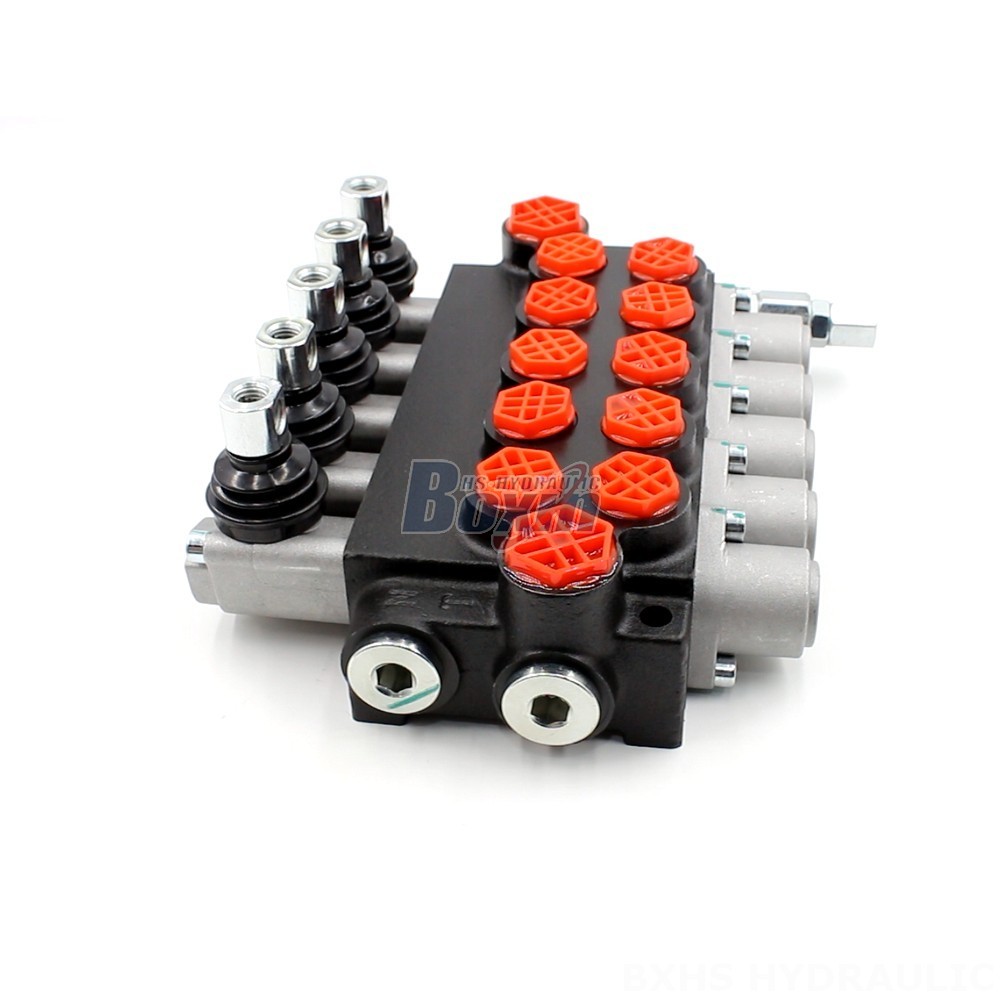

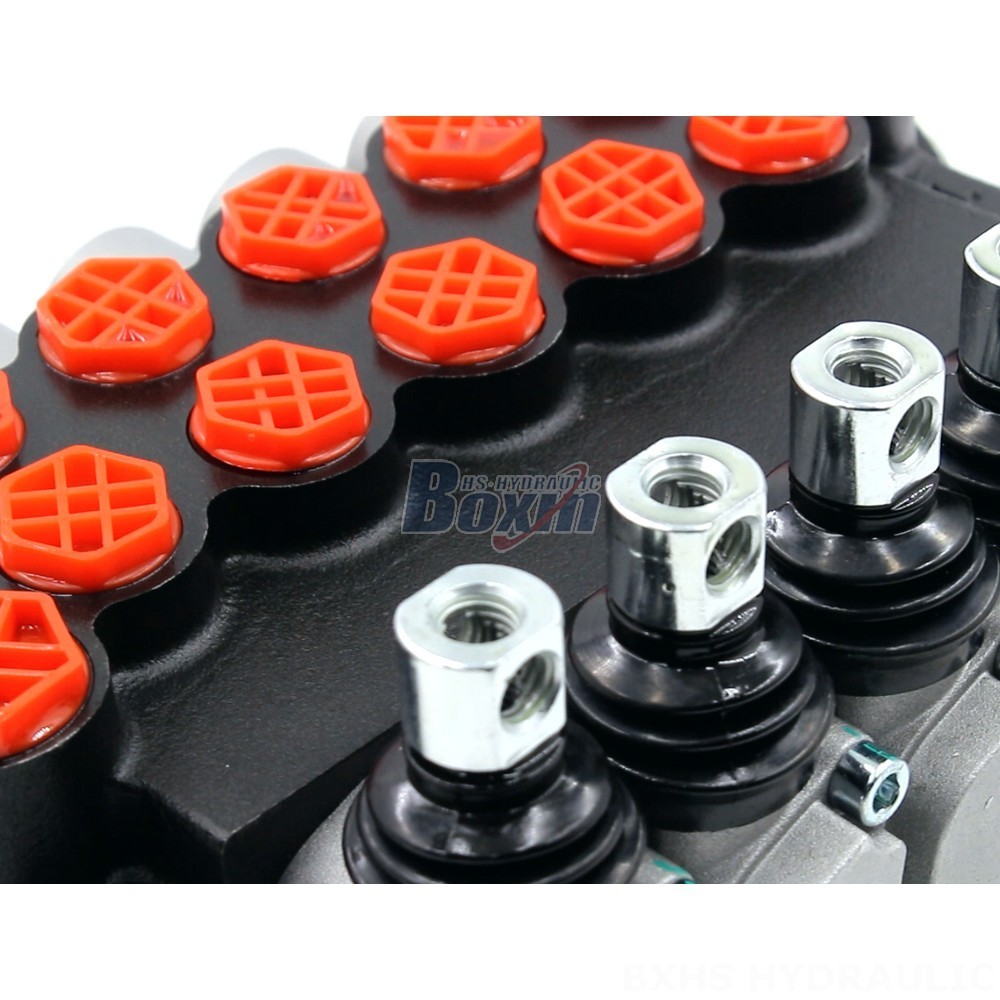

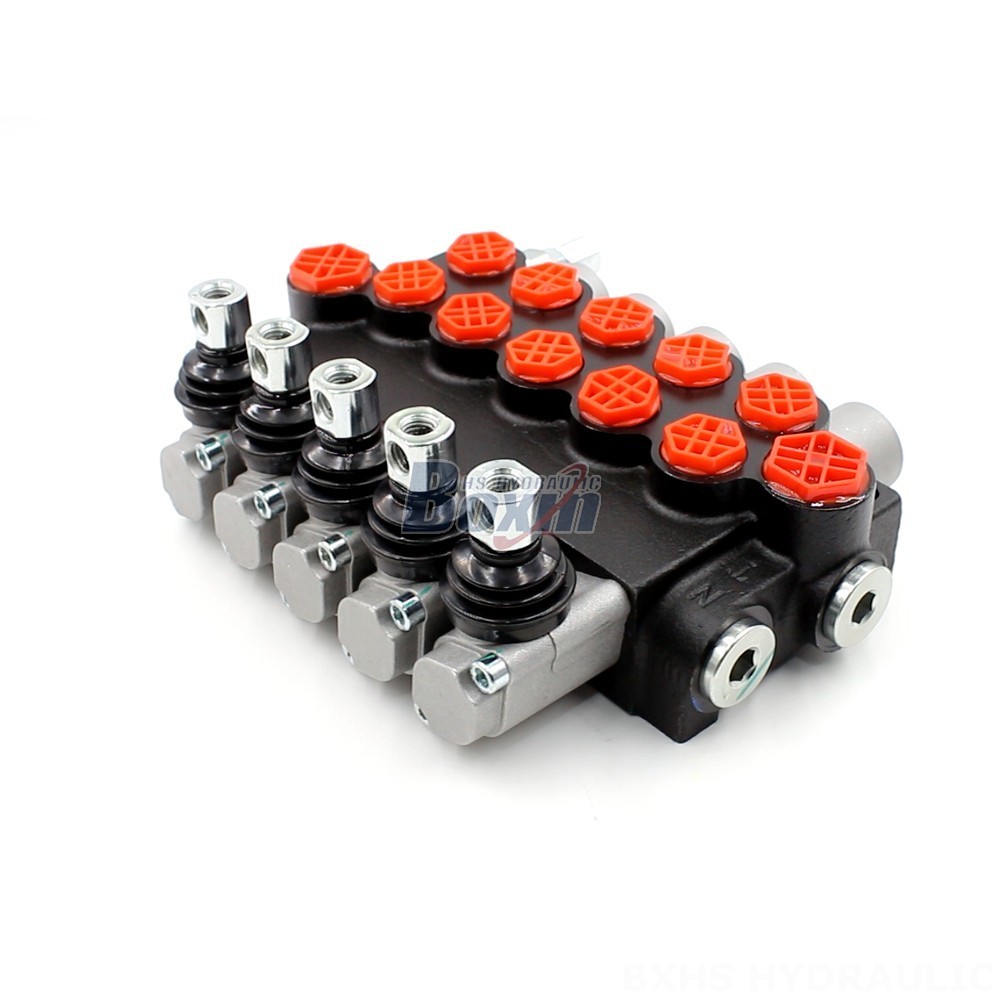

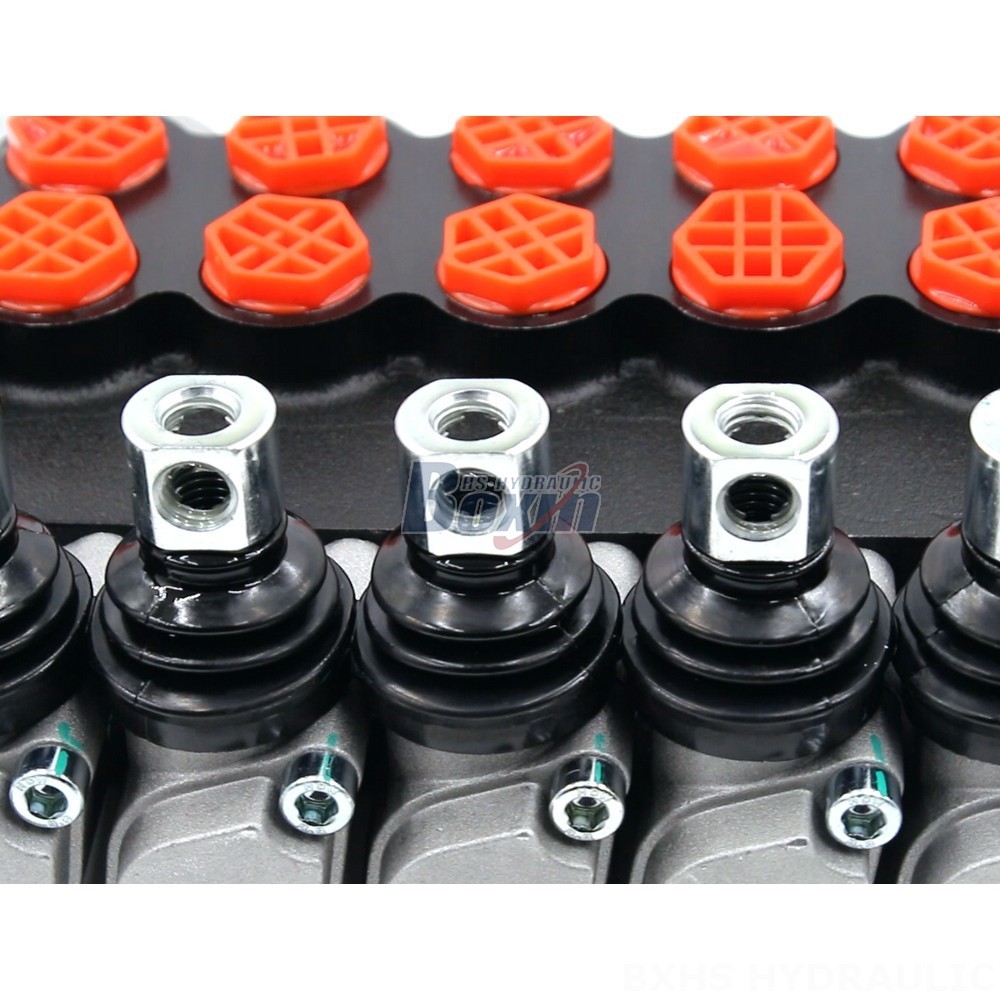

Our Factory Authorized Distribution ensures genuine P40-G12-G38 Valves and support. These valves are designed for various applications in industries like material handling, construction, agriculture, and industrial vehicles. They feature a robust 5-section monoblock structure, providing exceptional durability and reliability.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Factory Authorized Distribution: Genuine P40-G12-G38 Valves and Support**
Our Factory Authorized Distribution program guarantees that you receive genuine P40-G12-G38 Valves directly from the manufacturer. This ensures the highest quality and performance, backed by our comprehensive support services.
**Product Specifications:**
* Control Method: Manual
* Section: 5 Section
* Structure Type: Monoblock Valve
* Rated Flow: 40 L/min (10.5 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 5 Spool
* Series: P40 Series
**Applications:**
Our P40-G12-G38 Valves are widely used in demanding applications across various industries, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
These valves are compatible with an extensive range of equipment models, such as:
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Mini Excavator
* Skid Steer Loader
* Compact Wheel Loader
* Wheel Loader
