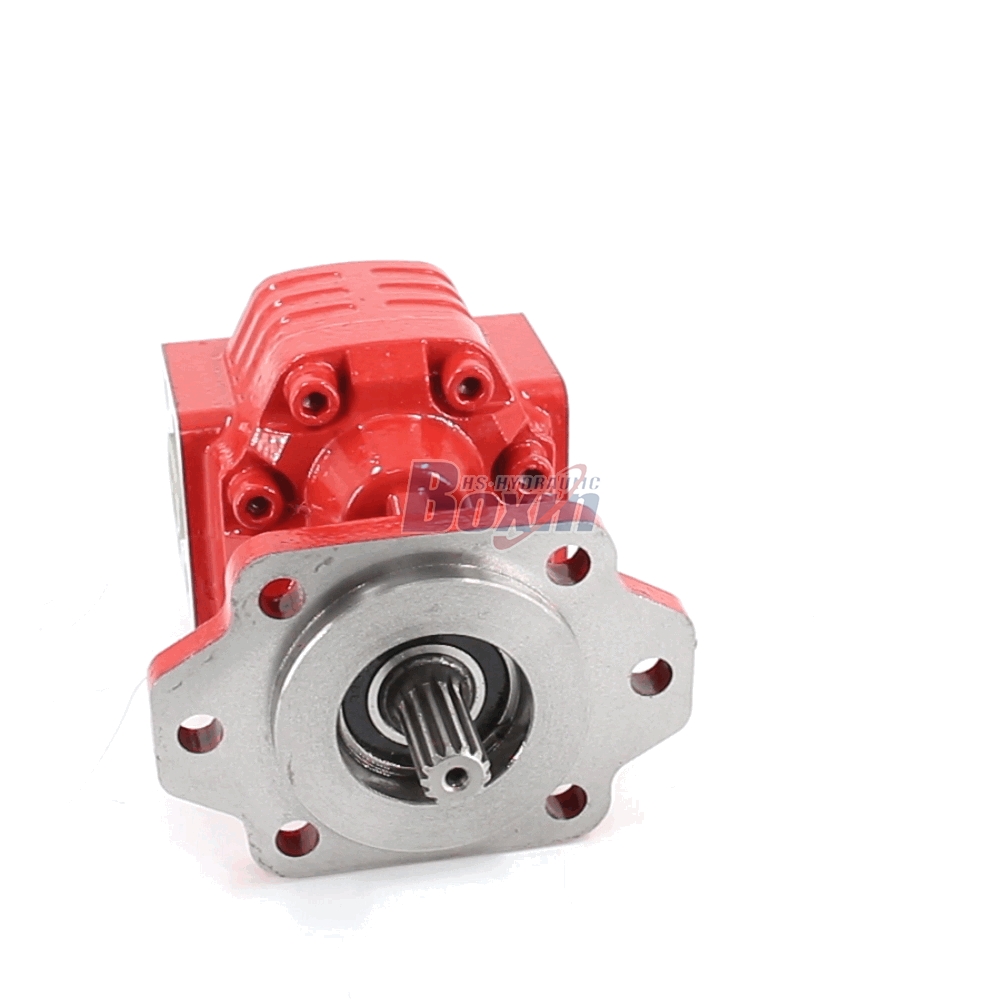

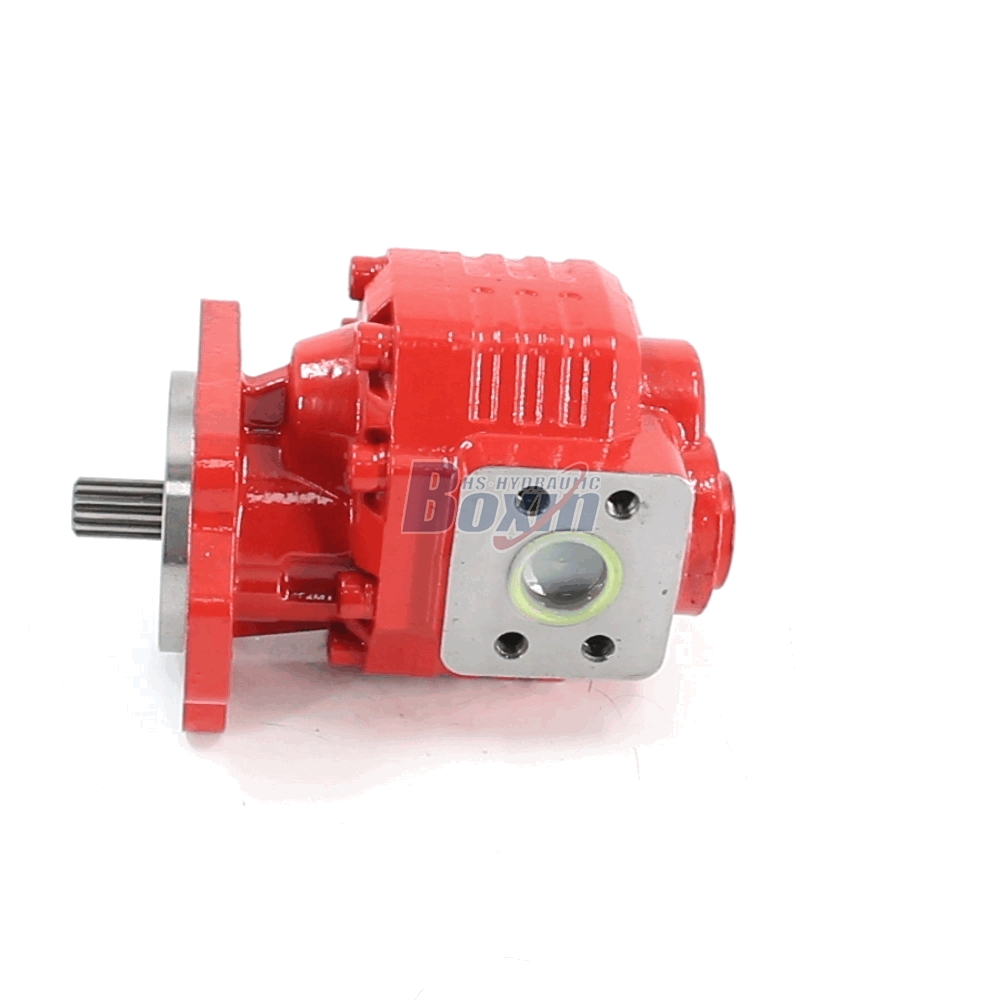

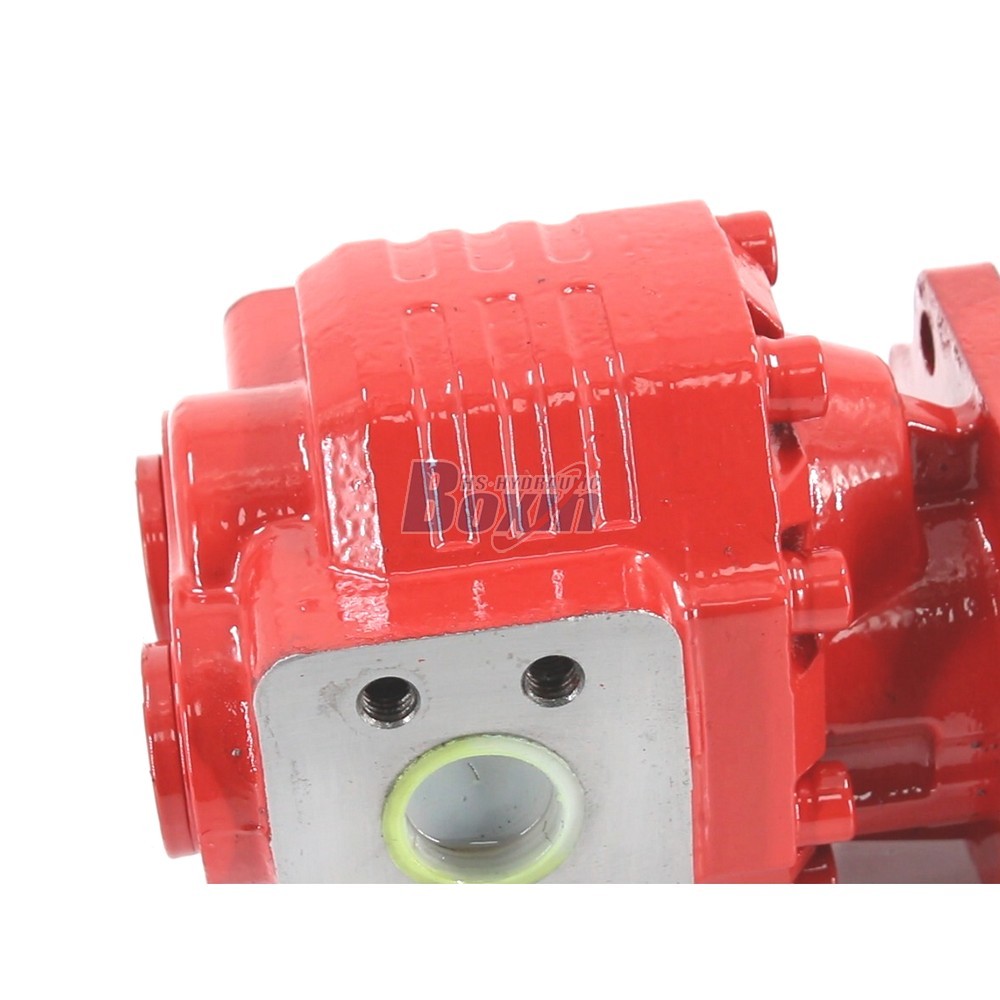

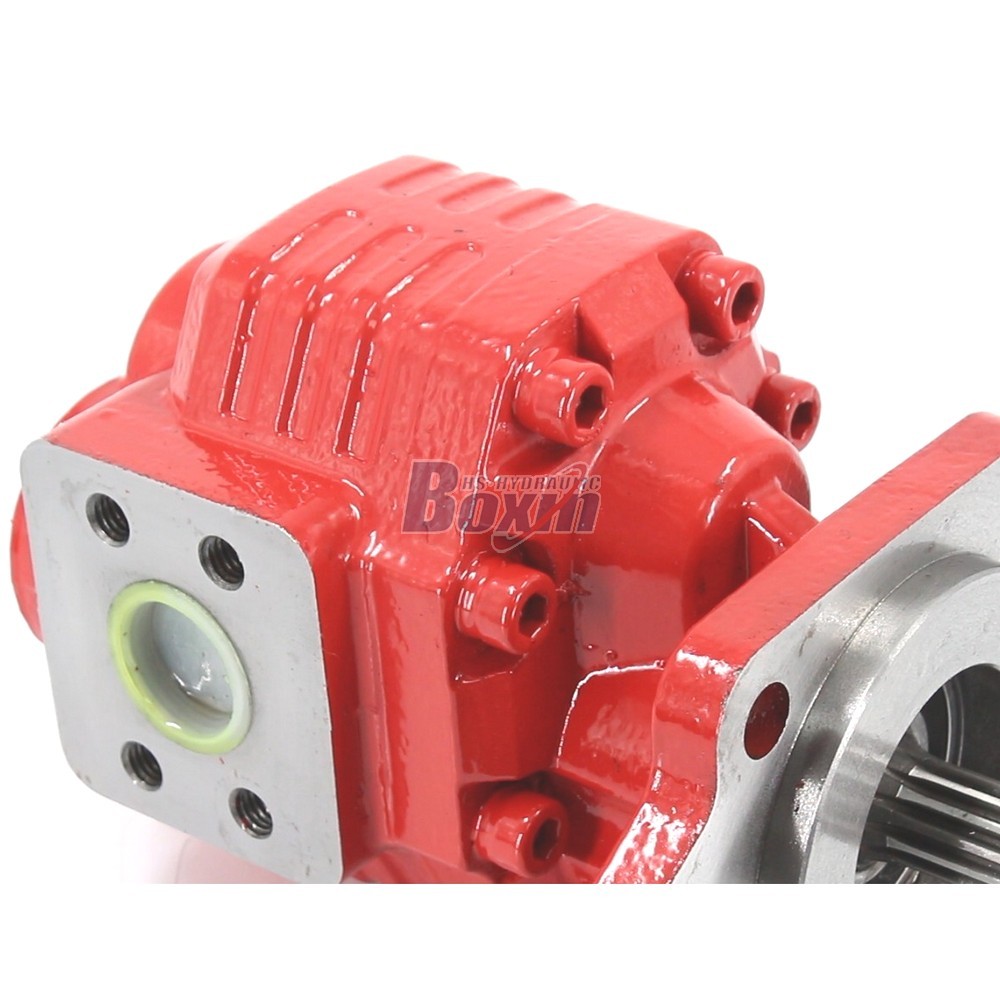

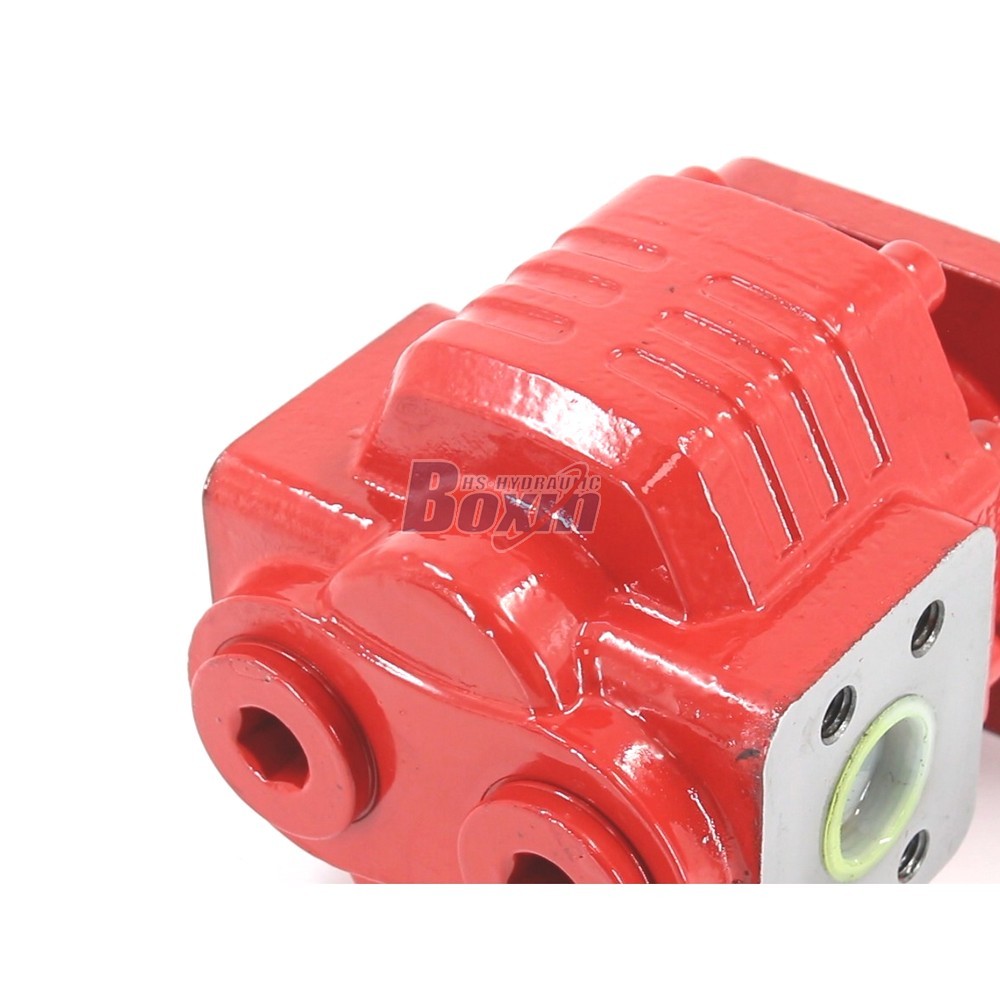

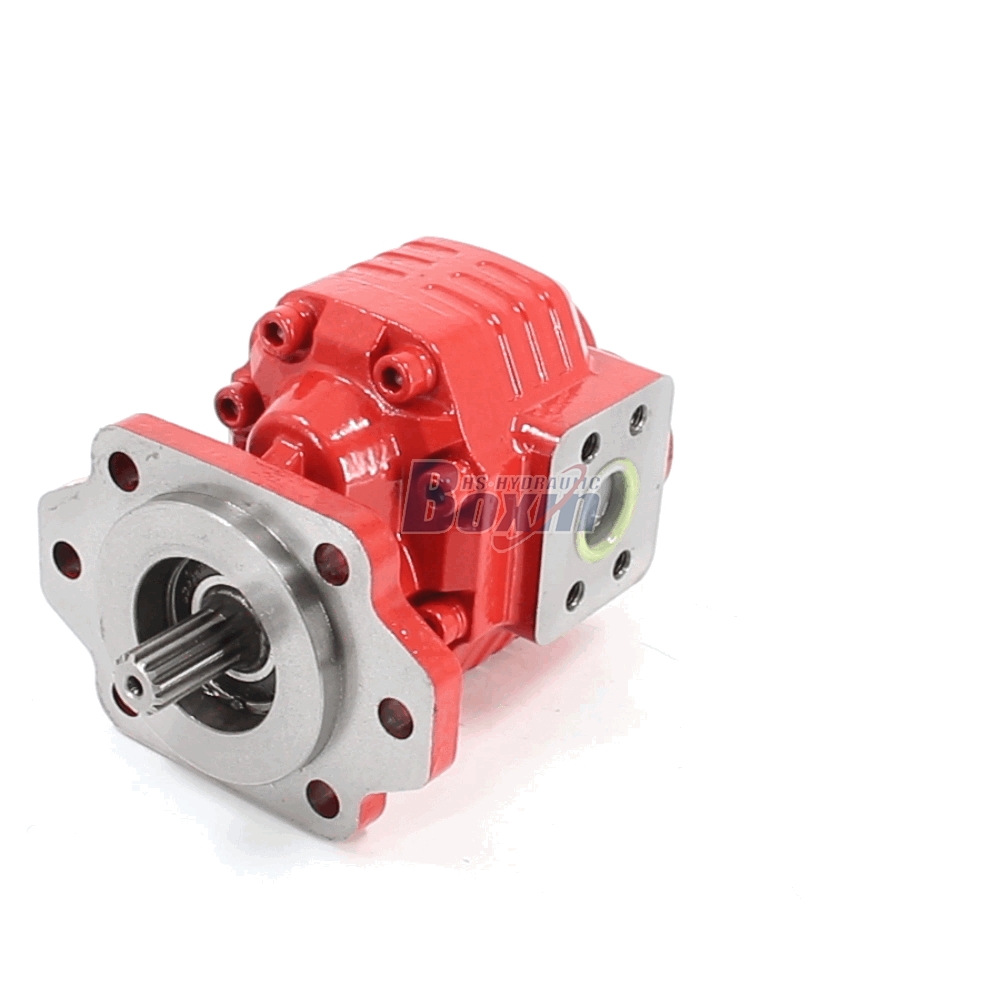

Factory Direct Supply CBHC-2063 63 cc/rev Hydraulic Gear Pump

Deslocamento:63 cc/rev

Pressão Nominal:20 MPa (2900 psi)

Pressão Máxima:25 MPa (3625 psi)

Velocidade Máxima:2500 rpm

Rotação:Bidirecional

Marca:BXHS

Tipo de produto:Bomba de engrenagem hidráulica

Série de produtos:Série CBHC Bomba de engrenagem hidráulica

Tamanho da embalagem:34*18*18

Peso bruto:15.00 kg

Disponibilidade: Em estoque

193 Visualizações estão procurando por este produto

Factory Direct Supply CBHC-2063 63 cc/rev Hydraulic Gear Pump

Factory Direct Supply CBHC-2063 63 cc/rev Hydraulic Gear Pump

Factory Direct Supply CBHC-2063 63 cc/rev Hydraulic Gear Pump drawing image

Source the CBHC-2063 63 cc/rev Hydraulic Gear Pump directly from a Professional Manufacturer with 25+ years of expertise. Rated at 20 MPa (2900 psi) and 2200 r/min, this bidirectional pump is ideal for forklifts, loaders, and agricultural machinery. Backed by IATF 16949 certification and 100% factory testing, we offer reliable OEM/ODM solutions for global distributors.

Série CBHC Bomba de engrenagem hidráulica Parâmetros
Deslocamento 32 cc/rev, 40 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev, 25 cc/rev, 110 cc/rev
Pressão Nominal 20 MPa (2900 psi), 22 MPa (3190 psi)
Pressão Máxima 25 MPa (3625 psi), 28 MPa (4061 psi)
Velocidade Nominal 2200 rpm
Velocidade Máxima 2500 rpm
Rotação L: Esquerdo (sentido anti-horário), R: Direito (sentido horário), Bidirecional
Material Ferro Fundido
Estrutura Bomba de engrenagem externa
Versão da flange Flange SAE
Tipo de veio H: Chaveta retangular

**1. Factory Direct Supply of Hydraulic Gear Pump**
- Sourced directly from our 68,000㎡ manufacturing base with an annual capacity of 1,500,000 units, ensuring stable supply for Wholesale Direct Sales.
- Enjoy competitive pricing without middlemen, as we are a verified China Wholesale Factory committed to cost-effective B2B partnerships.

**2. Robust CBHC Series Gear Pump Specifications**
- Delivers a displacement of 63 cc/rev with a rated pressure of 20 MPa (2900 psi) and max pressure of 25 MPa (3625 psi) for heavy-duty tasks.
- Operates efficiently at a rated speed of 2200 r/min (max 2500 r/min) with bidirectional rotation, suitable for diverse hydraulic systems.

**3. Versatile 63cc Hydraulic Pump Applications**
- Engineered for material handling and construction equipment, including forklifts, telehandlers, skid steer loaders, and mini-excavators.
- Perfectly compatible with international major brands, serving as a reliable replacement part for industrial vehicles and agricultural tractors.

**4. Precision Quality Control & Certification**
- Every unit undergoes 100% bench testing for pressure, flow, and sealing, supported by 260+ vertical machining centers and CMM inspection.
- Certified under IATF 16949 and CE standards, with SGS verification and 25+ patents, guaranteeing Exported Worldwide quality consistency.

**5. Custom OEM/ODM Available Services**
- Supported by 35+ senior engineers with 10+ years of experience, we provide tailored solutions including logo laser marking and private label packaging.
- Offers secure anti-rust treatment and heavy-duty wooden crate packaging, making us a preferred partner for Wholesale Hot Sale distributors.
