This Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve is a high-quality, durable valve designed for use in a wide range of applications. With its 40 L/min rated flow and 250 bar max pressure, this valve is capable of handling a variety of demanding tasks. It is also temperature resistant, with an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. This valve is also easy to install and maintain, making it a great choice for any application.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

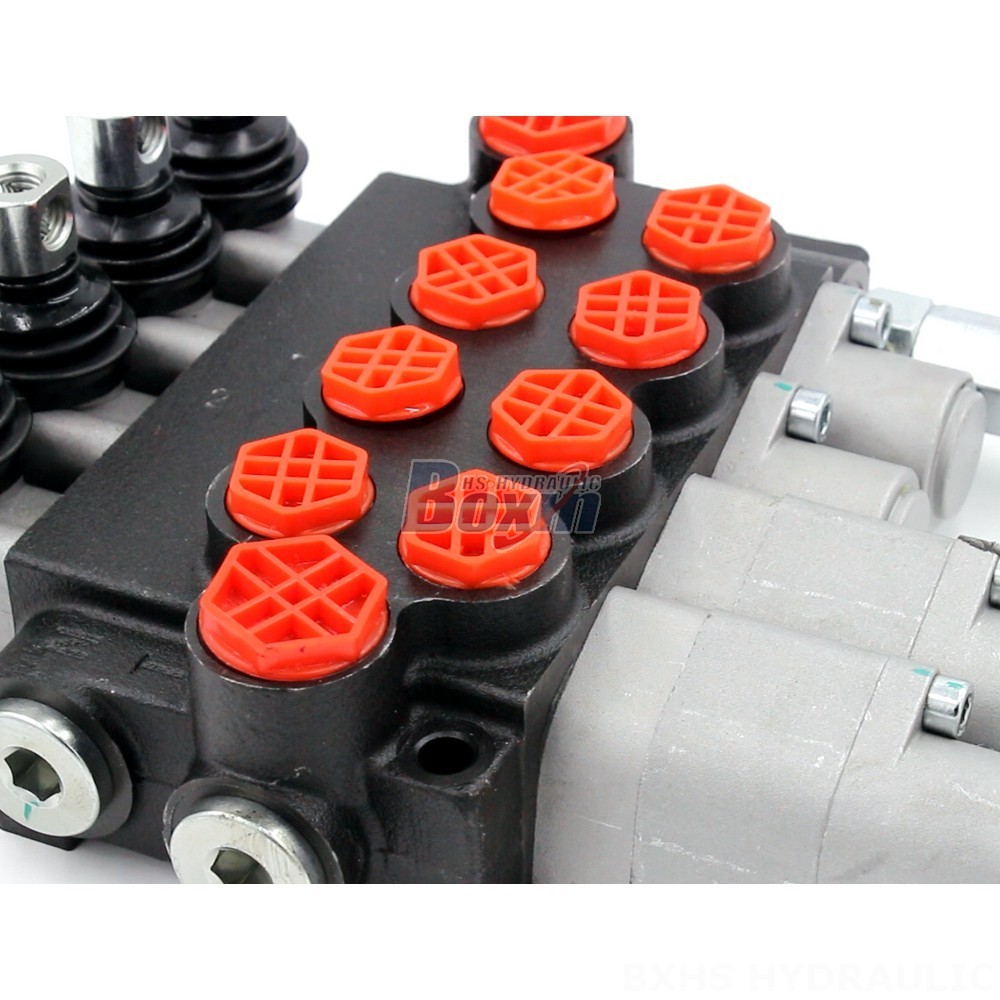

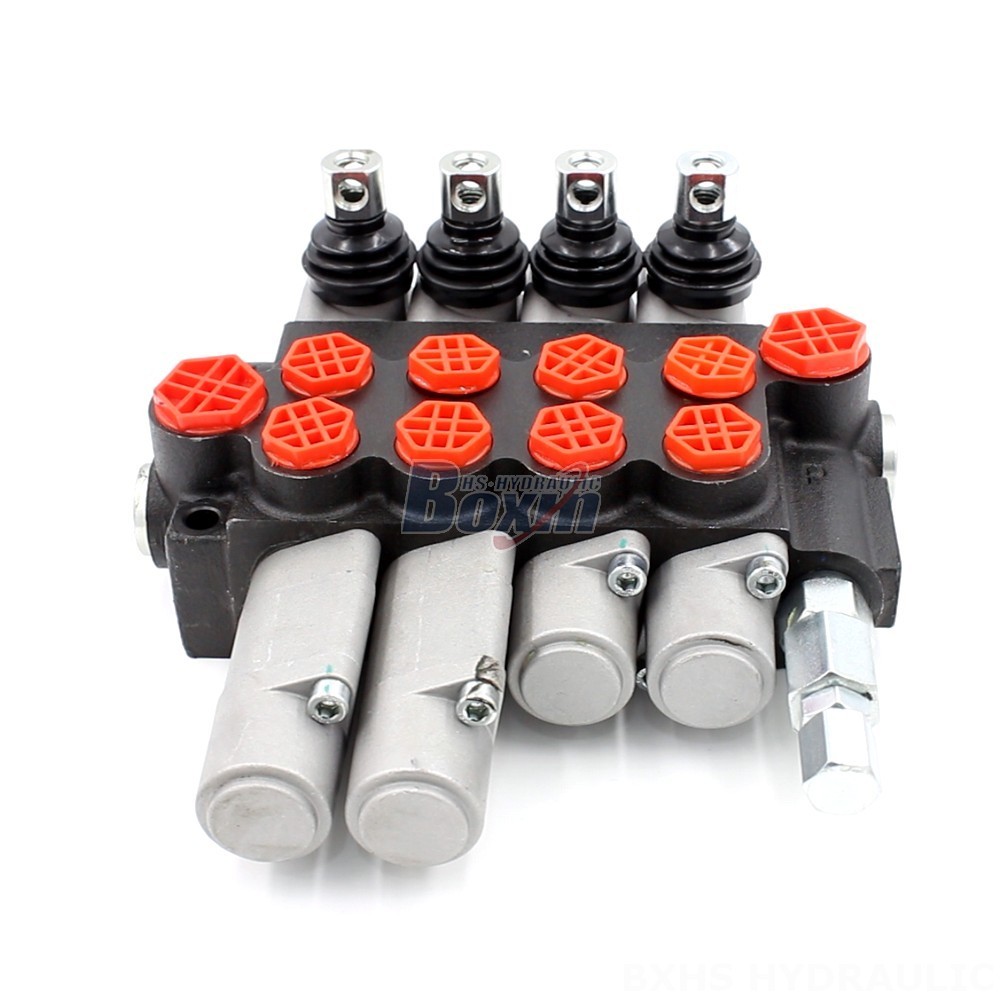

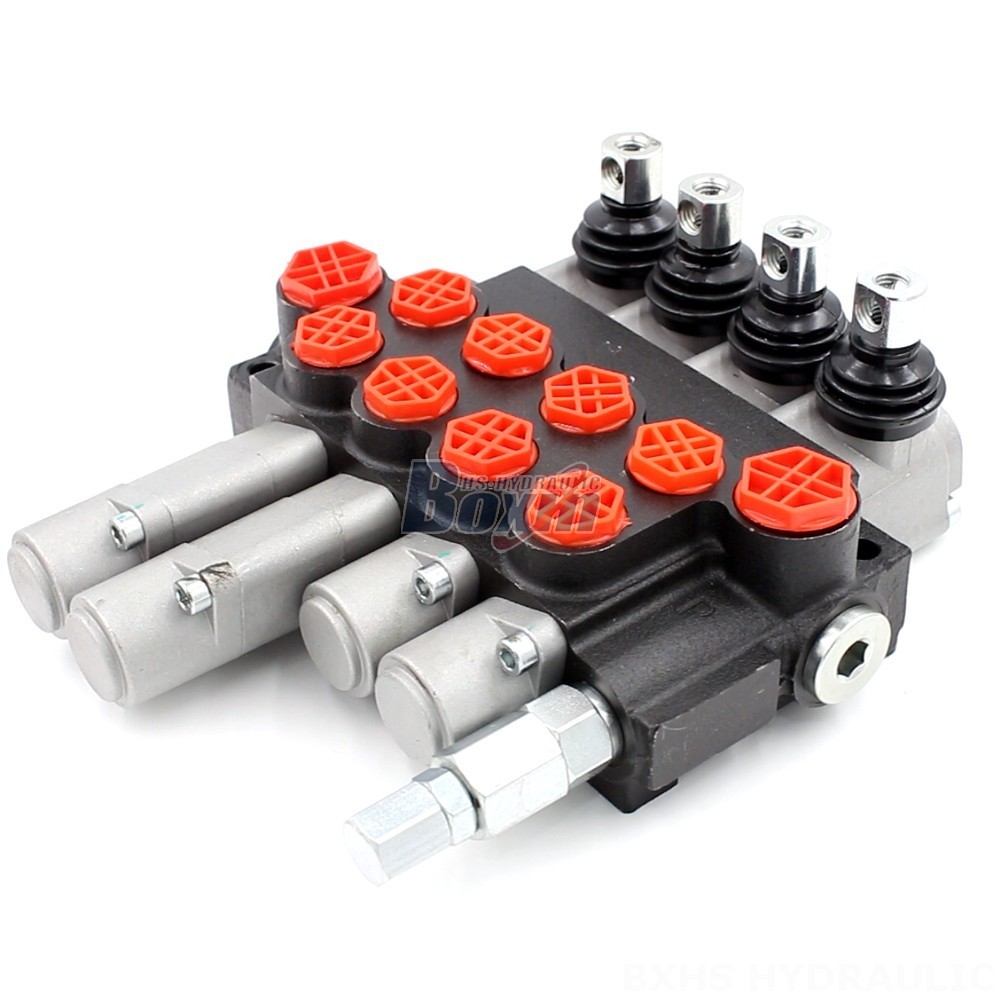

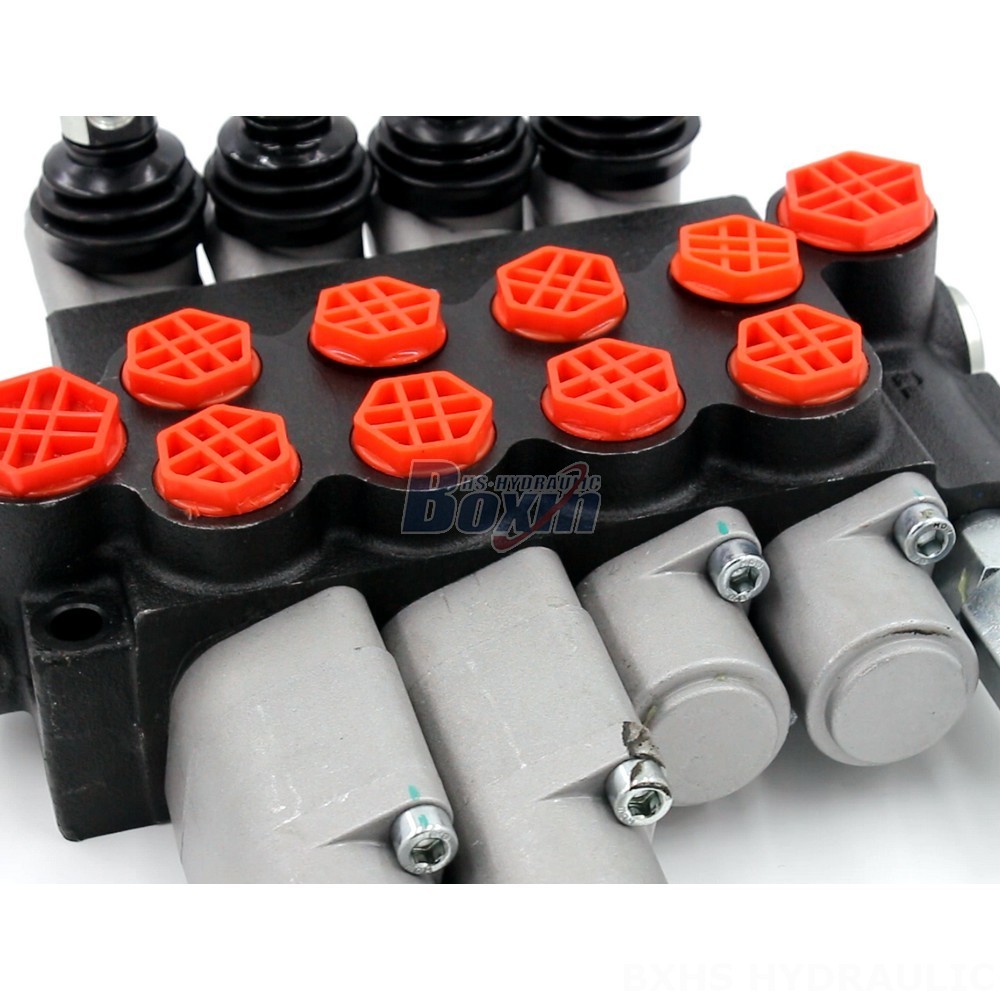

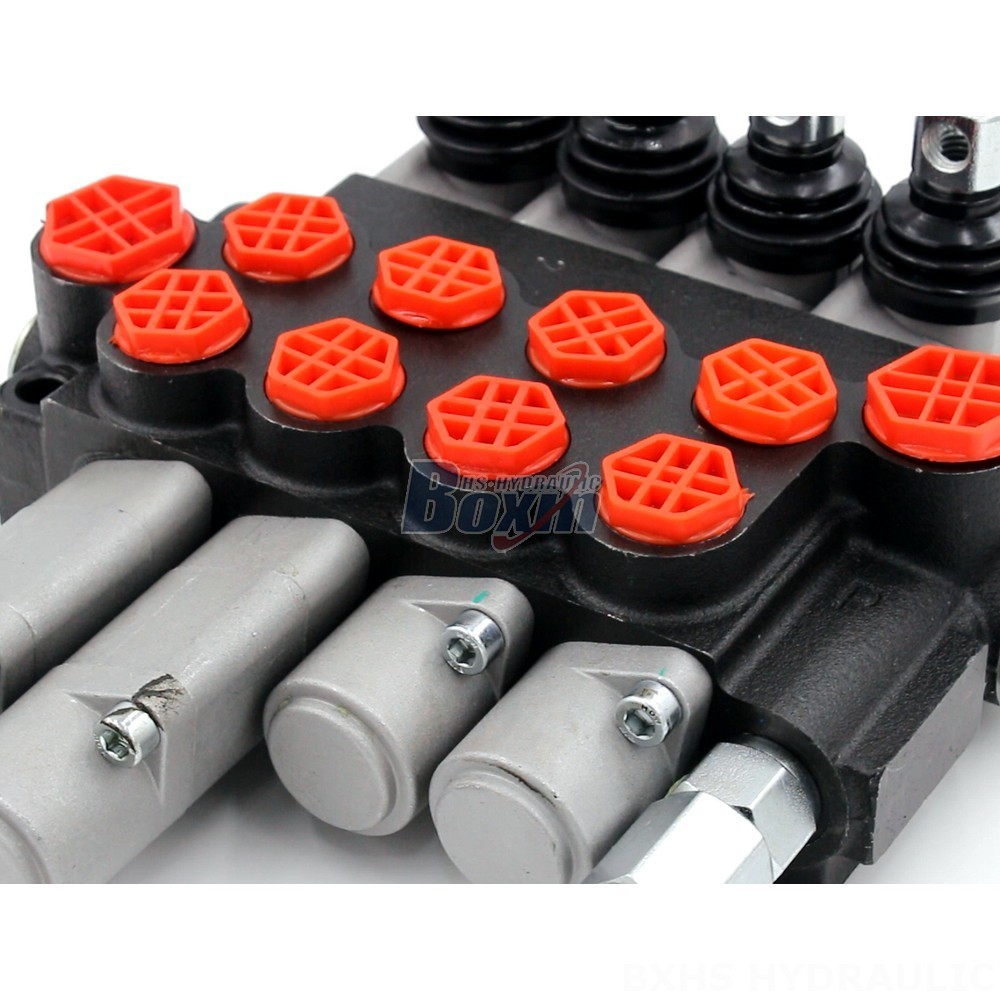

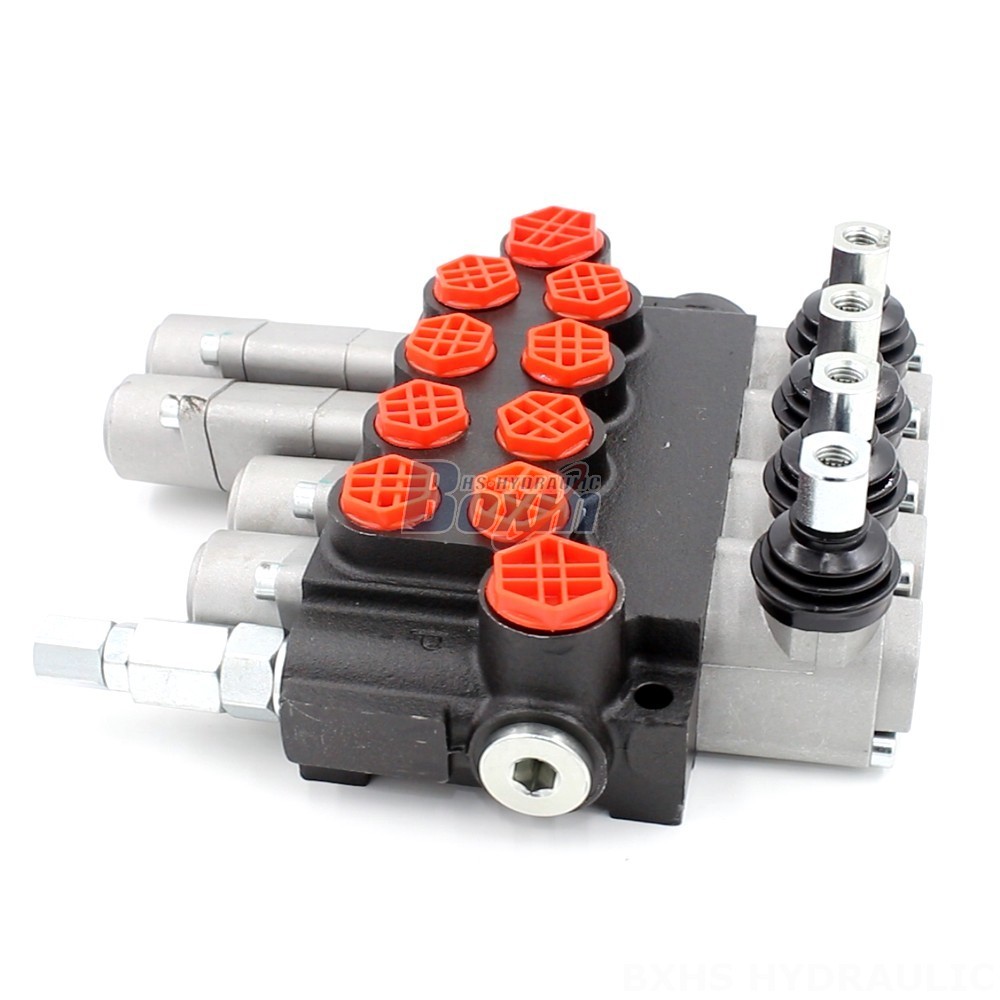

**Factory Direct Supply: P40-G12-G38-2OT-2QTW Hydraulic Directional Control Valve**
**Product Specifications:**
* Control Method: Manual
* Section: 4 Section
* Structure Type: Monoblock valve
* Rated Flow: 40 L/min (10.5 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 4 Spool
* Series: P40 Series
* Application Area: Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
* Applicable Model: Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform, Motor Grader, Telehandler, Midi-Excavator, Mini-Excavator, Skid Steer Loader
This high-quality hydraulic directional control valve is manufactured by our factory and is available for direct supply. We offer OEM, ODM, and private label services to meet your specific needs. We also welcome distributors, wholesalers, agents, and traders to join our network. Contact us today to learn more about our products and services.
