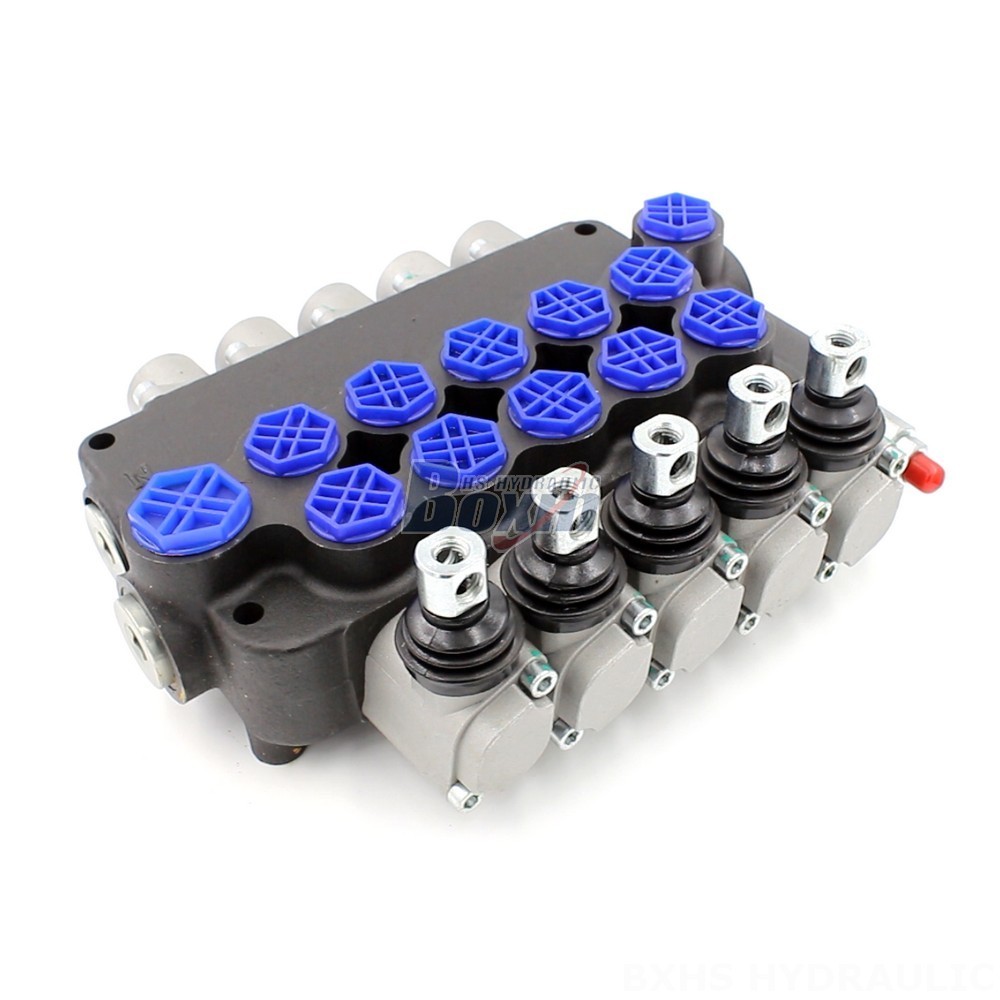

Factory Discounts on P80F-G34-OT Hydraulic Directional Control Valves

Método de Controle:Manual

Carrétel:5 Carreteis

Fluxo Nominal:80 L/min (21,2 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G3/4

Porta de Saída:G3/4

Tamanho da Porta:G3/4

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P80F Válvula Direcional Monobloco

Tamanho da embalagem:26*30*11

Peso bruto:16.00 kg

Disponibilidade: Em estoque

1248 Visualizações estão procurando por este produto

Factory Discounts on P80F-G34-OT Hydraulic Directional Control Valves

Factory Discounts on P80F-G34-OT Hydraulic Directional Control Valves

Factory Discounts on P80F-G34-OT Hydraulic Directional Control Valves drawing image

Our factory manufactures high-quality 4 Way Valve P80F-G34-OT hydraulic directional control valves. These manual control, 5 section, monoblock valves are designed for heavy-duty applications and offer a rated flow of 80 L/min and a maximum pressure of 250 bar. We offer competitive factory prices and direct supply options for bulk orders.

Série P80F Válvula Direcional Monobloco Parâmetros
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick
Tamanho da Porta G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Porta de Saída G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Pressão Máxima 315 bar (4600 psi)
Fluxo Nominal 80 L/min (21,2 US gpm)
Tipo de estrutura Válvula monobloco
Porta de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

This P80F-G34-OT 4 Way Valve is a high-performance hydraulic directional control valve manufactured in our factory. It features manual control, a 5 section design, and a monoblock structure. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is ideal for heavy-duty applications in various industries. The valve operates within a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). It is equipped with a 5 spool design and falls under the P80F series. This valve is specifically suitable for material handling, construction and earth moving, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers. As a manufacturer, we offer competitive factory prices and direct supply options for bulk orders. We welcome inquiries from distributors, wholesalers, agents, and traders worldwide.
