Factory Wholesale Supply: P40-U78 Hydraulic Valves from the Manufacturer

Método de Controle:Manual

Carrétel:3 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:SAE 10

Porta de Saída:SAE 10

Tamanho da Porta:SAE 10

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:24*21*13

Peso bruto:6.60 kg

Disponibilidade: Em estoque

1052 Visualizações estão procurando por este produto

Factory Wholesale Supply: P40-U78 Hydraulic Valves from the Manufacturer

Factory Wholesale Supply: P40-U78 Hydraulic Valves from the Manufacturer

Factory Wholesale Supply: P40-U78 Hydraulic Valves from the Manufacturer drawing image

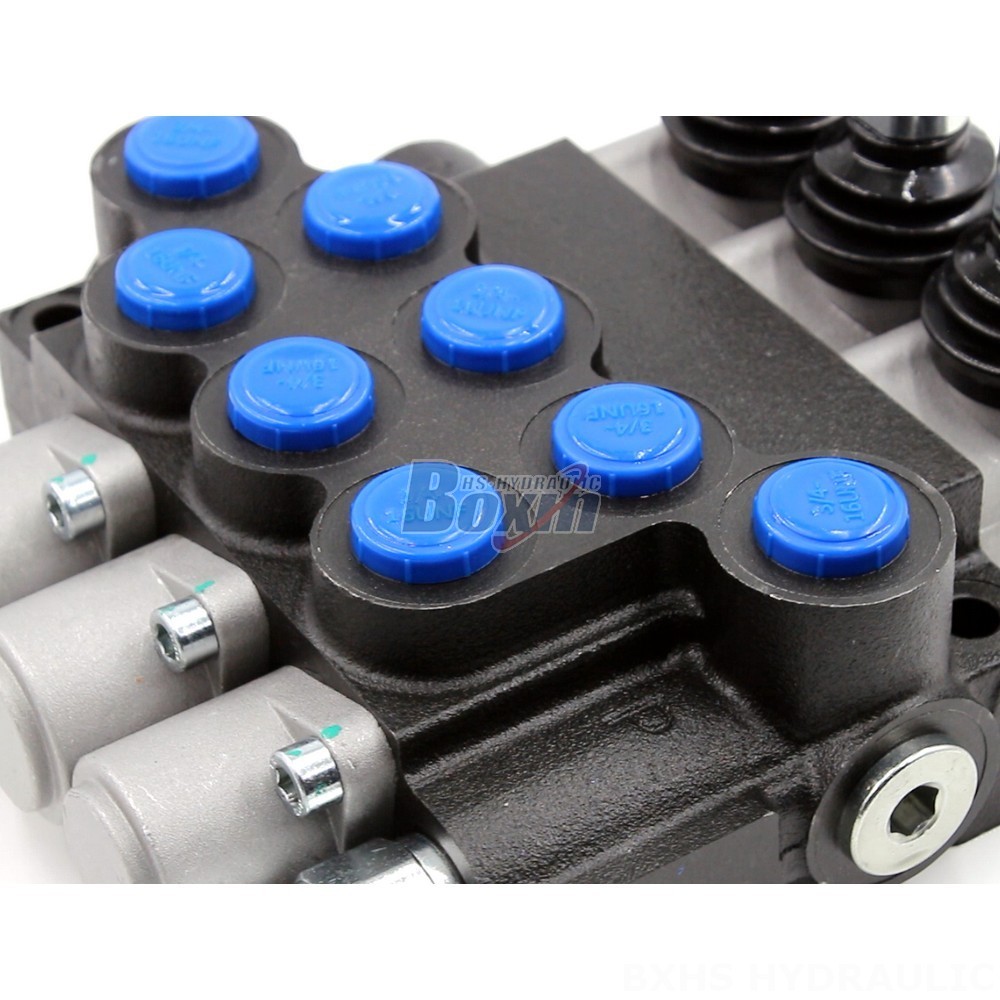

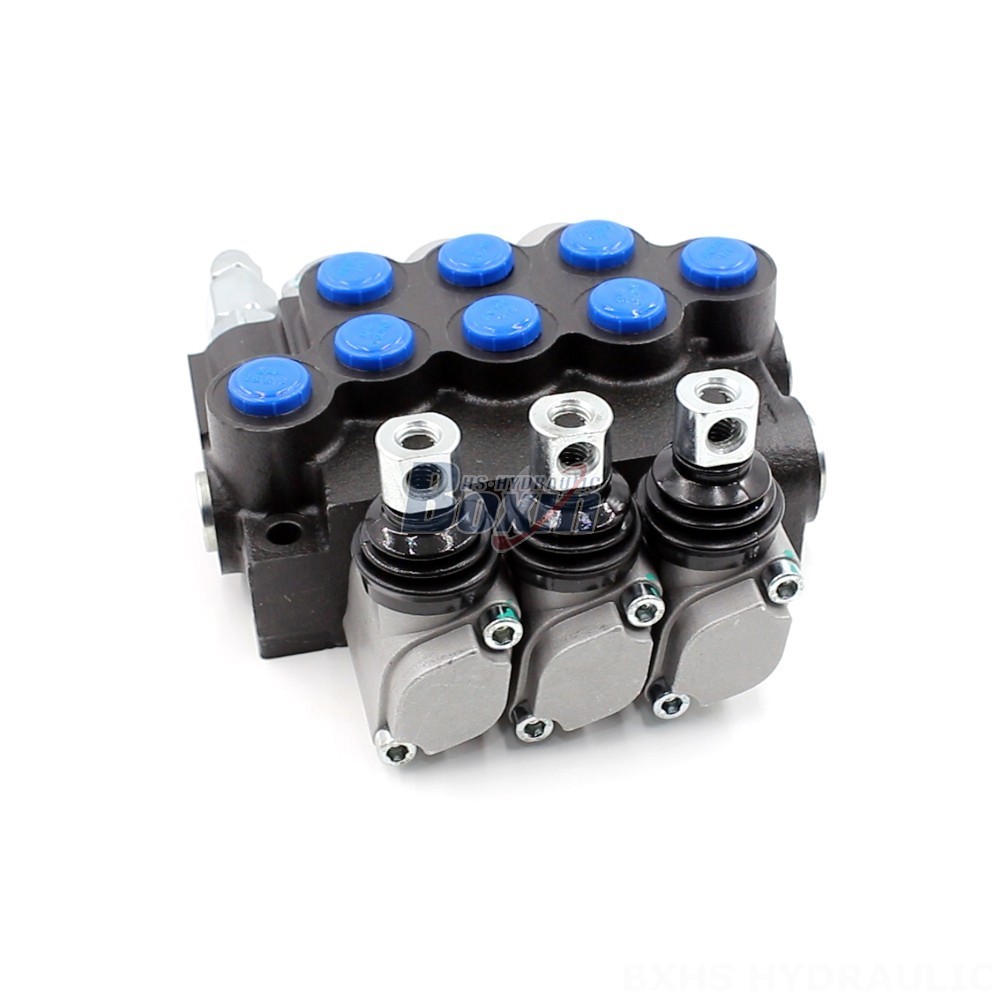

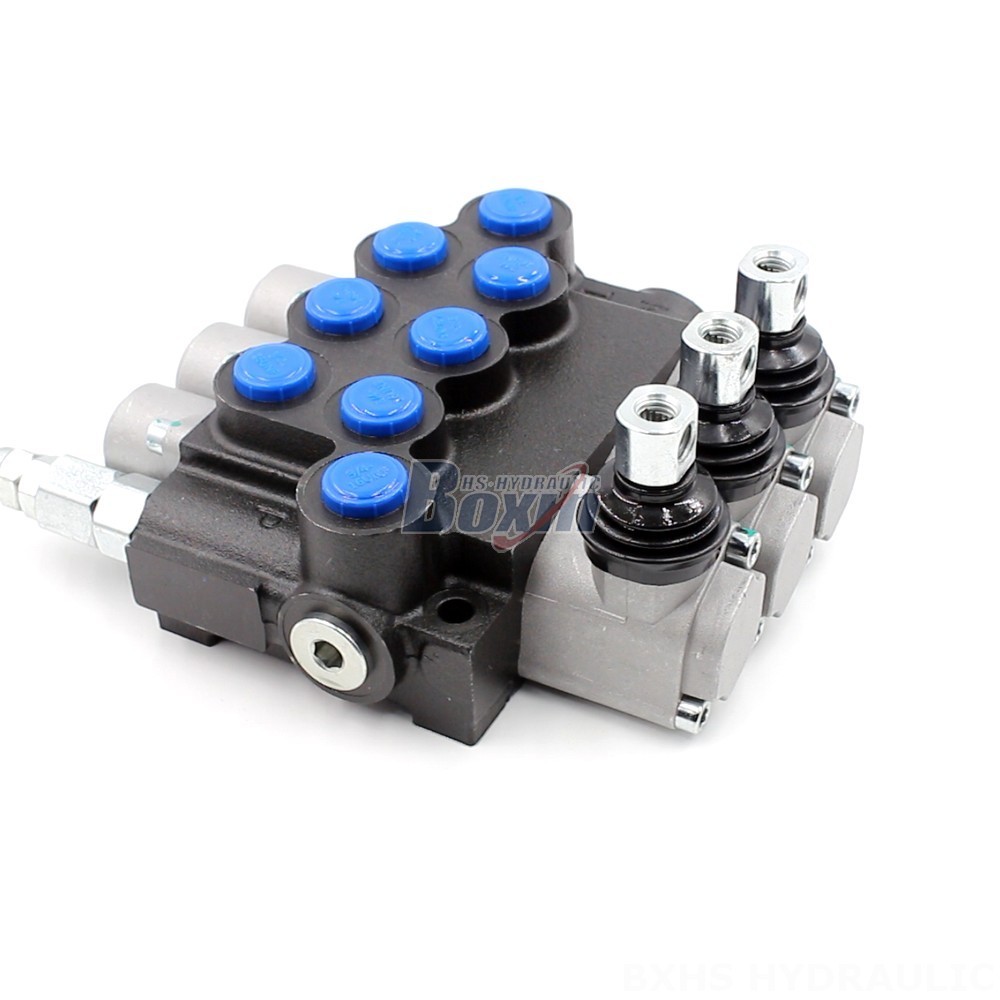

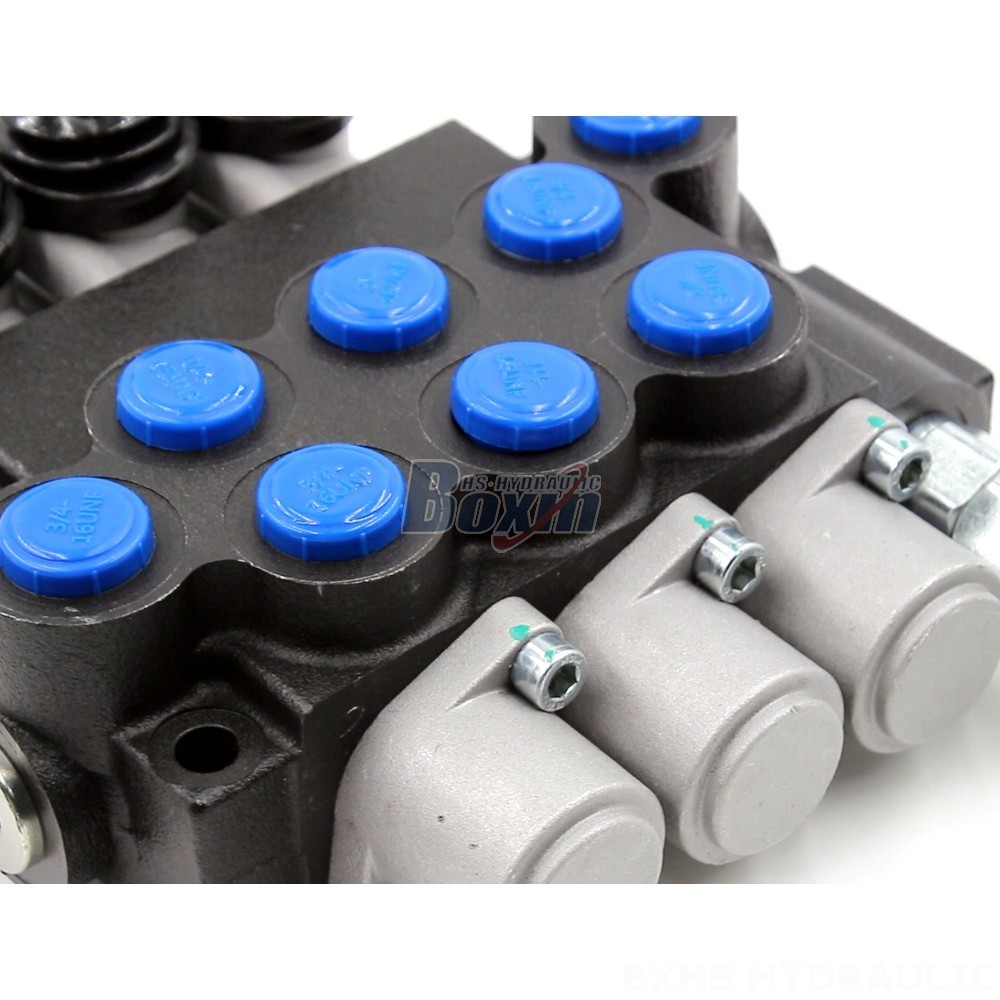

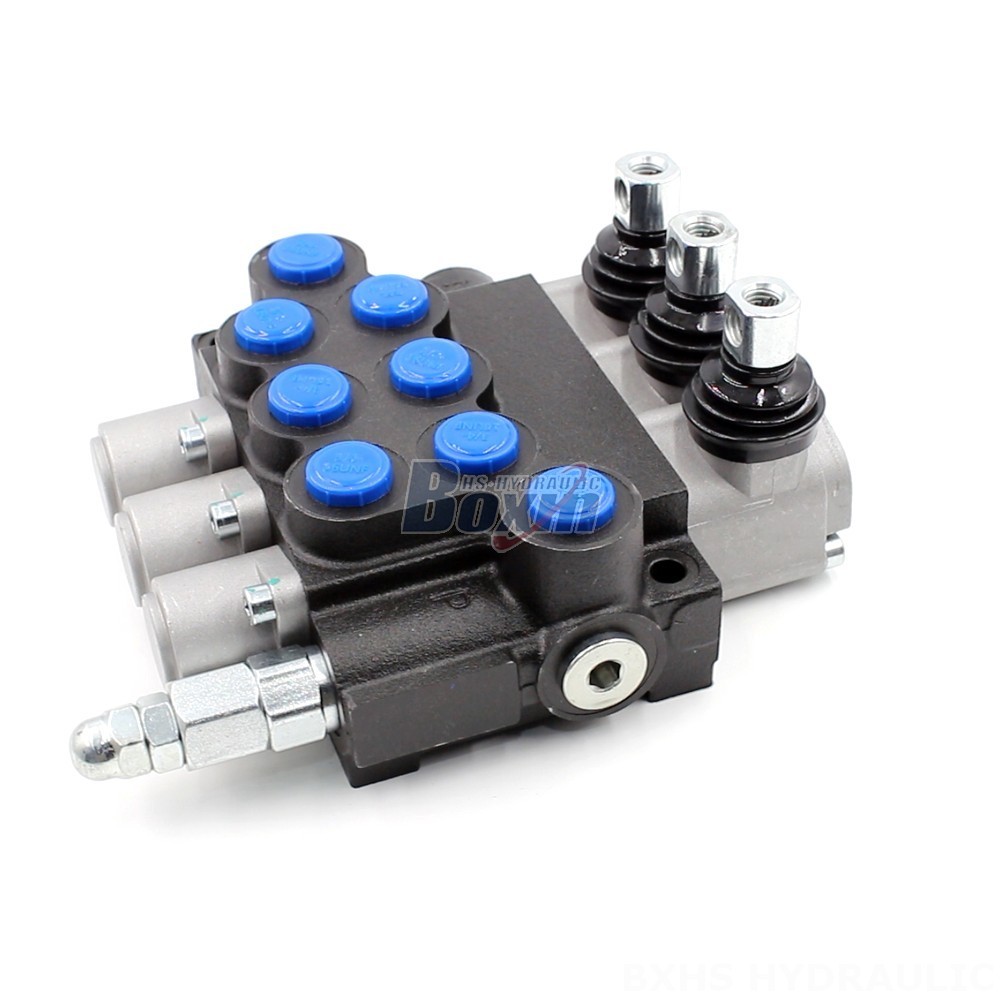

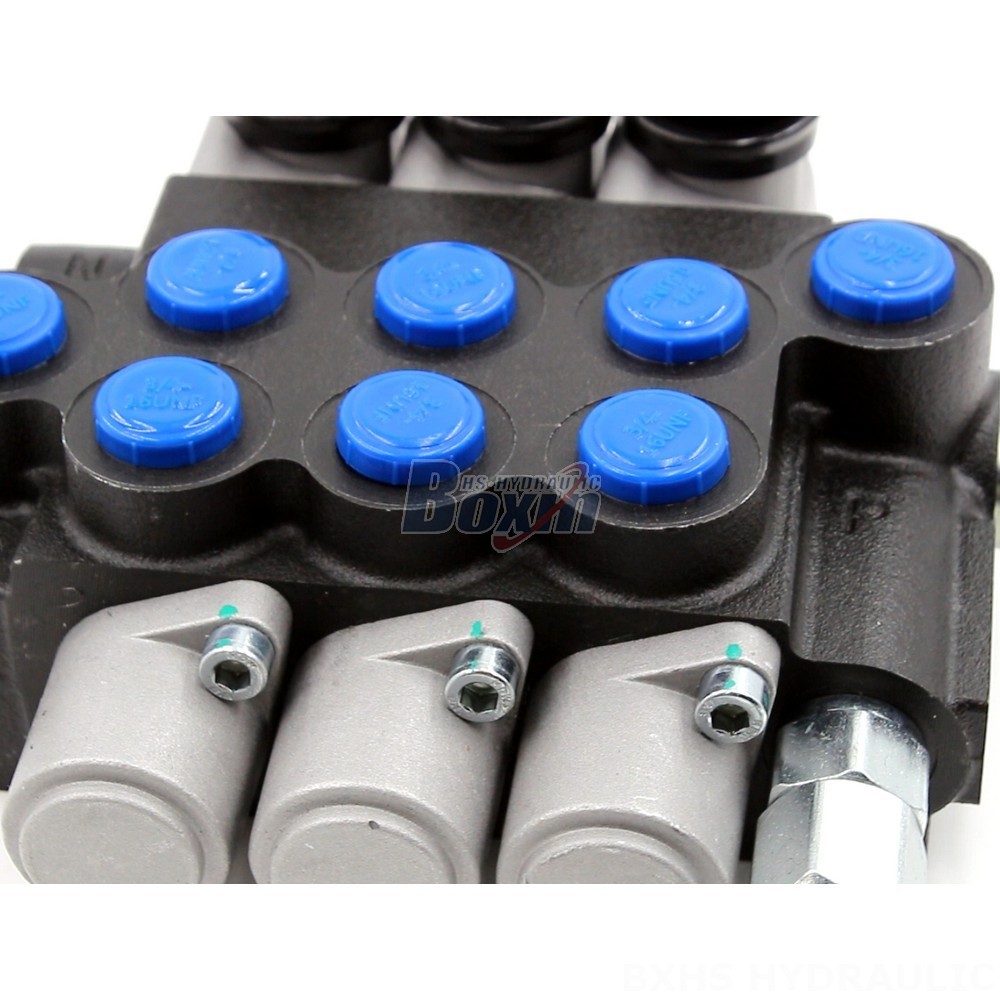

This P40-U78 Hydraulic Valve is a 3-section monoblock valve designed for manual control in various applications, including material handling, construction, and agriculture. It features a rated flow of 40 L/min, a max pressure of 250 bar, and is suitable for a wide range of operating temperatures.

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

Our factory directly supplies this high-quality P40-U78 Hydraulic Valve, a 3-section monoblock valve with manual control. This valve is designed for applications in material handling, construction, and agriculture, and is suitable for various machines such as telehandlers, forklifts, cranes, and excavators. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers reliable performance in demanding conditions. It is also engineered for a wide operating temperature range of -40°C to +80°C, ensuring durability and longevity. We are a global supplier offering manufacturing, OEM, private labeling, customization, and wholesale services. Contact us today to learn more about our products and find the perfect solution for your needs.

Factory Wholesale Supply: P40-U78 Hydraulic Valves from the Manufacturer

Factory Wholesale Supply: P40-U78 Hydraulic Valves from the Manufacturer

Factory Wholesale Supply: P40-U78 Hydraulic Valves from the Manufacturer

Factory Wholesale Supply: P40-U78 Hydraulic Valves from the Manufacturer
