Introducing the SD5-G38 Hydraulic Valve from our factory, tailored to meet the demands of global markets. This versatile valve features manual control and a compact monoblock construction, offering exceptional performance and durability in various hydraulic applications.
| Série SD5 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 305 bar (4400 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Porta de Saída | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

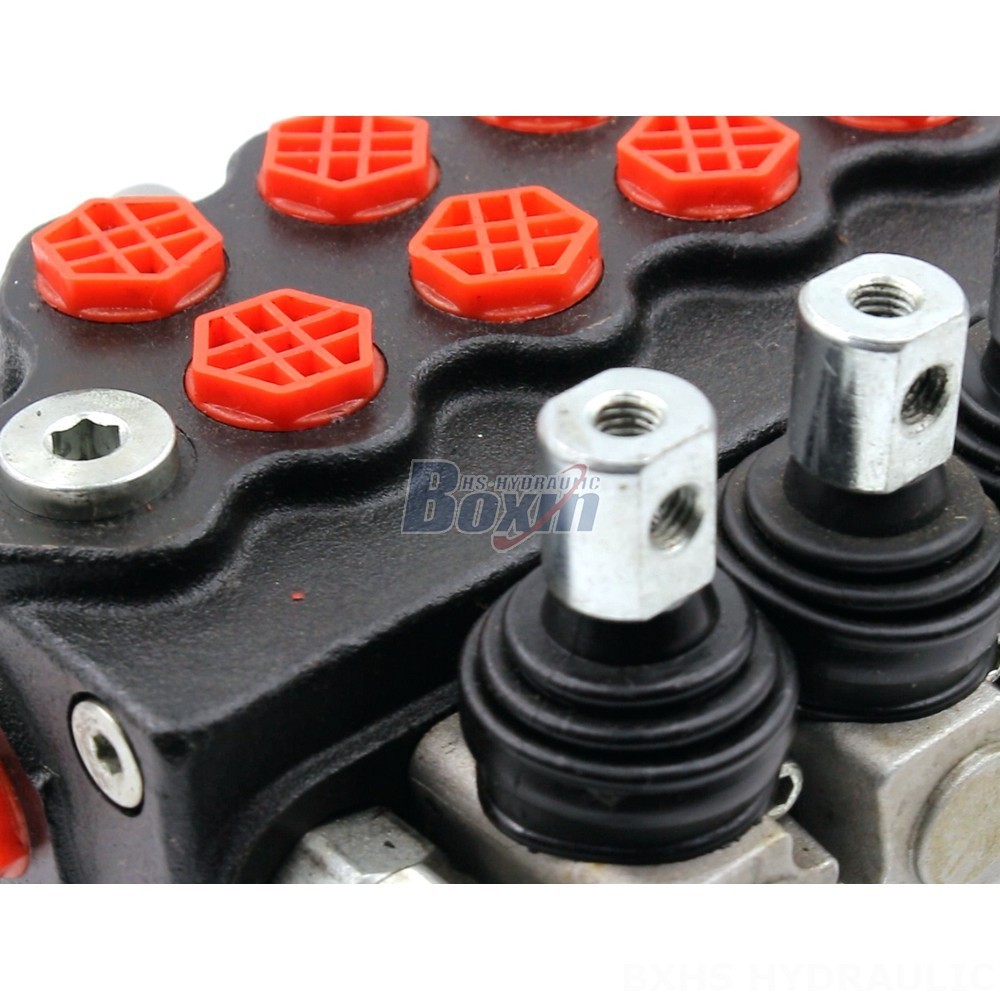

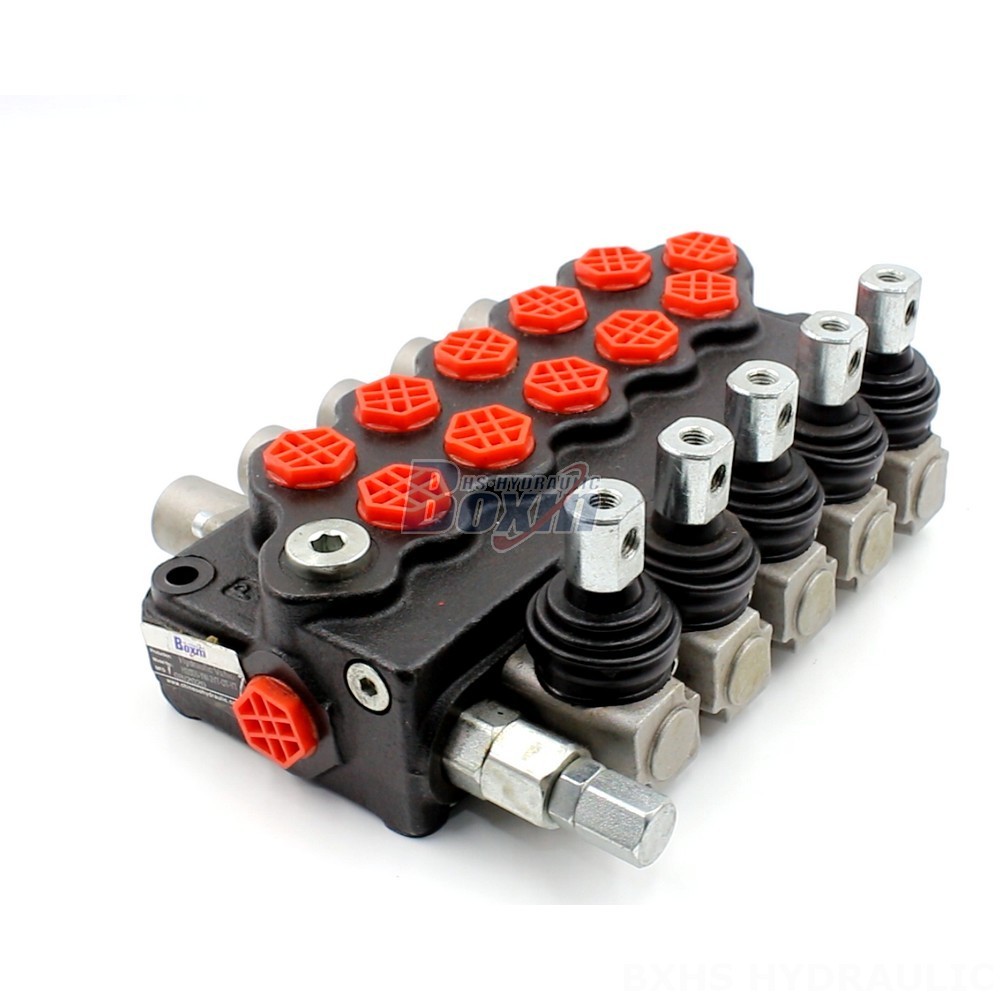

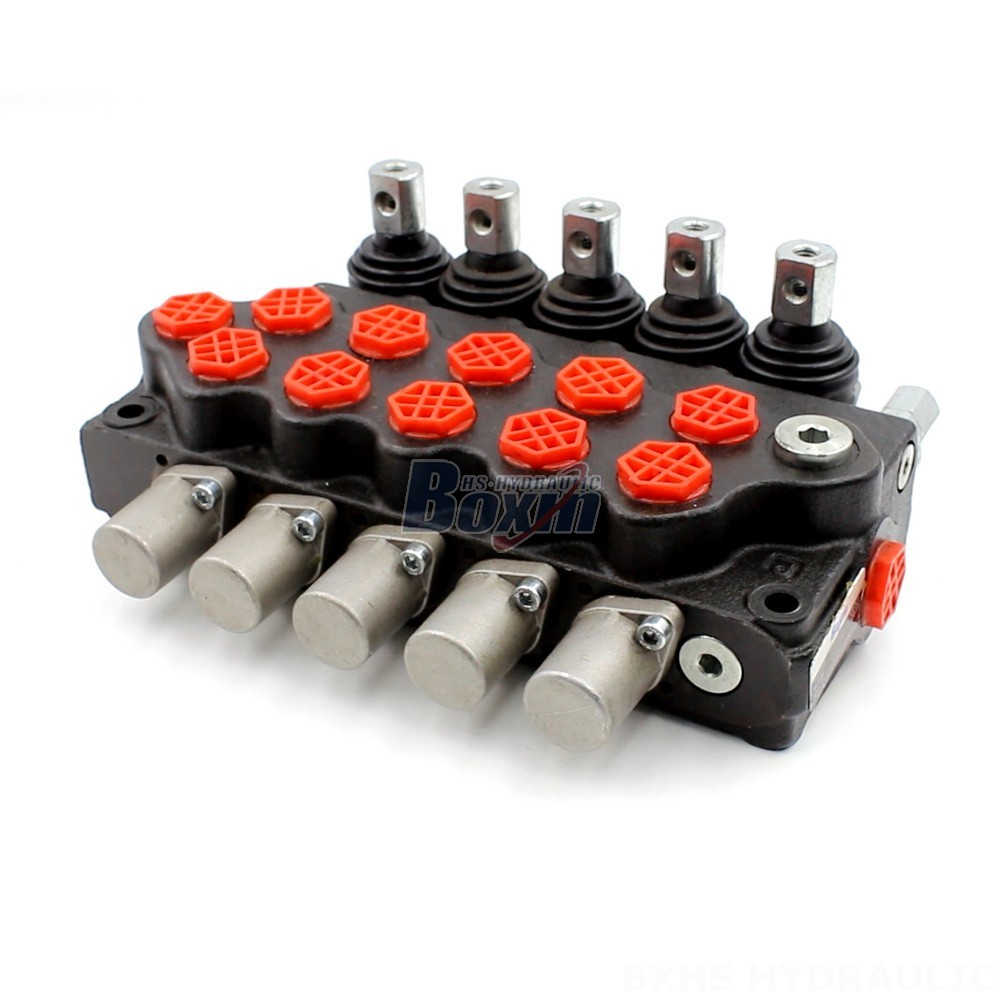

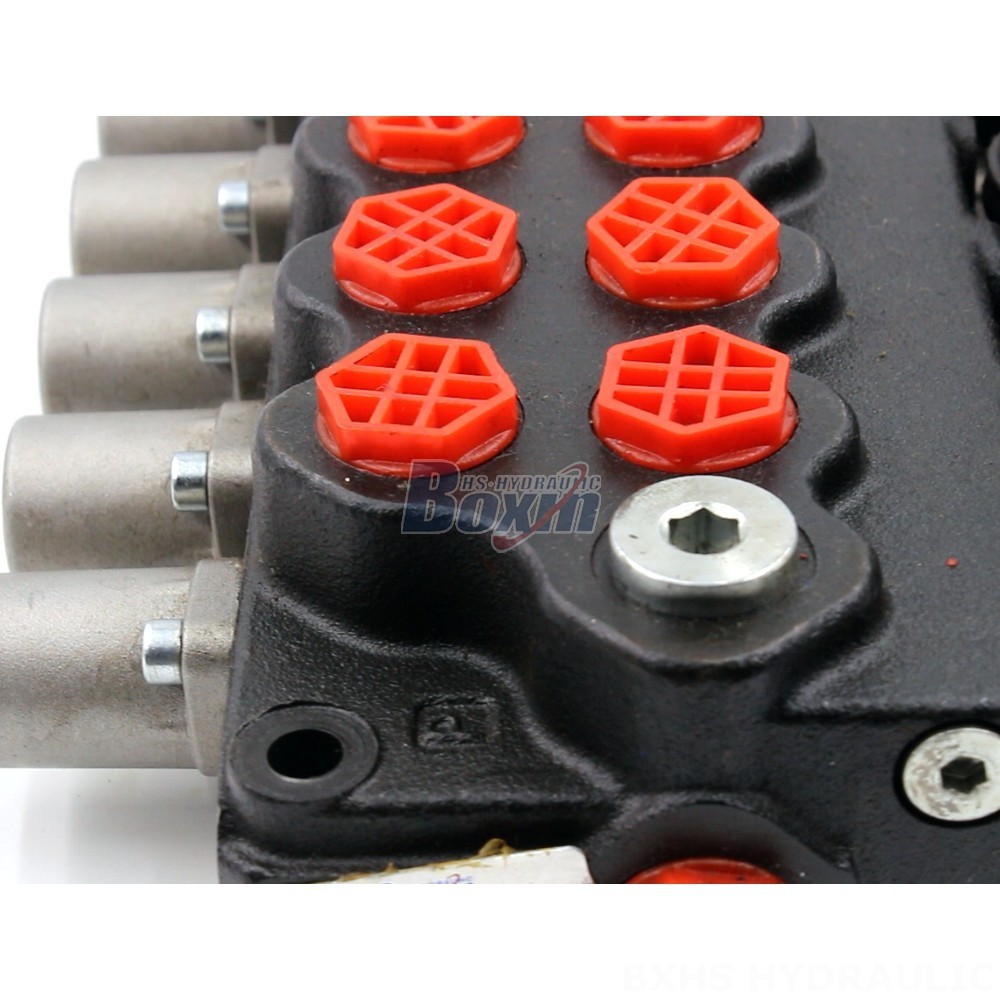

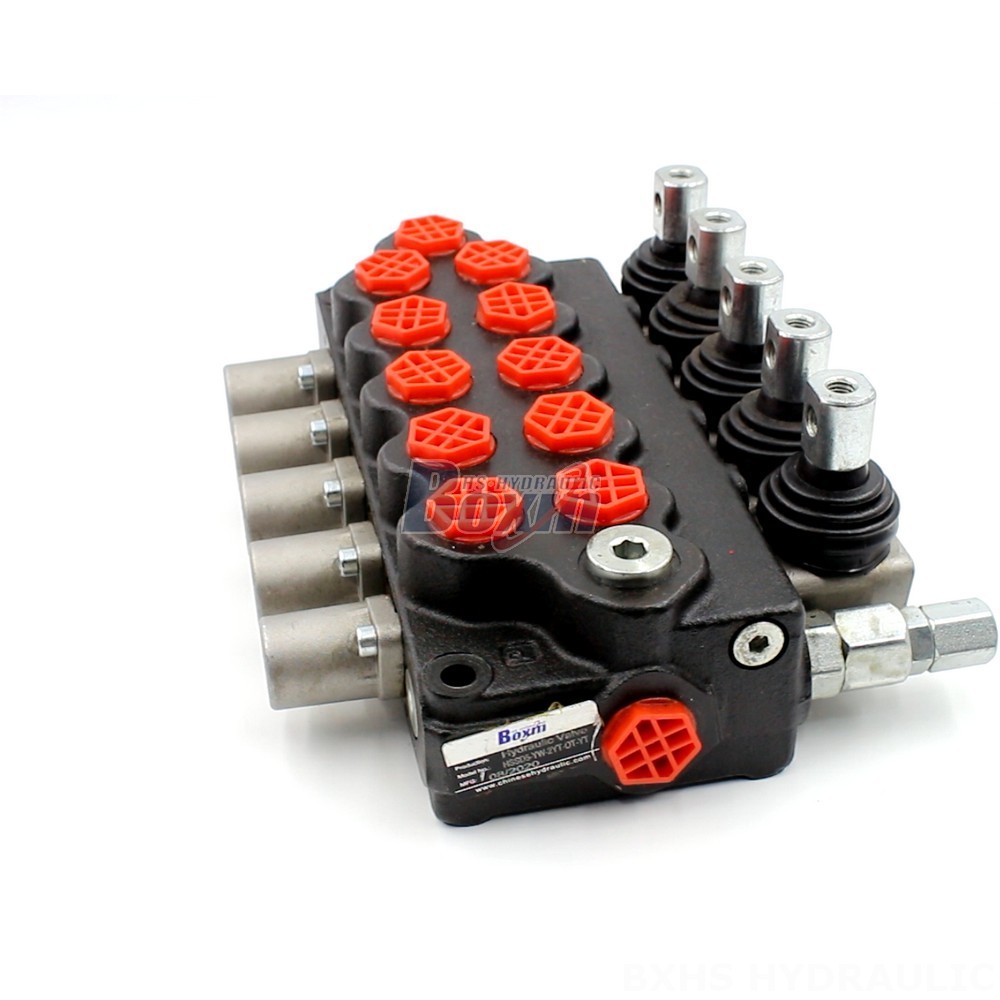

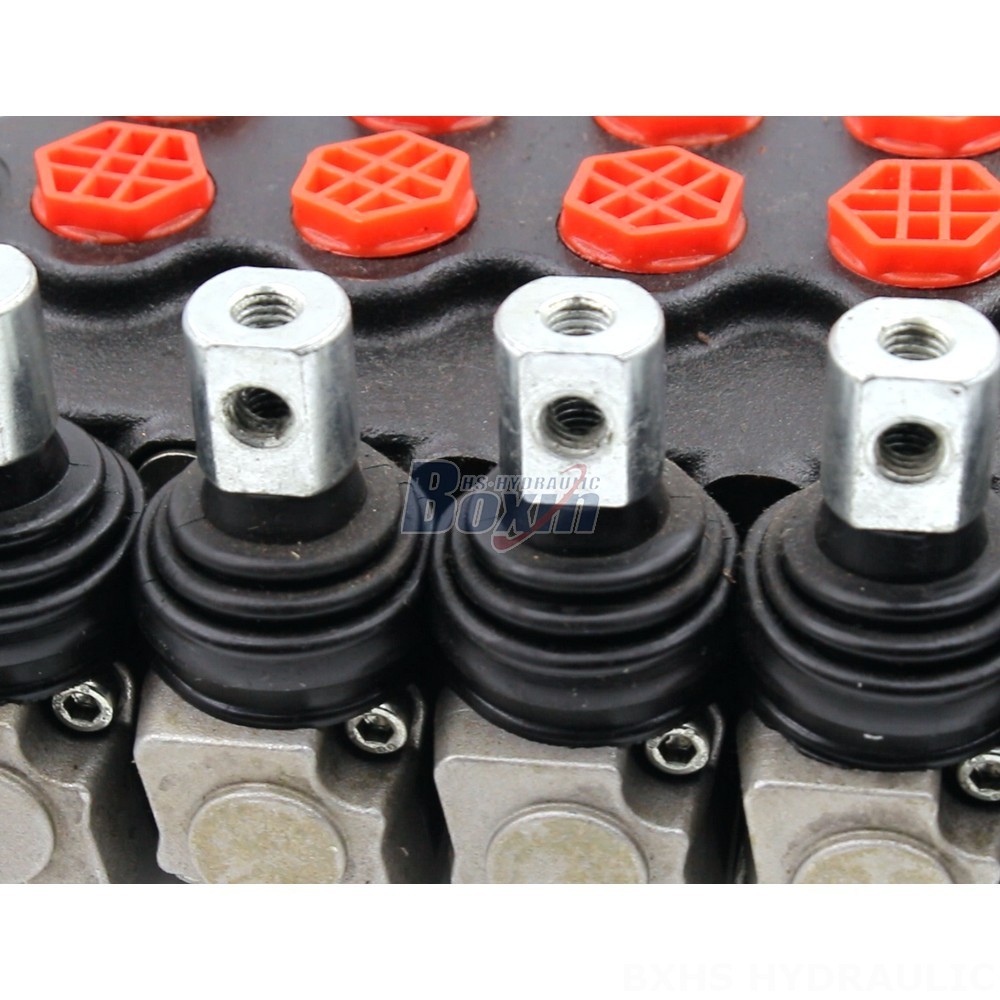

**Factory Wholesale Supply: SD5-G38 Hydraulic Valves from the Manufacturer**
Our SD5-G38 hydraulic valve boasts a 5-section design and a rated flow capacity of up to 40 L/min. Its robust construction ensures reliable operation at pressures up to 305 bar, making it suitable for demanding hydraulic systems. The valve operates efficiently within a wide viscosity range, guaranteeing consistent performance in diverse operating conditions.
As a leading manufacturer, we provide factory wholesale prices, ensuring cost-effectiveness. Our commitment to quality and precision ensures that each valve meets the highest standards. Whether you require OEM, ODM, or custom solutions, our experienced team is dedicated to delivering tailored hydraulic valves to meet your specific requirements.
**Key Features:**
- Manual control for precise valve operation
- 5-section design for versatile functionality
- Monoblock construction for enhanced durability and reduced leakage
- Rated flow capacity of 40 L/min (10.5 US gpm)
- Max pressure of 305 bar (4400 psi)
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient temperature range of -40°C to +60°C (-40°F to +140°F)
- 5 spool configuration
- Suitable for a wide range of applications including material handling, construction, agriculture, and industrial vehicles
Contact us today to discuss your hydraulic valve requirements and experience the benefits of partnering with a reliable manufacturer.
