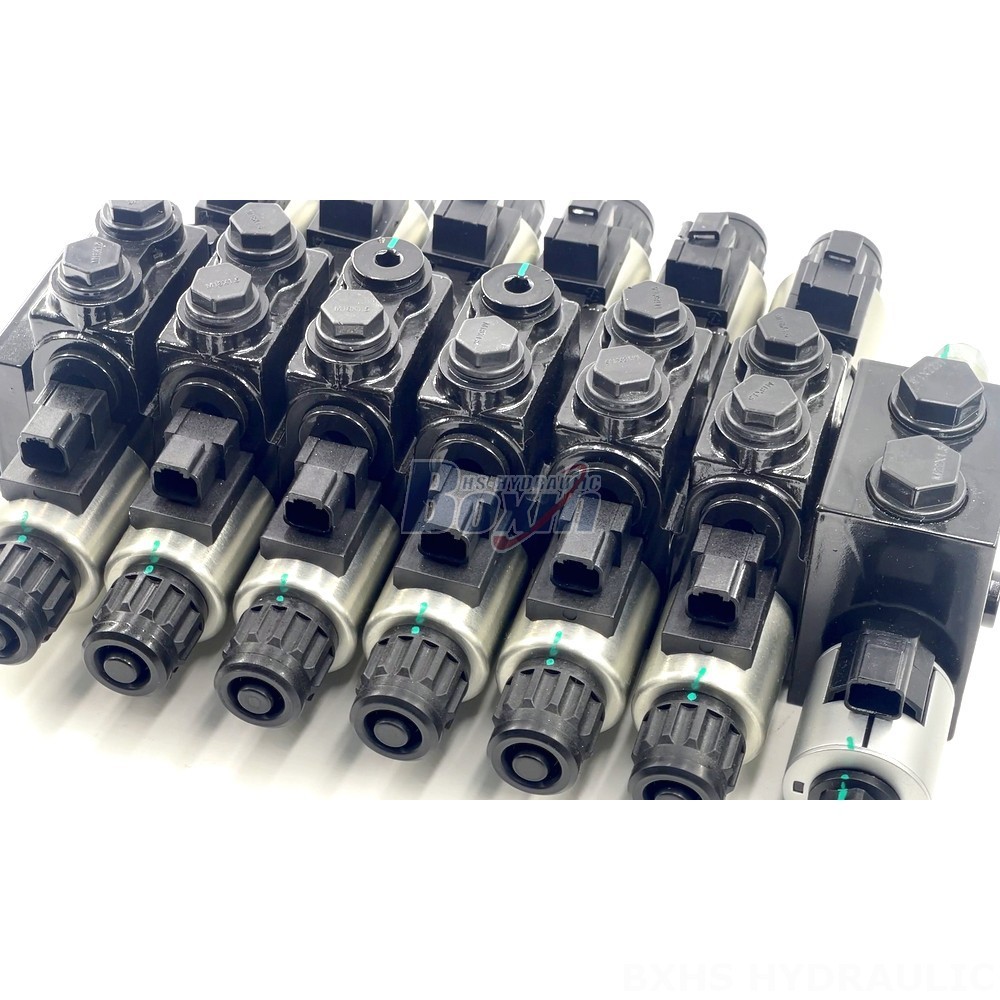

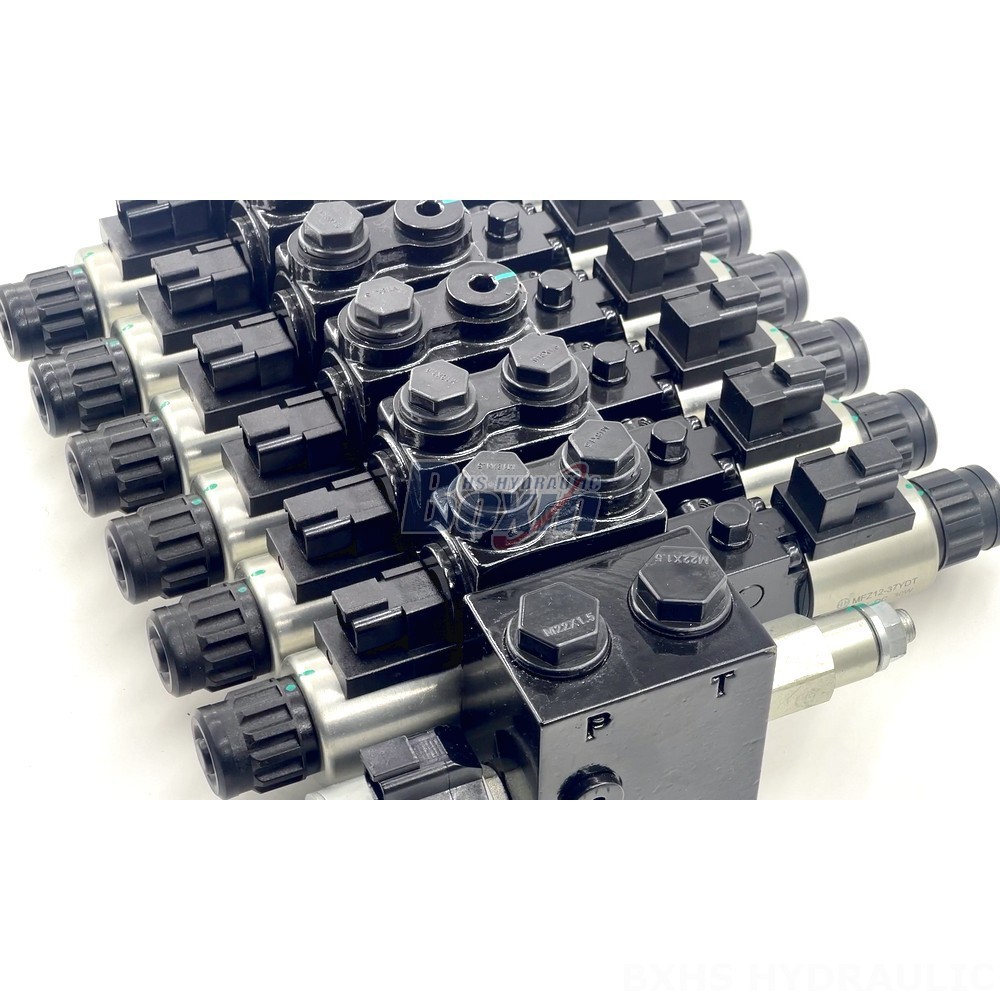

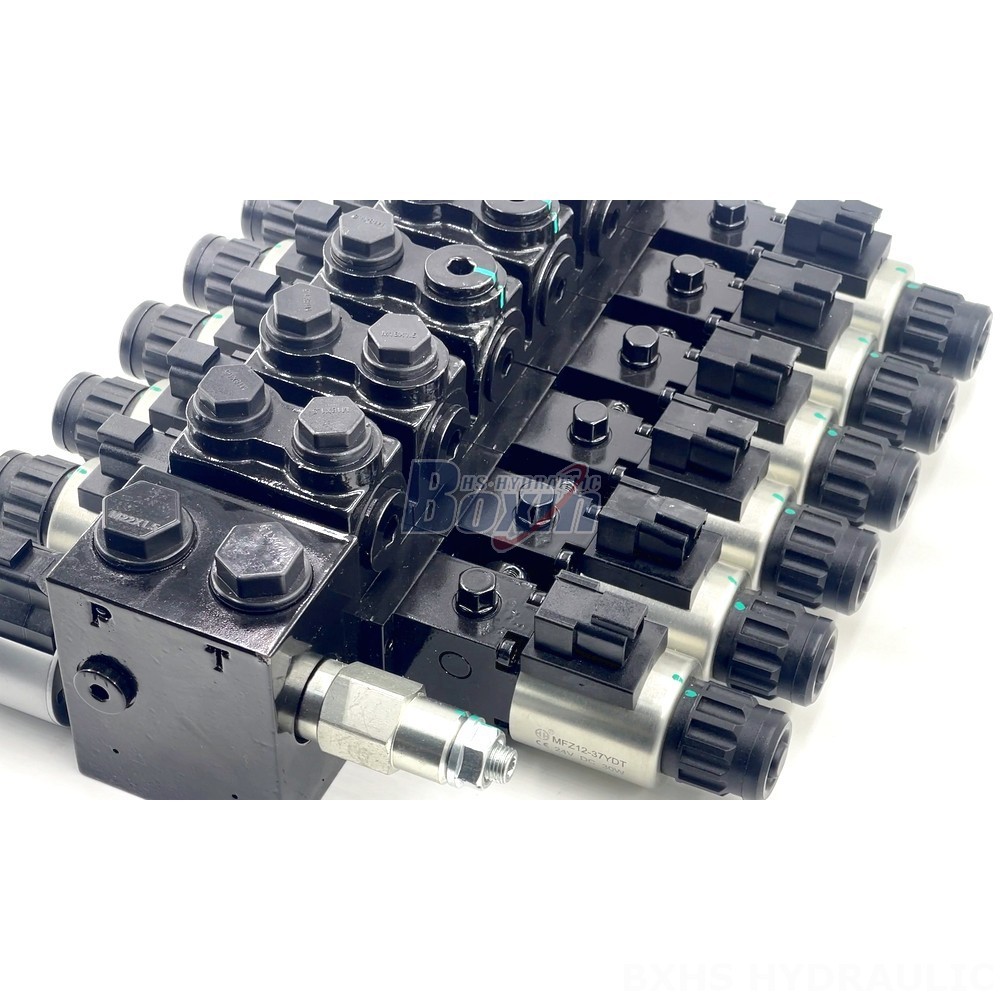

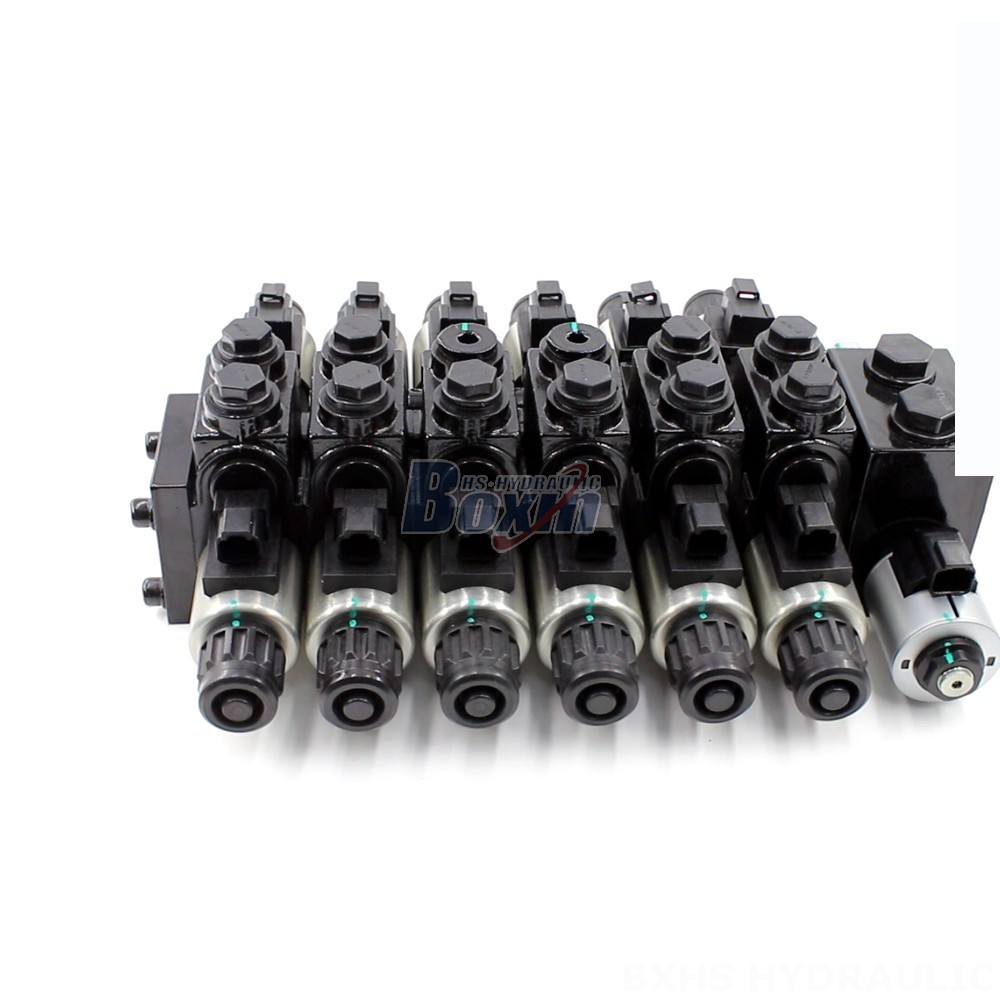

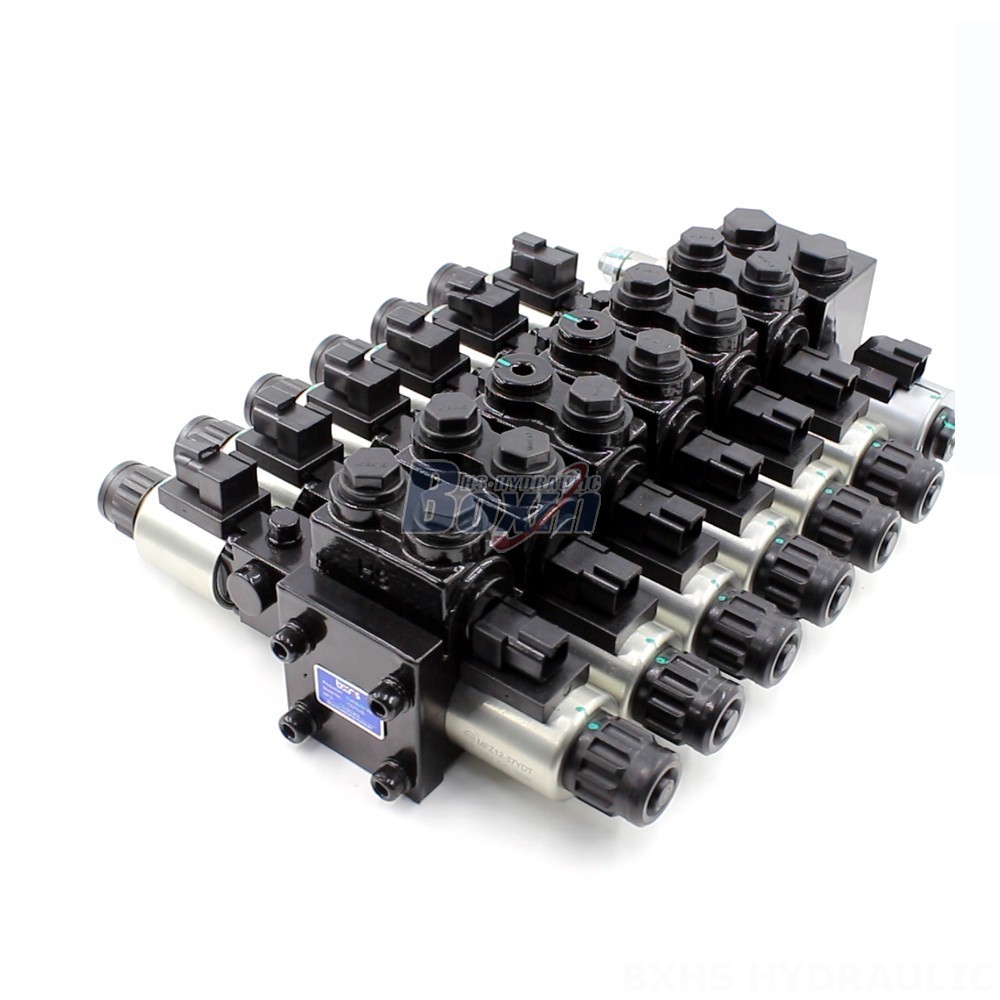

The HDCF50 Series Double Acting Hydraulic Solenoid Valve is a high-performance, reliable valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This sectional valve features a 6-spool design, offering precise control and efficient operation. With a rated flow of 50 L/min (13.2 US gpm) and a maximum pressure of 160 bar (2300 psi), the HDCF50 valve is ideal for demanding environments.
| Série HDCF50 Válvula de controle solenóide Parâmetros | |
|---|---|
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis |
| Método de Controle | Solenoide |
| Tamanho da Porta | M22×1.5, SAE 8 |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções |
| Intervalo de temperatura ambiente | -20°C a +80°C (-4°F a +176°F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Porta de Saída | M18×1.5, M22×1.5, SAE 8 |
| Pressão Máxima | 160 bar (2300 psi) |
| Fluxo Nominal | 50 L/min (13,2 US gpm) |
| Tipo de estrutura | Válvula seccional |
| Porta de Entrada | M18×1.5, M22×1.5, SAE 8 |
The HDCF50 Series Double Acting Hydraulic Solenoid Valve is a robust and versatile solution for controlling hydraulic systems. Its sectional valve design allows for easy assembly and maintenance. The valve features a 6-spool configuration, providing precise control of hydraulic functions. With a rated flow of 50 L/min (13.2 US gpm) and a maximum pressure of 160 bar (2300 psi), the HDCF50 valve is capable of handling high flow rates and demanding applications. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures reliable performance across a variety of hydraulic fluids. Designed for durability, the valve operates within an ambient temperature range of -20°C to +80°C (-4°F to +176°F). Available in 12V and 24V configurations, the HDCF50 valve is compatible with various electrical systems. The valve is ideal for use in a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and backhoe loaders.
