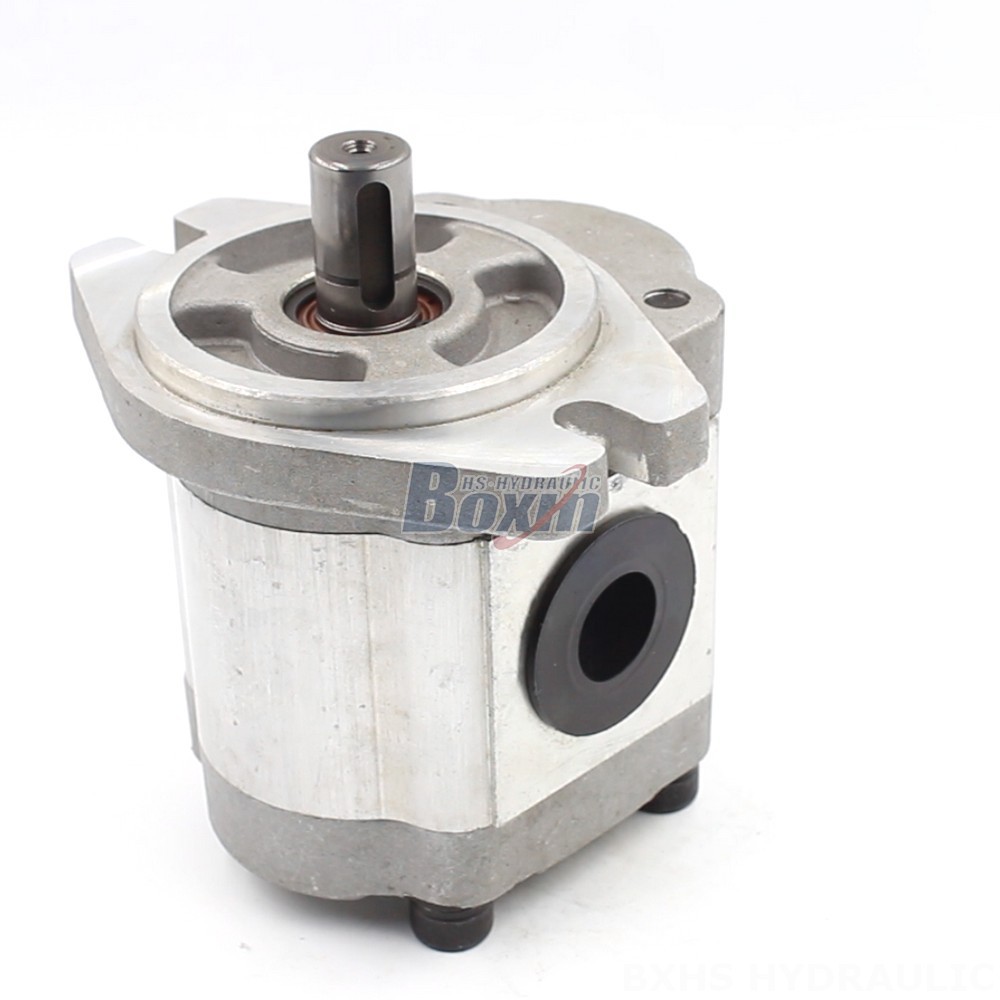

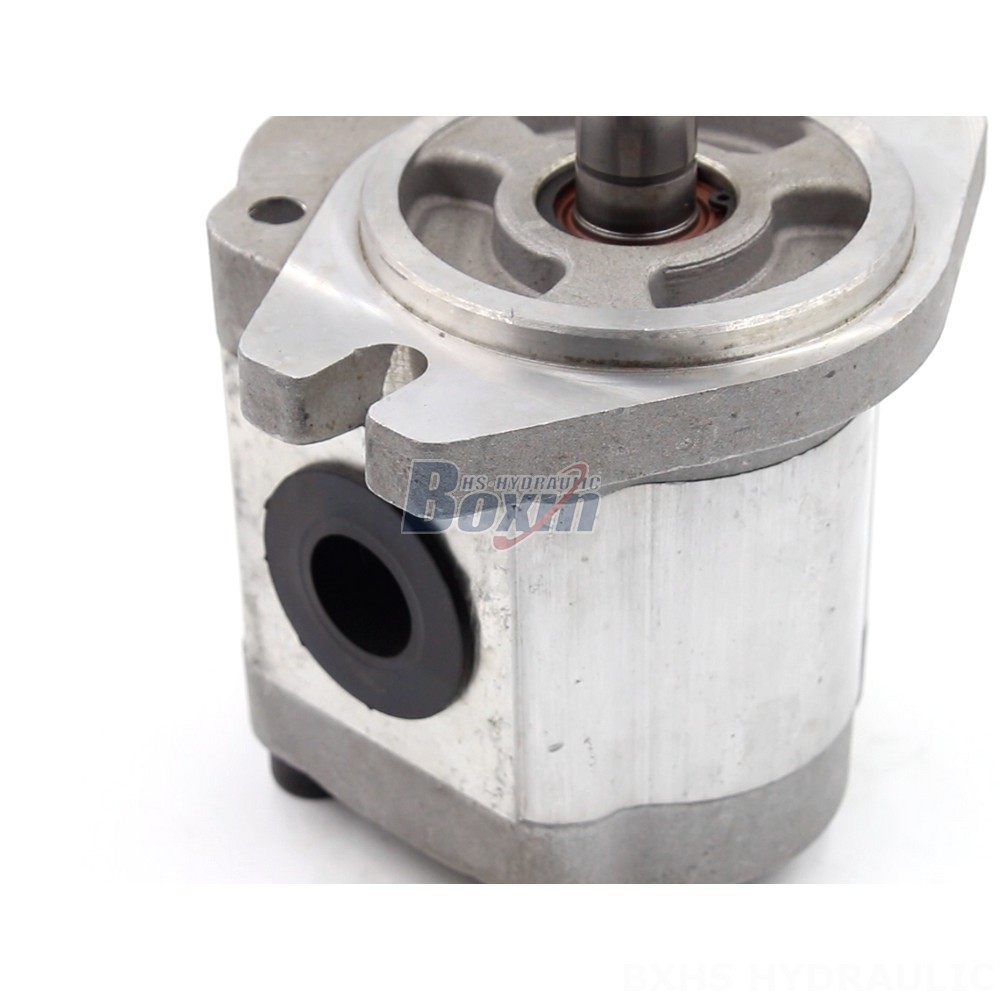

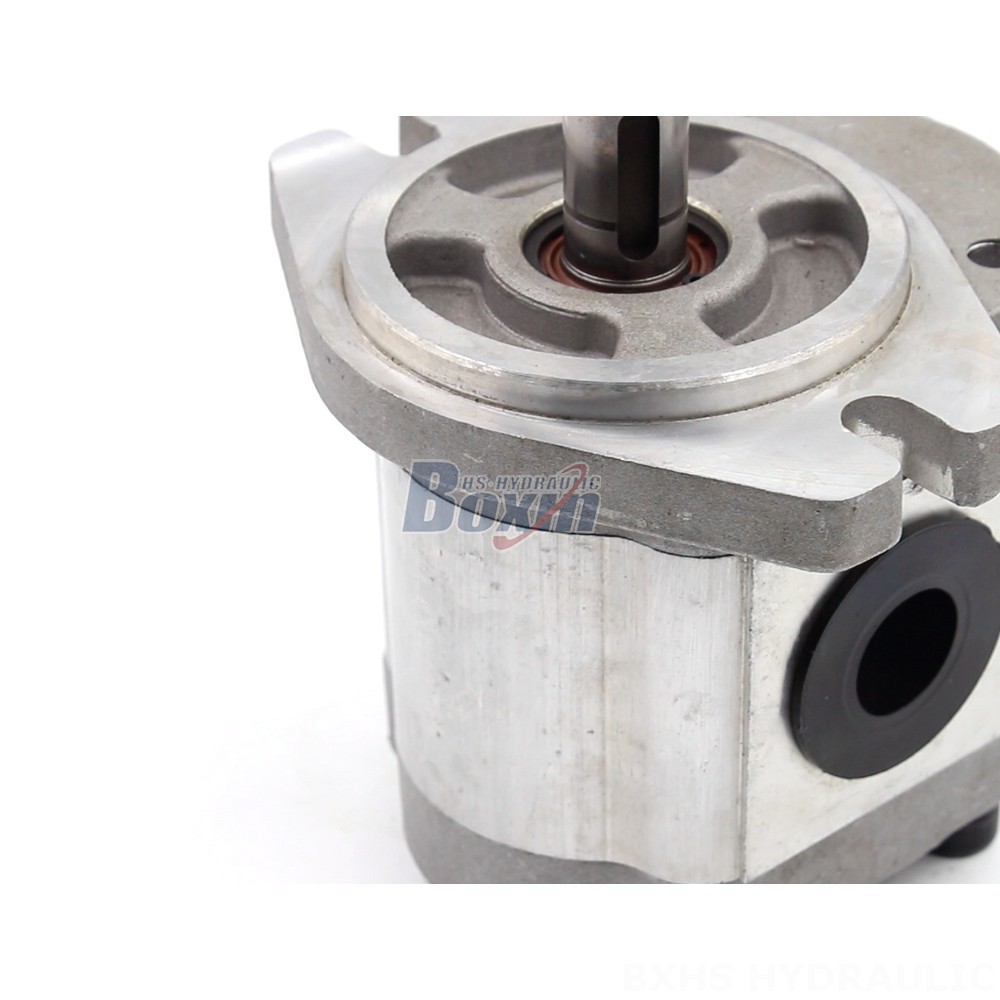

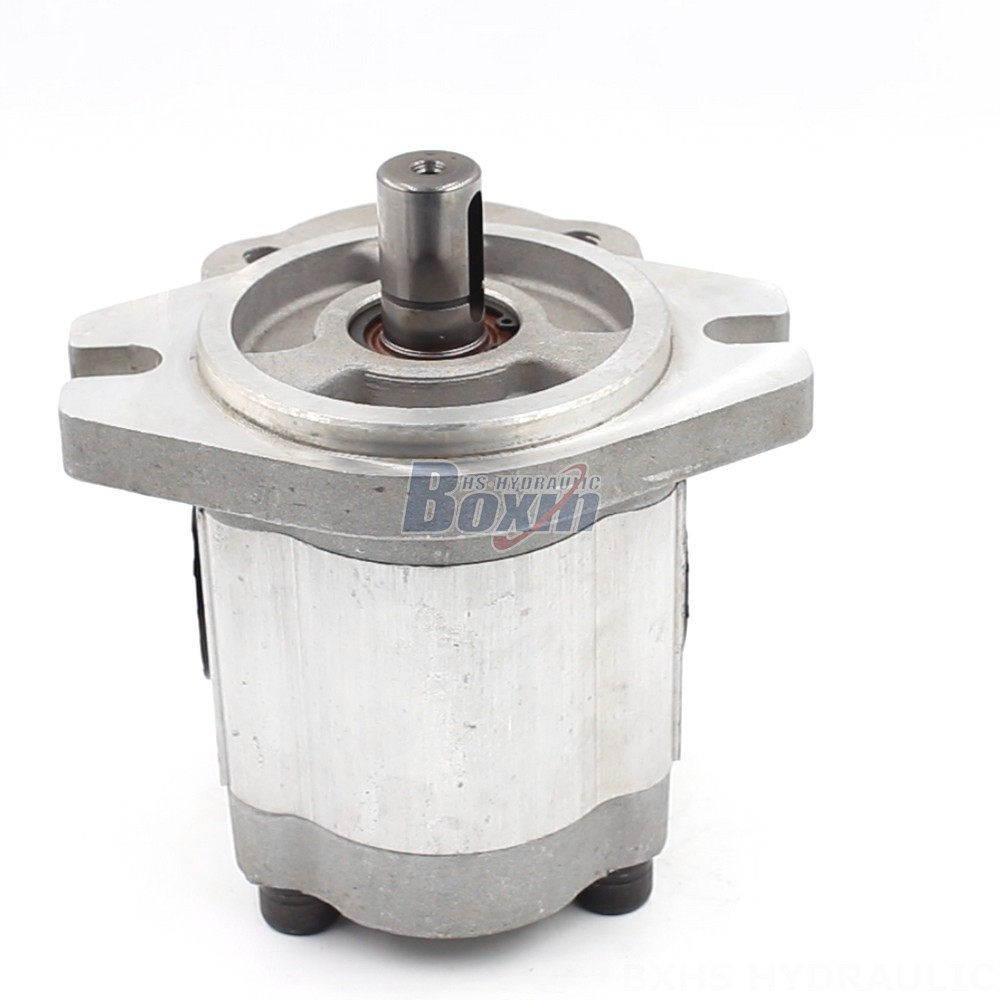

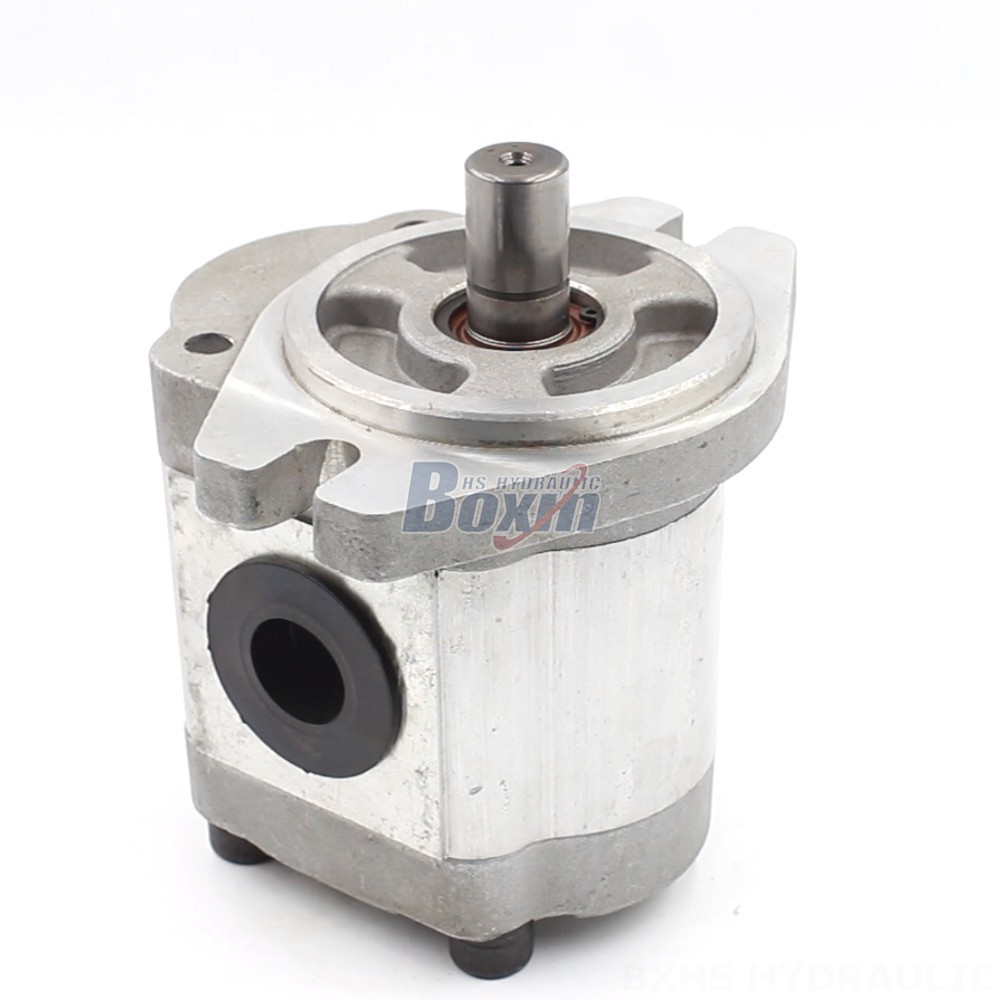

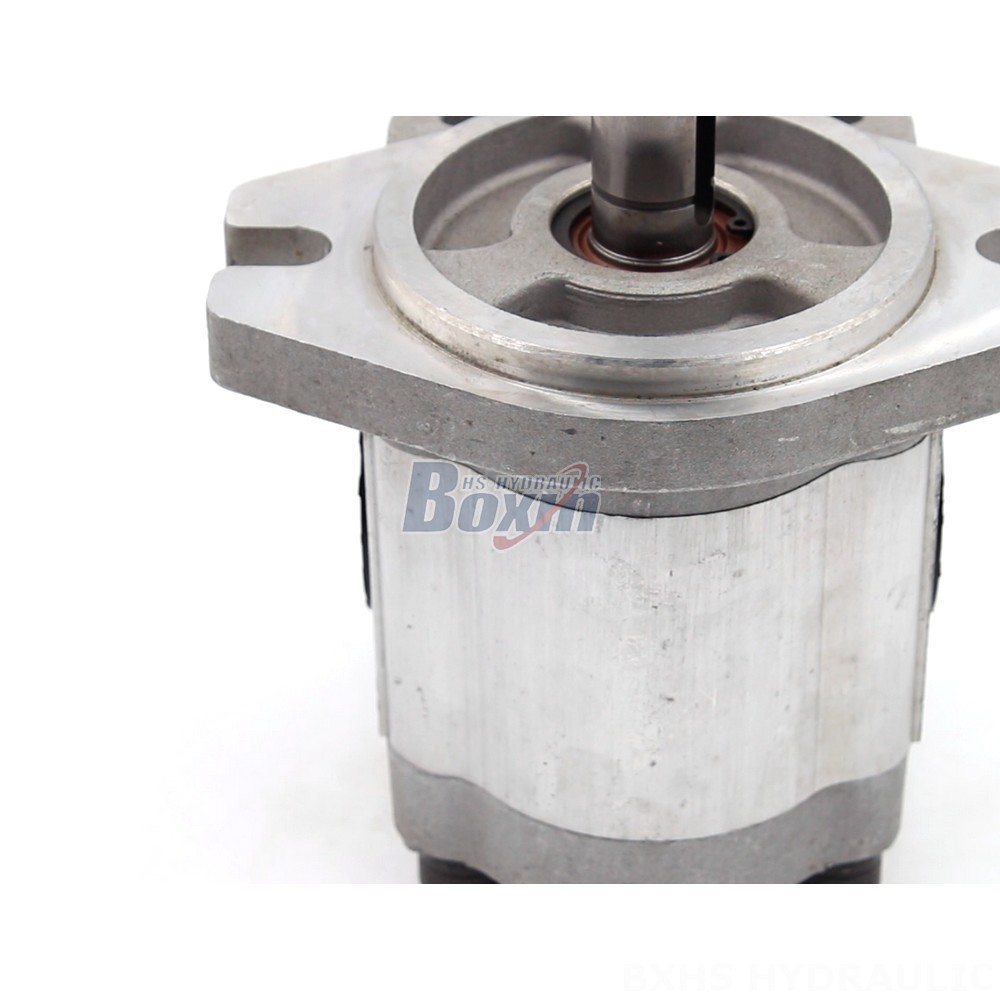

This high-performance, 14 cc/rev hydraulic gear pump is manufactured directly from our factory and is ideal for various applications in material handling, construction, earth moving, agriculture, and industrial vehicles. With a durable aluminium construction and A-oval flange, this pump is built to last and perform reliably in demanding environments.
| Série CBHS-FL3 Bomba de engrenagem hidráulica Parâmetros | |
|---|---|
| Deslocamento | 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Pressão Nominal | 20 MPa (2900 psi) |
| Pressão Máxima | 25 MPa (3625 psi) |
| Velocidade Nominal | 2000 rpm |
| Velocidade Máxima | 3000 rpm |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Material | Alumínio |
| Estrutura | Bomba de engrenagem externa |
| Versão da flange | Flange oval A |
| Tipo de veio | H: Chaveta retangular, X: Chaveta involuta, P: Chave Simples |
This robust hydraulic gear pump delivers exceptional performance with a displacement of 14 cc/rev. It is designed for high-pressure applications, boasting a rated pressure of 20 MPa (2900 psi) and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump features an internal gear design and is constructed from durable aluminium. It comes with an A-oval flange and a plain key shaft, making it compatible with a wide range of applications. This versatile pump is part of the CBHS-FL3 series and is specifically designed for use in forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors. Its high performance and reliability make it a suitable choice for various industries including material handling, construction, earth moving, agriculture, and industrial vehicles.
