Produção e Entrega
Prazo de produção de 15 a 30 dias
1145 Visualizações estão procurando por este produto

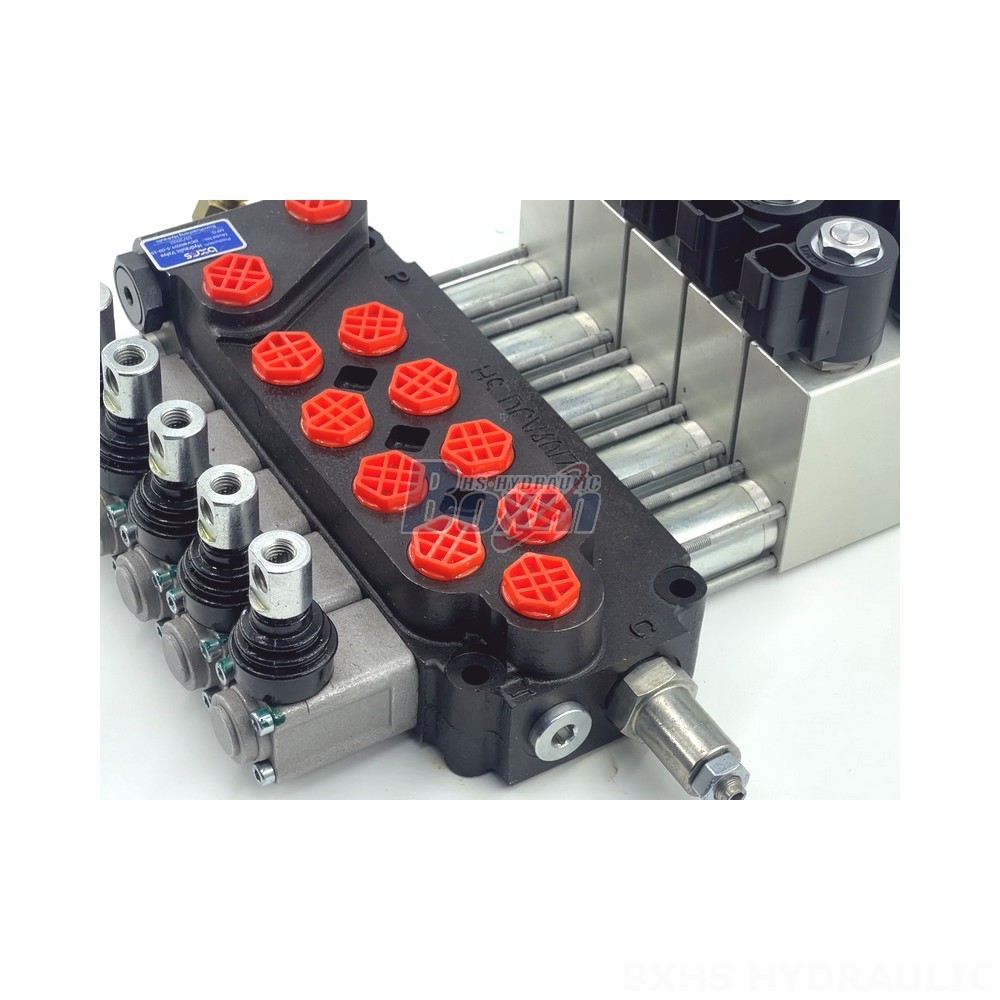

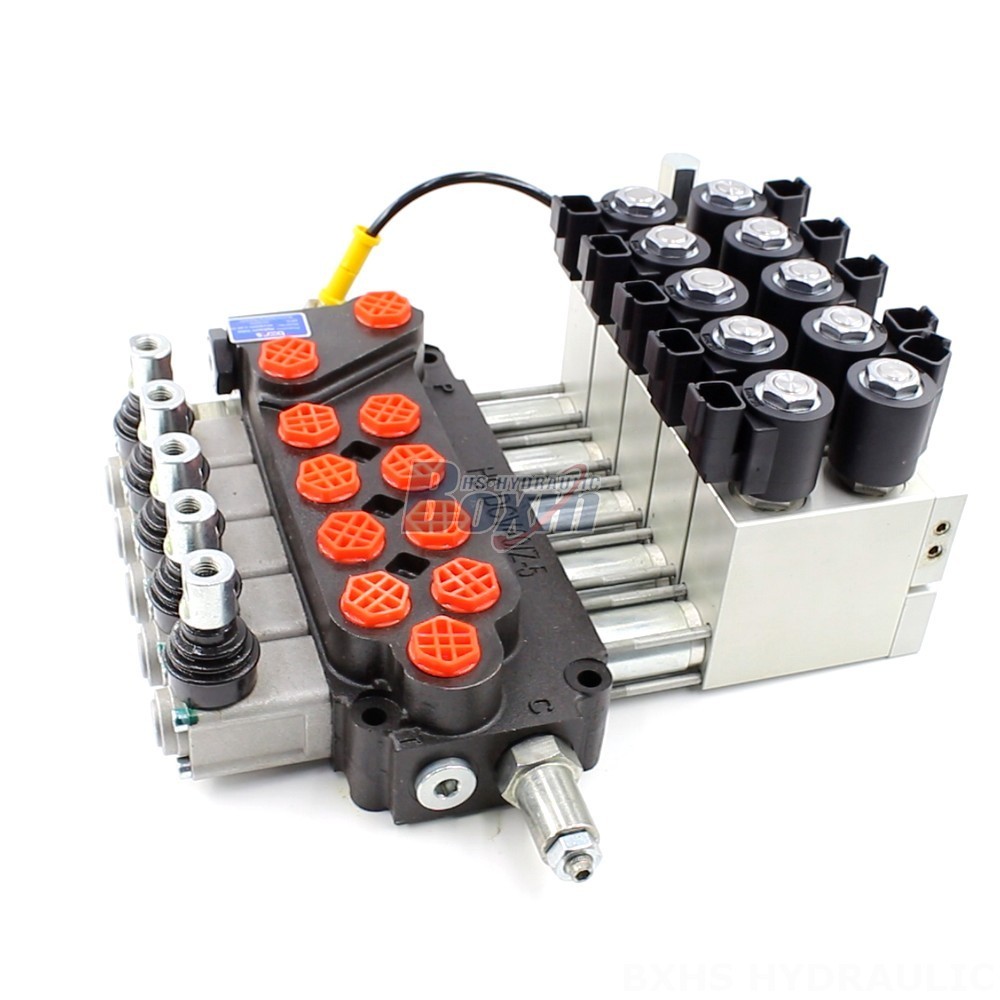

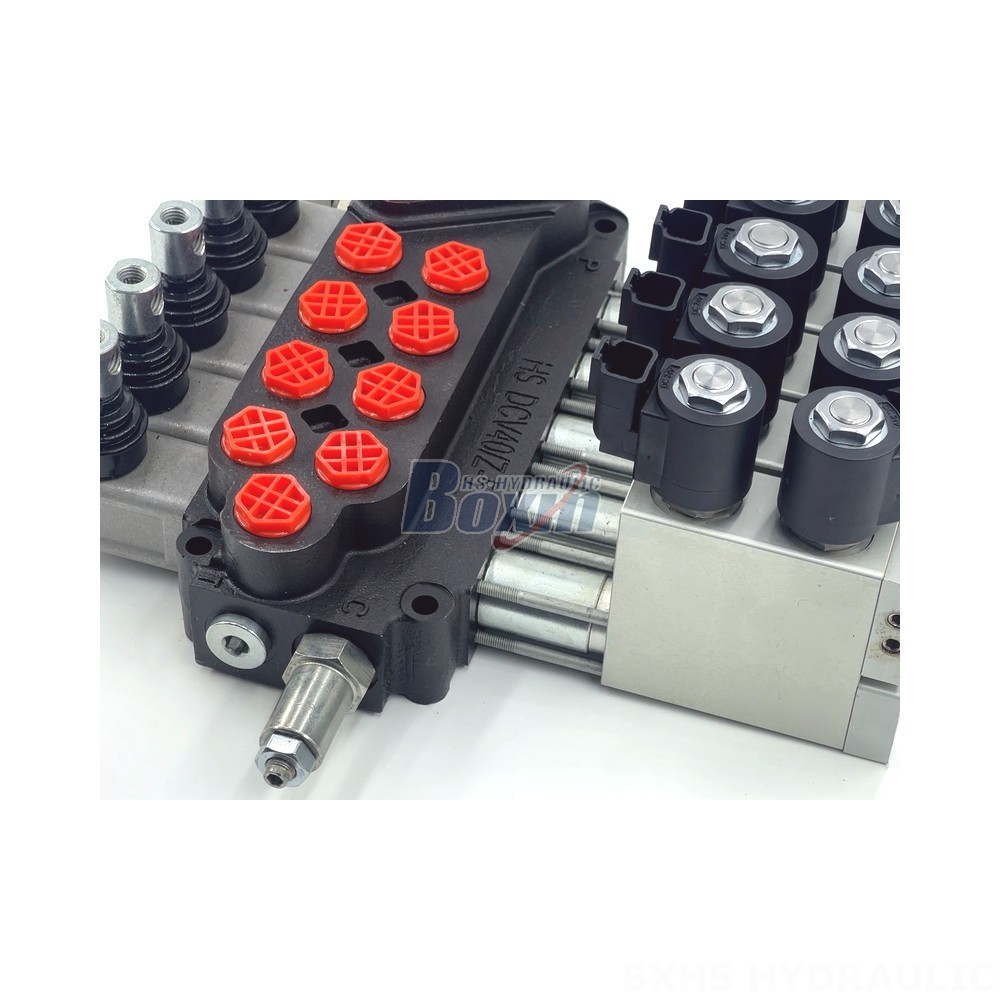

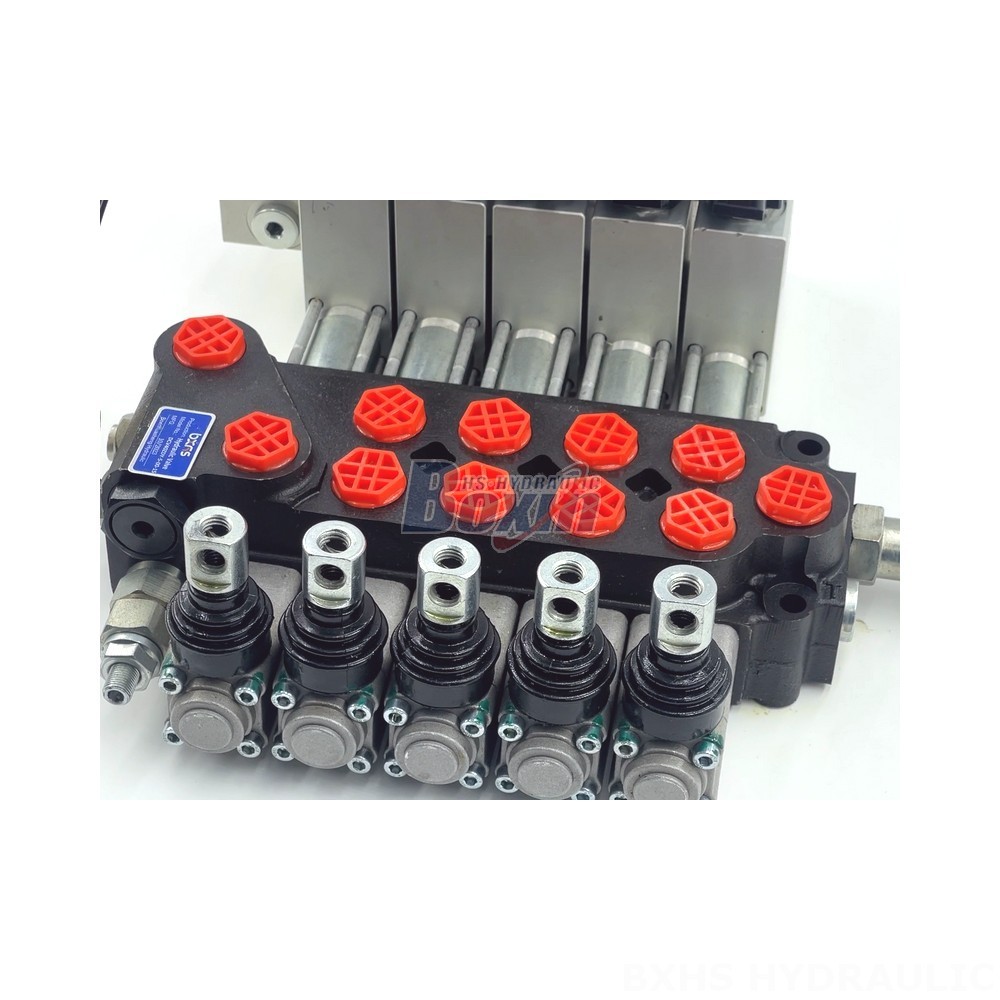

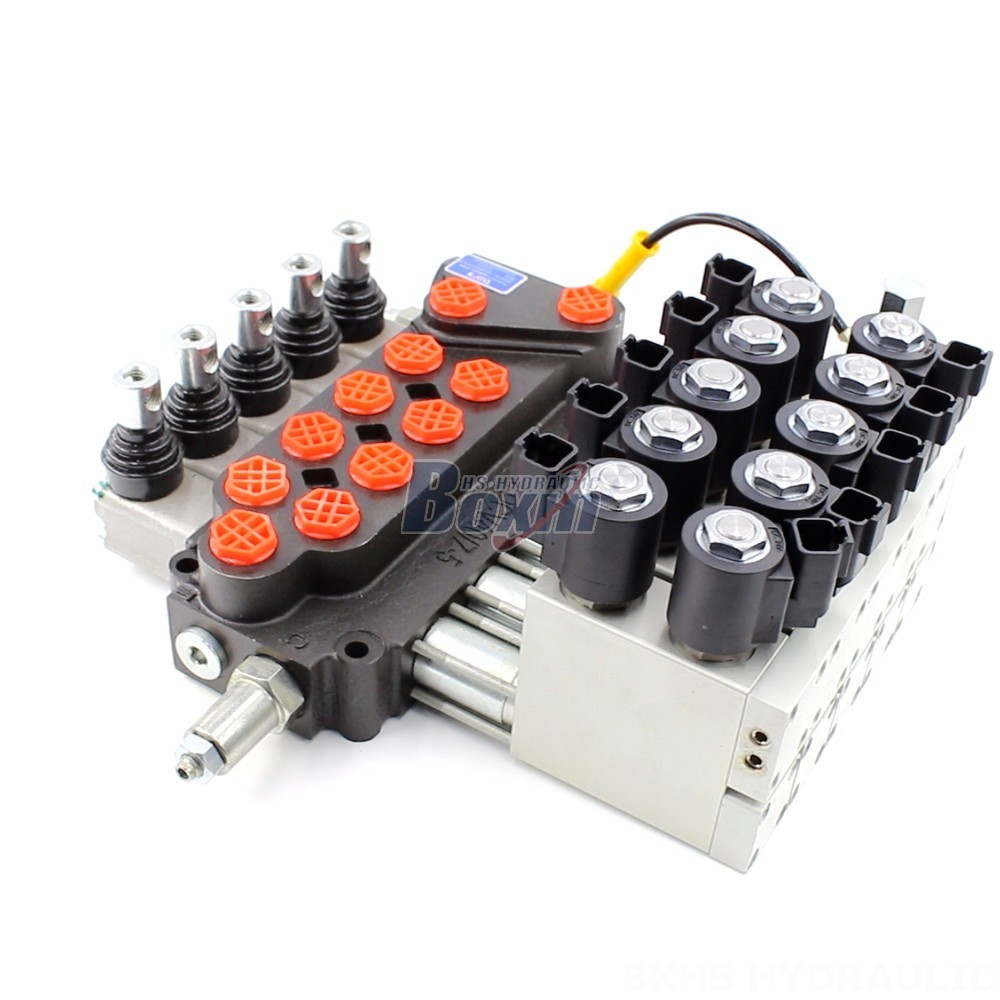

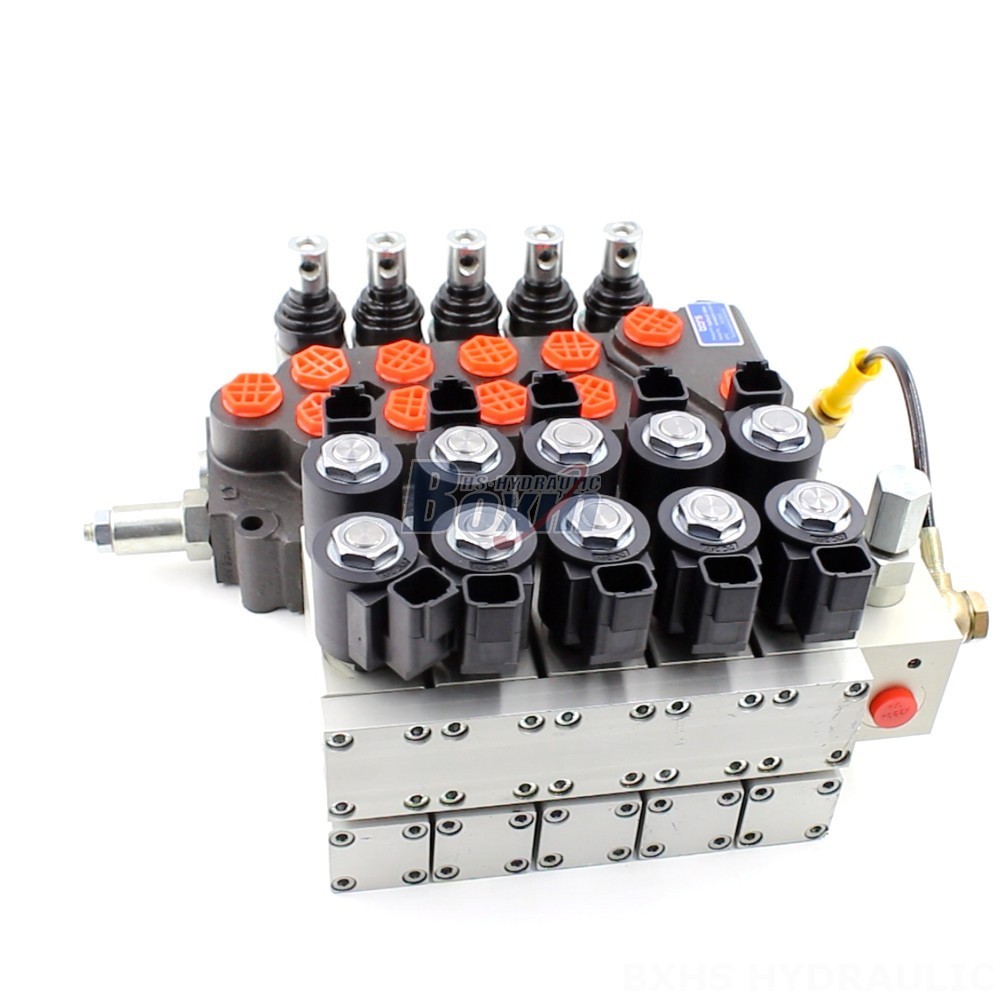

The DCV40Z Series hydraulic valve is a high-performance, 5-section, monoblock valve designed for demanding hydraulic applications in various industries like material handling, construction, and agriculture. With a rated flow of 40 L/min and a maximum pressure of 350 bar, it's suitable for telehandlers, forklifts, cranes, and more.
| Série DCV40Z Válvula de Controle de Estabilizadores Parâmetros | |
|---|---|
| Método de Controle | Manual, Eletrohidráulico, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 350 bar (5100 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The DCV40Z is a high-performance, electro-hydraulically controlled hydraulic valve designed for demanding applications. This 5-section monoblock valve features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 350 bar (5100 psi), making it ideal for a wide range of mobile equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. The DCV40Z is engineered for reliable operation in demanding environments, with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). Its robust design ensures long-lasting performance in various industries like material handling, construction, and agriculture.
