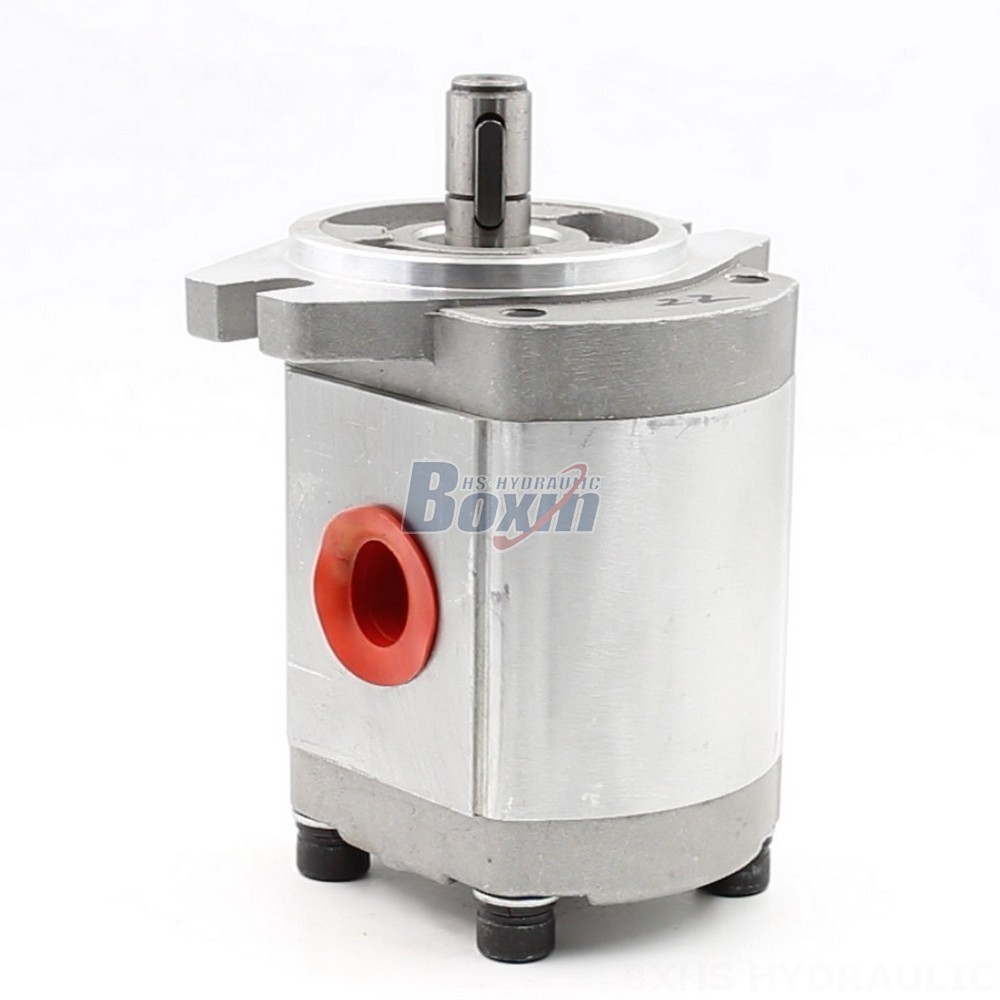

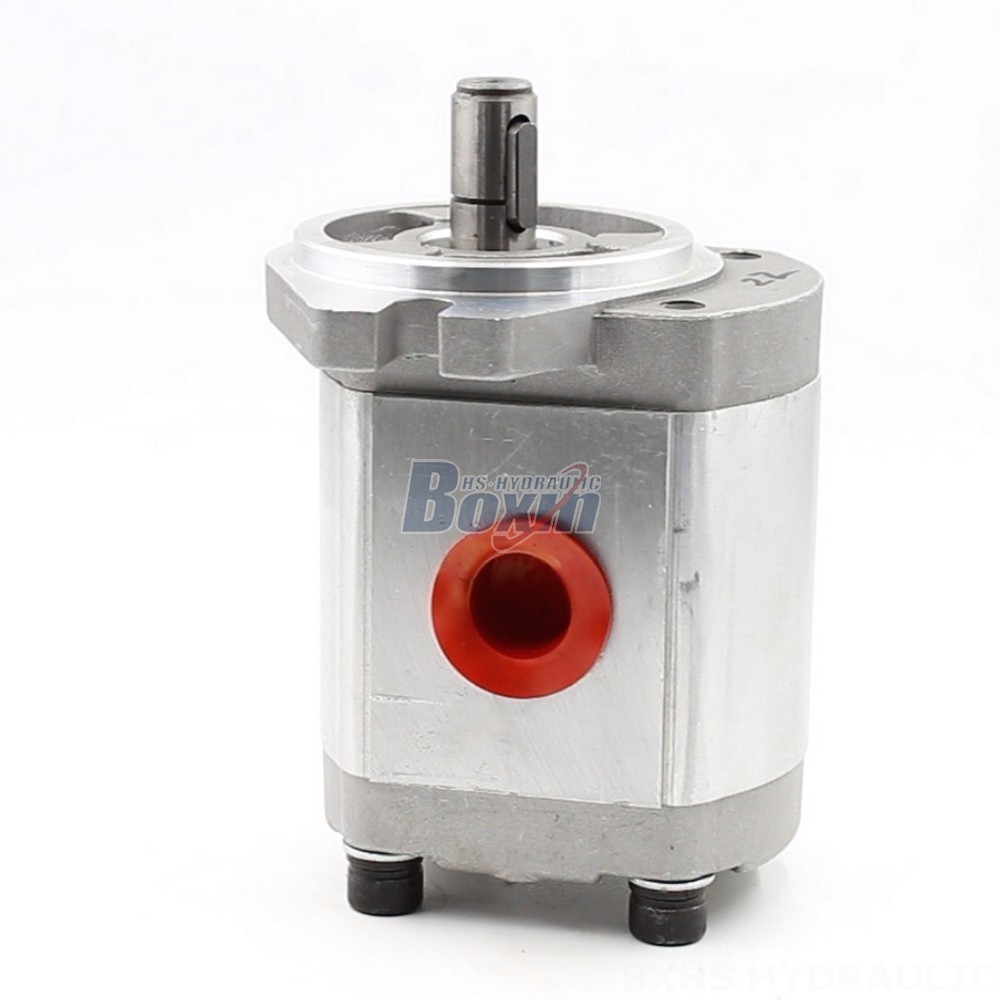

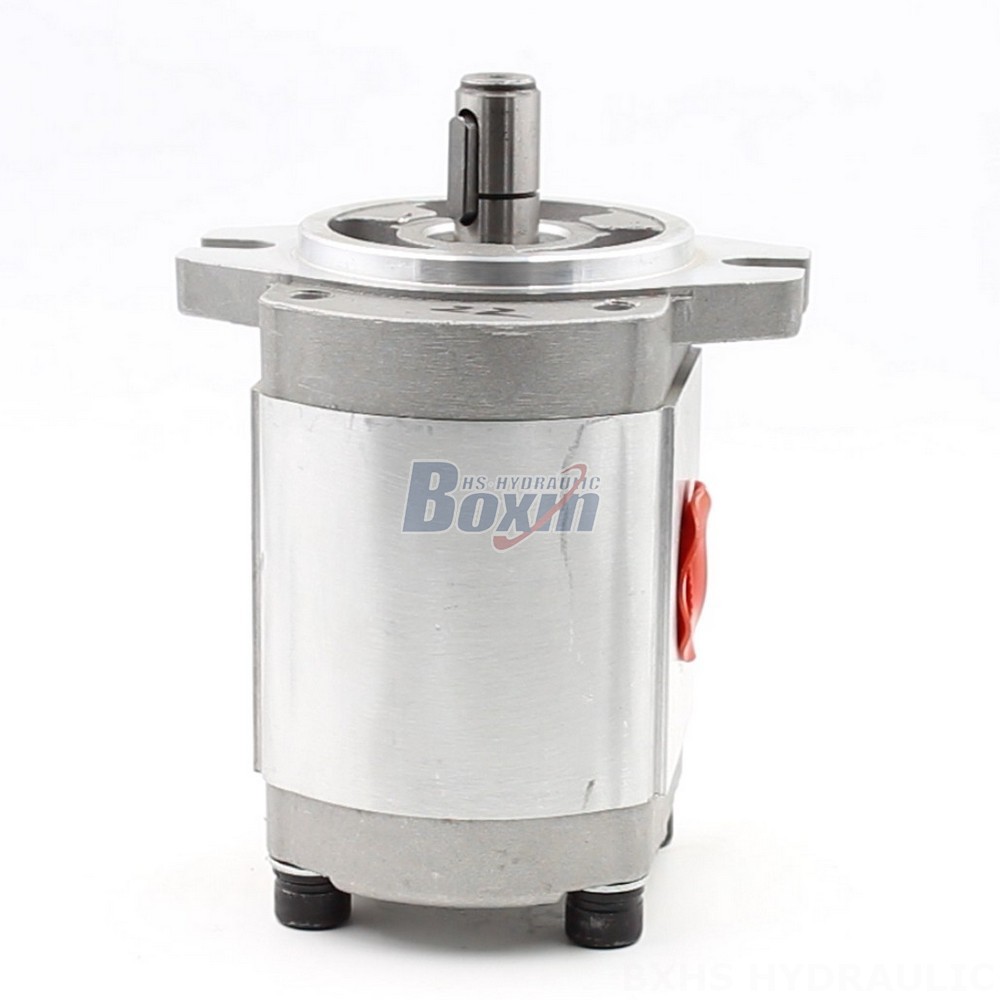

The CBHS-FL304 is a high-performance hydraulic gear pump with a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and rated speed of 2000 r/min. This pump is ideal for a wide range of applications, including construction equipment, agriculture equipment, and industrial vehicles.
| Série CBHS-FL3 Bomba de engrenagem hidráulica Parâmetros | |
|---|---|
| Deslocamento | 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Pressão Nominal | 20 MPa (2900 psi) |
| Pressão Máxima | 25 MPa (3625 psi) |
| Velocidade Nominal | 2000 rpm |
| Velocidade Máxima | 3000 rpm |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Material | Alumínio |
| Estrutura | Bomba de engrenagem externa |
| Versão da flange | Flange oval A |
| Tipo de veio | H: Chaveta retangular, X: Chaveta involuta, P: Chave Simples |

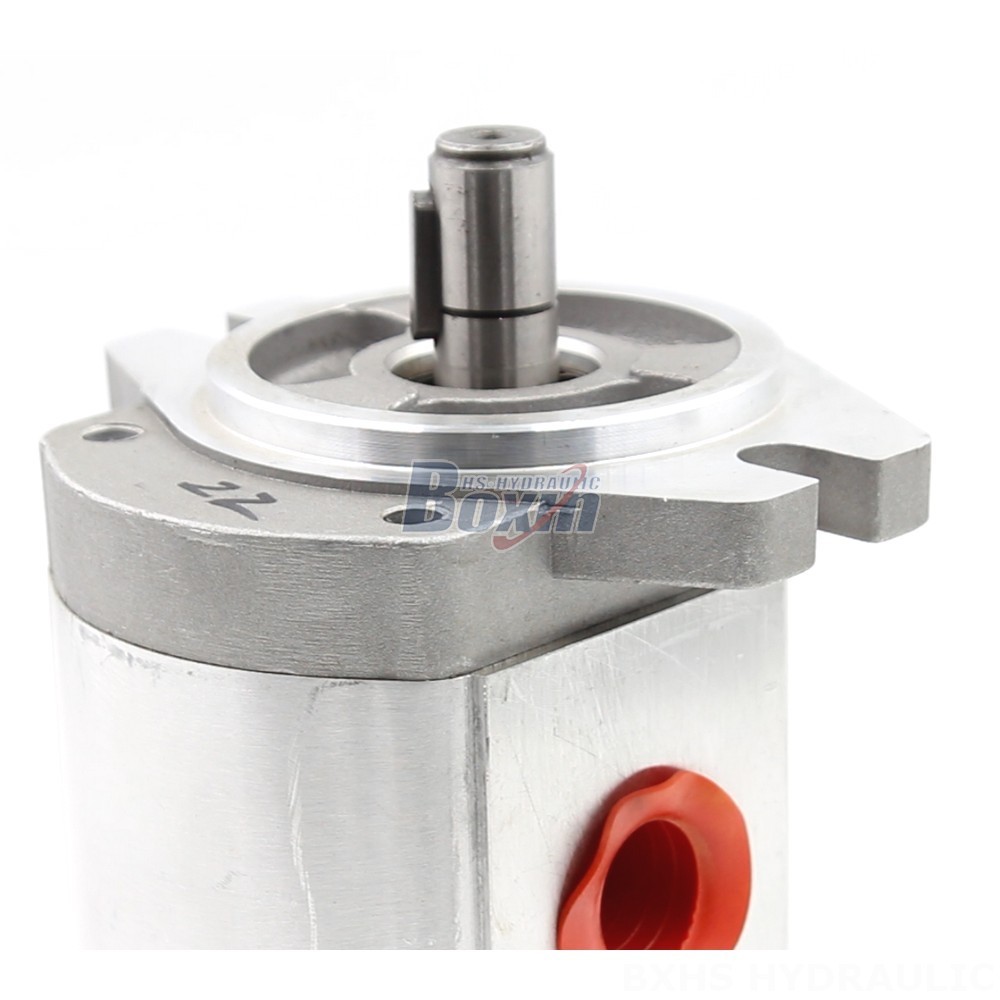

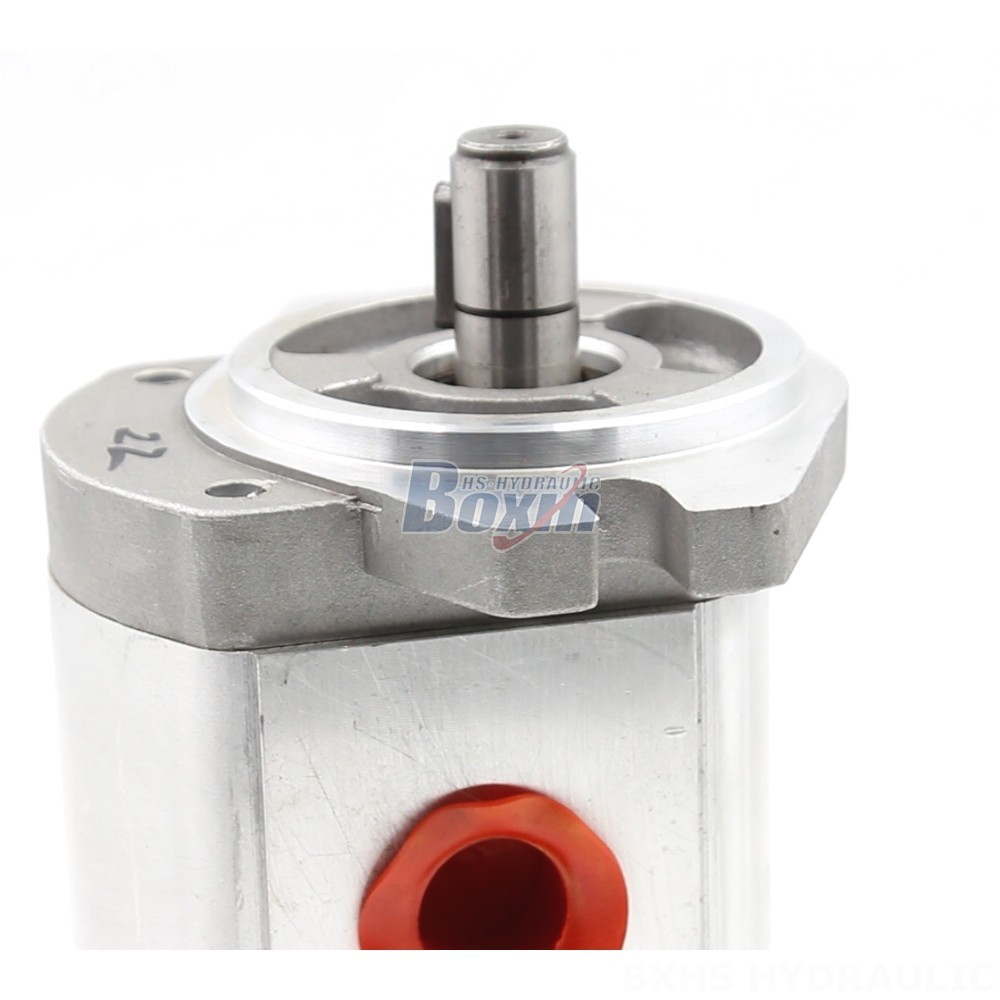

The CBHS-FL304 is a powerful and reliable hydraulic gear pump designed for heavy-duty applications. With a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and maximum speed of 3000 r/min, this pump delivers high flow rates and strong performance. Its internal gear design ensures smooth operation and long service life. The pump is constructed from durable aluminium and features an A-oval flange with a plain key shaft. It is available in both left and right rotation configurations. The CBHS-FL304 is widely used in various applications including construction equipment such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, and front-end loaders. It is also suitable for agriculture equipment like harvesters and balers. As a manufacturer, we offer wholesale, OEM, and customisation services to meet the specific requirements of our customers.
