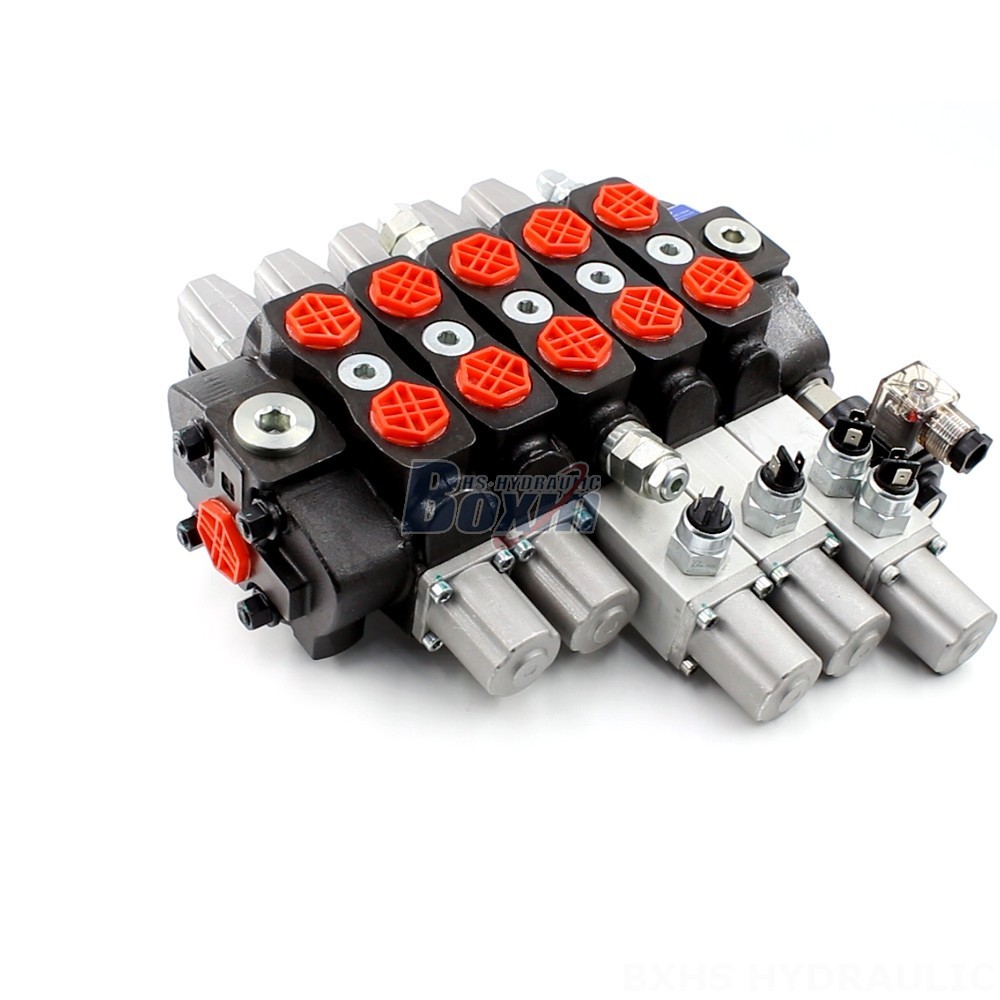

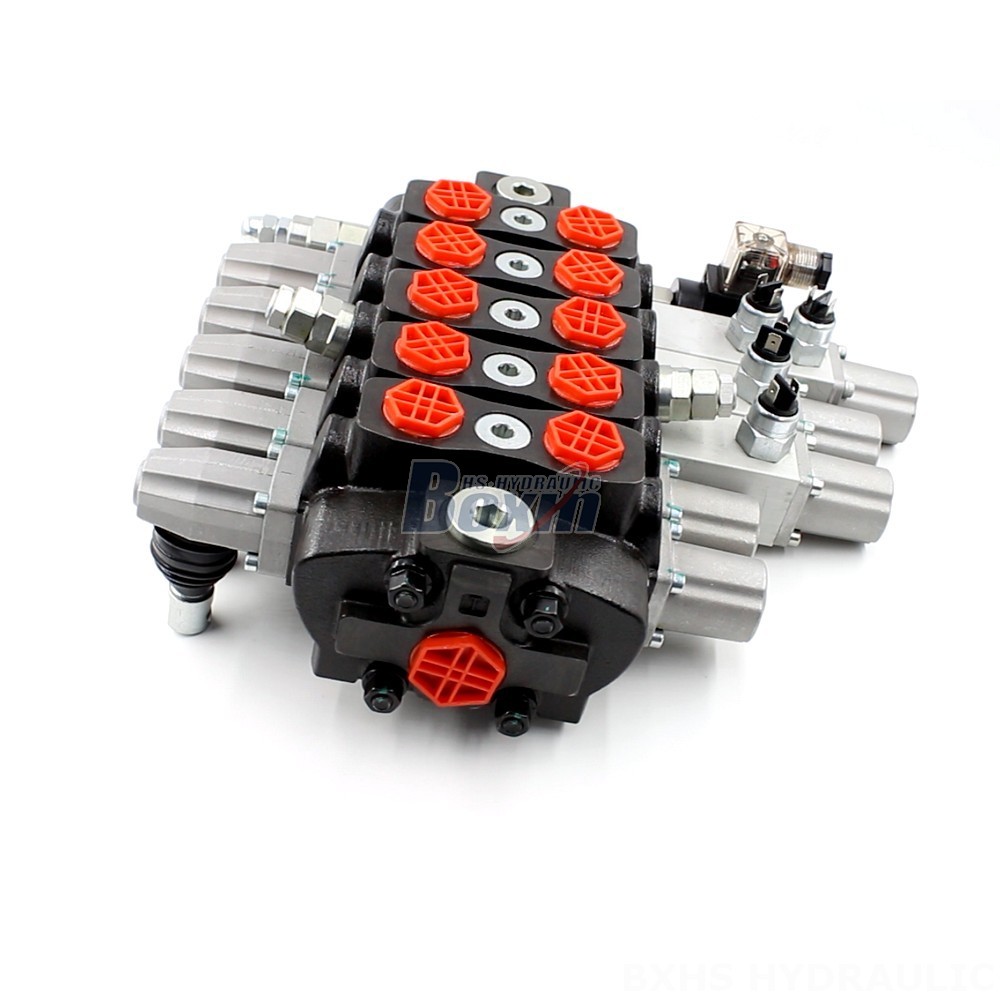

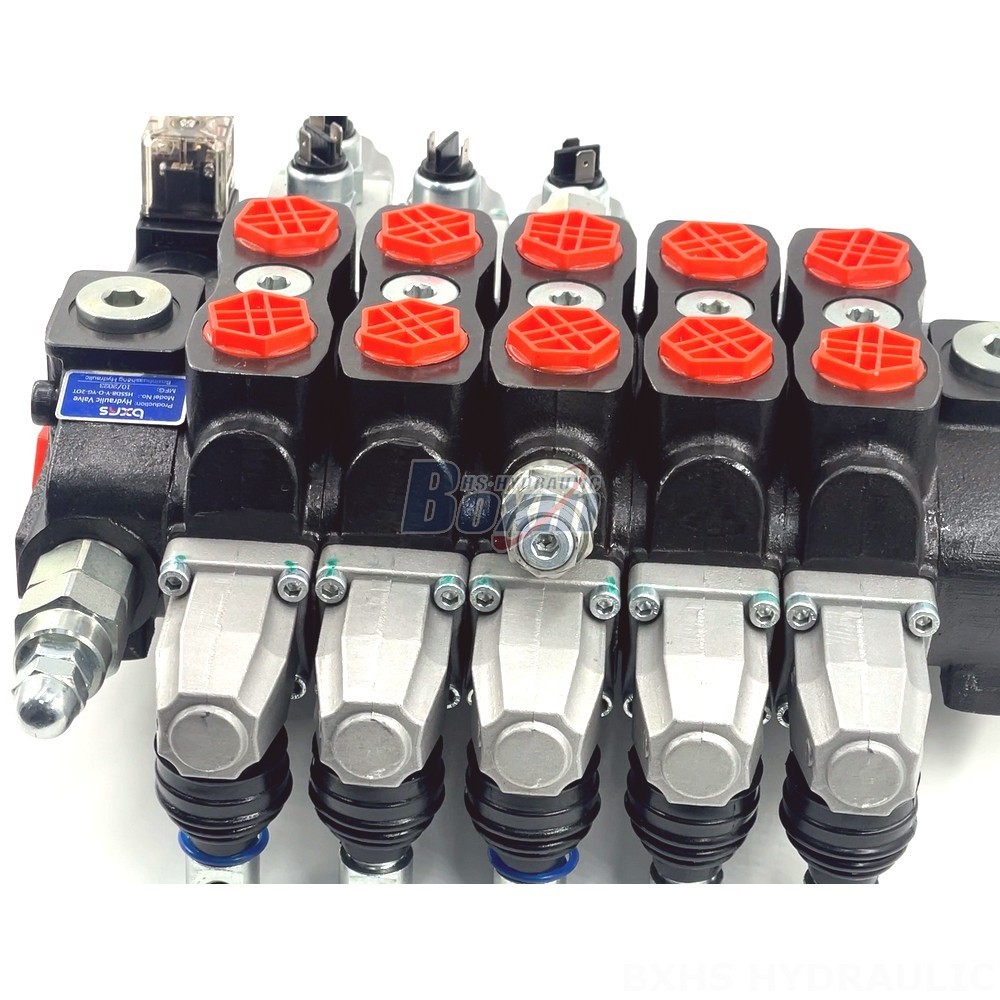

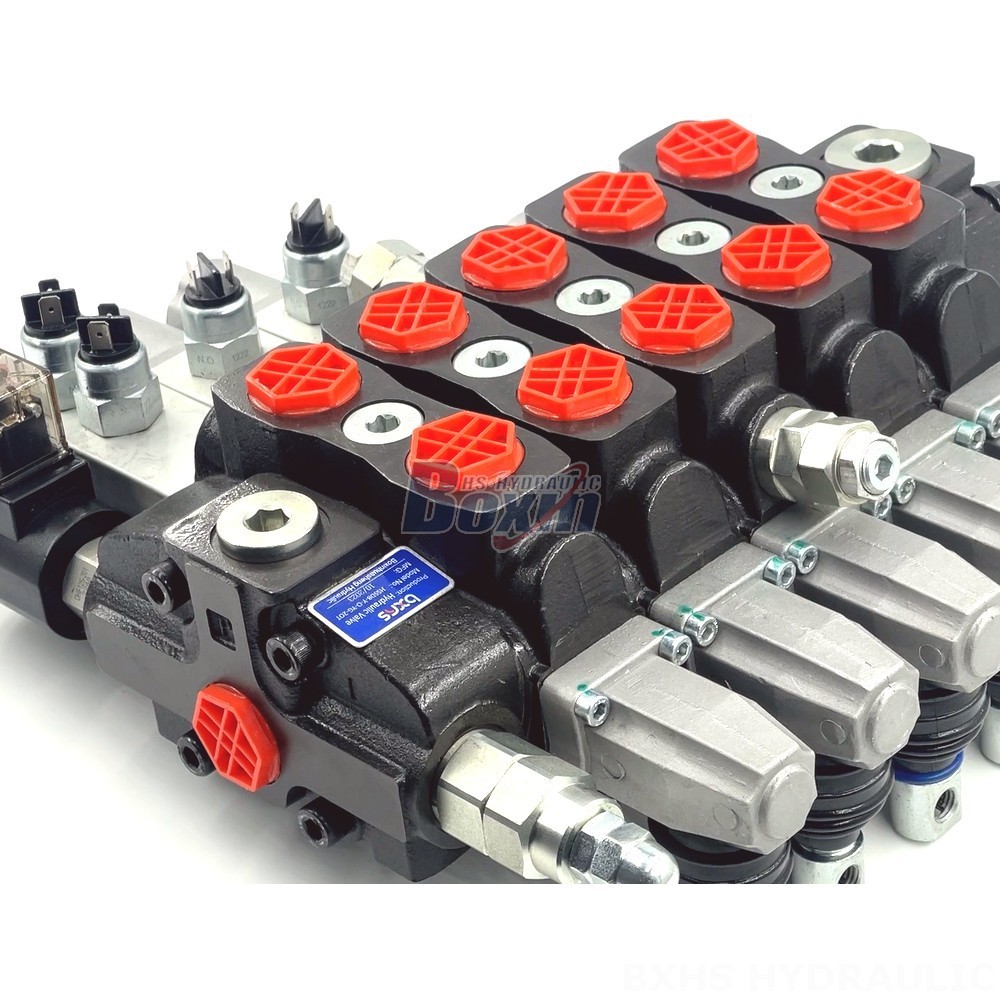

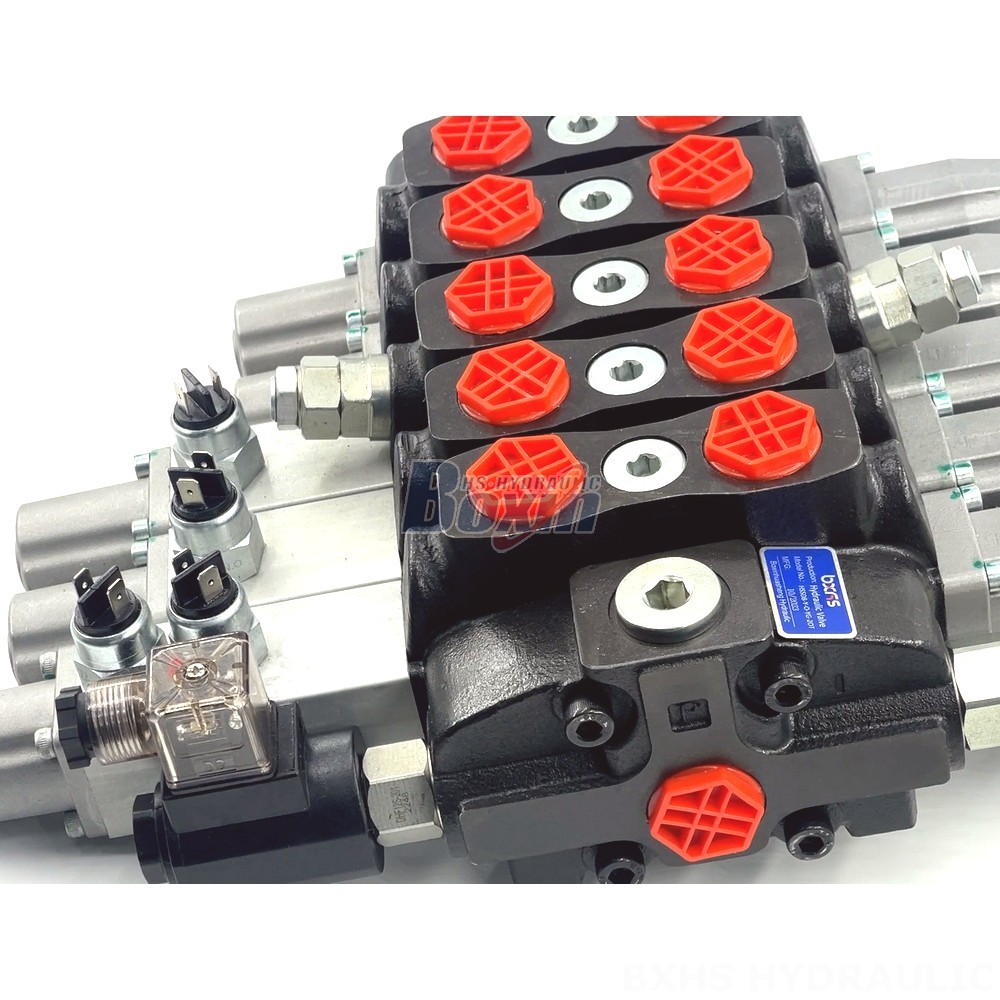

This is a high-performance manual 5 spool sectional directional valve designed for excavators and other heavy equipment. It features a rated flow of 90 L/min and a maximum pressure of 350 bar, making it ideal for demanding applications.
| Série SD8 Válvula direcional seccional Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Motor elétrico |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula seccional |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 90 L/min (23,8 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M22×1.5, SAE 10 |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT |
| Tamanho da Porta | G1/2, M22×1.5, SAE 10 |
Our Excavator Joystick Hydraulic Valve is a high-performance, manually controlled, 5 spool sectional directional valve. It is designed for demanding applications in the construction, material handling, agriculture, and industrial vehicle sectors. This valve offers a rated flow of 90 L/min and a maximum pressure of 350 bar. It is suitable for a wide range of applications, including excavators, forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. The valve features a robust construction and reliable performance, ensuring long-lasting operation. With its 5 spool design, it offers precise control and responsiveness. This valve is an excellent choice for any application requiring high performance and reliable hydraulic control.
