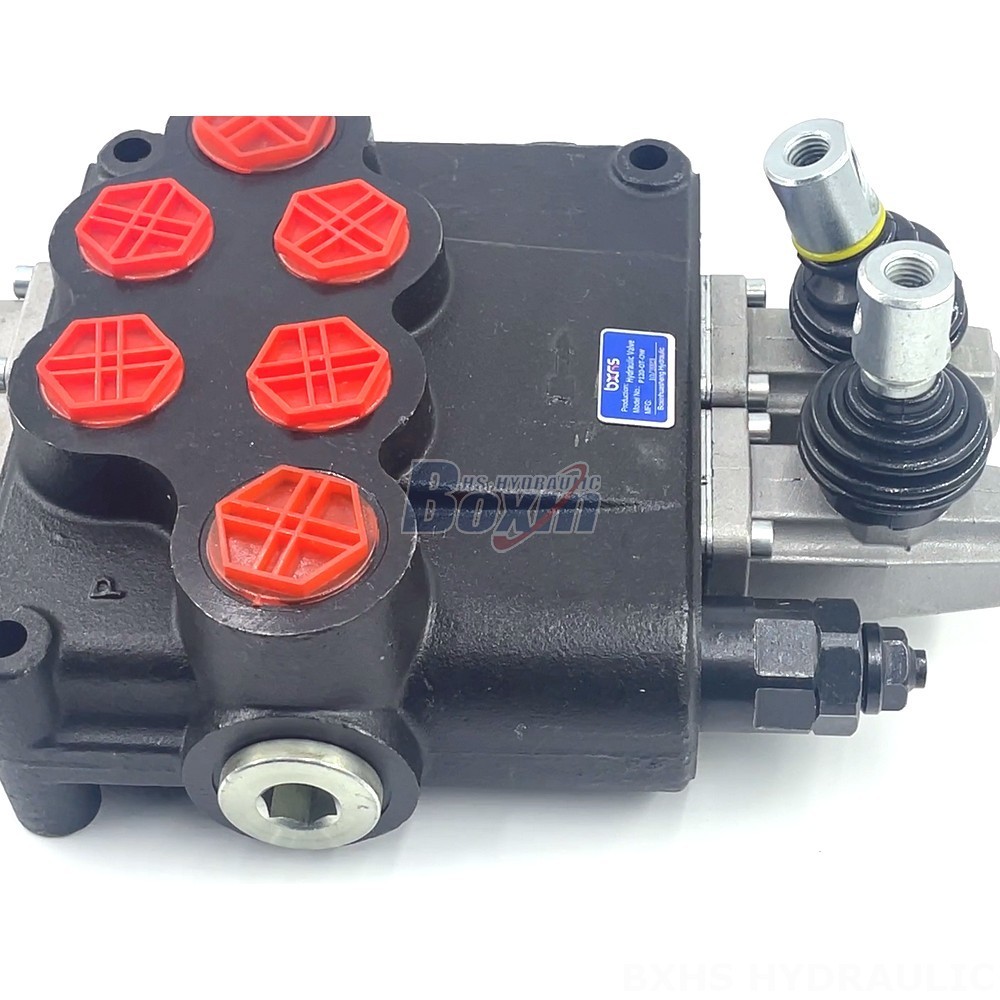

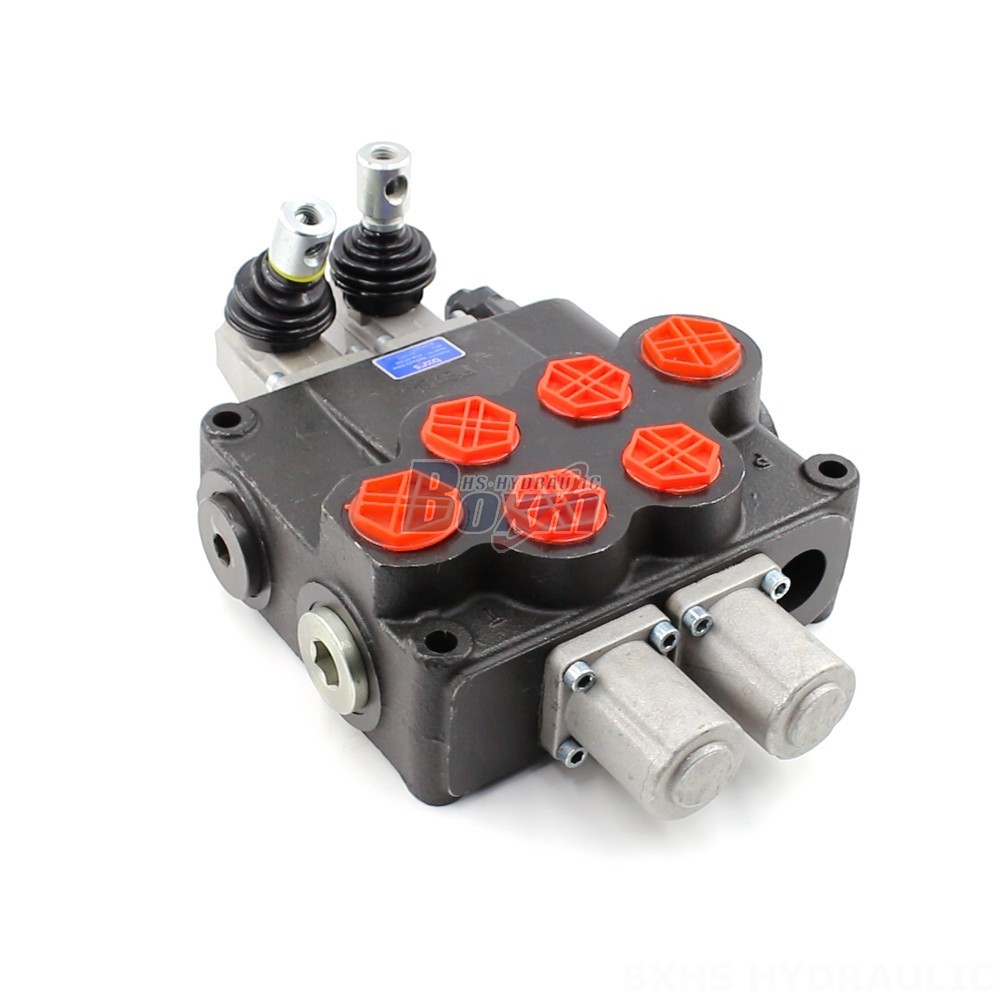

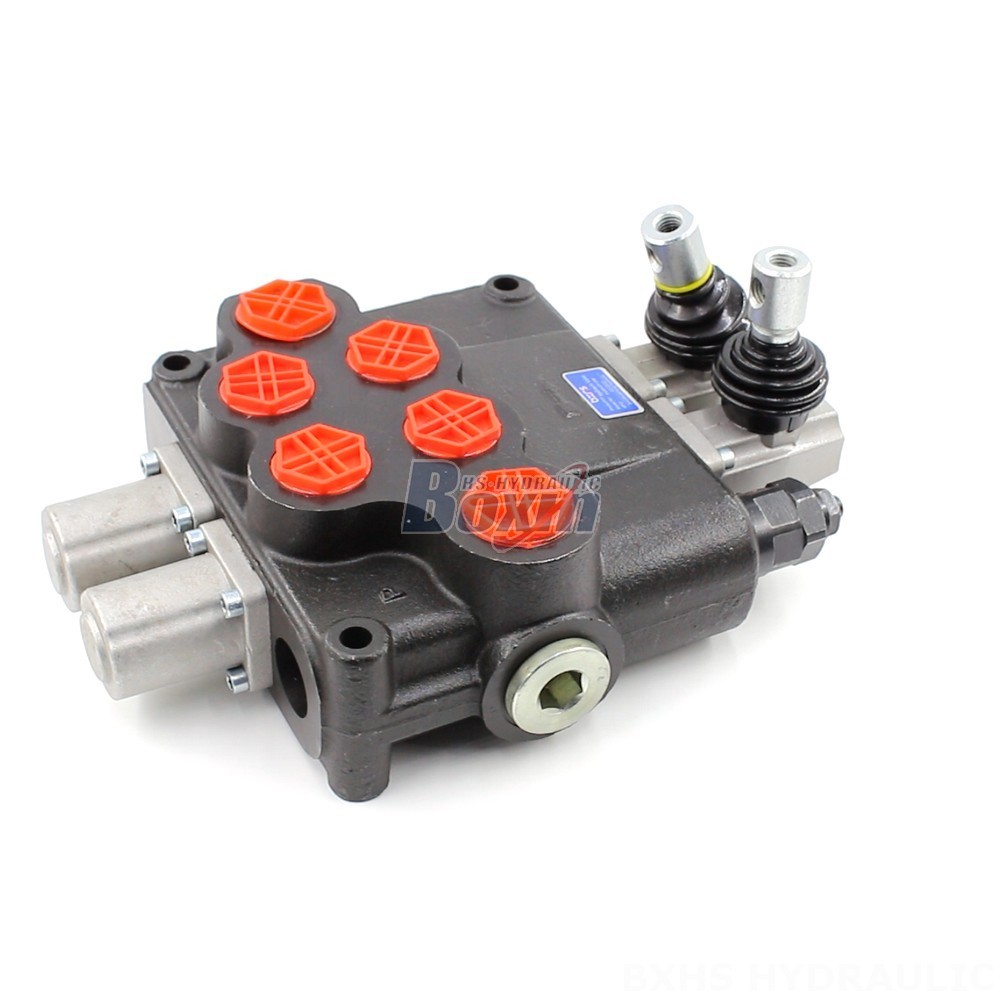

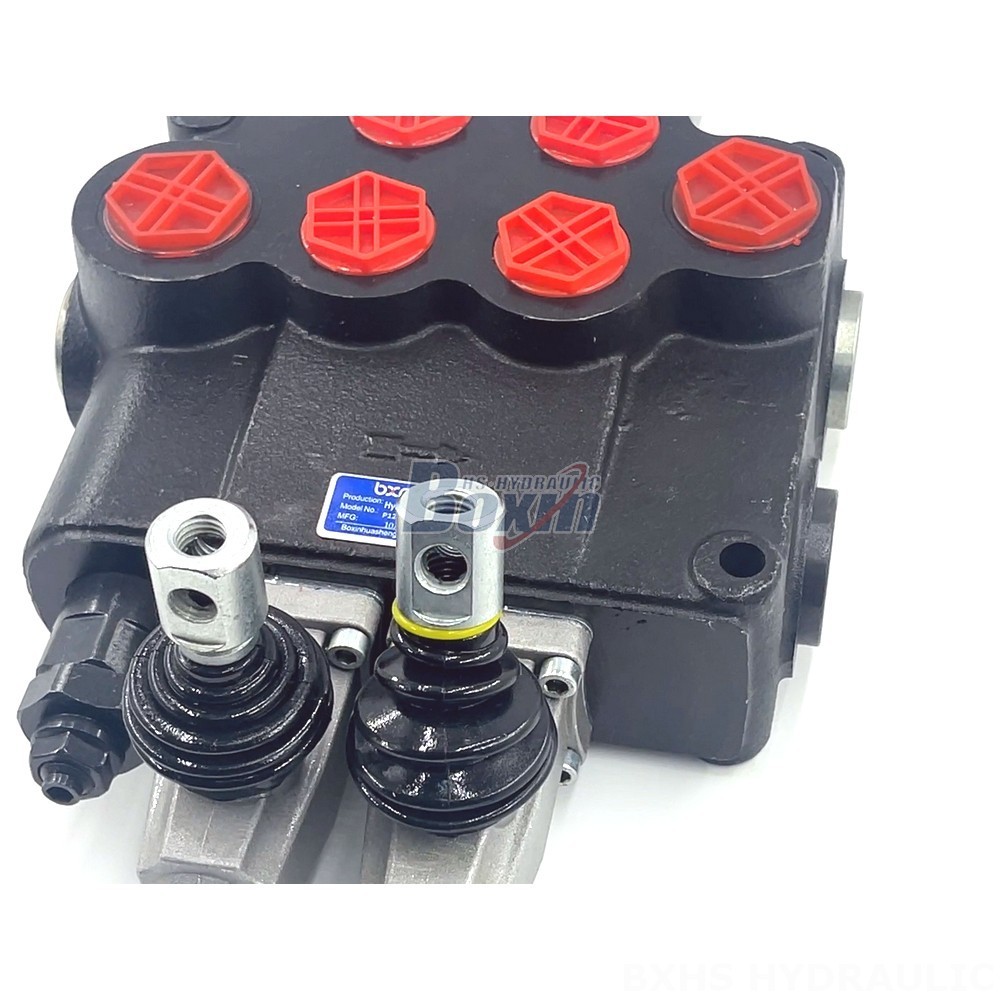

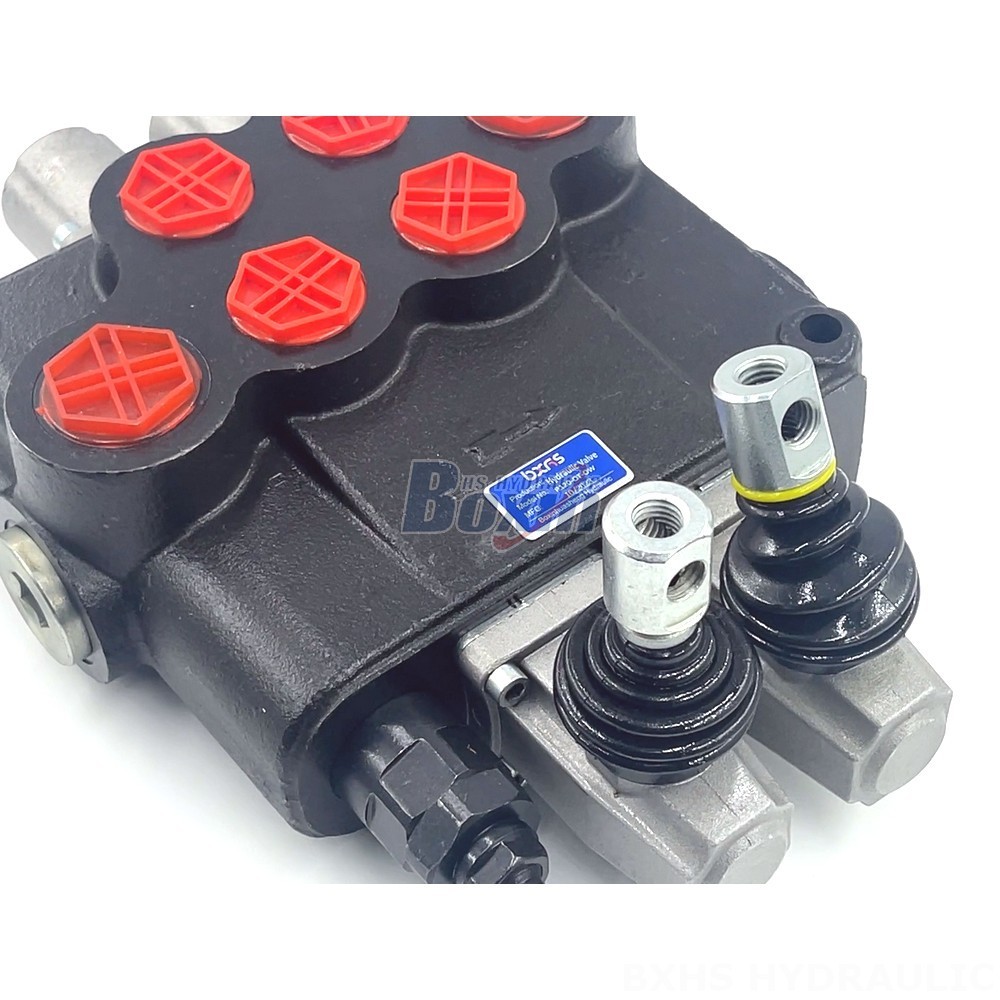

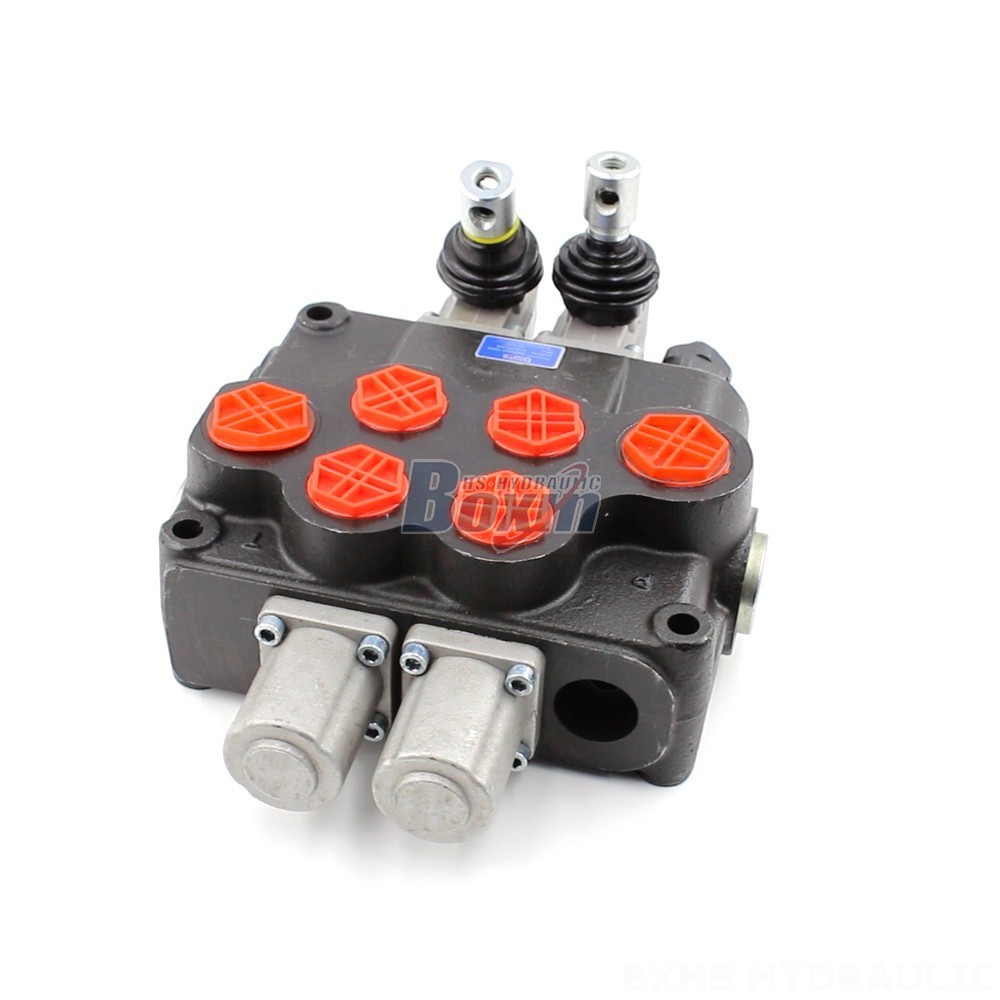

The Rexroth P120 Directional Spool Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This 2-section monoblock valve offers a rated flow of 120 L/min and a maximum pressure of 250 bar.
| Série P120 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis |
| Fluxo Nominal | 120 L/min (31.7 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Porta de Saída | G1, SAE 16, 1 NPT, M36×2 |
| Tamanho da Porta | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções |
| Tipo de estrutura | Válvula monobloco |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The Rexroth P120 Directional Spool Valve is a robust and reliable hydraulic valve ideal for a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This high-performance valve features a manual control method, a 2-section design, and a monoblock structure for increased durability. With a rated flow of 120 L/min and a maximum pressure of 250 bar, the P120 valve is designed to handle demanding hydraulic applications. The valve also features a wide operating viscosity range (15-75 mm²/s) and an ambient temperature range of -40°C to +80°C, making it suitable for use in a variety of climates and environments.
