High-Performance P81 Valve for Demanding Hydraulic Applications

Método de Controle:Manual

Carrétel:1 Carretel

Fluxo Nominal:80 L/min (21,2 US gpm)

Pressão Máxima:Pressão máxima

Porta de Entrada:G1/2

Porta de Saída:G3/4

Tamanho da Porta:G3/4

Marca:BXHS

Tipo de produto:Válvula para Rachador de Lenha

Série de produtos:Série P81 Válvula para Rachador de Lenha

Tamanho da embalagem:27*16*12

Peso bruto:4.80 kg

Disponibilidade: Em estoque

1677 Visualizações estão procurando por este produto

High-Performance P81 Valve for Demanding Hydraulic Applications

High-Performance P81 Valve for Demanding Hydraulic Applications

High-Performance P81 Valve for Demanding Hydraulic Applications drawing image

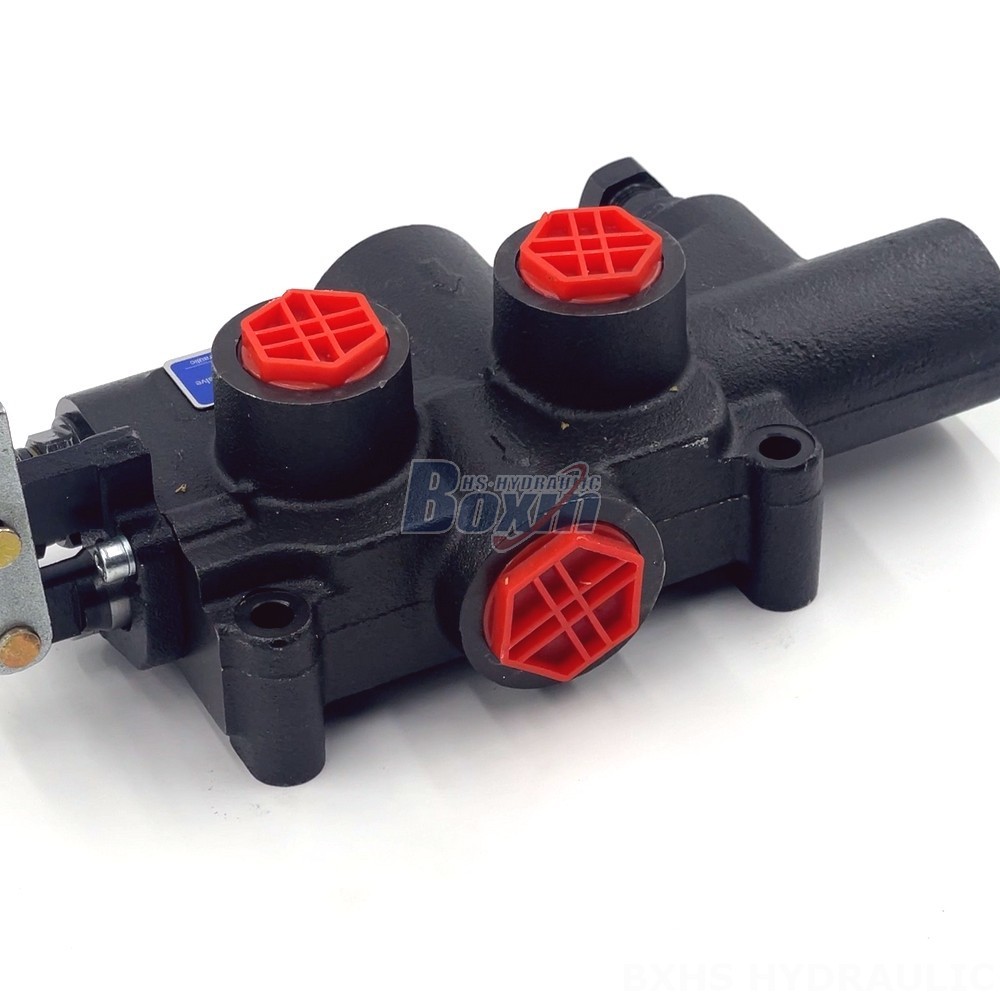

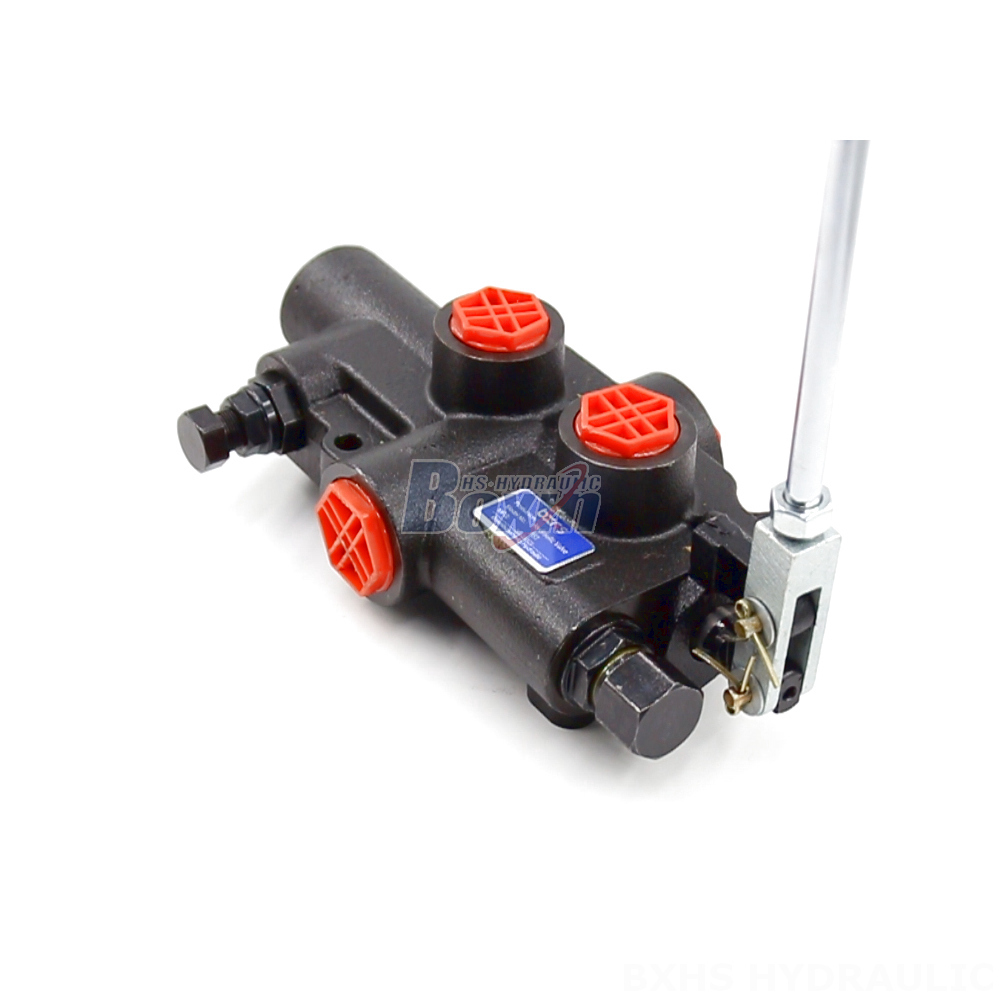

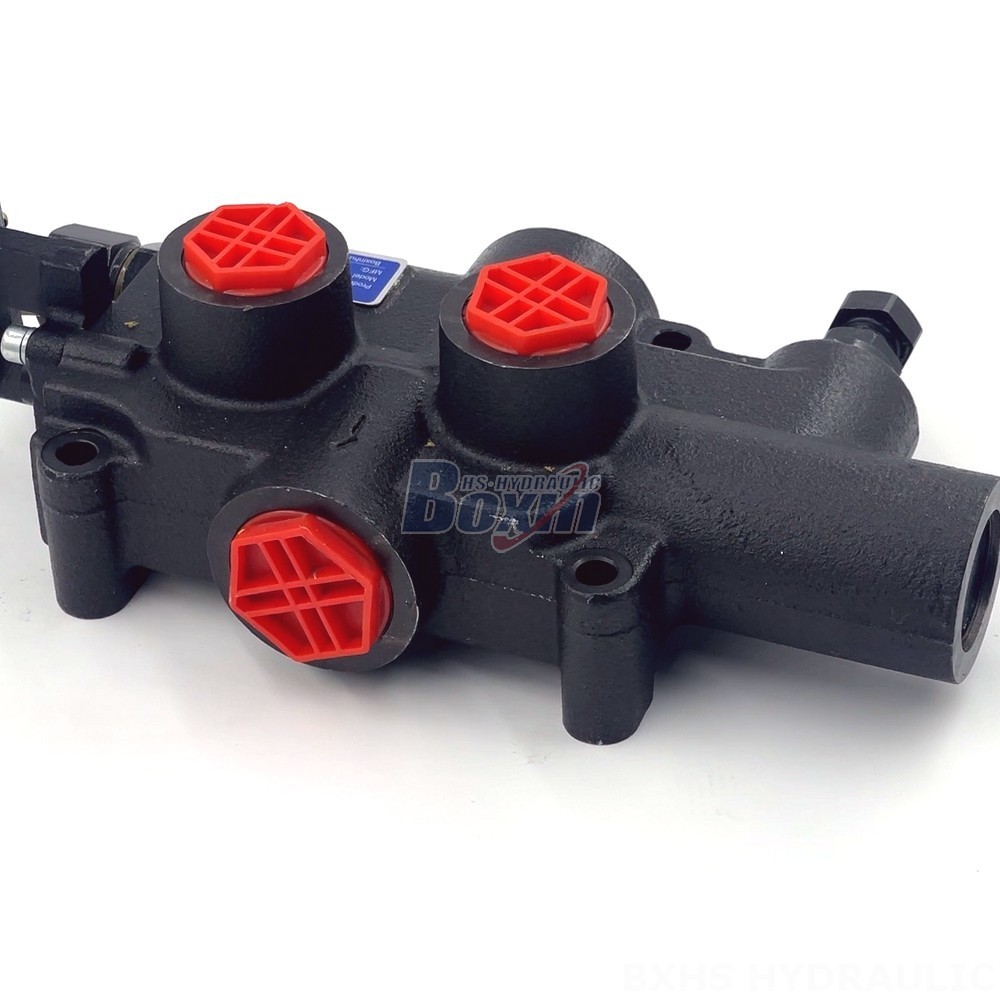

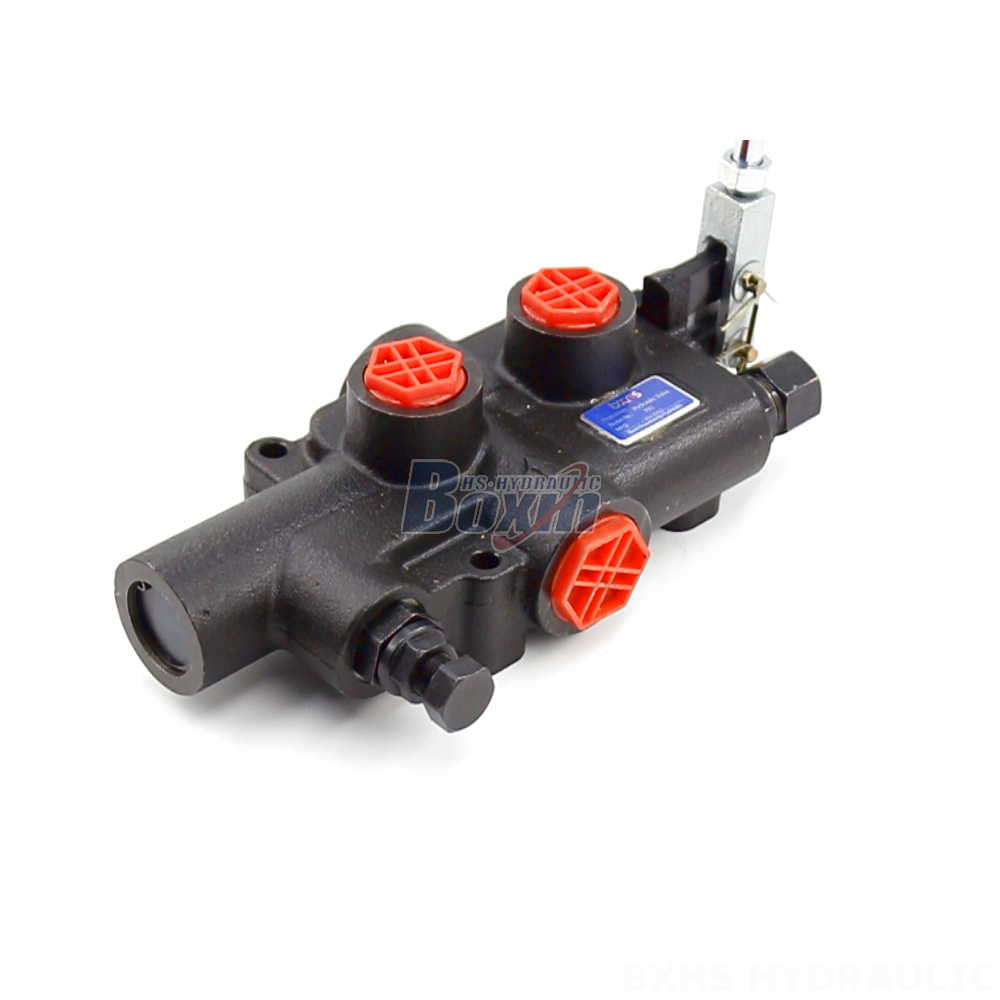

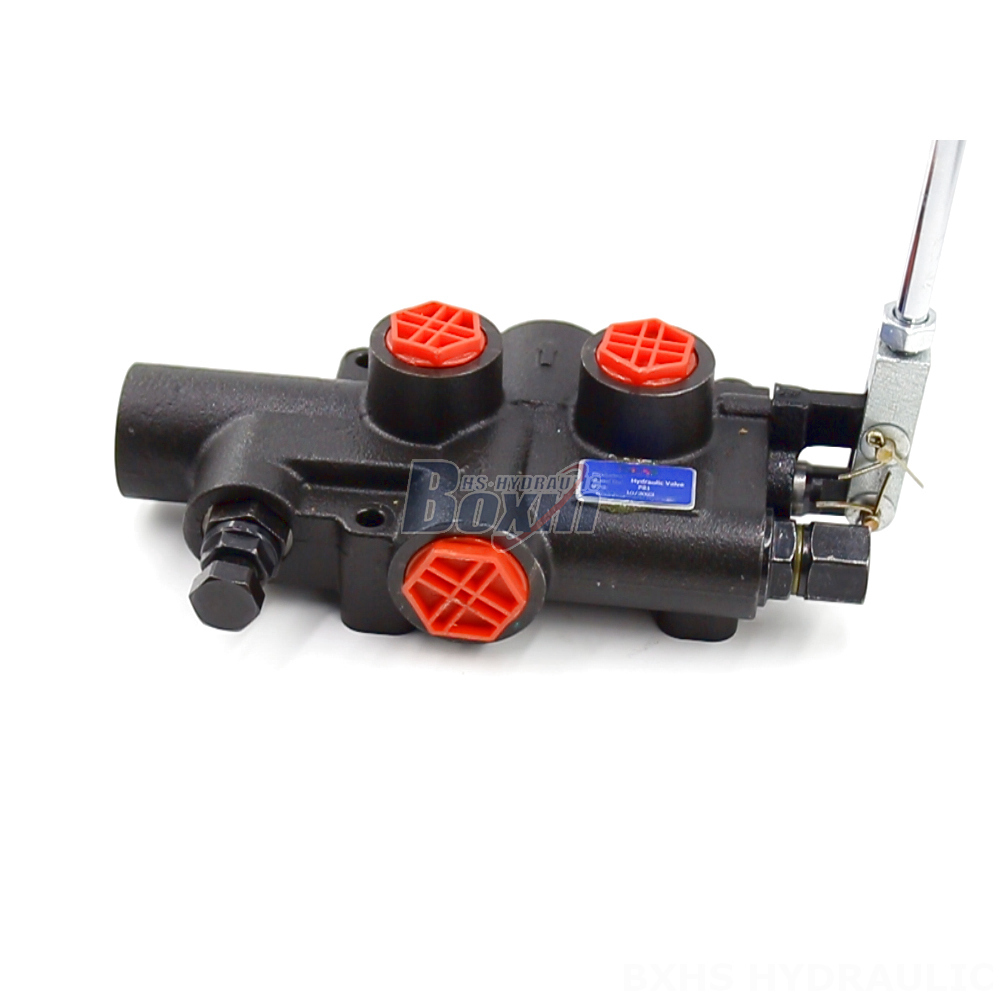

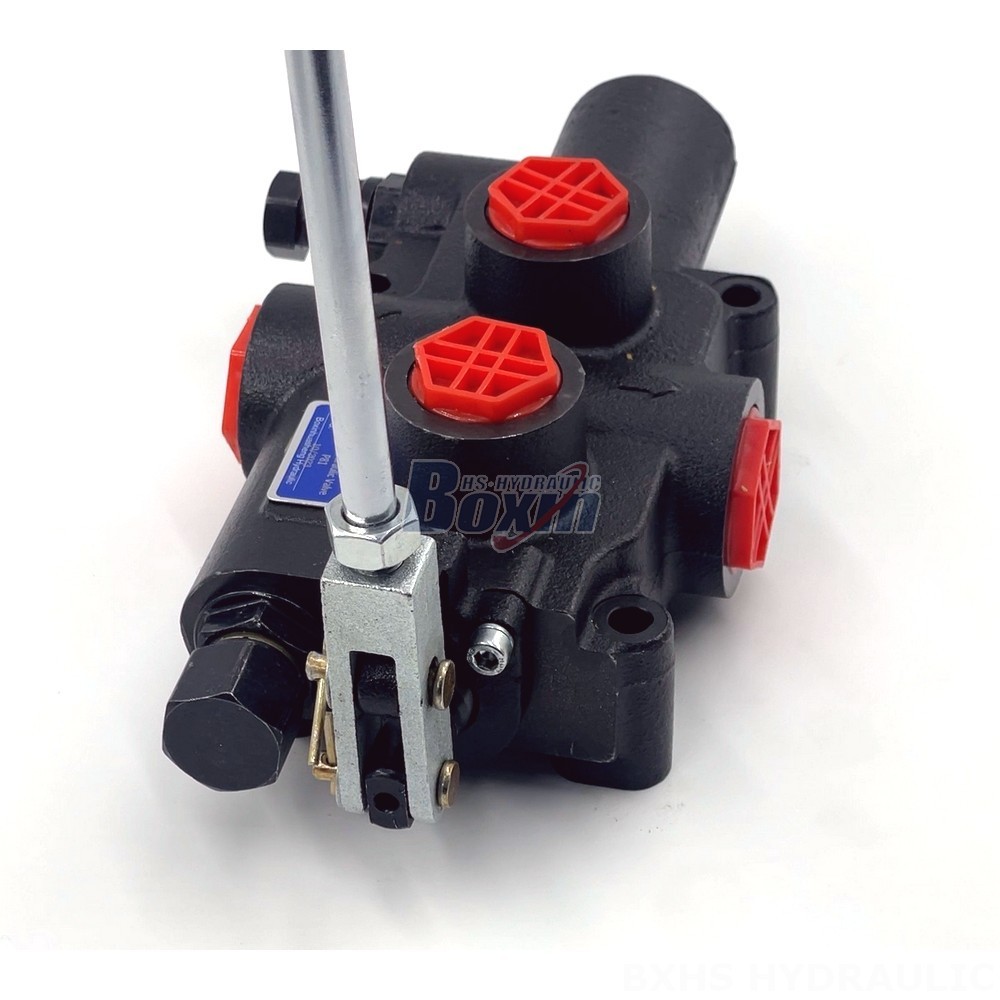

The P81 Series Multiway Directional Valve is a high-performance hydraulic valve designed for demanding applications in industrial vehicles, particularly wood splitters. This manual control valve features a monoblock structure and delivers a rated flow of 80 L/min (21.2 US gpm) at a maximum pressure of 250 bar (3600 psi).

Série P81 Válvula para Rachador de Lenha Parâmetros
Método de Controle Manual
Carrétel 1 Carretel
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 80 L/min (21,2 US gpm), 95 L/min (25,1 US gpm)
Pressão Máxima Pressão máxima
Porta de Entrada G1/2
Porta de Saída G1/2
Tamanho da Porta G3/4

The P81 Series Multiway Directional Valve is a robust and reliable solution for controlling hydraulic systems in demanding industrial applications. This high-performance valve is specifically designed for wood splitters, offering superior control and efficiency. Its monoblock construction provides durability and strength, ensuring long-lasting performance. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), the P81 valve is capable of handling high-pressure hydraulic systems. The valve operates within a wide viscosity range (15 - 75 mm²/s) and can withstand temperatures from -40°C to +80°C. Its kick-out setting pressure is adjustable between 70~140bar (1015-2030psi), providing precise control and safety. The P81 Series Multiway Directional Valve is an ideal choice for manufacturers and users of industrial vehicles and equipment requiring a high-performance, reliable, and durable hydraulic valve solution.
