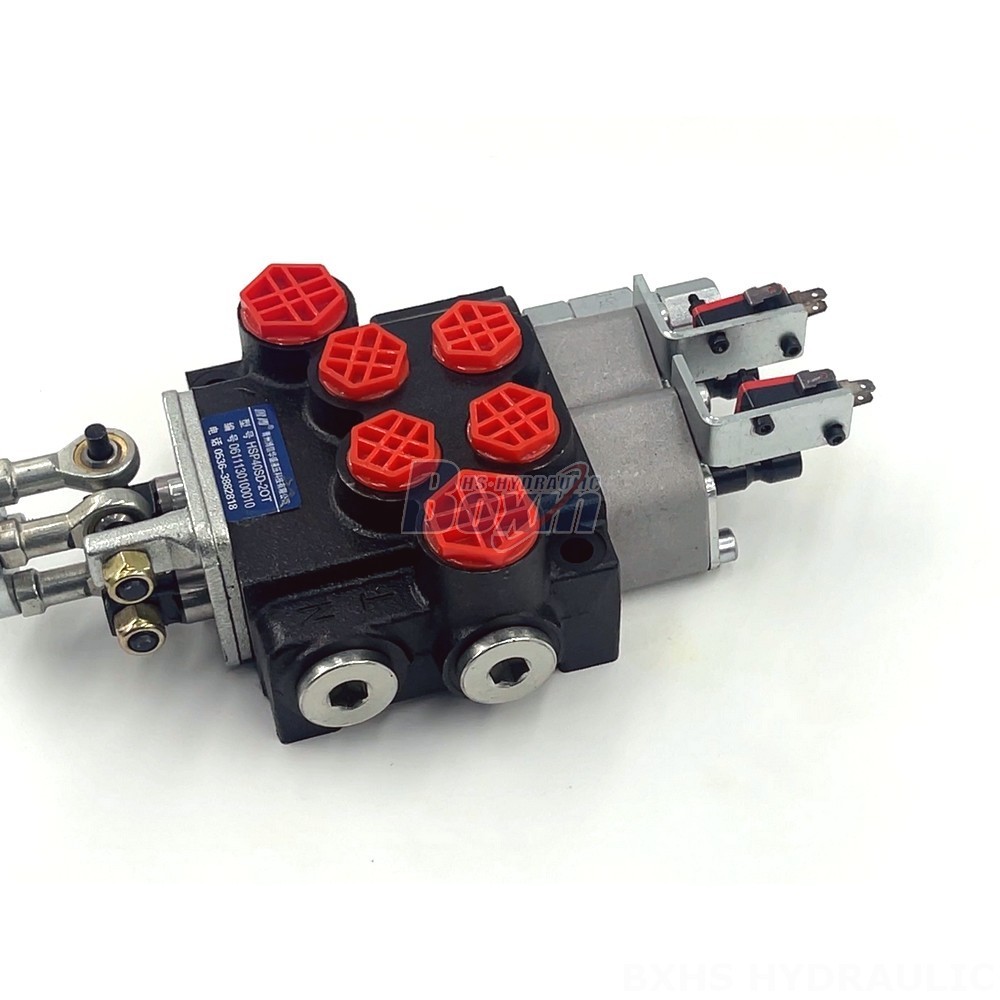

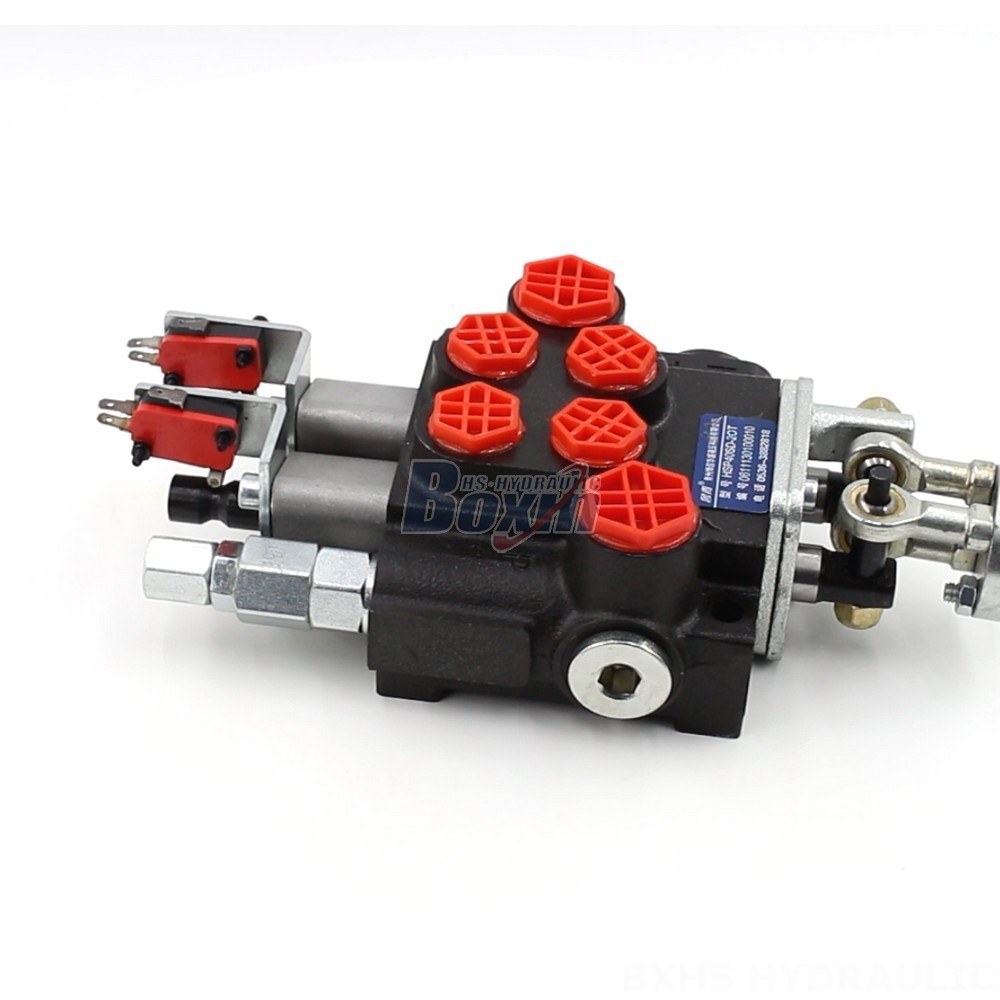

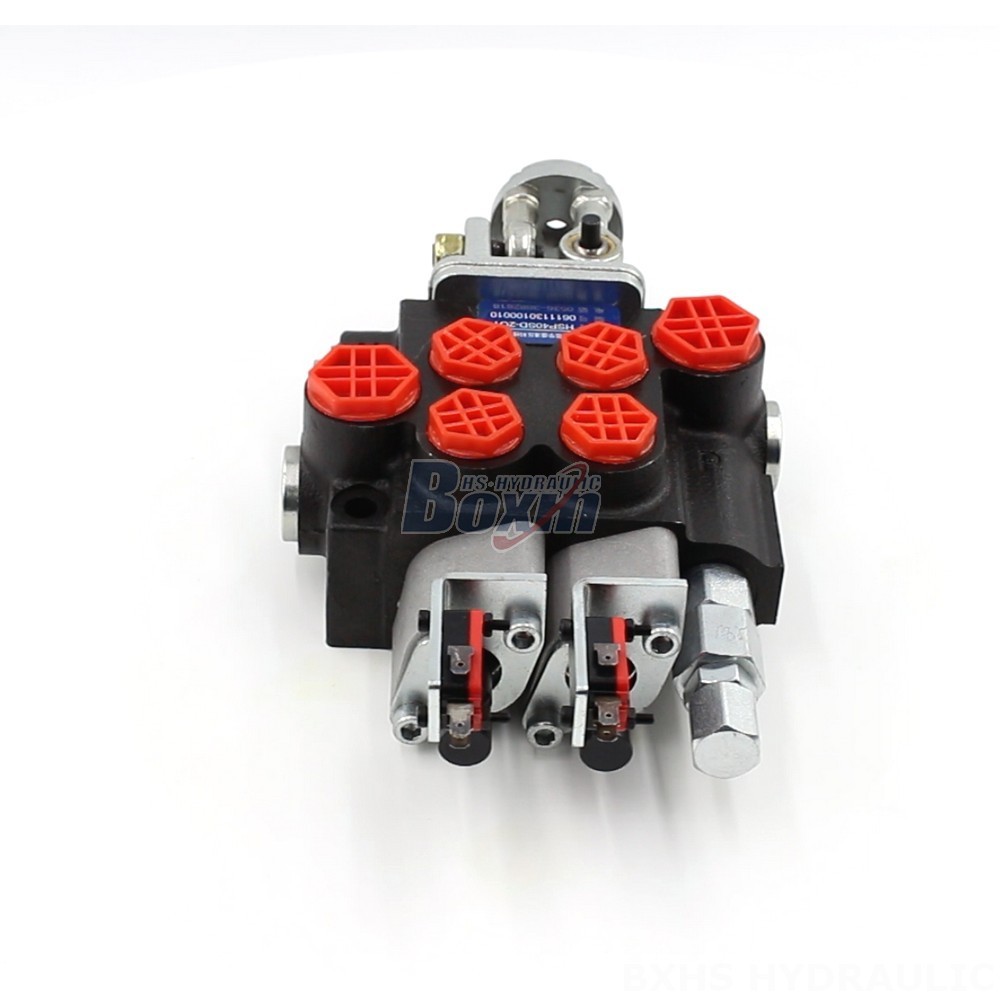

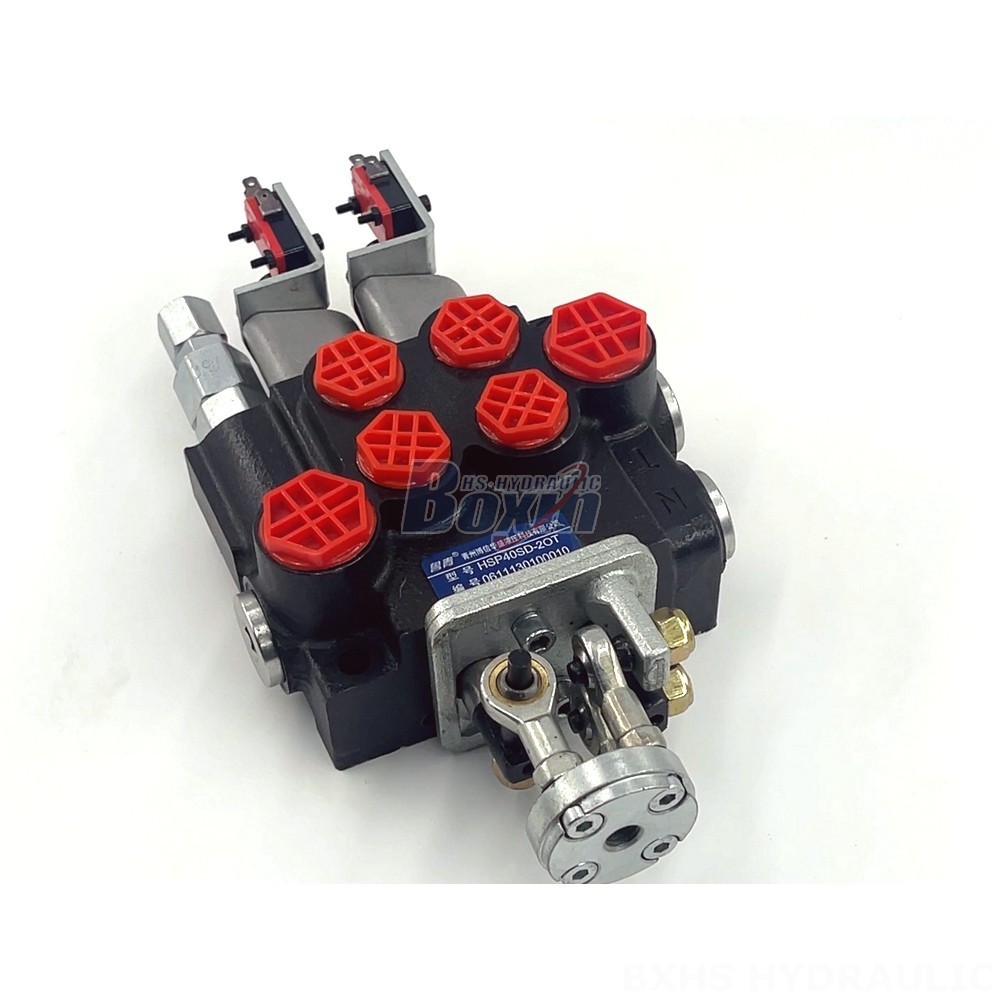

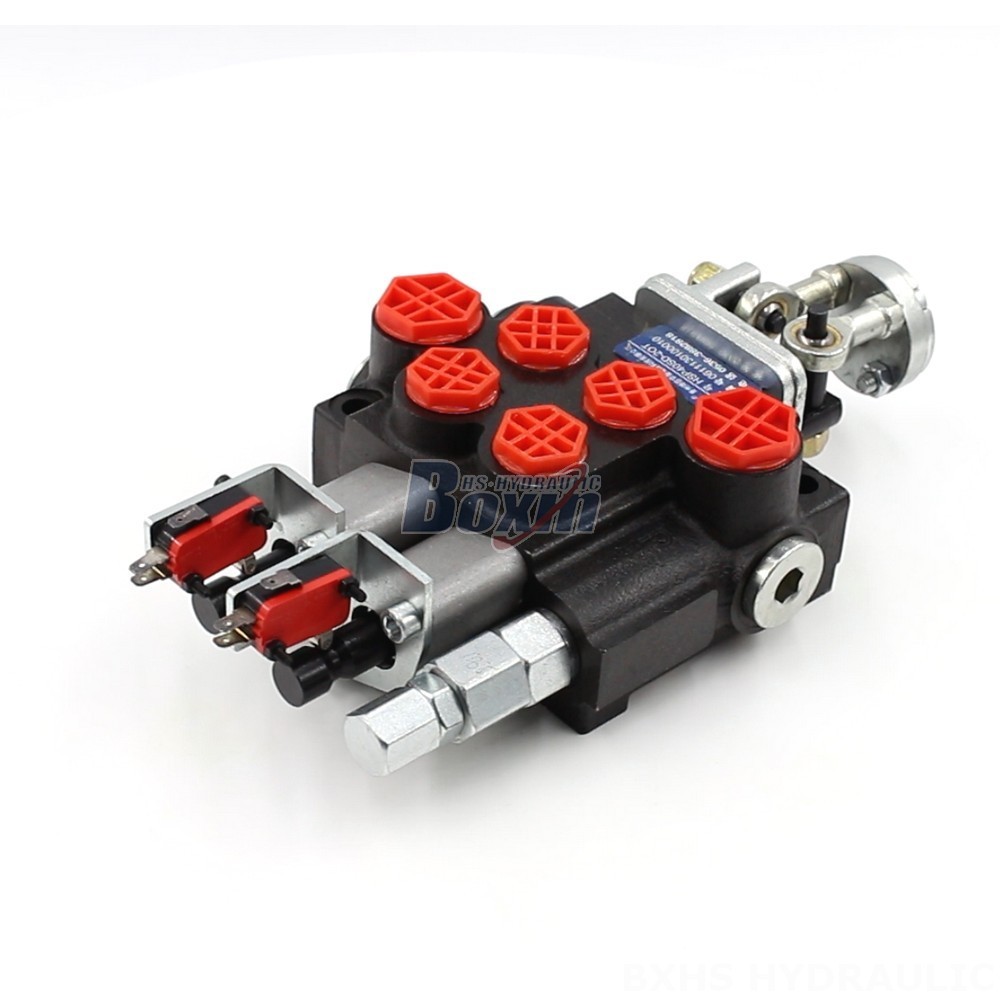

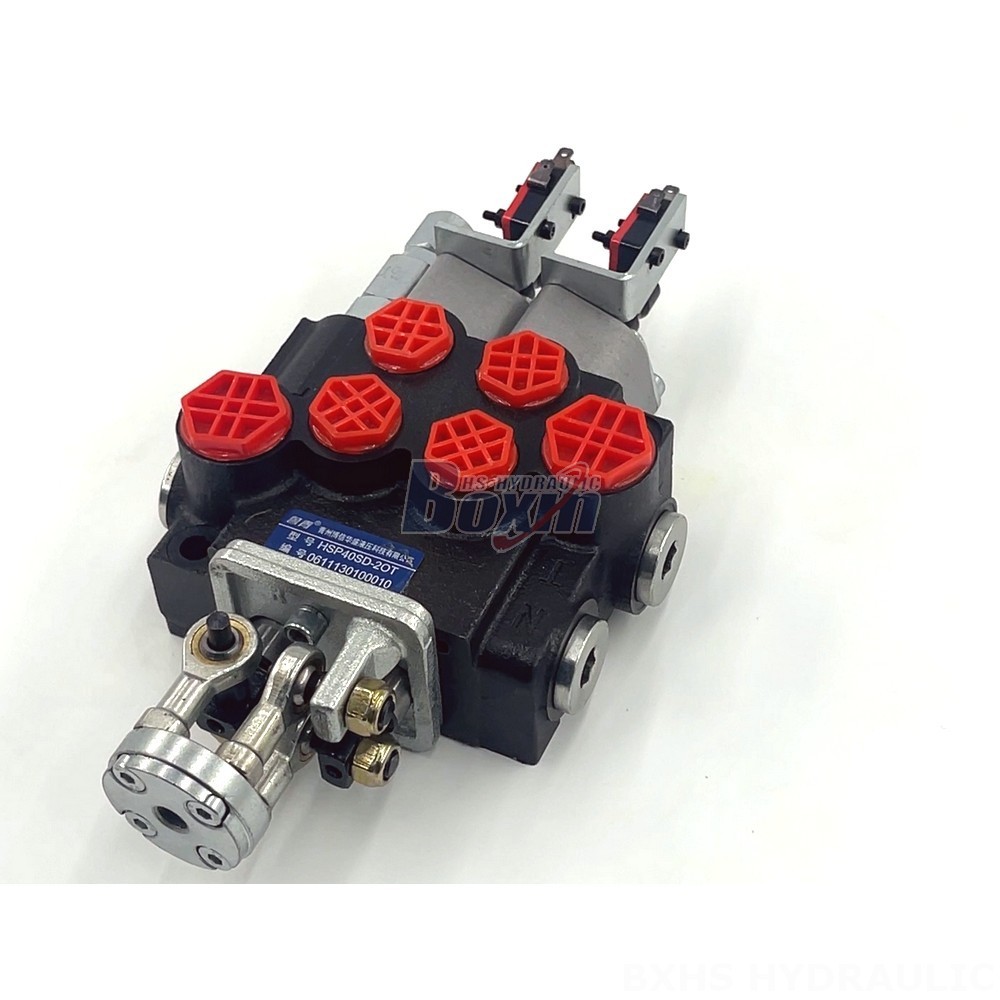

The P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve offers unmatched accuracy and control for demanding hydraulic applications. Its innovative joystick design provides precise and intuitive operation, while the 2-spool monoblock construction ensures reliability and durability. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for a wide range of applications in material handling, construction, agriculture, and industrial vehicles.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve**
**Key Features:**
* Joystick control for precise and intuitive operation
* 2-spool monoblock construction for reliability and durability
* Rated flow of 40 L/min for efficient performance
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for versatility
* Ambient temperature range of -40°C to +80°C for extreme environments
**Applications:**
* Material handling: telehandlers, forklifts
* Construction and earth moving: mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders
* Agriculture: harvesters, backhoes, sprayers, balers
* Industrial vehicles: forklifts, mobile cranes
The P40 Micro Switch Joystick 2 Spool Monoblock Directional Valve is the ideal choice for applications requiring high-precision control and reliability. Its innovative design and robust construction make it a trusted choice for professionals in a wide range of industries.
