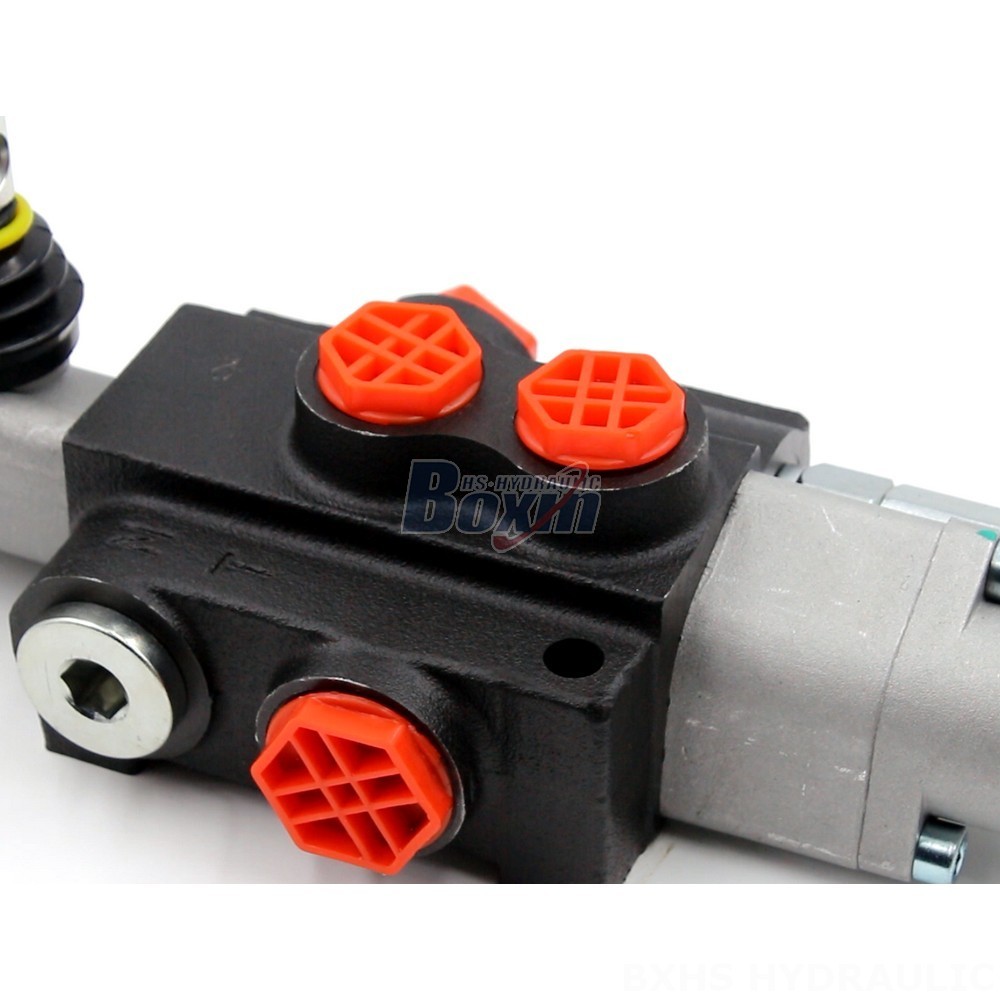

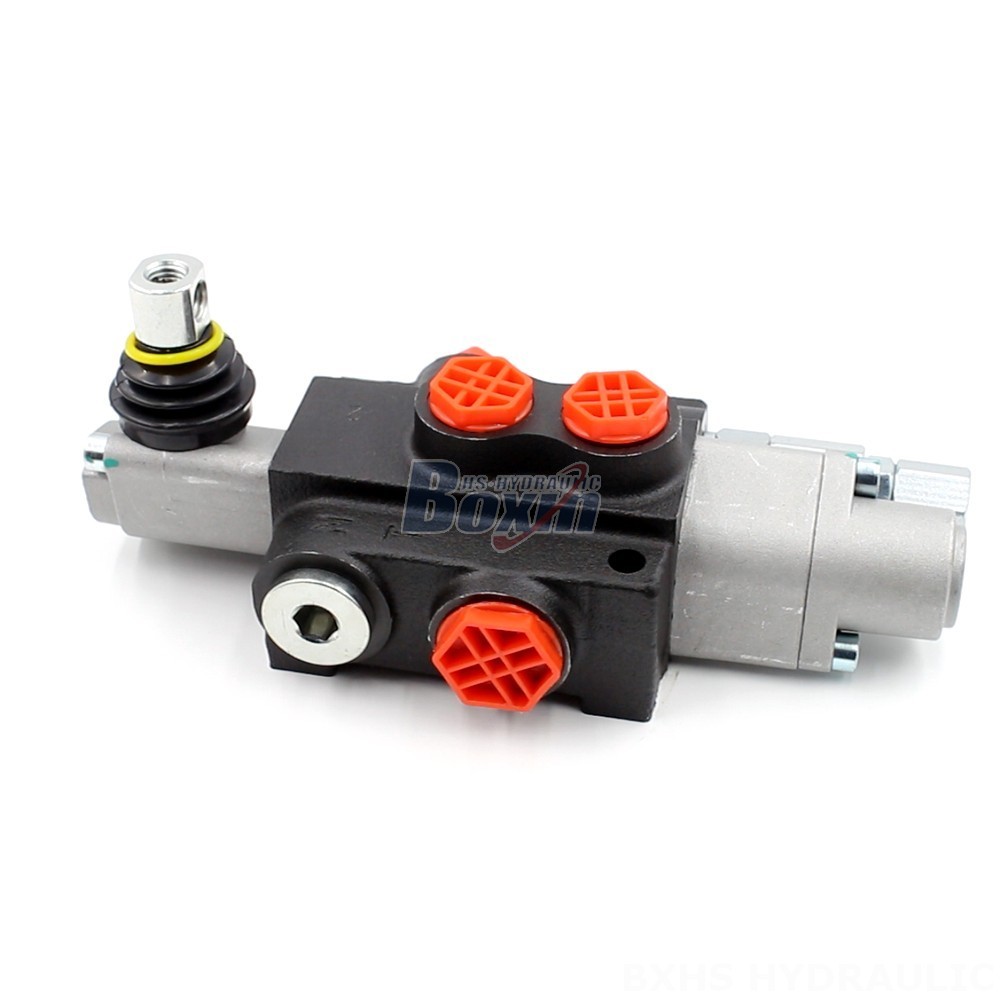

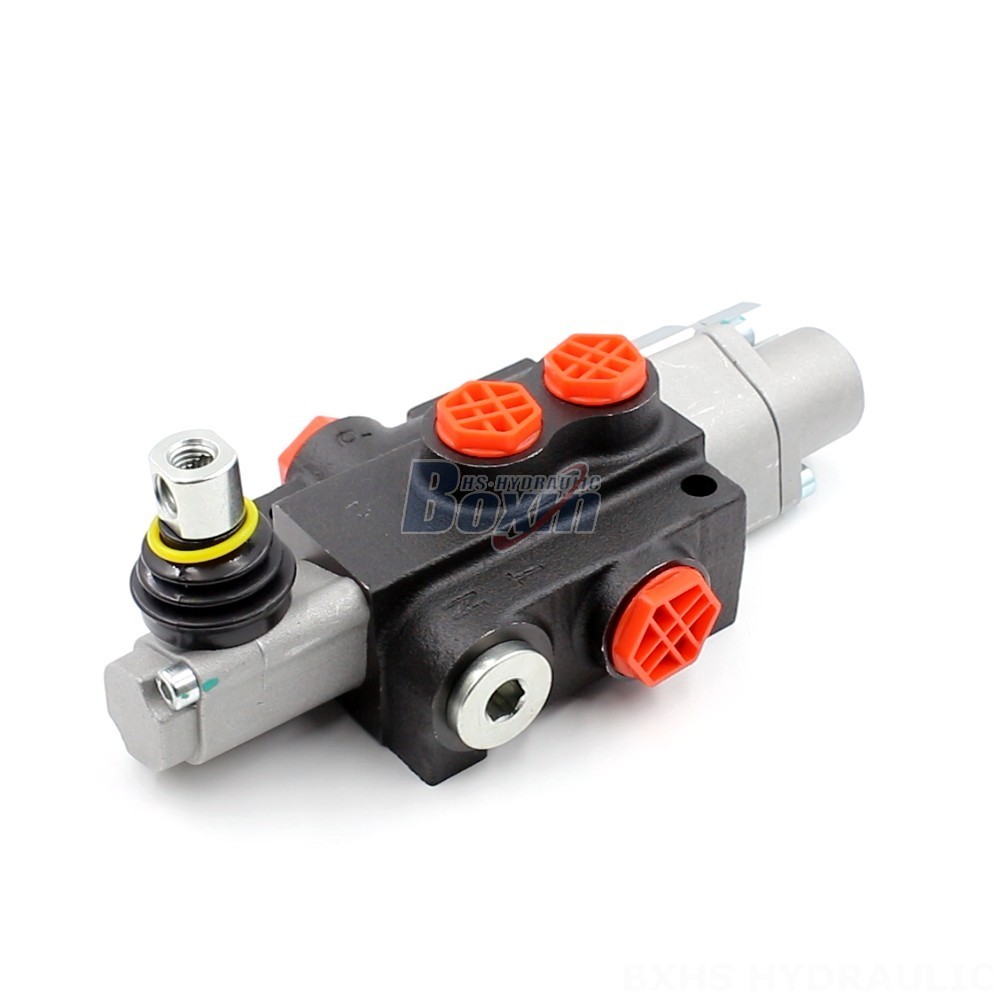

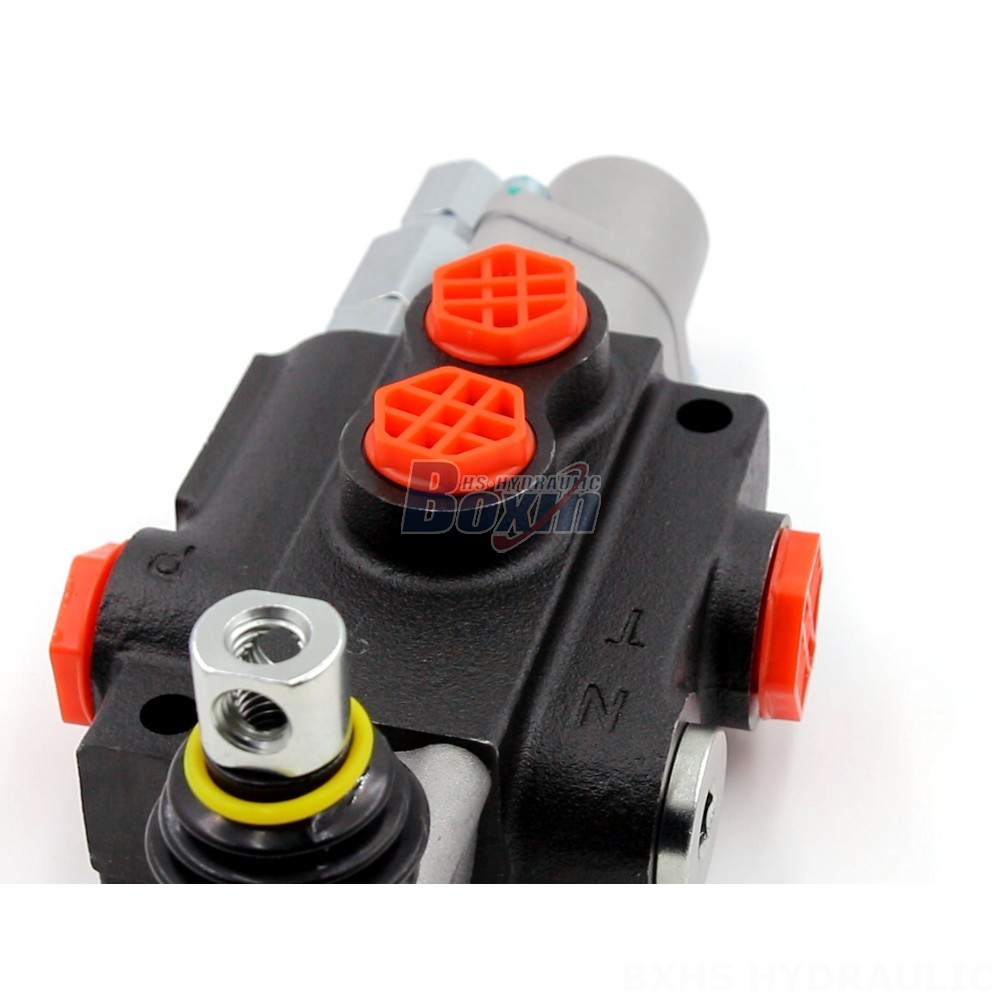

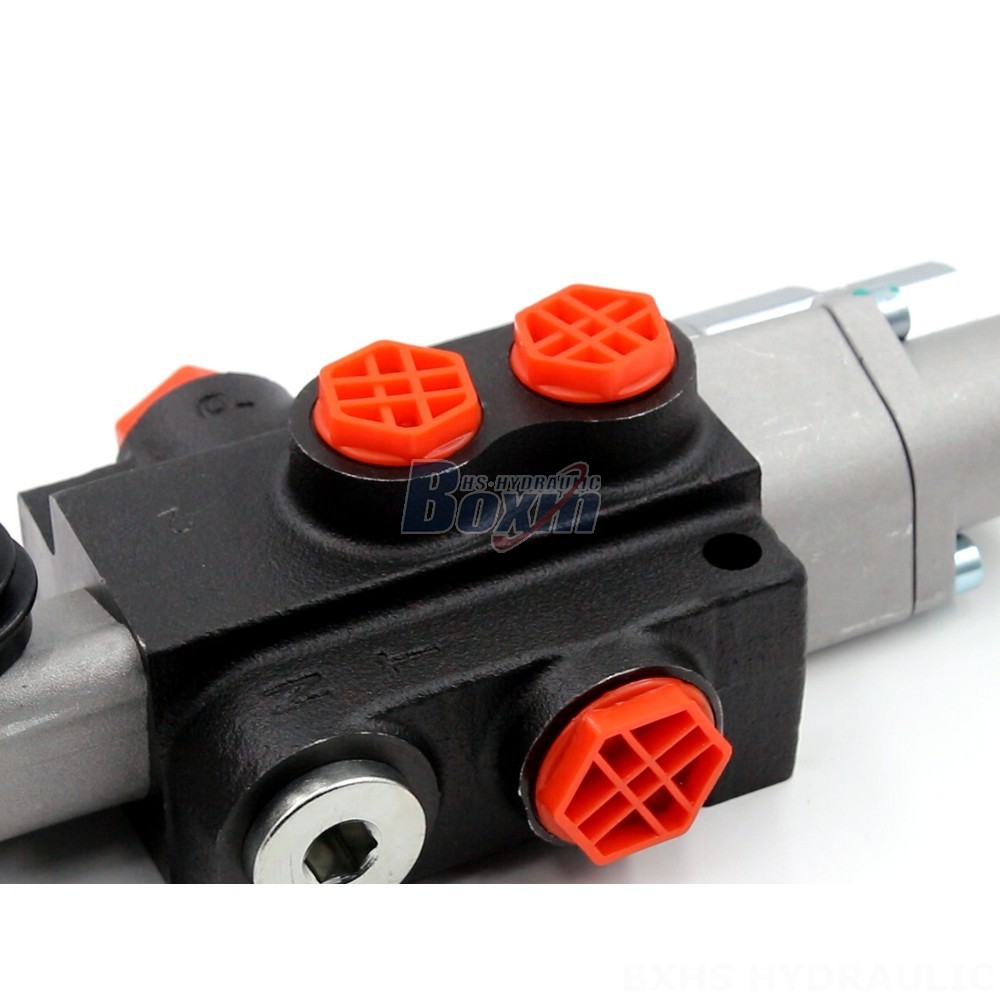

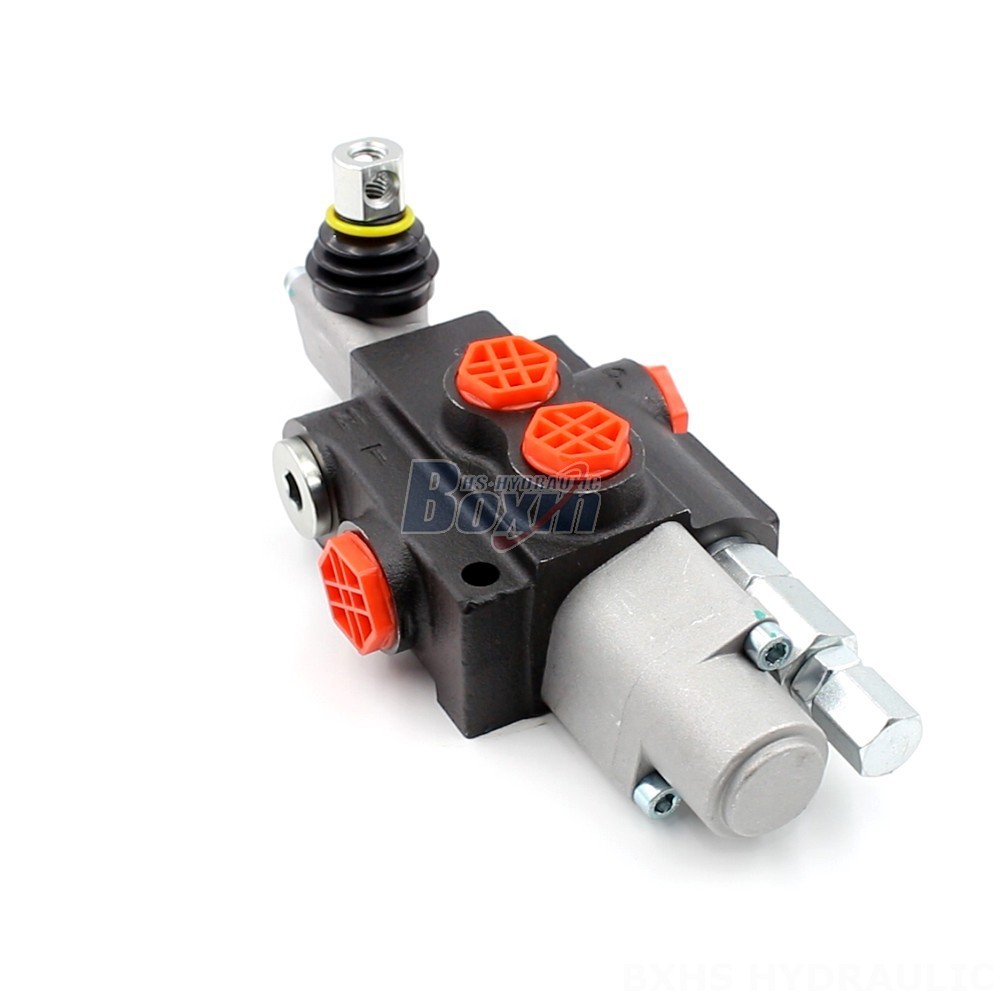

The P40 Series Auxiliary Valve is a high-performance hydraulic valve designed for directional control in tractors and other heavy-duty applications. This manual, monoblock valve features a rated flow of 40 L/min, a maximum pressure of 250 bar, and a wide operating temperature range. It is ideal for use in material handling, construction, agriculture, and industrial vehicles.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Auxiliary Valve is a robust and reliable hydraulic valve designed for directional control in various applications, including tractors, telehandlers, forklifts, all-terrain cranes, stackers, and aerial platforms. It features a manual control method, a monoblock valve structure, and a single spool. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve offers excellent performance in demanding environments. The operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures reliable operation across a wide range of hydraulic fluids. The P40 Series is designed for a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F), making it suitable for use in diverse climates. We offer wholesale and OEM options to meet your specific needs. Contact us for more information.
